ALH36913120VHF/ FM Handheld Transceiver

KENWOOD CORPORATION TK-2200 FCC ID:ALH36913120 TK-3200 FCC ID:ALH36923130 INSTRUCTION MANUAL TK-2200/TK-3200 THANK YOU! We are grateful you chose KENWOOD for your land mobile radio applications. We believe this easy-to-use transceiver will provide dependable communications to keep personnel operating at peak efficiency. KENWOOD transceivers incorporate the latest in advanced technology. As a result, we feel strongly that you will be pleased with the quality and features of this product. NOTICES TO THE USER WARNING: ** GOVERNMENT LAW PROHIBITS THE OPERATION OF UNLICENSED RADIO TRANSMITTERS WITHIN THE TERRITORIES UNDER GOVERNMENT CONTROL. ** ILLEGAL OPERATION IS PUNISHABLE BY FINE OR IMPRISONMENT OR BOTH. ** REFER SERVICE TO QUALIFIED TECHNICIANS ONLY. ** DO NOT OPERATE YOUR TRANSCEIVER IN EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, ETC.). ** TURN OFF YOUR TRANSCEIVER WHILE TAKING ON FUEL, OR WHILE PARKED IN GASOLINE SERVICE STATIONS. SAFETY: It is important that the operator is aware of and understands hazards common to the operation of any transceiver. WARNING: EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.) Turn off your transceiver while taking on fuel, or while parked in gasoline service stations. One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer for technical assistance. KENWOOD CORPORATION TK-2200 FCC ID:ALH36913120 TK-3200 FCC ID:ALH36923130 ATTENTION (U.S.A. Only): The RBRC Recycle seal found on KENWOOD nickel-metal hydride (Ni-MH) battery packs indicates KENWOOD ’s voluntary participation in an industry program to collect and recycle Ni-MH batteries after their operating life has expired. The RBRC program is analternative to disposing Ni-MH batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. For information on Ni-MH battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD ’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources. UNPACKING AND CHECKING EQUIPMENT Note: The following unpacking instructions are for use by your KENWOOD dealer, an authorized KENWOOD service facility, or the factory. Carefully unpack the transceiver. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately. **  Accessories Quantity Item Part Number TK-2200 TK-3200 Instruction Manual B62 –1791 - *0 1 1 Belt Hook J29 –0712 - 08 1 1 Screw Set N99-2043-05 1 1 Cap B09 – 0680 - *3 1 1 Holder J19 – 5472 - *3 1 1 Battery Assy. W09 –1000- *5 1 1 Charger W08 –0969- *5 1 1 AC Adapter W08 –0970- *5 1 1 Pamphlet B59 –2377- *0 1 1 KENWOOD CORPORATION TK-2200 FCC ID:ALH36913120 TK-3200 FCC ID:ALH36923130 Installing/ Removing the Optional Battery Pack PREPARATION The battery pack is not charged at the factory; charge it before use. CAUTION: ** DO NOT RECHARGE THE BATTERY PACK IF IT IS ALREADY FULLY CHARGED. DOING SO MAY CAUSE THE LIFE OF THE BATTERY PACK TO SHORTEN OR THE BATTERY PACK MAY BE DAMAGED. ** AFTER RECHARGING THE BATTERY PACK, DISCONNECT IT FROM THE CHARGER. IF THE CHARGER POWER IS RESET (TURNED ON AFTER BEING TURNED OFF), RECHARGING WILL START AGAIN AND THE BATTERY PACK WILL BECOME OVERCHARGED. ** DO NOT SHORT THE BATTERY TERMINALS OR DISPOSE OF THE BATTERY BY FIRE. ** NEVER ATTEMPT TO REMOVE THE CASING FROM THE BATTERY PACK. 1 Match the guides of the battery pack with the corresponding grooves on the upper rear of the transceiver, then firmly press the battery pack t 2 To remove the battery pack, lift the safety catch, press the release latch, then pull the battery pack away from the transceiver. KENWOOD CORPORATION TK-2200 FCC ID:ALH36913120 TK-3200 FCC ID:ALH36923130 Installing the Antenna Screw the antenna into the connector on the top of the transceiver by holding the antenna at its base and turning it clockwise until secure. Installing the Belt Clip Using the 2 screws, affix the belt clip in place. KENWOOD CORPORATION TK-2200 FCC ID:ALH36913120 TK-3200 FCC ID:ALH36923130 Installing the Cap over the Speaker/Microphone Jacks If you are not using an optional speaker/ microphone, install the cap over the SP/MIC jacks using the supplied screw. Note: To keep the transceiver water resistant, you must cover the SP/MIC jacks with the cap or the cap or the speaker/microphone connector. Installing the Optional Speaker/ Microphone 1 Insert the speaker / microphone plugs into the SP/MIC jacks. 2 Install the speaker / mic…

Text truncated - open the document above for the full version.

4/26/2004 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: FCC ID: ALH36913120 Model: TK-2200 Dear Sir: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application, as listed below: Block Diagram Schematic Diagrams Circuit Description Parts List Active Devices Tuning Procedure These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for the Application. Sincerely yours, Morton Flom, P. Eng.

TK-2200 FCC ID:ALH36913120 Front Front Front Front View Rear View TK-2200 FCC ID:ALH36913120 To p View Bottom View TK-2200 FCC ID:ALH36913120 Right View Left View

TK-2200 FCC ID:ALH36913120

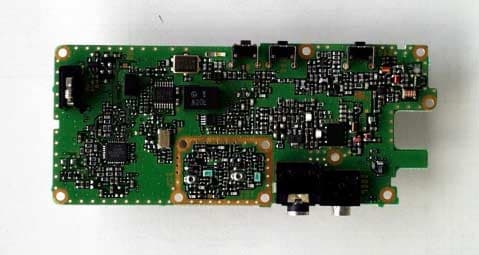

TK- 2200 FCC ID:ALH36913120 Component Side View Foil Side View

Date: April 26, 2004 Applicant: Kenwood USA Corporation. Equipment: FCC ID: ALH36913120 Reference: The unit is a portable radio operating of the transmitter band of 150MHz to 174MHz with an output power of 2W, operated greater than 2.5cm from the face or body.(3cm requirement in manual RF exposure warning) The usage of the device qualifies it as Occupational for SAR calculations. The low threshold is Highest frequency = 174MHz = 0.174GHz = (900 / 0.174)mW =.5,172mW = 5.2 W As the device is below the low threshold for routine SAR evaluation, no report or data is submitted. Regards, David E. Lee, Lab Manager

FCC ID: ALH36913120 Transmitter Certification of FCC ID: ALH36913120 Model: TK-2200 to Federal Communications Commission Rule Parts 22, 74, 90, 90.210, Confidentiality Date of report: April 23, 2004 On the Behalf of the Applicant: Kenwood USA Corporation At the Request of: P.O. JB-F-006 Kenwood USA Corporation Communications Division 3975 Johns Creek Court, Suite 300 Suwanee, GA 30024 Attention of: Joel E. Berger, Research & Development [email protected] (678) 474-4722; FAX: -4731 Supervised by: Morton Flom, P. Eng. MFA p0430009, d0440029 FCC ID: ALH36913120 List of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: Kenwood USA Corporation FCC ID: ALH36913120 By Applicant: 1. Letter of Authorization x 2. Confidentiality Request: 0.457 And 0.459 x 3. Part 90.203(e) & (g) Attestation x 4. Identification Drawings, 2.1033(c)(11) x Label x Location of Label x Compliance Statement x Location of Compliance Statement 5. Photographs, 2.1033(c)(12) x 6. Documentation: 2.1033(c) (3) User Manual x (9) Tune Up Info x (10) Schematic Diagram x (10) Circuit Description x Block Diagram x Active Devices x By M.F.A. Inc.: A. Testimonial & Statement of Certification MFA p0430009, d0440029 FCC ID: ALH36913120 The Applicant has been cautioned as to the following: 15.21 Information to the User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. MFA p0430009, d0440029 FCC ID: ALH36913120 Table of Contents Rule Description Page . Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 6 . Standard Test Conditions and Engineering Practices 7 2.1046(a) Carrier Output Power (Conducted) 8 2.1046(a) ERP Carrier Power (Radiated) 10 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 12 2.1053(a) Field Strength of Spurious Radiation 19 90.214 Transient Frequency Behavior 23 2.1047(a) Audio Low Pass Filter (Voice Input) 29 2.1047(a) Audio Frequency Response 32 2.1047(b) Modulation Limiting 34 2.1055(a)(1) Frequency Stability (Temperature Variation) 37 2.1055(b)(1) Frequency Stability (Voltage Variation) 40 2.202(g) Necessary Bandwidth and Emission Bandwidth 41 MFA p0430009, d0440029 FCC ID: ALH36913120 Page Number 1 of 41. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0440029 d) Client: Kenwood USA Corporation Communications Division 3975 Johns Creek Court, Suite 300 Suwanee, GA 30024 e) Identification: TK-2200 FCC ID: ALH36913120 S/N: V3 EUT Description: VHF/FM Portable Transceiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: April 23, 2004 EUT Received: March 19, 2004 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. MFA p0430009, d0440029 FCC ID: ALH36913120 Page Number 2 of 41. List of General Information Required for Certification In Accordance with FCC Rules and Regulations, Volume II, Part 2 and to 22, 74, 90, 90.210, Confidentiality Sub-part 2.1033 (c)(1): Name and Address of Applicant: Kenwood USA Corporation Communications Division 3975 Johns Creek Court, Suite 300 Suwanee, GA 30024 Manufacturer: Kenwood Electronics Technologies PTE Ltd. 1 Ang Mo Kio Street 63 Singapore 569110 (c)(2): FCC ID: ALH36913120 Model Number: TK-2200 (c)(3): Instruction Manual(s): Please see attached exhibits (c)(4): Type of Emission: 16K0F3E, 11K0F3E (c)(5): Frequency Range, MHz: 150 to 174 (c)(6): Power Rating, Watts: 1 to 2 Switchable x Variable N/A FCC Grant Note: BE - The output power is continuously variable from the value listed in this entry to 15%- 20% of the value listed. (c)(7): Maximum Power Rating, Watts: 300 DUT Results: Passes x Fails MFA p0430009, d0440029 FCC ID: ALH36913120 Page Number 3 of 41. Information for Push-To-Talk Devices Type and number of antenna to be used for this device: 3 models of whip antenna Maximum antenna gain for antenna indicated above: 0dBi Can this device sustain continuous operation with respect to its hardware capabilities and allowable operating functi…

Text truncated - open the document above for the full version.
