ALH36923210UHF/FM HANDHELD TRANSCEIVER

TK-2202 FCC ID:ALH36913210 IC:282D-36913210 TK-3202-1 FCC ID:ALH36923210 IC:282D-36923210 TK-3202-2 FCC ID:ALH36923220 INSTRUCTION MANUAL TK-2202/TK-3202-1/TK-3202-2 THANK YOU! We are grateful you chose KENWOOD for your land mobile radio applications. We believe this easy-to-use transceiver will provide dependable communications to keep personnel operating at peak efficiency. KENWOOD transceivers incorporate the latest in advanced technology. As a result, we feel strongly that you will be pleased with the quality and features of this product. NOTICES TO THE USER WARNING: ** GOVERNMENT LAW PROHIBITS THE OPERATION OF UNLICENSED RADIO TRANSMITTERS WITHIN THE TERRITORIES UNDER GOVERNMENT CONTROL. **I LLEGAL OPERATION IS PUNISHABLE BY FINE OR IMPRISONMENT OR BOTH. ** REFER SERVICE TO QUALIFIED TECHNICIANS ONLY. ** DO NOT OPERATE YOUR TRANSCEIVER IN EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, ETC.). ** TURN OFF YOUR TRANSCEIVER WHILE TAKING ON FUEL, OR WHILE PARKED IN GASOLINE SERVICE STATIONS. SAFETY: It is important that the operator is aware of and understands hazards common to the operation of any transceiver. WARNING: EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.) Turn off your transceiver while taking on fuel, or while parked in gasoline service stations. One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer for technical assistance. TK-2202 FCC ID:ALH36913210 IC:282D-36913210 TK-3202-1 FCC ID:ALH36923210 IC:282D-36923210 TK-3202-2 FCC ID:ALH36923220 ATTENTION (U.S.A. Only): The RBRC Recycle seal found on KENWOOD nickel-metal hydride (Ni-MH) battery packs indicates KENWOOD’ s voluntary participation in an industry program to collect and recycle Ni-MH batteries after their operating life has expired. The RBRC program is an alternative to disposing Ni-MH batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. For information on Ni-MH battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD’ s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources. UNPACKING AND CHECKING EQUIPMENT Note: The following unpacking instructions are for use by your KENWOOD dealer, an authorized KENWOOD service facility, or the factory. Carefully unpack the transceiver. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately. ** Accessories Quantity Item Part Number TK-2202 TK-3202-1 TK-3202-2 Instruction Manual B62 –1762 - *0 1 1 1 Belt Hook J29 –0712 - 08 1 1 1 Screw Set N99-2043-05 1 1 1 Cap B09 – 0680 - *3 1 1 1 Holder J19 – 5472 - *3 1 1 1 Helical Antenna T90 –1036 - *5 1 Whip Antenna T90 –1039- *5 1 Whip Antenna T90 –1040- *5 1 Battery Assy. W09 –1000- *5 1 1 1 Charger W08 –0969- *5 1 1 1 AC Adapter W08 –0970- *5 1 1 1 Pamphlet B59 –2371- *0 1 1 1 TK-2202 FCC ID:ALH36913210 IC:282D-36913210 TK-3202-1 FCC ID:ALH36923210 IC:282D-36923210 TK-3202-2 FCC ID:ALH36923220 Installing/ Removing the Optional Battery Pack PREPARATION The battery pack is not charged at the factory; charge it before use. CAUTION: ** DO NOT RECHARGE THE BATTERY PACK IF IT IS ALREADY FULLY CHARGED. DOING SO MAY CAUSE THE LIFE OF THE BATTERY PACK TO SHORTEN OR THE BATTERY PACK MAY BE DAMAGED. ** AFTER RECHARGING THE BATTERY PACK, DISCONNECT IT FROM THE CHARGER. IF THE CHARGER POWER IS RESET (TURNED ON AFTER BEING TURNED OFF), RECHARGING WILL START AGAIN AND THE BATTERY PACK WILL BECOME OVERCHARGED. ** DO NOT SHORT THE BATTERY TERMINALS OR DISPOSE OF THE BATTERY BY FIRE. ** NEVER ATTEMPT TO REMOVE THE CASING FROM THE BATTERY PACK. 1 Match the guides of the battery pack with the corresponding grooves on the upper rear of the transceiver, then firmly press the battery pack t 2 To remove the battery pack, lift the safety catch, press the release latch, then pull the battery pack away from the transceiver. TK-2202 FCC ID:ALH36913210 IC:282D-36913210 TK-3202-1 FCC ID:ALH36923210 IC:282D-36923210 TK-3202-2 FCC ID:ALH36923220 Installing the Antenna Screw the antenna into the connector on the top of the transceiver by holding the antenna at its base and turning it clockwise until secure. Installing the Belt Clip Using the 2 screws, affix the belt clip in place. TK-2202 FCC ID:ALH36913210 IC:282D-36913210 TK-3202-1 FCC ID:ALH36923210 IC:282D-36923210 TK-3202-2 FCC ID:ALH36923220 Installing the Cap over the Speaker/Microphone Jacks If you are not using an optional sp…

Text truncated - open the document above for the full version.

RADIO FREQUENCY ENERGY SAFETY INFORMATION _____ This KENWOOD transceiver has been tested and complies with the standards listed below, in regards to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver. • FCC RF exposure limits for Occupational Use Only. RF Exposure limits adopted by the FCC are generally based on recommendations from the National Council on Radiation Protection and Measurements, & the American National Standards Institute. • FCC OET Bulletin 65 Edition 97-01 Supplement C • American National Standards Institute (C95.1 – 1992) • American National Standards Institute (C95.3 – 1992) WARNING This KENWOOD transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric & Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less than the recommended distance from this radio transmitter’s antenna. RF energy exposure is determined primarily by the distance to and the power of the transmitting device. In general, RF exposure is minimized when the lowest possible power is used or transmission time is kept to the minimum required for consistent communications, and the greatest distance possible from the antenna to the body is maintain. The transceiver has been designed for and is classified for Occupational Use Only. Occupational/ controlled exposure limits are applicable to situations in which persons are exposed to RF energy as a consequence of their employment, and such persons have been made aware of the potential for exposure and can exercise control over their exposure. This means you can use the transceiver only if you are aware of the hazards of operating a transceiver and are familiar in ways to minimize these hazards. This transceiver is not intended for use by the general public in uncontrolled environments. Uncontrolled environment exposure limits are applicable to situations in which the general public may be exposed to RF energy, or in which the persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. The following list provides you with the information required to ensure that you are aware of RF exposure and of how to operate this transceiver so that the FCC RF exposure limitations are not exceeded. • While transmitting (holding the PTT switch), always keep the antenna at least 3 cm (1 3/16 inches) from your body or face, as well as from any bystanders. • Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver operation is 5% transmission time, 5% reception time, and 90% stand-by time. • Use only the specified antenna for this transceiver; this may be either the antenna provided with the transceiver or another antenna authorized by KENWOOD. Use only KENWOOD authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or headsets etc.): When worn on the body, always place the radio in a KENWOOD recommended clip or carrying case meant for this product. The use of other than recommended or approved body- worn accessories may result in RF exposure levels which exceed the FCC’s occupational/ controlled environment RF exposure limits. CAUTION To ensure that your exposure to RF EME is within the FCC limits for occupational use, you must observe and adhere to the above points. Electromagnetic Interference Compatibility Electronic devices are susceptible to electromagnetic interference (EMI) if they are not adequately shielded or designed for electromagnetic compatibility. Because this transceiver generates RF energy, it can cause interference to such equipment. • Turn OFF your transceiver where signs are posted to do so. Hospitals and health care facilities use equipment that is sensitive to electromagnetic radiation. • Turn OFF your transceiver while on board an aircraft when so instructed. Use of the transceiver must be in accordance with airline regulations and/or crew instructions.

January 9, 2004 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Reference: This equipment meets the requirements of FCC Rules, Parts 90.203(e) and (g) as applicable. Programming of this product’s transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment’s external operation controls. Sincerely yours, Morton Flom, P. Eng.

1/9/2004 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: FCC ID: ALH36923210 Model: TK-3202-1 Dear Sir: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application, as listed below: Block Diagram Schematic Diagrams Circuit Description Parts List Active Devices Tuning Procedure These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for the Application. Sincerely yours, Morton Flom, P. Eng.

TK-3202-1 FCC ID:ALH36923210 IC:282D-36923210 TK-3202-2 FCC ID:ALH36923220 Front View Rear View TK-3202-1 FCC ID:ALH36923210 IC:282D-36923210 TK-3202-2 FCC ID:ALH36923220 To p View Bottom View TK-3202-1 FCC ID:ALH36923210 IC:282D-36923210 TK-3202-2 FCC ID:ALH36923220 Right View Left View

TK-3202-1 FCC ID:ALH36923210 IC:282D-36923210

TK-3202-1 FCC ID:ALH36923210 IC:282D-36923210 55.4mm 35.4mm

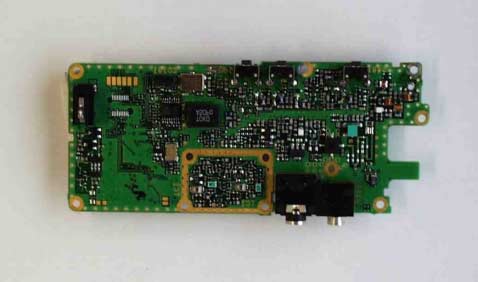

TK-3202-1 FCC ID:ALH36923210 IC:282D-36923210 TK-3202-2 FCC ID:ALH36923220 Component Side View Foil Side View

© 2003 Celltech Labs Inc. 1 of 21 Test Report S/N: 120403-451ALH Test Date(s): December 17-18, 2003 Test Type: FCC/IC SAR Evaluation Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the Occupational / Controlled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information KENWOOD USA CORPORATION 3975 John Creek Court, Suite 300 Suwanee, GA 30024 Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (01-01) Device Type: Portable UHF PTT Radio Transceiver FCC ID: ALH36923210 Model(s): TK-3202-1 Modulation: FM (UHF) Tx Frequency Range: 450.00 - 490.00 MHz Max. RF Output Power Tested: 36.54 dBm Conducted (450 MHz) 36.30 dBm Conducted (470 MHz) 36.23 dBm Conducted (490 MHz) Antenna Type(s): 1. Whip (P/N: KRA-27M) 2. Stubby (P/N: KRA-23M) Battery Type(s): NiMH 7.5V, 1500mAh (P/N: KNB-29N) NiCd 7.5V, 1100mAh (P/N: KNB-30A) Body-Worn Accessories: Belt-Clip, Speaker-Microphone Max. SAR Measured: Face-held: 4.14 W/kg (50% Duty Cycle) Body-worn: 5.33 W/kg (50% Duty Cycle) © 2003 Celltech Labs Inc. 2 of 21 Test Report S/N: 120403-451ALH Test Date(s): December 17-18, 2003 Test Type: FCC/IC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION.....................................................................3 2.0DESCRIPTION OF DUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5-6 5.0DETAILS OF SAR EVALUATION............................................... 7 6.0EVALUATION PROCEDURES................................................... 7 7.0SYSTEM PERFORMANCE CHECK............................................. 8 8.0SIMULATED EQUIVALENT TISSUES......................................... 9 9.0SAR SAFETY LIMITS............................................................... 9 10.0ROBOT SYSTEM SPECIFICATIONS.......................................... 10 11.0PROBE SPECIFICATION......................................................... 11 12.0PLANAR PHANTOM................................................................ 11 13.0VALIDATION PHANTOM........................................................... 11 14.0DEVICE HOLDER.................................................................... 11 15.0TEST EQUIPMENT LIST........................................................... 12 16.0MEASUREMENT UNCERTAINTIES............................................ 13-14 17.0REFERENCES........................................................................15 APPENDIX A - SAR MEASUREMENT DATA............................................... 16 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................ 17 APPENDIX C - SYSTEM VALIDATION PROCEDURES................................. 18 APPENDIX D - PROBE CALIBRATION...................................................... 19 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................... 20 APPENDIX F - SAR TEST SETUP & DUT PHOTOGRAPHS.......................... 21 © 2003 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH36923210 3 of 21 Portable UHF PTT Radio Transceiver (450-490 MHz) Test Report S/N: 120403-451ALH Test Date(s): December 17-18, 2003 Test Type: FCC/IC SAR Evaluation This measurement report demonstrates compliance of the Kenwood USA Corporation Model: TK-3202-1 Portable UHF PTT Radio Transceiver FCC ID: ALH36923210 with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]), and Health Canada’s Safety Code 6 (see reference [2]) for the Occupational / Controlled Exposure environment. The measurement procedures described in FCC OET Bulletin 65, Supplement C (Edition 01-01) (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. FCC Rule Part(s) 47 CFR §2.1093 IC Rule Part(s) RSS-102 Issue 1 (Provisional) Test Procedure(s) FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Type Portable UHF PTT Radio Transceiver FCC ID ALH36923210 Model(s) TK-3202-1 Serial No. U12 (Identical Prototype) Modulation FM (UHF) Tx Frequency Range 450.00 - 490.00 MHz 450 MHz 36.54 dBm Conducted 470 MHz 36.30 dBm Conducted Max. RF Output Power Tested 490 MHz 36.23 dBm Conducted Whip Length: 154 mm P/N: KRA-27M Antenna Type(s) Tested Stubby Length: 84 mm P/N: KRA-23M NiMH 7.5V, 1500mAh P/N: KNB-29N Battery Type(s) Tested NiCd 7.5V, 1100mA…

Text truncated - open the document above for the full version.

FCC ID: ALH36923210 Transmitter Certification of FCC ID: ALH36923210 Model: TK-3202-1 to Federal Communications Commission Rule Part(s) 2, 22, 74, 90, 90.210, 95, Confidentiality Date of report: December 3, 2003 On the Behalf of the Applicant: Kenwood USA Corporation At the Request of: P.O. JB-F-006 Kenwood USA Corporation Communications Division 3975 Johns Creek Court, Suite 300 Suwanee, GA 30024 Attention of: Joel E. Berger, Research & Development [email protected] (678) 474-4722; FAX: -4731 Supervised by: Morton Flom, P. Eng. MFA p03b0002, d03c0015 FCC ID: ALH36923210 List of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: Kenwood USA Corporation FCC ID: ALH36923210 By Applicant: 1. Letter of Authorization x 2. Identification Drawings, 2.1033(c)(11) x Label x Location of Label x Compliance Statement x Location of Compliance Statement 3. Photographs, 2.1033(c)(12) x 4. Documentation: 2.1033(c) (3) User Manual x (9) Tune Up Info x (10) Schematic Diagram x (10) Circuit Description x Block Diagram x Active Devices x 5. Part 90.203(e) & (g) Attestation x 6. SAR Report by Celltech Labs Inc. x By M.F.A. Inc.: A. Testimonial & Statement of Certification MFA p03b0002, d03c0015 FCC ID: ALH36923210 The Applicant has been cautioned as to the following: 15.21 Information to the User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. MFA p03b0002, d03c0015 FCC ID: ALH36923210 Table of Contents Rule Description Page . Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 6 . Standard Test Conditions and Engineering Practices 7 2.1046(a) Carrier Output Power (Conducted) 8 2.1046(a) ERP Carrier Power (Radiated) 10 2.1051 Unwanted Emissions (Transmitter Conducted) 11 2.1053(a) Field Strength of Spurious Radiation 15 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 19 90.214 Transient Frequency Behavior 24 2.1047(a) Audio Low Pass Filter (Voice Input) 30 2.1047(a) Audio Frequency Response 33 2.1047(b) Modulation Limiting 35 2.1055(a)(1) Frequency Stability (Temperature Variation) 38 2.1055(b)(1) Frequency Stability (Voltage Variation) 41 2.202(g) Necessary Bandwidth and Emission Bandwidth 42 MFA p03b0002, d03c0015 FCC ID: ALH36923210 Page Number 1 of 42. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d03c0015 d) Client: Kenwood USA Corporation Communications Division 3975 Johns Creek Court, Suite 300 Suwanee, GA 30024 e) Identification: TK-3202-1 FCC ID: ALH36923210 EUT Description: UHF/FM Transceiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: December 3, 2003 EUT Received: November 5, 2003 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. MFA p03b0002, d03c0015 FCC ID: ALH36923210 Page Number 2 of 42. List of General Information Required for Certification In Accordance with FCC Rules and Regulations, Volume II, Part 2 and to 2, 22, 74, 90, 90.210, 95 Sub-part 2.1033 (c)(1): Name and Address of Applicant: Kenwood USA Corporation Communications Division 3975 Johns Creek Court, Suite 300 Suwanee, GA 30024 Manufacturer: Kenwood Electronics Technologies PTE Ltd. 1 Ang Mo Kio Street 63 Singapore 569110 (c)(2): FCC ID: ALH36923210 Model Number: TK-3202-1 (c)(3): Instruction Manual(s): Please see attached exhibits (c)(4): Type of Emission: 16K0F3E, 11K0F3E (c)(5): Frequency Range, MHz: 450 to 490 (c)(6): Power Rating, Watts: 1 to 4 Switchable x Variable N/A FCC Grant Note: BF - The output power is continuously variable from the value listed in this entry to 20%- 25% of the value listed. (c)(7): Maximum Power Rating, Watts: 300 DUT Results: Passes x Fails MFA p03b0002, d03c0015 FCC ID: ALH36923210 Page Number 3 of 42. Information for Push-To-Talk Devices Type and number of antenna to be used for this device: 2 Stubby, Whip Maximum antenna gain for antenna indicated above: 0 dBd Can this device sustain continuous operation with respect to its hardware capabilities …
