ALH37164110UHF/ FM Transceiver, Handheld

Model:TK-5300 FCC ID:ALH37164110 INSTRUCTION MANUAL TK-5300 THANK YOU! We are grateful you chose KENWOOD for your land mobile radio applications. We believe this easy-to-use transceiver will provide dependable communications to keep personnel operating at peak efficiency. KENWOOD transceivers incorporate the latest in advanced technology. As a result, we feel strongly that you will be pleased with the quality and features of this product. NOTICES TO THE USER WARNING: ‹ GOVERNMENT LAW PROHIBITS THE OPERATION OF UNLICENSED RADIO TRANSMITTERS WITHIN THE TERRITORIES UNDER GOVERNMENT CONTROL. ‹ ILLEGAL OPERATION IS PUNISHABLE BY FINE OR IMPRISONMENT OR BOTH. ‹ REFER SERVICE TO QUALIFIED TECHNICIANS ONLY. ‹ DO NOT OPERATE YOUR TRANSCEIVER IN EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, ETC.). ‹ TURN OFF YOUR TRANSCEIVER WHILE TAKING ON FUEL, OR WHILE PARKED IN GASOLINE SERVICE STATIONS. SAFETY: It is important that the operator is aware of and understands hazards common to the operation of any transceiver. WARNING: EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.) Turn off your transceiver while taking on fuel, or while parked in gasoline service stations. One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer for technical assistance. Model:TK-5300 FCC ID:ALH37164110 ATTENTION (U.S.A. Only): The RBRC Recycle seal found on KENWOOD nickel-cadmium (Ni-Cd) battery packs indicates KENWOOD’s voluntary participation in an industry program to collect and recycle Ni-Cd batteries after their operating life has expired. The RBRC program is an alternative to disposing Ni-Cd batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. For information on Ni-Cd battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources. UNPACKING AND CHECKING EQUIPMENT Note: The following unpacking instructions are for use by your KENWOOD dealer, an authorized KENWOOD service facility, or the factory. Carefully unpack the transceiver. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately. § Accessories Quantity Item Part Number K Belt Clip J29 - 0710 -*5 1 Screw N30 - 3008 - 60 2 Cap B09 - 0625 - *3 1 Screw N08 - 0548 - *4 1 Model:TK-5300 FCC ID:ALH37164110 Installing/ Removing the Optional Battery Pack PREPARATION The battery pack is not charged at the factory; charge it before use. CAUTION: ‹ DO NOT RECHARGE THE BATTERY PACK IF IT IS ALREADY FULLY CHARGED. DOING SO MAY CAUSE HE LIFE OF THE BATTERY PACK TO SHORTEN OR THE BATTERY PACK MAY BE DAMAGED. ‹ AFTER RECHARGING THE BATTERY PACK, DISCONNECT IT FROM THE CHARGER. IF THE CHARGER POWER IS RESET (TURNED ON AFTER BEING TURNED OFF), RECHARGING WILL START AGAIN AND THE BATTERY PACK WILL BECOME OVERCHARGED. ‹ DO NOT SHORT THE BATTERY TERMINALS OR DISPOSE OF THE BATTERY BY FIRE. ‹ NEVER ATTEMPT TO REMOVE THE CASING FROM THE BATTERY PACK. 1 Match the guides of the battery pack with the corresponding grooves on the upper rear of the transceiver, then firmly press the battery pack t 2 Flip the safety catch into place to prevent accidentally pressing the release latch and removing the battery. 3 To remove the battery pack, lift the safety catch, press the release latch,then pull the battery pack away from the transceiver. Model:TK-5300 FCC ID:ALH37164110 Installing the Antenna Screw the antenna into the connector on the top of the transceiver by holding the antenna at its base and turning it clockwise until secure. Installing the Belt Clip If necessary, attach the belt clip using the two supplied 3 x 6 mm screws. Notes: If the belt clip is not installed, its mounting location may get hot during continuous transmission or when left sitting in a hot environment. Model:TK-5300 FCC ID:ALH37164110 Installing the Cap over the Speaker/Microphone Jacks If you are not using an optional KMC-25 speaker/ microphone, install the cover over the univeral connector using the supplied 4 x 6 mm screw. Installing the Optional Speaker/ Microphone 1 Insert the guide of the speaker/ microphone connector into the groove of the universalconnector. 2 Secure the connecter in place using the attached screw. Model:TK-5300 FCC ID:ALH37164110 GETTING ACQUAINTED Knob NO. Name Lock/ Non Lock Description 1 Power switch/ Volume control Lock/ Non Lock Power SW (CCW:Power OFF) Audio V…

Text truncated - open the document above for the full version.

1/16/2006 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: FCC ID: ALH37164110 Model: TK-5300 Dear Sir: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application, as listed below: Block Diagram Schematic Diagrams Circuit Description Parts List Active Devices Tuning Procedure These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for the Application.

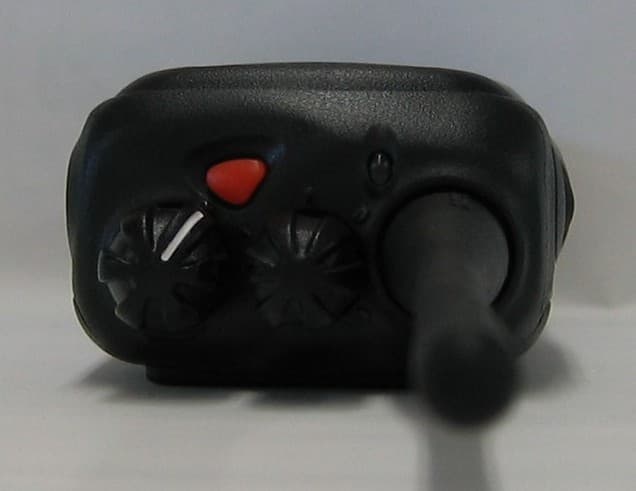

Model: TK-5300 FCC ID:ALH37164110 Front View Rear View Model: TK-5300 FCC ID:ALH37164110 Top View Bottom View Model: TK-5300 FCC ID:ALH37164110 Left View Right View

Model:TK-5300 FCC ID:ALH37164110 Model:TK-5300 FCC ID:ALH37164110

Model:TK-5300 FCC ID: ALH37164110 Component Side View Model:TK-5300 FCC ID: ALH37164110 Foil Side View

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587-3201 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 MET Report: EMCS18723-FCC90 © 2006, MET Laboratories, Inc. Page 1 of 31 DOC-EMC700 7/9/04 Dosimetric Assessment Test Report for the Kenwood Communications Corporation TK-5300 Tested and Evaluated In Accordance With FCC OET 65 Supplement C: 01-01 Prepared for: Kenwood Communications Corporation 3975 Johns Creek Court, Suite 300 Suwanee, GA 30024 Engineering Statement: The measurements shown in this report were made in accordance with the procedures specified in Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for Controlled Exposure/Occupational. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment evaluated is capable of compliance for localized specific absorption rate (SAR) for Controlled Exposure/Occupational limits specified in ANSI/IEEE Std. C95.1-1999. MET Report: EMCS18723-FCC90 © 2006, MET Laboratories, Inc. Page 2 of 31 DOC-EMC700 7/9/04 SAR Evaluation Certificate of Compliance FCC ID: ALH37164110 APPLICANT: Kenwood Communications Corporation Applicant Name and Address: Kenwood Communications Corporation 3975 Johns Creek Court, Suite 300 Suwanee, GA 30024 Test Location: MET Laboratories, Inc. 4855 Patrick Henry Drive, Building 6 Santa Clara, CA 95054 U.S.A. EUT: Kenwood TK-5300 Date of Receipt: December 21, 2005 Device Category: Licensed Non-Broadcast Transmitter Held to Face (TNF) RF exposure environment: Controlled Exposure/Occupational RF exposure category: Portable FM UHF PTT Radio Transceiver Power supply: KNB-32N 2500mAh Ni-MH, 7.2VDC KNB-31A 1700mAh Ni-CAD 7.2VDC KNB-31A 1700mAh Li-ion 7.4VDC KBP-6 Alkaline Case 6x1.5VDC AA (only for 1W applications-Not tested) Antenna(s): KRA-27M 150mm Whip KRA-23M 80mm Stubby Body Worn Accessories: KBH-10 Belt Clip KBH-11 Belt Clip KMC-25 Speaker Microphone Production/prototype: Production Modulation: FM Duty Cycle: 100% TX Range: 450.0 – 485.1 MHz 450.05 MHz Peak Conducted 36.9dBm/4.89W 467.05 MHz Peak Conducted 36.9dBm/4.89W Maximum Tested RF Output Power in CW Mode: 485.05 MHz Peak Conducted 36.9dBm/4.89W Maximum SAR Measurement @ 50% Duty Cycle: Body: 7.2m W/g Head: 2.6mW/g Kenwood Communications Corporation Electromagnetic Compatibility TK-5300 FCC OET 65 Supplement C: 01-01 MET Report: EMCS18723-FCC90 © 2006, MET Laboratories, Inc. Page 3 of 31 DOC-EMC700 7/9/04 Shawn McMillen, EMCProject Engineer Kenwood Communications Corporation Electromagnetic Compatibility TK-5300 FCC OET 65 Supplement C: 01-01 MET Report: EMCS18723-FCC90 © 2006, MET Laboratories, Inc. Page 4 of 31 DOC-EMC700 7/9/04 TABLE OF CONTENTS INTRODUCTION .........................................................................................................................................................5 SAR DEFINITION........................................................................................................................................................5 DESCRIPTION OF DEVICE UNDER TEST (EUT) ...................................................................................................6 SAR MEASUREMENT SYSTEM ...............................................................................................................................7 MEASUREMENT SUMMARY....................................................................................................................................8 DETAILS OF SAR EVALUATION ............................................................................................................................10 EVALUATION PROCEDURES ................................................................................................................................. 11 DATA EVALUATION PROCEDURES ......................................................................................................................12 SYSTEM PERFORMANCE CHECK.........................................................................................................................14 SIMULATED EQUIVALENT TISSUES ....................................................................................................................14 SAR SAFETY LIMITS ...............................................................................................................................................15 ROBOT SYSTEM SPECIFICATIONS.......................................................................................................................16 1.1.Specifications ...........................................................................................................................................16 1.2.Data Acquisition Electronic (Dae) System:..............................................................................................16 1.3.Phantom(s): ..............................................................................................................................................16 PROBE SPECIFICATIONS (ET3DV6) ......................................................................................................................17 SAR Measurement System ..........................................................................................................................................18 1.4.RX90BL Robot.........................................................................................................................................18 1.5.Robot Controller .......................................................................................................................................18 1.6.Light Beam Switch ............................................................................................................................…

Text truncated - open the document above for the full version.

Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: ALH37164110 (866) 311-3268 phone, (480) 926-3598 fax MFA p05b0013, d05c0015 Date: December 9, 2005 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: Kenwood USA Corporation Equipment: TK-5300-1 FCC ID: ALH37164110 FCC Rules: 2, 90, 90.210 and Confidentiality Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, David E. Lee, FCC Compliance Manager enclosure(s) cc: Applicant DEL/del Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: ALH37164110 (866) 311-3268 phone, (480) 926-3598 fax MFA p05b0013, d05c0015 Transmitter Certification of Model: TK-5300-1 FCC ID: ALH37164110 to Federal Communications Commission Rule Parts 90, 90.210 and Confidentiality Date of report: December 9, 2005 On the Behalf of the Applicant: Kenwood USA Corporation At the Request of: Kenwood USA Corporation Communications Division 3975 Johns Creek Court, Suite 300 Suwanee, GA 30024 Attention of: Joel E. Berger, Research & Development [email protected] (678) 474-4722; FAX: -4731 Supervised by: David E. Lee, FCC Compliance Manager Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: ALH37164110 (866) 311-3268 phone, (480) 926-3598 fax MFA p05b0013, d05c0015 List of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: Kenwood USA Corporation FCC ID: ALH37164110 By Applicant: 1. Letter of Authorization 2. Confidentiality Request: 0.457 And 0.459 3. Part 90.203(e) & (g) Attestation 4. Identification Drawings, 2.1033(c)(11) Label Location of Label Compliance Statement Location of Compliance Statement 5. Photographs, 2.1033(c)(12) 6. Documentation: 2.1033(c) (3) User Manual (9) Tune Up Info (10) Schematic Diagram (10) Circuit Description Block Diagram Parts List Active Devices 7. SAR Report By M.F.A. Inc.: A. Testimonial & Statement of Certification Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: ALH37164110 (866) 311-3268 phone, (480) 926-3598 fax MFA p05b0013, d05c0015 The Applicant has been cautioned as to the following: 15.21 Information to the User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: ALH37164110 (866) 311-3268 phone, (480) 926-3598 fax MFA p05b0013, d05c0015 Table of Contents Rule Description Page 2.1033(c)(14) Rule Summary 2 . Standard Test Conditions and Engineering Practices 3 2.1033(c) General Information Required 4 2.1046(a) Carrier Output Power (Conducted) 7 2.1046(a) ERP Carrier Power (Radiated) 9 2.1051 Unwanted Emissions (Transmitter Conducted) 11 2.1053(a) Field Strength of Spurious Radiation 13 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 17 90.214 Transient Frequency Behavior 32 2.1047(a) Audio Low Pass Filter (Voice Input) 38 2.1047(a) Audio Frequency Response 40 2.1047(b) Modulation Limiting 42 2.1055(a)(1) Frequency Stability (Temperature Variation) 44 2.1055(b)(1) Frequency Stability (Voltage Variation) 46 2.202(g) Necessary Bandwidth and Emission Bandwidth 48 Flom Test Labs 3356 North San Marcos Place, Suite 107 Page 1 of 48 Chandler, Arizona 85225-7176 FCC ID: ALH37164110 (866) 311-3268 phone, (480) 926-3598 fax MFA p05b0013, d05c0015 Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d05c0015 d) Client: Kenwood USA Corporation Communications Division 3975 Johns Creek Court, Suite 300 Suwanee, GA 30024 e) Identification: TK-5300-1 FCC ID: ALH37164110 EUT Description: UHF/FM Transceiver, Handheld f) EUT Condition: Not required unless specified in individual tests. g) Report Date: December 9, 2005 EUT Received: November 29, 2005 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Super…
