KENWOOD CORPORATION TK-2180-K, TK-2180-K2 FCC ID:ALH37323110 IC:282D-37323110 TK-3180-K, TK-3180-K3 FCC ID:ALH37333110 INSTRUCTION MANUAL TK-2180/TK-3180 THANK YOU! We are grateful you chose KENWOOD for your land mobile radio applications. We believe this easy-to-use transceiver will provide dependable communications to keep personnel operating at peak efficiency. KENWOOD transceivers incorporate the latest in advanced technology. As a result, we feel strongly that you will be pleased with the quality and features of this product. NOTICES TO THE USER WARNING: ‹ GOVERNMENT LAW PROHIBITS THE OPERATION OF UNLICENSED RADIO TRANSMITTERS WITHIN THE TERRITORIES UNDER GOVERNMENT CONTROL. ‹ ILLEGAL OPERATION IS PUNISHABLE BY FINE OR IMPRISONMENT OR BOTH. ‹ REFER SERVICE TO QUALIFIED TECHNICIANS ONLY. ‹ DO NOT OPERATE YOUR TRANSCEIVER IN EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, ETC.). ‹ TURN OFF YOUR TRANSCEIVER WHILE TAKING ON FUEL, OR WHILE PARKED IN GASOLINE SERVICE STATIONS. SAFETY: It is important that the operator is aware of and understands hazards common to the operation of any transceiver. WARNING: EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.) Turn off your transceiver while taking on fuel, or while parked in gasoline service stations. One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer for technical assistance. KENWOOD CORPORATION TK-2180-K, TK-2180-K2 FCC ID:ALH37323110 IC:282D-37323110 TK-3180-K, TK-3180-K3 FCC ID:ALH37333110 ATTENTION (U.S.A. Only): The RBRC Recycle seal found on KENWOOD nickel-cadmium (Ni-Cd) battery packs indicates KENWOOD’s voluntary participation in an industry program to collect and recycle Ni-Cd batteries after their operating life has expired. The RBRC program is an alternative to disposing Ni-Cd batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. For information on Ni-Cd battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources. UNPACKING AND CHECKING EQUIPMENT Note: The following unpacking instructions are for use by your KENWOOD dealer, an authorized KENWOOD service facility, or the factory. Carefully unpack the transceiver. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately. § Accessories Quantity Item Part Number K Instruction Manual B62 -1759 - *0 1 Belt Clip J29 - 0710 -*5 1 Screw N30 - 3008 - 60 2 Cap B09 - 0625 - *3 1 Screw N08 - 0548 - *4 1 KENWOOD CORPORATION TK-2180-K, TK-2180-K2 FCC ID:ALH37323110 IC:282D-37323110 TK-3180-K, TK-3180-K3 FCC ID:ALH37333110 Installing/ Removing the Optional Battery Pack PREPARATION The battery pack is not charged at the factory; charge it before use. CAUTION: ‹ DO NOT RECHARGE THE BATTERY PACK IF IT IS ALREADY FULLY CHARGED. DOING SO MAY CAUSE HE LIFE OF THE BATTERY PACK TO SHORTEN OR THE BATTERY PACK MAY BE DAMAGED. ‹ AFTER RECHARGING THE BATTERY PACK, DISCONNECT IT FROM THE CHARGER. IF THE CHARGER POWER IS RESET (TURNED ON AFTER BEING TURNED OFF), RECHARGING WILL START AGAIN AND THE BATTERY PACK WILL BECOME OVERCHARGED. ‹ DO NOT SHORT THE BATTERY TERMINALS OR DISPOSE OF THE BATTERY BY FIRE. ‹ NEVER ATTEMPT TO REMOVE THE CASING FROM THE BATTERY PACK. 1 Match the guides of the battery pack with the corresponding grooves on the upper rear of the transceiver, then firmly press the battery pack t 2 Flip the safety catch into place to prevent accidentally pressing the release latch and removing the battery. 3 To remove the battery pack, lift the safety catch, press the release latch,then pull the battery pack away from the transceiver. KENWOOD CORPORATION TK-2180-K, TK-2180-K2 FCC ID:ALH37323110 IC:282D-37323110 TK-3180-K, TK-3180-K3 FCC ID:ALH37333110 Installing the Antenna Screw the antenna into the connector on the top of the transceiver by holding the antenna at its base and turning it clockwise until secure. Installing the Belt Clip If necessary, attach the belt clip using the two supplied 3 x 6 mm screws. Notes: If the belt clip is not installed, its mounting location may get hot during continuous transmission or when left sitting in a hot environment. KENWOOD CORPORATION TK-2180-K, TK-2180-K2 FCC ID:ALH37323110 IC:282D-37323110 TK-3180-K, TK-3180-K3 FCC ID:ALH37333110 Installing the Cap over the Speaker/Microphone Jacks If you are not using an optional KMC-25 …

Text truncated - open the document above for the full version.

May 13, 2004 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Reference: This equipment meets the requirements of FCC Rules, Parts 90.203(e) and (g) as applicable. Programming of this product’s transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment’s external operation controls. Sincerely yours, Morton Flom, P. Eng.

5/13/2004 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization and Evaluation Division Reference: FCC ID: ALH37333110 Model: TK-3180-K and TK-3180-K3 Dear Sir: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application, as listed below: Block Diagram Schematic Diagrams Circuit Description Parts List Active Devices Tuning Procedure These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for the Application. Sincerely yours, Morton Flom, P. Eng.

TK-3180- K FCC ID:ALH37333110 Rear View Front View TK-3180- K FCC ID:ALH37333110 Top View Bottom View TK-3180- K FCC ID:ALH37333110 Left View Right View TK-3180-K3 FCC ID:ALH37333110 Rear View Front View TK-3180-K3 FCC ID:ALH37333110 Top View Bottom View TK-3180-K3 FCC ID:ALH37333110 Left View Right View

TK-3180-K FCC ID:ALH37333110 TK-3180-K3 FCC ID:ALH37333110

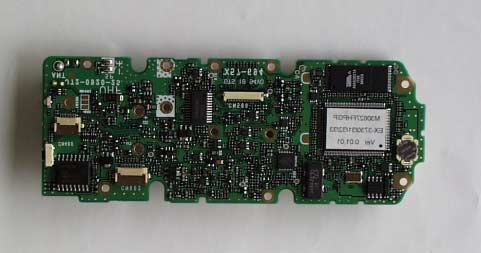

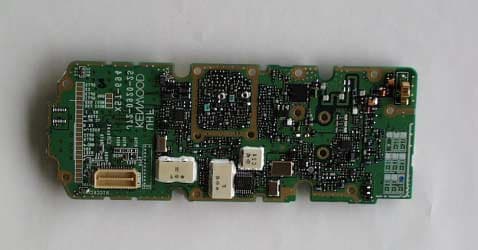

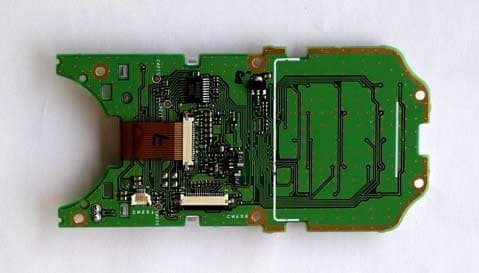

TK-3180-K, TK-3180-K3 FCC ID:ALH37333110 TXRX Component Side View TXRX Foil Side View TK-3180-K, TK-3180-K3 FCC ID:ALH37333110 Display Component Side View Display Foil Side View

© 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 23 of 23 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation APPENDIX F - SAR TEST SETUP & DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation 2.5 cm FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm Separation Distance from Front of Radio to Planar Phantom with Stubb y Antenna (P/N: KRA-23) & Li-ion Battery 4.0 cm © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation 2.5 cm FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm Separation Distance from Front of Radio to Planar Phantom with Stubb y Antenna (KRA-23M) & NiCd / NiMH Battery 4.0 cm © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm Separation Distance from Front of Radio to Planar Phantom with Whi p Antenna (KRA-27M) & Li-ion Battery 2.5 cm 4.3 cm © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm Separation Distance from Front of Radio to Planar Phantom with Whi p Antenna (KRA-27M) & NiCd / NiMH Battery 2.5 cm 4.3 cm © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm Separation Distance from Front of Radio to Planar Phantom with Whi p Antenna (KRA-27M2) & Li-ion Battery 2.5 cm 4.3 cm © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm Separation Distance from Front of Radio to Planar Phantom with Whi p Antenna (KRA-27M2) & NiCd / NiMH Battery 2.5 cm 4.3 cm © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm Separation Distance from Front of Radio to Planar Phantom with Stubb y Antenna (KRA-17M) & Li-ion Battery 2.5 cm 4.1 cm © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm Separation Distance from Front of Radio to Planar Phantom with Stubb y Antenna (KRA-17M) & NiMH / NiCd Battery 2.5 cm 4.1 cm © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm Separation Distance from Front of Radio to Planar Phantom with Stubb y Antenna (KRA-17M2) & Li-ion Battery 2.5 cm 4.0 cm © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm Separation Distance from Front of Radio to Planar Phantom with Stubb y Antenna (KRA-17M2) & NiCd / NiMH Battery 2.5 cm 4.0 cm © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation 1.7 cm BODY-WORN SAR TEST SETUP PHOTOGRAPHS 1.7 cm Plastic Belt-Clip Separation Distance from Battery to Planar Phantom with Stubby Antenna (KRA-23) & Speaker-Microphone Accessory Li-ion Battery 3.0 cm © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation BODY-WORN SAR TEST SETUP PHOTOGRAPHS 1.2 cm Plastic Belt-Clip Separation Distance from Battery to Planar Phantom with Stubby Antenna (KRA-23) & Speaker-Microphone Accessory NiCd / NiMH Battery 1.2 cm 3.0 cm © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation BODY-WORN SAR TEST SETUP PHOTOGRAPHS 1.7 cm Plastic Belt-Clip Separation Distance from Battery to Planar Phantom with Whip Antenna (KRA-27M) & Speaker-Microphone Accessory Li-ion Battery 1.7 cm 3.3 cm © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation 1.2 cm BODY-WORN SAR TEST SETUP PHOTOGRAPHS 1.2 cm Plastic Belt-Clip Separation Distance from Battery to Planar Phantom with Whip Antenna (KRA-27M) & Speaker-Microphone Accessory NiCd / NiMH Battery 3.3 cm © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N:…

Text truncated - open the document above for the full version.

© 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 18 of 23 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation APPENDIX A - SAR MEASUREMENT DATA © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation Face-Held SAR - Li-ion Battery - Stubby Antenna (P/N: KRA-23M) Date Tested: 04/12/04 DUT: Kenwood Model: TK-3180; Type: Portable FM UHF PTT Radio Transceiver; Serial: U01 Ambient Temp: 23.8 qC; Fluid Temp: 23.4 qC; Barometric Pressure: 101.5 kPa; Humidity: 32% Communication System: FM UHF Frequency: 485.05 MHz; Duty Cycle: 1:1 RF Output Power: 5.20 Watts (Conducted) 7.5V 1700mAh Li-ion Battery Pack (P/N: KNB-33L) Medium: HSL450 (ı = 0.91 mho/m; İ r = 44.3; ȡ = 1000 kg/m 3 ) - Probe: ET3DV6 - SN1387; ConvF(7.5, 7.5, 7.5); Calibrated: 18/03/2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn353; Calibrated: 19/12/2003 - Phantom: Planar; Type: Plexiglas; Serial: 161 - Measurement SW: DASY4, V4.2 Build 37; Postprocessing SW: SEMCAD, V1.8 Build 109 Face-Held - 2.5 cm Separation Distance - Mid Channel/Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Face-Held - 2.5 cm Separation Distance - Mid Channel/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.8 V/m; Power Drift = -0.457 dB Peak SAR (extrapolated) = 4.68 W/kg SAR(1 g) = 2.96 mW/g; SAR(10 g) = 2.09 mW/g © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation Face-Held SAR - NiCd Battery - Stubby Antenna (P/N: KRA-23M) Date Tested: 04/12/04 DUT: Kenwood Model: TK-3180; Type: Portable FM UHF PTT Radio Transceiver; Serial: U01 Ambient Temp: 23.8 qC; Fluid Temp: 23.4 qC; Barometric Pressure: 101.5 kPa; Humidity: 32% Communication System: FM UHF Frequency: 485.05 MHz; Duty Cycle: 1:1 RF Output Power: 5.13 Watts (Conducted) 7.5V 1700mAh NiCd Battery Pack (P/N: KNB-31A) Medium: HSL450 (ı = 0.91 mho/m; İ r = 44.3; ȡ = 1000 kg/m 3 ) - Probe: ET3DV6 - SN1387; ConvF(7.5, 7.5, 7.5); Calibrated: 18/03/2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn353; Calibrated: 19/12/2003 - Phantom: Planar; Type: Plexiglas; Serial: 161 - Measurement SW: DASY4, V4.2 Build 37; Postprocessing SW: SEMCAD, V1.8 Build 109 Face-Held - 2.5 cm Separation Distance - Mid Channel/Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Face-Held - 2.5 cm Separation Distance - Mid Channel/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.7 V/m; Power Drift = -0.383 dB Peak SAR (extrapolated) = 4.37 W/kg SAR(1 g) = 2.74 mW/g; SAR(10 g) = 1.93 mW/g © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation Face-Held SAR - NiMH Battery - Stubby Antenna (P/N: KRA-23M) Date Tested: 04/12/04 DUT: Kenwood Model: TK-3180; Type: Portable FM UHF PTT Radio Transceiver; Serial: U01 Ambient Temp: 23.8 qC; Fluid Temp: 23.4 qC; Barometric Pressure: 101.5 kPa; Humidity: 32% Communication System: FM UHF Frequency: 485.05 MHz; Duty Cycle: 1:1 RF Output Power: 5.13 Watts (Conducted) 7.5V 2500mAh NiMH Battery Pack (P/N: KNB-32N) Medium: HSL450 (ı = 0.91 mho/m; İ r = 44.3; ȡ = 1000 kg/m 3 ) - Probe: ET3DV6 - SN1387; ConvF(7.5, 7.5, 7.5); Calibrated: 18/03/2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn353; Calibrated: 19/12/2003 - Phantom: Planar; Type: Plexiglas; Serial: 161 - Measurement SW: DASY4, V4.2 Build 37; Postprocessing SW: SEMCAD, V1.8 Build 109 Face-Held - 2.5 cm Separation Distance - Mid Channel/Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Face-Held - 2.5 cm Separation Distance - Mid Channel/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.7 V/m; Power Drift = -0.446 dB Peak SAR (extrapolated) = 4.41 W/kg SAR(1 g) = 2.77 mW/g; SAR(10 g) = 1.96 mW/g © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation Face-Held SAR - Li-ion Battery - Stubby Antenna (P/N: KRA-23M2) Date Tested: 04/12/04 DUT: Kenwood Model: TK-3180; Type: Portable FM UHF PTT Radio Transceiver; Serial: U01 Ambient Temp: 23.8 qC; Fluid Temp: 23.4 qC; Barometric Pressure: 101.5 kPa; Humidity: 32% Communication System: FM UHF Frequency: 485.05 MHz; Duty Cycle: 1:1 RF Output Power: 5.15 Watts (Conducted) 7.5V 1700mAh Li-ion Battery Pack (P/N: KNB-33L) Medium: HSL450 (ı = 0.91 mho/m; İ r = 44.3; ȡ = 1000 kg/m 3 ) - Probe: ET3DV6 - SN1387; ConvF(7.5, 7.5, 7.5); Calibrated: 18/03/2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn353; Calibrated: 19/12/2003 - Phantom: Planar; Type: Plexiglas; Serial: 161 - Measurement SW: DASY4, V4.2 Build 37; Postprocessing SW: SEMCAD, V1.8 Build 109 Face-Held - 2.5 cm Separation Distance - Mid Channel/Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Face-Held - 2.5 cm Separation Distance - Mid Channel/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 74.1 V/m; Power Drift = -0.444 dB Peak SAR (extrapolated) = 7.79 W/kg SAR(1 g) = 4.90 mW/g; SAR(10 g) = 3.46 mW/g © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation Face-Held SAR - NiCd Battery - Stubby Antenna (P/N: KRA-23M2…

Text truncated - open the document above for the full version.

© 2004 Celltech Labs Inc. 1 of 23 Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the Occupational / Controlled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information KENWOOD USA CORPORATION 3975 John Creek Court, Suite 300 Suwanee, GA 30024 Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Classification: Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Type: Portable FM UHF PTT Radio Transceiver FCC IDENTIFER: ALH37333110 Model(s): TK-3180 Modulation: FM (UHF) Tx Frequency Range: 450 - 520 MHz Max. RF Output Power Measured: 5.36 Watts Conducted (485.05 MHz) Antenna Type(s) Tested: Stubby 440 - 490 MHz (P/N: KRA-23M) Stubby 470 - 520 MHz (P/N: KRA-23M2) Whip 440 - 490 MHz (P/N: KRA-27M) Whip 470 - 520 MHz (P/N: KRA-27M2) Stubby 450 - 490 MHz (P/N: KRA-17M) Stubby 470 - 512 MHz (P/N: KRA-17M2) Battery Type(s) Tested: Li-ion 7.5 V, 1700 mAh (P/N: KNB-33L) NiCd 7.5 V, 1700 mAh (P/N: KNB-31A) NiMH 7.5 V, 2500 mAh (P/N: KNB-32N) Body-Worn Accessories Tested: Speaker-Microphone (P/N: KMC-25) Plastic Belt-Clip (P/N: KBH-11) Max. SAR Levels Measured: Face-held: 3.43 W/kg (50% Duty Cycle) Body-worn: 5.34 W/kg (50% Duty Cycle) © 2004 Celltech Labs Inc. 2 of 23 Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION.....................................................................3 2.0DESCRIPTION OF DUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM................................................ 4 4.0MEASUREMENT SUMMARY..................................................... 5-8 5.0DETAILS OF SAR EVALUATION............................................... 9 6.0EVALUATION PROCEDURES................................................... 9 7.0SYSTEM PERFORMANCE CHECK............................................. 10 8.0SIMULATED EQUIVALENT TISSUES......................................... 11 9.0SAR SAFETY LIMITS............................................................... 11 10.0ROBOT SYSTEM SPECIFICATIONS.......................................... 12 11.0PROBE SPECIFICATION......................................................... 13 12.0PLANAR PHANTOM................................................................ 14 13.0VALIDATION PHANTOM........................................................... 13 14.0DEVICE HOLDER.................................................................... 13 15.0TEST EQUIPMENT LIST........................................................... 14 16.0MEASUREMENT UNCERTAINTIES............................................ 15-16 17.0REFERENCES........................................................................17 APPENDIX A - SAR MEASUREMENT DATA............................................... 18 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................ 19 APPENDIX C - SYSTEM VALIDATION PROCEDURES................................. 20 APPENDIX D - PROBE CALIBRATION...................................................... 21 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................... 22 APPENDIX F - SAR TEST SETUP & DUT PHOTOGRAPHS.......................... 23 © 2004 Celltech Labs Inc. Kenwood USA Corporation FCC ID: ALH37333110 3 of 23 Portable UHF PTT Radio Transceiver (450-520MHz) Test Report S/N: 032404-494ALH Test Date(s): April 07-08 & 12-13, 2004 Test Type: FCC/IC SAR Evaluation This measurement report demonstrates compliance of the Kenwood USA Corporation Model: TK-3180 Portable FM UHF PTT Radio Transceiver FCC ID: ALH37333110 with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]), and Health Canada’s Safety Code 6 (see reference [2]) for the Occupational / Controlled Exposure environment. The measurement procedures described in FCC OET Bulletin 65, Supplement C (Edition 01-01) (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. FCC Rule Part(s) 47 CFR §2.1093 IC Rule Part(s) RSS-102 Issue 1 (Provisional) Test Procedure(s) FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Classification Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Type Portable FM UHF PTT Radio Transceiver FCC ID…

Text truncated - open the document above for the full version.

FCC ID: ALH37333110 Transmitter Certification of FCC ID: ALH37333110 Model: TK-3180-K AND TK-3180-K3 to Federal Communications Commission Rule Parts 22, 74, 90, 90.210, Confidentiality Date of report: May 6, 2004 On the Behalf of the Applicant: Kenwood USA Corporation At the Request of: P.O. JB-F-006 Kenwood USA Corporation Communications Division 3975 Johns Creek Court, Suite 300 Suwanee, GA 30024 Attention of: Joel E. Berger, Research & Development [email protected] (678) 474-4722; FAX: -4731 Supervised by: Morton Flom, P. Eng. MFA p0430005, d0450012 FCC ID: ALH37333110 List of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: Kenwood USA Corporation FCC ID: ALH37333110 By Applicant: 1. Letter of Authorization x 2. Confidentiality Request: 0.457 And 0.459 x 3. Part 90.203(e) & (g) Attestation x 4. Identification Drawings, 2.1033(c)(11) x Label x Location of Label x Compliance Statement x Location of Compliance Statement 5. Photographs, 2.1033(c)(12) x 6. Documentation: 2.1033(c) (3) User Manual x (9) Tune Up Info x (10) Schematic Diagram x (10) Circuit Description x Block Diagram x Active Devices x 7. SAR Report x By M.F.A. Inc.: A. Testimonial & Statement of Certification MFA p0430005, d0450012 FCC ID: ALH37333110 The Applicant has been cautioned as to the following: 15.21 Information to the User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. MFA p0430005, d0450012 FCC ID: ALH37333110 Table of Contents Rule Description Page . Test Report 1 2.1033(c)(14) Rule Summary 2 . Standard Test Conditions and Engineering Practices 3 2.1033(c) General Information Required 5 2.1046(a) Carrier Output Power (Conducted) 8 2.1046(a) ERP Carrier Power (Radiated) 10 2.1053(a) Field Strength of Spurious Radiation 12 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 16 90.214 Transient Frequency Behavior 35 2.1047(a) Audio Low Pass Filter (Voice Input) 41 2.1047(a) Audio Frequency Response 43 2.1047(b) Modulation Limiting 45 2.1055(a)(1) Frequency Stability (Temperature Variation) 48 2.1055(b)(1) Frequency Stability (Voltage Variation) 50 2.202(g) Necessary Bandwidth and Emission Bandwidth 52 MFA p0430005, d0450012 FCC ID: ALH37333110 Page Number 1 of 52. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, S…
