ALH409000800MHz Digital Transceiver

© B62-XXXX-00 (K) 09 08 07 06 05 04 03 02 01 00 NX-410 800MHz DIGITAL TRANSCEIVER INSTRUCTION MANUAL ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE800MHz MODE D’EMPLOI TRANSCEPTOR DIGITAL 800MHz MANUAL DE INSTRUCCIONES 800MHz DIGITAL TRANSCEIVER NX-410 INSTRUCTION MANUAL ENGLISH Terminal Descriptions Universal connector It is possible to use a resin-based cover for the Universal connector. NO.Name Description ImpedanceI/O 1SSWExt/Int Speaker Switch InputHigh ImpedanceI 2SP+BTL Output + for External Speaker ŸŸ O 3SP-BTL Output - for External SpeakerO 4MSWExt/Int MIC Switch Input High ImpedanceI 5EMCExternal MIC InputNŸI 6MEExternal MIC GND GND- 7PTTExternal PTT InputHigh ImpedanceI 8PFProgramable Function Key Input High ImpedanceI 9OPTMan Down InputHigh ImpedanceI 10EGNDGND- 115V5V power supply output5VO 12TXDSerial Data OutputCMOSO 13RXDSerial Data InputCMOSI 14NCNot used-- Antenna Terminal  ŸLPSHGDQFH Battery Terminal The battery terminal uses a spring plate. The negative terminal connects to the chassis ground. The battery is mounted on the rear side of the transceiver using a sliding mounting method. THANK YOU We are grateful you have chosen Kenwood for your land mobile radio applications. This instruction manual covers only the basic operations of your NEXEDGE portable radio. Ask your dealer for information on any customized features they may have added to your radio. NXDN™ NXDN™ is a protocol name for a new digital communications system using 4-level FSK technology which has been co-developed by Kenwood and Icom. NOTICES TO THEUSER XGovernment law prohibits the operation of unlicensed radio transmitters within the territories under government control. X ,OOHJDORSHUDWLRQLVSXQLVKDEOHE\ÀQHDQGRULPSULVRQPHQW X 5HIHUVHUYLFHWRTXDOLÀHGWHFKQLFLDQVRQO\ SAFETY: It is important that the operator is aware of and understands hazards common to the operation of any transceiver. The AMBE+2 TM voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. i One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. &KDQJHVRUPRGLÀFDWLRQVWRWKLVHTXLSPHQWPD\FDXVHKDUPIXO LQWHUIHUHQFHXQOHVVWKHPRGLÀFDWLRQVDUHH[SUHVVO\DSSURYHGLQWKH LQVWUXFWLRQPDQXDO7KHXVHUFRXOGORVHWKHDXWKRULW\WRRSHUDWHWKLV HTXLSPHQWLIDQXQDXWKRUL]HGFKDQJHRUPRGLÀFDWLRQLVPDGH INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC 7KLVHTXLSPHQWKDVEHHQWHVWHGDQGIRXQGWRFRPSO\ZLWKWKHOLPLWV IRUD&ODVV%GLJLWDOGHYLFHSXUVXDQWWR3DUWRIWKH)&&5XOHV 7KHVHOLPLWVDUHGHVLJQHGWRSURYLGHUHDVRQDEOHSURWHFWLRQDJDLQVW KDUPIXOLQWHUIHUHQFHLQDUHVLGHQWLDOLQVWDOODWLRQ 7KLVHTXLSPHQWJHQHUDWHVXVHVDQGFDQJHQHUDWHUDGLR IUHTXHQF\HQHUJ\DQGLIQRWLQVWDOOHGDQGXVHGLQDFFRUGDQFH ZLWKWKHLQVWUXFWLRQVPD\FDXVHKDUPIXOLQWHUIHUHQFHWRUDGLR FRPPXQLFDWLRQV+RZHYHUWKHUHLVQRJXDUDQWHHWKDWWKH LQWHUIHUHQFHZLOOQRWRFFXULQDSDUWLFXODULQVWDOODWLRQ,IWKLVHTXLSPHQW GRHVFDXVHKDUPIXOLQWHUIHUHQFHWRUDGLRRUWHOHYLVLRQUHFHSWLRQ ZKLFKFDQEHGHWHUPLQHGE\WXUQLQJWKHHTXLSPHQWRIIDQGRQWKH user is encouraged to try to correct the interference by one or more of WKHIROORZLQJPHDVXUHV % 5HRULHQWRUUHORFDWHWKHUHFHLYLQJDQWHQQD % ,QFUHDVHWKHVHSDUDWLRQEHWZHHQWKHHTXLSPHQWDQGUHFHLYHU % &RQQHFWWKHHTXLSPHQWWRDQRXWOHWRQDFLUFXLWGLIIHUHQWIURP WKDWWRZKLFKWKHUHFHLYHULVFRQQHFWHG % &RQVXOWWKHGHDOHUIRUWHFKQLFDODVVLVWDQFH ii 7KH5%5&5HF\FOHVHDOIRXQGRQKenwood OLWKLXPLRQ /LLRQ EDWWHU\SDFNVLQGLFDWHV KenwoodҋVYROXQWDU\SDUWLFLSDWLRQLQDQLQGXVWU\ SURJUDPWRFROOHFWDQGUHF\FOH/LLRQEDWWHULHV DIWHUWKHLURSHUDWLQJOLIHKDVH[SLUHG7KH5%5& SURJUDPLVDQDOWHUQDWLYHWRGLVSRVLQJ/LLRQ EDWWHULHVZLWK\RXUUHJXODUUHIXVHRULQPXQLFLSDO ZDVWHVWUHDPVZKLFKLVLOOHJDOLQVRPHDUHDV )RULQIRUPDWLRQRQ/LLRQEDWWHU\UHF\FOLQJLQ\RXUDUHDFDOO WROO IUHH %$77(5<   KenwoodҋVLQYROYHPHQWLQWKLVSURJUDPLVSDUWRIRXUFRPPLWPHQW WRSUHVHUYHRXUHQYLURQPHQWDQGFRQVHUYHRXUQDWXUDOUHVRXUFHV 7KH5%5&5HF\FOHVHDOIRXQGRQ Kenwood QLFNHOFDGPLXP 1L&G EDWWHU\SDFNVLQGLFDWHV Kenwood ҋVYROXQWDU\SDUWLFLSDWLRQLQDQLQGXVWU\ SURJUDPWRFROOHFWDQGUHF\FOH1L&GEDWWHULHV DIWHUWKHLURSHUDWLQJOLIHKDVH[SLUHG7KH5%5& SURJUDPLVDQDOWHUQDWLYHWRGLVSRVLQJ1L&G EDWWHULHVZLWK\RXUUHJXODUUHIXVHRULQPXQLFLSDO ZDVWHVWUHDPVZKLFKLVLOOHJDOLQVRPHDUHDV )RULQIRUPDWLRQRQ1L&GEDWWHU\UHF\FOLQJLQ\RXUDUHDFDOO WROO IUHH %$77(5<   Kenwood ҋVLQYROYHPHQWLQWKLVSURJUDPLVSDUWRIRXUFRPPLWPHQW WRSUHVHUYHRXUHQYLURQPHQWDQGFRQVHUYHRXUQDWXUDOUHVRXUFHV 7KH5%5&5HF\FOHVHDOIRXQGRQ Kenwood QLFNHO PHWDOK\GULGH 1L0+ EDWWHU\SDFNVLQGLFDWHV Kenwood ҋVYROXQWDU\SDUWLFLSDWLRQLQDQLQGXVWU\ SURJUDPWRFROOHFWDQGUHF\FOH1L0+EDWWHULHV DIWHUWKHLURSHUDWLQJOLIHKDVH[SLUHG7KH5%5& SURJUDPLVDQDOWHUQDWLYHWRGLVSRVLQJ1L0+ EDWWHULHVZLWK\RXUUHJXODUUHIXVHRULQPXQLFLSDO ZDVWHVWUHDPVZKLFKLVLOOHJDOLQVRPHDUHDV )RULQIRUPDWLRQRQ1L0+EDWWHU\UHF\FOLQJLQ\RXUDUHDFDOO WROO IUHH %$77(5<   Kenwood ҋVLQYROYHPHQWLQWKLVSURJUDPLVSDUWRIRXUFRPPLWPHQWWR SUHVHUYHRXUHQYLURQPHQWDQGFRQVHUYHRXUQDWXUDOUHVRXUFHV iii…

Text truncated - open the document above for the full version.

October 8, 2010 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: This letter will authorize Compliance Testing LLC to act as our Agent in all FCC matters. This appointment is effective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely,

October 28, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: NX-410-K2, FCC ID: ALH409000. To Whom It May Concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that should never get into the possession of our competition. Please contact me if you require any additional information. Sincerely,

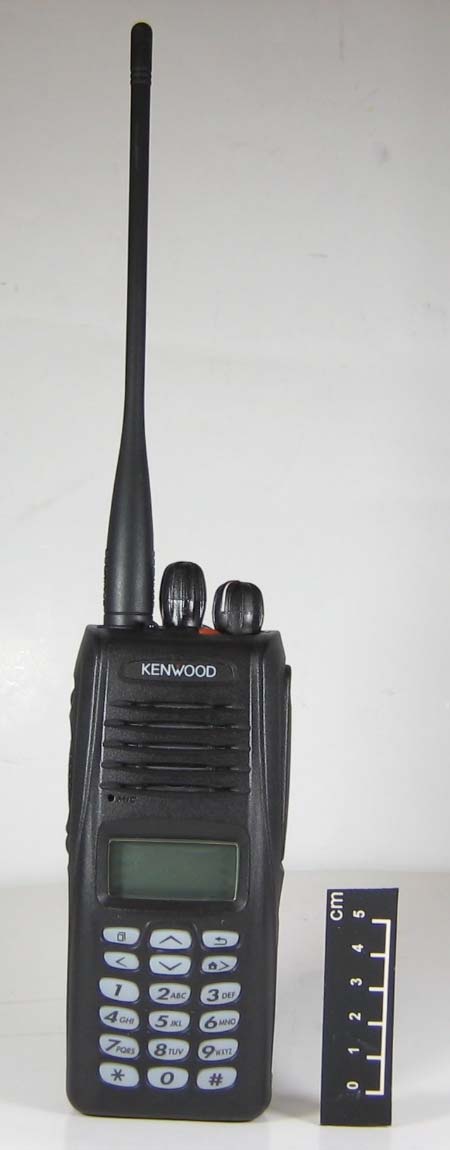

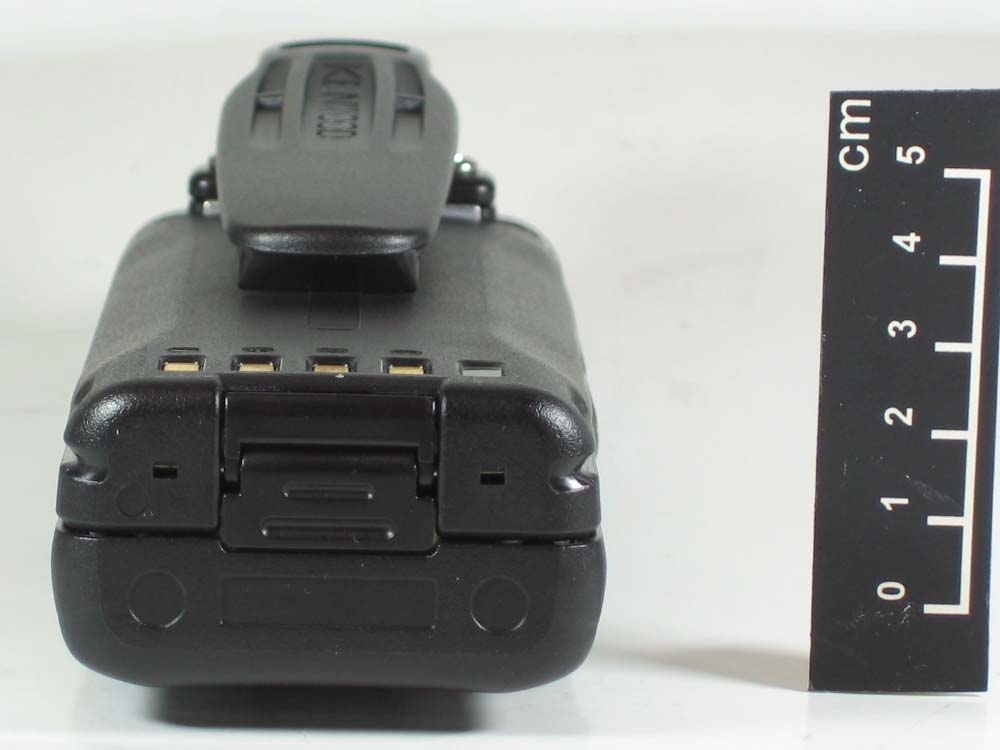

NX-410-K2 FCC ID: ALH409000 IC: 282D-409000 Rear View Front View NX-410-K2 FCC ID: ALH409000 IC: 282D-409000 Left View Right View NX-410-K2 FCC ID: ALH409000 IC: 282D-409000 Top View Bottom View

NX-410-K2 FCC ID: ALH409000 IC: 282D-409000

NX-410-K2 FCC ID: ALH409000 IC: 282D-409000 DISPLAY UNIT NX-410-K2 FCC ID: ALH409000 IC: 282D-409000 DISPLAY UNIT NX-410-K2 FCC ID: ALH409000 IC: 282D-409000 DISPLAY UNIT NX-410-K2 FCC ID: ALH409000 IC: 282D-409000 TXRX UNIT NX-410-K2 FCC ID: ALH409000 IC: 282D-409000 TXRX UNIT NX-410-K2 FCC ID: ALH409000 IC: 282D-409000 TXRX UNIT

Radio FRequency eneRgy SaFety inFoRmation This Kenwood transceiver has been tested and complies with the standards listed below, in regards to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver. • FCC RF exposure limits for Occupational Use Only. RF Exposure limits adopted by the FCC are generally based on recommendations from the National Council on Radiation Protection and Measurements, & the American National Standards Institute. • FCC OET Bulletin 65 Edition 97-01 Supplement C • American National Standards Institute (C95.1 – 1992) • American National Standards Institute (C95.3 – 1992) This Kenwood transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric & Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less than the recommended distance from this radio transmitter’s antenna. RF energy exposure is determined primarily by the distance to and the power of the transmitting device. In general, RF exposure is minimized when the lowest possible power is used or transmission time is kept to the minimum required for consistent communications, and the greatest distance possible from the antenna to the body is maintained. The transceiver has been designed for and is classified for Occupational Use Only. Occupational/ controlled exposure limits are applicable to situations in which persons are exposed to RF energy as a consequence of their employment, and such persons have been made aware of the potential for exposure and can exercise control over their exposure. This means you can use the transceiver only if you are aware of the potential hazards of operating a transceiver and are familiar in ways to minimize these hazards. This transceiver is not intended for use by the general public in uncontrolled environments. Uncontrolled environment exposure limits are applicable to situations in which the general public may be exposed to RF energy, or in which the persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. The following list provides you with the information required to ensure that you are aware of RF exposure and of how to operate this transceiver so that the FCC RF exposure limitations are not exceeded. • While transmitting (holding the PTT switch or speaking with VOX enabled), always keep the antenna and the radio at least 3 cm (1 3/16 inches) from your body or face, as well as from any bystanders. A LED on the top of the radio shows red when the transmitter is operating in both PTT and VOX modes. • Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver operation is 5% transmission time, 5% reception time, and 90% stand-by time. • Use only the specified antenna for this transceiver; this may be either the antenna provided with the transceiver or another antenna authorized by Kenwood . Use only Kenwood authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or headsets etc.): When worn on the body, always place the radio in a Kenwood recommended clip or carrying case meant for this product. The use of other than recommended or approved body- worn accessories may result in RF exposure levels which exceed the FCC’s occupational/ controlled environment RF exposure limits. To ensure that your exposure to RF EME is within the FCC limits for occupational use, you must observe and adhere to the above points. Electromagnetic Interference Compatibility Electronic devices are susceptible to electromagnetic interference (EMI) if they are not adequately shielded or designed for electromagnetic compatibility. Because this transceiver generates RF energy, it can cause interference to such equipment. • Turn OFF your transceiver where signs are posted to do so. Hospitals and health care facilities use equipment that is sensitive to electromagnetic radiation. • Turn OFF your transceiver while on board an aircraft when so instructed. Use of the transceiver must be in accordance with airline regulations and/or crew instructions. B59-2546-00

Applicant: Kenwood USA Corporation FCC ID: ALH409000 IC: 282D-409000 DUT Type: Portable 800-Band PTT Radio Transceiver Model(s): NX-410-K 806-824 / 851-869 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 63 Date(s) of Evaluation October 05, 2010 Test Report Serial No. 092410ALH-T1052-S90P Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date October 14, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE - SAR RF EXPOSURE EVALUATION (FCC/IC) Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Test Lab Accreditation(s) A2LA ISO/IEC 17025:2005 (A2LA Test Lab Certificate No. 2470.01) Name KENWOOD USA CORPORATION Applicant Information Address 3970 Johns Creek Court, Suite 100, Suwanee, GA 30024 United States Standard(s) Applied FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C FCC KDB 447498 D01v04 FCC Occupational PTT Test Reduction Draft Considerations (v 07 15 10 Jul 29 2010) Procedure(s) Applied IC RSS-102 Issue 4 IEEE 1528-2003 IEC 62209-1:2005 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) - FCC Part 90 Device Classification(s) IC Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) - RSS-119 Issue 10 FCC ID: ALH409000 Application Type FCC TCB Certification Device Identifier(s) IC 282D-409000 Application Type IC CB Certification Date of Sample Receipt September 24, 2010 Date(s) of Evaluation October 05, 2010 Device Description Portable 800-Band Digital Push-To-Talk (PTT) Radio Transceiver Device Model(s) NX-410-K Test Sample Serial No. TA No10 (Identical Prototype) Test Sample Revision No.s Hardware Revision 0 Firmware Revision 0 DUT Transmit Frequency Range(s) FCC/IC 806-824 MHz 851-869 MHz Manufacturer’s Rated Output Power 3 Watts (Maximum Conducted) Manuf. Tolerance Spec. +/- 0 dB 34.77 dBm 3.0 Watts 806.0 MHz Average Conducted 34.76 dBm 3.0 Watts 824.0 MHz Average Conducted 34.76 dBm 3.0 Watts 851.0 MHz Average Conducted RF Output Power Levels Measured 34.77 dBm 3.0 Watts 869.0 MHz Average Conducted Whip Antenna (A) P/N: KRA-32 806 - 869 MHz Length: 182 mm Antenna Type(s) Tested Whip Antenna (B) P/N: KRA-24M 806 - 869 MHz Length: 167 mm Li-Ion 7.4V 1700 mAh P/N: KNB-33L Ni-MH 7.2V 2500 mAh P/N: KNB-32N Battery Type(s) Tested Alkaline Battery Case 9 V 6x AA P/N: KBP-6 Body-worn Accessories Tested Belt-Clip (contains metal) P/N: KBH-11 Audio Accessories Tested None (Body-worn accessory SAR level < 4.0 W/kg; therefore audio acc. testing not required) Face-held 1.52 W/kg 1g 50% PTT duty cycle Occupational / Controlled Exp. Max. SAR Level(s) Evaluated Body-worn 3.91 W/kg 1g 50% PTT duty cycle Occupational / Controlled Exp. FCC/IC Spatial Peak SAR Limit Head/Body 8.0 W/kg 1g 50% PTT duty cycle Occupational / Controlled Exp. Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the Occupational / Controlled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC Occupational PTT Test Reduction Draft Considerations, FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2003 and IEC International Standard 62209-1:2005. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Test Report Approved By Sean Johnston Lab Manager Celltech Labs Inc. Applicant: Kenwood USA Corporation FCC ID: ALH409000 IC: 282D-409000 DUT Type: Portable 800-Band PTT Radio Transceiver Model(s): NX-410-K 806-824 / 851-869 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 63 Date(s) of Evaluation October 05, 2010 Test Report Serial No. 092410ALH-T1052-S90P Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date October 14, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION__________________________________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 4 3.0 RF CONDUCTED OUTPUT POWER MEASUREMENTS ___________________________________ 4 4.0 FCC POWER THRESHOLDS FOR PTT DEVICES (f < 0.5 GHz) _____________________________ 5 5.0 SAR PROBE CALIBRATION & MEASUREMENT FREQUENCIES ___________________________ 5 6.0 NO. OF TEST CHANNELS (N C )_______________________________________________________ 5 7.0 MANUFACTURER’S DISCLOSED ACCESSORY LISTING _________________________________ 6 8.0 SAR MEASUREMENT SUMMARY ____________________________________________________ 7 9.0 SAR SCALING (TUNE-UP TOLERANCE)______________________________________________ 8 10.0 FLUID DIELECTRIC PARAMETERS__________________________________________________ 8 11.0 DETAILS OF SAR EVALUATION ____________________________________________________ 9 12.0 SAR EVALUATION PROCEDURES_________________________________________________ 10 13.0 SYSTEM PERFORMANCE CHECK _____________________________________________…

Text truncated - open the document above for the full version.

p1090006, d10a0003 Rev 1.0 Date: October 12, 2010 Applicant: Kenwood USA Corporation Communications Division 3970 Johns Creek Court, Suite 100 Suwanee, GA 30024 Attention of: Joel E. Berger, Research & Development Ph: (678) 474-4722 Fax: (687) 474 -4731 E-mail: [email protected] Equipment: NX-410-K2 FCC ID: ALH409000 FCC Rules: Part 90 Enclosed please find your copy of the Engineering Test Report for which you are subject to the restrictions as listed on the attached summary. This report may not be reproduced, except in full, without written permission from Compliance Testing, LLC. Please retain a copy of this report for your archival purposes. Once a Telecommunication Certification Body (TCB) issues a Grant the Federal Communication Commission (FCC) has 30 days to review the application and request added information. It is your decision whether or not to market the equipment subject to a possible recall before the end of the 30 days. If your equipment is still retained by us, it will be returned to you 30 days after approval is achieved. Our invoice for services has been directed to your Accounts Payable Department. For any additional information please contact us. Sincerely, Compliance Testing p1090006, d10a0003 Rev 1.0 Test Report for FCC ID: ALH409000 Model: NX-410-K2 Description: 800MHz Digital Transceiver to Federal Communications Commission Rule Part(s) 90 Date of Report: October 12, 2010 On the Behalf of the Applicant: Kenwood USA Corporation At the Request of: Kenwood USA Corporation Communications Division 3970 Johns Creek Court, Suite 100 Suwanee, GA 30024 Attention of: Joel E. Berger, Research & Development Ph: (678) 474-4722 Fax: (687) 474 -4731 E-mail: [email protected] by Compliance Testing, LLC 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1090006, d10a0003 Rev 1.0 Page 2 of 54 Test Report Revision History Revision Date Revised By Reason for revision 1.0 October 12, 2010 J. Erhard Original Document p1090006, d10a0003 Rev 1.0 Page 3 of 54 The Applicant has been cautioned as to the following: 15.21 Information to the User The user’s manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. p1090006, d10a0003 Rev 1.0 Page 4 of 54 Testimonial and Statement of Certification This is to Certify: 1. That the application was prepared either by, or under the direct supervision of, the undersigned. 2. That the technical data supplied with the application was taken under my direction and supervision. 3. That the data was obtained on representative units, randomly selected. 4. That, the facts set forth in the application and accompanying technical data is true and correct to the best of my knowledge and belief. Certifying Engineer: John Erhard: Engineering Manager p1090006, d10a0003 Rev 1.0 Page 5 of 54 Table of Contents Rule Description Page 2.1033(c)(14) Rule Summary 6 . Standard Test Conditions and Engineering Practices 7 2.1033(c) General Information Required 9 Test Results Summary 11 2.1046 Carrier Output Power (Conducted) 12 2.1051 Conducted Spurious Emissions 13 2.1053 Field Strength of Spurious Radiation 22 90.210 Emission Masks (Occupied Bandwidth) 26 90.214 Transient Frequency Behavior 42 2.1047 Audio Low Pass Filter (Voice Input) 45 2.1047 Audio Frequency Response 47 2.1047 Modulation Limiting 49 90.213 Frequency Stability (Temperature Variation) 52 90.213 Frequency Stability (Voltage Variation) 53 Test Equipment Utilized 54 p1090006, d10a0003 Rev 1.0 Page 6 of 54 Sub-part 2.1033(c)(14): Test and Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II; Part 2, Sub-part J, Sections 2.947, 2.1033(c), 2.1041, 2.1046, 2.1047, 2.1079, 2.1051, 2.1053, 2.1055, 2.1057 and the following individual Parts: 90. p1090006, d10a0003 Rev 1.0 Page 7 of 54 Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI/C63.4-2009, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10 to 40C (50 to 104 F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Tempera…

Text truncated - open the document above for the full version.

Page 1 of 2 Test Setup Photos: Kenwood: NX-410-K2 FCC ID: ALH409000 IC: 282D-409000 Conducted Emission Radiated Emission #1 Page 2 of 2 Radiated Emissions #2
