ALH413801UHF FM Transceiver

© B62-2238-00 (K,M,P) 09 08 07 06 05 04 03 02 01 00 VHF FM TRANSCEIVER/ UHF FM TRANSCEIVER INSTRUCTION MANUAL ÉMETTEUR-RÉCEPTEUR FM VHF/ ÉMETTEUR-RÉCEPTEUR FM UHF MODE D’EMPLOI TRANSCEPTOR FM VHF/ TRANSCEPTOR FM UHF MANUAL DE INSTRUCCIONES TK-2312/ TK-3312 VHF FM TRANSCEIVER/ UHF FM TRANSCEIVER TK-2312/ TK-3312 INSTRUCTION MANUAL ENGLISH  ATTENTION: The RBRC Recycle seal found on Kenwood l th um-on (L -on) battery packs nd cates Kenwood ’s voluntary partcpaton n an ndustry program to collect and recycle L-on batteres after ther operatng lfe has expred. The RBRC program s an alternatve to dsposng L-on batteres wth your regular refuse or n muncpal waste streams, whch s llegal n some areas. For nformaton on L-on battery recyclng n your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). Kenwood ’s nvolvement n ths program s part of our commtment to preserve our envronment and conserve our natural resources. ATTENTION: The RBRC Recycle seal found on Kenwood n ckel metal hydrde (N-MH) battery packs nd cates Kenwood ’s voluntary partcpaton n an ndustry program to collect and recycle N-MH batteres after ther operatng lfe has expred. The RBRC program s an alternatve to dsposng N-MH batteres wth your regular refuse or n muncpal waste streams, whch s llegal n some areas. For nformaton on N-MH battery recyclng n your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). Kenwood ’s nvolvement n ths program s part of our commtment to preserve our envronment and conserve our natural resources. Thank You We are grateful you have chosen Kenwood for your land moble rado applcatons. noTices To The user ◆ Government law prohbts the operaton of unlcensed rado transmtters wthn the terrtores under government control. ◆ Illegal operaton s punshable by fne and/or mprsonment. ◆ Refer servce to qualfed techncans only. Safety: It s mportant that the operator s aware of, and understands, hazards common to the operaton of any transcever.  One or more of the following statements may be applicable: FCC WARNING Ths equpment generates or uses rado frequency energy. Changes or modfcatons to ths equpment may cause harmful nterference unless the modfcatons are expressly approved n the nstructon manual. The user could lose the authorty to operate ths equpment f an unauthorzed change or modfcaton s made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC Ths equpment has been tested and found to comply wth the lmts for a Class B dgtal devce, pursuant to Part 15 of the FCC Rules. These lmts are desgned to provde reasonable protecton aganst harmful nterference n a resdental nstallaton. Ths equpment generates, uses and can generate rado frequency energy and, f not nstalled and used n accordance wth the nstructons, may cause harmful nterference to rado communcatons. However, there s no guarantee that the nterference wll not occur n a partcular nstallaton. If ths equpment does cause harmful nterference to rado or televson recepton, whch can be determned by turnng the equpment off and on, the user s encouraged to try to correct the nterference by one or more of the followng measures: • Reorent or relocate the recevng antenna. • Increase the separaton between the equpment and recever. • Connect the equpment to an outlet on a crcut dfferent from that to whch the recever s connected. • Consult the dealer for techncal assstance.  Terminal DescripTions Speaker/ Microphone Jacks You can use a resn-based cover for the Speaker/ Mcrophone jacks. No.NameDescriptionImpedanceI/O 1PTT / RXD External PTT Input / Seral Data Input CMOSI 2MICExternal MIC Input1.8 kΩI 3MICINInternal MIC Output1.8 kΩO 4OPTDETExternal Opton DetectHgh ImpedanceI 55M5V Output100 ΩO 6AEGNDGND − 7TXDSeral Data OutputCMOSO 8NCNo Connecton −− 9SPOAudo Input8 ΩI 10SPIReceved Audo Output8 ΩO Antenna Terminal 50 Ω impedance Battery Terminal The battery termnal uses a sprng plate. The negatve termnal connects to the chasss ground. The battery s mounted on the rear sde of the transcever usng a latch mountng method. Firmware Copyrights The ttle to and ownershp of copyrghts for frmware embedded n Kenwood product memores are reserved for Kenwood Corporaton. v precauTions • Do not charge the transcever and battery pack when they are wet. • Ensure that there are no metallc tems located between the transcever and the battery pack. • Do not use optons not specfed by Kenwood. • If the de-cast chasss or other transcever part s damaged, do not touch the damaged parts. • If a headset or headphone s connected to the transcever, reduce the transcever volume. Pay attenton to the volume level when turnng the squelch off. • Do not place the mcrophone cable around your neck whle near machnery that may catch the cable. • Do not place the transcever on unstable surfaces. • Ensure that the end of the antenna does not touch your eyes. • When the transcever s used for transmsson for many hours, the radator and chasss wll become hot. Do not touch these locatons when replacng the battery pack. • Do not mmerse the transcever n water. • Always swtch the transcever power off before nstallng optonal accessores. • For safety reasons, we recommend that the AC adapter (for the battery charger) should be connected to an easly accessble AC socket. v Turn the transcever power off n the followng locatons: • In explosve atmospheres (nflammable gas, dust partcles, metallc powders, gran powders, etc.). • Whle takng on fuel or whle parked at gasolne servce statons. • Near explosves or blastng stes. • In arcrafts. (Any use of the transcever must follow the nstructons and regulatons provded by the arl ne crew.) • Where restrct ons or warnngs are posted regardng the use of rado devces, nclud…

Text truncated - open the document above for the full version.

January 19, 2010 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: This letter will authorize Compliance Testing LLC to act as our Agent in all FCC matters. This appointment is effective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely,

Radio FRequency eneRgy SaFety inFoRmation This Kenwood transceiver has been tested and complies with the standards listed below, in regards to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver. • FCC RF exposure limits for Occupational Use Only. RF Exposure limits adopted by the FCC are generally based on recommendations from the National Council on Radiation Protection and Measurements, & the American National Standards Institute. • FCC OET Bulletin 65 Edition 97-01 Supplement C • American National Standards Institute (C95.1 – 1992) • American National Standards Institute (C95.3 – 1992) This Kenwood transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric & Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less than the recommended distance from this radio transmitter’s antenna. RF energy exposure is determined primarily by the distance to and the power of the transmitting device. In general, RF exposure is minimized when the lowest possible power is used or transmission time is kept to the minimum required for consistent communications, and the greatest distance possible from the antenna to the body is maintained. The transceiver has been designed for and is classified for Occupational Use Only. Occupational/ controlled exposure limits are applicable to situations in which persons are exposed to RF energy as a consequence of their employment, and such persons have been made aware of the potential for exposure and can exercise control over their exposure. This means you can use the transceiver only if you are aware of the potential hazards of operating a transceiver and are familiar in ways to minimize these hazards. This transceiver is not intended for use by the general public in uncontrolled environments. Uncontrolled environment exposure limits are applicable to situations in which the general public may be exposed to RF energy, or in which the persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. The following list provides you with the information required to ensure that you are aware of RF exposure and of how to operate this transceiver so that the FCC RF exposure limitations are not exceeded. • While transmitting (holding the PTT switch or speaking with VOX enabled), always keep the antenna and the radio at least 3 cm (1 3/16 inches) from your body or face, as well as from any bystanders. A LED on the top of the radio shows red when the transmitter is operating in both PTT and VOX modes. • Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver operation is 5% transmission time, 5% reception time, and 90% stand-by time. • Use only the specified antenna for this transceiver; this may be either the antenna provided with the transceiver or another antenna authorized by Kenwood . Use only Kenwood authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or headsets etc.): When worn on the body, always place the radio in a Kenwood recommended clip or carrying case meant for this product. The use of other than recommended or approved body- worn accessories may result in RF exposure levels which exceed the FCC’s occupational/ controlled environment RF exposure limits. To ensure that your exposure to RF EME is within the FCC limits for occupational use, you must observe and adhere to the above points. Electromagnetic Interference Compatibility Electronic devices are susceptible to electromagnetic interference (EMI) if they are not adequately shielded or designed for electromagnetic compatibility. Because this transceiver generates RF energy, it can cause interference to such equipment. • Turn OFF your transceiver where signs are posted to do so. Hospitals and health care facilities use equipment that is sensitive to electromagnetic radiation. • Turn OFF your transceiver while on board an aircraft when so instructed. Use of the transceiver must be in accordance with airline regulations and/or crew instructions. B59-2546-00

August 23 rd , 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: TK-3312-2, TK-3317-2, FCC ID: ALH413801. To Whom It May Concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that should never get into the possession of our competition. Please contact me if you require any additional information. Sincerely,

August 23 rd , 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer Subject: Justify Extended Frequency Range for MODEL: TK-3312-2, TK-3317-2 FCC ID: ALH413801 To Whom It May Concern: This letter serves justification for extended frequencies This device has design capability to operate in the frequency band 406.1 to 470 MHz and complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Please note that Licensed End Users do not have access to any external controls that will allow them to program the equipment. Equipment programming is the responsibility of Kenwood approved Service Agents. In addition to Parts 22/74/90 usage, this device is utilized in systems such as Federal and Public Safety agencies, e.g. police, fire, and emergency medical, etc. as indicated in the following table: Table 1 – Frequency Range and Rule Parts - (47 CFR Part 2.106) It is understood that a grant note code may be added to the grant which indicates this required operation. Please contact me if you require any additional information. Sincerely, Freq. Range (MHz) Part 90 Part 22 Part 74 Federal Customers 406.100 - 420.000 x 420.000 - 450.000 x 450.000 - 454.000 x x 454.000 - 455.000 x 455.000 - 456.000 x 456.000 - 460.000 x x 460.000 - 462.5375 x 462.5375-462.7375 x 462.7375-467.5375 x 467.5375-467.7375 x 467.7375-470.000 x

TK-3312-2 FCC ID: ALH413801 IC: 282D-413801 TK-3317-2 FCC ID: ALH413801 Front View Rear View TK-3312-2 FCC ID: ALH413801 IC: 282D-413801 TK-3317-2 FCC ID: ALH413801 Left View Right View TK-3312-2 FCC ID: ALH413801 IC: 282D-413801 TK-3317-2 FCC ID: ALH413801 Top View bottom View

TK-3312-2 FCC ID: ALH413801 IC: 282D-413801 TK-3317-2 FCC ID: ALH413801 TK-3312-2 TK-3312-2 FCC ID: ALH413801 IC: 282D-413801 TK-3317-2 FCC ID: ALH413801 TK-3317-2

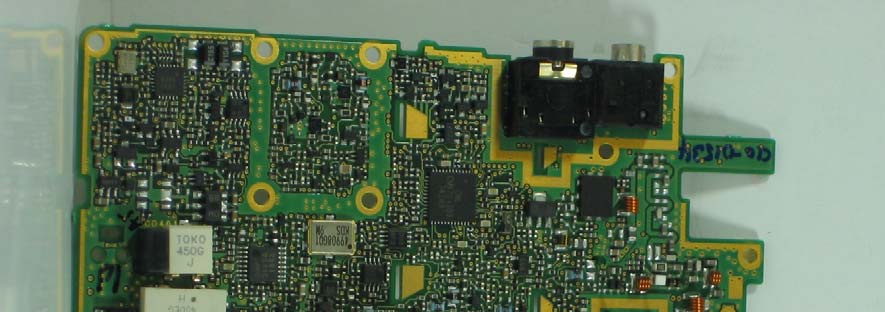

TK-3312-2 FCC ID: ALH413801 IC: 282D-413801 TK-3317-2 FCC ID: ALH413801 Component Side View Foil Side View TK-3312-2 FCC ID: ALH413801 IC: 282D-413801 TK-3317-2 FCC ID: ALH413801 TK-3312-2 FCC ID: ALH413801 IC: 282D-413801 TK-3317-2 FCC ID: ALH413801

Applicant: Kenwood USA Corporation FCC ID: ALH413801 IC: 282D-413801 DUT Type: Portable FM UHF PTT Radio Transceiver Models: TK-3312-2 (FCC/IC) TK-3317-2 (FCC) 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 189 Date(s) of Evaluation 06/29-07/03, 08/04, 2010 Test Report Serial No. 062810ALH-T1034-S90U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date August 19, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 SAR TEST REPORT (FCC/IC) R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E APPLICANT / MANUFACTURER KENWOOD USA CORPORATION DEVICE UNDER TEST (DUT) PORTABLE FM UHF PUSH-TO-TALK RADIO TRANSCEIVER DEVICE MODEL(S) TK-3312-2 (FCC/IC) TK-3317-2 (FCC only) MANUF. RATED OUTPUT POWER 5 Watts (Conducted) Max. Tolerance Spec.: +0.2 W FCC 406.1 - 470.0 MHz 406.1 - 430.0 MHz TRANSMIT FREQUENCY RANGE IC 450.0 - 470.0 MHz DEVICE IDENTIFIER(S) FCC ID:ALH413801 IC: 282D-413801 APPLICATION TYPE(S) FCC TCB Certification IC CB Certification FCC 47 CFR §2.1093 STANDARD(S) APPLIED Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (01-01) FCC KDB 447498 D01v04 FCC KDB Inquiry Track No. 407503 IC RSS-102 Issue 4 IEEE 1528-2003 IEC 62209-1:2005 PROCEDURE(S) APPLIED IEC 62209-2 (Draft) FCC DEVICE CLASSIFICATION Licensed Non-Broadcast Transmitter Held to Face (TNF) IC DEVICE CLASSIFICATION Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) RF EXPOSURE CATEGORY Occupational / Controlled RF EXPOSURE EVALUATION(S) Face-held & Body-worn DATE OF SAMPLE RECEIPT June 28, 2010 DATE(S) OF EVALUATION June 29-30, July 01-03, August 04, 2010 TEST REPORT SERIAL NO. 062810ALH-T1034-S90U TEST REPORT REVISION NO. Revision 1.0 Initial Release August 19, 2010 Testing Performed ByTest Report Prepared By TEST REPORT SIGNATORIES Sean Johnston - Celltech Labs Jon Hughes - Celltech Labs Celltech Compliance Testing and Engineering Laboratory TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com TEST LAB ACCREDITATION(S) ISO/IEC 17025:2005 (A2LA Test Lab Certificate No. 2470.01) Applicant: Kenwood USA Corporation FCC ID: ALH413801 IC: 282D-413801 DUT Type: Portable FM UHF PTT Radio Transceiver Models: TK-3312-2 (FCC/IC) TK-3317-2 (FCC) 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 189 Date(s) of Evaluation 06/29-07/03, 08/04, 2010 Test Report Serial No. 062810ALH-T1034-S90U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date August 19, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE - SAR RF EXPOSURE EVALUATION (FCC/IC) Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Name KENWOOD USA CORPORATION Applicant Information Address 3970 Johns Creek Court, Suite 100, Suwanee, GA 30024 United States Standard(s) Applied FCC 47 CFR §2.1093 IC: Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C FCC KDB 447498 D01v04 FCC KDB Inquiry Track No. 407503 IC: RSS-102 Issue 4 Procedure(s) Applied IEEE1528-2003 IEC62209-1:2005 IEC 62209-2 (Draft) FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) - FCC Part 90 Device Classification(s) IC Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) - RSS-119 Issue 10 Device Identifier(s) FCC ID: ALH413801 IC 282D-413801 Device Model(s) TK-3312-2 (FCC/IC), TK-3317-2 (IC) - Note: Models are electrically and mechanically identical Test Sample Serial No. No. 02 (Identical Prototype) Hardware Rev. No. 1.0 Firmware Rev. No. 1.0 Device Description Portable FM UHF Push-To-Talk (PTT) Radio Transceiver Device Frequency Range(s) FCC 406.1 - 470.0 MHz IC 406.1 - 430.0 MHz 450.0 - 470.0 MHz Manufacturer’s Rated Output Power 5 Watts (Conducted) Max. Tolerance Spec. + 0.2 Watts 37.08 dBm 5.1 Watts 406.1 MHz Average Conducted 37.16 dBm 5.2 Watts 421.0 MHz Average Conducted 37.16 dBm 5.2 Watts 435.0 MHz Average Conducted 37.08 dBm 5.1 Watts 440.0 MHz Average Conducted 37.08 dBm 5.1 Watts 450.0 MHz Average Conducted 37.08 dBm 5.1 Watts 455.0 MHz Average Conducted 37.08 dBm 5.1 Watts 460.0 MHz Average Conducted RF Output Power Level(s) Tested 37.08 dBm 5.1 Watts 470.0 MHz Average Conducted Detachable Stub P/N: KRA-17M 450-490 MHz Nc = 3 Length: 79 mm Detachable Stub P/N: KRA-23M 440-490 MHz Nc = 3 Length: 80 mm Detachable Stub P/N: KRA-23M3 400-450 MHz Nc = 4 Length: 80 mm Detachable Whip P/N: KRA-27M 440-490 MHz Nc = 3 Length: 149 mm Antenna Type(s) Tested Detachable Whip P/N: KRA-27M3 400-450 MHz Nc = 4 Length: 171 mm Ni-MH 7.2 V 1500 mAh P/N: KNB-29N Battery Type(s) Tested Li-ion 7.4 V 2000 mAh P/N: KNB-45L Body-worn Accessories Tested Metal Belt-Clip P/N: KBH-10 Speaker-Microphone P/N: KMC-48GPS Over-the-Head Headset P/N: KHS-10-OH Audio Accessories Tested 2-Wire Ear-bud with PTT Mic P/N: KHS-23 2-Wire Palm-Mic Kit P/N: KHS-8BL Face-held 6.30 W/kg 1g50% PTT duty cycle Occupational / Controlled Exp. Max. SAR Level(s) Evaluated Body-worn 7.25 W/kg 1g50% PTT duty cycle Occupational / Controlled Exp. FCC/IC Spatial Peak SAR Limit Head/Body 8.0 W/kg 1g50% PTT duty cycle Occupational / Controlled Exp. Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the Occupational / Controlled Exposure environment. The device was tested in accordance with the measurement procedu…

Text truncated - open the document above for the full version.

Applicant: Kenwood USA Corporation FCC ID: ALH413801 IC: 282D-413801 DUT Type: Portable FM UHF PTT Radio Transceiver Models: TK-3312-2 (FCC/IC) TK-3317-2 (FCC) 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 22 of 189 Date(s) of Evaluation 06/29-07/03, 08/04, 2010 Test Report Serial No. 062810ALH-T1034-S90U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date August 19, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 APPENDIX A - SAR MEASUREMENT DATA Applicant: Kenwood USA Corporation FCC ID: ALH413801 IC: 282D-413801 DUT Type: Portable FM UHF PTT Radio Transceiver Models: TK-3312-2 (FCC/IC) TK-3317-2 (FCC) 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 23 of 189 Date(s) of Evaluation 06/29-07/03, 08/04, 2010 Test Report Serial No. 062810ALH-T1034-S90U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date August 19, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Date Tested: 07/02/2010 Face-held SAR - Ni-MH Battery KNB-29N - Stub Antenna KRA-17M - 460.0 MHz DUT: Kenwood TK-3312-2; Type: Portable FM UHF PTT Radio Transceiver; Serial: No. 2 (Pre-production) Ambient Temp: 24.0°C; Fluid Temp: 23.0°C; Barometric Pressure: 101.1 kPa; Humidity: 35% Communication System: CW Frequency: 460 MHz; Duty Cycle: 1:1 Medium: HSL450 Medium parameters used: f = 460 MHz; ı = 0.88 mho/m; İ r = 45; ȡ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(7.34, 7.34, 7.34); Calibrated: 16/07/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn353; Calibrated: 27/04/2010 - Phantom: Barski Industries; Type: Fiberglas Planar; Serial: 03-01 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Face-held SAR - 2.5 cm Spacing from Front of DUT to Planar Phantom Area Scan (8x14x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 11.2 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 114.7 V/m; Power Drift = -0.340 dB Peak SAR (extrapolated) = 15.6 W/kg SAR(1 g) = 10.9 mW/g; SAR(10 g) = 7.66 mW/g Maximum value of SAR (measured) = 11.4 mW/g  Applicant: Kenwood USA Corporation FCC ID: ALH413801 IC: 282D-413801 DUT Type: Portable FM UHF PTT Radio Transceiver Models: TK-3312-2 (FCC/IC) TK-3317-2 (FCC) 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 24 of 189 Date(s) of Evaluation 06/29-07/03, 08/04, 2010 Test Report Serial No. 062810ALH-T1034-S90U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date August 19, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Date Tested: 07/02/2010 Face-held SAR – Li-Ion Battery KNB-45L - Stub Antenna KRA-17M - 460.0 MHz DUT: Kenwood TK-3312-2; Type: Portable FM UHF PTT Radio Transceiver; Serial: No. 2 (Pre-production) Ambient Temp: 24.0°C; Fluid Temp: 23.0°C; Barometric Pressure: 101.1 kPa; Humidity: 35% Communication System: CW Frequency: 460 MHz; Duty Cycle: 1:1 Medium: HSL450 Medium parameters used: f = 460 MHz; ı = 0.88 mho/m; İ r = 45; ȡ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(7.34, 7.34, 7.34); Calibrated: 16/07/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn353; Calibrated: 27/04/2010 - Phantom: Barski Industries; Type: Fiberglas Planar; Serial: 03-01 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Face-held SAR - 2.5 cm Spacing from Front of DUT to Planar Phantom Area Scan (8x14x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 12.5 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 114.5 V/m; Power Drift = -0.400 dB Peak SAR (extrapolated) = 16.4 W/kg SAR(1 g) = 11.5 mW/g; SAR(10 g) = 8.19 mW/g Maximum value of SAR (measured) = 12.0 mW/g  Applicant: Kenwood USA Corporation FCC ID: ALH413801 IC: 282D-413801 DUT Type: Portable FM UHF PTT Radio Transceiver Models: TK-3312-2 (FCC/IC) TK-3317-2 (FCC) 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 25 of 189 Date(s) of Evaluation 06/29-07/03, 08/04, 2010 Test Report Serial No. 062810ALH-T1034-S90U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date August 19, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Z-Axis Scan Applicant: Kenwood USA Corporation FCC ID: ALH413801 IC: 282D-413801 DUT Type: Portable FM UHF PTT Radio Transceiver Models: TK-3312-2 (FCC/IC) TK-3317-2 (FCC) 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 26 of 189 Date(s) of Evaluation 06/29-07/03, 08/04, 2010 Test Report Serial No. 062810ALH-T1034-S90U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date August 19, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Date Tested: 07/02/2010 Face-held SAR - Ni-MH Battery KNB-29N - Stub Antenna KRA-23M - 455.0 MHz DUT: Kenwood TK-3312-2; Type: Portable FM UHF PTT Radio Transceiver; Serial: No. 2 (Pre-production) Ambient Temp: 24.0°C; Fluid Temp: 23.0°C; Barometric Pressure: 101.1 kPa; Humidity: 35% Communication System: CW Frequency: 455 MHz; Duty Cycle: 1:1 Medium: HSL450 Medium parameters used (interpolated): f = 455 MHz; ı = 0.88 mho/m; İ r = 45; ȡ = 1000 kg/m 3 - …

Text truncated - open the document above for the full version.

Applicant: Kenwood USA Corporation FCC ID: ALH413801 IC: 282D-413801 DUT Type: Portable FM UHF PTT Radio Transceiver Models: TK-3312-2 (FCC/IC) TK-3317-2 (FCC) 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 156 of 189 Date(s) of Evaluation 06/29-07/03, 08/04, 2010 Test Report Serial No. 062810ALH-T1034-S90U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date August 19, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 APPENDIX D - SAR TEST SETUP & DUT PHOTOGRAPHS Applicant: Kenwood USA Corporation FCC ID: ALH413801 IC: 282D-413801 DUT Type: Portable FM UHF PTT Radio Transceiver Models: TK-3312-2 (FCC/IC) TK-3317-2 (FCC) 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 157 of 189 Date(s) of Evaluation 06/29-07/03, 08/04, 2010 Test Report Serial No. 062810ALH-T1034-S90U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date August 19, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DUT with Stub Antenna DUT with Whip Antenna FACE-HELD SAR TEST SETUP PHOTOGRAPHS Applicant: Kenwood USA Corporation FCC ID: ALH413801 IC: 282D-413801 DUT Type: Portable FM UHF PTT Radio Transceiver Models: TK-3312-2 (FCC/IC) TK-3317-2 (FCC) 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 158 of 189 Date(s) of Evaluation 06/29-07/03, 08/04, 2010 Test Report Serial No. 062810ALH-T1034-S90U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date August 19, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DUT with Stub Antenna P/N: KRA-17M - 2.5 cm Air-Gap Spacing from Front of DUT (Mic Section) to Phantom DUT with Stub Antenna P/N: KRA-23M/M3 - 2.5 cm Air-Gap Spacing from Front of DUT (Mic Section) to Phantom FACE-HELD CONFIGURATION 2.5 cm 3.3 cm 3.3 cm 3.4 cm 2.5 cm 3.3 cm 3.3 cm 3.3 cm Applicant: Kenwood USA Corporation FCC ID: ALH413801 IC: 282D-413801 DUT Type: Portable FM UHF PTT Radio Transceiver Models: TK-3312-2 (FCC/IC) TK-3317-2 (FCC) 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 159 of 189 Date(s) of Evaluation 06/29-07/03, 08/04, 2010 Test Report Serial No. 062810ALH-T1034-S90U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date August 19, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DUT with Whip Antenna P/N: KRA-27M - 2.5 cm Air-Gap Spacing from Front of DUT (Mic Section) to Phantom DUT with Whip Antenna P/N: KRA-27M3 - 2.5 cm Air-Gap Spacing from Front of DUT (Mic Section) to Phantom FACE-HELD CONFIGURATION 2.5 cm 3.3 cm 3.8 cm 3.6 cm 2.5 cm 3.3 cm 3.7 cm 3.6 cm Applicant: Kenwood USA Corporation FCC ID: ALH413801 IC: 282D-413801 DUT Type: Portable FM UHF PTT Radio Transceiver Models: TK-3312-2 (FCC/IC) TK-3317-2 (FCC) 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 160 of 189 Date(s) of Evaluation 06/29-07/03, 08/04, 2010 Test Report Serial No. 062810ALH-T1034-S90U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date August 19, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 “Baseline” Test Setup with KRA-17M Stub Antenna (KNB-29N Li-Ion Battery Parallel to Phantom) - 1.3 cm Spacing “Baseline” Test Setup with KRA-23M/M3 Stub Antenna (KNB-29N Li-Ion Battery Parallel to Phantom) - 1.3 cm Spacing “BASELINE” BODY SAR TEST SETUP PHOTOGRAPHS 3.4 cm 3.5 cm 3.2 cm 3.3 cm 3.2 cm 3.1 cm 1.3 cm 1.3 cm Appl…

Text truncated - open the document above for the full version.
