ALH415100

Kenwood USA Corporation

UHF FM TRANSCEIVER

Click to zoom

Application Details

Equipment Class: TNF - Licensed Non-Broadcast Transmitter Held to Face
Date of Grant: Jan 04, 2010
Application Purpose: Original Equipment
Date of Application: Jan 04, 2010
Equipment Note: UHF FM TRANSCEIVER
Frequency Range: 450.00000000 - 512.00000000
Company: Kenwood USA Corporation
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

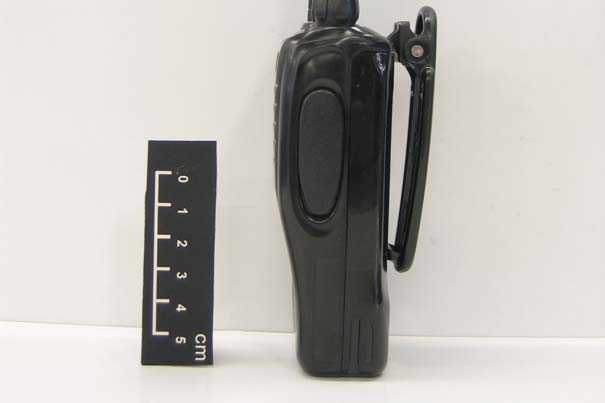

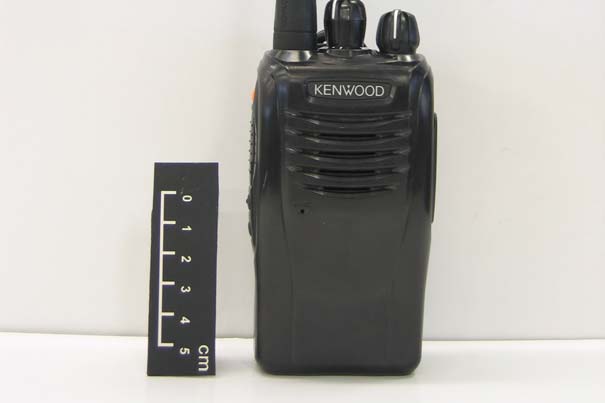

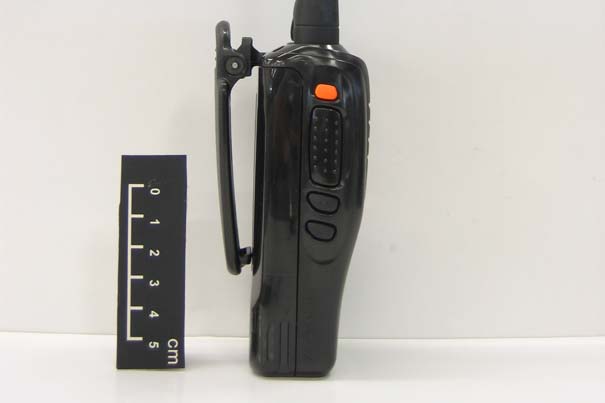

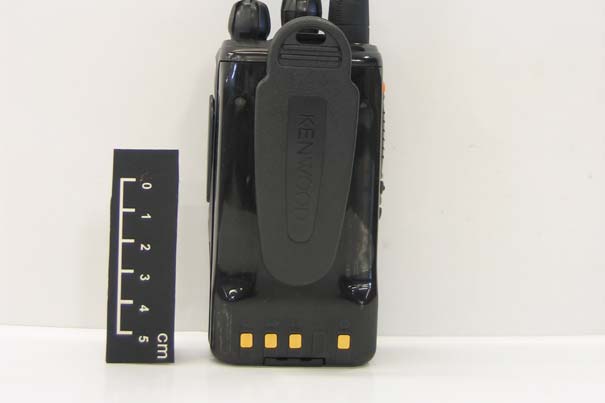

External Photos

ID Label/Location Info

Internal Photos

Test Report

Test Setup Photos

Contact Information

Applicant

Angelina Seay(Regulatory Support Engineer)

[email protected]6784744701Fax: 678474701

Technical Contact

Compliance Testing LLCJohn Erhard

[email protected](480) 926-3100

3356 N San Marcos Place · Chandler · United States

Non-Technical Contact

Compliance Testing LLCKaren Springer

(480) 926-3100

Test Firm

Compliance Testing, LLCMichael Schafer

[email protected]480-926-3100Fax: 480 926 3598

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	90.21	450 MHz - 512 MHz	5 W	11K0F3E	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is at the antenna terminal on the device. This transmitter has been tested for SAR compliance in Push-to-Talk and Body-Worn operating configurations with a specific antenna, and only satisfies SAR limit for Occupational/Controlled RF Exposure Environment. Device must operate at a duty factor not exceeding 50% and SAR compliance for body-worn operating configurations is limited to the specific belt-clips for this filing. This device must be restricted to work related operations in an Occupational/Controlled RF exposure Environment. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with Occupational /Controlled SAR limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements and users must be provided with the training information. The highest reported SAR values at 50% duty factor are - Face: 3.96 W/kg; Body-worn: 7.69 W/kg. The output power is continuously variable to 1W
