© B62-2182-00 (K, K2) 09 08 07 06 05 04 03 02 01 00 INSTRUCTION MANUAL VHF FM TRANSCEIVER/ UHF FM TRANSCEIVER TK-2360/ TK-3360  Thank You We are grateful you have chosen Kenwood for your land moble rado applcatons. noTices To The user ◆ Government law prohbts the operaton of unlcensed rado transmtters wthn the terrtores under government control. ◆ Illegal operation is punishable by fine and/or imprisonment. ◆ Refer service to qualified technicians only. SAFETY: It s mportant that the operator s aware of and understands hazards common to the operaton of any transcever. Firmware Copyrights The title to and ownership of copyrights for firmware embedded in Kenwood product memores are reserved for Kenwood Corporaton.  One or more of the following statements may be applicable: FCC WARNING Ths equpment generates or uses rado frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the nstructon manual. The user could lose the authorty to operate ths equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC Ths equpment has been tested and found to comply wth the lmts for a Class B dgtal devce, pursuant to Part 15 of the FCC Rules. These lmts are desgned to provde reasonable protecton aganst harmful nterference n a resdental nstallaton. Ths equpment generates, uses and can generate rado frequency energy and, f not nstalled and used n accordance wth the nstructons, may cause harmful nterference to rado communcatons. However, there s no guarantee that the nterference wll not occur n a partcular nstallaton. If ths equpment does cause harmful nterference to rado or televson recepton, whch can be determned by turnng the equpment off and on, the user s encouraged to try to correct the nterference by one or more of the followng measures: • Reorent or relocate the recevng antenna. • Increase the separaton between the equpment and recever. • Connect the equpment to an outlet on a crcut dfferent from that to whch the recever s connected. • Consult the dealer for techncal assstance.  The RBRC Recycle seal found on Kenwood nckel metal hydrde (N-MH) battery packs ndcates Kenwood’s voluntary partcpaton n an ndustry program to collect and recycle N-MH batteres after their operating life has expired. The RBRC program s an alternatve to dsposng N-MH batteres wth your regular refuse or n muncpal waste streams, whch s llegal n some areas. For nformaton on N-MH battery recyclng n your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). Kenwood’s nvolvement n ths program s part of our commtment to preserve our envronment and conserve our natural resources. The RBRC Recycle seal found on Kenwood lthum-on (L-on) battery packs ndcates Kenwood’s voluntary partcpaton n an ndustry program to collect and recycle L-on batteres after their operating life has expired. The RBRC program s an alternatve to dsposng L-on batteres wth your regular refuse or n muncpal waste streams, whch s llegal n some areas. For nformaton on L-on battery recyclng n your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). Kenwood’s nvolvement n ths program s part of our commtment to preserve our envronment and conserve our natural resources. v PrecauTions • Do not charge the transcever and battery pack when they are wet. • Ensure that there are no metallc tems located between the transcever and the battery pack. • Do not use options not specified by Kenwood. • If the de-cast chasss or other transcever part s damaged, do not touch the damaged parts. • If a headset or headphone s connected to the transcever, reduce the transcever volume. Pay attenton to the volume level when turnng the squelch off. • Do not place the mcrophone cable around your neck whle near machnery that may catch the cable. • Do not place the transcever on unstable surfaces. • Ensure that the end of the antenna does not touch your eyes. • When the transcever s used for transmsson for many hours, the radator and chasss wll become hot. Do not touch these locatons when replacng the battery pack. • Always swtch the transcever power off before nstallng optonal accessores. • The charger s the devce that dsconnects the unt from the AC mans lne. The AC plug should be readly accessble. v • Do not dsassemble or modfy the transcever for any reason. • Do not place the transcever on or near arbag equpment whle the vehicle is running. When the airbag inflates, the transceiver may be ejected and strke the drver or passengers. • Do not transmt whle touchng the antenna termnal or f any metallic parts are exposed from the antenna covering. Transmttng at such a tme may result n a hgh-frequency burn. • If an abnormal odor or smoke s detected comng from the transcever, swtch the transcever power off mmedately, remove the battery pack from the transcever, and contact your Kenwood dealer. • Use of the transcever whle you are drvng may be aganst traffic laws. Please check and observe the vehicle regulations n your area. • Do not expose the transceiver to extremely hot or cold condtons. • Do not carry the battery pack (or battery case) wth metal objects, as they may short the battery termnals. • Danger of explosion if the battery is incorrectly replaced; replace only wth the same type. Turn the transcever power off n the followng locatons: • Near blastng stes. • In arplanes. (Any use of the transcever must follow the nstructons and regulatons provded by the arlne crew.) • Where restrctons or warnngs are posted regardng the use of rado devces, ncludng but not lmted to medcal facltes. • Near persons usng pacemakers. v informaTion concerning The baTTerY Pack The batte…

Text truncated - open the document above for the full version.

Radio FRequency eneRgy SaFety inFoRmation This Kenwood transceiver has been tested and complies with the standards listed below, in regards to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver. • FCC RF exposure limits for Occupational Use Only. RF Exposure limits adopted by the FCC are generally based on recommendations from the National Council on Radiation Protection and Measurements, & the American National Standards Institute. • FCC OET Bulletin 65 Edition 97-01 Supplement C • American National Standards Institute (C95.1 – 1992) • American National Standards Institute (C95.3 – 1992) This Kenwood transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric & Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less than the recommended distance from this radio transmitter’s antenna. RF energy exposure is determined primarily by the distance to and the power of the transmitting device. In general, RF exposure is minimized when the lowest possible power is used or transmission time is kept to the minimum required for consistent communications, and the greatest distance possible from the antenna to the body is maintained. The transceiver has been designed for and is classified for Occupational Use Only. Occupational/ controlled exposure limits are applicable to situations in which persons are exposed to RF energy as a consequence of their employment, and such persons have been made aware of the potential for exposure and can exercise control over their exposure. This means you can use the transceiver only if you are aware of the potential hazards of operating a transceiver and are familiar in ways to minimize these hazards. This transceiver is not intended for use by the general public in uncontrolled environments. Uncontrolled environment exposure limits are applicable to situations in which the general public may be exposed to RF energy, or in which the persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. The following list provides you with the information required to ensure that you are aware of RF exposure and of how to operate this transceiver so that the FCC RF exposure limitations are not exceeded. • While transmitting (holding the PTT switch or speaking with VOX enabled), always keep the antenna and the radio at least 3 cm (1 3/16 inches) from your body or face, as well as from any bystanders. A LED on the top of the radio shows red when the transmitter is operating in both PTT and VOX modes. • Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver operation is 5% transmission time, 5% reception time, and 90% stand-by time. • Use only the specified antenna for this transceiver; this may be either the antenna provided with the transceiver or another antenna authorized by Kenwood . Use only Kenwood authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or headsets etc.): When worn on the body, always place the radio in a Kenwood recommended clip or carrying case meant for this product. The use of other than recommended or approved body- worn accessories may result in RF exposure levels which exceed the FCC’s occupational/ controlled environment RF exposure limits. To ensure that your exposure to RF EME is within the FCC limits for occupational use, you must observe and adhere to the above points. Electromagnetic Interference Compatibility Electronic devices are susceptible to electromagnetic interference (EMI) if they are not adequately shielded or designed for electromagnetic compatibility. Because this transceiver generates RF energy, it can cause interference to such equipment. • Turn OFF your transceiver where signs are posted to do so. Hospitals and health care facilities use equipment that is sensitive to electromagnetic radiation. • Turn OFF your transceiver while on board an aircraft when so instructed. Use of the transceiver must be in accordance with airline regulations and/or crew instructions. B59-2546-00

Subject : Kenwood review request for info FCC ID: ALH415101 Date : Mon, 22 Mar 2010 08:06:00 -0700 Linked to : Chris Harvey From : "Chris Harvey" <[email protected]> To : 'Karen Springer' <[email protected]> Karen, I have accessed the new ftp site, and reviewed the Kenwood P1010008 project for FCC ID: ALH415101. I have reviewed the FCC PBA request response and there is one item that did not seem to get addressed in this application submittal: The FCC has requested in item 4 of their KDB Response 803186, that SAR testing should be performed at powers of 120% of rated power unless the device is not capable of operating at those powers. The SAR report documents power of 37.2dBm, or 5.25W, for this device rated at 5W. The RF test report page 13 of 43 indicates that the maximum allowed power (rating) of 2.1033(c)(7) is 6W. Please address this concern of the FCC's in this application. Please let me know if you have any questions or concerns. Please provide a response to the above issue so this review can be continued. Best regards, Chris Harvey -----Original Message----- From: Karen Springer [mailto:[email protected]] Sent: Friday, March 19, 2010 2:10 PM To: Chris Harvey Subject: FTP site info Chris, The FTP site is now back up. The only difference is that you'll need to go to compliancetestingllc. Let me know if you have any questions. Thank you and have a great weekend! Karen Springer Office Administrator Compliance Testing LLC dba Flom Test Labs Phone: 480 926-3100 Email: [email protected] Web : www.ComplianceTesting.com

Page 1 of 1 FCC ID: ALH415101 – Kenwood CT Project: TCB-p1010008 From: Chris Harvey Date: March 22, 2010 I have reviewed the FCC PBA request response and there is one item that did not seem to get addressed in this application submittal: The FCC has requested in item 4 of their KDB Response 803186, that SAR testing should be performed at powers of 120% of rated power unless the device is not capable of operating at those powers. The SAR report documents power of 37.2dBm, or 5.25W, for this device rated at 5W. The RF test report page 13 of 43 indicates that the maximum allowed power (rating) of 2.1033(c)(7) is 6W. Please address this concern of the FCC's in this application. Please let me know if you have any questions or concerns. Please provide a response to the above issue so this review can be continued. The SAR testing was performed at the maximum power that the radio is capable of operating at. This radio in not capable of operating at 120% of the rated power Page 13 of the Part 90 test report lists the maximum power allowable per the FCC standard it was tested to. Response by: Greg Corbin Submitted by: Karen Springer Date: 3/22/2010

February 3, 2010 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: This letter will authorize Compliance Testing LLC to act as our Agent in all FCC matters. This appointment is effective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely,

February 3, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: TK-3360-K2, TK-3360-M, FCC ID: ALH415101. To Whom It May Concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that should never get into the possession of our competition. Please contact me if you require any additional information. Sincerely,

February 3, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer Subject: Justify Extended Frequency Range for MODEL: TK-3360-K2, TK-3360-M, FCC ID: ALH415101. To Whom It May Concern: This letter serves justification for extended frequencies This device has design capability to operate in the frequency band 406.1 to 470 MHz and complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Please note that Licensed End Users do not have access to any external controls that will allow them to program the equipment. Equipment programming is the responsibility of Kenwood approved Service Agents. In addition to Part 90 usage, this device is utilized in systems such as Federal and Public Safety agencies, e.g. police, fire, and emergency medical, etc. as indicated in the following table: Table 1 – Frequency Range and Rule Parts - (47 CFR Part 2.106) It is understood that a grant note code may be added to the grant, which indicates this required operation. Please contact me if you require any additional information. Sincerely, Freq. Range (MHz) Part 90 Federal Customers 406.100 - 454.000 x 454.000 - 456.000 x 456.000 - 462.5375 x 462.5375-462.7375 x 462.7375-467.5375 x 467.5375-467.7375 x 467.7375-470.000 x

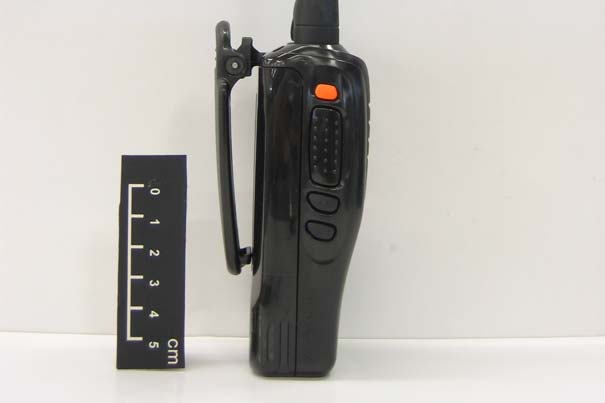

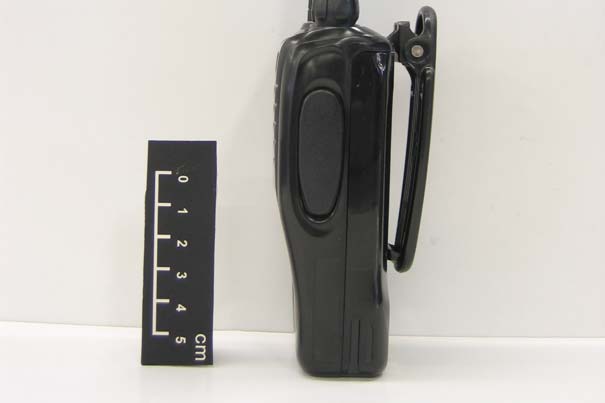

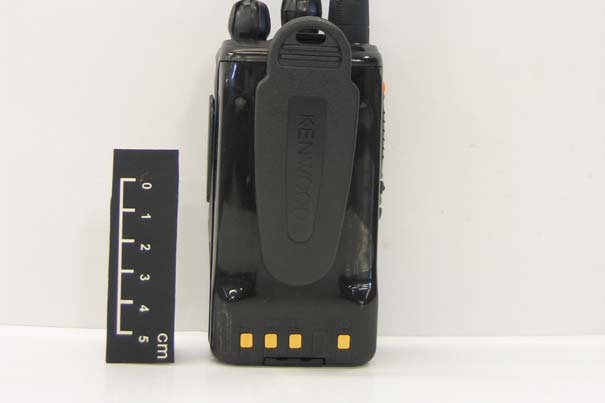

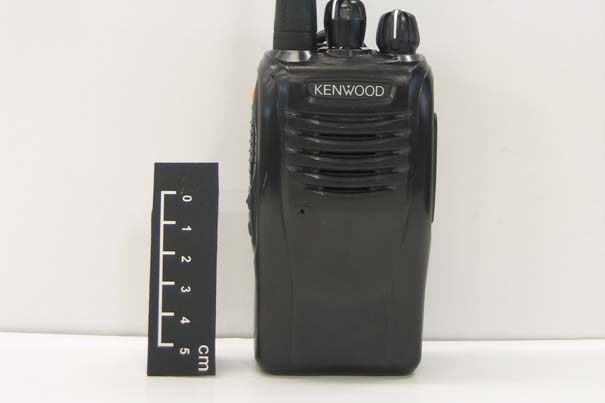

TK-3360-K2, TK-3360-M FCC ID: ALH415101 Front View Rear View TK-3360-K2, TK-3360-M FCC ID: ALH415101 Left View Right View TK-3360-K2, TK-3360-M FCC ID: ALH415101 Top View Bottom View

TK-3360-K2, TK-3360-M FCC ID: ALH415101 TK-3360-K2 TK-3360-M

TK-3360-K2, TK-3360-M FCC ID: ALH415101 Component Side View TK-3360-K2, TK-3360-M FCC ID: ALH415101 Foil Side View TK-3360-K2, TK-3360-M FCC ID: ALH415101 TK-3360-K2, TK-3360-M FCC ID: ALH415101 Component Side View Foil Side View

Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1010008, d1010023 Rev 1.0 Date: January 29, 2010 Applicant: Kenwood USA Corporation Communications Division 3970 Johns Creek Court, Suite 100 Suwanee, GA 30024 Attention of: Joel E. Berger, Research & Development [email protected] (678) 474-4722; FAX: -4731 Equipment: TK-3360-K2, TK-3360-M FCC ID: ALH415101 FCC Rules: Part 90 Gentlemen: Enclosed please find your copy of the Engineering Test Report for which you are subject to the restrictions as listed on the attached summary. Once a Telecommunication Certification Body (TCB) issues a Grant the Federal Communication Commission (FCC) has 30 days to review the application and request added information. It is your decision whether or not to market the equipment subject to a possible recall before the end of the 30 days. If your equipment is still retained by us, it will be returned to you 30 days after approval is achieved. Our invoice for services has been directed to your Accounts Payable Department. For any additional information please contact us. Thank you. Sincerely yours, Greg Corbin Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1010008, d1010023 Rev 1.0 Summary of Restrictions 1. All submissions to the FCC are subject to their Examiner's interpretation. 2. Please allow from 60 to 90 days before hearing from the FCC with regard to any submission. 3. The FCC can set aside any action; modify or set aside any action, within 30 days. (FCC Rule 1.108, 1.113). 4. Under Rule 2.803, if device is not type accepted/certificated then it must not be sold, leased, offered for sale, imported, shipped or distributed or advertised for sale. 5. FCC can revoke its certificates at any time if the equipment does not meet or continue to meet their Rules. (Rule Parts 2.927, 2.939). 6. FCC can request a sample at any time (2.936). Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1010008, d1010023 Rev 1.0 Date: January 29, 2010 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: Kenwood USA Corporation Equipment: TK-3360-K2, TK-3360-M FCC ID: ALH415101 FCC Rules: Part 90 Dear Gentleman: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Best regards, Greg Corbin Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1010008, d1010023 Rev 1.0 Test Report for Model: TK-3360-K2, TK-3360-M to Federal Communications Commission Rule Part 90 Date of report: January 29, 2010 On the Behalf of the Applicant: Kenwood USA Corporation At the Request of: Kenwood USA Corporation Communications Division 3970 Johns Creek Court, Suite 100 Suwanee, GA 30024 Attention of: Joel E. Berger, Research & Development [email protected] (678) 474-4722; FAX: -4731 Reviewed by: Greg Corbin Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1010008, d1010023 Rev 1.0 Test Report Revision History Revision Date Revised By Reason for revision 1.0 January 29, 2010 G. Corbin Original Document Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1010008, d1010023 Rev 1.0 List of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: Kenwood USA Corporation FCC ID: ALH415101 By Applicant: 1. Letter of Authorization 2. Confidentiality Request: 0.457 And 0.459 3. Identification Drawings, 2.1033(c)(11) Label Location of Label Compliance Statement Location of Compliance Statement 4. Photographs, 2.1033(c)(12) 5. Documentation: 2.1033(c) (3) User Manual (9) Tune Up Info (10) Schematic Diagram (10) Circuit Description Block Diagram Parts List Active Devices 6. MPE/SAR Report By Compliance Testing: A. Testimonial & Statement of Certification Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1010008, d1010023 Rev 1.0 The Applicant has been cautioned as to the following: 15.21 Information to the User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text conc…

Text truncated - open the document above for the full version.

Applicant: Kenwood USA Corporation Models: TK-3360-K2, TK-3360-M FCC ID: ALH415101 DUT Type: Portable FM UHF PTT Radio Transceiver Transmit Frequency Range: 406.1 - 470.0 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 134 Date(s) of Evaluation February 02-08, 2010 Test Report Serial No. 020210ALH-T1001-S90U Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date March 18, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 SAR TEST REPORT (FCC) R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E APPLICANT / MANUFACTURER KENWOOD USA CORPORATION DEVICE UNDER TEST (DUT) PORTABLE FM UHF PUSH-TO-TALK RADIO TRANSCEIVER DEVICE MODEL(S) TK-3360-K2 TK-3360-M DEVICE MODES OF OPERATION ANALOG FM MANUF. RATED OUTPUT POWER 5 Watts (Conducted) FREQUENCY RANGE(S) TESTED FCC 406.1 - 470.0 MHz DEVICE IDENTIFIER(S) FCC ID: ALH415101 APPLICATION TYPE FCC TCB Certification STANDARD(S) APPLIED FCC 47 CFR §2.1093 FCC OET Bulletin 65, Supplement C (01-01) FCC KDB 447498 D01v04 FCC KDB Inquiry Tracking No. 901393 IEEE 1528-2003 IEC 62209-1:2005 PROCEDURE(S) APPLIED IEC 62209-2 (Draft) FCC DEVICE CLASSIFICATION Licensed Non-Broadcast Transmitter Held to Face (TNF) RF EXPOSURE CATEGORY Occupational / Controlled RF EXPOSURE EVALUATION(S) Face-held & Body-worn DATE(S) OF EVALUATION February 02-08, 2010 TEST REPORT SERIAL NO. 020210ALH-T1001-S90U Revision 1.1 See page 4 March 18, 2010 TEST REPORT REVISION NO. Revision 1.0 Initial Release March 08, 2010 Testing Performed ByTest Report Prepared By TEST REPORT SIGNATORIES Sean Johnston - Celltech Labs Jon Hughes - Celltech Labs Celltech Compliance Testing and Engineering Laboratory TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com TEST LAB ACCREDITATION(S) Test Lab Certificate No. 2470.01 Applicant: Kenwood USA Corporation Models: TK-3360-K2, TK-3360-M FCC ID: ALH415101 DUT Type: Portable FM UHF PTT Radio Transceiver Transmit Frequency Range: 406.1 - 470.0 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 134 Date(s) of Evaluation February 02-08, 2010 Test Report Serial No. 020210ALH-T1001-S90U Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date March 18, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Name KENWOOD USA CORPORATION Applicant Information Address 3970 Johns Creek Court, Suite 100, Suwanee, GA 30024 United States Standard(s) Applied FCC 47 CFR §2.1093 FCC OET Bulletin 65, Supplement C FCC KDB 447498 D01v04 FCC KDB Inquiry Tracking No. 901393 Procedure(s) Applied IEEE1528-2003 IEC62209-1:2005 IEC 62209-2 (Draft) Device Classification(s) FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Identifier(s) FCC ID: ALH415101 TK-3360-K2, TK-3360-M Test Sample Serial No. 05 (Identical Prototype) Device Model(s) Note: Models are electrically and mechanically identical as confirmed by the manufacturer Device Description Portable FM UHF Push-To-Talk (PTT) Radio Transceiver Frequency Range(s) Tested 406.1 - 470.0 MHz Manufacturer’s Rated Output Power 5 Watts (Conducted) 36.9 dBm 4.90 Watts 406.1 MHz Test Ch. 1 Av. Conducted 37.0 dBm 5.01 Watts 417.0 MHz Test Ch. 2 Av. Conducted 37.0 dBm 5.01 Watts 428.0 MHz Test Ch. 3 Av. Conducted 37.0 dBm 5.01 Watts 439.0 MHz Test Ch. 4 Av. Conducted 37.0 dBm 5.01 Watts 450.0 MHz Test Ch. 5 Low Band (N c =5) Av. Conducted 37.1 dBm 5.13 Watts 440.0 MHz Test Ch. 1 Av. Conducted 37.1 dBm 5.13 Watts 455.0 MHz Test Ch. 2 Av. Conducted RF Output Power Level(s) Tested 37.2 dBm 5.25 Watts 470.0 MHz Test Ch. 3 High Band (N c =3) Av. Conducted Detachable P/N: KRA-23M 440 - 490 MHz Length: 80 mm Detachable P/N: KRA-23M3 400 - 450 MHz Length: 80 mm Detachable P/N: KRA-27M 440 - 490 MHz Length: 150 mm Antenna Type(s) Tested Detachable P/N: KRA-27M3 400 - 450 MHz Length: 171 mm Ni-MH 7.2 V 1400 mAh P/N: KNB-56N Li-ion 7.4 V 1480 mAh P/N: KNB-55L Battery Type(s) Tested Li-ion 7.4 V 2000 mAh P/N: KNB-57L Body-worn Accessories Tested Metal Belt-Clip Contains Metal and Plastic Components P/N: KBH-12 Audio Accessories Tested Speaker-Microphone P/N: KMC-45 Headset with Boom-Microphone P/N: KHS-21 Additional Audio Accessories Speaker-Microphone P/N: KMC-17 Speaker-Microphone P/N: KMC-21 Face-held 3.86 W/kg 1g50% PTT duty cycle Occupational / Controlled Exp. Max. SAR Level(s) Evaluated Body-worn 6.50 W/kg 1g50% PTT duty cycle Occupational / Controlled Exp. FCC/IC Spatial Peak SAR Limit Head/Body 8.0 W/kg 1g50% PTT duty cycle Occupational / Controlled Exp. Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 for the Occupational / Controlled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), IEEE Standard 1528-2003, IEC International Standard 62209-1:2005 and IEC International Draft Standard 62209-2 (106-62209-2-CDV_090323). All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assu…

Text truncated - open the document above for the full version.

Applicant: Kenwood USA Corporation Models: TK-3360-K2, TK-3360-M FCC ID: ALH415101 DUT Type: Portable FM UHF PTT Radio Transceiver Transmit Frequency Range: 406.1 - 470.0 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 18 of 134 Date(s) of Evaluation February 02-08, 2010 Test Report Serial No. 020210ALH-T1001-S90U Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date March 18, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 APPENDIX A - SAR MEASUREMENT DATA Applicant: Kenwood USA Corporation Models: TK-3360-K2, TK-3360-M FCC ID: ALH415101 DUT Type: Portable FM UHF PTT Radio Transceiver Transmit Frequency Range: 406.1 - 470.0 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 19 of 134 Date(s) of Evaluation February 02-08, 2010 Test Report Serial No. 020210ALH-T1001-S90U Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date March 18, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Date Tested: 02/04/2010 Face-held SAR - Ni-MH Battery KNB-56N - Low-Band Stub Antenna KRA-23M3 - 428.0 MHz DUT: Kenwood TK-3360-K2/M; Type: Portable FM UHF PTT Radio Transceiver; Serial: 05 (Pre-production) Ambient Temp: 23.5°C; Fluid Temp: 22.8°C; Barometric Pressure: 101.1 kPa; Humidity: 35% Communication System: CW Frequency: 428 MHz; Duty Cycle: 1:1 Medium: HSL450 Medium parameters used (interpolated): f = 428 MHz; ı = 0.83 mho/m; İ r = 45.6; ȡ = 1000 kg/…

Text truncated - open the document above for the full version.
