ALH420700700/800MHz P25 Tranceiver

© B62-2155-00 (K, K2, K3, K4, K5, K6, K7) 09 08 07 06 05 04 03 02 01 00 INSTRUCTION MANUAL VHF P25 TRANSCEIVER TK-5210 UHF P25 TRANSCEIVER TK-5310 700/800MHz P25 TRANSCEIVER TK-5410 Thank You We are grateful you have chosen Kenwood for your land mobile radio applications. Models Covered bY This Manual The models listed below are covered by this manual: 512 channels/ 50 zones model TK-5210 (K/K2/K3): VHF P25 Transceiver TK-5310 (K/K2/K3/K4/K5/K6): UHF P25 Transceiver TK-5410 (K2/K3): 700/800MHz P25 Transceiver 64 channels/ 16 zones model TK-5210 (K7): VHF P25 Transceiver TK-5310 (K7): UHF P25 Transceiver noTiCes To The user ◆ Government law prohibits the operation of unlicensed radio transmitters within the territories under government control. ◆ Illegal operation is punishable by fine and/or imprisonment. ◆ Refer service to qualified technicians only. SAFETY: It is important that the operator is aware of and understands hazards common to the operation of any transceiver. The AMBE+2™ voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. Firmware Copyrights The title to and ownership of copyrights for firmware embedded in Kenwood product memories are reserved for Kenwood Corporation.  One or more of the following statements may be applicable: FCC WARNING Ths equpment generates or uses rado frequency energy. Changes or mod fcatons to ths equpment may cause harmful nterference unless the modfcatons are expressly approved n the nstructon manual. The user could lose the authorty to operate ths equ pment f an unauthorzed change or modfcaton s made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC Ths equpment has been tested and found to comply wth the lmts for a Class B d gtal devce, pursuant to Part 15 of the FCC Rules. These lmts are desgned to provde reasonable protecton aganst harmful nterference n a resdental nstallaton. Ths equpment generates, uses and can generate rado frequency energy and, f not nstalled and used n accordance wth the nstructons, may cause harmful nterference to rado communcatons. However, there s no guarantee that the nterference wll not occur n a partcular nstallaton. If ths equpment does cause harmful nterference to rado or televson recepton, whch can be determned by turnng the equpment off and on, the user s encouraged to try to correct the nterference by one or more of the followng measures: • Reorent or relocate the recevng antenna. • Increase the separaton between the equpment and recever. • Connect the equpment to an outlet on a crcut dfferent from that to whch the recever s connected. • Consult the dealer for techncal assstance.  The RBRC Recycle seal found on Kenwood nckel-cadmum (N-Cd) battery packs ndcates Kenwood’s voluntary partcpaton n an ndustry program to collect and recycle N-Cd batteres after ther operatng lfe has expred. The RBRC program s an alternatve to dsposng N-Cd batteres wth your regular refuse or n muncpal waste streams, whch s llegal n some areas. For nformaton on N-Cd battery recyclng n your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). Kenwood’s nvolvement n ths program s part of our commtment to preserve our envronment and conserve our natural resources. The RBRC Recycle seal found on Kenwood nckel metal hydrde (N-MH) battery packs ndcates Kenwood’s voluntary partcpaton n an ndustry program to collect and recycle N-MH batteres after ther operatng lfe has expred. The RBRC program s an alternatve to dsposng N-MH batteres wth your regular refuse or n muncpal waste streams, whch s llegal n some areas. For nformaton on N-MH battery recyclng n your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). Kenwood’s nvolvement n ths program s part of our commtment to preserve our envronment and conserve our natural resources. The RBRC Recycle seal found on Kenwood lthum-on (L-on) battery packs ndcates Kenwood’s voluntary partcpaton n an ndustry program to collect and recycle L-on batteres after ther operatng lfe has expred. The RBRC program s an alternatve to dsposng L-on batteres wth your regular refuse or n muncpal waste streams, whch s llegal n some areas. For nformaton on L-on battery recyclng n your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). Kenwood’s nvolvement n ths program s part of our commtment to preserve our envronment and conserve our natural resources.  Precautions • Do not charge the transcever and battery pack when they are wet. • Ensure that there are no metallc tems located between the transcever and the battery pack. • Do not use optons not specfed by Kenwood. • If the de-cast chasss or other transcever part s damaged, do not touch the damaged parts. • If a headset or headphone s connected to the transcever, reduce the transcever volume. Pay attenton to the volume level when turnng the squelch off. • Do not place the mcrophone cable around your neck whle near machnery that may catch the cable. • Do not place the transcever on unstable surfaces. • Ensure that the end of the antenna does not touch your eyes. • When the transcever s used for transmsson for many hours, the radator and chasss wll become hot. Do not touch these locatons when re…

Text truncated - open the document above for the full version.

Radio FRequency eneRgy SaFety inFoRmation This Kenwood transceiver has been tested and complies with the standards listed below, in regards to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver. • FCC RF exposure limits for Occupational Use Only. RF Exposure limits adopted by the FCC are generally based on recommendations from the National Council on Radiation Protection and Measurements, & the American National Standards Institute. • FCC OET Bulletin 65 Edition 97-01 Supplement C • American National Standards Institute (C95.1 – 1992) • American National Standards Institute (C95.3 – 1992) This Kenwood transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric & Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less than the recommended distance from this radio transmitter’s antenna. RF energy exposure is determined primarily by the distance to and the power of the transmitting device. In general, RF exposure is minimized when the lowest possible power is used or transmission time is kept to the minimum required for consistent communications, and the greatest distance possible from the antenna to the body is maintained. The transceiver has been designed for and is classified for Occupational Use Only. Occupational/ controlled exposure limits are applicable to situations in which persons are exposed to RF energy as a consequence of their employment, and such persons have been made aware of the potential for exposure and can exercise control over their exposure. This means you can use the transceiver only if you are aware of the potential hazards of operating a transceiver and are familiar in ways to minimize these hazards. This transceiver is not intended for use by the general public in uncontrolled environments. Uncontrolled environment exposure limits are applicable to situations in which the general public may be exposed to RF energy, or in which the persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. The following list provides you with the information required to ensure that you are aware of RF exposure and of how to operate this transceiver so that the FCC RF exposure limitations are not exceeded. • While transmitting (holding the PTT switch or speaking with VOX enabled), always keep the antenna and the radio at least 2 cm (0.79 inches) from your body or face, as well as from any bystanders. A LED on the top of the radio shows red when the transmitter is operating in both PTT and VOX modes. • Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver operation is 5% transmission time, 5% reception time, and 90% stand-by time. • Use only the specified antenna for this transceiver; this may be either the antenna provided with the transceiver or another antenna authorized by Kenwood . Use only Kenwood authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or headsets etc.): When worn on the body, always place the radio in a Kenwood recommended clip or carrying case meant for this product. The use of other than recommended or approved body- worn accessories may result in RF exposure levels which exceed the FCC’s occupational/ controlled environment RF exposure limits. To ensure that your exposure to RF EME is within the FCC limits for occupational use, you must observe and adhere to the above points. Electromagnetic Interference Compatibility Electronic devices are susceptible to electromagnetic interference (EMI) if they are not adequately shielded or designed for electromagnetic compatibility. Because this transceiver generates RF energy, it can cause interference to such equipment. • Turn OFF your transceiver where signs are posted to do so. Hospitals and health care facilities use equipment that is sensitive to electromagnetic radiation. • Turn OFF your transceiver while on board an aircraft when so instructed. Use of the transceiver must be in accordance with airline regulations and/or crew instructions. B59-2546-00

October 9, 2009 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: This letter will authorize Compliance Testing LLC to act as our Agent in all FCC matters. This appointment is effective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely,

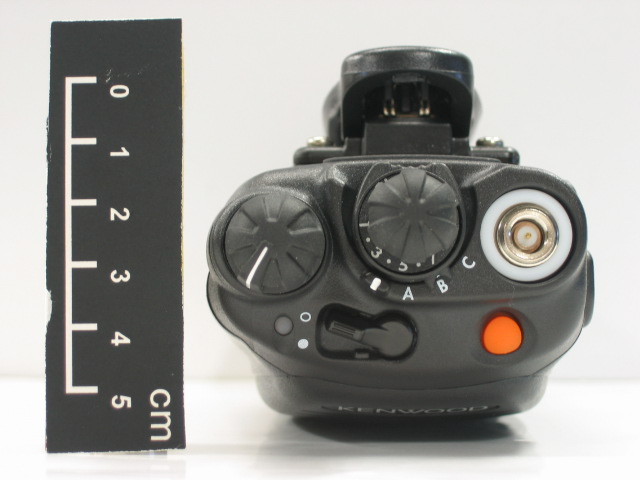

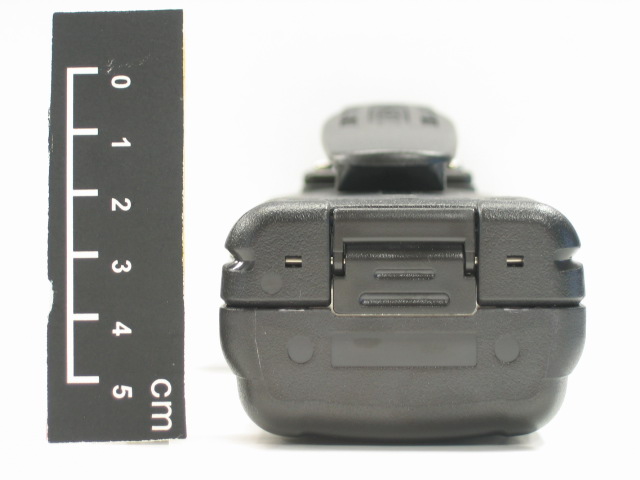

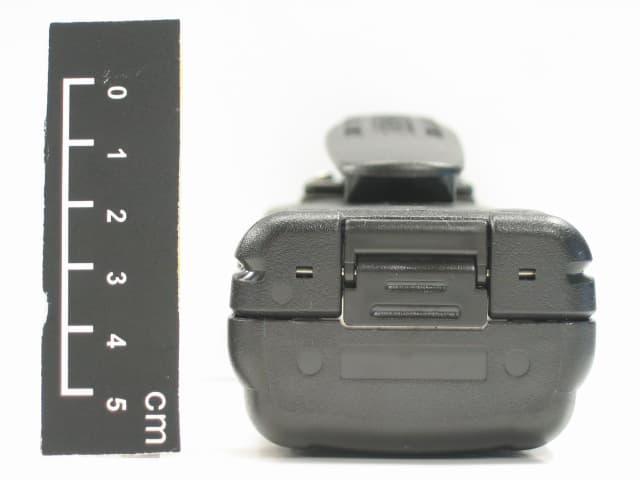

TK-5410-K2,TK-5410-K3 FCC ID: ALH420700 IC: 282D-420700 TK-5410-K2 Front View TK-5410-K2 Rear View TK-5410-K2,TK-5410-K3 FCC ID: ALH420700 IC: 282D-420700 TK-5410-K2 Left View TK-5410-K2 Right View TK-5410-K2,TK-5410-K3 FCC ID: ALH420700 IC: 282D-420700 TK-5410-K2 Top View TK-5410-K2 Bottom View TK-5410-K2,TK-5410-K3 FCC ID: ALH420700 IC: 282D-420700 TK-5410-K3 Front View TK-5410-K3 Rear View TK-5410-K2,TK-5410-K3 FCC ID: ALH420700 IC: 282D-420700 TK-5410-K3 Left View TK-5410-K3 Right View TK-5410-K2,TK-5410-K3 FCC ID: ALH420700 IC: 282D-420700 TK-5410-K3 Top View TK-5410-K3 Bottom View

TK-5410-K2,TK-5410-K3 FCC ID: ALH420700 IC: 282D-420700 TK-5210-K2 TK-5410-K3

TK-5410-K2,TK-5410-K3 FCC ID: ALH420700 IC: 282D-420700 Component Side View TK-5410-K2,TK-5410-K3 FCC ID: ALH420700 IC: 282D-420700 Foil Side View TK-5410-K2,TK-5410-K3 FCC ID: ALH420700 IC: 282D-420700 TK-5410-K2 TK-5410-K2,TK-5410-K3 FCC ID: ALH420700 IC: 282D-420700 TK-5410-K3

Applicant: Kenwood USA Corporation FCC ID: ALH420700 IC: 282D-420700 Model(s): TK-5410-K2 TK-5410-K3 DUT Type: Portable PTT Radio Transceiver 700/800 MHz 2009 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 65 Date(s) of Evaluation September 25 & 28, 2009 Test Report Serial No. 091709ALH-T980-S90P Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date October 03, 2009 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 SAR TEST REPORT (FCC/IC) R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E APPLICANT / MANUFACTURER KENWOOD USA CORPORATION DEVICE UNDER TEST (DUT) PORTABLE MULTIBAND LAND MOBILE PTT RADIO TRANSCEIVER MANUF. RATED OUTPUT POWER 3 WATTS DEVICE MODES OF OPERATION ANALOG (FM) DIGITAL (P25) Band 1 Band 2 Band 3 Band 4 PROGRAMMABLE FREQ. RANGES 769 - 775 MHz 799 - 805 MHz 806 - 824 MHz 851 - 869 MHz FCC 763 - 755 MHz 793 - 805 MHz 806 - 824 MHz 851 - 869 MHz APPLICABLE FREQUENCY BANDS IC 763 - 770 MHz 794 - 800 MHz 806 - 824 MHz 851 - 869 MHz DEVICE MODEL(S) TK-5410-K2 TK-5410-K3 DEVICE IDENTIFIER(S) FCC ID: ALH420700 IC: 282D-420700 APPLICATION TYPE FCC/IC Certification FCC 47 CFR §2.1093 STANDARD(S) APPLIED Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (01-01) FCC KDB 447498 D01 v03r03 Industry Canada RSS-102 Issue 3 IEEE 1528-2003 IEC 62209-1:2005 PROCEDURE(S) APPLIED IEC 62209-2 (Draft) FCC DEVICE CLASSIFICATION Licensed Non-Broadcast Transmitter Held to Face (TNF) IC DEVICE CLASSIFICATION Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) RF EXPOSURE CATEGORY Occupational / Controlled RF EXPOSURE EVALUATION(S) Face-held & Body-worn DATE(S) OF EVALUATION September 25 & 28, 2009 TEST REPORT SERIAL NO. 091709ALH-T980-S90P TEST REPORT REVISION NO. Revision 1.0 Initial Release October 03, 2009 Testing Performed By Test Report Prepared By TEST REPORT SIGNATORIES Sean Johnston - Lab Manager Jon Hughes - Project Manager Celltech Compliance Testing and Engineering Lab TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com TEST LAB ACCREDITATION(S) ISO/IEC 17025:2005 (A2LA Test Lab Certificate No. 2470.01) Applicant: Kenwood USA Corporation FCC ID: ALH420700 IC: 282D-420700 Model(s): TK-5410-K2 TK-5410-K3 DUT Type: Portable PTT Radio Transceiver 700/800 MHz 2009 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 65 Date(s) of Evaluation September 25 & 28, 2009 Test Report Serial No. 091709ALH-T980-S90P Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date October 03, 2009 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Name KENWOOD USA CORPORATION Applicant Information Address 3970 Johns Creek Court, Suite 100, Suwanee, GA 30024 United States Standard(s) Applied FCC 47 CFR §2.1093 ICHealth Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (Edition 01-01) FCC KDB 447498 D01 v03r03 (Mobile and Portable RF Exposure Procedures) Procedure(s) Applied IC RSS-102 Issue 3 IEEE1528-2003 IEC62209-1:2005 62209-2 (Draft) FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Classification(s) IC Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) Device RF Exposure Category FCC/IC Occupational / Controlled Environment Device Identifier(s) FCC ID: ALH420700 IC: 282D-420700 TK-5410-K2 TK-5410-K3 (tested) Test Sample Serial No.No.15 (Identical Prototype) Device Model(s) Note: the two models are electrically and mechanically identical except for number of keys on keypad Description of Device-Under-Test Portable Multiband Land Mobile Push-To-Talk (PTT) Radio Transceiver (700/800 MHz) Manufacturer’s Rated Output Power 3 W atts DUT Modes of Operation Analog FM Digital P25 FCC 763.0-775.0 MHz 793.0-805.0 MHz 806.0-824.0 MHz 851.0-869.0 MHz Frequency Bands of Operation IC 763.0-770.0 MHz 794.0-800.0 MHz 806.0-824.0 MHz 851.0-869.0 MHz Band 1 Band 2 Band 3 Band 4 DUT Programmable Freq. Ranges 700 / 800 769.0-775.0 MHz 799.0-805.0 MHz 806.0-824.0 MHz 851.0-869.0 MHz 770.0 MHz 3.3 W 800.0 MHz 3.3 W 806.0 MHz 3.2 W 815.0 MHz 3.2 W Conducted Power & Freq. Tested 824.0 MHz 3.2 W 851.0 MHz 3.2 W 860.0 MHz 3.2 W 869.0 MHz 3.0 W Antenna Type(s) Tested Detachable Whip P/N: KRA-32 Length: 182 mm Ni-Cd Battery Pack 7.2 V 1700 mAh P/N: KNB-31A Ni-MH Battery Pack 7.2 V 2500 mAh P/N: KNB-32N Ni-MH IS Battery Pack 7.2 V 2500 mAh P/N: KNB-41NC Li-ion Battery Pack 7.4 V 1700 mAh P/N: KNB-33L Battery Type(s) Tested Alkaline Battery Case 9 V (6x AA) Duracell Procell P/N: KBP-6 Body-worn Accessories Tested Belt-Clip Contains Metal Components P/N: KBH-11 Audio Accessories Tested Speaker-Microphone P/N: KMC-25 Face-held 1.03 W/kg 1g50% duty cycle Occupational / Controlled Exposure Max. SAR Level(s) Evaluated Body-worn 1.87 W/kg 1g50% duty cycle Occupational / Controlled Exposure FCC/IC Spatial Peak SAR Limit Head/Body 8.0 W /kg 1g50% duty cycle Occupational / Controlled Exposure Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6 for the Occupational / Controlled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry …
