ALH435002UHF FM Transceiver

INSTRUCTION MANUAL © B62-2478-00 (K) 09 08 07 06 05 04 03 02 01 00 VHF FM TRANSCEIVER TK-2400 UHF FM TRANSCEIVER TK-3400 THANK YOU We are grateful for your purchase of this KENWOOD product and welcome you to the Business Radio Service (BRS). Your KENWOOD 2-way Business Radio is called a “transceiver”, meaning “transmitter & receiver”. We believe this easy-to- use transceiver will provide you with dependable and reliable communications. This KENWOOD transceiver is a precision device. Treat it with care, and you will enjoy years of reliable operation. FEATURES • 4 channels (K) or 16 channels (K2) with 27 VHF operating frequencies (TK-2400) or 90 UHF operating frequencies (TK-3400) and 39 tones/ 168 codes settings for each channel allowing you to ignore unwanted calls. • Built in voice scrambler gives you complete privacy for your conversations. • Hands free operation when using an optional headset. • Voice announcement lets you know which channel you have selected and which settings you have made when reassigning key functions and channel settings. OPERATING CONDITIONS Open locations (no obstructions)Up to 6 miles (9.6 km) Residential areas (near buildings)Up to 1.5 miles (2.4 km) In steel/ concrete reinforced buildings Up to 250,000 square feet (23,220 m 2 ) In high risesUp to 20 floors Note: The listed ranges are based on field testing and may vary with your operating conditions and individual transceiver. i FCC LICENSE INFORMATION Your KENWOOD transceiver operates on communications frequencies which are subject to FCC (Federal Communications Commission) Rules & Regulations. FCC Rules require that all operators using Private Land Mobile radio frequencies obtain a radio license before operating their equipment. Application for license must be made on FCC form 601, schedules D and H, and Remittance form 159. FAX: Forms can be obtained by fax from the FCC Fax-On- Demand system. Call 1-202-418-0177 from your fax machine and request document number 000601 for the form, schedules, and instructions. MAIL: Forms can be ordered by telephone, and will be sent to you by first class mail. Call the FCC Forms Hotline at 1-800-418-FORM (1-800-418-3676). INTERNET: Form 601 and instructions can be downloaded from the FCC Forms website at http://www.fcc.gov/formpage.html Before filling out your Form 601 application Technical Data section, you must decide on which frequencies you will operate. See the frequency charts on pages 14 and 15. QUESTIONS? Call the FCC for license application questions at 1-888-CALL-FCC (1-888-225-5322). ii One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer for technical assistance. ATTENTION: The RBRC Recycle seal found on KENWOOD lithium- ion (Li-ion) battery packs indicates KENWOOD ’s voluntary participation in an industry program to collect and recycle Li-ion batteries after their operating life has expired. The RBRC program is an alternative to disposing Li-ion batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. For information on Li-ion battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD ’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources. iii NOTICES TO THE USER ◆ Government law prohibits the operation of unlicensed radio transmitters within the territories under government control. ◆ Illegal operation is punishable by fine and/or imprisonment. ◆ Refer service to qualified technicians only. Safety: It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver. PRECAUTIONS • Do not charge the transceiver and battery pack when they are wet. • Ensure that there are no metallic items located between the transceiver and the battery pack. • Do not use options not specified by KENWOOD . • If the die-cast chassis or other transceiver part is damaged, do not touch the damaged parts. • If a headset or headphone is connected to the transceiver, reduce the transceiver volume. Pay attention to the volume level when turning the squelch off. • Do not place the microphone cable around your neck while near machinery that may catch the cable. • Do not place the transceiver on unstable surfaces. • Ensure that the end of the antenna does not touch your eyes. • When the transceiver is used for transmission for many hours, the radiator and chassis will become hot. Do not touch these locations when replacing the battery pack. • Do not immerse the transceiver in water. • Always switch the transceiver…

Text truncated - open the document above for the full version.

October 31, 2012 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: This letter will authorize Compliance Testing LLC to act as our Agent in all FCC matters. This appointment is effective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely,

October 31, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: TK-3400-K, TK-3400-K2 FCC ID: ALH435002 To Whom It May Concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that should never get into the possession of our competition. Please contact me if you require any additional information. Sincerely,

October 31, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer Subject: Justify Extended Frequency Range for MODEL: TK-3400-K, TK-3400-K2 FCC ID: ALH435002 To Whom It May Concern: This letter serves justification for extended frequencies. This device has design capability to operate in the frequency band 450 to 512 MHz and complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Please note that Licensed End Users do not have access to any external controls that will allow them to program the equipment. Equipment programming is the responsibility of Kenwood approved Service Agents. In addition to Parts 90 usage, this device is utilized in systems such as Federal and Public Safety agencies, e.g. police, fire, and emergency medical, etc. as indicated in the following table: Table 1 – Frequency Range and Rule Parts - (47 CFR Part 2.106) It is understood that a grant note code may be added to the grant which indicates this required operation. Please contact me if you require any additional information. Sincerely, Freq. Range (MHz) Part 90 Federal Customers 450.0000-454.0000 x 454.0000-456.0000 x 456.0000-462.5375 x 462.5375-462.7375 x 462.7375-467.5375 x 467.5375-467.7375 x 467.7375-512.0000 x

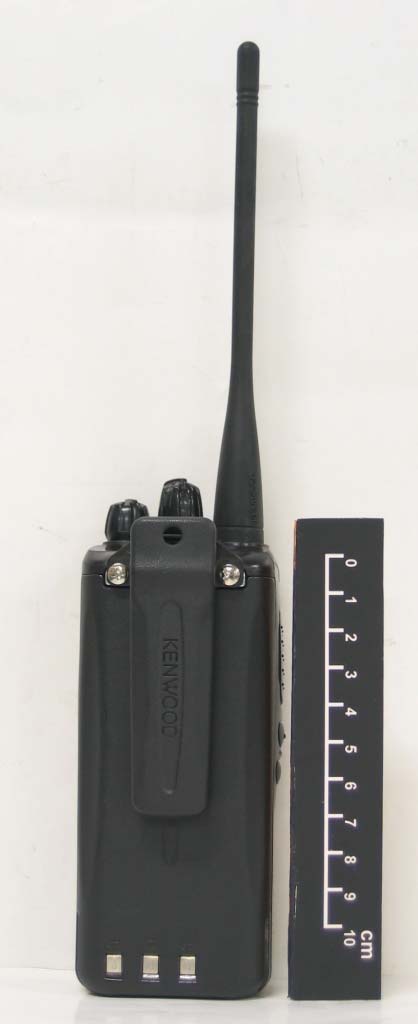

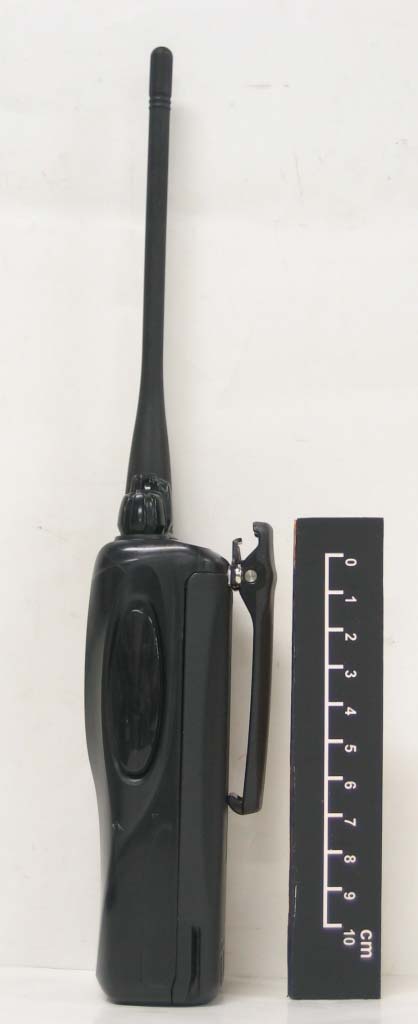

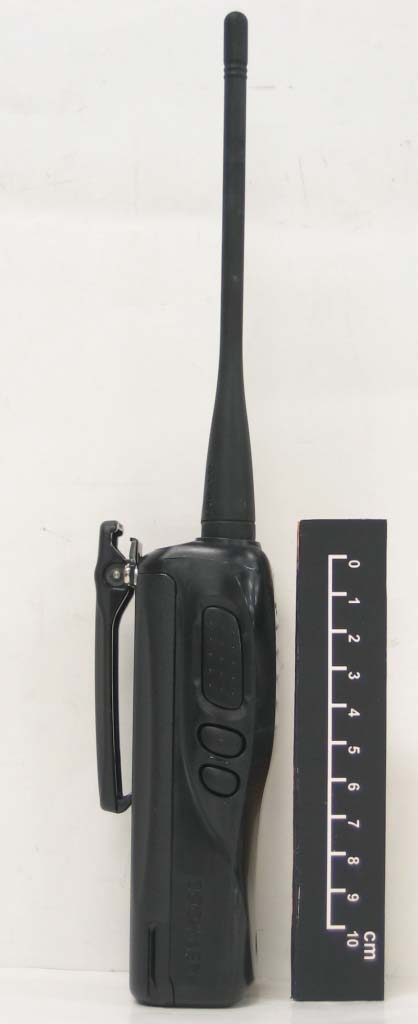

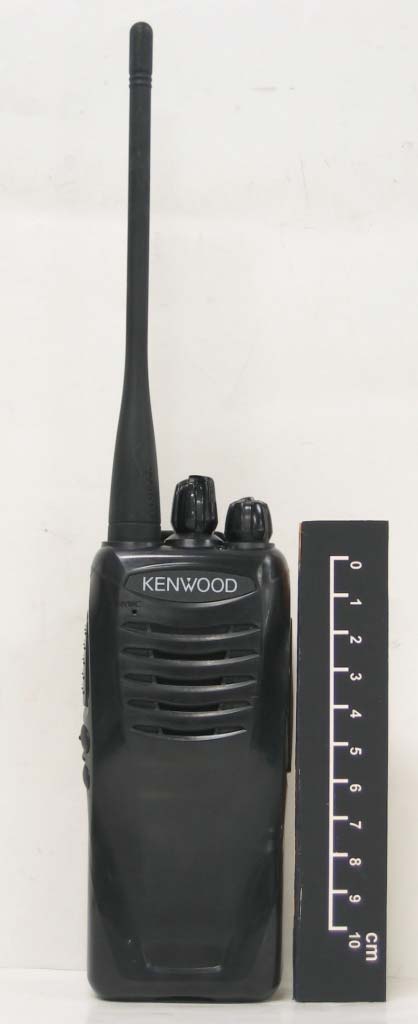

TK-3400-K, TK-3400-K2 FCC ID: ALH435002 IC: 282D-435002 R ear View Front View TK-3400-K, TK-3400-K2 FCC ID: ALH435002 IC: 282D-435002 L eft View Right View TK-3400-K, TK-3400-K2 FCC ID: ALH435002 IC: 282D-435002 T op View Bottom V iew

TK-3400-K, TK-3400-K2 FCC ID: ALH435002 IC: 282D-435002

TK-3400-K, TK-3400-K2 FCC ID: ALH435002 IC: 282D-435002 TK-3400-K, TK-3400-K2 FCC ID: ALH435002 IC: 282D-435002 TK-3400-K, TK-3400-K2 FCC ID: ALH435002 IC: 282D-435002 TK-3400-K, TK-3400-K2 FCC ID: ALH435002 IC: 282D-435002

Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 108 Date(s) of Evaluation Aug 20-22,Oct 4-10, 2012 Test Report Serial No. 081612ALH-T1192-S90V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Nov. 30, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE - SAR RF EXPOSURE EVALUATION (FCC/IC) Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Test Lab Accreditation(s) A2LA ISO/IEC 17025:2005 (A2LA Test Lab Certificate No. 2470.01) Name KENWOOD USA CORPORATION Applicant Information Address 3970 Johns Creek Court, Suite 100, Suwanee, GA 30024 United States Application Type(s) FCC TCB Certification IC CB Certification Standard(s) Applied FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C FCC KDB 447498 D01v04 FCC KDB 643646 D01v01 IC RSS-102 Issue 4 Procedure(s) Applied IEEE 1528-2003 IEC 62209-1:2005, 62209-2:2010 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) - FCC Part 90 Device Classification(s) IC Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) - RSS-119 Issue 11 Device Identifier(s) FCC ID: ALH435002 IC 282D-435002 Device Model(s) TK-3400-K (4-channel); TK-3400-K2 (16-channel) (Models are electrically and mechanically identical) Device Model(s) Tested TK-3400-K2 (0420 Identical Prototype) Test Sample Revision No.s Hardware 1 Firmware 1.0 Date of Sample Receipt Aug. 16, 2012 Date(s) of SAR Evaluations Aug. 20-22, Oct. 4-10, 2012 Device Description Portable FM UHF Push-To-Talk (PTT) Radio Transceiver FCC 450.0 - 512.0 MHz Transmit Frequency Range IC 450.0 - 470.0 MHz Manuf. Rated Output Power 2 Watts (Conducted) Manuf. Tolerance Specification + 0 Watts Detachable Stub 450.0 - 485.0 MHz Length = 75 mm P/N: KRA-17M 1 Detachable Stub 470.0 - 512.0 MHz Length = 75 mm P/N: KRA-17M2 2 Detachable Helical LP 450.0 - 490.0 MHz Length = 80 mm P/N: KRA-23M 3 Detachable Helical LP 470.0 - 512.0 MHz Length = 80 mm P/N: KRA-23M2 4 Detachable Whip 450.0 - 490.0 MHz Length = 149 mm P/N: KRA-27M 5 Detachable Whip 470.0 - 512.0 MHz Length = 139 mm P/N: KRA-27M2 6 Detachable Stub 450.0 - 490.0 MHz Length = 55 mm P/N: KRA-42M 7 Antenna Type(s) Tested Detachable Stub 470.0 - 512.0 MHz Length = 55 mm P/N: KRA-42M2 8 Li-ion 7.4 V 2000 mAh P/N: KNB-45L a Battery Type(s) Tested Ni-MH 7.2 V 1500 mAh P/N: KNB-29N b Body-worn Accessories Tested Belt-Clip (contains metal) P/N: KBH-10 1 Audio Accessories Tested See manufacturer’s accessory listing (Section 7.0) Face-held 2.26 W/kg 1g 50% PTT duty cycle Occupational / Controlled Exposure Max. SAR Level(s) Evaluated Body-worn 3.41 W/kg 1g 50% PTT duty cycle Occupational / Controlled Exposure FCC Spatial Peak SAR Limit Head/Body 8.0 W/kg 1g 50% PTT duty cycle Occupational / Controlled Exposure Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the Occupational / Controlled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4, IEEE Standard 1528-2003 and IEC International Standard 62209-1:2005. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Test Report Approved By Mike Meaker Engineering Technologist Celltech Labs Inc. Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 108 Date(s) of Evaluation Aug 20-22,Oct 4-10, 2012 Test Report Serial No. 081612ALH-T1192-S90V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Nov. 30, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION____________________________________________________________________4 2.0 SAR MEASUREMENT SYSTEM _______________________________________________________4 3.0 RF CONDUCTED OUTPUT POWER MEASUREMENTS ____________________________________4 4.0 FCC POWER THRESHOLDS FOR PTT DEVICES (F < 0.5 GHZ) _____________________________5 5.0 SAR PROBE CALIBRATION & MEASUREMENT FREQUENCIES ____________________________5 6.0 NO. OF TEST CHANNELS (N C ) ________________________________________________________5 7.0 MANUFACTURER’S DISCLOSED ACCESSORY LISTING __________________________________6 8.0 FLUID DIELECTRIC PARAMETERS ____________________________________________________7 9.0 SAR MEASUREMENT SUMMARY ____________________________________________________12 10.0 SAR SCALING (TUNE-UP TOLERANCE) ______________________________________________17 11.0 SAR TEST REDUCTION PROCEDURES APPLIED (FCC KDB 643646)______________________18 12.0 DETAILS OF SAR EVALUATION _______________________________…

Text truncated - open the document above for the full version.

Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 28 of 108 Date(s) of Evaluation Aug 20-22,Oct 4-10, 2012 Test Report Serial No. 081612ALH-T1192-S90V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Nov. 30, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 APPENDIX A - SAR MEASUREMENT PLOTS Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 29 of 108 Date(s) of Evaluation Aug 20-22,Oct 4-10, 2012 Test Report Serial No. 081612ALH-T1192-S90V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Nov. 30, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Face SAR Plot F1 Date Tested: 08/22/2012 DUT: Kenwood TK-3400-K2; Type: Portable FM UHF PTT Radio Transceiver; Serial: 0420 Program Notes: Ambient Temp: 24.0C; Fluid Temp: 23.3C; Barometric Pressure: 101.1 kPa; Humidity: 32% Communication System: UHF 400-512 Frequency: 461.7 MHz; Duty Cycle: 1:1 Medium: HSL450 Medium parameters used (interpolated): f = 461.7 MHz; σ = 0.85 mho/m; ε r = 43.5; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(7.54, 7.54, 7.54); Calibrated: 24/04/2012 - Sensor-Surface: 4mm (Mechanical Surface Detection (Locations From Previous Scan Used))Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn353; Calibrated: 19/04/2012 - Phantom: Barski Industries; Type: Fiberglass Planar; Serial: 03-01 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Area Scan (6x21x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 2.95 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 58.2 V/m; Power Drift = -0.322 dB Peak SAR (extrapolated) = 3.91 W/kg SAR(1 g) = 2.79 mW/g; SAR(10 g) = 2.03 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 2.93 mW/g Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 30 of 108 Date(s) of Evaluation Aug 20-22,Oct 4-10, 2012 Test Report Serial No. 081612ALH-T1192-S90V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Nov. 30, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Face SAR Plot F2 Date Tested: 08/22/2012 DUT: Kenwood TK-3400-K2; Type: Portable FM UHF PTT Radio Transceiver; Serial: 0420 Program Notes: Ambient Temp: 24.0C; Fluid Temp: 23.3C; Barometric Pressure: 101.1 kPa; Humidity: 32% Communication System: UHF 400-512 Frequency: 484 MHz; Duty Cycle: 1:1 Medium: HSL450 Medium parameters used (interpolated): f = 484 MHz; σ = 0.86 mho/m; ε r = 42.8; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1590; ConvF(7.54, 7.54, 7.54); Calibrated: 24/04/2012 - Sensor-Surface: 4mm (Mechanical Surface Detection (Locations From Previous Scan Used))Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn353; Calibrated: 19/04/2012 - Phantom: Barski Industries; Type: Fiberglass Planar; Serial: 03-01 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Area Scan (6x21x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 3.85 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 66.4 V/m; Power Drift = -0.541 dB Peak SAR (extrapolated) = 4.93 W/kg SAR(1 g) = 3.52 mW/g; SAR(10 g) = 2.56 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 3.70 mW/g Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 31 of 108 Date(s) of Evaluation Aug 20-22,Oct 4-10, 2012 Test Report Serial No. 081612ALH-T1192-S90V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Nov. 30, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Z-Axis Scan Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 32 of 108 Date(s) of Evaluation Aug 20-22,Oct 4-10, 2012 Test Report Serial No. 081612ALH-T1192-S90V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Nov. 30, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Face SAR Plot F3 Date Tested: 08/22/2012 DUT: Kenwood TK-3400-K2; Type: Portable FM UHF PTT Radio Transceiver; Serial: 0420 Program Notes: Ambient Temp: 24.0C; Fluid Temp: 23.3C; Barometric Pressure: 101.1 kPa; Humidity: 32% Communication System: UHF 400-512 Frequency: 463.3 MHz; Duty Cyc…

Text truncated - open the document above for the full version.

Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 72 of 108 Date(s) of Evaluation Aug 20-22,Oct 4-10, 2012 Test Report Serial No. 081612ALH-T1192-S90V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Nov. 30, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 APPENDIX D - SAR TEST SETUP & DUT PHOTOGRAPHS Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 73 of 108 Date(s) of Evaluation Aug 20-22,Oct 4-10, 2012 Test Report Serial No. 081612ALH-T1192-S90V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Nov. 30, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Face-held SAR Configuration Test Setup FACE-HELD SAR TEST SETUP PHOTOGRAPHS Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 74 of 108 Date(s) of Evaluation Aug 20-22,Oct 4-10, 2012 Test Report Serial No. 081612ALH-T1192-S90V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Nov. 30, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Face-held SAR Configuration - Antenna 1, Battery a Face-held SAR Configuration - Antenna 2, Battery a Face-held SAR Configuration - Antenna 3, Battery a Face-held SAR Configuration - Antenna 4, Battery a FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm 3.2 cm 3.5 cm 2.5 cm 3.5 cm 3.2 cm 2.5 cm 3.2 cm 3.5 cm 2.5 cm 3.2 cm 3.5 cm Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 75 of 108 Date(s) of Evaluation Aug 20-22,Oct 4-10, 2012 Test Report Serial No. 081612ALH-T1192-S90V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Nov. 30, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Face-held SAR Configuration - Antenna 5, Battery a Face-held SAR Configuration - Antenna 6, Battery a Face-held SAR Configuration - Antenna 7, Battery a Face-held SAR Configuration - Antenna 8, Battery a FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm 3.2 cm 3.7 cm 2.5 cm 3.4 cm 3.2 cm 2.5 cm 3.2 cm 3.7 cm 2.5 cm 3.2 cm 3.4 cm Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 76 of 108 Date(s) of Evaluation Aug 20-22,Oct 4-10, 2012 Test Report Serial No. 081612ALH-T1192-S90V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Nov. 30, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Face-held SAR Configuration - Antenna 8, Battery b FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm 3.2 cm 3.4 cm Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 77 of 108 Date(s) of Evaluation Aug 20-22,Oct 4-10, 2012 Test Report Serial No. 081612ALH-T1192-S90V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Nov. 30, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Body-worn SAR Configuration Test Setup BODY-WORN SAR TEST SETUP PHOTOGRAPHS (WITH DEFAULT AUDIO ACC.) Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 78 of 108 Date(s) of Evaluation Aug 20-22,Oct 4-10, 2012 Test Report Serial No. 081612ALH-T1192-S90V Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date Nov. 30, 2012 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Body-worn SAR Configuration - Antenna 1, Battery a, Audio G2d Body-worn SAR Configuration - Antenna 2, Battery a, Audio G2d Body-worn SAR Configuration - Antenna 3, Battery a, Audio G2d Body-worn SAR Configuration - Antenna 4, Battery a, Audio G2d BODY-WORN SAR TEST SETUP PHOTOGRAPHS (WITH DEFAULT AUDIO ACC.) 1.2 cm 3.1 cm 3.3 cm 1.2 cm 3.1 cm 3.3 cm 1.2 cm 3.1 cm 3.3 cm 1.2 cm 3.1 cm 3.3 cm Applicant: Kenwood USA Corporation FCC ID: ALH435002 IC ID: 282D-435002 DUT Type: Portable UHF PTT Radio Transceiver Models: TK-3400-K/K2 450.0 - 512.0 MHz 2012 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 79 of 10…

Text truncated - open the document above for the full version.

Radio FRequency eneRgy SaFety inFoRmation This Kenwood transceiver has been tested and complies with the standards listed below, in regards to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver. • FCC RF exposure limits for Occupational Use Only. RF Exposure limits adopted by the FCC are generally based on recommendations from the National Council on Radiation Protection and Measurements, & the American National Standards Institute. • FCC OET Bulletin 65 Edition 97-01 Supplement C • American National Standards Institute (C95.1 – 1992) • American National Standards Institute (C95.3 – 1992) This Kenwood transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric & Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less than the recommended distance from this radio transmitter’s antenna. RF energy exposure is determined primarily by the distance to and the power of the transmitting device. In general, RF exposure is minimized when the lowest possible power is used or transmission time is kept to the minimum required for consistent communications, and the greatest distance possible from the antenna to the body is maintained. The transceiver has been designed for and is classified for Occupational Use Only. Occupational/ controlled exposure limits are applicable to situations in which persons are exposed to RF energy as a consequence of their employment, and such persons have been made aware of the potential for exposure and can exercise control over their exposure. This means you can use the transceiver only if you are aware of the potential hazards of operating a transceiver and are familiar in ways to minimize these hazards. This transceiver is not intended for use by the general public in uncontrolled environments. Uncontrolled environment exposure limits are applicable to situations in which the general public may be exposed to RF energy, or in which the persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. The following list provides you with the information required to ensure that you are aware of RF exposure and of how to operate this transceiver so that the FCC RF exposure limitations are not exceeded. • While transmitting (holding the PTT switch or speaking with VOX enabled), always keep the antenna and the radio at least 3 cm (1 3/16 inches) from your body or face, as well as from any bystanders. A LED on the top of the radio shows red when the transmitter is operating in both PTT and VOX modes. • Do not transmit for more than 50% of the total transceiver use time; transm…

Text truncated - open the document above for the full version.
