ALH458200800 MHz Digital Transceiver

© B62-2470-00 (K) 09 08 07 06 05 04 03 02 01 00 VHF DIGITAL TRANSCEIVER/ UHF DIGITAL TRANSCEIVER/ 800MHz DIGITAL TRANSCEIVER INSTRUCTION MANUAL ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE VHF/ ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE UHF/ ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE 800MHz MODE D’EMPLOI TRANSCEPTOR DIGITAL VHF/ TRANSCEPTOR DIGITAL UHF/ TRANSCEPTOR DIGITAL 800MHz MANUAL DE INSTRUCCIONES NX-220/ NX-320/ NX-420 VHF DIGITAL TRANSCEIVER/ UHF DIGITAL TRANSCEIVER/ 800MHz DIGITAL TRANSCEIVER NX-220/ NX-320/ NX-420 INSTRUCTION MANUAL ENGLISH THANK YOU We are grateful you have chosen KENWOOD for your land mobile radio applications. This instruction manual covers only the basic operations of your NEXEDGE portable radio. Ask your dealer for information on any customized features they may have added to your radio. NOTICES TO THE USER ◆ Government law prohibits the operation of unlicensed radio transmitters within the territories under government control. ◆ Illegal operation is punishable by fine and/or imprisonment. ◆ Refer service to qualified technicians only. Safety: It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver. i ATTENTION: The RBRC Recycle seal found on KENWOOD lithium-ion (Li-ion) battery packs indicates KENWOOD ’s voluntary participation in an industry program to collect and recycle Li-ion batteries after their operating life has expired. The RBRC program is an alternative to disposing Li-ion batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. For information on Li-ion battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD ’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources. ATTENTION: The RBRC Recycle seal found on KENWOOD nickel metal hydride (Ni-MH) battery packs indicates KENWOOD ’s voluntary participation in an industry program to collect and recycle Ni-MH batteries after their operating life has expired. The RBRC program is an alternative to disposing Ni-MH batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. For information on Ni-MH battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD ’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources. ii TERMINAL DESCRIPTIONS Speaker/ Microphone Jacks You can use a resin-based cover for the Speaker/ Microphone jacks. No.NameDescription Impedance I/O 1PTT/RXDPTT input / Serial data input10 kΩI 2MICIMIC input1.8 kΩI 3MICOOutput from internal MIC − O 4OPTDETOption Detect74 kΩI 55OV5V output − O 6AEAudio EarthGND − 7TXDSerial data output6.8 kΩO 8SPITo internal SP8 Ω (Load)I 9SPOAF power output − O Antenna Terminal 50 Ω impedance iii One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer for technical assistance. iv PRECAUTIONS • Do not charge the transceiver and battery pack when they are wet. • Ensure that there are no metallic items located between the transceiver and the battery pack. • Do not use options not specified by KENWOOD. • If the die-cast chassis or other transceiver part is damaged, do not touch the damaged parts. • If a headset or headphone is connected to the transceiver, reduce the transceiver volume. Pay attention to the volume level when turning the squelch off. • Do not place the microphone cable around your neck while near machinery that may catch the cable. • Do not place the transceiver on unstable surfaces. • Ensure that the end of the antenna does not touch your eyes. • When the transceiver is used for transmission for many hours, the radiator and chassis will become hot. Do not touch these locations when replacing the battery pack. • Always switch the transceiver power off before installing optional accessories. • The charger is the device that disconnects the unit from the AC mains line. The AC plug should be readily accessible. v Turn the transceiver power off in the following locations: • In explosive atmospheres (inflammable gas, dust particles, metallic powders, grain powders, etc.). • While taking on fuel or while parked at gasoline service stations. • Near explosives or blasting sites. • In aircrafts. (Any use of the transceiver must follow the instructions and regulations provided by the airline crew.) • Where restrictions or warnings are posted regarding the use of radio devices, including but not limited to medical facilities. • Near persons using pacemakers. • Do not disassemble or modify …

Text truncated - open the document above for the full version.

Kenwood USA Corporation 3970 Johns Creek Court, Suwanee, GA 30024 (678) 474-4700 January 29, 2013 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: This letter will authorize Compliance Testing LLC to act as our Agent in all FCC matters. This appointment is effective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely,

Kenwood USA Corporation 3970 Johns Creek Court, Suwanee, GA 30024 (678) 474-4700 February 7, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: NX-420-K, NX-420-K3, FCC ID: ALH458200. To Whom It May Concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that should never get into the possession of our competition. Please contact me if you require any additional information. Sincerely,

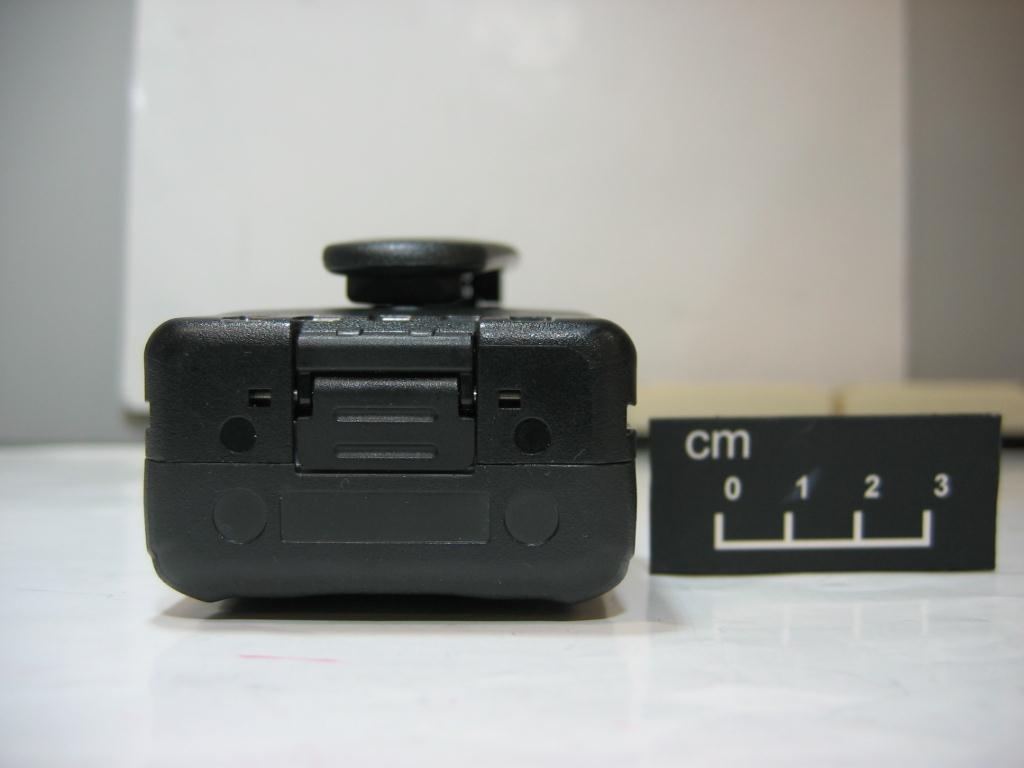

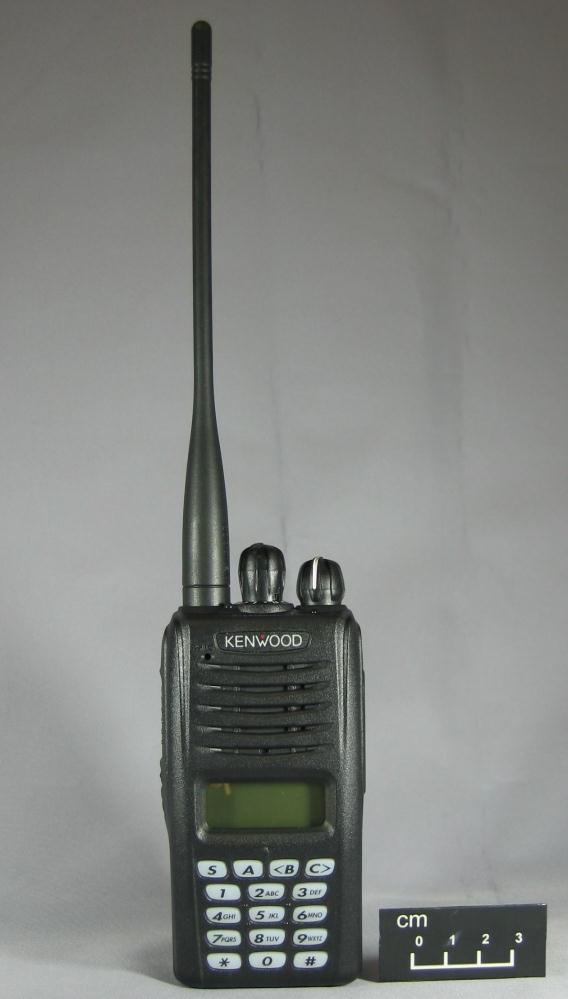

NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K Front View NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K3 Front View NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K, NX-420-K3 Rear View NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K, NX-420-K3 Left View NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K, NX-420-K3 Right View NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K, NX-420-K3 Top View NX-420-K, NX-420-K3 Bottom View

NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200

NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K Display Unit NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K Display Unit NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K Display Unit NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K Display Unit NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K3 Display Unit NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K3 Display Unit NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K3 Display Unit NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K3 Display Unit NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K, NX-420-K3 Key NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K, NX-420-K3 Key NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K, NX-420-K3 Key NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K, NX-420-K3 TXRX Unit NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K, NX-420-K3 TXRX Unit NX-420-K, NX-420-K3 FCC ID: ALH458200 IC: 282D-458200 NX-420-K, NX-420-K3 TXRX Unit

802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Kenwood USA Corporation Dates of Test: January 7-8, 2013 3970 Johns Creek Court, Suite 100 Test Report Number: SAR.20130102 Suwanee, GA 30024 Revision B This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, and OET Bulletin 65 Supp. C (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application is subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Certificate # 2387.01 FCC ID: ALH458200 Model(s): NX-420-K3, NX-420-K Test Sample: Engineering Unit Same as Production Serial Number: 0438 Equipment Type: Push-To-Talk Handheld Radio for Occupational Use Classification: Portable Transmitter Next to Face and Body TX Frequency Range: 806 – 824 MHz; 851 – 869 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 815 MHz – 34.77 dB, 860 MHz – 34.76 dB Conducted Signal Modulation: FM Accessories: Body Worn – Model KBH-12, KBH-13DS; Audio – Models KMC-48GPS, KMC-45, KMC-21, KHS-7, KHS-7A, KHS-8BE, KHS-8BL, KHS-9BE, KHS-9 BL, KHS-10BH, KHS-10OH, KEP-2, KHS-22, KHS-23, KHS-25, KHS-26, KHS-27 Antenna Type: Model(s) KRA-24M, KRA-32, KRA-36, KRA-38 Battery: Model(s) KNB-55L, KNB-57L, KNB-56N, KBP-5, KNB-40LCV Application Type: Certification FCC Rule Parts: Part 2, 90 IC Radio Standards: RSS-119, RSS-134 KDB Test Methodology: KDB 447498 D01 v05, KDB 643646 D01 v01r01 Test KDB Issued: KDB 149273 Maximum SAR Value: Face – 1.16 W/kg (Reported); Body – 2.57 W/kg (Reported) Separation Distance: 25 mm for Face; 0 mm for Body © 2013 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. FCC ID: ALH458200 Table of Contents 1. Introduction ........................................................................................................................ 3 SAR Definition [5] ................................................................................................................... 4 2. SAR Measurement Setup ................................................................................................... 5 Robotic System ...................................................................................................................... 5 System Hardware ................................................................................................................... 5 System Electronics ................................................................................................................. 6 Probe Measurement System .................................................................................................. 6 3. Probe and Dipole Calibration .............................................................................................11 4. Phantom & Simulating Tissue Specifications .....................................................................12 Head & Body Simulating Mixture Characterization ................................................................12 Device Holder .......................................................................................................................12 5. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2] ..............................................................13 Uncontrolled Environment .....................................................................................................13 Controlled Environment .........................................................................................................13 6. Measurement Uncertainty .................................................................................................14 7. System Validation..............................................................................................................15 Tissue Verification .................................................................................................................15 Test System Verification ........................................................................................................15 8. SAR Test Data Summary ..................................................................................................16 Procedures Used To Establish Test Signal ...........................................................................16 Device Test Condition ...........................................................................................................16 SAR Data Summary – Head SAR in Front of Face Measurements – K3 ...............................24 SAR Data Summary – Head SAR in Front of Face Measurements – K .................................25 SAR Data Summary – Body SAR Measurements – Body Worn Accessory A and Audio Accessory A – K3 ..................................................................................................................26 9. Test Equipment List ...........................................................................................................27 10. Conclusion ....................................................................................................................28 11. References ....................................................................................................................29 Append…

Text truncated - open the document above for the full version.

RADIO FREQUENCY ENERGY SAFETY INFORMATION This KENWOOD transceiver has been tested and complies with the standards listed below, in regards to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver. • FCC RF exposure limits for Occupational Use Only. RF Exposure limits adopted by the FCC are generally based on recommendations from the National Council on Radiation Protection and Measurements, & the American National Standards Institute. • FCC OET Bulletin 65 Edition 97-01 Supplement C • American National Standards Institute (C95.1 – 1992) • American National Standards Institute (C95.3 – 1992) This KENWOOD transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric & Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less than the recommended distance from this radio transmitter’s antenna. RF energy exposure is determined primarily by the distance to and the power of the transmitting device. In general, RF exposure is minimized when the lowest possible power is used or transmission time is kept to the minimum required for consistent communications, and the greatest distance possible from the antenna to the body is maintained. The transceiver has been designed for and is classified for Occupational Use Only. Occupational/ controlled exposure limits are applicable to situations in which persons are exposed to RF energy as a consequence of their employment, and such persons have been made aware of the potential for exposure and can exercise control over their exposure. This means you can use the transceiver only if you are aware of the potential hazards of operating a transceiver and are familiar in ways to minimize these hazards. This transceiver is not intended for use by the general public in uncontrolled environments. Uncontrolled environment exposure limits are applicable to situations in which the general public may be exposed to RF energy, or in which the persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. The following list provides you with the information required to ensure that you are aware of RF exposure and of how to operate this transceiver so that the FCC RF exposure limitations are not exceeded. • While transmitting (holding the PTT switch or speaking with VOX enabled), always keep the antenna and the radio at least 3 cm (1 3/16 inches) from your body or face, as well as from any bystanders. A LED on the top of the radio shows red when the transmitter is operating in both PTT and VOX modes. • Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver operation is 5% transmission time, 5% reception time, and 90% stand-by time. • Use only the specified antenna for this transceiver; this may be either the antenna provided with the transceiver or another antenna authorized by KENWOOD . Use only KENWOOD authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or headsets etc.): When worn on the body, always place the radio in a KENWOOD recommended clip or carrying case meant for this product. The use of other than recommended or approved body- worn accessories may result in RF exposure levels which exceed the FCC’s occupational/ controlled environment RF exposure limits. To ensure that your exposure to RF EME is within the FCC limits for occupational use, you must observe and adhere to the above points. Electromagnetic Interference Compatibility Electronic devices are susceptible to electromagnetic interference (EMI) if they are not adequately shielded or designed for electromagnetic compatibility. Because this transceiver generates RF energy, it can cause interference to such equipment. • Turn OFF your transceiver where signs are posted to do so. Hospitals and health care facilities use equipment that is sensitive to electromagnetic radiation. • Turn OFF your transceiver while on board an aircraft when so instructed. Use of the transceiver must be in accordance with airline regulations and/or crew instructions. B59-2687-00

p12b0023_FCC_Part 90_Rev 1.0 Page 1 of 36 Test Report Prepared for: Kenwood USA Corporation Model: NX-420-K / -K3 Description: 800MHz Digital Transceiver To FCC Part 90 Date of Issue: January 18, 2013 On the behalf of the applicant: Kenwood USA Corporation Communications Division 3970 Johns Creek Court Suwanee, GA 30024 Attention of: Joel Berger, Research and Development Ph: (678)474-4722 E-Mail: [email protected] Prepared By Compliance Testing, LLC 3356 N San Marcos Pl, Suite 107 Chandler, AZ 85225-7176 (866) 311-3268 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p12b0023 John Erhard Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested p12b0023_FCC_Part 90_Rev 1.0 Page 2 of 36 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 January 18, 2013 John Erhard Original Document p12b0023_FCC_Part 90_Rev 1.0 Page 3 of 36 Table of Contents Description Page Standard Test Conditions and Engineering Practices 6 Test Result Summary 7 Carrier Output Power (Conducted) 8 Conducted Spurious Emissions 9 Field Strength of Spurious Radiation 13 Emission Masks (Occupied Bandwidth) 16 Audio Low Pass Filter (Voice Input) 24 Audio Frequency Response 25 Modulation Limiting 26 Frequency Stability (Temperature Variation) 28 Frequency Stability (Voltage Variation) 30 Receiver Spurious Emissions 32 Necessary Bandwidth Calculations 33 Test Equipment Utilized 36 p12b0023_FCC_Part 90_Rev 1.0 Page 4 of 36 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC OATS Reg, #933597 IC Reg. #2044A-1 Non-accredited tests contained in this report: N/A p12b0023_FCC_Part 90_Rev 1.0 Page 5 of 36 The Applicant has been cautioned as to the following: 15.21: Information to the User The user’s manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 15.27(a): Special Accessories Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without an additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. p12b0023_FCC_Part 90_Rev 1.0 Page 6 of 36 Test and Measurement Data Sub-part 2.1033(c)(14): All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II, Part 2, Sub-part J, Sections 2.947, 2.1033(c), 2.1041, 2.1046, 2.1047, 2.1079, 2.1051, 2.1053, 2.1055, 2.1057, and the following individual Parts: 90. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing. In accordance with ANSI/C63.4-2009, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temp (ºC) Humidity (%) Pressure (mbar) 16.3 - 20.8 22.9 - 26.8 974.2 - 979.8 Measurement results, unless otherwise noted, are worst-case measurements. EUT Description Model: NX-420-K / -K3 Description: The EUT is an 800 MHz push to talk radio Firmware: N/A Software: N/A Additional Information: None EUT Operation during Tests: The EUT was in a normal operating condition. Accessories: None Cables: None Modifications: None p12b0023_FCC_Part 90_Rev 1.0 Page 7 of 36 Test Result Summary Specification Test Name Pass, Fail, N/A Comments 2.1046 Carrier Output Power (Conducted) Pass 2.1051 Unwanted Emissions (Transmitter Conducted) Pass 2.1053 Field Strength of Spurious Radiation Pass 90.210 Emission Masks (Occupied Bandwidth) Pass 2.1047 Audio Low Pass Filter (Voice Input) Pass 2.1047 Audio Frequency Response Pass 2.1047(a) Modulation Limiting Pass 90.213 Frequency Stability (Temperature Variation) Pass 90.213 Frequency Stability (Voltage Variation) Pass 90.214 Transient Frequency Behavior N/A The EUT operates at a frequency above 512 MHz RSS-Gen Receiver Spuriou…

Text truncated - open the document above for the full version.

Page 1 of 2 Test Setup Photos: Kenwood FCC ID: ALH458200 IC: 282D-458200 Conducted RF Radiated RF Page 2 of 2 Radiated RF
