AMB-JN7Wireless USB Adapter

NextG High Power USB WiFi Adapter This manual walks though the steps of setting up the NextG High Power USB WiFi Adapter from quick start followed by detailed explanation of what each parameter does. Instruction Manual Instruction Manual DN-WLAN-028 Page 2 Copyright© by Datacom Network Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this Company .This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. The software and specifications are subject to change without notice. All rights reserved including all brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders Linux Open Source Code Certain products include software code developed by third parties, software code is subject to the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL"). Please see the GNU (www.gnu.org) and LPGL(www.gnu.org) Websites to view the terms of each license. The GPL Code and LGPL Code used in products are distributed without any warranty and are subject to the copyrights of their authors. For details, see the GPL Code and LGPL Code licenses. Instruction Manual DN-WLAN-028 Page 3 Table of Contents 2. QUICK START ......................................................................................................................................... 4 2.1 INSTALLATION AND DEVICE CONNECTION ................................................................................................. 4 1. SCANNING THE WIFI SIGNAL – A QUICK GUIDE ................................................................... 5 1.1 RALINK WIRELESS UTILITY (RAUI) OR WINDOWS ZERO CONFIGURATION (WZC) .. 5 1.2 WORKING WITH WZC ................................................................................................................................ 5 1.2.1 Configuration of NIC by using WZC ........................................................................................ 6 1.3 WORKING WITH RAUI .............................................................................................................................. 10 2. ADVANCED RAUI FEATURES ....................................................................................................... 12 2.1 PROFILE ..................................................................................................................................................... 12 2.1.1 Example to Add a PROFILE ...................................................................................................... 13 2.2 NETWORK ................................................................................................................................................... 17 2.2.1 Network – General ..................................................................................................................... 18 2.2.2 Network – WPS ............................................................................................................................ 19 2.2.3 Network – CCX (Cisco Compatible Extensions) ............................................................. 20 2.2.4 Network – 802.11n ................................................................................................................... 20 2.3 ADVANCED .............................................................................................................................................. 21 2.4 STATISTICS .............................................................................................................................................. 22 2.4.1 Transmit Statistics ..................................................................................................................... 22 2.4.2 Receive Statistics ........................................................................................................................ 23 2.5 WWM ........................................................................................................................................................ 23 2.6 WPS ........................................................................................................................................................... 25 2.7 CCX (CISCO COMPATIBLE EXTENSIONS) ............................................................................................... 27 2.8 RADIO ON/OFF ......................................................................................................................................... 27 Instruction Manual DN-WLAN-028 Page 4 2. Quick Start 2.1 Installation and Device Connection Install the CD-ROM software driver before you plug in the USB adapter to you PC or laptop computer. This avoids the USB adapter being recognized by another existing WiFi software driver which might not be fully compatible with the original software driver. Before making any device and cable connection to the computer, you have to install the CD software driver and utility from fresh. Insert the CD-ROM into the CD/DVD drive of your computer. …

Text truncated - open the document above for the full version.

Date:2013-8-15 FCC ID: AMB-JN7 Subject: Ad Hoc Mode Function Declaration To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Yours sincerely, Signatory Signature Date: 2013/8/15 Name: Roland Saekow Title: Co-founder Tel: 3523729902 Company: BearExtender

BearExtender Date: 2013/8/15 Authority to Act as an Agent We declare that the following representative (agent) Name Bovey.yang Position Manager Company Name BZT Testing Technology Co., Ltd. Address 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao an District Tel / Fax (86)-0755-61156588/(86)-0755-61156599 Email [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Wireless USB Adapter Model Name JN7 Brand Name N/A . Yours sincerely, Signatory Name Roland Saekow Position Co-founder Company Name BearExtender Address 1406 Henry Street, Berkeley, California, 94709, USA Tel 3523729902 Fax 3523729902 Email [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

BearExtender Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: BearExtender FCC ID : AMB-JN7 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Roland Saekow Position Co-founder Company Name BearExtender Address 1406 Henry Street, Berkeley, California, 94709, USA Tel 3523729902 Fax 3523729902 Email [email protected] Data 2013/8/15

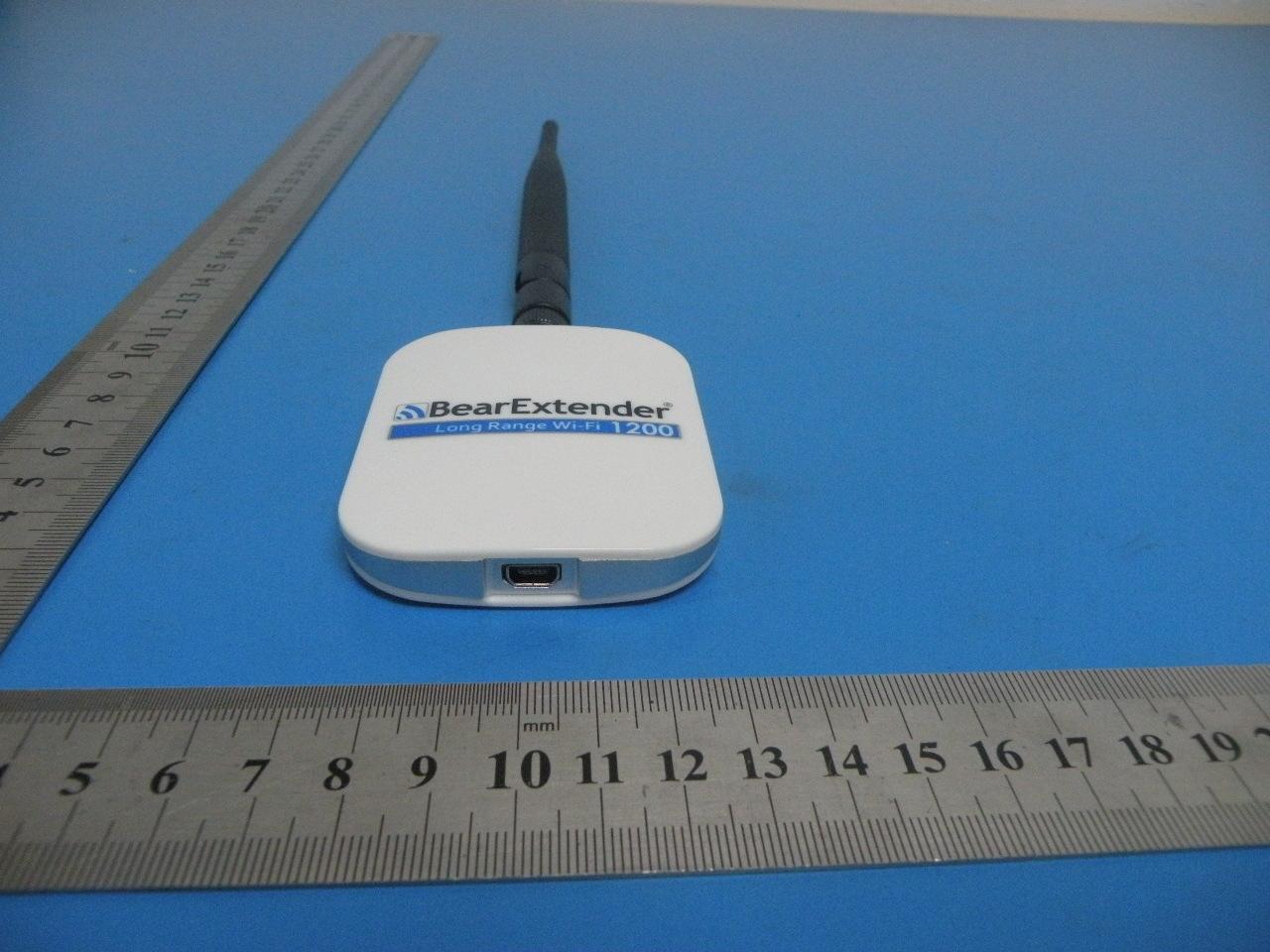

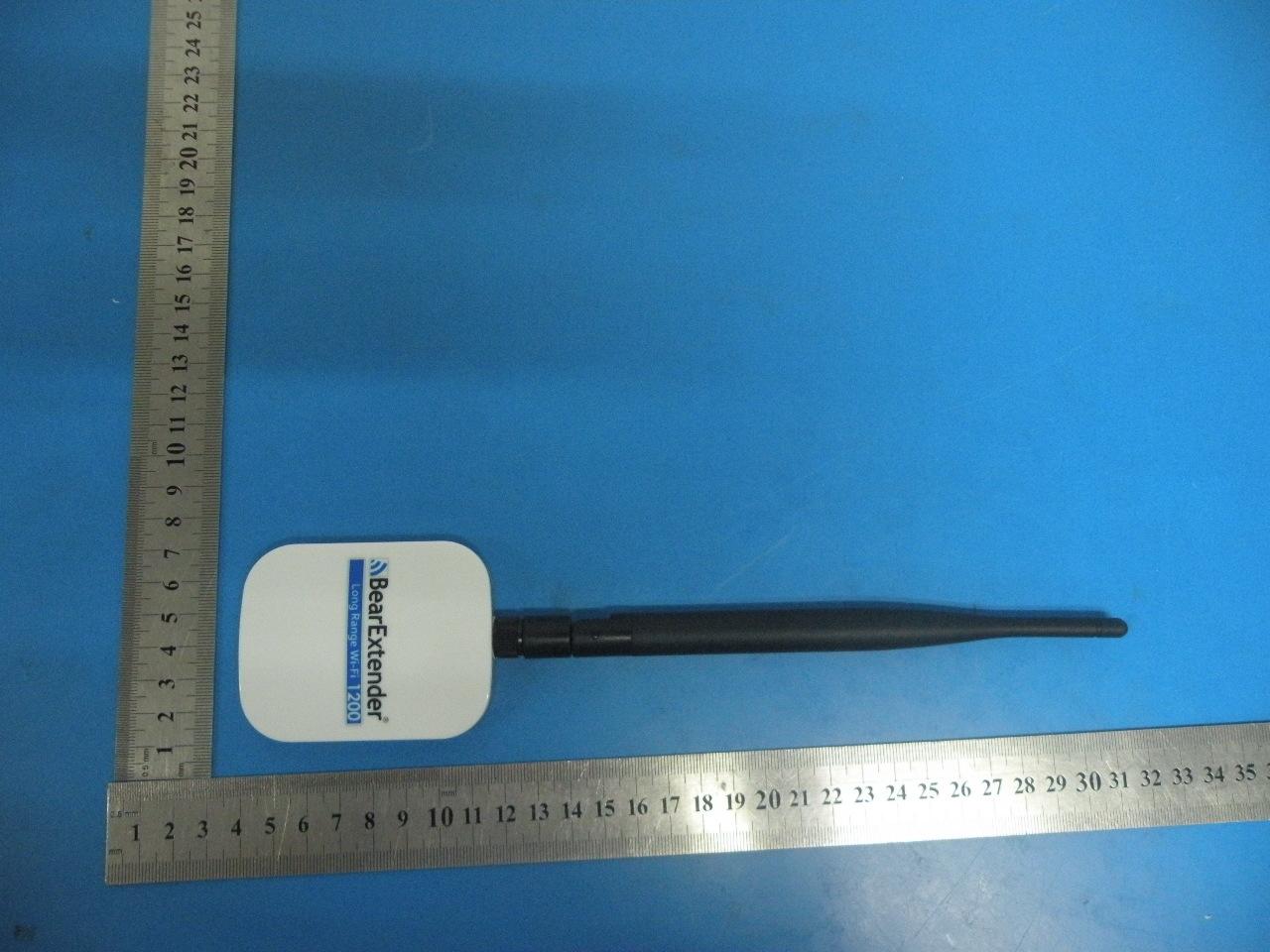

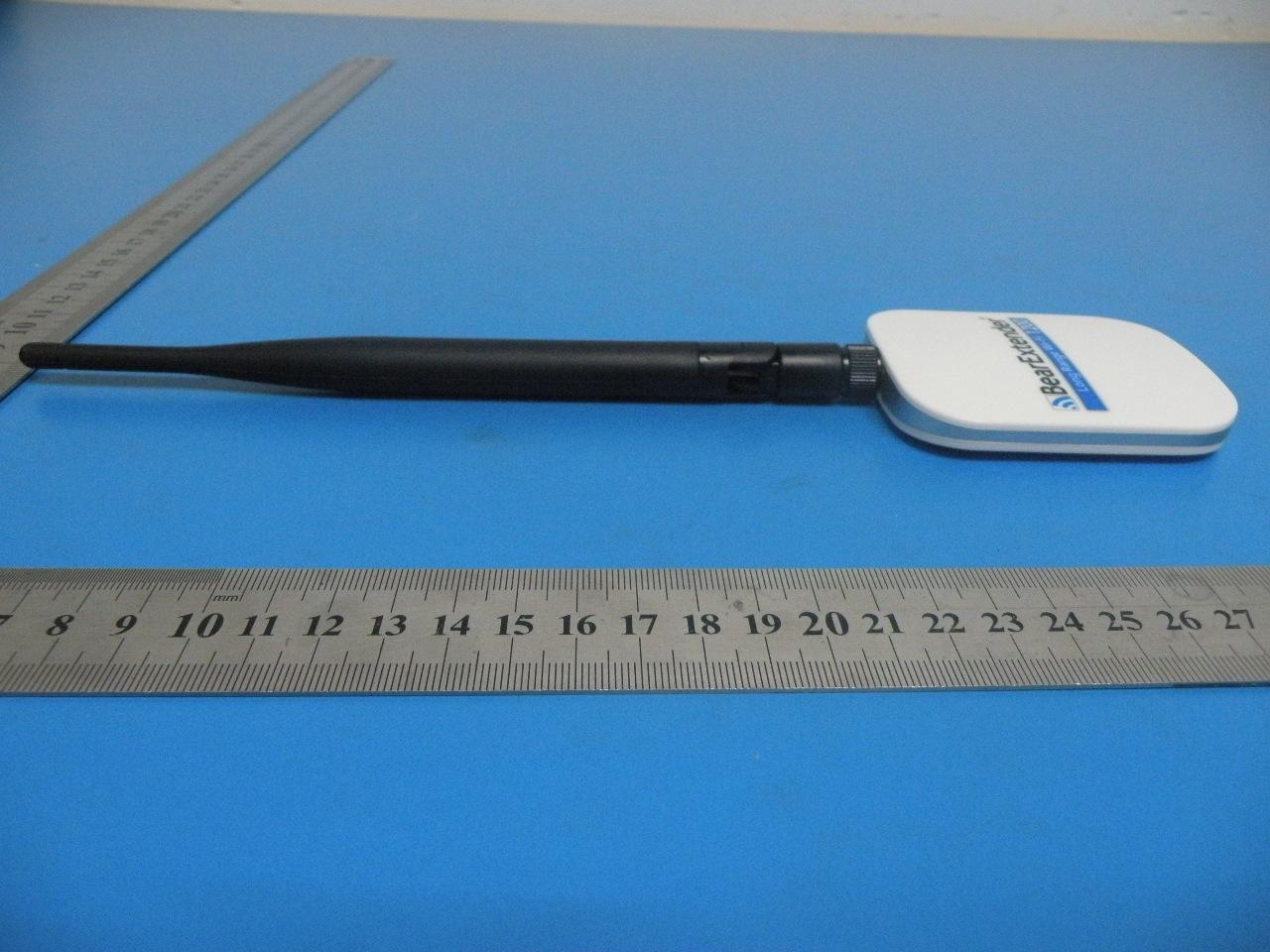

Full View Top View Bottom View Rear View Left View Right View Front View EUT View

Label: Label Location FCC ID: AMB-JN7 BearExtender Model No.: JN7 Model name: Wireless USB Adapter This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Top View Top View Bottom View Antenna

MPE ESTIMATION FCC ID: AMB-JN7 1,Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result Mode CH PK Output power(dBm) Output power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) 11b CH1 25.42 348.3373 1.5 1.41254 0.978910 CH6 25.31 339.6253 1.5 1.41254 0.954428 CH11 25.18 329.6097 1.5 1.41254 0.926281 11g CH1 24.81 302.6913 1.5 1.41254 0.850634 CH6 23.96 248.8857 1.5 1.41254 0.699428 CH11 24.14 259.4179 1.5 1.41254 0.729026 11n/HT20 CH1 22.79 190.1078 1.5 1.41254 0.534248 CH6 23.18 207.9697 1.5 1.41254 0.584444 CH11 22.41 174.1807 1.5 1.41254 0.489489 11n/HT40 CH3 19.03 79.98343 1.5 1.41254 0.224772 CH6 20.21 104.9542 1.5 1.41254 0.294946 CH9 19.74 94.18896 1.5 1.41254 0.264693 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report BZT13081512ER, antenna gain=1.5dBi.

FCC RADIO TEST REPORT FCC ID: AMB-JN7 Product： Wireless USB Adapter Trade Name： BearExtender Model Name： JN7 Serial Model： N/A Report No.： BZT13081512ER Prepared for BearExtender 1406 Henry Street, Berkeley, California, 94709, USA Prepared by BZT Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. Page 2 of 74 Report No.: BZT13081512ER TEST RESULT CERTIFICATION Applicant’s name ................. : BearExtender Address ................................. : 1406 Henry Street, Berkeley, California, 94709, USA Manufacture's Name ............ : HK YUNLINK TECHNOLOGY LTD Address ................................. : A9 Building, Longwangmiao Industrial Zone, Baishixia East,Fuyong Town, Baoan, Shenzhen Guangdong Province China Product description Product name............................ : Wireless USB Adapter Model and/or type reference : JN7 Serial Model .............................. : N/A DIFF ........................................... : N/A Standards ............................. : FCC Part15.247 Test procedure ............................... : ANSI C63.4-2003 This device described above has been tested by BZT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BZT, this document may be altered or revised by BZT, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 10 August. 2013 ~14 August. 2013 Date of Issue .......................................... : 15 August. 2013 Test Result.............................................. : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 74 Report No.: BZT13081512ER Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 3.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 36 4 . POWER SPECTRAL DENSITY TEST 52 4.1 APPLIED PROCEDURES / LIMIT 52 4.1.1 TEST PROCEDURE 52 4.1.2 DEVIATION FROM STANDARD 52 4.1.3 TEST SETUP 52 4.1.4 EUT OPERATION CONDITIONS 52 4.1.5 TEST RESULTS 53 5 . BANDWIDTH TEST 61 5.1 APPLIED PROCEDURES / LIMIT 61 Page 4 of 74 Report No.: BZT13081512ER Table of Contents Page 5.1.1 TEST PROCEDURE 61 5.1.2 DEVIATION FROM STANDARD 61 5.1.3 TEST SETUP 61 5.1.4 EUT OPERATION CONDITIONS 61 5.1.5 TEST RESULTS 62 6 . PEAK OUTPUT POWER TEST 70 6.1 APPLIED PROCEDURES / LIMIT 70 6.1.1 TEST PROCEDURE 70 6.1.2 DEVIATION FROM STANDARD 70 6.1.3 TEST SETUP 70 6.1.4 EUT OPERATION CONDITIONS 70 6.1.5 TEST RESULTS 71 7 . ANTENNA REQUIREMENT 72 7.1 STANDARD REQUIREMENT 72 7.2 EUT ANTENNA 72 8 . EUT TEST PHOTO 73 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 74 Report No.: BZT13081512ER 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 74 Report No.: BZT13081512ER 1.1 TEST FACILITY BZT Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.: 701733 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 74 Report No.: BZT13081512ER 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Wireless USB Adapter Trade Name BearExtender Model Name JN7 Serial Model N/A Model Difference N/A Product Description The EUT is a Wireless USB Adapter Operation Frequency: 802.11b/g/n 20:2412~2462 MHz 802.11n 40: 2422~2452MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n(20/40MHz):300/150/144.44/ 130/117/115.56/104/86.67/78/52/6.5 Mbps Number Of Channel 802.11b/g/n20: 11CH 802.11n 40: 7CH Antenna Designation: Please see Note 3. Peak Output Power(Conducted): 802.11b: 25.42 dBm (Max.) 802.11g: 24.81 dBm (Max.) 802.11n(20MHz): 23.18 dBm (Max.) 802.11n(40MHz): 20.21 dBm (Max.) Antenna Gain (dBi) 1.5 dbi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel…

Text truncated - open the document above for the full version.

Radiated Emission Test Setup in Chamber Conducted Emission Test Setup in Chamber
