AMPJ51ICOLOR MONITOR

Federal Communications CommissionDate: March 8, 2000 Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD. 21046 Attention: Authorization and Evaluation Division Subject: Application for Certification on COLOR MONITOR (EUT) with FCC ID: AMPJ51I Dear Sir: We would like to apply for FCC certification of the EUT. Enclosed please find all required documents of the EUT listed below: 1. Exhibit 1 : The Authorization Letter signed by the applicant 2. Exhibit 2 : The FCC Label of EUT 3. Exhibit 3 : The modification List Letter signed by the applicant 4. Exhibit 4 : The RFI/EMI Test Report issued by ADT Corp. 5. Exhibit 5 : The photographs of EUT 6. Exhibit 6 : The Block Diagram & Schematic Diagram of EUT 7. Exhibit 7 : The User’s Manual of EUT Please review the information we submitted and issue us a grant for the EUT. If you have any questions or comments, please do not hesitate to contact Mr. Mike Su of ADT Lab. at fax no.: 886-2-2602-2943 or e-mail: [email protected] Sincerely yours, Cc. Mr. Harris W. Lai / Advance Data Technology Corporation

(Fig. 1) FCC ID: AMPJ51I The label will be permanently affixed at a conspicuous location on the device. LABEL

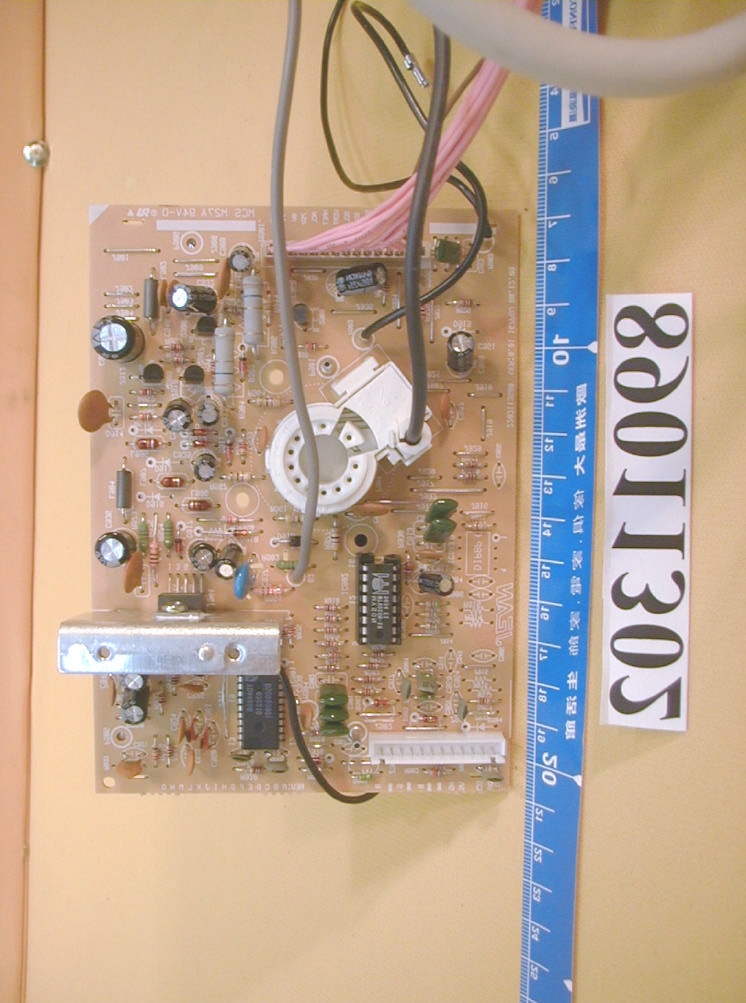

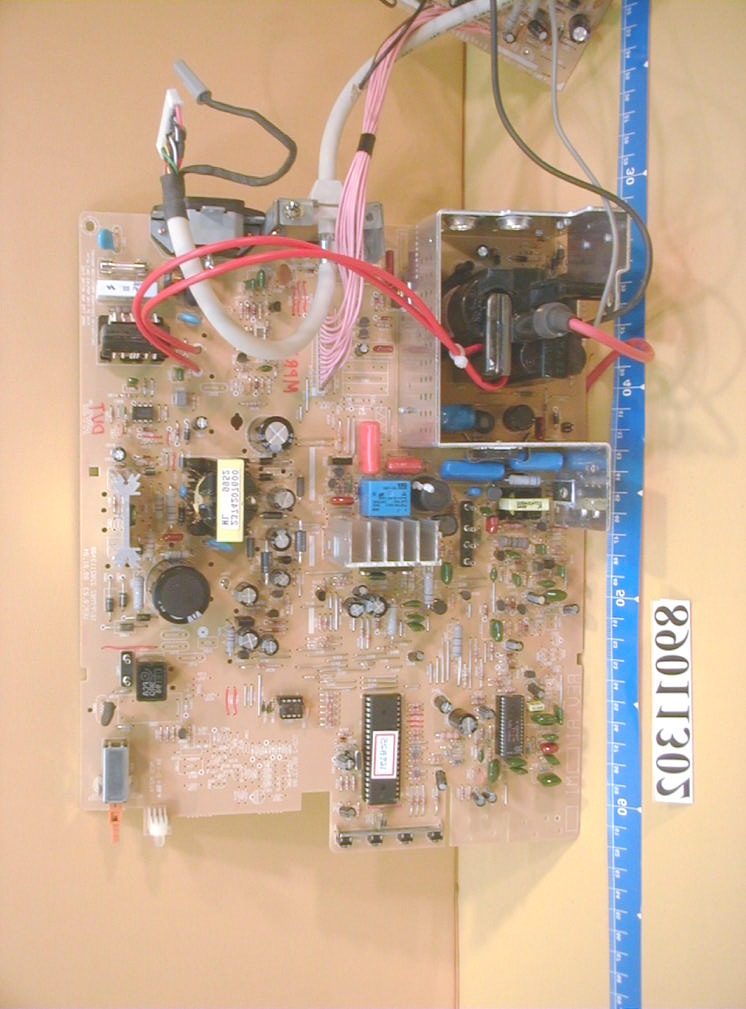

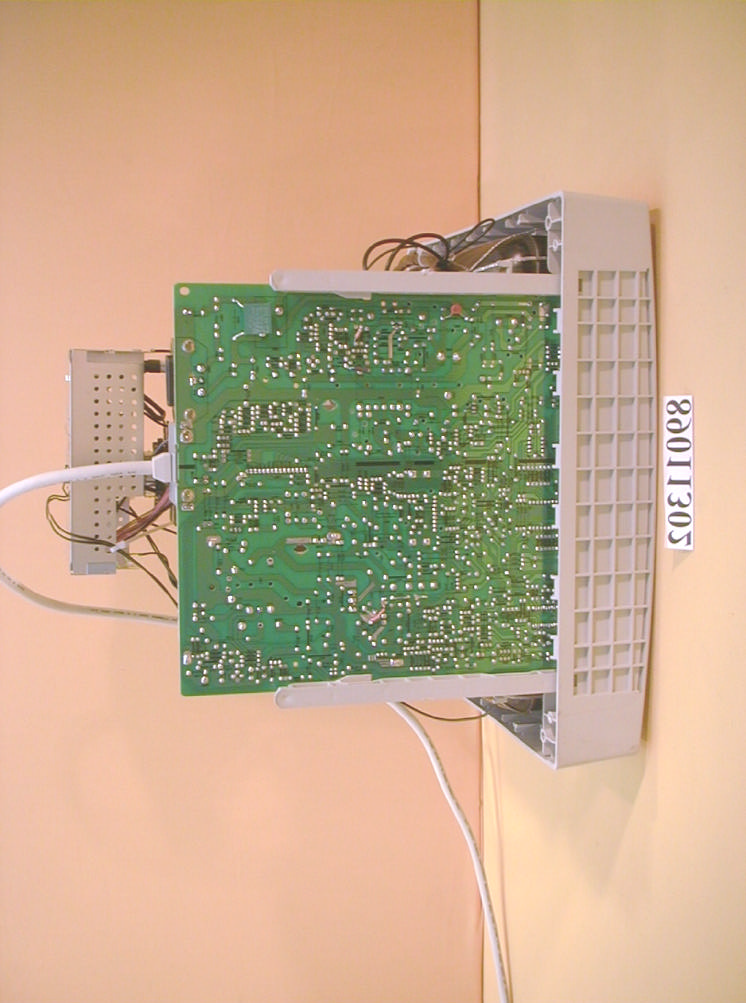

(Photo 1) FCC ID: AMPJ51I (Photo 2) FCC ID: AMPJ51I 1 (Photo 3) FCC ID: AMPJ51I (Photo 4) FCC ID: AMPJ51I (Photo 5) FCC ID: AMPJ51I 2 2 (Photo 6) FCC ID: AMPJ51I 2 (Photo 7) FCC ID: AMPJ51I (Photo 8) FCC ID: AMPJ51I (Photo 9) FCC ID: AMPJ51I 3 3 3 2 3 (Photo 10) FCC ID: AMPJ51I (Photo 11) FCC ID: AMPJ51I

ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F89011302 Page 1 FCC ID: AMPJ51I EMC TEST REPORT REPORT NO.:F89011302 MODEL NO.:JD167P6 DATE OF TEST:Jan. 15, 2000 PREPARED FOR: JEAN CO., LTD. ADDRESS : 7F, 2, REI KUANG ROAD, NEI HU, TAIPEI, TAIWAN, R.O.C. PREPARED BY:ADVANCE DATA TECHNOLOGY CORPORATION 11F, NO.1, SEC.4, NAN-KING EAST RD., TAIPEI, TAIWAN, R.O.C. This test report consists of 15 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of our laboratory. It should not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. government. The test result in the report only applies to the tested sample. Accredited Laboratory ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F89011302 Page 2 FCC ID: AMPJ51I ` TABLE OF CONTENTS 1.CERTIFICATION..................................................................................................................3 2.GENERAL INFORMATION.................................................................................................4 2.1GENERAL DESCRIPTION OF EUT.....................................................................4 2.2DESCRIPTION OF SUPPORT UNITS.................................................................5 2.3TEST METHODOLOGY AND CONFIGURATION............................................5 3.TEST INSTRUMENTS..........................................................................................................6 3.1TEST INSTRUMENTS (EMISSION)....................................................................6 3.2LIMITS OF CONDUCTED AND RADIATED EMISSION..................................7 4.TEST RESULTS (EMISSION)............................................................................................8 4.1RADIO DISTURBANCE.......................................................................................8 4.2EUT OPERATION CONDITION..........................................................................8 4.3TEST DATA OF CONDUCTED EMISSION........................................................9 4.4TEST DATA OF RADIATED EMISSION...........................................................11 5.PHOTOGRAPHS OF THE TEST CONFIGURATION WITH MINIMUM MARGIN........13 6.APPENDIX - INFORMATION OF THE TESTING LABORATORY................................15 ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F89011302 Page 3 FCC ID: AMPJ51I 1. CERTIFICATION Issue Date: Jan. 24, 2000 Product:COLOR MONITOR Trade Name:JEAN Model No.:JD167P6 Type No.: J51I Applicant:JEAN CO., LTD. Standard:FCC Part 15, Subpart B, Class B CISPR 22: 1993+A1: 1995+A2: 1996, Class B ANSI C63.4-1992 We hereby certify that one sample of the designation has been tested in our facility on Jan. 15, 2000. The test record, data evaluation and Equipment Under Test (EUT) configurations represent herein are true and accurate representation of the measurements of the sample's EMC characteristics under the conditions herein specified. The test results show that the EUT as described in this report is in compliance with the Class B limits of conducted and radiated emission of applicable standards. ADVANCE DATA TECHNOLOGY CORPORATION Accredited Laboratory ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F89011302 Page 4 FCC ID: AMPJ51I 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product:COLOR MONITOR Model No.:JD167P6 Power Supply Type:Switching (Power Adapter) Power Cord:Nonshielded AC (1.8 m, 3-pin) Data Cable:Shielded (1.8m) Note: 1. The EUT is a 15" color monitor with resolution up to 1280 x 1024. 2. There are two ferrite cores on the video cable of the EUT. 3. For more detailed features description, please refer to manufacturer’s specification or User's Manual. ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F89011302 Page 5 FCC ID: AMPJ51I 2.2 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories are used to form representative test configuration during the tests. No.ProductBrandModel No.FCC IDI/O Cable 1 PERSONAL COMPUTER HP VL series 4 5/100 B94VECTRA500TNonshielded Power (1.8m) 2KEYBOARDFORWARDFDA-104GAF4ZDA-104GShielded Signal (1.4m) 3MOUSEDEXINA2P800ANIYA2P800AShielded Signal (1.5m) 4PRINTERHP2225C+DSI6XU2225 Shielded Signal (1.8m) Nonshielded Power (1.2m) 5MODEMACEEX1414IFAXDM1414 Shielded signal (1.2m) Nonshielded Power (1.2m) 6VGA CARDGORDIADSV3365LUT-DSV3365NA 2.3 TEST METHODOLOGY AND CONFIGURATION Both conducted and radiated testing were performed according to the procedures in ANSI C63.4: 1992. Radiated testing was performed at an antenna to EUT distance of 10 m on an open area test site. Please refer to the photos of test configuration in Item 5. ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F89011302 Page 6 FCC ID: AMPJ51I 3. TEST INSTRUMENTS 3.1 TEST INSTRUMENTS (EMISSION) CONDUCTED EMISSION MEASUREMENT Description & ManufacturerModel No.Serial No.Calibrated Until ROHDE & SCHWARZ Test Receiver ESH3893495/006July 7, 2000 ROHDE & SCHWARZ Spectrum Monitor EZM893787/013July 8, 2000 ROHDE & SCHWARZ Artificial Mains Network ESH3-Z5839135/006July 7, 2000 EMCO-L.I.S.N.3825/29204-1964July 7, 2000 Shielded RoomSite 2ADT-C02NA Note: 1. The measurement uncertainty is less than +/- 2.6dB, which is calculated as per NAMAS document NIS81. 2. The calibration interval of the above test instruments is 12 months. And the calibrations are traceable to NML/ROC and NIST/USA. RADIATED EMISSION MEASUREMENT Description & ManufacturerModel No.Serial No.Calibrated until HP Spectrum Analyzer8590L3544A00941Dec. 05, 2000 HP Pre-Amplifier8447D2944A08312Feb. 28, 2000 HP Preamplifier8347A3307A01088Aug. 30, 2000 HP Preamplifier8449B3008A01201Dec. 14, 2000 R&S ReceiverESVS10844594/010Sept. 29, 2000 SCHWARZBECK Tunable Dipole Antenna VHA 9103 UHA 9105 E101051 E101055 Nov. 23, 2000 ROHDE & SCHWARZ TEST RECEIVER ESMI 8…
