AMPJ71EColor Monitor

Operation Instructions Thank you for purchasing this 17”, a high-resolution multi-scan color monitor. Please read this guide thoroughly before installation. FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS) This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide proper protection against harmful interference to a residential installation. This monitor generates, uses, and can radiate radio frequency energy. Harmful interference to radio communication may be led as a result if it‘s not properly installed and used. However, there is no guarantee that interference will not occur in a particular installation. If this monitor does cause serious interference to radio or television reception, resetting the monitor may determine it. Moreover, users are encouraged to correct interference by doing one or more of the following: l Reorient or relocate the receiving antenna. l Move the monitor and the receiver further away from each other. l Connect the monitor into an outlet on a circuit different from that to which the receiver is connected. l Consult your local dealer or an qualified technician. FCC Warning: To assure a continued FCC compliance, a user must use a grounded power supply cord and the provided shielded video interface cable with bonded ferrite cores. Also, any unauthorized changes or modifications to this monitor would void the user‘s authority to operate this device. If necessary, shielded interface cables and A.C. power cord must be used to meet the emission level limits. EMI Certification The Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulation. Cet appareil numerique de class B respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada. 1 Congratulations! You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate- influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy. What does labelling involve? This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration). Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety. The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user. Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability. On the Back page of this folder,you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from: TCO Development SE-114 94 Stockholm, Sweden *Page1-2 stand for TCO’99 model only. Please See back label for model 2 Fax: +46 8 782 92 07 Email (Internet): [email protected] Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpuse is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative * processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus dev…

Text truncated - open the document above for the full version.

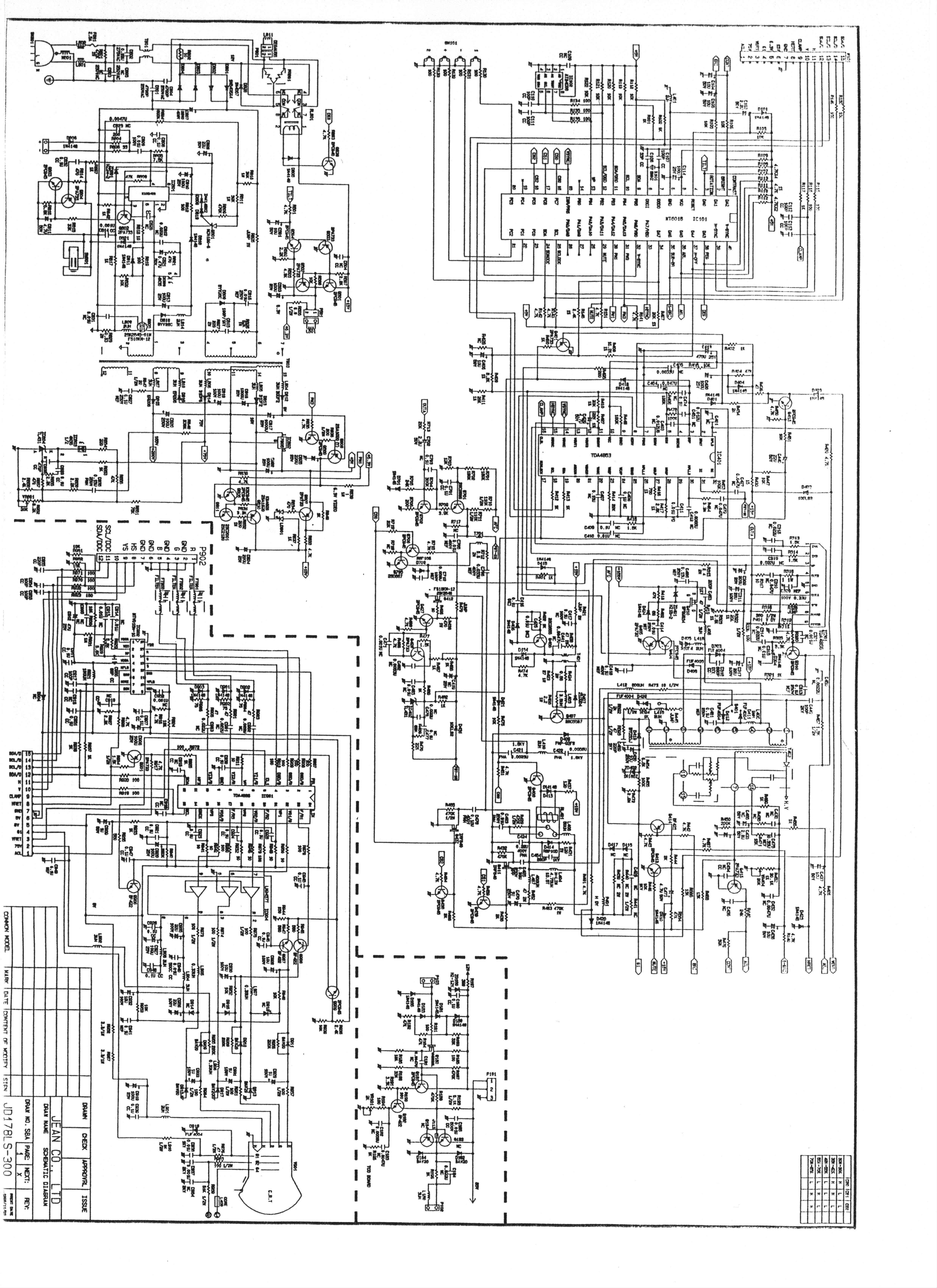

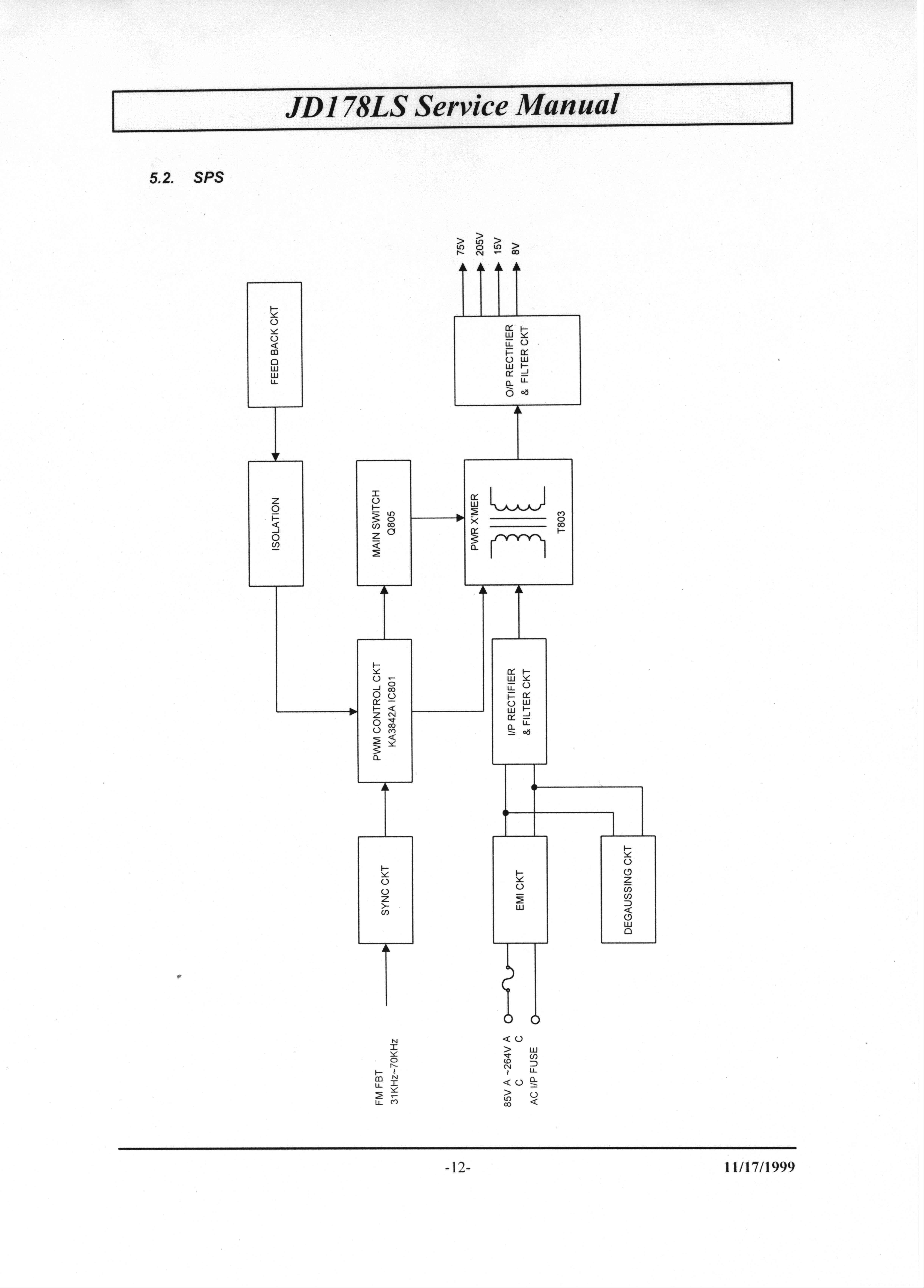

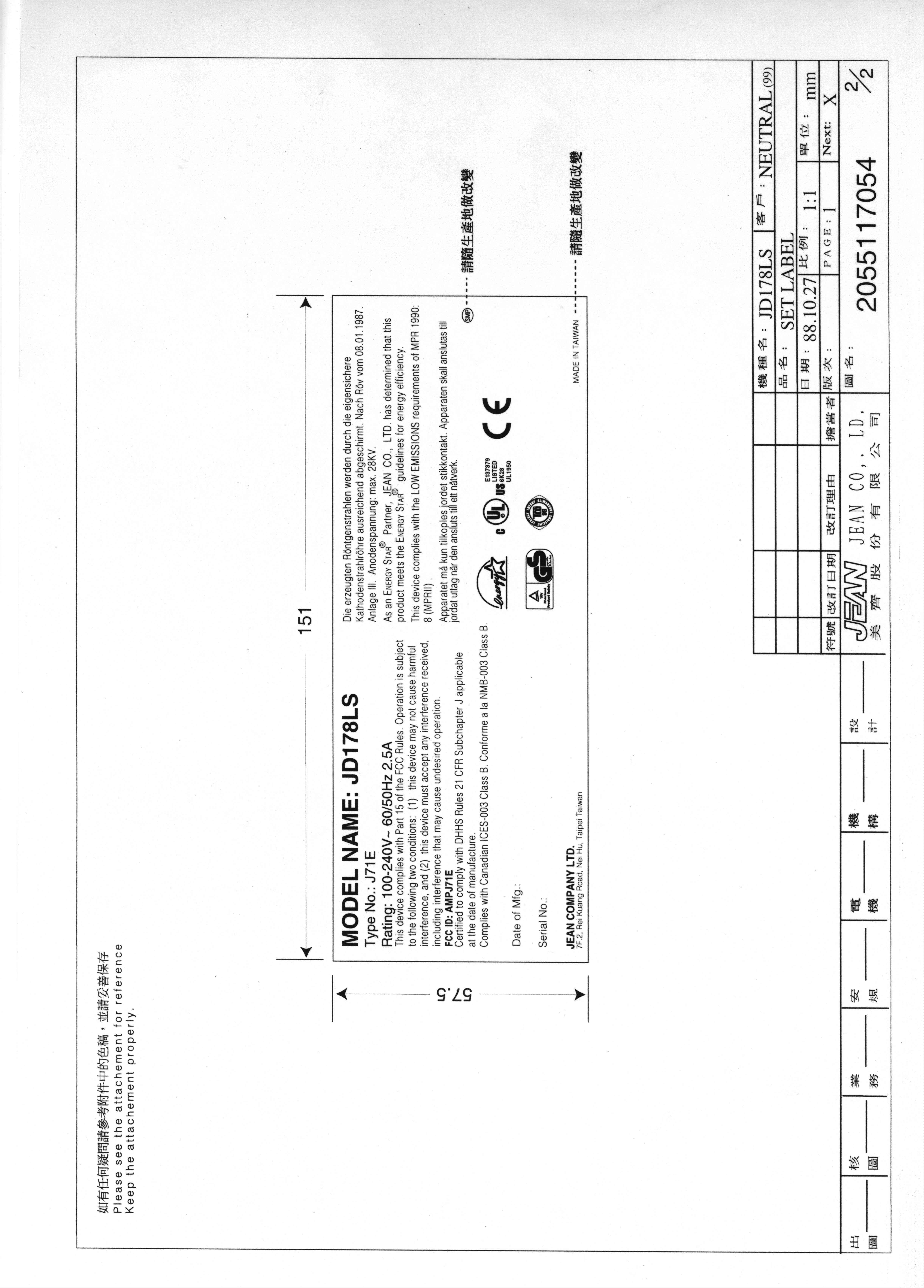

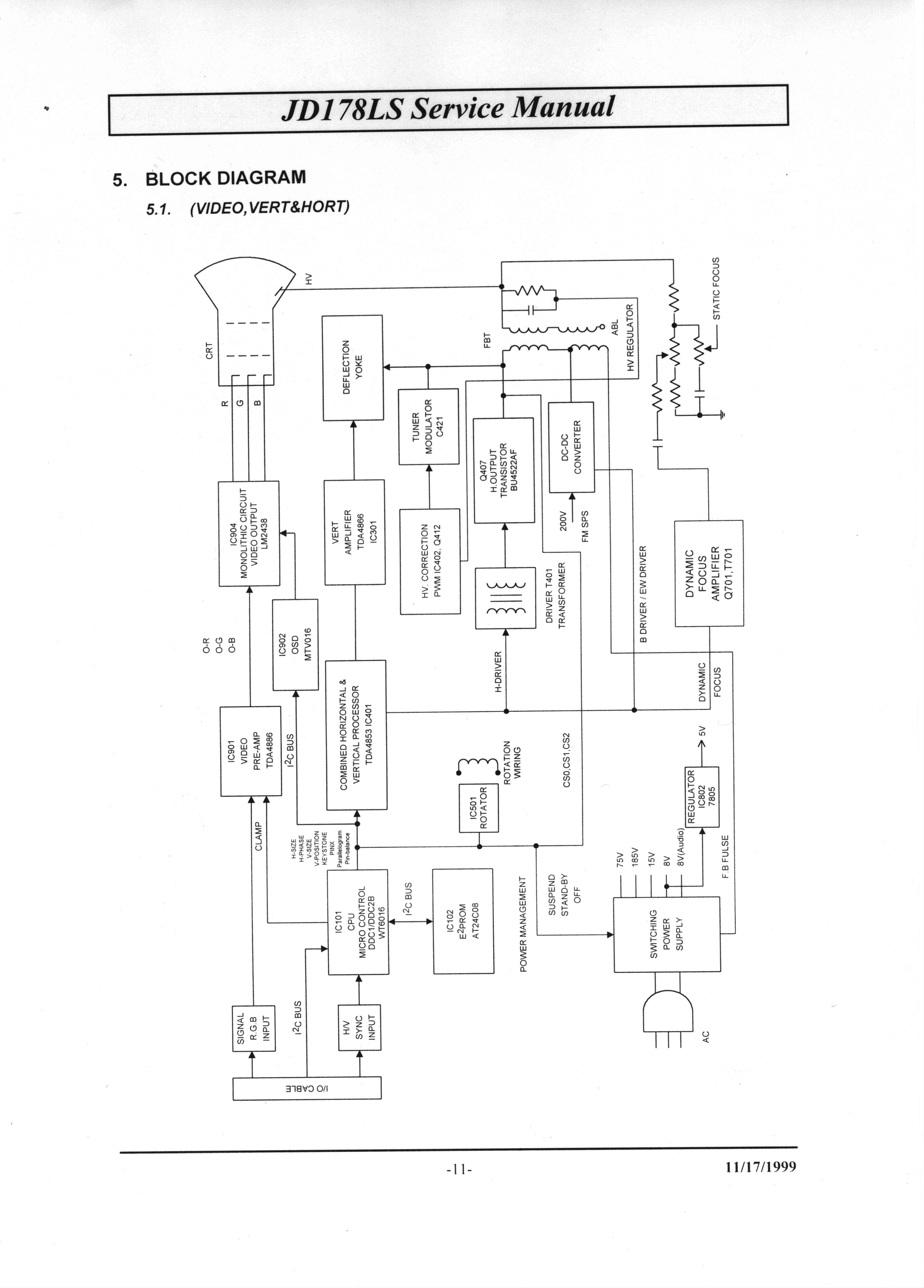

Federal Communications CommissionDate: Nov. 11, 1999 Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD. 21046 Attention: Authorization and Evaluation Division Subject: Application for Certification on COLOR MONITOR (EUT) with FCC ID: AMPJ71E Dear Sir: We would like to apply for FCC certification of the EUT. Enclosed please find all required documents of the EUT listed below: 1. Exhibit 1 : The Authorization Letter signed by the applicant 2. Exhibit 2 : The FCC Label of EUT 3. Exhibit 3 : The modification List Letter signed by the applicant 4. Exhibit 4 : The RFI/EMI Test Report issued by ADT Corp. 5. Exhibit 5 : The photographs of EUT 6. Exhibit 6 : The Block Diagram & Schematic Diagram of EUT 7. Exhibit 7 : The User’s Manual of EUT Please review the information we submitted and issue us a grant for the EUT. If you have any questions or comments, please do not hesitate to contact Mr. Mike Su of ADT Lab. at fax no.: 886-2-2602-2943 or e-mail: [email protected] Sincerely yours, Cc. Mr. Harris W. Lai / Advance Data Technology Corporation

(Photo 1) FCC ID: AMPJ71E (Photo 2) FCC ID: AMPJ71E 1 1 (Photo 3) FCC ID: AMPJ71E

(Photo 4) FCC ID: AMPJ71E 2 2 2 2 2 2 (Photo 5) FCC ID: AMPJ71E 2 2 2 (Photo 6) FCC ID: AMPJ71E

(Photo 7) FCC ID: AMPJ71E 3 4 (Photo 8) FCC ID: AMPJ71E (Photo 9) FCC ID: AMPJ71E

(Photo 10) FCC ID: AMPJ71E (Photo 11) FCC ID: AMPJ71E

ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F88101801 Page 1 FCC ID: AMPJ71E EMC TEST REPORT REPORT NO.: F88101801 MODEL NO.: JD178 DATE OF TEST: Oct. 30, 1999 PREPARED FOR: JEAN CO., LTD. ADDRESS : 7F, 2, REI KUANG ROAD, NEI HU, TAIPEI, TAIWAN, R.O.C. PREPARED BY:ADVANCE DATA TECHNOLOGY CORPORATION 11F, NO.1, SEC.4, NAN-KING EAST RD., TAIPEI, TAIWAN, R.O.C. This test report consists of 15 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of our laboratory. It should not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. government. The test result in the report only applies to the tested sample. Accredited Laboratory ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F88101801 Page 2 FCC ID: AMPJ71E TABLE OF CONTENTS 1.CERTIFICATION.............................................................................................................3 2.GENERAL INFORMATION............................................................................................4 2.1GENERAL DESCRIPTION OF EUT....................................................................4 2.2DESCRIPTION OF SUPPORT UNITS.................................................................5 2.3TEST METHODOLOGY AND CONFIGURATION............................................5 3.TEST INSTRUMENTS....................................................................................................6 3.1TEST INSTRUMENTS (EMISSION)...................................................................6 3.2LIMITS OF CONDUCTED AND RADIATED EMISSION..................................7 4.TEST RESULTS (EMISSION)......................................................................................8 4.1RADIO DISTURBANCE......................................................................................8 4.2EUT OPERATION CONDITION.........................................................................8 4.3TEST DATA OF CONDUCTED EMISSION.......................................................9 4.4TEST DATA OF RADIATED EMISSION..........................................................11 5.PHOTOGRAPHS OF THE TEST CONFIGURATION WITH MINIMUM MARGIN....13 6.APPENDIX - INFORMATION OF THE TESTING LABORATORY............................15 ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F88101801 Page 3 FCC ID: AMPJ71E 1. CERTIFICATION Issue Date: Nov. 5, 1999 Product:COLOR MONITOR Trade Name:JEAN Model No.:JD178 Type No.: J71E Applicant:JEAN CO., LTD. Standard:FCC Part 15, Subpart B, Class B ANSI C63.4-1992 CISPR 22: 1993+A1: 1995+A2: 1996, Class B We hereby certify that one sample of the designation has been tested in our facility on Oct. 30, 1999. The test record, data evaluation and Equipment Under Test (EUT) configurations represent herein are true and accurate representation of the measurements of the sample's EMC characteristics under the conditions herein specified. The test results show that the EUT as described in this report is in compliance with the Class B limits of conducted and radiated emission of applicable standards. ADVANCE DATA TECHNOLOGY CORPORATION Accredited Laboratory ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F88101801 Page 4 FCC ID: AMPJ71E 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product:COLOR MONITOR Model No.:JD178 Type No.: J71E Power Supply Type:Switching Power Cord:Nonshielded 3-pin (1.8 m) Data Cable:Shielded (1.3 m) Note: The EUT is a 17" Color Monitor with resolution up to 1600x1200. There are two ferrite cores on the video cable outside the monitor. For more detailed features description, please refer to Manufacturer’s Specification or User's Manual. ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F88101801 Page 5 FCC ID: AMPJ71E 2.2 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories are used to form representative test configuration during the tests. No.ProductBrandModel No.FCC IDI/O Cable 1 PERSONAL COMPUTER NTIPII-450TFCC DoC ApprovedNonshielded Power (1.8m) 2KEYBOARDFORWARDFDA-104GAF4ZDA-104GShielded Signal (1.4m) 3MOUSEDEXINA2P800ANIYA2P800AShielded Signal (1.5m) 4PRINTERHP2225C+DSI6XU2225 Shielded Signal (1.2m) Nonshielded Power (1.2m) 5MODEMACEEX1414IFAXDM1414 Shielded signal (1.2m) Nonshielded Power (1.2m) 6VGA CARDATI1024020202FJ74815643NA 2.3 TEST METHODOLOGY AND CONFIGURATION Both conducted and radiated testing were performed according to the procedures in ANSI C63.4: 1992. Radiated testing was performed at an antenna to EUT distance of 3/10 m on an open area test site. Please refer to the photos of test configuration in Item 5. ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F88101801 Page 6 FCC ID: AMPJ71E 3. TEST INSTRUMENTS 3.1 TEST INSTRUMENTS (EMISSION) CONDUCTED EMISSION MEASUREMENT Description & ManufacturerModel No.Serial No.Calibrated Until ROHDE & SCHWARZ Test Receiver ESHS30828109/007July 13, 2000 ROHDE & SCHWARZ Artificial Mains Network ESH2-Z5892107/003July 13, 2000 EMCO L.I.S.N.3825/29504-2359July 13, 2000 Shielded RoomSite 3ADT-C03NA Note: 1. The measurement uncertainty is less than +/- 2.6dB, which is calculated as per NAMAS document NIS81. 2. The calibration interval of the above test instruments is 12 months. And the calibrations are traceable to NML/ROC and NIST/USA. RADIATED EMISSION MEASUREMENT Description & ManufacturerModel No.Serial No.Calibrated Until HP Spectrum Analyzer8594E3520A01861Feb. 08, 2000 HP Preamplifier8447D2944A08118Dec. 28, 1999 HP Preamplifier8347A3307A01088Aug. 30, 2000 HP Preamplifier8449B3008A01201Dec. 15, 1999 ROHDE & SCHWARZ TEST RECEIVER ESVS 10840241/010Sept. 9, 2000 SCHWARZBECK Tunable Dipole Antenna VHA 9103 UHA 9105 E101051 E101055 Nov. 25, 1999 ROHDE & SCHWARZ TEST RECEIVER ESMI 839013/007 839379/002 Aug. 30, 2000 CHASE BILOG AntennaCBL6111A1079July 17, 2000 EMCO Double…

Text truncated - open the document above for the full version.
