ANO-7054Model 7054 Mobile Tablet

IBM 7054 Mobile Tablet for Retail Page 1 of 1 The IBM Wireless LAN Mini PCI Adapter installed within the IBM 7054 Mobile Tablet for Retail must be used in strict accordance with the following instructions. This product complies with the following radio frequency standards. USA – Federal Communications Commission (FCC) Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. IBM is not responsible for any radio or television interference caused by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Exposure to Radio Frequency Energy The radiated output power of the Wireless LAN Mini-PCI Card authorized for use in the IBM 7054 Mobile Tablet for Retail is far below the FCC radio frequency exposure limits. Nevertheless, the IBM 7054 Mobile Tablet for Retail shall be used in such a manner that the potential for human contact during normal operations is minimized. Interference Statement An improper installation or unauthorized use may cause harmful interference to radio communications. Also, any tampering with the internal antenna will void the FCC certification and your warranty.

International Business Machines Corporation P.O. Box 12195 Research Triangle Park, NC 27709 Attn.: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR IBM 7054 MOBILE TABLET FOR RETAIL, FCC ID: ANO-7054 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams and block diagrams, documents: 1. Confidential - tablet schematics.pdf 2. Confidential - docking station schematics.pdf 3. Confidential - tablet block diagram.pdf 4. Confidential - scanner and docking station block diagram.pdf 5. Confidential USI UB1-1112 schematic.pdf 6. WLAN Card Block Diagram and Schematic.doc 7. Docking Station (USI) BT Block Diagram.pdf required to be submitted with this application be withheld from public review. These documents are company proprietary. Please contact me if there is any information you may need. Sincerely, John Hibbard IBM Corporation Retail Store Solutions EMC Design Engineer

16.4 mm 1 5 . 5 m m 1.25R

65P6337 01APR05 01APR05 050401 Tablet Information Label Variable information should be printed inside blue box. Blue box should not be printed. Label outline should not be printed. E33252 LISTED I.T.E. Made in Indonesia for International Business Machines Corp. Armonk, New York 1.75R 99.5 mm 5 9 . 5 m m

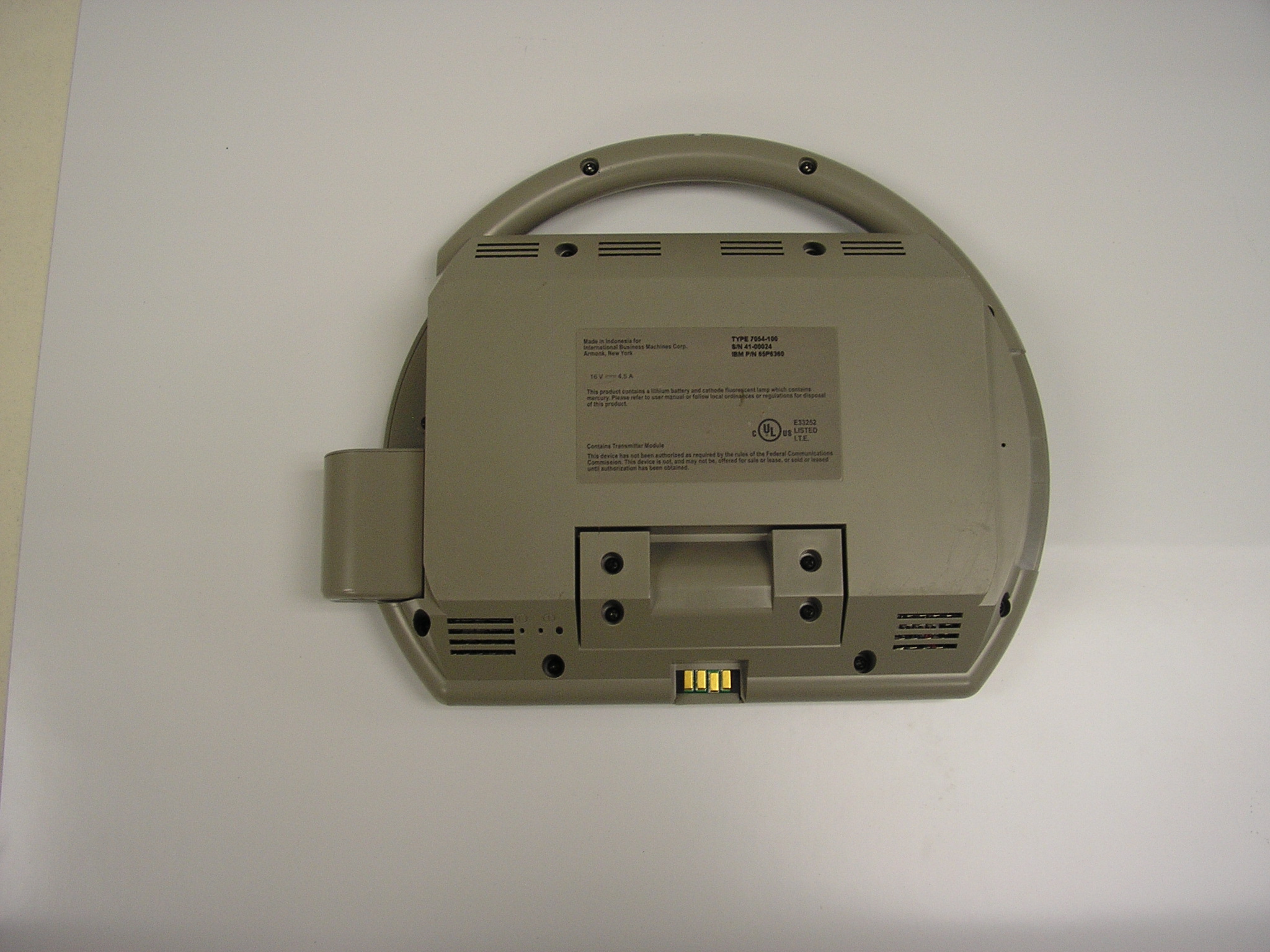

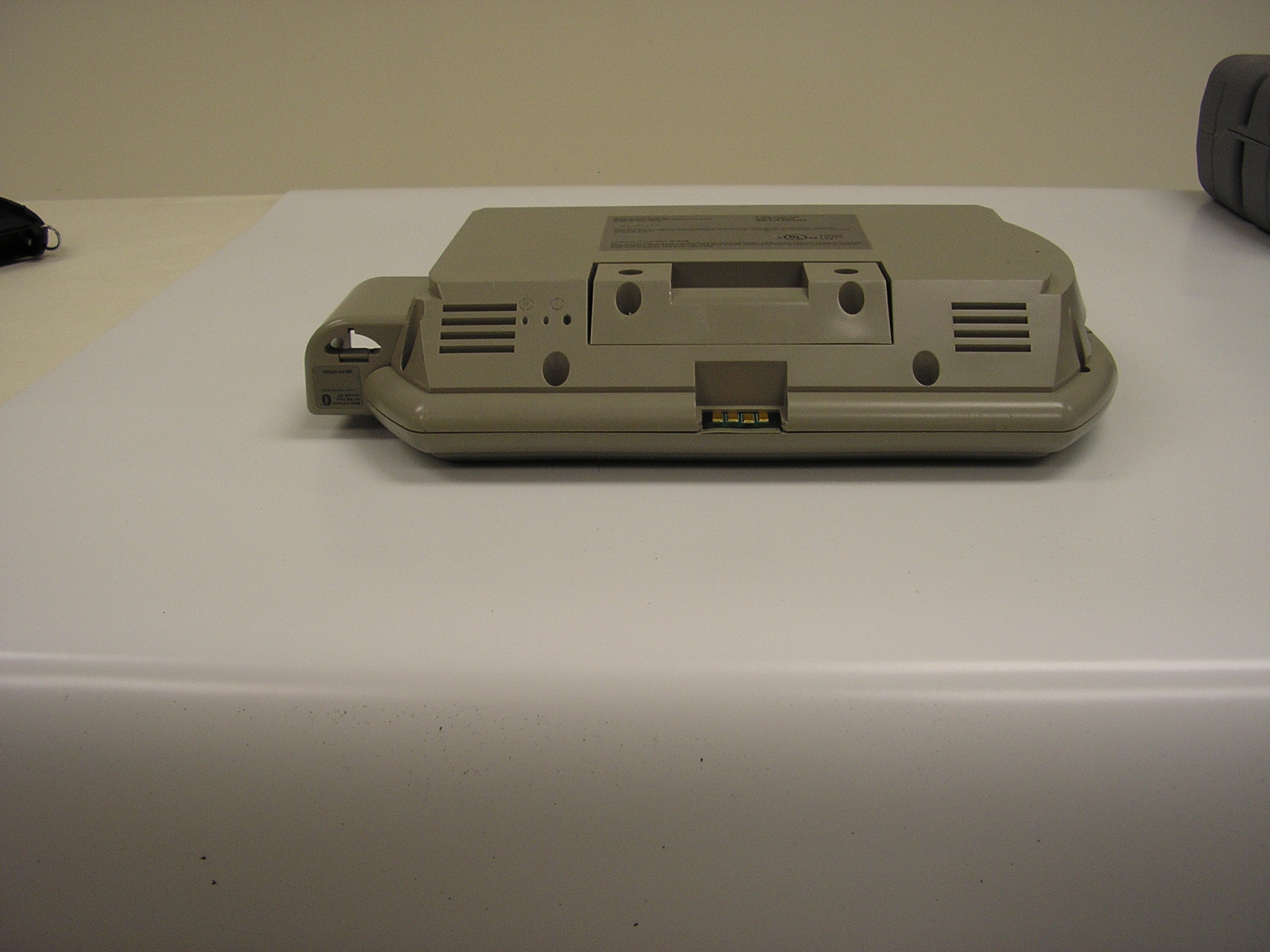

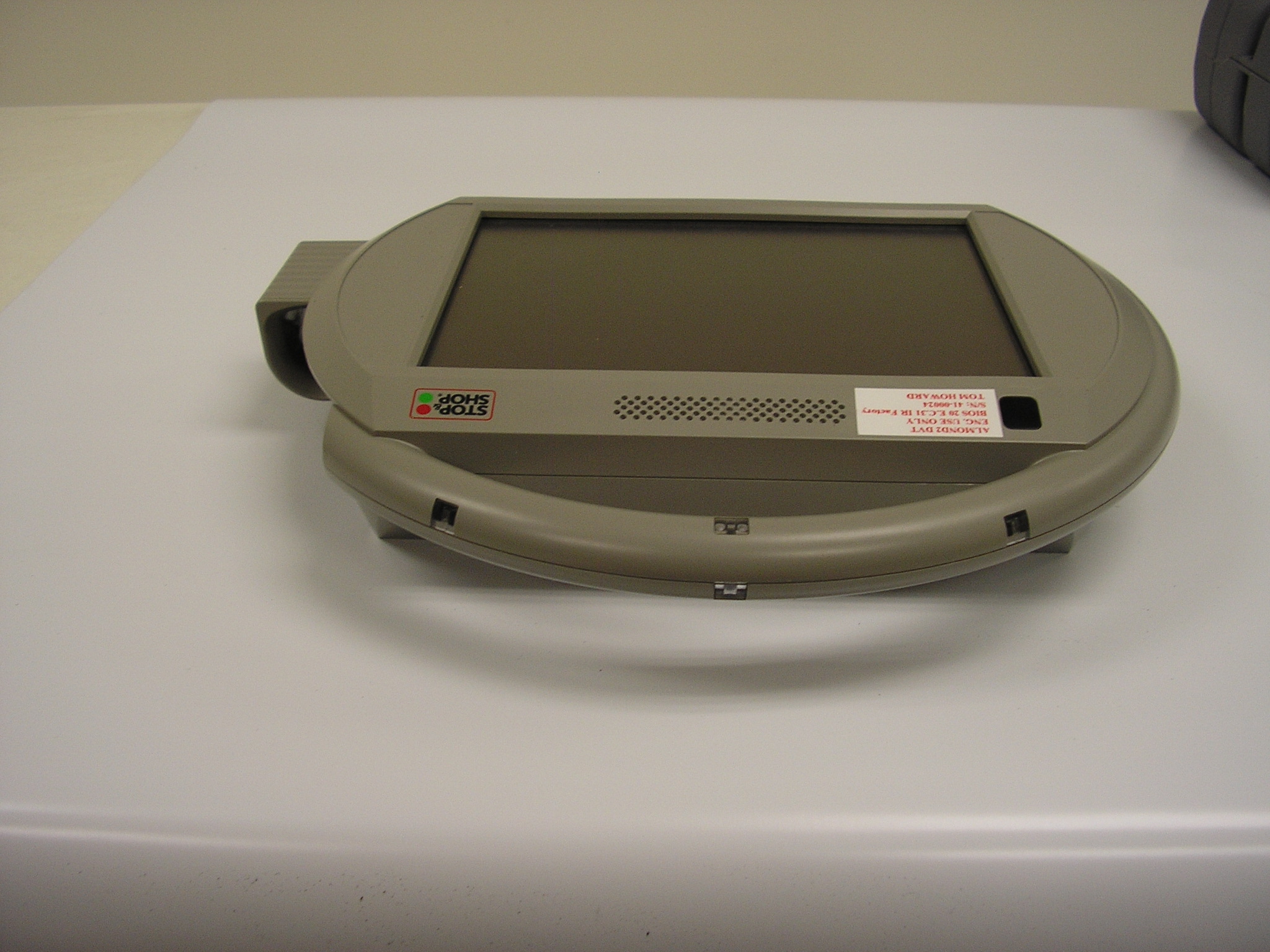

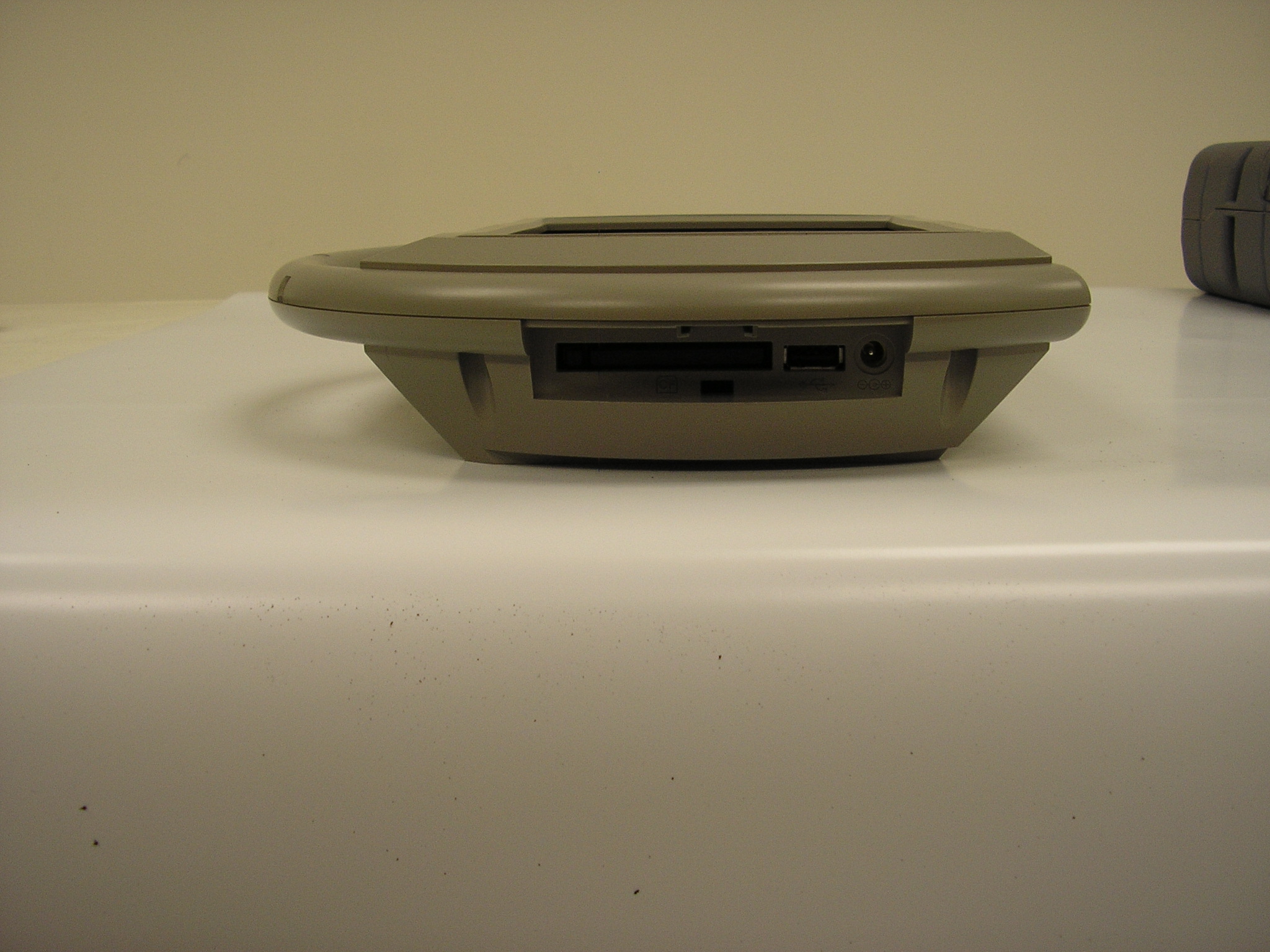

Operational and Technical Description General Description The IBM 7054 Mobile Tablet for Retail is a wireless web enabled portable tablet designed for the retail store environment. Internal to the product is a mini-PCI wireless LAN interface card, the Foxconn 802.11 b/g using the Atheros AR5213/AR2112 chipset, PN: T60H786-U. The wireless LAN radio operates between 2412 and 2462 MHz. The module complies with the following transmission modes: - IEEE802.11b (2.4 GHz band DSSS) - IEEE802.11g (2.4 GHz band OFDM) Integral to the wireless tablet and co-located is a scanner docking station with a Bluetooth 1.1 surface mountable module by USI, UB1-1112. The scanner is a battery operated handheld device that receives its battery charge through the docking station. It communicates back to the docking station using a Mitsumi Bluetooth 1.1 surface mountable module, WML-C19AHN. Mechanical Description The wireless LAN card and antenna is permanently mounted inside of the webpad device. The card and antenna is an integral design and thus is not accessible to the user. The antenna is a diversity antenna mounted in the cover of the webpad. Both Bluetooth modules have integrated antennas.

33.30T01.001 33.30T02.001 SmartAnt Internal Antennas for WP120 webpad SmartAnt R&D Department Pat Chen (Oct,12 2001) Contents 1. Introduction 1.1 Features 1.2 Application 2. Antenna Dimension & Placement 2.1 Dimension & structure of antenna 2.2 Antenna placement 3. Product Specification 3.1 Electrical Specification 3.2 Environmental Specification 4. Antenna Test Report 4.1 Test Equipments & Methods 4.1.1 Test Equipments 4.1.2 Test Methods 4.2 VSWR Test 4.3 Patterns and Gain Test 1. Introduction 1.1 Features Designed for IEEE 802.11b wireless-LAN. The antennas are designed in 2.4~2.5 GHz for ISM band use. Special design for Embedded use. According the WP120 structure and available design size, the antennas are special designed for this environment. Ultra-Fine Teflon coaxial cable and connector. HRS connector U.FL series HRS Teflon coaxial cable =1.13 mm Space diversity These two antennas are arrayed in different space to accomplish diversified radiation pattern. 1.2 Application Use for WP120 system only The antennas are special design for WP120 Webpad. 2.Antenna Dimension & Placement 2.1 Placement Antenna are set in the up side of WP120 , as below 2.2 Dimension & material Antenna 1 (left-side antenna) 33.30T01.001 1. 0.3 2. 0.25mm NOTE: Antenna 2 (right-side antenna) 33.30T02.001 NOTE: 2. : 1.0.3 3.0.8mm PCB 3.Product Specification 3.1 Electrical Specification Frequency 2.4GHz~2.5GHz VSWR 2.0 max Power 1W max Input Impedance 50 ohm Average Gain >-5dBi 3.2 Environmental Specification Temperature -10 0 C~55 0 C Humidity 95 4.Antenna Test 4.1 Test Equipments & Methods 4.1.1 Equipments Network Analyzer HP 8722D 30kHz ~ 40 GHz Standard gain horn EMCO Model 3115 Double Ridged Guide Antenna 1GHz ~18 GHz Anechoic Chamber Test software Antcom NFH003 (5’x5’x5’) Hybrid Near-field System 450 MHz – 40 GHz 7 axes scanner system Planar, cylindrical, and spherical scanning measurement Size 3.5 x 3.5 x 4.5 m 3 Specimens 1. SmartAnt internal Antenna (Left Side Antenna) 2. SmartAnt internal Antenna (Right Side Antenna) 4.1.1 Test Methods Left Antenna Pull the cable though back-side of WP120 when test execute. As below figure Right Antenna Pull the cable though Left-side of WP120 when test execute. As below figure 4.2 VSWR Test Antenna 1 (Left Antenna) Frequency VSWR 2.4GHz 2.45GHz 2.5GHz VSWR 1.07 1.13 1.27 Antenna 2 (Right Antenna) Frequency VSWR 2.4GHz 2.45GHz 2.5GHz VSWR 1.17 1.41 1.47 4.3 Pattern & Gain Test Test configuration Far-field test with scan in two orthogonal cut (XY, YZ) as the figure. Average Gain Test Antenna 1 Frequency Antenna 2.4GHz 2.45GHz 2.5GHz XY cut -0.56 -0.52 -0.75 YZ cut -0.60 -0.28 -1.09 Antenna 2 Frequency Cut 2.4GHz 2.45GHz 2.5GHz XY cut -3.53 -3.62 -3.96 YZ cut -3.63 -3.47 -3.68 Radiation Pattern Antenna 1 (left-side) -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -30 -25 -20 -15 -10 -5 0 5 XY cut 2.40 GHz 2.45 GHz 2.50 GHz -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -30 -25 -20 -15 -10 -5 0 5 YZ cut 2.40 GHz 2.45 GHz 2.50 GHz Radiation Pattern Antenna 2 (right-side) -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -30 -25 -20 -15 -10 -5 0 5 XY cut 2.40 GHz 2.45 GHz 2.50 GHz -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -30 -25 -20 -15 -10 -5 0 5 YZ cut 2.40 GHz 2.45 GHz 2.50 GHz
