ANO20040700HERModel: J07M067 Bluetooth Standard Class 2 Adapter

FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota User’s Manual The attachment is the part of the user’s manual of the specific host device (IBM ThinkPad T40 Series) that indicates the regulatory notices concerning the FCC Part 15 and IC RSS-210/102. The manuals for other host devices are omitted from this submission, since the contents are almost the same. ThinkPad ® T40 Series Regulatory Notice
 First Edition (November 2004) The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION ′′AS IS′′ WITHOUT ANY WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE LIMITED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimers or express or implied warranties in certain transactions; therefore, this statement may not apply to you. This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements or changes in the products or the programs described in this publication at any time. It is possible that this publication may contain reference to, or information about, IBM products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that IBM intends to announce such IBM products, programming, or services in your country. Requests for technical information about IBM products should be made to your IBM authorized dealer or your IBM marketing representative. © Copyright International Business Machines Corporation 2004. All rights reserved. US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp. Contents Read first — regulatory information . . . .1 USA — Federal Communications Commission (FCC) . . . . . . . . . .3 Canada — Industry Canada (IC) . . . . .9 Electronic emission notices . . . . . .13 Telecommunication notices . . . . . .15 Industry Canada requirements . . . . .17 Other countries . . . . . . . . . .19 Notice for users in Australia . . . . . .19 Notice for users in Brazil . . . . . . . .19 Notice for users in India . . . . . . . .19 Notice for users in Korea . . . . . . . .20 Notice for users in New Zealand . . . . .20 Notice for users in Singapore . . . . . .21 Trademarks . . . . . . . . . . . .23 © Copyright IBM Corp. 2004 iii iv ThinkPad ® T40 Series Regulatory Notice Read first — regulatory information Regulatory notice for ThinkPad T40 Series This notice is a supplementary document of the ThinkPad ® T40 Series Service and Troubleshooting Guide. Please read this document before you use the ThinkPad T40 Series computer. The ThinkPad T40 Series computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. You must install and use your ThinkPad computer in strict accordance with the instructions as described hereafter. Avis de réglementation pour les ThinkPad T40 Series Le présent avis est un document qui vient compléter le Guide de maintenance et d’identification des incidents ThinkPad T40 Series. Veuillez lire ce document avant d’utiliser l’ordinateur ThinkPad T40 Series. L’ordinateur ThinkPad T40 Series est conforme aux normes de sécurité et de radiofréquence du pays ou de la région où son utilisation sans fil est agréée. Vous devez installer et utiliser votre ordinateur ThinkPad en respectant scrupuleusement les instructions décrites ci-après. © Copyright IBM Corp. 2004 1 2 ThinkPad ® T40 Series Regulatory Notice USA — Federal Communications Commission (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. User installable wireless modules v Mini-PCI Cards – FCC ID: ANO20020201CLK, Model: WM3B2100 (Intel ® PRO/Wireless LAN 2100 3B Mini PCI Adapter) – FCC ID: ANO20040501CX2, Model: WM3B2200BG (Intel PRO/Wireless 2200BG Mini-PCI Adapter from IBM) – FCC ID: ANO20040601CX2, Model: WM3B2915ABG (Intel Pro/Wireless 2915ABG mini-PCI Adapter) – FCC ID: ANO20030500CMR, Model: T60H786-U (IBM ® 11b/g Wireless LAN Mini PCI Adapter) – FCC ID: ANO20040600BTL, Model: AR5BMB-44 (IBM 11a/b/g Wireless LAN Mini PCI Adapter II) v Communication Daughter Card (CDC) – FCC ID: ANO20040700HER, Model: J07M067 (IBM Integrated Bluetooth IV with 56K Modem) Wireless LAN Mini-PCI Cards marketed in the USA and Canada, except the model WM3B2100, do not support nor function in the extended channels (12ch, 13ch). If you use the model WM3B2100 with your ThinkPad computer, you must not select the Extended Channel Mode to avoid the unlikely possibility of unauthorized operation when the device is operated in the USA and Canada. i) FCC ID of wireless modules There is no FCC ID for Mini-PCI Cards shown on the enclosure of your ThinkPad computer. Instead you will find an indicator pointing to the location of the FCC ID on the bottom side of your ThinkPad computer as shown in the figure i-1). Also the location of the FCC ID’s indicator for CDC is shown in the figure i-2). The FCC IDs are affixed on each approved module installed in the Mini-PCI Card slot or the CDC slot. i-1) Mini-PCI Cards: v FCC ID: ANO20020201CLK, Model: WM3B2100 v FCC ID: ANO20040501CX2, Model: WM3B2200BG v FCC ID: ANO20040601CX2, Model: WM3B2915ABG v FCC ID: ANO20030500CMR, Model: T60H786-U v FCC ID: ANO20040600BTL, Model: AR5BMB-44 © Copyright IBM Corp. 2004 3 i-2) CDC (FCC ID: ANO20040700HER, Model: J07M067) ii) Installation of approved wireless modules If no integrated w…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 1/1 Limited Modular Transmitter Approval Qualification 1. Shielding requirement...................... Refer to the attestation statement by the supplier in next page. 2. Buffered modulation/data inputs requirement... ditto 3. Power regulator requirement....................... ditto 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 204(c) with a unique control logic. Please refer the separated exhibit “Confidential_BIOS_Lock.pdf”. In accordance with the ET Docket 03–201; FCC 04–165, July 12/2004, and Federal Register / Vol. 69, No. 172, September 7/2004, the full testing was performed with the highest peak antenna gain among the supported host devices. IBM laptop PC, ThinkPad T40 Series (15 inch LCD model) has the highest gain, then selected for the full testing. And the all antenna systems used for the applying module are listed clearly in this application. 5. The modular transmitter was tested in a stand-alone configuration with the built-in antenna of the subjected host device connected to the proper AC adapter. It complied with the AC power line conducted requirements found in Section 15.207. 6. The modular transmitter is labeled with its own FCC ID number. Also the host device in which the modular is plugged has the proper FCC ID indication. Please refer to the separate exhibit “Product_Labeling”. 7. The modular transmitter complies with the applied specific rule and operating requirements applicable to the transmitter, and the adequate instructions along with the module to be explained to users are provided with the user’s manual. 8. The modular transmitter complies with the applicable RF exposure requirements. The proper RF exposure evaluations were performed with the host device in line with the FCC Rule , Section 2.1093 in making a reference to the footnote 14 of the Section 3 in Supplement C of OET Bulletin 65. HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE MIN SHENG PLANT 5F-1, 5 Hsin-An Road 4-1 Ming-Sheng St., Hsinchu, Science-Based Industrial Park Tu-Cheng Industrila Area, Taiwan, R.O.C. Taiwan, R.O.C TEL:+886-3-5784975 TEL:+886-2-2267 6511 FAX:+886-3-5775100 FAX:+886-2-2267 6512 Module Approval Request Letter Date: 10/22/2004 We, HON HAI Precision IND.CO.,LTD.’s Bluetooth module, FCC ID: ANO20040700HER, would like to apply for Limited Modular approval. We declare that J07M067 meet the following requirement of FCC Public Notice DA00-1407. 1. The modular transmitter must have its own RF shielding cover on top side, which shields over the RF circuit ( crystal , BCM2035 radio transceiver chip, ..etc).. 2. The modular transmitter must have its own buffered modulation/data inputs. All inputs to the modules are buffered through the logic or microprocessor (BCM2035) circuitry. 3. The modular transmitter has its own internal 1.8V power regulator and local reference oscillator. The device operates from the 3.3V host PC supply. If you have any problem, please feel free to contact me. Sincerely, Rio Chen Title: Deputy Manager, Compliance HON HAI Precision IND.CO.,LTD.

FCC Test Report FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 IBM Japan Ltd. Shimotsuruma 1623-14, Yamato Kanagawa, 242-8502 Japan November 15, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc. to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same affect as acts of our own. The subjected application is : - FCC ID: ANO20040700HER - Model Number: J07M067 - Device type : 2402M-2480MHz DTS device (Bluetooth LMA transmitter) We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, Hirohide Komiyama Date Manager, System Solution and Technology, Portable Systems Yamato Laboratory, IBM Japan Ltd. FCC Test Report FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Subject: Confidentiality Request for FCC Certification of Part 15, Subpart C Dear Sir / Madam : Please find enclosed an IBM’s application document for the FCC Part 15, Subpart C certification. - FCC ID: ANO20040700HER - Model Number: J07M067 - Device type: 2402M-2480MHz DTS device (Bluetooth LMA transmitter) Pursuant to 47 CFR section 0.457(d) and 0.459, we hereby request confidentiality for the schematics, detailed block diagrams, detailed theories of operation, and parts list. The subjected files are as follows. - Confidential_Schematics.pdf - Confidential_Block_Diagrams.pdf - Confidential_Circuitry_Description.pdf - Confidential_Parts_List.pdf - Confidential_BIOS_Lock.pdf Sincerely, Hirohide Komiyama Date Manager, System Solution and Technology, Portable Systems Yamato Laboratory, IBM Japan Ltd.

FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota. 1/3 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan To whom this may concern December 2, 2004 TCB Requested Information FCC ID : ANO20040700HER Applicant : International Business Machines Corporation Correspondence Reference Number : 241201A.ANO 731 Confirmation Number : 4378 Original Requested Date : December 1, 2004 Subject 1) Please confirm that the EUT complies with the following requirements, listed in Section 15.247(a)(1): (a) the hopping sequence in pseudo random. (b) the channels are used equally on average (c) the receive input bandwidth (at either RF or IF) is approximately equal to the transmission bandwidth (1 MHz) (d) the receiver is capable of hopping in sequence with the transmitted signal Subject 2) Please confirm that EUT complies with the requirements of Section 15.247(g) (the EUT is capable of full compliance with the rules if it is presented with a continuous data stream). Subject 3) Please confirm that EUT complies with the requirements of Section 15.247(h) (the EUT is not capable of coordinating its hopping sequence with that of other systems for the express purpose of avoiding the simultaneous occupancy of one channel by multiple systems). Answer) Please refer to the submittal exhibit, “Bluetooth_Attestation.pdf”. Also the following page shows a summary of the original exhibit in corresponding to the above subject numbers. The description indicates the case of full hopping mode representatively, but AHF (Advanced Frequency Hopping) mode employs the same logic. Sincerely, December 2, 2004 Toshiya Murota, Staff Engineer, EMC Engineering, Yamato Laboratory, IBM Japan Ltd. FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Summary of “Bluetooth_Attestation.pdf” exhibit 1-a) Pseudo random Frequency Hopping Sequence (FCC 15.247(a), RSS 6.2.2(o)) The following is an example of a 79 pseudo random hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 1-b) and 2 Equally average use of frequencies in data mode(15.247(a), 6.2.2(o)), and behavior for short transmissions (15.247(g), 6.2.2(o)): The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronization with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behavior: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 1-c) Receiver input bandwidth (15.247(a), 6.2.2(o)): The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 1-d) Receiver capability of hopping in sequence with the transmitted signal (15.247(a), 6.2.2(o)): Bluetooth units which want to communicate with other units must be organized in a structure called PICONET. This PICONET consist of maximum 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new PICONET will always use different hop sequences. Comment by IBM: This means that a unique hop sequence is exchanged between master and slave devices in advance, then the hopping frequency for both Tx/Rx is shifted at the same time to the same frequency according to the hop sequence. 2. Hopping sequen…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Yellow Sheet : No. EMC30 Application Document for FCC Part 15, Subpart C (Intentional Radiator) Model Number: J07M067 Document Number: FCC 19-0280-0 FCC ID: ANO20040700HER November 15 2004 EMC Advisory R&D Engineer Toshiya Murota Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-6574 Fax: +81-46-273-7420 E-Mail: [email protected] System Solution and Technology Manager Hirohide Komiyama Signature: IBM Japan, Ltd. Portable Systems LAB-R75 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-2725 EMC Engineering Manager / NVLAP signatory Akihisa Sakurai Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-2613 Fax: +81-46-273-7420 E-Mail: [email protected] Portable Systems Director Masaki Kobayashi Signature: IBM Japan, Ltd. Portable Systems LAB-R70 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-3889 FCC Test Report FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 2/3 Outline of Submission 1. Objective This is a Certification Compliance Report for the FCC Part 15, Subpart C (Intentional Radiator), DTS device. l FCC ID: ANO20040700HER l Model Number: J07M067 l IBM advertising product name: IBM Integrated Bluetooth IV with 56K Modem 2. Product Description The applying modular transmitter device is an OEM Bluetooth card supplied by HON HAI PRECISION IND. Co., Ltd. (brand name: Foxconn). The modular device complies with the Bluetooth standard Class II, 3mW specification, and employs AFH (Advanced Frequency Hopping) function for prevention of interference with other radio devices (especially WLAN equipment). And the modular also has a modem interface. Therefore it is a combo card with Bluetooth and modem functions. Foxconn performs the registration process for the modem conformance. 3. Installation of the applying transmitter The applying modular transmitter is a user installable Bluetooth card. The supported host PC units to be certified in this application are IBM laptop PC ThinkPad R50, T40, X30, and X40 Series. A unique electrical connector (so called “BIOS Lock”) is employed for the host devices to satisfy the FCC Part 15.203 or RSS-210 §5.5. This mechanism enables users to install the applying modular transmitter to the above specified host devices. The detail explanation of the unique coupling between the modular transmitter and antenna systems is shown by the separate exhibit “Confidential_BIOS_Lock”, however IBM would like to hold it in confidence to maintain the secure unique operability with the applying card and IBM antenna systems. The BIOS Lock function is also effective for the user’s maintenance in replacing a broken card with a spare part. 4. Co-located Transmitters The applying modular transmitter is used as a subsidiary device of a WLAN transmitter listed below, and it can transmit simultaneously with one of them on each specified host device listed in the clause 3 of this exhibit. The collocated WLAN transmitters with the applying module - ANO20020201CLK2.4GHz WLAN card - ANO20040501CX2 ditto - ANO20030500CMR ditto - ANO20040600BTL2.4GHz/5GHz composite WLAN card - ANO20040601CX2 ditto Those transmitters were already certified separately, however this test report includes the radiated FCC Test Report (Class II), FCC ID: ANO20020100MTN Document Number: FCC 19-0260-0 Prepared by T. Murota 3/3 emission measurement results for multiple transmission with the applying Bluetooth device and each 2.4GHz WLAN transmitter. The other two 2.4GHz/5GHz composite WLAN transmitters are to be examined for multiple transmission with separate applications. Also the separate exhibit “RF Exposure” explains the RF Safety evaluation with the collocating transmitters. 5. Related Submittal(s)/Grant(s)/Notes l During the applying modular device stops RF transmission, the host unit with full peripheral devices including the applying modular device is classified as an unintentional radiator, Digital Device under the FCC Part 15 Subpart B or the Industry Canada Class B Emission Compliance (ICES-003), and subject to DoC l The DoC for registration holder of the collaborated Modem is HON HAI PRECISION IND. Co., Ltd. (Refer to “Product Labeling” exhibit.)

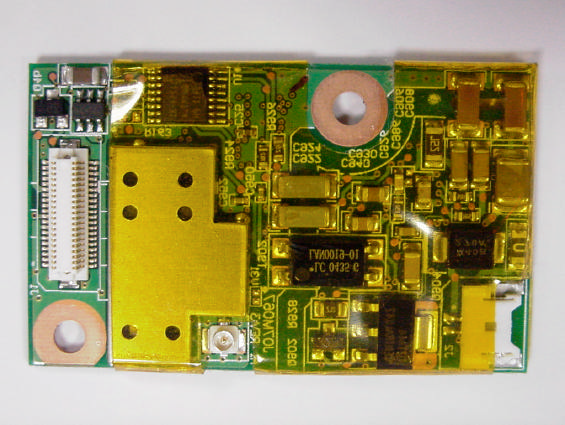

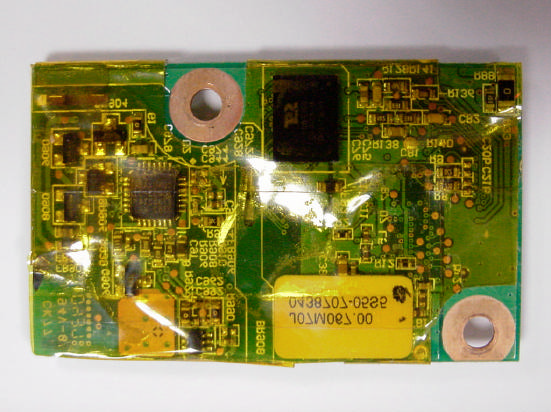

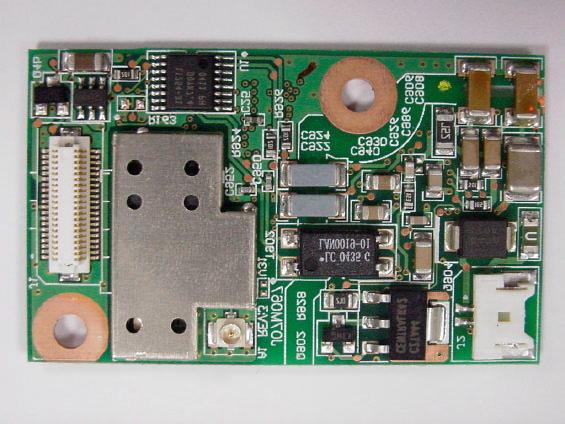

FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 1/2 External Photos Top side (without insulation tape) Top side (with insulation tape) FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 2/2 Antenna terminal Back side (without insulation tape) Back side (with insulation tape)

FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 1/8 Product Labeling 1.Labeling of the applying modular device Top side Model Number: J07M067 FCC ID: ANO20040700HER Reference only : FCC registration numbers of the collaborated V.92 Modem by HON HAI PRECISION IND. Co., Ltd. FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 2/8 2.Labeling of Host devices 2.1IBM ThinkPad T40 Series, and R50 Series Bluetooth Antenna Bluetooth Modular slot The FCC ID and IC’s Certification Number are visible when the keyboard assembly is removed. FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 3/8 Bottom side of IBM ThinkPad T40 Series Bottom view, Front side The applying modular transmitter is installed under this location. See previous page. One of the following co- located user installable transmitter modules is installed at this location. Examination of Multiple transmission - ANO20020201CLK (included in this application) - ANO20030500CMR ( ditto ) - ANO20040501CX2 ( ditto ) - ANO20040600BTL ( to be examined separately ) - ANO20040601CX2 ( ditto ) FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 4/8 Bottom side of IBM ThinkPad R50 Series The location where the applying LMA transmitter is to be installed. See page 2/8. One of the following co- located user installable transmitter modules is installed at this location. Examination of Multiple transmission - ANO20020201CLK (included in this application) - ANO20030500CMR ( ditto ) - ANO20040501CX2 ( ditto ) - ANO20040600BTL ( to be examined separately ) - ANO20040601CX2 ( ditto ) FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 5/8 2.2IBM ThinkPad X30 Series The FCC ID and IC’s Certification Number are visible when the keyboard assembly is removed. Bluetooth Antenna Bluetooth Modular slot FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 6/8 Bottom side of IBM ThinkPad X30 Series Bottom view Front Side Applying modular transmitter is installed under this location. See previous page. One of the following co- located user installable transmitter modules is installed at this location. Examination of Multiple transmission - ANO20020201CLK (included in this application) - ANO20030500CMR ( ditto ) - ANO20040501CX2 ( ditto ) - ANO20040600BTL ( to be examined separately ) - ANO20040601CX2 ( ditto ) FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 7/8 2.3IBM ThinkPad X40 Series Bluetooth Antenna Bluetooth Modular slot The FCC ID and IC certification numbers are visible when the Customer Access Panel is removed. FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 8/8 Bottom side of IBM ThinkPad X40 Series Bottom view, Front side Applying modular transmitter One of the following co- located user installable transmitter modules is installed at this location. Examination of Multiple transmission - ANO20020201CLK (included in this application) - ANO20030500CMR ( ditto ) - ANO20040501CX2 ( ditto ) - ANO20040600BTL ( to be examined separately ) - ANO20040601CX2 ( ditto )

FCC Test Report FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 1/1 Internal Photos Top side (no shielding) Antenna terminal Back side (without shielding)

FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 1/10 Host Unit Antenna Information 1. Antenna Specification Transmission Antenna assembly overview Notes: 1a. Includes all cable losses. 1b. Antenna type should be Omni Directional. IBM ThinkPad T40 Series, LCD 14inch model Designator (Parts Number) ManufactureAntenna typeCable type and length Gain (dBi) Note 1) Bluetooth antenna 62P4256 91P6901 *2 Foxconn Electronics Inc. (R.O.C.) Meander Antenna Coax 265 mm 1.20 dBi (peak) *2: non-lead soldering antenna according to RoHS environmental direction. The radiation characteristics (gain and Omni directional pattern) of both are the same. IBM ThinkPad T40 Series, LCD 15 inch model Designator (Parts Number) ManufactureAntenna typeCable type and length Gain (dBi) Note 1) Bluetooth antenna 91P6842 Nissei Electric Co., Ltd. (Japan) Meander Antenna coax 230mm 2.84 dBi (peak) IBM ThinkPad R50 Series, LCD 14/15 inch model Designator (Parts Number) ManufactureAntenna typeCable type and length Gain (dBi) Note 1) Bluetooth antenna 91P6817 Hitachi Cable Ltd. (Japan) Meander Antenna coax 265mm 2.16 dBi (peak) IBM ThinkPad X30 Series Designator (Parts Number) ManufactureAntenna typeCable type and length Gain (dBi) Note 1) Bluetooth antenna 46L4680 Nissei Electric Co., Ltd. (Japan) Meander Antenna coax 180mm 1.80 dBi (peak) IBM ThinkPad X40 Series Designator (Parts Number) ManufactureAntenna typeCable type and length Gain (dBi) Note 1) Bluetooth antenna 13N5744 Nissei Electric Co., Ltd. (Japan) Meander Antenna coax 341mm 1.99 dBi (peak) FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 2/10 2. Host PC Information and antenna location IBM ThinkPad T40 Series, LCD 14 inch model The Bluetooth antenna, Meander type, is built in the left side of LCD panel. Bluetooth Antenna Integrated Bluetooth card slot Bluetooth Antenna (Meander Antenna) P/N: 62P4256 or 91P6901 FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 3/10 IBM ThinkPad T40 Series, LCD 15 inch model, IBM ThinkPad R50 Series, LCD 14 and 15 inch model The Bluetooth antenna, Meander type, is built in the left side hinge section of main body. T40 15 inch Bluetooth Antenna (Meander Antenna) P/N: 91P6842 Bluetooth Antenna Integrated Bluetooth card slot R50 14/15 inch Bluetooth Antenna (Meander Antenna) P/N: 91P6817 FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 4/10 IBM ThinkPad X30 Series The Bluetooth antenna, Meander type, is built in the left side hinge section of main body. Bluetooth Antenna (Meander Antenna) P/N: 46L4680 Integrated Bluetooth card slot Bluetooth Antenna FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 5/10 IBM ThinkPad X40 Series The Bluetooth antenna, Meander type, is built in the left side hinge section of main body. Bluetooth Antenna Integrated Bluetooth card slot Bluetooth Antenna (Meander Antenna) P/N: 13N5744 FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 6/10 3. Exterior Photos of Antennas IBM ThinkPad T40 Series, LCD 14 inch model Manufacturer: Foxconn Electronics Inc. Parts Number: 62P4256 or 91P6901 Type: Meander Cable: coax 265mm FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 7/10 IBM ThinkPad T40 Series, LCD 15 inch model Manufacturer: Nissei Electric Co., Ltd. Parts Number: 91P6842 Type: Meander Cable: coax 230mm FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 8/10 IBM ThinkPad R50 Series, LCD 14 /15 inch model Manufacturer: Hitachi Cable Ltd. Parts Number: 91P6817 Type: Meander Cable: coax 265mm FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 9/10 IBM ThinkPad X30 Series Manufacturer: Nissei Electric Co., Ltd. Parts Number: 46L4680 Type: Meander Cable: coax 180 mm FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 10/10 IBM ThinkPad X40 Series Manufacturer: Nissei Electric Co., Ltd. Parts Number:13N5744 Type: Meander Cable: coax 341mm

FCC Test Report, FCC ID: ANO20040700HER Document Number: FCC 19-0280-0 Prepared by T. Murota 1/4 RF Exposure Evaluation 1. RF Exposure evaluation for the applying LMA transmitte…
