ANO20040600BTLModel: AR5BMB-44 (802.11a/b/g WLAN Adapter)

FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota User’s Manual (for ThinkPad R50 and T40 Series) The attachment is the part of the user’s manual of the specific host devices (IBM ThinkPad R50 and T40 Series) that indicates the regulatory notices concerning the FCC Part 15 and IC RSS- 210/102. The notice consists of two separate packages which are delivered associated with each host PC device. PN (Part Number) 92P2256 : for ThinkPad R50 Series 92P2253 : for ThinkPad T40 Series Only the latter one is attached representatively for volume saving, but the contents of both are almost the same thanks to the same conceptual design of hardware configuration. ThinkPad ® T40 Series Regulatory Notice
 First Edition (August 2004) The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION ′′AS IS′′ WITHOUT ANY WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE LIMITED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimers or express or implied warranties in certain transactions; therefore, this statement may not apply to you. This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements or changes in the products or the programs described in this publication at any time. It is possible that this publication may contain reference to, or information about, IBM products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that IBM intends to announce such IBM products, programming, or services in your country. Requests for technical information about IBM products should be made to your IBM authorized dealer or your IBM marketing representative. © Copyright International Business Machines Corporation 2004. All rights reserved. US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp. Contents Read first — regulatory information . . . .1 USA — Federal Communications Commission (FCC) . . . . . . . . . .3 Canada — Industry Canada (IC) . . . . .11 Telecommunication notices . . . . . .17 Industry Canada requirements . . . . .19 Trademarks . . . . . . . . . . . .21 © Copyright IBM Corp. 2004 iii iv ThinkPad ® T40 Series Regulatory Notice Read first — regulatory information Regulatory notice for ThinkPad T40 Series This notice is a supplementary document of the ThinkPad ® T40 Series Service and Troubleshooting Guide. Please read this document before you use the ThinkPad T40 Series computer. The ThinkPad T40 Series computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. You must install and use your ThinkPad computer in strict accordance with the instructions as described hereafter. Avis de réglementation pour les ThinkPad T40 Series Le présent avis est un document qui vient compléter le Guide de maintenance et d’identification des incidents ThinkPad T40 Series. Veuillez lire ce document avant d’utiliser l’ordinateur ThinkPad T40 Series. L’ordinateur ThinkPad T40 Series est conforme aux normes de sécurité et de radiofréquence du pays ou de la région où son utilisation sans fil est agréée. Vous devez installer et utiliser votre ordinateur ThinkPad en respectant scrupuleusement les instructions décrites ci-après. © Copyright IBM Corp. 2004 1 2 ThinkPad ® T40 Series Regulatory Notice USA — Federal Communications Commission (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. User installable wireless modules v Mini-PCI Cards – FCC ID: ANO20020201CLK, Model: WM3B2100 (Intel ® PRO/Wireless LAN 2100 3B Mini PCI Adapter) – FCC ID: ANO20040501CX2, Model: WM3B2200BG MoW (Intel PRO/Wireless 2200BG Mini-PCI Adapter from IBM) – FCC ID: ANO20040601CX2, Model: WM3B2915ABG MW2 (Intel PRO/Wireless WM3B2915 ABG Mini-PCI Adapter from IBM) – FCC ID: ANO20030500CMR, Model: T60H786-U (IBM ® 11b/g Wireless LAN Mini PCI Adapter) – FCC ID: ANO20040600BTL, Model: AR5BMB-44 (IBM 11a/b/g Wireless LAN Mini PCI Adapter II) – FCC ID: ANO20030400LEG, Model: PH12127-E (IBM 11a/b/g Wireless LAN Mini PCI Adapter) – FCC ID: ANOU58H004, Model: U58H004 (Cisco Aironet Wireless 802.11b) v Communication Daughter Card (CDC) – FCC ID: ANO20020100MTN, Model: BMDC200 (IBM Integrated Bluetooth III with 56K Modem) For information concerning the wireless cards announced after the publication of this notice, visit the Web site at www.ibm.com/pc/qtechinfo/MIGR-532863.html Wireless LAN Mini-PCI Cards marketed in the USA and Canada, except models WM3B2100 and PH12127-E, do not support nor function in the extended channels (12ch, 13ch). If you use the model WM3B2100 or PH12127-E with your ThinkPad computer, you must not select the Extended Channel Mode to avoid the unlikely possibility of unauthorized operation when the device is operated in the USA and Canada. © Copyright IBM Corp. 2004 3 i) FCC ID of wireless modules There is no FCC ID for Mini-PCI Cards shown on the enclosure of your ThinkPad computer. Instead you will find an indicator pointing to the location of the FCC ID on the bottom side of your ThinkPad computer as shown in the figure i-1). Also the location of the FCC ID’s indicator for CDC is shown in the figure i-2). The FCC IDs are affixed on each approved module installed in the Mini-PCI Card slot or the CDC slot. i-1) Mini-PCI Cards: v FCC ID: ANO200…

Text truncated - open the document above for the full version.

FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-1 Prepared by T. Murota. 1/1 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan To whom this may concern July 23, 2004 TCB Requested Information FCC ID : ANO20040600BTL Applicant : International Business Machines Corporation Correspondence Reference Number : 240722A.ANO 731 Confirmation Number : 4245 Original Requested Date : July 22, 2004 Subject 1) The statement listed in Section 15.21 of the Rules is required to be placed in every User's Manual for a Part 15 device. The language in the submitted Manual Regulatory information, while similar, does not state that the user's authority to operate the equipment may be voided if unauthorized changes are made. Please modify the current language to bring it into line with the language required by the Rule. This, of course, applies to both the 15C and 15E applications, as they have the same manual. Answer 1) IBM would revise the manual as follows by the product shipment. The sentence is common for both the 15C and 15E since the applying module transmitter is a composite device. Page 9 : Subject 2) FYI - please note that for the Laptop PCs (R50 and T40), which have been approved under DoC, the statement in Section 15.105(b) is required to be placed in the manual. Answer 2) IBM provide the statement in Section 15.105(b) concerning Subpart B with a separate manual. Please refer to the attachment in next page. Sincerely, July 23, 2004 Toshiya Murota, Staff Engineer, EMC Engineering, Yamato Laboratory, IBM Japan Ltd. iv) Radio Frequency interference requirements An improper installation or unauthorized use may cause harmful interference to radio communications. Also, unauthorized changes or modifications could void the user’s authority to operate the equipment. Refer to the “Appendix C. Notices, Electronic emission notices” of the ThinkPad T40 Series Service and Troubleshooting Guide for more detail. ThinkPad ® T40 Series Service and Troubleshooting Guide
 References to the Web site addresses Any references in this publication to non-IBM Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this IBM product, and use of those Web sites is at your own risk. Electronic emission notices Federal Communications Commission (FCC) Statement ThinkPad T40, machine type 2373, 2374, 2375, 2376, 2378 and 2379 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: v Reorient or relocate the receiving antenna. v Increase the separation between the equipment and receiver. v Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. v Consult an IBM authorized dealer or service representative for help. Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Proper cables and connectors are available from IBM authorized dealers. IBM is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Responsible Party: 72 ThinkPad ® T40 Series Service and Troubleshooting Guide International Business Machines Corporation New Orchard Road Armonk, NY 10504 Telephone 1-919-543-2193 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Industry Canada Class B Emission Compliance Statement This Class B digital apparatus complies with Canadian ICES-003. Avis de conformité à la réglementation d’Industrie Canada Cet appareil numérique de la classe B est conform à la norme NMB-003 du Canada. European Community Directive Conformance Statement This product is in conformity with the protection requirements of EU Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electro-magnetic compatibility. IBM cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the fitting of non-IBM option cards. This product satisfies the Class B limits of EN 55022. Product notice requirements The following notice applies to machines equipped with both a DVD and a TV-out function: Environmental notices for Japan If you are a company employee and need to dispose of a ThinkPad computer that is the property of the company, you must do so in accordance with the Law for Promotion of Effective Utilization of Resources. The computer is categorized as industrial waste. It should be properly disposed of by an industrial waste disposal contractor certified by a local government. In This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Co…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 1/1 Limited Modular Transmitter Approval Qualification 1. The modular transmitter has its own metal shielding covers on top side, which shields over the RF circuits (crystal, AR5112 radio transceiver chip, ..etc.). Refer to the “External Photos” exhibit. 2. The modular transmitter has its own buffered modulation/data inputs. All inputs to the modules are buffered through the logic or microprocessor (AR5213) circuitry. Refer to the “Block Diagram” or “Schematic Diagrams” exhibits. 3. The modular transmitter has its own internal 2.5V power regulator and local reference oscillator. The device operates from the 3.3V host PC supply. Refer to the “Block Diagram” or “Schematic Diagrams” exhibits. 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 204(c) with a unique electrical antenna connector, so called “Electronic Handshake”. Refer to the “e-Handshake” exhibit. Each antenna system used for the applying module shall be approved (certified) with the module before each product’s announcement date. This application includes the built-in type antennas of IBM laptop computer, ThinkPad R50 Series and T40 Series. 5. The modular transmitter was tested in a stand-alone configuration with each built-in antenna of the host device that was connected to the proper AC adapter. It complies with the AC power line conducted requirements found in Section 15.207. 6. The modular transmitter is labeled with its own FCC ID number. Also the host device in which the modular transmitter is plugged has a label pointing the FCC ID number location. Please refer to the separate exhibit of the host antenna system, “Antenna Info” exhibit. 7. The modular transmitter complies with the applied specific rule and operating requirements applicable to the transmitter, and the adequate instructions along with the module to be explained for customers are provided with the user’s manual. 8. The modular transmitter complies with the applicable RF exposure requirements. The proper RF exposure evaluations were performed with the host devices in line with the FCC Rules in Sections 2.1091 (MPE), since the antenna separation distance of 20cm or more from human’s body is maintained for the host device.

FCC Test Report FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 2/2 Outline of Submission 1. Objective This is a Certification Compliance Report for FCC Part 15 subpart E (Intentional Radiator). l FCC ID: ANO20040600BTL l Model Number: AR5BMB-44 l Advertising Name: IBM 11a/b/g Wireless LAN Mini PCI Adapter II 2. Product Description The applying modular transmitter device is an OEM mini-PCI wireless LAN card supplied by Atheros Communications, Inc. The modular device complies with the following transmission modes. l IEEE802.11a (5180MHz √ 5320MHz band OFDM) fl the applying Tx mode of this application l IEEE802.11a (5745MHz √ 5825MHz band OFDM) l IEEE802.11b (2412MHz √ 2462MHz band Direct Sequence Spread Spectrum) l IEEE802.11g (2412MHz √ 2462MHz band OFDM) This application includes 5.2GHz band OFDM mode only. The other three modes are subjected to the FCC 15 subpart C (DTS device), and are to be certified with a separate application as composite device. 3. Installation of the applying transmitter The applying LMA transmitter is a user installable wireless card. The supported host PC units to be certified in this application are IBM laptop PC ThinkPad R50 Series, and T40 Series. An unique electrical connector (so called “Electronic Handshake” BIOS Lock) is employed for both applying device and host units to satisfy the FCC Part 15.203 or RSS-210 Ë5.5, and the FCC Part 15.407(d) or RSS 6.2.2 q1(i). This mechanism enables user to install the applying LMA transmitter to the specified hosts (IBM ThinkPad R50 and T40 Series). The detail explanation of the unique coupling between the LMA transmitter and antenna systems is shown in the separate exhibit “Confidential_e-Handshake.pdf”, however IBM would like to hold it in confidence to maintain the secure "unique operability" with the applying device and IBM antenna systems. The Electronic Handshake BIOS Lock function is also effective for the user’s maintenance in replacing a broken card with a spare part. 4. Co-located Transmitters The applying LMA transmitter collocates with the following Bluetooth modules and transmits RF frequency simultaneously. - FCC ID: ANO20020100MTN (IBM Integrated Bluetooth III with 56 Modem) - FCC ID: PI4BT-IBM-PCII (Bluetooth PC Card II) As for the RF safety evaluation, refer to the separate exhibit “RF_Exposure.pdf ”.

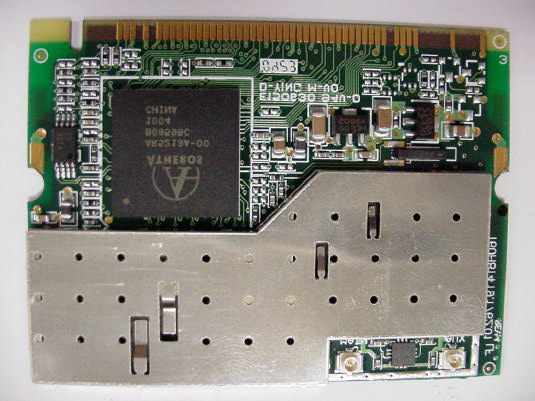

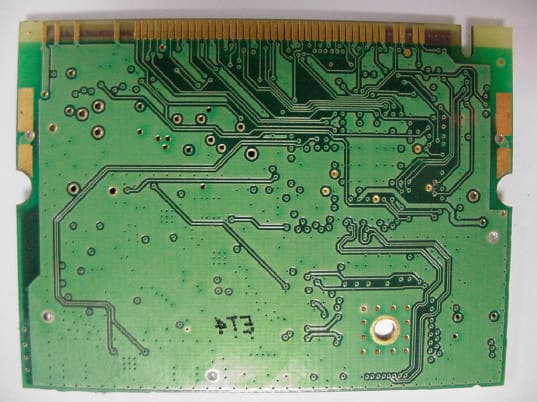

FCC Test Report FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 1/1 External Photos Top side (with shielding) Auxiliary Antenna terminal Main Antenna terminal Back side

FCC Test Report FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 1/1 Product Labeling Top side FCC ID Model Number

FCC Test Report FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 1/1 Internal Photos Back side N/A (no shielding on back side) Top side (without shielding) Antenna terminals

FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Host Unit Antenna Information for ThinkPad T40 Series ThinkPad R50 Series 1.Host PC Information......................................................................................................2 2.Host PC Labeling............................................................................................................5 2.1Labeling of T40 Series.............................................................................................................5 2.2Labeling of R50 Series.............................................................................................................6 3.Antenna Specifications...................................................................................................7 3.1Transmission Antenna assembly overview..............................................................................7 3.2Antenna Locations...................................................................................................................8 3.3Exterior Photos of Antennas...................................................................................................11 FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 2/18 1.Host PC Information IBM ThinkPad T40 Series and R50 Series The hosts PCs (IBM ThinkPad T40 Series and R50 Series) are designed with the same conceptual hardware configuration of standard size laptop PC. The main antenna is built in the top portion of the LCD, and the auxiliary antenna is built in the right side of the LCD. Those diversity antennas are not used for transmission simultaneously. One of the antennas is selected automatically or manually to have a good quality of radio communication. The selected antenna performs transmission or receiving in half duplex alternatively. IBM ThinkPad T40 Series, LCD 14 inch model Main Antenna Auxiliary Antenna The FCC ID and IC’s Certification Number are visible when the palm rest cover assembly is removed. FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 3/18 IBM ThinkPad T40 Series, LCD 15 inch model, and IBM ThinkPad R50 Series, LCD 15 inch model Auxiliary Antenna Main Antenna The FCC ID and IC’s Certification Number are visible when the keyboard assembly is removed. FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 4/18 ThinkPad T40 Series LCD 14 inch ThinkPad T40 Series LCD 15 inch ThinkPad R50 Series LCD 15 inch ThinkPad R50 Series LCD 14 inch FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 5/18 2.Host PC Labeling 2.1Labeling of T40 Series Bottom view, Front side The applying modular transmitter is installed under this location. See page 2 or 3. The host device (ThinkPad T40 Series) supports the applying transmitter and a built-in type Bluetooth LMA transmitter which was certified separately (FCC ID: ANO20020100MTN, Feb/26/2003 and May/04/2004). FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 6/18 2.2 Labeling of R50 Series Bottom view, Front The applying modular transmitter is installed under this location. See page 3. The host device (ThinkPad T40 Series) supports the applying transmitter and a built-in type Bluetooth LMA transmitter which was certified separately (FCC ID: ANO20020100MTN, Sep./29/2003). FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 7/18 3.Antenna Specifications 3.1Transmission Antenna assembly overview Note 1): 2a. Includes all cable losses. 2b. Antenna type should be Omni Directional and have gain of 2.0 dBi or less for IEEE802.11b (2.4GHz band), regarding the IBM internal specification. IBM ThinkPad T40 Series DesignatorManufactureAntenna type Cable type and length Peak Gain Note 1) Main62P4204 Dual Band Meander Antenna Coax 745 mm 0.83 dBi LCD 14 inch Model Auxiliary62P4203 Foconn Electronics Inc. (R.O.C.) Dual-Band Coupled Floating Element Antenna Coax 860 mm 5.2GHz band 0.36 dBi Main91P6841 coax 755mm 2.00 dBi LCD 15 inch Model Auxiliary91P6840 Hitachi Cable Ltd. (Japan) Dual Band Meander Antenna coax 580mm 5.2GHz band 0.82 dBi IBM ThinkPad R50 Series DesignatorManufactureAntenna type Cable type and length Peak Gain Note 1) Main91P6810 Coax 750 mm 2.66 dBi LCD 14 inch Model Auxiliary91P6811 Hitachi Cable Ltd. (Japan) Dual Band Meander Antenna Coax 635 mm 5.2GHz band 1.37 dBi Main 91P6812 coax 775mm 1.68 dBi LCD 15 inch Model Auxiliary91P6813 Hitachi Cable Ltd. (Japan) Dual Band Meander Antennacoax 670mm 5.2GHz band 2.84 dBi FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 8/18 3.2Antenna Locations 3.2.1IBM ThinkPad T40 Series, LCD 14 inch model Auxiliary Antenna Dual-Band Coupled Floating Element Antenna P/N: 62P4203 Main Antenna Dual Band Meander Antenna P/N: 62P4204 FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 9/18 3.2.2IBM ThinkPad T40 Series, LCD 15 inch model Auxiliary antenna Dual Band Meander antenna P/N: 91P6840 Main antenna Dual Band Meander antenna P/N: 91P6841 FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 10/18 3.2.3IBM ThinkPad R50 Series Auxiliary antenna Dual Band Meander Antenna P/N: 91P6811 (14 inch) P/N: 91P6813 (15 inch) Main antenna Dual Band Meander Antenna P/N: 91P6810 (14 inch) P/N: 91P6812 (15 inch) FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 11/18 3.3Exterior Photos of Antennas 3.3.1IBM ThinkPad T40 Series, LCD 14 inch model Auxiliary Antenna Manufacturer: Foxconn Electronics Inc. Parts Number: 62P4203 Dual-Band Coupled Floating Element Antenna Cable : coax 845mm Main Antenna Manufacturer: Foxconn Electronics Inc. Parts Number: 62P4204 Dual Band Meander antenna Cable: coax 740mm FCC Test Report, FCC ID: ANO20040600BTL Document N…

Text truncated - open the document above for the full version.

FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 1/6 RF Exposure evaluation 1. RF Exposure evaluation for the applying LMA transmitter As shown below, the all transmission antennas of both host PC devices (IBM ThinkPad R50 and T40 Series) are located at the upper portions of each display (LCD) section, and the separation distance between each antenna and the human body is 20cm or more. Therefore the applying LMA transmitter and each antenna system is categorized as a mobile device by FCC CFR 47 Section 2.1091. Main antennas height Auxiliary antenna height LCD 14 inch model of IBM ThinkPad T40 or R50 Series Main antennas height Auxiliary antenna height The separation distance between the antenna and the human body (lap) is 26cm or more. The separation distance between the antenna and the human body (lap) is 24cm or more. LCD 15 inch model of IBM ThinkPad T40 or R50 Series FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 2/6 [MPE evaluation] The following table shows the highest conducted peak output power values of the applying modular device, and the maximum peak antenna gains of each host device. Transmission mode P: conducted peak output power 5.2GHz band OFDM17.77 dBm (59.9 mW) Host PC model G: peak antenna gain ThinkPad T40 Series5.2GHz band2.00 dBi (Main antenna) ThinkPad R50 Series5.2GHz band2.84 dBi (Auxiliary antenna) With those results, the maximum power density at 20cm distance is calculated as follows. IBM ThinkPad T40 Series Transmission mode EIRP = P + G (dBm) EIRP (mW) Max. power density S = EIRP/(4 % 20 2 % o) 5.2GHz band OFDM 19.7794.90.0189 mW/ cm 2 IBM ThinkPad R50 Series Transmission mode EIRP = P + G (dBm) EIRP (mW) Max. power density S = EIRP/(4 % 20 2 % o) 5.2GHz band OFDM 20.61115.10.0229 mW/ cm 2 Since the applying modular transmitter device does not function to emit the radio frequency from both diversity antennas simultaneously, the above results are the maximum values of RF exposure to the persons, and are far below the MPE limit (1.0 mW/cm 2 ). Therefore the LMA transmitter meets the MPE requirements for general Population/Uncontrolled exposure. FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 3/6 2. RF Exposure evaluation with co-located Bluetooth transmitters Collocated Bluetooth options for ThinkPad R50 and T40 Series The specific laptop PC, IBM ThinkPad R50 and T40 Series support the following two kinds of Bluetooth devices. Option typeFCC IDGrantee Name Product Name Granted DatePower in Test Report PCMCIA PI4BT-IBM-PCII TDK Systems Europe Ltd. Blutooth PC Card II August/21/2001 1.0mW Feb/26/2003 (T40 14”) Sep/29/2003 (R50) Built-in LMA Transmitter ANO20020100MTN IBM Japan, Ltd. IBM integrated Blutooth III with 56K Modem May/04/2004 (T40 15”) 2.5mW Collocated Bluetooth options for ThinkPad R50 Series Main antenna of applying transmitter 25cm Built-in antenna of Bluetooth FCC ID: ANO20020100MTN PCMCIA slot 2.5cm Auxiliary antenna FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 4/6 Collocated Bluetooth options for ThinkPad T40 Series Main antenna PCMCIA slot 23cmm Main antenna Built-in antenna of FCC ID: ANO20020100MTN for LCD 14” model for LCD 15” model The separation distance between WLAN antennas and each Bluetooth antenna is 23 cm or more. Auxiliary antenna FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 5/6 The main and auxiliary antennas located at LCD section of each host device (ThinkPad T40 Series, or R50 Series) are assembled apart from each Bluetooth antenna shown in the previous pages with 20 cm or more. Therefore, those co-located Bluetooth transmitters are allowed to evaluate the RF exposure compliance independently of the applying modular transmitter. In other word, the SAR testing for the applying transmitter in co-locating with those Bluetooth transmitters is not required, when the Bluetooth transmitters could satisfy the RF exposure requirement with those own transmission powers. When a customer operates the applying PC on one’s lap, the sufficient separation distance (minimum 20cm) between the above Bluetooth antennas and the person’s body (lap) can not be maintained. But the footnote of the Section 3 in Supplement C to OET Bulletin 65 states : “ 14 ...... If a device, its antenna or other radiating structures are operating at closer than 2.5 cm from a person’s body or in contact with the body, SAR evaluation may be necessary when the output is more than 50 – 100 mW, depending on the device operating configurations and exposure conditions.” The total output power of the two Bluetooth transmitters in the previous table does not exceed 5mW (far below 50mW). Therefore these transmitters also satisfy the RF exposure requirement regarding CFR 47 Part 15.247(b)(4) without a SAR compliance test report, and can operate with the applying transmitter simultaneously. IBM Web site provides customers the grant conditions for the co-locating use and approved co- located Bluetooth devices. See the next page. FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 Prepared by T. Murota 6/6 3. IBM Web site Note) The info for the applying LMA transmitter is not available until the product announcement. http://www.pc.ibm.com/qtechinfo/MIGR-53286.html

FCC Test Report, FCC ID: ANO20040600BTL Document Number: FCC 19-0271-0 MEASUREMENT / TECHNICAL REPORT – Part 15 Subpart E (Intentional Radiator) Model: AR5BMB44 (802.11a/b/g Wireless LAN Adapter) with IBM ThinkPad T40 Series (Machine Type: 1871, 1875, 1873, 1874, 1875, 1876, 2373, 2374, 2375, 2376, 2378, 2379, 2668, 2669, 2678, 2679, 2686, 2687) and IBM ThinkPad R50 Series (Machine Type: 1829, 1830, 1831, 1832, 1833, 1834, 1835, 1836, 1840, 1841, 1842, 2883, 2887, 2888, 2889, 2894, 2895) FCC ID : ANO20040600BTL July 5, 2004 This report concerns: (check one) Original Grant ̧ Class I change Class II change Equipment type: Wireless LAN device This report shall not be reproduced except in full, without the written permission of this test lab. The measurement results contained in this report relate only to the item which was tested. Measurement procedure used is ANSI C63.4-2000 unless otherwise specified. Other test procedure: The FCC has issued provisional acceptance of this test laboratory for Declaration of Conformity testing per letter dated 1997. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: By checking yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse of 1988, 21 U.S.C. 853(a), or, in the case of a non…

Text truncated - open the document above for the full version.
