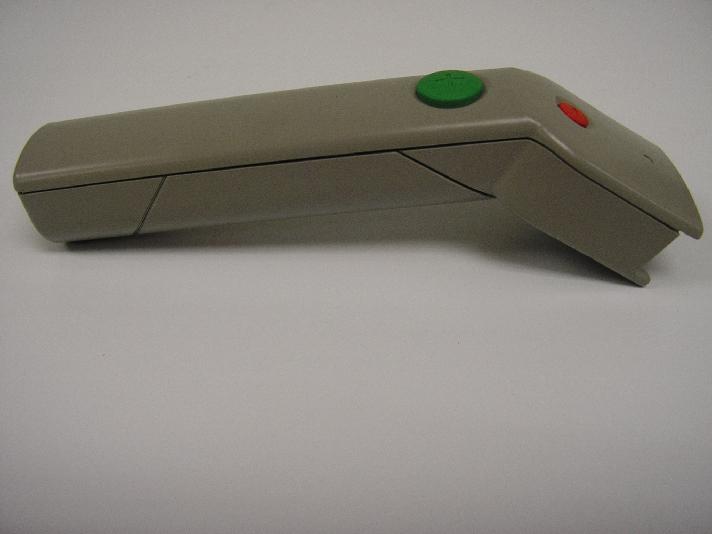

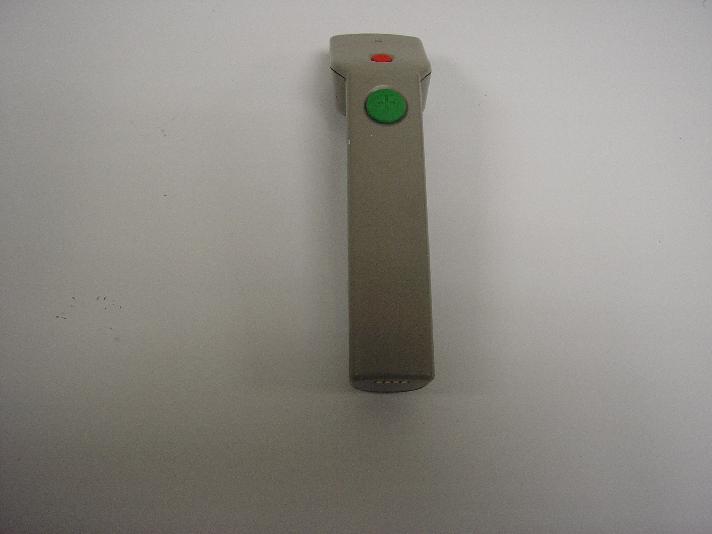

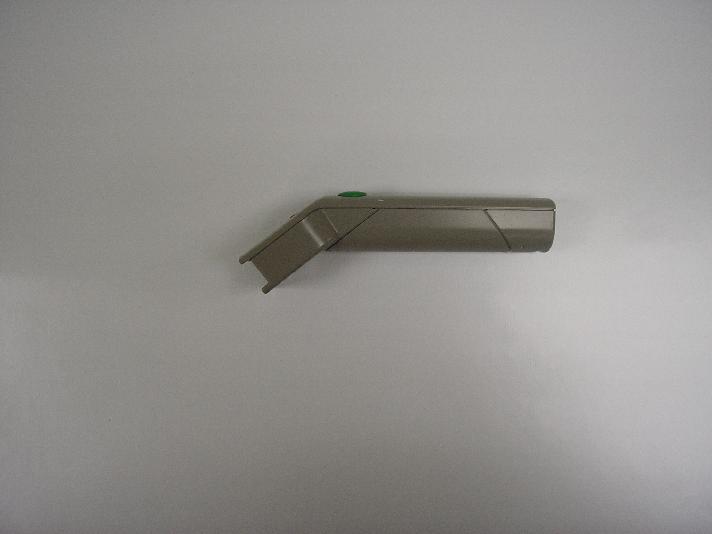

ANO-7054SCBluetooth Enabled Handheld Scanner

IBM 7054 Mobile Tablet for Retail Page 1 of 1 The IBM Wireless LAN Mini PCI Adapter installed within the IBM 7054 Mobile Tablet for Retail must be used in strict accordance with the following instructions. This product complies with the following radio frequency standards. USA – Federal Communications Commission (FCC) Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. IBM is not responsible for any radio or television interference caused by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Exposure to Radio Frequency Energy The radiated output power of the Wireless LAN Mini-PCI Card authorized for use in the IBM 7054 Mobile Tablet for Retail is far below the FCC radio frequency exposure limits. Nevertheless, the IBM 7054 Mobile Tablet for Retail shall be used in such a manner that the potential for human contact during normal operations is minimized. Interference Statement An improper installation or unauthorized use may cause harmful interference to radio communications. Also, any tampering with the internal antenna will void the FCC certification and your warranty.

International Business Machines Corporation P.O. Box 12195 Research Triangle Park, NC 27709 Attn.: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR IBM 7054 MOBILE TABLET FOR RETAIL SCANNER FCC ID: ANO-7054SC To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams and block diagrams, documents: 1. Confidential - scanner schematics.pdf 2. Confidential - scanner and docking station block diagram.pdf 3. Scanner (Mitsumi) BT Block Diagram.pdf 4. Confidential - Mitsumi Schematic WML-C19N.pdf required to be submitted with this application be withheld from public review. These documents are company proprietary. Please contact me if there is any information you may need. Sincerely, John Hibbard IBM Corporation Retail Store Solutions EMC Design Engineer

DOC-FCC009 4/14/2005 Page 1 of 3 FEDERAL COMMUNICATIONS COMMISSION - FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION Approved by OMB 3060 - 0934 Expires 02/28/2005 Item 1. Applicant's complete, legal business name: International Business Machines Corporation Item 2. Applicant's mailing address Line 1: New Orchard Road Line 2: P.O.Box: City: Armonk State: New York Country (if foreign address): Zip/Postal Code: 10504 Item 3. FCC ID: ANO-7054SC Grantee code: ANO Equipment Product Code (14 characters maximum): -7054SC Item 4. Person at the applicant's address to receive grant or for contact: First Name: George Mail Stop: Last Name: Kavelak Telephone: 919-254-2311 Title: Corporate Program Manager-EMC E-mail: [email protected] Fax No: Item 5. Instead of Applicant, the original Grant is authorized to be mailed to: N/A Item 6. Technical Contact: Firm Name: MET Laboratories Inc. Telephone: 410-354-3300 Ext: Fax No: First Name: Chris Middle Initial: Last Name: Eckert Address Line 1: 914 W. Patapsco Ave. Address Line 2: City: Baltimore, MD Country (if foreign address): Zip/Postal Code: 21230 E-mail: [email protected] Item 7. Non-Technical Contact: Firm Name: IBM Telephone: 919-254-8757 Ext: Fax No: First Name: John Last Name: Hibbard Address Line 1: 3039 Cornwallis Rd. P.O.Box: Address Line 2: City: Research Triangle Park, NC Country (if foreign address): Zip/Postal Code: 27709 E-mail: [email protected] Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules? If "Yes" see instructions. (please mark as appropriate) T Yes Ο No Item 9. Does the applicant request that the Commission defer grant of this application pursuant 47 CFR § 0.457(d)(1)(ii)? (See instructions) N/A If so, specify date when grant may be issued (MM/DD/YYYY format): Item 10. * Equipment Class: DSS * Description of Product as it is Marketed: Scanner for Mobile Tablet for Retail (NOTE: This text will appear below the equipment class on the grant) Item 11. * Application is for: (please mark as appropriate) T Original Equipment (See instructions) Ο Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY format): Ο Class II permissive change or modification of presently authorized equipment (See instructions) Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 12(c). Ο Yes T No T Yes Ο No DOC-FCC009 4/14/2005 Page 2 of 3 (c) The related application: Ο has been granted under the FCC ID listed to the right Tis in the process of being filed under the FCC ID listed to the right Ο is pending with the FCC under the FCC ID listed to the right FCC ID ANO-7054 Item 13. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: MET Laboratories First Name: Hoosam Last Name: Bandukwala Telephone: 410-354-3300 Ext: 313 Fax No.: 410-354-3313 E-mail: [email protected] Item 14. Enter any text that you would like to appear at the bottom of the Grant of Equipment Authorization. N/A Read each certification carefully before answering and signing this application Equipment Specifications: Rule Part Frequency Range (MHz) Power (W) Frequency Tolerance and Units Emission Designator Note Codes 15.C 2400- 2483.5 0.00017 WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. *SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? T Yes Ο No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. IN accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. * Signature of Authorized Person Filing: Marie Ann Confroy Title of authorized signature: TCB Administrator DOC-FCC009 4/14/2005 Page 3 of 3 Complete …

Text truncated - open the document above for the full version.

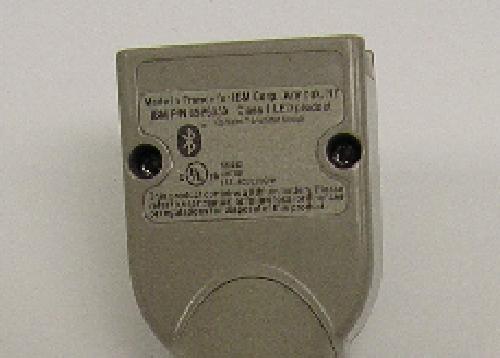

E33252 LISTED I.T.E. ACCESSORY

Operational and Technical Description General Description The IBM 7054 Mobile Tablet for Retail is a wireless web enabled portable tablet designed for the retail store environment. Internal to the product is a mini-PCI wireless LAN interface card, the Foxconn 802.11 b/g using the Atheros AR5213/AR2112 chipset, PN: T60H786-U. The wireless LAN radio operates between 2412 and 2462 MHz. The module complies with the following transmission modes: - IEEE802.11b (2.4 GHz band DSSS) - IEEE802.11g (2.4 GHz band OFDM) Integral to the wireless tablet and co-located is a scanner docking station with a Bluetooth 1.1 surface mountable module by USI, UB1-1112. The scanner is a battery operated handheld device that receives its battery charge through the docking station. It communicates back to the docking station using a Mitsumi Bluetooth 1.1 surface mountable module, WML-C19AHN. Mechanical Description The wireless LAN card and antenna is permanently mounted inside of the webpad device. The card and antenna is an integral design and thus is not accessible to the user. The antenna is a diversity antenna mounted in the cover of the webpad. Both Bluetooth modules have integrated antennas.

EMC Measurement / Technical Report Report Number: 05-EMCRTP-0059 EUT: Mobile Tablet 7054 Models 100, 110 and 200 – Charging Station 7055 Model 100 Page 2 of 36 This page is left blank intentionally. EMC Measurement / Technical Report Report Number: 05-EMCRTP-0059 EUT: Mobile Tablet 7054 Models 100, 110 and 200 – Charging Station 7055 Model 100 Page 3 of 36 1.0 TABLE OF CONTENTS 1.0 TABLE OF CONTENTS .................................................................................................................................................................. 3 2.0 MODEL NUMBERS COVERED BY THIS REPORT .................................................................................................................. 4 3.0 EMC STANDARDS COMPLIANCE LIST / TEST SUMMARY................................................................................................. 5 4.0 TEST LABORATORY INFORMATION ....................................................................................................................................... 6 4.1 ADDRESS.......................................................................................................................................................................................... 6 4.2 TEST FACILITY DESCRIPTION............................................................................................................................................................ 6 4.3 AGENCY APPROVALS AND ACCREDITATIONS................................................................................................................................... 6 5.0 EUT/PRODUCT INFORMATION .................................................................................................................................................. 7 5.1 EUT/PRODUCT DESCRIPTION........................................................................................................................................................... 7 5.2 OSCILLATOR/CLOCK FREQUENCIES.................................................................................................................................................. 7 5.3 SPECIAL ACCESSORIES OR MODIFICATIONS REQUIRED FOR COMPLIANCE........................................................................................ 7 5.4 DEVIATIONS FROM SPECIFIED STANDARDS, REGULATIONS OR TEST PROCEDURES.......................................................................... 7 5.5 SUPPRESSION COMPONENTS............................................................................................................................................................. 7 6.0 TEST CONFIGURATION................................................................................................................................................................ 8 6.1 EUT AND HARDWARE INTERNAL TO EUT ........................................................................................................................................ 8 6.3 CONFIGURATION DESCRIPTION......................................................................................................................................................... 8 6.4 CONFIGURATION JUSTIFICATION....................................................................................................................................................... 8 6.5 EXERCISE SOFTWARE........................................................................................................................................................................ 8 7.0 EMISSIONS TEST RESULTS ......................................................................................................................................................... 9 7.1 RADIATED EMISSIONS (30 – 1000 MHZ)........................................................................................................................................... 9 7.2 RADIATED EMISSIONS (1 – 18 GHZ) ............................................................................................................................................... 15 7.3 CONDUCTED EMISSIONS - POWER LINES......................................................................................................................................... 18 8.0 BLOCK DIAGRAMS ...................................................................................................................................................................... 22 9.0 PRODUCT LABEL ......................................................................................................................................................................... 24 9.1 LOCATION OF LABEL ON THE PRODUCT.......................................................................................................................................... 25 10.0 ELECTRONIC EMISSIONS STATEMENT.............................................................................................................................. 27 11.0 IDENTIFICATION PHOTOS – MOBILE TABLET AND SCANNER................................................................................... 28 12.0 IDENTIFICATION PHOTOS – BEACON ................................................................................................................................. 32 13.0 IDENTIFICATION PHOTOS – CHARGING STATION......................................................................................................... 35 EMC Measurement / Technical Report Report Number: 05-EMCRTP-0059 EUT: Mobile Tablet 7054 Models 100, 110 and 200 – Charging Station 7055 Model 100 Page 4 of 36 2.0 MODEL NUMBERS COVERED BY THIS REPORT 7054 Model 100 - Stop & Shop logo, storm gray, with green front label 7054 Model 110 - No Stop & Shop logo, storm gray, with storm gray front label 7054 Model 200 - IBM logo, iron gray, with iron gray front label 7055 Model 100 – Tablet Charging Station PN 65P6350 – Tablet Scanner included with models 7054-100 and 7054-110, st…

Text truncated - open the document above for the full version.

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 The Nation’s First Licensed Nationally Recognized Testing Laboratory June 9, 2005 Scinetic Engineering 61 Kaki Bukit Avenue 1 #06-09 Shun Li Industrial Park, Singapore 4179 Dear Yap Kok Yeong, Enclosed is the EMC test report for compliance testing of the IBM 7054 Mobile Tablet for Retail Scanner, manufactured by Scinetic Engineering. as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-03 ed.), Part 15 Subpart C, §15.247 for Intentional Radiators and FCC Declaration of Conformity under CFR, Part 15, Subpart B For a Class A Unintentional Radiator. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Marie Ann Confroy Documentation Department Reference: (\Scinetic Engineering\ Scanner \ EMC17220B-FCC247) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo, the Standards Council of Canada Logo, A2LA, or the Nationally Recognized Testing Laboratory (NRTL) Letters in this report reflects MET Accreditation under these programs, these letters, logo, or statements do not claim product endorsement by these organizations or any Agency of the U.S. Government. This letter of transmittal is not a part of the attached report. DOC-EMC702 2/26/2004 MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 DOC-EMC702 2/26/2004 Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Criteria Test Report For the IBM 7054 Mobile Tablet for Retail Scanner Manufactured by Scinetic Engineering Tested under FCC Certification Rules Title 47 of the CFR, Part 15, Subpart C for Intentional Radiators MET Report: EMCB17220B-FCC247 June 9, 2005 Prepared For: Scinetic Engineering 61 Kaki Bukit Avenue 1 #06-09 Shun Li Industrial Park, Singapore 4179 Prepared By: MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 Scinetic Engineering Scanner CFR Title 47, Part 15, Subpart C MET Report: EMC17220B-FCC247 © 2005, MET Laboratories, Inc. Page i of v DOC-EMC702 2/26/2004 Electromagnetic Compatibility Criteria Test Report For the IBM 7054 Mobile Tablet for Retail Scanner Manufactured by Scinetic Engineering Tested Under FCC Certification Rules Title 47 of the CFR, Part 15, Subpart C for Intentional Radiators Kevin Mehaffey Marie Ann Confroy Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15, §15.247 of the FCC Rules under normal use and maintenance. Christopher Eckert Electromagnetic Compatibility Lab Scinetic Engineering Scanner CFR Title 47, Part 15, Subpart C MET Report: EMC17220B-FCC247 © 2005, MET Laboratories, Inc. Page ii of v DOC-EMC702 2/26/2004 Report Status Sheet Revision Report Date Reason for Revision 0 June 9, 2005 Initial Issue. Scinetic Engineering Table of Contents Scanner CFR Title 47, Part 15, Subpart C MET Report: EMC17220B-FCC247 © 2005, MET Laboratories, Inc. Page iii of v DOC-EMC702 2/26/2004 Table of Contents 1 Requirements Summary .................................................................................................................................................1 2 Equipment Configuration...............................................................................................................................................2 2.1 Overview.....................................................................................................................................................................2 2.2 Test Site ......................................................................................................................................................................3 2.3 Description of Test Sample .........................................................................................................................................3 2.4 Equipment Configuration............................................................................................................................................5 2.5 Support Equipment .....................................................................................................................................................6 2.6 Ports and Cabling Information ....................................................................................................................................6 2.7 Mode of Operation ......................................................................................................................................................6 2.8 Method of Monitoring EUT Operation .......................................................................................................................7 2.9 Modifications ..............................................................................................................................................................7 2.9.1 Modifications to EUT ..........................................…

Text truncated - open the document above for the full version.
