ANO20020200BRXIBM 802.11b Wireless LAN Mini-PCI

FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC 19-0208-0 Prepared by T. Murota User’s Manual The descriptions marked in yellow are the related portion for the applying LMA transmitter. Part Number: 92P1285 Wireless Regulatory Notice for ThinkPad R40 Series This notice is a supplementary document of the “ThinkPad ® R40 Series Service and Troubleshooting Guide.” Please read this document before you use the ThinkPad R40 Series computer. The ThinkPad R40 Series computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. You are requested to install and use your ThinkPad computer in strict accordance with the instructions as described hereafter. Avis relatif aux appareils sans fil pour les ThinkPad R40 Series Le présent document complète le manuel “ThinkPad ® R40 Series - Guide de maintenance et d’identification des incidents”. L’ordinateur ThinkPad R40 Series est conforme aux normes de radiofréquence et de sécurité en vigueur dans les pays ou régions où son utilisation sans fil a été acceptée. L’ordinateur doit être installé et utilisé conformément aux instructions fournies ci-après. Avant d’utiliser votre ordinateur ThinkPad R40, veuillez lire ce document. Hinweis zu drahtlosen Einheiten für den ThinkPad R40 Series Dieser Hinweis ergänzt die Informationen im Handbuch “ThinkPad ® R40 - Service und Fehlerbehebung”. Der ThinkPad R40 erfüllt die Funkfrequenz- und Sicherheitsstandards der Länder und Regionen, in denen er für die Verwendung als drahtlose Einheit zugelassen ist. Der ThinkPad R40 muss exakt wie nachfolgend beschrieben installiert und verwendet werden. Lesen Sie unbedingt die entsprechenden Informationen in diesem Dokument, bevor Sie den ThinkPad R40 verwenden. © Copyright IBM Corp. 20031 Aviso de regulación de conexiones inalámbricas para ThinkPad R40 Series Este aviso es un documento adicional del manual“ThinkPad ® R40 Series Guía de servicio y de resolución de problemas”. El sistema ThinkPad R40 Series satisface los estándares de seguridad y de frecuencia de radio de cualquier paísoregión en el que se haya aprobado su utilización para conexiones inalámbricas. Se solicita al usuario que instale y utilice el sistema ThinkPad siguiendo estrictamente las instrucciones que se describen a continuación. Antes de utilizar el sistema ThinkPad R40, lea este documento. Informazioni importanti sulle norme per la tecnologia senza fili per ThinkPad R40 Series Queste informazioni importanti costituiscono un documento integrativo della Guida all’assistenza e alla risoluzione dei problemi per“ThinkPad ® R40 Series.” L’elaboratore ThinkPad R40èconforme agli standard di sicurezza e di frequenza radio di ciascun paese in cuièstato approvato per l’utilizzo della tecnologia senza fili.È, quindi, necessario installare ed utilizzare l’elaboratore ThinkPad in stretta osservanza alle istruzioni di seguito riportate. Prima di utilizzare l’elaboratore ThinkPad R40, leggere il presente documento. ThinkPad R40 Series- tietokoneen langattomien yhteyksien käyttöäkoskeva huomautus Tämäasiakirja on“ThinkPad ® R40 Series -tietokone, Käyttöja vianmääritys” -julkaisun lisäosa. ThinkPad R40 Series -tietokone on sen maan tai alueen radiotaajuus- ja turvallisuusstandardien mukainen, jossa se on hyväksytty langattomien yhteyksien käyttöävarten. Käyttäjän tulee asentaa ThinkPad-tietokone ja käyttääsitäjäljempänäesitettyjen ohjeiden mukaisesti. Ennen kuin aloitat ThinkPad R40 -tietokoneen käytön, lue tämäasiakirja. Kennisgeving met betrekking tot draadloze communicatie voor ThinkPad R40 Series Deze kennisgeving is een aanvulling op de publicatie“ThinkPad ® R40 Series Service en probleemoplossing.” De ThinkPad R40 Series voldoet aan de standaards voor radiofrequenties en veiligheid in elk land of gebied waarin deze computer is goedgekeurd voor draadloos gebruik. U wordt verzocht uw ThinkPad-computer te installeren en 2 te gebruiken in strikte overeenstemming met de instructies hierna beschreven. Lees dit document voordat u de ThinkPad R40-computer gaat gebruiken. Bemækning vedr. den trådløse facilitet i ThinkPad R40 Serie-computeren Denne bemærkning er et supplement til bogen“ThinkPad ® R40 Serie Guide til service og fejlfinding”. ThinkPad R40 Serie-computeren overholder de radiofrekvens- og sikkerhedsstandarder i de lande og områder, hvor den er godkendt til trådløs brug. Du skal installere og bruge ThinkPad-computeren i nøje overensstemmelse med instruktionerne i de følgende afsnit. Læs dette dokument, før du bruger ThinkPad R40-computeren. Merknad om regulering av trådløs kommunikasjon for ThinkPad R40 Series Denne merknaden kommer i tillegg til opplysningene i“ThinkPad ® R40 Series Håndbok for service og problemløsing” ThinkPad R40 Series-maskinen er i overensstemmelse med standardene for radiofrekvenssignaler og sikkerhet i alle land eller regioner der den er godkjent for trådløbruk. Du blir bedt omåinstallere og bruke ThinkPad-maskinen i henhold til instruksjonene som følger. Du målese dette dokumentet før du bruker ThinkPad R40-maskinen. Information om radiokommunikations- och säkerhetsnormer för ThinkPad R40 Series Det här dokumentet kompletterar informationen i handboken“ThinkPad ® R40 Series Service och felsökning”. ThinkPad R40 Series uppfyller radiokommunikations- och säkerhetsnormerna ideländer och regioner där datorn har godkänts förtrådlös användning. Användarna måste installera och använda sina ThinkPad-datorer i enlighet med respektive lands bestämmelser om radiokommunikation. Läs det här dokumentet innan du använder ThinkPad R40-datorn. Aviso Regulador de Dispositivos Sem Fio para ThinkPad R40 Series Este avisoéum documento complementar do“Guia de Serviços e Resolução de Problemas do ThinkPad ® R40 Series”. O computador ThinkPad R40 Series estáde acordo com a freqüência de radio e com os padrões de segurança de qualquer paísouregião em que seu uso sem fio tenha sido aprovado. Recomendamos que vocêinstale e utilize se…

Text truncated - open the document above for the full version.

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan December 04, 2002 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Subject: Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application document for the FCC Part 15, Subpart C certification. - FCC ID:ANO20020200BRX - Applying equipment name:IBM High Rate Wireless LAN Mini-PCI Adapter III - Device type:LMA device of 2400M-2483.5MHz, DTS device Direct Sequence Spread Spectrum transmitter The applying product is an OEM IEEE802.11b Wireless LAN Mini-PCI card supplied by Actiontec Electronics, Inc. If any further information is required concerning this application, please contact us. Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC 19-0208-0 Prepared by T. Murota 2/2 Outline of Submission 1. Objective This is a Certification Compliance Report for FCC Part 15 subpart C (Intentional Radiator). - The applying equipment: IBM High Rate Wireless LAN Mini-PCI Adapter III - FCC ID: ANO20020200BRX 2. Product Description The applying LMA transmitter is an OEM IEE 802.11b Wireless LAN mini-PCI card supplied by Actiontec Electronics, Inc. 3. Installation of the applying transmitter The applying LMA transmitter is a user installable wireless card. The supported host devices for the applying LMA transmitter are as follows. - IBM ThinkPad R40 Series - IBM ThinkPad T40 Series - IBM ThinkPad X30 Series - IBM ThinkPad G40 Series This application document includes one host device (IBM laptop PC, ThinkPad R40 Series). The remained host devices are planned to be certified on each announcement period. An unique electrical connector (so called BIOS Lock) is employed for those host devices to satisfy the FCC rule Part 15.203 or RSS-210 Ë5.5. This mechanism enables users to install the applying LMA transmitter to each specified host listed above. The detail explanation of the unique coupling between the LMA transmitter and antenna systems is shown in the separated exhibit “Confidential_BIOS_Lock”, however IBM would like to hold it in confidence to maintain the secure "unique operability" with the applying card and IBM antenna systems. The BIOS Lock function is also effective for the user’s maintenance in replacing a broken card with a spare part.

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan December 04, 2002 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Subject: Confidentiality Request for FCC Certification of Part 15, Subpart C Dear sir : Dear sir : Please find enclosed an IBM’s application document for the FCC Part 15, Subpart C certification. - FCC ID: ANO20020200BRX - Applying equipment name:IBM High Rate Wireless LAN Mini-PCI Adapter III - Device type:LMA device of 2400M-2483.5MHz, DTS device Direct Sequence Spread Spectrum transmitter Pursuant to 47 CFR section 0.457(d) and 0.459, we hereby request confidentiality for the schematics, detailed block diagrams, detailed theories of operation, parts list and BIOS Lock mechanism. The subjected files are as follows. - Confidential_Schematic_Diagrams.pdf - Confidential_Block_Diagrams.pdf - Confidential_Circuitry_Description.pdf - Confidential_Parts_List.pdf - Confidential_BIOS_Lock.pdf Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC-19-0208-0 Prepared by T. Murota 1/1 Limited Modular Transmitter Approval Qualification 1. The modular transmitter has its own RF shielding cover on the back side, which shields over the VCO, SAW and etc. 2. The modular transmitter works with its own data buffering and modulation circuits. No input terminal from an external source to control the modulation, RF or data processing is implemented on the board. 3. The modular transmitter has its own voltage regulator, and local reference oscillator. 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 204(c) with an unique control logic. Please refer the separate exhibit “Confidential_BIOS_Lock.pdf”. Each antenna system used for the applying module shall be approved with the module. This application includes a built-in type antenna of IBM laptop computer ThinkPad R40 Series. The Class II permissive change submissions are being in plan for each additional antenna system. 5. The modular transmitter was tested in a stand-alone configuration with the built-in antenna of the host device connected to the proper AC adapter. It complied with the AC power line conducted requirements found in Section 15.207. 6. The modular transmitter is labeled with its own FCC ID number. Also the host device in which the modular transmitter is plugged has a label pointing the FCC ID number location. Please refer the separated exhibit for the antenna of the host device (R40_Antenna_Info.pdf). 7. The modular transmitter complies with the applied specific rule and operating requirements applicable to the transmitter, and the adequate instructions along with the module to be explained to users are provided with the user’s manual. 8. The modular transmitter complies with the applicable RF exposure requirements. The proper RF exposure evaluations were performed with the host device in line with the FCC Rules in Sections 2.1091, since the antenna separation distance of 20cm or more from human’s body is maintained for the host device.

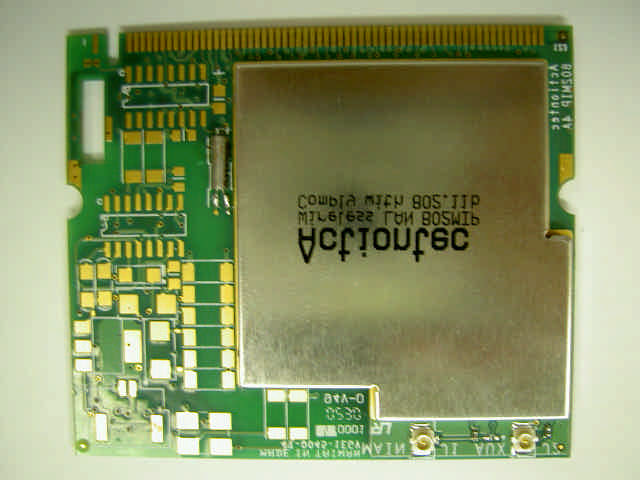

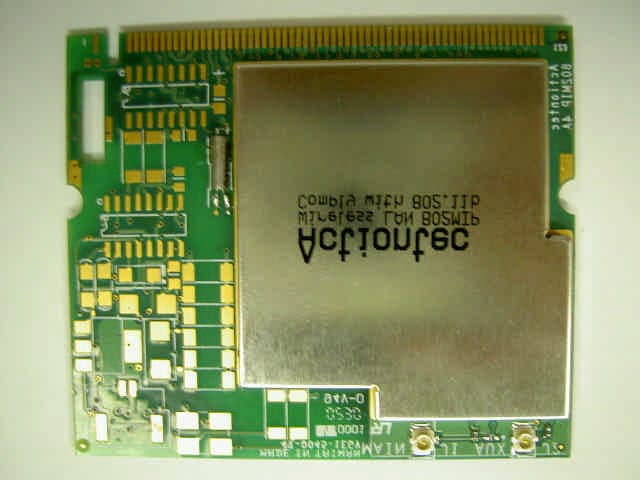

FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC 19-0208-0 Prepared by T. Murota 1/1 External Photos Antenna terminals Back side Top side without label

FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC 19-0208-0 Prepared by T. Murota 1/2 Product Labeling Top side Reserved for MAC address FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC 19-0208-0 Prepared by T. Murota 2/2 Back side

FCC Test Report FCC ID: ANO20020200BRN Document Number: FCC 19-0208-0 Prepared by T. Murota 1/1 Internal Photos Top side Antenna terminals without label

FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC-19-0208-0 Prepared by T. Murota 1/14 Host Unit Information of ThinkPad R40 Series l Host PC Information l Host PC Labeling l Antenna Information FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC-19-0208-0 Prepared by T. Murota 2/14 Host PC Information The left antenna in LCD is used for both RF transmission and receiving with half duplex switching mode. The right antenna is used for RF receiver only. When the Wireless LAN card is in RF receiving state, one of the antennas is selected automatically to have a good quality of radio communication. Main Antenna Auxiliary antenna Bottom Side Mini-PCI card slot to plug in the applying LMA transmitter module FCC ID and IC certification number are visible when the slot cover is removed. FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC-19-0208-0 Prepared by T. Murota 3/14 IBM ThinkPad R40 Series, LCD 15 inch Model FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC-19-0208-0 Prepared by T. Murota 4/14 IBM ThinkPad R40 Series, LCD 14 inch Model FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC-19-0208-0 Prepared by T. Murota 5/14 IBM ThinkPad R40 Series, LCD 13 inch Model FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC-19-0208-0 Prepared by T. Murota 6/14 Host PC Labeling Bottom view, Front side Applying LMA transmitter is under this slot cover. FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC-19-0208-0 Prepared by T. Murota 7/14 Label for a different model of the applying equipment (ThinkPad R40 Series) The host device (ThinkPad R40 Series) supports the applying transmitter and a built-in type Bluetooth LMA which is to be certified separately with FCC ID: ANO20020100MTN. FCC ID of a separated application ( a built-in Bluetooth LMA transmitter) FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC-19-0208-0 Prepared by T. Murota 8/14 Antenna Information 1. Antenna Specification Transmission Antenna assembly overview DesignatorManufactureAntenna typeCable type and length Gain (dBi) Note 1) 3301BZ9078A 15 inch LCD model Main antenna Hitachi Cable Ltd. (Japan) Dual Band Inverted F type Antenna coax 530mm 2400-2500MHz 0.46 dBi (peak) 3301BZ9079A 15 inch LCD model Auxiliary antenna Hitachi Cable Ltd. (Japan) Dual Band Inverted F type Antenna coax 640mm 2400-2500MHz -1.06 dBi (peak) 3301BZ9076A 13/14 inch LCD model Main antenna Hitachi Cable Ltd. (Japan) Dual Band Inverted F type Antenna coax 530mm 2400-2500MHz -0.37 dBi (peak) 3301BZ9077A 13/14 inch LCD model Auxiliary antenna Hitachi Cable Ltd. (Japan) Dual Band Inverted F type Antenna coax 640mm 2400-2500MHz 0.83 dBi (peak) Notes: 1a. Includes all cable losses. 1b. Antenna type should be Omni Directional and have gain of 2.0 dBi or less for IEEE802.11b(2.4GHz band), regarding the IBM internal specification. FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC-19-0208-0 Prepared by T. Murota 9/14 -30 -20 -10 0 10 H V H+V 0º Peak 45º 180º 270° 90° -30 -20 -10 0 10 H V H+V 0º Peak 295º 180º 270° 90° 2. Radiation characteristic of antennas 2.1 2400-2500MHz radiation characteristic of antenna for LCD 15 inch model Main antenna Note1) The measurement was performed at 3 frequencies (2400, 2450, 2500MHz). Note2) The maximum antenna gain was found around 45 degree angle from measuring apparatus in horizontal polarization at the low frequency (2400MHz). Auxiliary antenna Note1) The measurement was performed at 3 frequencies (2400, 2450, 2500MHz). Note2) The maximum antenna gain was found around 295 degree angle from measuring apparatus in horizontal polarization at the high frequency (2500MHz). Hori (dBi) ave.-4.99 Vert (dBi) ave.-6.83 H+V (dBi) ave.-2.80 Peak(dBi) ( H ) 0.46 Center Frequency:2400MHz Hori (dBi) ave.-5.84 Vert (dBi) ave.-7.66 H+V (dBi) ave.-3.64 Peak(dBi) ( H ) -1.06 Center Frequency:2500MHz Measuring Apparatus 3m Peak 45° Inverted F Antenna (Main Side) Measuring Apparatus 3m Peak 295° Inverted F Antenna (Auxiliary Side) FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC-19-0208-0 Prepared by T. Murota 10/14 -30 -20 -10 0 10 H V H+V 0º Peak 45º 180º 270° 90° -30 -20 -10 0 10 H V H+V 0º Peak 315º 180º 270° 90° 2.2 2400-2500MHz radiation characteristic of antenna for LCD 13/14 inch model Main antenna Note1) The measurement was performed at 3 frequencies (2400, 2450, 2500MHz). Note2) The maximum antenna gain was found around 45 degree angle from measuring apparatus in horizontal polarization at the high frequency (2500MHz). Auxiliary antenna Note1) The measurement was performed at 3 frequencies (2400, 2450, 2500MHz). Note2) The maximum antenna gain was found around 315 degree angle from measuring apparatus in vertical polarization at the middle frequency (2450MHz). Hori (dBi) ave.-5.09 Vert (dBi) ave.-6.36 H+V (dBi) ave.-2.67 Peak(dBi) ( H ) -0.37 Center Frequency:2500MHz Hori (dBi) ave.-5.18 Vert (dBi) ave.-3.55 H+V (dBi) ave.-1.28 Peak(dBi) ( V ) 0.83 Center Frequency:2450MHz Measuring Apparatus 3m Peak 45° Inverted F Antenna (Main Side) Measuring Apparatus 3m Peak 315° Inverted F Antenna (Auxiliary Side) FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC-19-0208-0 Prepared by T. Murota 11/14 3. Antenna Locations 3.1 LCD 15 inch Model Auxiliary antenna Dual Band Inverted-F type P/N: 3301BZ9079A Main antenna Dual Band Inverted-F type P/N: 3301BZ9078A FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC-19-0208-0 Prepared by T. Murota 12/14 3.2 LCD 13/14 inch Model Auxiliary antenna Dual Band Inverted-F type P/N: 3301BZ9077A Main antenna Dual Band Inverted-F type P/N: 3301BZ9076A FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC-19-0208-0 Prepared by T. Murota 13/14 4. Exterior Photos of Antennas 4.1 LCD 15 inch Model Main Antenna (Left) Manufacturer: Hitachi Cable Ltd. Parts Number: 3301BZ9078A Dual Band Inverted-F type antenna Cable : coax 530 mm Auxiliary Antenna (Right) Manufacturer: Hitachi Cable Ltd. Parts Number: 3301BZ9079A…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC 19-0208-0 Prepared by T. Murota 1/4 RF Exposure 1. RF Exposure evaluation for the applying transmitter As shown in the following photo, WLAN transmission antenna of the host laptop PC, IBM ThinkPad R40 Series, is located at the top of display (LCD) bezel. The separation distances between the antennas and the human body are 20cm or more. Therefore the laptop PC can be categorized as a mobile device by FCC CFR 47 Section 2.1091. The highest conducted peak output power of the Test Report is 38.0mW (15.8dBm) and the maximum gain of the transmission antenna(main antenna) is 0.46 dBi (See page 8/14 of the separated exhibit “R40_Antenna_Info.pdf ”). Therefore the peak radiated output power(EIRP) is calculated as follows. EIRP = P + G = 15.8 dBm + 0.46 dBi = 16.26 dBm (42.27 mW) Then, the maximum power density at 20cm distance is calculated as : S = EIRP/(4 % R 2 % o) = 0.0084 mW/cm 2 The result is far below the MPE limit (1.0 mW/ cm 2 ) that keeps the sufficient margin for use of continuous RF exposure environment in normal operation. Therefore the LMA transmitter meets the MPE requirements for general Population/Uncontrolled exposure. The separation distance between the antenna and the human body (lap) is about 22cm. FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC 19-0208-0 Prepared by T. Murota 2/4 2. RF Exposure evaluation for Bluetooth transmitters The applying laptop PC (ThinkPad R40 Series) supports three kinds of Bluetooth devices as follows. FCC IDGrantee Name Product Name Granted DateERP in FCC test report PI4BT-ULTRA Bluetooth Ultraport Module May/22/20011.4 mW User’s option PI4BT-IBM-PCII TDK Systems Europe Ltd. Blutooth PC Card II August/21/2001 1.0mW Built-in type LMA transmitter ANO20020100MTNIBM Japan, Ltd. IBM integrated Blutooth with 56K Modem Under being inspected with this application 2.5mW Interfaces to connect Wireless options FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC 19-0208-0 Prepared by T. Murota 3/4 The transmission antenna (main antenna) of the applying transmitter in the LCD section is assembled apart from each Bluetooth antenna shown in the previous page with 20 cm or more distance. Therefore the RF exposure evaluation for those Bluetooth transmitters is able to be done independently of the applying antennas. In other word, a collocated SAR testing is not required. When a customer operates the applying PC on one’s lap, the sufficient separation distance (minimum 20cm) between the above Bluetooth antennas and the person’s body (lap) can not be maintained. But the footnote of the Section 3 in Supplement C to OET Bulletin 65 states “ 14 .......... If a device, its antenna or other radiating structures are operating at closer than 2.5 cm from a person’s body or in contact with the body, SAR evaluation may be necessary when the output is more than 50 – 100 mW, depending on the device operating configurations and exposure conditions.” The total output power of the three Bluetooth transmitters in the previous table does not exceed 5mW. Therefore these transmitters also satisfy the RF exposure evaluation regarding CFR 47 Part 15.247(b)(4) without a SAR compliance test report, and can operate with the applying transmitter simultaneously. IBM Web site guides to customers about the grant condition related to those collaborating transmitter devices as shown in the next page. FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC 19-0208-0 Prepared by T. Murota 4/4 3. IBM Web site for user’s guidance concerning the co-located transmitters Note) The contents will be available after the product announcement. http://www.pc.ibm.com/qtechinfo/MIGR-43693.html

FCC ID: ANO20020200BRX Document Number: FCC-19-0208-1 Prepared by T. Murota. 1/4 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan To whom this may concern January 15, 2003 TCB Requested Information FCC ID : ANO20020200BRX Applicant : International Business Machines Corporation Correspondence Reference Number : 230114d.ANO 731 Confirmation Number : TC1389 Original Requested Date : January 15, 2003 Subject 1) Please confirm all transmitters (FCC IDs) this device will be collocated or installed. Please clarify whether all these transmitters can transmit simultaneously ? Answer 1) The three Bluetooth transmitters in the RF Exposure exhibit can transmit simultaneously with the applying transmitter. i.e. ANO20020100MTN, PI4BT-ULTRA, and PI4BT-IBM-PCII Subject 2) Please confirm if the Bluetooth module (ANO20020100MTN) will be available as an option and collocated with this device. Recent FCC policy requires separate FCC ID for each transmitter combination. Please clarify whether this Bluetooth option was evaluated or tested with this device. Answer 2) Yes, the ANO20020100MTN is an available option. Please refer the Attachment. The “Discussion Item 1” through “Item 3” are related to the subject. With those acceptance by the FCC, the applying transmitter meets the requirement. i.e. - ANO20020200BRX covers the combination with the three Bluetooth modules specified in the application, because the total power of those transmitters is within the threshold(5mW). - Also it can cover the collocation with a built-in type LMA device like ANO20020100MTN. The evaluation for the collocation was submitted as the “RF Exposure” exhibit. Subject 3) Please address the several references in the users manual (pages 7, 14) regarding operation in the 5.2GHz Band (5.15 - 5.25 GHz). Please send test data, if available, or revise users manual accordingly. Answer 3) The host device ThinkPad R40 Series has several models. The subjected model in page 7, 14 is a different one from the application as shown in the manual. Since this model has its own FCC ID (ANO20020300D3L). The test data was submitted for the application of this FCC ID separately. Subject 4) Please clarify the FCC IDs that are listed in the users manual (pages 6, 7, 8, 10). Please confirm if these FCC IDs are valid for this device. Answer 4) The following FCC IDs are introduced in the manual and being under certification process. Those will be announced on the same day for the same host system (IBM ThinkPad R40 Series). - FCC ID: ANO20020300D3L - FCC ID: ANO20020100MTN - FCC ID: ANOU58H004 - FCC ID: ANO20020200BRX (the applying transmitter) Sincerely, January 15, 2003 Toshiya Murota, Staff Engineer, EMC Engineering, Yamato Laboratory, IBM Japan Ltd. FCC ID: ANO20020200BRX Document Number: FCC-19-0208-1 Prepared by T. Murota. 2/4 Attachment Reply comments from FCC/OET/Lab/EAB, 3 Sep. 2002. General comments: 1) TCBs can do BIOS lock LMAs. The BIOS lock grant condition must be on the grants. EAB will circulate a processing info sheet for TCBs. 2) Only 5mW PCMCIA options were shown by IBM. Other powers may have separate considerations. >>> "George Kavelak" <[email protected]> 08/12/02 09:36AM >>> >>> Re: Confirmation of August 8, 2002 Meeting Results >>> Thank you for taking the time to meet with us to answer our questions regarding TCB authorization capability for LMA and co-located transmitters. Projected quantities of IBM application submissions will necessitate our ability to use of TCBs for expedient application processing. This note is to document our understanding of the results of our meeting with you on August 8, 2002 at the FCC Columbia Lab. Please confirm or correct any misunderstanding. Attendees: Joe Dichoso, FCC, OET Laboratory Division, Equipment Authorization Branch Tim Harrington, FCC, OET Laboratory Division, Equipment Authorization Branch Toshiya Murota, IBM-Japan George Kavelak, IBM We presented the four "Discussion Items" in the attached file: (See attached file: FCC-Aug2002.pdf) Discussion Item 1: This laptop configuration of co-transmitters (a 50-100 mW 2.4 GHz WLAN LMA [with BIOS Lock] with transmit antenna in the top of the laptop display panel and a 5 mW wireless PCMCIA device in the PCMCIA slot in the laptop base) represents that which IBM currently has obtained FCC certification by submission directly to the FCC. You have agreed that this configuration of co-transmitters can be submitted to an appropriate TCB for certification. It does not violate conditions of the TCB Exclusion List of 17 July 2002. TCB Exclusion List II) b) is compliant and TCB Exclusion List II) f) is compliant. You indicated that TCB Exclusion List II) h) would not be an applicable condition for determination due to the separation (>15-20 cm; even 10-20 cm may be acceptable for these low Bluetooth device transmit powers) between the transmit antennas and their relative powers. EAB: As discussed in meeting, if display section antenna can be treated as mobile, July 02 TCB Excl List II) h) 2) does not apply. II) h) 2) also depends on colocation conditions and definition, where in general above 1 GHz colocation should be considered if devices are within 20 cm of each other. For example, per II) h) 2) TCB could not do 50mW LAN and 2mW Bluetooth if antennas for both are in base section. Devices used within 20 cm of a person’s body are subject to SAR limits. For subnotebooks with separation less than 20 cm to display section antenna, EAB may establish power thresholds relative to base section antenna where SAR evaluation is not needed. Discussion Item 2: This laptop configuration is the same as Discussion Item 1 with the addition of a low power Bluetooth transmitter built into the laptop. You agreed that this configuration of co-transmitters could be submitted to an appropriate TCB for FCC ID: ANO20020200BRX Document Number: FCC-19-0208-1 Prepared by T. Murota. 3/4 certification. TCB Exclusion List II) h) would not be an applicable conditio…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC 19-0208-0 Emission Test Report Standard: FCC Part 15 Subpart C / IC RSS-210 Document Number : FCC 19-0208-0 Product: IBM High Rate Wireless LAN Mini PCI Adapter III measured with IBM ThinkPad R40 Series FCC ID: ANO20020200BRX IC: 349E-802MIP January 7, 2003 Prepared: EMC Staff Engineer Takeshi Asano Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242, Japan Phone: +81-46-215-4779 Fax: +81-46-273-7420 E-Mail: [email protected] Reviewed and Checked: EMC Staff Engineer Toshiya Murota Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242, Japan Phone: +81-46-215-6574 Fax: +81-46-273-7420 E-Mail: [email protected] Approved : Manager, EMC Engineering Akihisa Sakurai Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242, Japan Phone: +81-46-215-2613 Fax: +81-46-273-7420 E-Mail: [email protected] FCC Test Report FCC ID: ANO20020200BRX Document Number: FCC 19-0208-0 MEASUREMENT / TECHNICAL REPORT – Part 15 Subpart C (Intentional Radiator) IBM High Rate Wireless LAN Mini PCI Adapter III (with ThinkPad R40 Series) FCC ID : ANO20020200BRX January 7, 2003 This report concerns: (check one) Original Grant ̧ Class I change Class II change Equipment type: Wireless LAN device This report shall not be reproduced except in full, without the written permission of this test lab. The measurement results contained in this report relate only to the item which was tested. Measurement procedure used is ANSI C63.4-2000 unless otherwise specified. Other test procedure: The FCC has issued provisional acceptance of this test laboratory for Declaration of Conformity testing per letter dated 1997. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: By checking yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), …

Text truncated - open the document above for the full version.
