FCC Test Report FCC ID: ANO20020201CLK Document Number: FCC 19-0211-0 Prepared by T. Murota User’s Manual The attachment is the regulatory notices related to the FCC Part 15C and IC RSS-210 drawn from the user’s manual of each host PC device (IBM ThinkPad R40, T40, or X30 Series). The descriptions marked in yellow are the related portion to the FCC rule concerning the applying LMA transmitter module. Part Number: 92P1842 Wireless Regulatory Notice for ThinkPad R40 Series This notice is a supplementary document of the “ThinkPad ® R40 Series Service and Troubleshooting Guide.” Please read this document before you use the ThinkPad R40 Series computer. The ThinkPad R40 Series computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. You are requested to install and use your ThinkPad computer in strict accordance with the instructions as described hereafter. Avis relatif aux appareils sans fil pour les ThinkPad R40 Series Le présent document complète le manuel “ThinkPad ® R40 Series - Guide de maintenance et d’identification des incidents”. L’ordinateur ThinkPad R40 Series est conforme aux normes de radiofréquence et de sécurité en vigueur dans les pays ou régions où son utilisation sans fil a été acceptée. L’ordinateur doit être installé et utilisé conformément aux instructions fournies ci-après. Avant d’utiliser votre ordinateur ThinkPad R40, veuillez lire ce document. Hinweis zu drahtlosen Einheiten für den ThinkPad R40 Series Dieser Hinweis ergänzt die Informationen im Handbuch “ThinkPad ® R40 - Service und Fehlerbehebung”. Der ThinkPad R40 erfüllt die Funkfrequenz- und Sicherheitsstandards der Länder und Regionen, in denen er für die Verwendung als drahtlose Einheit zugelassen ist. Der ThinkPad R40 muss exakt wie nachfolgend beschrieben installiert und verwendet werden. Lesen Sie unbedingt die entsprechenden Informationen in diesem Dokument, bevor Sie den ThinkPad R40 verwenden. © Copyright IBM Corp. 20031 USA—Federal Communications Commission (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. I. Permanent integrated Wireless Module vIBM Dual-Band 11a/b Wi-Fi ® Wireless Mini PCI Adapter i) Installation of the integrated wireless module The above Dual-Band Mini PCI Adapter is preinstalled by IBM, and is not removable by users. There is no mini-PCI option card supported for this module, and you are not allowed to install it by yourself. If your card requires replacement via the proper step shown in“Chapter 3. Getting help and service from IBM”of the ThinkPad R40 Series Service and Troubleshooting Guide, IBM will request you to send your computer with the card(s) to IBM so that IBM will repair it. ii) The FCC RF Safety Requirement The radiated output power of Wireless LAN Mini-PCI Card and Bluetooth card are far below the FCC radio frequency exposure limits. Nevertheless, the ThinkPad R40 computer shall be used in such a manner that the potential for human contact during normal operation is minimized as follows: Use of Wireless options If you find the FCC ID“ANO20020300D3L”on the label at the bottom side of your ThinkPad computer, your computer is approved as a multiple transmitters device that is permitted to use the integrated Wireless LAN Mini-PCI Card and Bluetooth card with one or more wireless option PC Cards in the PC Card slot simultaneously. Please make sure of the following when you use a Bluetooth option or wireless option PC Card in your ThinkPad computer. 1.Visit the IBM site atwww.ibm.com/pc/qtechinfo/MIGR-44156.htmland confirm the updated list of RF option devices that have been approved to cooperate with the integrated wireless feature. 2.When you use any other RF option device that is not listed on the IBM site, all other wireless features including the integrated transmitter in your ThinkPad computer are required to be turned off. 3.Users are requested to follow the RF Safety instructions on wireless option devices that are included in the RF option device’s user’s manual. CAUTION: To comply with FCC RF exposure compliance requirements, a separation 6 distance of at least 20 cm (8 inches) must be maintained between the antenna for the integrated Wireless LAN Mini-PCI Card built in to the screen section and all persons. FCC ID: ANO20020300D3L Main 20cm 20cm Auxiliary antenna antenna Note:IBM Dual-Band 11a/b Wi-Fi ® Wireless Mini PCI Adapter implements transmission diversity function. The function does not emit radio frequencies simultaneously from both antennas. One of the antennas is selected automatically or manually (by users) to have good quality of radiocommunication. iii) Radio Frequency Interference Requirements: vThis device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. vHigh power radar are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this device. vAn improper installation or unauthorized use may cause harmful interference to radio communications. Also any tampering of the internal antenna will void the FCC certification. Refer to the“Appendix E. Notices, Electronic emission notices”of the ThinkPad R40 Series Service and Troubleshooting Guide for more detail. 7 II. Modular Approved transmitter cards Mini PCI cards vIBM High Rate Wireless LAN Mini PCI Adapter III vIntel ® Pro/Wireless LAN 2100 3B Mini PCI Adapter vCisco Aironet Wireless 802.11b Communication Daughter Card (CDC) vIBM integrated Bluetooth with 56K Modem Note:Some models do not support these…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANO20020201CLK Document Number: FCC-19-0211-0 Yellow Sheet : No. EM731, EM732, M766 Application Document for FCC Part 15, Subpart C (Intentional Radiator) Product Name: Intel PRO/Wireless LAN 2100 3B Mini PCI Adapter Document Number: FCC 19-0211-0 FCC ID: ANO20020201CLK February 04, 2003 EMC R&D Staff Engineer Toshiya Murota Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-6574 Fax: +81-46-273-7420 E-Mail: [email protected] Portable Product Development No. 3 Hidenori Kinoshita Signature: IBM Japan, Ltd. Portable Systems LAB-R16 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-2808 EMC Engineering Manager / NVLAP signatory Akihisa Sakurai Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-2613 Fax: +81-46-273-7420 E-Mail: [email protected] Portable Systems Director Arimasa Naitoh Signature: IBM Japan, Ltd. Portable Systems LAB-R11 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-6110 FCC Test Report FCC ID: ANO20020201CLK Document Number: FCC 19-0211-0 Prepared by T. Murota 2/2 Outline of Submission 1. Objective This is a Certification Compliance Report for FCC Part 15 subpart C (Intentional Radiator). - The applying equipment: Intel PRO/Wireless LAN 2100 3B Mini PCI Adapter - FCC ID: ANO20020201CLK 2. Product Description The applying LMA transmitter is an OEM IEE 802.11b Wireless LAN mini-PCI card supplied by Intel Corporation. 3. Installation of the applying transmitter The applying LMA transmitter is a user installable wireless card. The supported host devices for the applying LMA transmitter are as follows. - IBM ThinkPad R40 Series - IBM ThinkPad T40 Series - IBM ThinkPad X30 Series An unique electrical connector (so called BIOS Lock) is employed for those host devices to satisfy the FCC rule Part 15.203 or RSS-210 Ë5.5. This mechanism enables users to install the applying LMA transmitter to each specified host listed above. The detail explanation of the unique coupling between the LMA transmitter and antenna systems is shown in the separate exhibit “Confidential_BIOS_Lock”, however IBM would like to hold it in confidence to maintain the secure "unique operability" with the applying card and IBM antenna systems. The BIOS Lock function is also effective for the user’s maintenance in replacing a broken card with a spare part. 4. Compliance tests The compliance tests were performed for each antenna systems. The test reports for ThinkPad R40 and X30 Series were provided by Intel Corp., and IBM performed the test for ThinkPad T40 Series. 5. Collocation with other transmitter The applying LMA transmitter collocates with the following Bluetooth transmitters and transmits simultaneously. - IBM Integrated Bluetooth with 56 Modem (FCC ID: ANO20020100MTN) - Bluetooth UltraPort Module from IBM (FCC ID: PI4BT-ULTRA) - Bluetooth PC Card II (FCC ID: PI4BT-IBM-PCII) As for the RF safety evaluation, refer to the “RF Exposure” exhibit.

FCC Test Report, FCC ID: ANO20020201CLK Document Number: FCC 19-0211-0 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan February 4, 2003 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Subject: Confidentiality Request for FCC Certification of Part 15, Subpart C Dear sir / madam: Please find enclosed an IBM’s application for the FCC Part 15, Subpart C certification : - FCC ID : ANO20020201CLK - Applying equipment name: Intel PRO/Wireless LAN 2100 3B Mini PCI Adapter - Device type : LMA device of 2412M-2462MHz, DTS device Direct Sequence Spread Spectrum Pursuant to 47 CFR section 0.457(d) and 0.459, we hereby request confidentiality for the schematics, detailed block diagrams, detailed theories of operation including BIOS logic. The subjected files are as follows. - Confidential_Schematic_Diagrams.pdf - Confidential_Block_Diagram.pdf - Confidential_Circuitry_Description.pdf - Confidential_BIOS_Lock.pdf (an unique electrical antenna connector logic) Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan February 4, 2003 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Subject: Request for FCC Certification of Part 15, Subpart C Dear sir / madam : Please find enclosed an IBM’s application document for the FCC Part 15, Subpart C certification. - FCC ID : ANO20020201CLK - Applying equipment name: Intel PRO/Wireless LAN 2100 3B Mini PCI Adapter - Device type: LMA device of 2412-2462MHz DTS, Direct Sequence system The applying product is a IEEE802.11b WLAN mini-PCI adapter and is an user installable LMA transmitter module plugged into the specific host PCs (IBM ThinkPad R40, T40, and X30 Series). If any further information is required concerning this application, please contact us. Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

FCC Test Report FCC ID: ANO20020201CLK Document Number: FCC-19-0211-0 Prepared by T. Murota 1/1 Limited Modular Transmitter Approval Qualification 1. The modular transmitter has its own RF shielding cover on the top side, which shields over the RF circuits (VCO, SAW, ..etc.). Refer to the “External Photos” exhibit. 2. The modular transmitter has its own buffered modulation/data inputs. All inputs to the modules are buffered through the radio circuitry. Refer to the “Block Diagram” and “Schematic Diagrams” exhibits. 3. The modular transmitter has its own power supply regulator and local reference oscillator. Refer to the “Block Diagram” and “Schematic Diagrams” exhibits. 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 204(c) with an unique electrical antenna connector. Please refer to the “BIOS Lock” exhibit. Each antenna system used for the applying module shall be approved with the module. This application includes the built-in type antennas of IBM laptop computer, ThinkPad R40 Series, ThinkPad T40 Series, and ThinkPad X30 Series. 5. The modular transmitter was tested in a stand-alone configuration with each built-in antenna of the host device connected to the proper AC adapter. It complied with the AC power line conducted requirements found in Section 15.207. 6. The modular transmitter is labeled with its own FCC ID number. Also the host device in which the modular transmitter is plugged has a label pointing the FCC ID number location. Please refer to the separate exhibit for the antenna systems of host devices (Antenna_Info.pdf). 7. The modular transmitter complies with the applied specific rule and operating requirements applicable to the transmitter, and the adequate instructions along with the module to be explained for customers are provided with the user’s manual. 8. The modular transmitter complies with the applicable RF exposure requirements. The proper RF exposure evaluations were performed with the host devices in line with the FCC Rules in Sections 2.1091 (MPE), since the antenna separation distance of 20cm or more from human’s body is maintained for the host device.

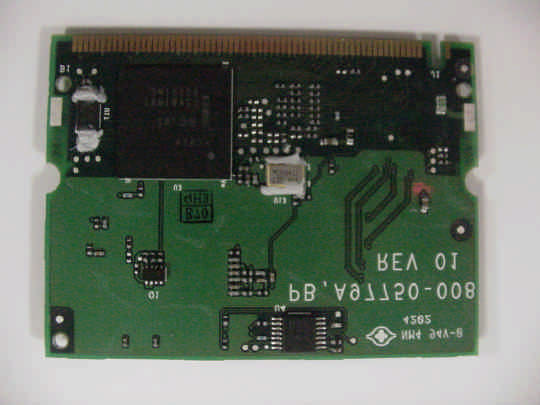

FCC Test Report FCC ID: ANO20020201CLK Document Number: FCC 19-0211-0 Prepared by T. Murota 1/1 External Photos Back side Top side (with shielding) Antenna terminals

FCC Test Report FCC ID: ANO20020201CLK Document Number: FCC 19-0211-0 Prepared by T. Murota 1/1 Product Labeling Top side

FCC Test Report FCC ID: ANO20020201CLK Document Number: FCC 19-0211-0 Prepared by T. Murota 1/1 Internal Photos Back side N/A (no shielding on back side) Top side (without shielding) Antenna terminals

FCC Test Report, FCC ID: ANO20020201CLK Document Number: FCC-19-0211-0 Prepared by T. Murota 1/26 Host Unit Antenna Information for ThinkPad R40 Series ThinkPad T40 Series ThinkPad X30 Series 1.HOST PC INFORMATION.............................................................................2 1.1IBM THINKPAD R40 SERIES........................................................................................................2 1.2IBM THINKPAD T40 SERIES.........................................................................................................4 1.3IBM THINKPAD X30 SERIES.........................................................................................................5 2.HOST PC LABELING..................................................................................6 2.1LABELING OF R40 SERIES............................................................................................................6 2.2LABELING OF T40 SERIES............................................................................................................8 2.3LABELING OF X30 SERIES..........................................................................................................10 3.ANTENNA SPECIFICATIONS.......................................................................12 3.1TRANSMISSION ANTENNA ASSEMBLY OVERVIEW.............................................................................12 3.2RADIATION CHARACTERISTICS OF ANTENNAS.................................................................................13 3.2.1 R40 Series, LCD 15 inch model...........................................................................................13 3.2.2 R40 Series, LCD 13/14 inch models.....................................................................................14 3.2.3 T40 Series..........................................................................................................................15 3.2.4 X30 Series..........................................................................................................................16 3.3ANTENNA PHOTOS....................................................................................................................17 3.3.1 R40 Series, Antenna Photos................................................................................................17 3.3.2 T40 Series, Antenna Photos................................................................................................21 3.3.3 X30 Series, Antenna Photos................................................................................................25 FCC Test Report, FCC ID: ANO20020201CLK Document Number: FCC-19-0211-0 Prepared by T. Murota 2/26 1.Host PC Information 1.1 IBM ThinkPad R40 Series The main antenna in left side of LCD is used for both RF transmission and receiving with half duplex switching mode. The auxiliary antenna in right side of LCD is used for RF receiving only. The RF receiving antenna is selected automatically to have a good quality of radiocommunication Mini-PCI slot and Wireless card Auxiliary Antenna (Rx only) Main Antenna (Tx / Rx switching) FCC ID and IC certification number are visible when the slot cover is removed. FCC Test Report, FCC ID: ANO20020201CLK Document Number: FCC-19-0211-0 Prepared by T. Murota 3/26 IBM ThinkPad R40 Series supports threes size of LCD. LCD 15 inch Model LCD 14 inch Model LCD 13 inch Model FCC Test Report, FCC ID: ANO20020201CLK Document Number: FCC-19-0211-0 Prepared by T. Murota 4/26 1.2 IBM ThinkPad T40 Series The main antenna is used for both RF transmission and receiving with half duplex switching mode. The auxiliary antenna is used for RF receiver only. When the Wireless LAN card is in RF receiving state, one of the antennas is selected automatically to have a good quality of radio communication. Auxiliary Antenna Mini-PCI card slot and transmitter module. Main Antenna The FCC ID and IC’s Certification Number is visible when the palm_rest cover is removed. FCC Test Report, FCC ID: ANO20020201CLK Document Number: FCC-19-0211-0 Prepared by T. Murota 5/26 1.3 IBM ThinkPad X30 Series The left antenna in LCD is used for both RF transmission and receiving with half duplex switching mode. The right antenna is used for RF receiver only. When the Wireless LAN card is in RF receiving state, one of the antennas is selected automatically to have a good quality of radio communication. Auxiliary Antenna Main Antenna Mini-PCI card slot and transmitter module. FCC Test Report, FCC ID: ANO20020201CLK Document Number: FCC-19-0211-0 Prepared by T. Murota 6/26 2.Host PC Labeling 2.1Labeling of R40 Series Bottom view, Front side Applying LMA transmitter is under this slot cover. See page 2/26. FCC Test Report, FCC ID: ANO20020201CLK Document Number: FCC-19-0211-0 Prepared by T. Murota 7/26 Label for a different model of the applying equipment (ThinkPad R40 Series) The host device (ThinkPad R40 Series) supports the applying transmitter and a built-in type Bluetooth LMA which is to be certified separately with FCC ID: ANO20020100MTN. FCC ID of a separate application granted on Jan/21/2003 ( Not user installable ) FCC Test Report, FCC ID: ANO20020201CLK Document Number: FCC-19-0211-0 Prepared by T. Murota 8/26 2.2 Labeling of T40 Series Bottom view, Front side Applying LMA transmitter is installed under this label. See page 4/26. FCC Test Report, FCC ID: ANO20020201CLK Document Number: FCC-19-0211-0 Prepared by T. Murota 9/26 Label for a different model of the host PC (ThinkPad T40 Series) The model (T40) supports the applying transmitter and a built-in type Bluetooth LMA which is to be certified separately as the FCC ID: ANO20020100MTN. Bottom view, Front side The collocated user installable Bluetooth LMA transmitter is installed under this label. ( in certification process with this application ) FCC Test Report, FCC ID: ANO20020201CLK Document Number: FCC-19-0211-0 Prepared by T. Murota 10/26 2.3 Labeling of X30 Series Bottom view Front…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANO20020201CLK Document Number: FCC 19-0211-0 Prepared by T. Murota 1/7 RF Exposure 1. RF Exposure evaluation for the applying transmitter As shown below, the transmitter antennas (the main antennas) of all supported host PC devices are located at the top portion of each display (LCD) section, and the separation distances between the antennas and the human body are 20cm or more. Therefore the applying LMA transmitter and each antenna system is categorized as a mobile device by FCC CFR 47 Section 2.1091. Note) The auxiliary antennas are not used for transmission, so they are not subjected to the RF exposure evaluation. Antenna separation of ThinkPad R40 Series Antenna separation of ThinkPad X30 Series The separation distance between the antenna and the human body (lap) is about 22cm. Main Antenna position The separation distance between the antenna and the human body (lap) is about 21cm . Main Antenna position FCC Test Report FCC ID: ANO20020201CLK Document Number: FCC 19-0211-0 Prepared by T. Murota 2/7 Antenna separation of ThinkPad T40 Series [MPE evaluation] The following table shows the highest conducted peak output power values measured on each host PC device, and the maximum peak antenna gains. Host device model nameP: conducted peak output powerG: peak antenna gain ThinkPad R40 Series (13/14 inch)17.1dBm (51.3mW)- 0.37 dBi ThinkPad R40 Series (15 inch)16.9dBm (49.0mW)+ 0.46 dBi ThinkPad T40 Series17.4dBm (55.0mW)+ 0.99 dBi ThinkPad X30 Series17.3dBm (53.7mW)+ 0.62 dBi With those results, the maximum power density at 20cm distance is calculated as follows. Host device model name EIRP = P + G (dBm) EIRP (mW) Max. power density S = EIRP/(4 % 20 2 % o) ThinkPad R40 Series (13/14 inch)16.7347.10.0094 mW/ cm 2 ThinkPad R40 Series (15 inch)17.3654.50.0108 mW/ cm 2 ThinkPad T40 Series18.3969.10.0137 mW/ cm 2 ThinkPad X30 Series17.9262.00.0123 mW/ cm 2 The results are far below the MPE limit (1.0 mW/ cm 2 ) that keep the sufficient margin for use of continuous RF exposure environment in normal operation. Therefore the LMA transmitter meets the MPE requirements for general Population/Uncontrolled exposure. The separation distance between the antenna and the human body (lap) is about 27cm . Main Antenna position FCC Test Report FCC ID: ANO20020201CLK Document Number: FCC 19-0211-0 Prepared by T. Murota 3/7 2. RF Exposure evaluation for Bluetooth transmitters The applying laptop PCs (ThinkPad R40, T40, and X30 Series) support three kinds of Bluetooth devices as follows. FCC IDGrantee Name Product NameGranted DateERP in FCC Test Report PI4BT-ULTRA Bluetooth Ultraport Module May/22/20011.4 mW User’s option PI4BT-IBM-PCII TDK Systems Europe Ltd. Blutooth PC Card II August/21/2001 1.0mW Built-in type LMA Transmitter ANO20020100MTNIBM Japan, Ltd. IBM integrated Blutooth with 56K Modem Under inspection with this application 2.58mW *1 *1: Refer to the separate application document for FCC ID:ANO20020100MTN which is submitted with this application simultaneously. Collocated Bluetooth options for ThinkPad R40 Series FCC Test Report FCC ID: ANO20020201CLK Document Number: FCC 19-0211-0 Prepared by T. Murota 4/7 Collocated Bluetooth options for ThinkPad X30 Series Built-in Bluetooth Antenna USB Main antenna of applying transmitter PCMCIA 20cmm 20cmm 2.5cm Built-in antenna of ANO20020100MTN FCC Test Report FCC ID: ANO20020201CLK Document Number: FCC 19-0211-0 Prepared by T. Murota 5/7 Collocated Bluetooth options for ThinkPad T40 Series Main antenna of applying transmitter PCMCIA USB Built-in Bluetooth Antenna 23cmm Main antenna FCC Test Report FCC ID: ANO20020201CLK Document Number: FCC 19-0211-0 Prepared by T. Murota 6/7 The main antennas placed at the LCD section of each host devices are assembled apart from each Bluetooth antenna with 20 cm or more. Therefore the RF exposure evaluation for those Bluetooth transmitters is allowed to be examined independently of the applying main antennas. In other word, the SAR testing for the applying transmitter in collocating with those Bluetooth options is not required. When users operate the applying host PCs on ones’ lap, the sufficient separation distance (minimum 20cm) between the above Bluetooth antennas and the person’s body (lap) can not be maintained. That is, for the Bluetooth PC Card II (FCC ID:PI4BT-IBM-PCII) the minimum separation distance is approximately 1.5cm, and for the built-in Bluetooth (FCC ID: ANO20020100 MTN) the minimum distance is approximately 2.5cmm in case of ThinkPad X30 Series. (Refer to page 4/7 of this exhibit.) But the footnote of the Section 3 in Supplement C to OET Bulletin 65 states “ 14 .......... If a device, its antenna or other radiating structures are operating at closer than 2.5 cm from a person’s body or in contact with the body, SAR evaluation may be necessary when the output is more than 50 – 100 mW, depending on the device operating configurations and exposure conditions.” The total output power of the three Bluetooth transmitters in the previous table does not exceed 5mW. Therefore these transmitters also satisfy the RF exposure evaluation regarding CFR 47 Part 15.247(b)(4) without a SAR compliance test report, and can operate with the applying transmitter simultaneously. IBM Web site guides to customers about the grant condition related to those collaborating transmitter devices. Refer to page 7/7 of this exhibit. FCC Test Report FCC ID: ANO20020201CLK Document Number: FCC 19-0211-0 Prepared by T. Murota 7/7 3. IBM Web site for user’s guidance concerning the co-located transmitters Note) The contents will be available after the product announcement. http://www.pc.ibm.com/qtechinfo/MIGR-43693.html

File: R49682 December 16, 2002 Chief, Equipment Authorization Branch, Authorization and Evaluation Division, Office of Engineering and Technology FEDERAL COMMUNICATIONS COMMISSION P.O. Box 358315 Pittsburgh, PA 15251-5315 Gentlemen: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC Rules (CFR 47) regarding intentional radiators. Data within this report demonstrates that the equipment tested complies with the FCC limits for intentional radiators. Elliott Laboratories, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, Juan Martinez Sr. EMC Engineer JM/dmg Enclosures: Application Fee FCC Form 159 FCC Form 731 Agent Authorization Letter Emissions Test Report with Exhibits File: R49682 Page 1 of 14 Electromagnetic Emissions Test Report and Application for Grant of Equipment Authorization pursuant to FCC Part 15, Subpart C Specifications for an Intentional Radiator on the Intel Corporation Model: Intel 802.11B (M/N: WM3B2100) in 14” IBM laptop (ThinkPad R40 Series) FCC ID: ANO20020201CLK IC: 349E-WM3B2100 MANUFACTURER: Intel Corporation 2300 Corporate Center Drive Thousand Oaks, CA. 91320 GRANTEE: International Business Machines Corporation New Orchard Road Armonk, NY 10504 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Avenue Sunnyvale, CA 94086 REPORT DATE: December 16, 2002 FINAL TEST DATE: December 13 & December 14, 2002 AUTHORIZED SIGNATORY: ______________________________ Juan Martinez Sr. EMC Engineer Elliott Laboratories, Inc. is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: December 16, 2002 File: R49682 Page 2 of 14 pages TABLE OF CONTENTS TABLE OF CONTENTS...............................................................................................................................................................2 SCOPE.............................................................................................................................................................................................3 OBJECTIVE...................................................................................................................................................................................3 STATEMENT OF COMPLIANCE..............................................................................................................................................3 OPERATION IN THE 2400-2483.5MHZ BAND...................................................................................................................4 MEASUREMENT UNCERTAINTIES....................................................................................................................................5 EQUIPMENT UNDER TEST (EUT) DETAILS..........................................................................................................................6 GENERAL...................................................................................................................................................................................6 ENCLOSURE..............................................................................................................................................................................6 MODIFICATIONS....................................................................................................................................................................6 SUPPORT EQUIPMENT..........................................................................................................................................................6 EXTERNAL I/O CABLING......................................................................................................................................................6 TEST SOFTWARE................................................................................................................................................................... 6 TEST SITE......................................................................................................................................................................................7 GENE…
