ANO20020300D3LIBM ThinkPad R40 Series - 802.11a/b Mini PCI

FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota User’s Manual The descriptions marked in yellow are the related portion for the applying equipment. Part Number: 92P1285 Wireless Regulatory Notice for ThinkPad R40 Series This notice is a supplementary document of the “ThinkPad ® R40 Series Service and Troubleshooting Guide.” Please read this document before you use the ThinkPad R40 Series computer. The ThinkPad R40 Series computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. You are requested to install and use your ThinkPad computer in strict accordance with the instructions as described hereafter. Avis relatif aux appareils sans fil pour les ThinkPad R40 Series Le présent document complète le manuel “ThinkPad ® R40 Series - Guide de maintenance et d’identification des incidents”. L’ordinateur ThinkPad R40 Series est conforme aux normes de radiofréquence et de sécurité en vigueur dans les pays ou régions où son utilisation sans fil a été acceptée. L’ordinateur doit être installé et utilisé conformément aux instructions fournies ci-après. Avant d’utiliser votre ordinateur ThinkPad R40, veuillez lire ce document. Hinweis zu drahtlosen Einheiten für den ThinkPad R40 Series Dieser Hinweis ergänzt die Informationen im Handbuch “ThinkPad ® R40 - Service und Fehlerbehebung”. Der ThinkPad R40 erfüllt die Funkfrequenz- und Sicherheitsstandards der Länder und Regionen, in denen er für die Verwendung als drahtlose Einheit zugelassen ist. Der ThinkPad R40 muss exakt wie nachfolgend beschrieben installiert und verwendet werden. Lesen Sie unbedingt die entsprechenden Informationen in diesem Dokument, bevor Sie den ThinkPad R40 verwenden. © Copyright IBM Corp. 20031 Aviso de regulación de conexiones inalámbricas para ThinkPad R40 Series Este aviso es un documento adicional del manual“ThinkPad ® R40 Series Guía de servicio y de resolución de problemas”. El sistema ThinkPad R40 Series satisface los estándares de seguridad y de frecuencia de radio de cualquier paísoregión en el que se haya aprobado su utilización para conexiones inalámbricas. Se solicita al usuario que instale y utilice el sistema ThinkPad siguiendo estrictamente las instrucciones que se describen a continuación. Antes de utilizar el sistema ThinkPad R40, lea este documento. Informazioni importanti sulle norme per la tecnologia senza fili per ThinkPad R40 Series Queste informazioni importanti costituiscono un documento integrativo della Guida all’assistenza e alla risoluzione dei problemi per“ThinkPad ® R40 Series.” L’elaboratore ThinkPad R40èconforme agli standard di sicurezza e di frequenza radio di ciascun paese in cuièstato approvato per l’utilizzo della tecnologia senza fili.È, quindi, necessario installare ed utilizzare l’elaboratore ThinkPad in stretta osservanza alle istruzioni di seguito riportate. Prima di utilizzare l’elaboratore ThinkPad R40, leggere il presente documento. ThinkPad R40 Series- tietokoneen langattomien yhteyksien käyttöäkoskeva huomautus Tämäasiakirja on“ThinkPad ® R40 Series -tietokone, Käyttöja vianmääritys” -julkaisun lisäosa. ThinkPad R40 Series -tietokone on sen maan tai alueen radiotaajuus- ja turvallisuusstandardien mukainen, jossa se on hyväksytty langattomien yhteyksien käyttöävarten. Käyttäjän tulee asentaa ThinkPad-tietokone ja käyttääsitäjäljempänäesitettyjen ohjeiden mukaisesti. Ennen kuin aloitat ThinkPad R40 -tietokoneen käytön, lue tämäasiakirja. Kennisgeving met betrekking tot draadloze communicatie voor ThinkPad R40 Series Deze kennisgeving is een aanvulling op de publicatie“ThinkPad ® R40 Series Service en probleemoplossing.” De ThinkPad R40 Series voldoet aan de standaards voor radiofrequenties en veiligheid in elk land of gebied waarin deze computer is goedgekeurd voor draadloos gebruik. U wordt verzocht uw ThinkPad-computer te installeren en 2 te gebruiken in strikte overeenstemming met de instructies hierna beschreven. Lees dit document voordat u de ThinkPad R40-computer gaat gebruiken. Bemækning vedr. den trådløse facilitet i ThinkPad R40 Serie-computeren Denne bemærkning er et supplement til bogen“ThinkPad ® R40 Serie Guide til service og fejlfinding”. ThinkPad R40 Serie-computeren overholder de radiofrekvens- og sikkerhedsstandarder i de lande og områder, hvor den er godkendt til trådløs brug. Du skal installere og bruge ThinkPad-computeren i nøje overensstemmelse med instruktionerne i de følgende afsnit. Læs dette dokument, før du bruger ThinkPad R40-computeren. Merknad om regulering av trådløs kommunikasjon for ThinkPad R40 Series Denne merknaden kommer i tillegg til opplysningene i“ThinkPad ® R40 Series Håndbok for service og problemløsing” ThinkPad R40 Series-maskinen er i overensstemmelse med standardene for radiofrekvenssignaler og sikkerhet i alle land eller regioner der den er godkjent for trådløbruk. Du blir bedt omåinstallere og bruke ThinkPad-maskinen i henhold til instruksjonene som følger. Du målese dette dokumentet før du bruker ThinkPad R40-maskinen. Information om radiokommunikations- och säkerhetsnormer för ThinkPad R40 Series Det här dokumentet kompletterar informationen i handboken“ThinkPad ® R40 Series Service och felsökning”. ThinkPad R40 Series uppfyller radiokommunikations- och säkerhetsnormerna ideländer och regioner där datorn har godkänts förtrådlös användning. Användarna måste installera och använda sina ThinkPad-datorer i enlighet med respektive lands bestämmelser om radiokommunikation. Läs det här dokumentet innan du använder ThinkPad R40-datorn. Aviso Regulador de Dispositivos Sem Fio para ThinkPad R40 Series Este avisoéum documento complementar do“Guia de Serviços e Resolução de Problemas do ThinkPad ® R40 Series”. O computador ThinkPad R40 Series estáde acordo com a freqüência de radio e com os padrões de segurança de qualquer paísouregião em que seu uso sem fio tenha sido aprovado. Recomendamos que vocêinstale e utilize seu comp…

Text truncated - open the document above for the full version.

Part Number: 92P1285 Wireless Regulatory Notice for ThinkPad R40 Series This notice is a supplementary document of the “ThinkPad ® R40 Series Service and Troubleshooting Guide.” Please read this document before you use the ThinkPad R40 Series computer. The ThinkPad R40 Series computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. You are requested to install and use your ThinkPad computer in strict accordance with the instructions as described hereafter. Avis relatif aux appareils sans fil pour les ThinkPad R40 Series Le présent document complète le manuel “ThinkPad ® R40 Series - Guide de maintenance et d’identification des incidents”. L’ordinateur ThinkPad R40 Series est conforme aux normes de radiofréquence et de sécurité en vigueur dans les pays ou régions où son utilisation sans fil a été acceptée. L’ordinateur doit être installé et utilisé conformément aux instructions fournies ci-après. Avant d’utiliser votre ordinateur ThinkPad R40, veuillez lire ce document. Hinweis zu drahtlosen Einheiten für den ThinkPad R40 Series Dieser Hinweis ergänzt die Informationen im Handbuch “ThinkPad ® R40 - Service und Fehlerbehebung”. Der ThinkPad R40 erfüllt die Funkfrequenz- und Sicherheitsstandards der Länder und Regionen, in denen er für die Verwendung als drahtlose Einheit zugelassen ist. Der ThinkPad R40 muss exakt wie nachfolgend beschrieben installiert und verwendet werden. Lesen Sie unbedingt die entsprechenden Informationen in diesem Dokument, bevor Sie den ThinkPad R40 verwenden. © Copyright IBM Corp. 20031 Aviso de regulación de conexiones inalámbricas para ThinkPad R40 Series Este aviso es un documento adicional del manual“ThinkPad ® R40 Series Guía de servicio y de resolución de problemas”. El sistema ThinkPad R40 Series satisface los estándares de seguridad y de frecuencia de radio de cualquier paísoregión en el que se haya aprobado su utilización para conexiones inalámbricas. Se solicita al usuario que instale y utilice el sistema ThinkPad siguiendo estrictamente las instrucciones que se describen a continuación. Antes de utilizar el sistema ThinkPad R40, lea este documento. Informazioni importanti sulle norme per la tecnologia senza fili per ThinkPad R40 Series Queste informazioni importanti costituiscono un documento integrativo della Guida all’assistenza e alla risoluzione dei problemi per“ThinkPad ® R40 Series.” L’elaboratore ThinkPad R40èconforme agli standard di sicurezza e di frequenza radio di ciascun paese in cuièstato approvato per l’utilizzo della tecnologia senza fili.È, quindi, necessario installare ed utilizzare l’elaboratore ThinkPad in stretta osservanza alle istruzioni di seguito riportate. Prima di utilizzare l’elaboratore ThinkPad R40, leggere il presente documento. ThinkPad R40 Series- tietokoneen langattomien yhteyksien käyttöäkoskeva huomautus Tämäasiakirja on“ThinkPad ® R40 Series -tietokone, Käyttöja vianmääritys” -julkaisun lisäosa. ThinkPad R40 Series -tietokone on sen maan tai alueen radiotaajuus- ja turvallisuusstandardien mukainen, jossa se on hyväksytty langattomien yhteyksien käyttöävarten. Käyttäjän tulee asentaa ThinkPad-tietokone ja käyttääsitäjäljempänäesitettyjen ohjeiden mukaisesti. Ennen kuin aloitat ThinkPad R40 -tietokoneen käytön, lue tämäasiakirja. Kennisgeving met betrekking tot draadloze communicatie voor ThinkPad R40 Series Deze kennisgeving is een aanvulling op de publicatie“ThinkPad ® R40 Series Service en probleemoplossing.” De ThinkPad R40 Series voldoet aan de standaards voor radiofrequenties en veiligheid in elk land of gebied waarin deze computer is goedgekeurd voor draadloos gebruik. U wordt verzocht uw ThinkPad-computer te installeren en 2 te gebruiken in strikte overeenstemming met de instructies hierna beschreven. Lees dit document voordat u de ThinkPad R40-computer gaat gebruiken. Bemækning vedr. den trådløse facilitet i ThinkPad R40 Serie-computeren Denne bemærkning er et supplement til bogen“ThinkPad ® R40 Serie Guide til service og fejlfinding”. ThinkPad R40 Serie-computeren overholder de radiofrekvens- og sikkerhedsstandarder i de lande og områder, hvor den er godkendt til trådløs brug. Du skal installere og bruge ThinkPad-computeren i nøje overensstemmelse med instruktionerne i de følgende afsnit. Læs dette dokument, før du bruger ThinkPad R40-computeren. Merknad om regulering av trådløs kommunikasjon for ThinkPad R40 Series Denne merknaden kommer i tillegg til opplysningene i“ThinkPad ® R40 Series Håndbok for service og problemløsing” ThinkPad R40 Series-maskinen er i overensstemmelse med standardene for radiofrekvenssignaler og sikkerhet i alle land eller regioner der den er godkjent for trådløbruk. Du blir bedt omåinstallere og bruke ThinkPad-maskinen i henhold til instruksjonene som følger. Du målese dette dokumentet før du bruker ThinkPad R40-maskinen. Information om radiokommunikations- och säkerhetsnormer för ThinkPad R40 Series Det här dokumentet kompletterar informationen i handboken“ThinkPad ® R40 Series Service och felsökning”. ThinkPad R40 Series uppfyller radiokommunikations- och säkerhetsnormerna ideländer och regioner där datorn har godkänts förtrådlös användning. Användarna måste installera och använda sina ThinkPad-datorer i enlighet med respektive lands bestämmelser om radiokommunikation. Läs det här dokumentet innan du använder ThinkPad R40-datorn. Aviso Regulador de Dispositivos Sem Fio para ThinkPad R40 Series Este avisoéum documento complementar do“Guia de Serviços e Resolução de Problemas do ThinkPad ® R40 Series”. O computador ThinkPad R40 Series estáde acordo com a freqüência de radio e com os padrões de segurança de qualquer paísouregião em que seu uso sem fio tenha sido aprovado. Recomendamos que vocêinstale e utilize seu computador ThinkPad 3 exatamente conforme as instruções, conforme descrito daqui por diante. Antes de utilizar seu computador ThinkPad R40, leia este documento. R40 R40 R40 R40 4 5 USA—Federal Com…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC-19-0206-0 Prepared by T. Murota 2/3 Outline of Submission 1. Objective This is a Certification Compliance Report for FCC Part 15 subpart C, DTS device. - The applying equipment : ThinkPad R40 Series - FCC ID : ANO20020300D3L The device is a composite equipment with the same FCC ID of Part 15 subpart E, U-NII device. 2. Installation of the applying transmitter The built-in wireless LAN module is preinstalled by IBM. A tamperproof structure is employed so that the applying wireless module is not able to be removed nor plugged in by users. Since users can not access to the card, IBM or a responsible party will replace a broken card with a spare part. Refer to “Circuitry Description” document, and page 6 of User’s Manual. 3. Product Description The applying equipment is a standard size laptop computer integrating IEEE 802.11a & b combo Wireless LAN function inside. The wireless module consists of an OEM card (Philips Components, Model No: PH11107-E IEEE802.11 a/b Combo Wireless LAN Mini-PCI card) and built_in antennas (Inverted F-figure Dual bands antennas × 2). The specifications of the applying wireless LAN card and the built_in antennas are as follows. Table 1 : Specification of PC main body Model Identification ThinkPad R40 Series Machine Type number 2681, 2682, 2683 *1 2722, 2723, 2724 *1 CPU Intel® Mobile Pentium IV® 1.8~2.2GHz or Mobile Celeron® 1.6~1.8GHz Intel® Mobile Banias® 1.3~1.6GHz LCD 13.3”, 14.1”, 15” TFT XGA (or SXGA+) Max. size 329mm(13.0”)(W) : 268mm(10.5”)(D) : 40.5mm(1.59”)(H) Max.Weight 6.8 lbs Hard disk 2.5” (20 ~ 60GB) Memory 128 / 256MB Bay Device DVD, CD-ROM, or none Power AC adapter, Battery (Li-Ion) PC Functions Ports & Slots External CRT, Headphone, Microphone, RJ11, RJ45, Video out(S-V), USB, 4Mb/s IR, Port Replicator, IEEE1394, Parallel, PCMCIA slot *1: service class; 1 year warranty (left), 3 years warranty(middle), 3 years & onsite maintenance(right) Table 2 : Specification of Wireless-LAN feature IBM product name of wireless Card IBM Dual-Band 11a/b Wi-Fi ® Wireless Mini PCI Adapter Carrier Frequencies 2412MHz ~ 2462MHz5745MHz ~ 5825MHz Antenna gain peak 0.83 dBipeak 0.85 dBi Conducted transmission power Max. 17 dBmMax. 16 dBm Inverted F-figure type dual band antenna Antenna type 13”/14” LCD model 15” LCD model Main antenna : P/N: 3301BZ9076A 3301BZ9078A Auxiliary antenna : P/N: 3301BZ9077A 3301BZ9079A Antenna cable type And length Main antenna : coax 640 mm Auxiliary antenna : coax 530 mm FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC-19-0206-0 Prepared by T. Murota 3/3 4. Mounting structure of Wireless LAN card and Antenna The two inverted F-figure type antennas are built in the left and right side of LCD. Those diversity antennas are not used simultaneously. One of the antennas is selected automatically or manually to have a good quality of radio communication. The selected antenna performs transmission or receiving in half duplex alternatively. Main Antenna Auxiliary antenna bottom side Mini-PCI Wireless adapter The slot cover is fixed with a special screw so that the wireless module is not removed.

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan November 18, 2002 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Subject: Confidentiality Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application for the FCC Part 15, Subpart C certification : - FCC ID : ANO20020300D3L - Applying equipment name: ThinkPad R40 Series -Device type: 2400-2483.5MHz, and 5725M-5850MHz DTS device Pursuant to 47 CFR section 0.457(d) and 0.459, we hereby request confidentiality for the schematics, detailed block diagrams, detailed theories of operation, and parts list. The subjected files are as follows. - Confidential_Schematic_Diagrams.pdf - Confidential_Block_Diagrams.pdf - Confidential_Circuitry_Description.pdf - Confidential_Parts_List.pdf Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

FCC ID: ANO20020300D3L Document Number: FCC-19-0205-1 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan To whom this may concern December 25, 2002 OET Requested Information FCC ID : ANO20020300D3L Applicant : International Business Machines Corporation Correspondence Reference Number : 221220a.ANO 731 Confirmation Number : TC1374 Original Requested Date : December 20, 2002 Subject 1) Please confirm if all optional transmitters can transmit simultaneously? If no, how is that prevented ? If yes, please submit a MPE estimation for 2.4GHz and 5.8GHz simultaneously. Please note each antenna/transmitter combination must have a separate RF evaluation (MPE or SAR) and that there were no RF evaluation performed on 5.8GHz or 5.2GHz. Please clarify. Answer 1) Yes, 3 Bluetooth transmitters certified separately can transmit simultaneously with the applying equipment. According to the FCC’s acceptance, the RF Exposure evaluation described in the submittal exhibits (RF_Exposure_xx.pdf) are valid for the configuration of this application. i.e. The separation distance between the applying transmitter’s antenna and each subjected Bluetooth antenna is 20 cm or more, and total emission power of the 3 Bluetooth transmitters meets the power threshold (5mW) for the collocation. Therefore the configuration of this application is allowed to be certified in making a reference to the footnote 14 of the Section 3 in Supplement C to OET Bulletin 65. Please refer the “Discussion Item 4 ” in the Attachment of this exhibit. And please find a revised exhibit “RF Exposure_C_up.pdf” for Subpart C. We updated the MPE estimation for each 2.4GHz and 5.8GHz band. There is no change for Subpart E. Subject 2) Please confirm if the Bluetooth and UNII card will be available as an option. Recent FCC policy requires separate FCC ID for each transmitter combination. Answer 2) IBM will answer later with a separated exhibit. Subject 3) Please confirm if this application is for a composite device (Part 15C and Part 15E). Please provide EMC test data, RF exposure evaluation, and FCC documentation for Part 15E, as appropriate. Answer 3) IBM will answer later with a separated exhibit. Subject 4) Please confirm the frequency range of operation of the transmitters in the laptop. 2400 to 2483.5, 2412 to 2462, 5150 to 5350, 5725 to 5825, and/or 5725 to 5850 MHz. Please revise the cover letter, as necessary. Answer 4) Please find enclosed cover letters for each Subpart C and Subpart E. Subject 5) Please confirm if Philips Components is the only OEM transmitter module (IEEE 802.11 a/b) available for this laptop? Do you have a second source card, Argon? What is the reference to Argon in this submission? Please note that new test data may be required upon further review. Answer 5) No, we have no plan to announce Argon for a second source. Note) Argon is entirely the same card with the application except an unique code for the BIOS lock logic. We only refer their original documents (Schematics, Block diagram, Circuitry description, Parts list) for the submission purpose. FCC ID: ANO20020300D3L Document Number: FCC-19-0205-1 Subject 6) Test report states that ART software was used to operate the program. What mode was used for all testing, T100 or another mode. Please state which mode were used for the tests. Answer 6) We reported the measurements for 24Mbps normal transmission mode for UNII device, 11Mbps for DTS 2.4GHz band, and 24Mbps for DTS 5.8GHz band. We have no driver software for 802.11a Turbo mode nor 802.11g 2.4GHz OFDM mode, so those modes are not supported. We measured all patterns of transmission power, then selected the worst case for the report. The selection process can be referred to the Section D “Operation mode of EUT” and Section E “Justification”. Subject 7) Data for the 5150 to 5350 MHz and the 5725 to 5825 MHz band of operation must be submitted. Clarify which rule parts you intend your device to operate under. Answer 7) Please refer the cover letter. The following is the combination of submittal documents. Documents Number: FCC 19-0205-0 : UNII 5180-5320MHz FCC 19-0206-0 : DTS 2412-2462MHz and 5745-5825MHz Subject 8) Can the user select the 2.45 GHz band or the 5 GHz band as their option. If not, how is this ability restricted. Which antenna is used by each band ? Please list all available transmitters for the product. Answer 8) Please refer the supported transmission modes to the Section D “Operation mode of EUT” and Section E “Justification” in the each test report for subpart C or E. The system supports both automatic or manual selection modes for the transmission channel, rate, or emission antenna port (right or left). As for the indoor use restriction of 5150-5250MHz band, users can disable those channels manually but the channel selection is usually controlled by an Access Point device. Subject 9) Please repeat all conducted peak power measurements, and run all new peak power tests using a peak reading power meter or use a spectrum analyzer band power measurement with the VBW > 3 RBW. Answer 9) The measurement results of the Table 2-2-3 (according the Method I of FCC Notice DA 02-2138) was just for a reference. Please take the results of Table 2-2-2 (Method III) for the official results. Since the Notice explains “If sweep time ú T, use Method #1.” But the actual sweep time is 50mS(auto) and Të 0.8mW(page 8). Therefore the Method III is the most suitable way for the applying transmitter. The VBW defined by the Method III is •1/T .. i.e. 1.3KHz or more. We measured with VBW=30KHz and got the equivalent values as the power meter method. To prevent the confusion, we would like to eliminate the Method I. Please replace with the attached “Test_Report-UNII_up.pdf”. Subject 10) Please make radiated emissions measurements in all adjacent restricted bands for all modes and bands of operation. It is noted that this type of equipment can be operated in a OFDM modulation scheme in the 2.45 MHz band. An…

Text truncated - open the document above for the full version.

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan December 25, 2002 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Subject: Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application document for the FCC Part 15, Subpart C certification. - FCC ID : ANO20020300D3L - Applying equipment name : ThinkPad R40 Series -Device type : 2412MHz-2462MHz and 5745MHz-5825MHz, DTS device (Composite application with a separated Subpart E, U-NII device) The applying product is a compact size laptop PC integrating IEEE802.11a/b combo Wireless LAN Mini-PCI adapter. If any further information is required concerning this application, please contact us. Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan December 25, 2002 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Subject: Confidentiality Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application for the FCC Part 15, Subpart C certification : - FCC ID : ANO20020300D3L - Applying equipment name: ThinkPad R40 Series -Device type : 2412MHz - 2462MHz, and 5745M-5825MHz DTS device Pursuant to 47 CFR section 0.457(d) and 0.459, we hereby request confidentiality for the schematics, detailed block diagrams, detailed theories of operation, and parts list. The subjected files are as follows. - Confidential_Schematic_Diagrams.pdf - Confidential_Block_Diagrams.pdf - Confidential_Circuitry_Description_DTS.pdf (including BIOS lock logic) - Confidential_Parts_List.pdf Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

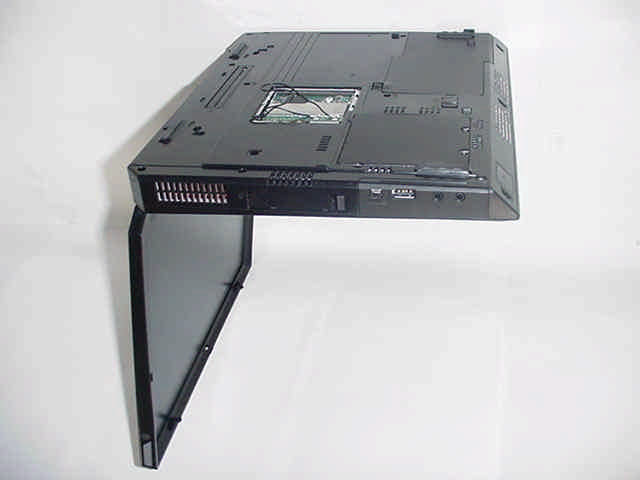

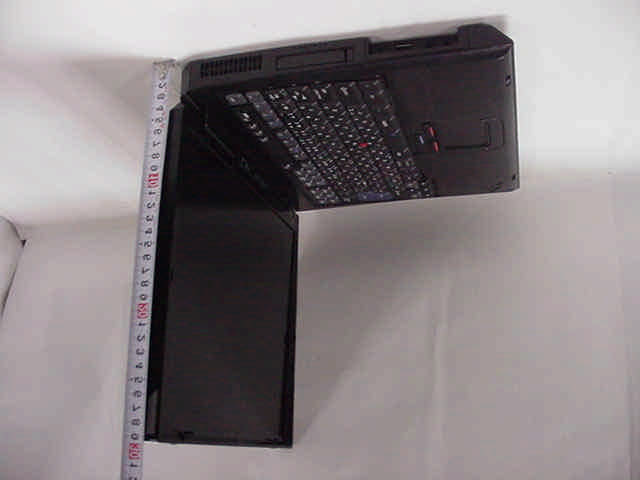

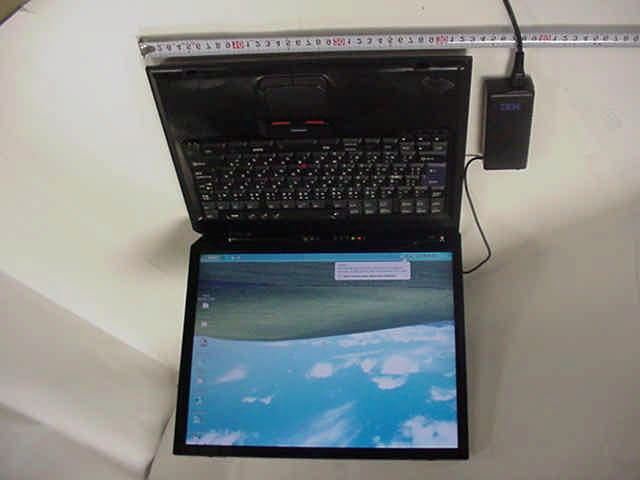

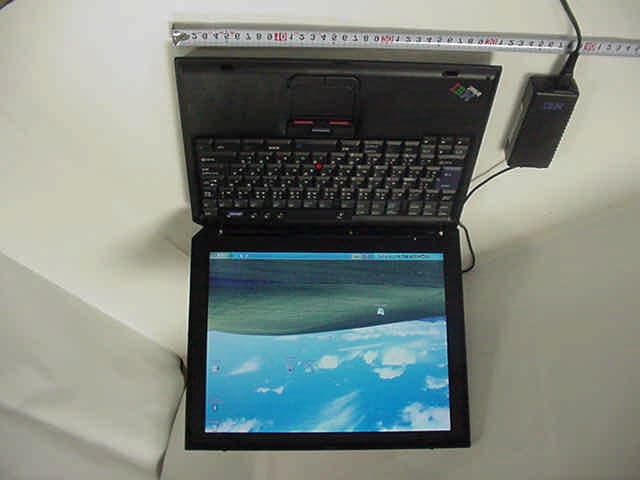

FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 1/4 External Photos IBM ThinkPad R40 Series, 13 inch LCD Model FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 2/4 IBM ThinkPad R40 Series, 14 inch LCD Model FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 3/4 IBM ThinkPad R40 Series, 15 inch LCD Model FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 4/4 IBM ThinkPad R40 Series Rear View IBM ThinkPad R40 Series Bottom View

FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 1/2 Product Labeling Bottom view, Front side FCC ID FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 2/2 Label for a different model of the applying equipment (ThinkPad R40 Series) The model (R40) supports the applying transmitter and a built-in type Bluetooth LMA which is to be certified separately with FCC ID: ANO20020100MTN. FCC ID of applying transmitter FCC ID of a separated Bluetooth LMA application

FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 1/7 Internal Photos Main Antenna Auxiliary antenna Antenna Cables FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 2/7 IBM Dual-Band Wi-Fi Wireless Mini-PCI adapter Shielded Top Side Unshielded Top Side Auxiliary Antenna Port Main Antenna Port Antenna Terminals FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 3/7 Shielded Back Side Unshielded Back Side FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 4/7 Antenna Locations LCD 13/14 inch Model Auxiliary antenna Dual Band Inverted-F type P/N: 3301BZ9077A Main antenna Dual Band Inverted-F type P/N: 3301BZ9076A FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 5/7 LCD 15 inch Model Auxiliary antenna Dual Band Inverted-F type P/N: 3301BZ9079A Main antenna Dual Band Inverted-F type P/N: 3301BZ9078A FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 6/7 Antenna (Dual-Band Inverted F Type Antenna and Cable) LCD 13/14 inch Model Main Antenna (Left) Manufacturer: Hitachi Cable Ltd. Parts Number: 3301BZ9076A Dual Band Inverted-F type antenna Cable : coax 530 mm Auxiliary Antenna (Right) Manufacturer: Hitachi Cable Ltd. Parts Number: 3301BZ9077A Dual Band Inverted-F type antenna Cable : coax 640 mm FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 7/7 LCD 15 inch Model Main Antenna (Left) Manufacturer: Hitachi Cable Ltd. Parts Number: 3301BZ9078A Dual Band Inverted-F type antenna Cable : coax 530 mm Auxiliary Antenna (Right) Manufacturer: Hitachi Cable Ltd. Parts Number: 3301BZ9079A Dual Band Inverted-F type antenna Cable : coax 640 mm

FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 1/9 RF Exposure 1. RF Exposure evaluation for the applying transmitter As shown in the following photo, both main and auxiliary WLAN antennas of the applying laptop PC, IBM ThinkPad R40 Series, are located at the top of display (LCD) bezel. The separation distances between the antennas and the human body are 20cm or more. Therefore the laptop PC can be categorized as a mobile device by FCC CFR 47 Section 2.1091. The highest conducted peak output power of the Test Report is 53.7mW (17.3dBm) and the maximum antenna gain is 0.85 dBi (See page 4 of this exhibit.). Therefore the peak radiated output power(EIRP) is calculated as follows. EIRP = P + G = 17.3 dBm + 0.85 dBi = 18.15 dBm (65.3 mW) Then, the maximum power density at 20cm distance is calculated as : S = EIRP/(4 % R 2 % o) = 0.0130 mW/cm 2 Since the applying laptop PC’s WLAN transmitter does not function to emit the radio frequency from both diversity antennas simultaneously, the above value is the maximum RF exposure to the persons and is below the MPE limit (1.0 mW/ cm 2 ). Therefore the laptop PC meets the MPE requirements for general Population/Uncontrolled exposure. Antennas are located at the same height The separation distance between the antenna and the human body (lap) is about 22cm . FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 2/9 2. RF Exposure evaluation for Bluetooth transmitters The applying laptop PC (ThinkPad R40 Series) supports three kinds of Bluetooth devices as follows. FCC IDGrantee Name Product Name Granted DateERP in FCC test report PI4BT-ULTRA Bluetooth Ultraport Module May/22/20011.4 mW User’s option PI4BT-IBM-PCII TDK Systems Europe Ltd. Blutooth PC Card II August/21/2001 1.0mW Built-in type LMA transmitter ANO20020100MTNIBM Japan, Ltd. IBM integrated Blutooth with 56K Modem Under being inspected with this application 2.5mW Interfaces to connect Wireless options Bluetooth Built_in antenna FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0 Prepared by T. Murota 3/9 The main and auxiliary antennas of the applying transmitter in the LCD section are assembled apart from each Bluetooth antenna shown in the previous page with 20 cm or more distance. Therefore the RF exposure evaluation for those Bluetooth transmitters is able to be done independently of the applying antennas. In other word, a collocated SAR testing is not required. When a customer operates the applying PC on one’s lap, the sufficient separation distance (minimum 20cm) between the above Bluetooth antennas and the person’s body (lap) can not be maintained. But the footnote of the Section 3 in Supplement C to OET Bulletin 65 states “ 14 .......... If a device, its antenna or other radiating structures are operating at closer than 2.5 cm from a person’s body or in contact with the body, SAR evaluation may be necessary when the output is more than 50 – 100 mW, depending on the device operating configurations and exposure conditions.” The total output power of the three Bluetooth transmitters in the previous table does not exceed 5mW. …

Text truncated - open the document above for the full version.
