ANO20020302R1LIBM ThinkPad T40 Series - UNII

FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0220-0 Prepared by T. Murota User’s Manual The attachment is a summary related to the FCC and IC regulations. Please refer the page 6 and 7 for this application. Part Number: 92P1709 Regulatory Notice for ThinkPad ® T40 Series This notice is a supplementary document of theThinkPad T40 Series Service and Troubleshooting Guide. Please read this document before you use the ThinkPad T40 Series computer. The ThinkPad T40 Series computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. You are requested to install and use your ThinkPad computer in strict accordance with the instructions as described hereafter. Réglementation concernant les ordinateurs ThinkPad T40 Series Le présent document complètea LE ManuelThinkPad T40 Series - Guide de maintenance ate d’identification des incidents. L’ordinateur ThinkPad T40 Series est conforme aux normes de radiofréquence et de sécurité en vigueur dans les pays ou régions où son utilisation sans fil a été acceptée. L’ordinateur doit être installé et utilisé conformément aux instructions fournies ci-après. Avant d’utiliser votre ordinateur ThinkPad T40, veuillez lire ce document. Hinweis zu Einheiten für den ThinkPad T40 Series Dieser Hinweis ergänzt die Informationen im HandbuchThinkPad T40 - Service und Fehlerbehebung. Der ThinkPad T40 erfüllt die Funkfrequenz- und Sicherheitsstandards der Länder und Regionen, in denen er für die Verwendung als drahtlose Einheit zugelassen ist. Der ThinkPad T40 muss exakt wie nachfolgend beschrieben installiert und verwendet werden. Lesen Sie unbedingt die entsprechenden Informationen in diesem Dokument, bevor Sie den ThinkPad T40 verwenden. © Copyright IBM Corp. 20031 USA — Federal Communications Commission (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. I. Permanent integrated wireless module vIBM Dual-Band 11a/b Wi-Fi Wireless Mini PCI Adapter i) Installation of the integrated wireless module IBM Dual-Band 11a/b Wi-Fi Wireless Mini PCI Adapter is preinstalled by IBM, and is not removable by users. If your card requires replacement via the proper step shown in “Chapter 3. Getting help and service from IBM” of theThinkPad T40 Series Service and Troubleshooting Guide, IBM will request you to send your computer with the card(s) to IBM so that IBM will repair it. ii) The FCC RF safety requirement The radiated output power of Wireless LAN Mini-PCI Card and Bluetooth card is far below the FCC radio frequency exposure limits. Nevertheless, the ThinkPad T40 Series computer shall be used in such a manner that the potential for human contact during normal operation is minimized as follows. Use of wireless options If you find the FCC ID “ANO20020302R1L” on the label at the bottom side of your ThinkPad computer, your computer is approved as a multiple transmitters device that is permitted to use the integrated wireless LAN Mini-PCI Card and Bluetooth card with one or more wireless option PC Cards in the PC Card slot simultaneously. Please make sure of the following when you use a Bluetooth option or wireless option PC Card in your ThinkPad computer. 1. Visit the IBM site atwww.ibm.com/pc/qtechinfo/MIGR-44156.htmland confirm the updated list of RF option devices that have been approved to cooperate with the integrated wireless feature. 2. When you use any other RF option device that is not listed on the IBM site, all other wireless features including the integrated transmitter in your ThinkPad computer are required to be turned off. 6 3. Users are requested to follow the RF Safety instructions on wireless option devices that are included in the user’s manual of each RF option device. Caution: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm (8 inches) must be maintained between the antenna for the integrated Wireless LAN Mini-PCI Card built in to the screen section and all persons. FCC ID: ANO20020302R1L Note:IBM Dual-Band 11a/b Wi-Fi Wireless Mini PCI Adapter implements transmission diversity function. The function does not emit radio frequencies simultaneously from both antennas. One of the antennas is selected automatically or manually (by users) to have good quality of radiocommunication. iii) Radio Frequency interference requirements vThis device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. vHigh power radar are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. vAn improper installation or unauthorized use may cause harmful interference to radio communications. Also any tampering of the internal antenna will void the FCC certification and your warranty. Refer to the “Appendix D. Notices, Electronic emission notices” of theThinkPad T40 Series Service and Troubleshooting Guidefor more detail. 7 II. User installable wireless modules vMini-PCI Cards - Cisco Aironet Wireless 802.11b - Intel ® PRO/Wireless LAN 2100 3B Mini PCI Adapter vCommunication Daughter Card (CDC) - IBM Integrated Bluetooth with 56K Modem i) FCC ID of wireless modules There is no FCC ID for Mini-PCI Cards shown on the enclosure of your ThinkPad computer. Instead you will find an indicator pointing the location of the FCC ID at the bottom side of your ThinkPad computer as shown below in the figure i-1). Also the location of the FCC ID’s indicator for CDC is shown by the figure i-2). The FCC IDs are affixed on each approved module in…

Text truncated - open the document above for the full version.

3938 FCC Statement Note: This equipment has been tested and found to comply with the limitsfor a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfulinterference in a res- idential installation. This equipment generates,uses and can radiate radio fre- quency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip- ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to connect the interference by one or more of the following measures: -Reorient the receiving antenna -Increase the separation between the equipment and receiver -Move the computer away from the receiver -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Radio Frequency Interference Requirements:This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radar are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this device. Actiontec Electronics, Inc. Limited Warranty Hardware:Actiontec Electronics Inc. warrants to the end user (“Customer”) that this hardware product will be free from defects in workmanship and materials, under normal use and service, for twelve (12) months from the date of purchase from Actiontec Electronics or its authorized reseller. ActiontecElectronics’ sole obligation under this express warranty shall be, at Actiontec’s option and expense, to repair the defective product or part, deliver to Customer an equivalent product or part to replace the defective item, or if neither of the two foregoing options is reasonably available, Actiontec Electronics may, in its sole discretion, refund to Customer the purchase price paid for the defective prod- uct. All products that are replaced will become the property of Actiontec Electronics Inc. Replacement products may be new or reconditioned. Actiontec Electronics warrants any replaced or repaired product or part for ninety (90) days from ship- ment, or the remainder of the initial warranty period, whichever is longer. SOFTWARE: Actiontec Electronics warrants to Customer that each software pro- gram licensed from it will perform in substantial conformance to its program spec- ifications, for a period of ninety (90) days from the date of purchase from Actiontec Electronics or its authorized reseller. Actiontec Electronics warrants the media con- taining software against failure during the warranty period. The only updates that will be provided are at the sole discretion of Actiontec Electronics and will only be available for download at the Actiontec website, www.actiontec.com. Actiontec Electronics’ sole obligation under this express warranty shall be, at Actiontec Electronics’ option and expense, to refund the purchase price paid by Customer for any defective software product, or to replace any defective media with software which substantially conforms to applicable Actiontec Electronics published specifi- cations. Customer assumes responsibility for the selection of the appropriate appli- cations program and associated reference materials. Actiontec Electronics makes no warranty or representation that its software products will meet Customer’s require- ments or work in combination with any hardware or applications software products provided by third parties, that the operation of the software products will be unin- terrupted or error free, or that all defects in the software products will be corrected. For any third-party products listed in the Actiontec Electronics software product documentation or specifications as being compatible, Actiontec Electronics will make reasonable efforts to provide compatibility, except where the non-compatibil- ity is caused by a “bug” or defect in the third party’s product or from use of the software product not in accordance with Actiontec Electronics published specifica- tions or User Guide. THIS ACTIONTEC ELECTRONICS PRODUCT MAY INCLUDE OR BE BUNDLED WITH THIRD-PARTY SOFTWARE, THE USE OF WHICH IS GOVERNED BY A SEPARATE END-USER LICENSE AGREEMENT. THIS ACTIONTEC ELECTRONICS WARRANTY DOES NOT APPLY TO SUCH THIRD-PARTY SOFTWARE. FOR THE APPLICABLE WARRANTY, PLEASE REFER TO THE END-USER LICENSE AGREEMENT GOVERN- ING THE USE OF SUCH SOFTWARE OBTAININGWARRANTY SER- VICE: Customer may contact Actiontec Electronics Technical Support Center with- in the applicable warranty period to obtain warranty service authorization. Dated proof of purchase from Actiontec Electronics or its authorized reseller may be required. Products returned to Actiontec Electronics must be pre-authorized by Actiontec Electronics with a Return Merchandise Authorization (RMA) number marked on the outside of the package, and sent prepaid and packaged appropriate- ly for safe shipment, and it is recommended that they be insured or sent by a method that provides for tracking of the package. The repaired or replaced item will be shipped to Customer, at Actiontec Electronics’ expense, not later than thirty (30) days after Actiontec Electronics receives the defective product. Return the product to: In the United States Actiontec Electronics, Inc 760 North Mary Avenue Sunnyvale, CA 94085 Preliminary Page 2 • Access point User’s Guide © 2001- 2002 by NETGEAR, Inc. All rights reserved. Trademarks NETGEAR is a registered trademark of NETGEAR, INC. Windows is a registered trademark of Microsoft Corporation. Other brand and product name…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC-19-0219-0 Yellow Sheet: No. EM731 Application Document for FCC Part 15, Subpart E (UNII Devices) Document Number: FCC 19-0219-0 Product Name: ThinkPad T40 Series (Machine type: 2373, 2374, 2375, 2376) FCC ID: ANO20020302R1L January 14, 2003 EMC Staff Engineer Toshiya Murota Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-6574 Fax: +81-46-273-7420 E-Mail: [email protected] Portable Product Director Masaki Kobayashi Signature: IBM Japan, Ltd. Portable Product LAB-R16 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-3889 EMC Engineering Manager / NVLAP signatory Akihisa Sakurai Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-2613 Fax: +81-46-273-7420 E-Mail: [email protected] Portable Systems Director Arimasa Naitoh Signature: IBM Japan, Ltd. Portable Systems LAB-R11 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-6110 FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC-19-0219-0 Prepared by T. Murota 2/3 Outline of Submission 1. Objective This is a Certification Compliance Report for FCC Part 15 subpart E, U-NII device. - The applying equipment : ThinkPad T40 Series - FCC ID : ANO20020302R1L The device is composite equipment with the same FCC ID of Part 15 subpart C, DTS device. 2. Installation of the applying transmitter The built-in wireless LAN module is preinstalled by IBM. According the FCC Part 15.407(d), a tamperproof structure is employed so that the applying wireless module is not able to be removed nor plugged in by users. Since users can not access to the card, IBM or a responsible party will replace a broken card with a spare part. Refer to “Circuitry Description” document, and page 6 of User’s Manual. 3. Product Description The applying equipment is a standard size laptop computer integrating IEEE 802.11a & b combo Wireless LAN function inside. The wireless module consists of an OEM card (Philips Components, Model No: PH11107-X, 802.11 Combo Mini-PCI WLAN Card) and built-in antennas (Inverted F-figure Dual bands antennas × 1, Dual-band Coupled Floating Element Antenna× 1). The specifications of the applying wireless LAN card and the built-in antennas are as follows. Specification of Wireless-LAN feature IBM product name of wireless Card IBM Dual-Band 11a/b Wi-Fi ® Wireless Mini PCI Adapter Carrier Frequencies 5180MHz ~ 5320MHz Antenna gain Maximum peak 1.42 dBi (in the above band) Conducted transmission power Maximum 17 dBm Main antenna: P/N: 62P4024 Dual-band Inverted F-figure type antenna Antenna type Auxiliary antenna: P/N: 62P4203 Dual-band Coupled Floating Element Antenna Antenna cable type And length Main antenna: coax 740 mm Auxiliary antenna: coax 860 mm FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC-19-0219-0 Prepared by T. Murota 3/3 4. Mounting structure of Wireless LAN card and Antenna The inverted F-figure type antenna is built in the top of the LCD, and the coupled floating element antenna is built in the right side of the LCD. Those diversity antennas are not used simultaneously. One of the antennas is selected automatically or manually to have a good quality of radio communication. The selected antenna performs transmission or receiving in half duplex alternatively. Main Antenna Auxiliary Antenna The palm-rest cover is fixed with a special screw so that the wireless module is not removed. Antenna Cables Mini-PCM WLAN module

FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0219-0 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan January 14, 2003 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Subject: Confidentiality Request for FCC Certification of Part 15, Subpart E Dear Sir : Please find enclosed an IBM’s application for the FCC Part 15, Subpart E certification. - FCC ID : ANO20020302R1L - Applying equipment name: ThinkPad T40 Series - Device type: 5180M-5320MHz, U-NII device Pursuant to 47 CFR section 0.457(d) and 0.459, we hereby request confidentiality for the schematics, detailed block diagrams, detailed theories of operation, and parts list. The subjected files are as follows. - Confidential_Schematic_Diagrams.pdf - Confidential_Block_Diagrams.pdf - Confidential_Circuitry_Description.pdf (including BIOS lock logic) - Confidential_Parts_List.pdf Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0219-0 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan January 14, 2003 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Subject: Request for FCC Certification of Part 15, Subpart E Dear Sir : Please find enclosed an IBM’s application document for the FCC Part 15, Subpart E certification. - FCC ID : ANO20020302R1L - Applying equipment name : ThinkPad T40 Series -Device type : 5180M-5320MHz U-NII device (Composite application with a separated Subpart C, DTS device) The applying product is a standard size laptop PC integrating IEEE802.11a/b combo Wireless LAN Mini-PCI adapter. The built-in transmitter module is entirely the same as the one of previous application (ANO20020300D3L). A new FCC ID is assigned with a new host antenna system. If any further information is required concerning this application, please contact us. Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

FCC ID: ANO20020302R1L Document Number: FCC 19-0219-1 Prepared by T. Murota. 1/2 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan To whom this may concern February 12, 2003 OET Requested Information FCC ID : ANO20020302R1L Applicant : International Business Machines Corporation Correspondence Reference Number: 230207RE.ANO Confirmation Number : TC3011 Original Requested Date : February 07, 2003 Subject 1) Please clarify the frequency of operation of the transmitter. Theusers manual provided (pages 7, 13) shows 5.15-5.25, 5.25-5.35, and 5.65-5.85 GHz operation. Please revise users manual or send supporting test data, as appropriate. Answer 1) Those frequency bands are not the specifications of the applying transmitter, but the ones of MSS or High Power radars. The notice of indoor use in 5.15-5.25GHz band is mandated by the CFR47 Part 15.407(e), and the other notice about the interference with High Power radars in 5.25-5.35G Hz or 5.65-5.85GHz band is voluntary. Therefore the manual revision may not be required. Subject 2) Please clarify the user installed wireless module option antenna installation procedure stated on page 8-9 of the users manual. Please provide how the antenna will be installed or selected by the user and provide antenna installation to satisfy RF exposure compliance. Answer 2)The users manual of the host device (IBM ThinkPad T40 Series) introduces 4 kinds of transmitters. The page 8-9 are showing different transmitters from this application which are to be certified simultaneously. Please refer to page 6-7 for the applying ANO200202R1L. The FCC ID and installation method is described clearly in those pages. Also please refer to “Outline of Submission” exhibit. The applying transmitter is pre-installed by IBM, so the latter question is not applicable for the device. Subject 3) Please explain if this device meets the integral antenna requirement specified in Section 5.407(d) of the FCC Rules. Answer 3) The antennas are furnished in the LCD section fixedly and the applying transmitter is built-in the keyboard (palm-rest) section with a tamperproof screw so that users can not remove it. Therefore the device meets the requirement. Please refer to the “Outline of Submission” and “Circuitry Description” exhibits. Subject 4) Please clarify the RF Exposure (MPE) exhibit shown on the Power Table page 5/6 (Center Freq. 5.15 - 5.35 GHz) which shows operational frequencies outside the requested frequency band of operation. Answer 4) The measurement was performed with the UNII allocated frequency band (i.e. 5150M-5350MHz) to include the whole intentional emission BW (i.e. 26dB BW). As shown by the plots in next page, the highest peak antenna gain was found at 5350MHz for the main antenna and declines its value gradually from high to low frequency. Thus the peak antenna gain in the operation band never exceed 0.83 dBi. So we would declare it as the worst case. Note) Please replace the RF Exposure exhibit with a new separate file, since the plot for main antenna in page 5/6 was incorrect. FCC ID: ANO20020302R1L Document Number: FCC 19-0219-1 Prepared by T. Murota. 2/2 Subject 5) Please confirm if this UNII device will be installed by IBM only or installed by the user. Answer 5) The UNII device is pre-installed by IBM only. Please refer to the “Outline of Submission” exhibit, or page 6 of users manual. Subject 6) Please send the FCC/OET correspondence pertaining to the subject device. Each filing must stand on its own with all the required exhibits/documents. Answer 6) Yes, we will send each correspondence to each subject device with each separate exhibit. This is the answer for the Subpart E portion of FCC ID: ANO20020302R1L. (Document #: FCC 19-0219) Sincerely, February 12, 2003 Toshiya Murota, Staff Engineer, EMC R&D Engineering, Yamato Laboratory, IBM Japan Ltd.

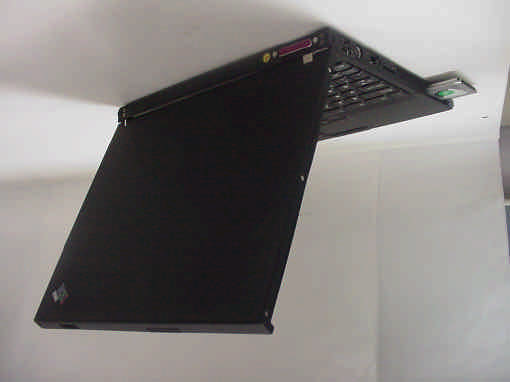

FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0220-0 Prepared by T. Murota 1/2 External Photos IBM ThinkPad T40 Series, Front View IBM ThinkPad T40 Series, Side View FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0220-0 Prepared by T. Murota 2/2 IBM ThinkPad T40 Series, Side View IBM ThinkPad T40 Series, Rear View

FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0220-0 Prepared by T. Murota 1/2 Product Labeling Bottom view, Front side The palm-rest cover is fixed from bottom side with the special screws so that the wireless module is not removed. FCC ID FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0220-0 Prepared by T. Murota 2/2 Label for a different model of the applying equipment (ThinkPad T40 Series) The model (T40) supports the applying transmitter and a built-in type Bluetooth LMA which is to be certified separately with FCC ID: ANO20020100MTN. Bottom view, Front side

FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0220-0 Prepared by T. Murota 1/7 Internal Photos Main Antenna Auxiliary Antenna IEEE802.11a/b Wireless LAN Mini-PCI Card The palm-rest cover is fixed with a special screw so that the wireless module is not removed. See circuitry description in detail. Antenna Cables FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0220-0 Prepared by T. Murota 2/7 IBM Dual-Band 11a/b Wi-Fi Wireless Mini PCI adapter Shielded Top Side Unshielded Top Side Auxiliary Antenna Port Main Antenna Port Antenna Terminals FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0220-0 Prepared by T. Murota 3/7 Shielded Back Side Unshielded Back Side FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0220-0 Prepared by T. Murota 4/7 Antenna Locations Auxiliary Antenna Dual-Band Coupled Floating Element Antenna P/N: 62P4203 Main Antenna Dual Band Inverted-F Type Antenna P/N: 62P4204 FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0220-0 Prepared by T. Murota 5/7 Antennas Auxiliary Antenna Manufacturer: Faxconn Electronics Inc. Parts Number: 62P4203 Dual-Band Coupled Floating Element Antenna Cable : coax 860mm Main Antenna Manufacturer: Faxconn Electronics Inc. Parts Number: 62P4204 Dual Band Inverted-F type antenna Cable: coax 740mm FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0220-0 Prepared by T. Murota 6/7 Main Antenna Front Side Back Side FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0220-0 Prepared by T. Murota 7/7 Auxiliary Antenna Front Side Back Side

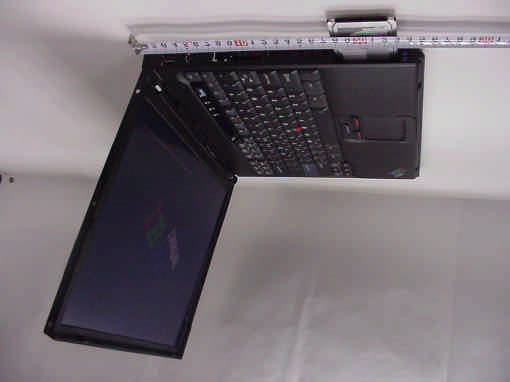

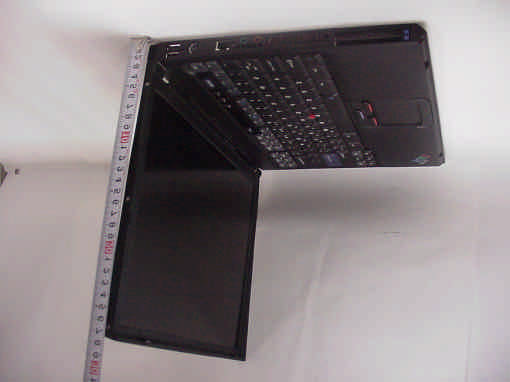

FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0219-0 Prepared by T. Murota 1/6 RF Exposure 1. RF Exposure evaluation for the applying transmitter As shown in the following photo, the main antenna, an inverted F-figure type antenna, is built in the top portion of the LCD, and the auxiliary antenna, a coupled floating element antenna, is built in the upper right side of the LCD. The separation distances between the antennas and the human body are 20cm or more. Therefore the laptop PC can be categorized as a mobile device by FCC CFR 47 Section 2.1091. The highest conducted peak output power of the Test Report is 55.0mW (17.4dBm) and the maximum antenna gain is 0.83 dBi (See page 4 of this exhibit.). Therefore the peak radiated output power(EIRP) is calculated as follows. EIRP = P + G = 17.4 dBm +0.83 dBi = 18.23 dBm (66.5 mW) Then, the maximum power density at 20cm distance is calculated as : S = EIRP/(4 % R 2 % o) = 0.132 mW/cm 2 Since the applying laptop PC’s WLAN transmitter does not function to emit the radio frequency from both diversity antennas simultaneously, the above value is the maximum RF exposure to the persons and is below the MPE limit (1.0 mW/ cm 2 ). Therefore the laptop PC meets the MPE requirements for general Population/Uncontrolled exposure. Main antennas height Auxiliary antenna height The separation distance between the antenna and the human body (lap) is about 24cm . FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0219-0 Prepared by T. Murota 2/6 2. RF Exposure evaluation for Bluetooth transmitters The applying laptop PC (ThinkPad T40 Series) supports three kinds of Bluetooth devices as follows. FCC IDGrantee Name Product Name Granted DateERP in FCC Test Report PI4BT-ULTRA Bluetooth Ultraport Module May/22/20011.4 mW User’s option PI4BT-IBM-PCII TDK Systems Europe Ltd. Blutooth PC Card II August/21/2001 1.0mW Built-in type LMA Transmitter ANO20020100MTNIBM Japan, Ltd. IBM integrated Blutooth with 56K Modem Under inspection with this application 2.5mW Interfaces to connect Wireless options Main antenna of applying transmitter Built-in Bluetooth Antenna 23cmm PCMCIA USB The mail antenna is closer than the auxiliary from any Bluetooth antenna. Auxiliary antenna Main antenna FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0219-0 Prepared by T. Murota 3/6 The main and auxiliary antennas of the applying transmitter in the LCD section are assembled apart from each Bluetooth antenna shown in the previous page with 20 cm or more distance. Therefore the RF exposure evaluation for those Bluetooth transmitters is able to be done independently of the applying antennas. In other word, a collocated SAR testing is not required. When a customer operates the applying PC on one’s lap, the sufficient separation distance (minimum 20cm) between the above Bluetooth antennas and the person’s body (lap) can not be maintained. But the footnote of the Section 3 in Supplement C to OET Bulletin 65 states “ 14 .......... If a device, its antenna or other radiating structures are operating at closer than 2.5 cm from a person’s body or in contact with the body, SAR evaluation may be necessary when the output is more than 50 – 100 mW, depending on the device operating configurations and exposure conditions.” The total output power of the three Bluetooth transmitters in the previous table does not exceed 5mW. Therefore these transmitters also satisfy the RF exposure evaluation regarding CFR 47 Part 15.247(b)(4) without a SAR compliance test report, and can operate with the applying transmitter simultaneously. IBM Web site guides to customers about the grant condition related to those collaborating transmitter devices. See page 6 of this exhibit. FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0219-0 Prepared by T. Murota 4/6 Main Antenna Auxiliary Antenna 3. Antenna Gains of applying equipment 3.1 Antenna Specification Transmission Antenna assembly overview DesignatorManufactureAntenna typeCable type and length Gain (dBi) Note 1) 62P4204 Main antenna Faxconn Electronics Inc. (R.O.C.) Dual Band Inverted F type Antenna Coax 745 mm 5150-5350MHz 0.83 dBi (peak) 62P4203 Auxiliary antenna Faxconn Electronics Inc. (R.O.C.) Dual-Band Coupled Floating Element Antenna coax 860 mm 5150-5350MHz 0.36 dBi (peak) Notes: 1a. Includes all cable losses. 1b. Antenna type should be Omni Directional and have gain of 3.0 dBi or less for IEEE802.11a(5GHz band), regarding the IBM internal specification. 3.2 Radiation characteristic of antennas Radiation characteristic of antenna is measured in regard to the rotation angle x° as shown below. Measuring Apparatus 3m Inverted F Antenna (Main Side) x° Measuring Apparatus 3m x° Inverted F Antenna (Auxiliary Side) FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0219-0 Prepared by T. Murota 5/6 -30 -20 -10 0 10 H V H+V 180º 270° 0º 90° Peak 100º -30 -20 -10 0 10 H V H+V 180º 270° 0º 90° Peak 325º Main antenna Note1) The measurement was performed at 3 frequencies (5150, 5250, 5350MHz). Note2) The maximum antenna gain was found around 100 degree angle from measuring apparatus in vertical polarization at the high frequency (5350MHz). Auxiliary antenna Note1) The measurement was performed at 3 frequencies (5150, 5250, 5350MHz). Note2) The maximum antenna gain was found around 325 degree angle from measuring apparatus in vertical polarization at the middle frequency (5250MHz). Hori (dBi) ave.-10.19 Vert (dBi) ave.-2.89 H+V (dBi) ave.-2.15 Peak(dBi) ( V )1.42 Peak Angle ( Xº= )355º Center Frequency5350MHz Hori (dBi) ave.-7.17 Vert (dBi) ave.-4.43 H+V (dBi) ave.-2.58 Peak(dBi) ( V )0.36 Peak Angle ( Xº= )325º Center Frequency5250MHz FCC Test Report FCC ID: ANO20020302R1L Document Number: FCC 19-0219-0 Prepared by T. Murota 6/6 4. IBM Web site for user’s guidance concerning the co-located transmitters Note) The contents will be available after the product announ…

Text truncated - open the document above for the full version.
