ANO20020306A1LIBM Thinkpad G40 Series - 802.11 a/b MINI PCI

FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki User’s Manual The attachment is a summary related to the FCC and IC regulations. The descriptions marked in yellow are the related portion for the applying equipment. Part Number: 92P1800 Regulatory Notice for ThinkPad G40 Series This notice is a supplementary document of the “ThinkPad ® G40 Series Service and Troubleshooting Guide.” Please read this document before you use the ThinkPad G40 Series computer. The ThinkPad G40 Series computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. You are requested to install and use your ThinkPad computer in strict accordance with the instructions as described hereafter. Avis relatif aux appareils sans fil pour les ThinkPad G40 Series Le présent document complète le manuel “ThinkPad ® G40 Series - Guide de maintenance et d’identification des incidents”. L’ordinateur ThinkPad G40 Series est conforme aux normes de radiofréquence et de sécurité en vigueur dans les pays ou régions où son utilisation sans fil a été acceptée. L’ordinateur doit être installé et utilisé conformément aux instructions fournies ci-après. Avant d’utiliser votre ordinateur ThinkPad G40, veuillez lire ce document. Hinweis zu drahtlosen Einheiten für den ThinkPad G40 Series Dieser Hinweis ergänzt die Informationen im Handbuch “ThinkPad ® G40 - Service und Fehlerbehebung”. Der ThinkPad G40 erfüllt die Funkfrequenz- und Sicherheitsstandards der Länder und Regionen, in denen er für die Verwendung als drahtlose Einheit zugelassen ist. Der ThinkPad G40 muss exakt wie nachfolgend beschrieben installiert und verwendet werden. Lesen Sie unbedingt die entsprechenden Informationen in diesem Dokument, bevor Sie den ThinkPad G40 verwenden. © Copyright IBM Corp. 20031 USA—Federal Communications Commission (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. Integrated Wireless Modules vIBM Dual-Band 11a/b Wi-Fi ® Wireless Mini PCI Adapter vIBM High Rate Wireless LAN Mini PCI Adapter III i) Installation of the integrated wireless module The IBM Dual-Band 11a/b Wi-Fi ® Wireless Mini PCI Adapter and the IBM High Rate Wireless LAN Mini PCI Adapter are preinstalled by IBM, and are not removable by users. If one of your cards requires replacement via the proper steps shown in “Chapter 3. Getting help and service from IBM”of the ThinkPad G40 Series Service and Troubleshooting Guide, IBM will request you to send your computer with the card(s) to IBM so that IBM will repair it. ii) The FCC RF Safety Requirement The radiated output power of the integrated Wireless LAN Mini-PCI Card is far below the FCC radio frequency exposure limits. Nevertheless, the ThinkPad G40 computer shall be used in such a manner that the potential for human contact during normal operation is minimized as follows: Use of Wireless options If you find an indication“FCC ID: ANO20020306A1L”or“Contains Transmitter Module FCC ID: ANO20020200BRX”on the label at the bottom side of your ThinkPad computer, your computer is approved as a multiple transmitters device that is permitted to use the integrated Wireless LAN Mini-PCI Card with one or more wireless option PC Cards in the PC Card slot simultaneously. Please make sure of the following when you use a wireless option PC Card in your ThinkPad computer. 1.Visit the IBM site atwww.ibm.com/pc/qtechinfo/MIGR-44156.htmland confirm the updated list of RF option devices that have been approved to cooperate with the integrated wireless feature. 2.When you use any other RF option device that is not listed on the IBM site, all other wireless features including the integrated transmitter in your ThinkPad computer are required to be turned off. 3.Users are requested to follow the RF Safety instructions on wireless option devices that are included in the RF option device’s user’s manual. 6 CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm (8 inches) must be maintained between the antenna for the integrated Wireless LAN Mini-PCI Card built in to the screen section and all persons. IBM High Rate Wireless LAN Mini PCI Adapter III (FCC ID: ANO20020200BRX) 7 FCC ID: ANO20020306A1L Note:The IBM Dual-Band 11a/b Wi-Fi ® Wireless Mini PCI Adapter implements transmission diversity function. The function does not emit radio frequencies simultaneously from both antennas. One of the antennas is selected automatically or manually (by users) to have good quality of radio communication. iii) Radio Frequency Interference Requirements: vAn improper installation or unauthorized use may cause harmful interference to radio communications. Also any tampering of the internal antenna will void the FCC certification. Refer to the“Appendix E. Notices, Electronic emission notices”of the ThinkPad G40 Series Service and Troubleshooting Guide for more details. When the IBM Dual-Band 11a/b Wi-Fi ® Wireless Mini PCI Adapter “FCC ID: ANO20020306A1L”is installed in your ThinkPad computer, please make sure that: vThis device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. vHigh power radar are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. 8 Canada—Industry Canada (IC) Certification number The certification number of Industry Canada for the IBM High Rate Wireless LAN Mini PCI Adapter III (IC: 349E-802MIP) is affixed on the module installed in the Mini PCI Card slot as s…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC-19-0227-0 Prepared by S.Motoki 2/4 Outline of Submission 1. Objective This is a Certification Compliance Report for FCC Part 15 subpart C, DTS device. - The applying equipment : ThinkPad G40 Series - FCC ID : ANO20020306A1L The device is composite equipment with the same FCC ID of Part 15 subpart E, U-NII device. 2. Installation of the applying transmitter The built-in wireless LAN module is preinstalled by IBM. According the FCC Part 15.407(d), a tamperproof structure is employed so that the applying wireless module is not able to be removed nor plugged in by users. (See page 4 of this Exhibit.) Since users can not access to the card, IBM or a responsible party will replace a broken card with a spare part. Refer to “Circuitry Description” document, and page 6 of User’s Manual. 3. Product Description The applying equipment is a standard size laptop computer integrating IEEE 802.11a & b combo Wireless LAN function inside. The wireless module consists of an OEM card (Philips Components, Model No: PH11107-X, 802.11 Combo Mini-PCI WLAN Card) and built-in antennas (Inverted F-figure Dual bands antennas). The specifications of the applying wireless LAN card and the built-in antennas are as follows. Specification of Wireless-LAN feature IBM product name of wireless Card IBM Dual-Band 11a/b Wi-Fi ® Wireless Mini PCI Adapter Carrier Frequencies 2412MHz ~ 2462MHz 5745MHz ~ 5825MHz Antenna gain Maximum peak 0.87 dBi Maximum peak 3.15 dBi Conducted transmission power Maximum 17 dBm Maximum 16 dBm Main antenna: P/N: R0222-099 Dual-band Inverted F-figure type antenna Antenna type Auxiliary antenna: P/N: R0222-100 Dual-band Inverted F-figure type Antenna Antenna cable type and length Main antenna: coax 570 mm Auxiliary antenna: coax 610 mm 4. Collocation with other transmitter The applying LMA transmitter collocates with one Bluetooth transmitter as follows. - Bluetooth PC Card II (FCC ID: PI4BT-IBM-PCII) As for the RF safety evaluation of the collocation, please refer to the “RF_Exposure” exhibit. FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC-19-0227-0 Prepared by S.Motoki 3/4 5. Mounting structure of Wireless LAN card and Antenna The two inverted F-figure type antennas are built in the top LCD bezel. Those diversity antennas are not used simultaneously. One of the antennas is selected automatically or manually to have a good quality of radio communication. The selected antenna performs transmission or receiving in half duplex alternatively. Auxiliary Antenna Main Antenna Mini-PCI WLAN module Antenna Cables FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC-19-0227-0 Prepared by S.Motoki 4/4 The keyboard bezel is fixed with a special screw so that the wireless module is not removed.

FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 1/2 External Photos IBM ThinkPad G40 Series (LCD 14” Model), Front View IBM ThinkPad G40 Series (LCD 15” Model), Front View FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 2/2 IBM ThinkPad G40 Series, Side View IBM ThinkPad G40 Series, Rear View

FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 1/1 Product Labeling Bottom view, Front side FCC ID

FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 1/5 Internal Photos Antenna Cables Auxiliary Antenna Main Antenna IEEE802.11a/b Wireless LAN Mini-PCI Card Antenna Cables The keyboard bezel is fixed with a special screw so that the wireless module is not removed. See Exhibit “Circuitry Description”. FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 2/5 IBM Dual-Band 11a/b Wi-Fi Wireless Mini PCI adapter Shielded Top Side Unshielded Top Side Auxiliary Antenna Port Main Antenna Port Antenna Terminals FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 3/5 Shielded Back Side Unshielded Back Side FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 4/5 Antenna Locations Auxiliary antenna Dual Band Inverted-F type P/N: R0222-100 Main antenna Dual Band Inverted-F type P/N: R0222-099 FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 5/5 Antennas Main Antenna (Left) Manufacturer: SmartAnt Telecom Co., Ltd. Parts Number: R0222-099 Dual Band Inverted-F type antenna Cable: coax 570mm Auxiliary Antenna (Right) Manufacturer: SmartAnt Telecom Co., Ltd. Parts Number: R0222-100 Dual Band Inverted-F type antenna Cable: coax 610mm

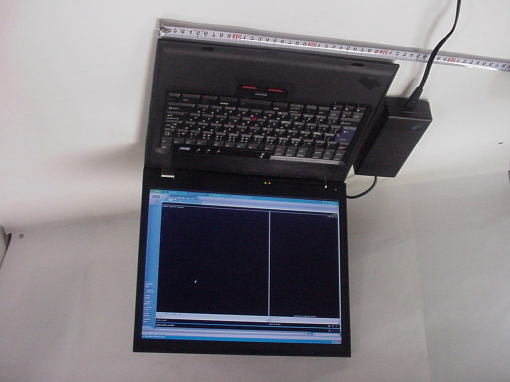

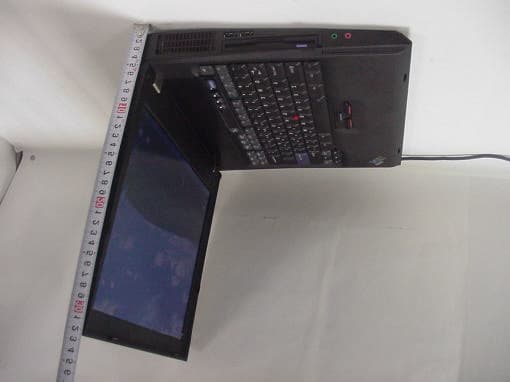

FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 1/5 RF Exposure 1. RF Exposure evaluation for the applying transmitter As shown in the following photo, the two inverted F-figure type antennas are built in the top LCD bezel .The separation distances between the antennas and the human body are 20cm or more. Therefore the laptop PC can be categorized as a mobile device by FCC CFR 47 Section 2.1091. [2.4GHz band] The highest conducted peak output power of the Test Report is 50.1 mW (17.0 dBm) and the maximum antenna gain is 0.87 dBi (See the table below “Transmission Antenna assembly overview”.). Therefore the peak radiated output power(EIRP) is calculated as follows. EIRP = P + G = 17.0 dBm + 0.87 dBi = 17.87 dBm (61.2 mW) Then, the maximum power density at 20cm distance is calculated as : S = EIRP/(4 ( R2 ( ) = 0.0122 mW/cm2 [5.8GHz band] The highest conducted peak output power of the Test Report is 45.7 mW (16.6 dBm) and the maximum antenna gain is 3.15 dBi (See the table below “Transmission Antenna assembly overview”.). Therefore the peak radiated output power(EIRP) is calculated as follows. EIRP = P + G = 16.6 dBm + 3.15 dBi = 19.75 dBm (94.4 mW) The separation distances between the antennas and the human body (lap) are about 32cm . Antenna height Main antenna Auxiliary antenna FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 2/5 Then, the maximum power density at 20cm distance is calculated as : S = EIRP/(4 ( R2 ( ) = 0.0188 mW/cm2 Since the applying laptop PC’s WLAN transmitter does not function to emit the radio frequency from both diversity antennas simultaneously, the above value is the maximum RF exposure to the persons and is below the MPE limit (1.0 mW/ cm 2 ). Therefore the laptop PC meets the MPE requirements for general Population/Uncontrolled exposure. Transmission Antenna assembly overview Designator Manufacture Antenna type Cable type and length Gain (dBi) Note 1) 2.4G Band -0.25 dBi (peak) R0222-099 Main antenna SmartAnt Telecom Co., Ltd. (R.O.C.) Dual Band Inverted F type Antenna coax 570mm 5.8 G Band 3.15 dBi (peak) 2.4G Band 0.87 dBi (peak) R0222-100 Auxiliary antenna SmartAnt Telecom Co., Ltd. (R.O.C.) Dual Band Inverted F type Antenna coax 610mm 5.8 G Band 2.11 dBi (peak) Notes: 1a. Includes all cable losses. 1b. Antenna type should be Omni Directional. FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 3/5 2. RF Exposure evaluation for Bluetooth transmitter The applying laptop PC (ThinkPad G40 Series) supports one Bluetooth devices as follows. FCC ID Grantee Name Product Name Granted Date ERP in FCC Test Report User’s option PI4BT-IBM-PCII TDK Systems Europe Ltd. Bluetooth PC Card II August/21/2001 1.0mW Interface to connect Wireless option PCMCIA Auxiliary antenna of applying transmitter About 31cm The auxiliary antenna is closer than the main antenna from the PCMCIA Bluetooth antenna. FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 4/5 The main and auxiliary antennas of the applying transmitter in the LCD section are assembled apart from the Bluetooth antenna shown in the previous page with 20 cm or more distance. Therefore the RF exposure evaluation for the Bluetooth transmitter is able to be done independently of the applying antennas. In other word, a collocated SAR testing is not required. When a customer operates the applying PC on one’s lap, the sufficient separation distance (minimum 20cm) between the above Bluetooth antenna and the person’s body (lap) can not be maintained. But the footnote of the Section 3 in Supplement C to OET Bulletin 65 states “ 14 .......... If a device, its antenna or other radiating structures are operating at closer than 2.5 cm from a person’s body or in contact with the body, SAR evaluation may be necessary when the output is more than 50 – 100 mW, depending on the device operating configurations and exposure conditions.” The output power of the Bluetooth transmitter in the previous table does not exceed 5mW. Therefore the transmitter also satisfy the RF exposure evaluation regarding CFR 47 Part 15.247(b)(4) without a SAR compliance test report, and can operate with the applying transmitter simultaneously. IBM Web site guides customers about the grant condition related to those collaborating transmitter devices. See page 5 of this exhibit. FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 5/5 3. IBM Web site for user’s guidance concerning the co-located transmitters Note) The contents will be available after the product announcement. http://www.pc.ibm.com/qtechinfo/MIGR-44156.html

FCC ID: ANO20020306A1L Document Number: FCC-19-0227-1 Prepared by S. Motoki 1/1 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan To whom this may concern March 19, 2003 TCB Requested Information FCC ID : ANO20020306A1L Applicant : International Business Machines Corporation Correspondence Reference Number : 230318C.ANO 731 Confirmation Number : TC3057 Original Requested Date : March 18, 2003 Subject 1) Please confirm all frequency of operations of the device. The users manual/test report shows 5.15-5.25, 5.25-5.35, and 5.65-5.85 GHz operations which are outside the requested frequency band of operations. Please revise technical report/users manual or send supporting test data, as appropriate. Answer 1) Those frequency bands in users manual (not in test report) are described for the attention to users concerning interference with Mobile Satellite Service (5.15 - 5.25GHz) or High Power Radors (5.25 - 5.35GHz or 5.65 – 5.85 GHz). The former notice is mandated by the CFR47 Part 15.407(e). The later one is voluntary. Therefore the manual revision may not be required. Subject 2) Please provide tabulated radiated test data for the restricted band between 2483.5 - 2500 MHz with the EUT operating on channel 11 (2462 MHz). Recent FCC policy specifically requests tabulated data in the restricted band (see attached). Answer 2) Please refer Table 7-2-3 on page 59 and the plots on page 63 and 64 of the exhibit “TestReports_DTS.pdf” Sincerely, March 19, 2003 Shigeru Motoki, Staff Engineer, EMC Engineering, Yamato Laboratory, IBM Japan Ltd.

FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 MEASUREMENT / TECHNICAL REPORT – Part 15 Subpart C (Intentional Radiator) IBM ThinkPad G40 Series (Machine type : 2387, 2388, 2389) with IBM Dual-Band 11a/b Wi-Fi ® Wireless Mini PCI Adapter FCC ID : ANO20020306A1L February 21, 2003 This report concerns: (check one) Original Grant ̧ Class I change Class II change Equipment type: Wireless LAN device This report shall not be reproduced except in full, without the written permission of this test lab. The measurement results contained in this report relate only to the item which was tested. Measurement procedure used is ANSI C63.4-2000 unless otherwise specified. Other test procedure: The FCC has issued provisional acceptance of this test laboratory for Declaration of Conformity testing per letter dated 1997. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: By checking yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a “party” for these purposes, see 47 CFR 1.2002(b). Yes or No “Report shall not be reproduced except in full, without the written approval of the laboratory” “the report must not be used by the client to claim product endorsement by NVLAP or any agency of the US government” Prepared by: Takeshi Asano IBM Japan Corporation, Yamato EMC Enginnering LAB-S59, 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Tel: +81-46-215-4779 Fax: +81-46-273-7420 FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by T. Asano 3/64 - Index - A. GENERAL INFORMATION...............................................................................................................................................3 A.1 TEST METHODOLOGY........................................................................................................................................................3 A.2 TEST FACILITY / NVLAP ACCREDITATION...................................................................................................................3 A.3 EUT DETAILS.......................................................................................................................................................................3 B. SUMMARY OF TEST RESULTS...........................................................................................................................................3 C. OPERATION MODE OF EUT...............................................................................................................................................3 D. JUSTIFICATION........................................................................................................................................................................3 E. TEST INSTRUMENTS..........................................................................................................................................................3 F. MEASUREMENT UNCERTAINTY...................................................................................................................................3 G. TEMPERATURE AND HUMIDITY....................................................................................................................................3 H. RELATED SUBMITTAL(S)/GRANT(S)/NOTES.............................................................................................................3 1. BANDWIDTH AT 6 DB BELOW...............................................................................................................................................3 1.1 TEST PROCEDURE..........................................................................................................................................................3 1.2 TEST INSTRUMENTS AND MEASUREMENT SETUP....................................................................................................3 1.3 MEASUREMENT RESULTS.............................................................................................................................................3 1.4 TRACE DATA OF 6DB BANDWIDTH..............................................................................................................................3 2. OCCUPIED BANDWIDTH AT 20 DB BELOW / BANDEDGE, AND OUT OF BAND EMISSIONS..................3 2.1 TEST PROCEDURE..........................................................................................................................................................3 2.2 TEST INSTRUMENTS AND MEASUREMENT SETUP....................................................................................................3 2.3 MEASUREMENT RESULTS OF OCCUPIED BANDWIDTH/BAND-EDGE....................................................................3 2.4 MEASUREMENT RESULTS OF OUT OF BAND EMISSIONS.......................................................................................3 2.5 TRACE DATA OF 20DB BANDWIDTH............................................................................................................................3 2.6 TRACE DATA OF OUT OF BAND EMISSIONS..............................................................................................................3 3. CONDUCTED PEAK OUTPUT POWER...............................................................................................................................3 3.1 TEST PROCEDURE..........................................................................................................................................................3 3.2 MEASUREMENT RESULTS............................................…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 1/4 Test Setup Photos EMI - Radiated Measurement Photos Semi-anechoic Chamber #1 FCC IC 15.205 / 209 6.2.1 / 6.3 General Field Strength Limits (Restricted Bands and Radiated Emission Limits) Tx 15.209 7.3 General Field Strength Limits (Radiated Emission Limits) Rx EMI-Radiation Front View FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 2/4 EMI-Radiation Rear Views FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 3/4 EMI - Conducted Measurement Photos EMI conducted room (shield room) FCC IC 15.207 6.6 AC Wireline Conducted emissions Tx 15.207 7.4 AC Wireline Conducted emissions Rx FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki 4/4 Conducted Measurement Photos FCC IC Measurement Items 15.247(a)(2) 5.9.1 Bandwidth at 6 dB blow 15.247(b)(1) 6.2.2(o)(b) Peak output power 15.247(c) 5.9.1 6.2.2(o)(e1) Occupied BW (or Band-edge) Out of Band Emissions (Bandwidth at 20 dB blow) 15.247(d) 6.2.2(o)(b) Transmitter power density Tx EMI Semi-anechoic Chamber #1, Operation Room Antenna cable Antenna cable
