ThinkPad ® R30 ServiceandTroubleshootingGuide
 ThinkPad ® R30 ServiceandTroubleshootingGuide
 Note Before using this information and the product it supports, be sure to read the general information under “Appendix A. Important safety instructions” on page 45 and “Appendix B. Warranty Statement” on page 51 . DANGER vTo avoid electric shock hazard, connect and disconnect cables appropriately when installing, moving or opening the covers of this product or attached devices. Use the power cord with a properly grounded outlet. vDo not leave the base of your computer in contact with your lap or any part of your body for an extended period when the computer is functioning or when the battery is charging. Your computer dissipates some heat during normal operation. This heat is a function of the level of system activity and battery charge level. Extended contact with your body, even through clothing, could cause discomfort or, eventually, a skin burn. vTo reduce the risk of electric shock, do not use your computer in or near water. vTo avoid electric shock, do not use your computer with the telephone cable connection during an electrical storm. Do not connect the cable to or disconnect it from the telephone outlet on the wall during an electrical storm. vStore packing materials safely out of the reach of children to prevent the risk of suffocation from plastic bags. vThe battery pack contains a small amount of harmful substances. There is danger of an explosion if the battery pack is incorrectly replaced, exposed to fire or water, short-circuited or disassembled. Keep the battery pack away from children and do not put it in trash that is disposed of in landfills. vTo reduce the risk of fire, use only No. 26 AWG or thicker telephone cable. vThe fluorescent lamp in the LCD contains mercury. Do not put it in trash that is disposed of in landfills. Rough handling or dropping the computer can cause the LCD to break and the internal fluid to get into your eyes or on your hands. Immediately wash the affected areas with water. If symptoms persist, seek medical care. vDo not open the CD-ROM, CD-RW, DVD-ROM, or DVD/CD-RW drive unit, as this might result in hazardous radiation exposure. vAvoid direct eye exposure with the laser beam contained in some drives. First Edition (October 2001) The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION′′AS IS′′WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you. This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice. IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you. © Copyright International Business Machines Corporation 2001. All rights reserved. US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp. Finding information with Access ThinkPad Join an interactive community of ThinkPad users to access mobile resources, read tips and true stories, and share your own advice. Customize your ThinkPad with accessories, software and services. A one-click guide to service on the Web for your ThinkPad. Your gateway into a comprehensive help system, offering information about all of your ThinkPad computer hardware and software features. A quick way to search the help system. © Copyright IBM Corp. 2001iii Whenever you have a question about your computer, or wish to view IBM ® Web sites, simply press the ThinkPad button to open Access ThinkPad. Click one of the Internet buttons to join an interactive ThinkPad Web community, or to directly access information about accessories and software updates, small business offerings, and help and support. Access ThinkPad includes a comprehensive, on-board help and information center for your computer. It travels with you, eliminating the need to carry reference manuals. Find information about your ThinkPad computer and its features by using the Quick Search or clicking one of the topics shown. This opens another window, where you can view hundreds of help topics by browsing the table of contents, using the index, or performing a search. View help topics to learn how to: vUse your computer hardware features vConnect to the internet or a local network vSet up a projector for your presentation vUse passwords and other security features vInstall, remove and recover software vUpgrade your system vExtend the life of your battery vTroubleshoot problems vContact IBM for service and support vPerform many other tasks ivThinkPad ® R30 Service and Troubleshooting Guide Some of the topics in your help system contain brief video clips that show you how to perform certain tasks, such as replacing your battery, inserting a PC Card, or upgrading your memory. Use the controls shown to play, pause, and rewind the video clip. Finding information with Access ThinkPadv viThinkPad ® R30 Service and Troubleshooting Guide Contents Finding information with Access ThinkPadiii Chapter 1. Overview of your new ThinkPad computer.............1 Your ThinkPad at a glance.......2 Features..............3 Specifications............5 Caring for your ThinkPad computer....7 Using your on-board help.......10 Chapter 2. Solving computer problems . . 11 Diagnosing problems.........12 Troubleshooting...........13 Errorcodesormessag…

Text truncated - open the document above for the full version.

FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 1/2 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan August 30, 2001 To whom this may concern OET Requested Information FCC ID : ANOCH126P8056 Applicant : International Business Machines Corporation Correspondence Reference Number : 20440 731 Confirmation Number : EA101439 Original Requested Date : August 30, 2001 Subject : 1) The RF safety information must be at the front of the manual. 2) You added information about the EIRP limit for co-located devices to be used. Delete this statement. Stay with the identifiers on the IBM website to clearly indicate to the user which devices are allowed. Answer: 1) Please find the attached sheet in the next page. IBM will add and attach it to the users manual, also leave the same description as the sheet at the current page of the manual. 2) The EIRP limit was eliminated from the RF safety information. Sincerely, August 30, 2001 Toshiya Murota EMC Engineering Yamato Laboratory, IBM Japan Ltd. IBM®46P6377 Important Notice for Users USA - Federal Communications Commission (FCC) This device complies with part 15 of the FCC Fules. Operation is subject to the following conditions: 1.This device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. The FCC RF Safety Requirement The radiated output power of Wireless LAN Mini-PCI Adapter is far below the FCC radio frequency exposure limits. Nevertheless, the ThinkPad R30 computer shall be used in such a manner that the potential for human contact during normal operation is minimized as follows: •CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm (8 inches) must be maintained between the antenna of this device and all persons. • Please make sure of the following when you will use a Bluetooth option or wireless PCMCIA card in your ThinkPad computer. 1.Please visit the IBM site at www.ibm.com/pc/support and confirm the updated list of RF devices that have been approved to cooperate with the integrated wireless feature. 2.When you use any wireless option that is not introduced in the IBM site, all other wireless features in your ThinkPad computer are required to be turned off. 3.Please be careful to follow the RF Safety instructions of wireless option devices that should be indicated in each user manual. Interference Statement An improper installation or unauthorized use may cause harmful interference to radio communications. Also, any tampering of the internal antenna will void the FCC certification and your warranty. Refer to the “Electronic emission notices” in the manual. 20cm Transmitter antenna position

FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota Attestation Statements (Processing Gain) IBM ThinkPad 802.11b Wireless LAN Mini-PCI Adapter by Actiontec Electronics, Inc. Chip/symbol rate, symbol/bit rate, Chip/bit, and the measurement results Bit rateChip/symbol rateBit/symbol rate Chip/bit rateGp (dB)Spec (dB) 1 Mbit/sec111, DBPSK1113.210 2 Mbit/sec112, DQPSK5.512.610 5.5 Mbit/sec84, CCK213.410 11 Mbit/sec88, CCK112.910 Note: Gp is Processing Gain; Processing Gain ISL37400M DATA-111Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2428.5023.916.45.52.0-57.2<=8.0 2428.5523.916.45.52.0-57.2<=8.0 2428.6023.916.45.52.0-57.2<=8.0 2428.6523.816.45.42.0-57.3<=8.0 2428.7023.816.45.42.0-57.3<=8.0 2428.7524.016.45.62.0-57.1<=8.0 2428.8024.116.45.72.0-57.0<=8.0 2428.8524.116.45.72.0-57.0<=8.0 2428.9024.216.45.82.0-56.9<=8.0 2428.9524.116.45.72.0-57.0<=8.0 2429.0024.416.46.02.0-56.7<=8.0 2429.0524.316.45.92.0-56.8<=8.0 2429.1024.316.45.92.0-56.8<=8.0 2429.1524.316.45.92.0-56.8<=8.0 2429.2024.416.46.02.0-56.7<=8.0 2429.2523.716.45.32.0-57.4<=8.0 2429.3023.316.44.92.0-57.8<=8.0 2429.3523.216.44.82.0-57.9<=8.0 2429.4022.216.43.82.0-58.9<=8.0 2429.4521.316.42.92.0-59.8<=8.0 2429.5021.216.42.82.0-59.9<=8.0 2429.5521.116.42.72.0-60.0<=8.0 2429.6021.116.42.72.0-60.0<=8.0 2429.6521.016.42.62.0-60.1<=8.0 2429.7021.016.42.62.0-60.1<=8.0 2429.7520.816.42.42.0-60.3<=8.0 2429.8020.716.42.32.0-60.4<=8.0 2429.8521.116.42.72.0-60.0<=8.0 2429.9021.016.42.62.0-60.1<=8.0 2429.9521.116.42.72.0-60.0<=8.0 2430.0020.916.42.52.0-60.2<=8.0 2430.0520.916.42.52.0-60.2<=8.0 2430.1020.516.42.12.0-60.6<=8.0 2430.1519.516.41.12.0-61.6<=8.0 2430.2019.516.41.12.0-61.6<=8.0 2430.2519.016.40.62.0-62.1<=8.0 2430.3019.016.40.62.0-62.1<=8.0 2430.3518.716.40.32.0-62.4<=8.0 2430.4018.716.40.32.0-62.4<=8.0 2430.4518.516.40.12.0-62.6<=8.0 2430.5018.416.40.02.0-62.7<=8.0 2430.5518.416.40.02.0-62.7<=8.0 2430.6018.416.40.02.0-62.7<=8.0 2430.6518.116.4-0.32.0-63.0<=8.0 2430.7017.916.4-0.52.0-63.2<=8.0 2430.7517.416.4-1.02.0-63.7<=8.0 2430.8017.416.4-1.02.0-63.7<=8.0 2430.8517.116.4-1.32.0-64.0<=8.0 Prepared by: D. KalcikPage 12001/4/17 Processing Gain ISL37400M DATA-111Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2430.9017.116.4-1.32.0-64.0<=8.0 2430.9516.916.4-1.52.0-64.2<=8.0 2431.0016.816.4-1.62.0-64.3<=8.0 2431.0516.716.4-1.72.0-64.4<=8.0 2431.1016.716.4-1.72.0-64.4<=8.0 2431.1516.316.4-2.12.0-64.8<=8.0 2431.2016.516.4-1.92.0-64.6<=8.0 2431.2516.416.4-2.02.0-64.7<=8.0 2431.3016.316.4-2.12.0-64.8<=8.0 2431.3516.316.4-2.12.0-64.8<=8.0 2431.4015.816.4-2.62.0-65.3<=8.0 2431.4515.916.4-2.52.0-65.2<=8.0 2431.5015.716.4-2.72.0-65.4<=8.0 2431.5515.516.4-2.92.0-65.6<=8.0 2431.6015.416.4-3.02.0-65.7<=8.0 2431.6515.216.4-3.22.0-65.9<=8.0 2431.7015.116.4-3.32.0-66.0<=8.0 2431.7515.016.4-3.42.0-66.1<=8.0 2431.8015.016.4-3.42.0-66.1<=8.0 2431.8514.916.4-3.52.0-66.2<=8.0 2431.9015.016.4-3.42.0-66.1<=8.0 2431.9515.116.4-3.32.0-66.0<=8.0 2432.0015.116.4-3.32.0-66.0<=8.0 2432.0515.116.4-3.32.0-66.0<=8.0 2432.1015.016.4-3.42.0-66.1<=8.0 2432.1514.816.4-3.62.0-66.3<=8.0 2432.2014.916.4-3.52.0-66.2<=8.0 2432.2514.916.4-3.52.0-66.2<=8.0 2432.3014.816.4-3.62.0-66.3<=8.0 2432.3514.616.4-3.82.0-66.5<=8.0 2432.4014.316.4-4.12.0-66.8<=8.0 2432.4514.516.4-3.92.0-66.6<=8.0 2432.5014.616.4-3.82.0-66.5<=8.0 2432.5514.516.4-3.92.0-66.6<=8.0 2432.6014.316.4-4.12.0-66.8<=8.0 2432.6514.316.4-4.12.0-66.8<=8.0 2432.7014.216.4-4.22.0-66.9<=8.0 2432.7514.116.4-4.32.0-67.0<=8.0 2432.8014.116.4-4.32.0-67.0<=8.0 2432.8513.816.4-4.62.0-67.3<=8.0 2432.9013.516.4-4.92.0-67.6<=8.0 2432.9513.716.4-4.72.0-67.4<=8.0 2433.0013.616.4-4.82.0-67.5<=8.0 2433.0513.516.4-4.92.0-67.6<=8.0 2433.1013.516.4-4.92.0-67.6<=8.0 2433.1513.516.4-4.92.0-67.6<=8.0 2433.2013.616.4-4.82.0-67.5<=8.0 2433.2513.716.4-4.72.0-67.4<=8.0 Prepared by: D. KalcikPage 22001/4/17 Processing Gain ISL37400M DATA-111Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2433.3013.716.4-4.72.0-67.4<=8.0 2433.3513.616.4-4.82.0-67.5<=8.0 2433.4013.516.4-4.92.0-67.6<=8.0 2433.4513.416.4-5.02.0-67.7<=8.0 2433.5013.416.4-5.02.0-67.7<=8.0 2433.5513.416.4-5.02.0-67.7<=8.0 2433.6013.416.4-5.02.0-67.7<=8.0 2433.6512.916.4-5.52.0-68.2<=8.0 2433.7012.916.4-5.52.0-68.2<=8.0 2433.7512.916.4-5.52.0-68.2<=8.0 2433.8013.116.4-5.32.0-68.0<=8.0 2433.8512.916.4-5.52.0-68.2<=8.0 2433.9012.716.4-5.72.0-68.4<=8.0 2433.9513.416.4-5.02.0-67.7<=8.0 2434.0013.416.4-5.02.0-67.7<=8.0 2434.0513.416.4-5.02.0-67.7<=8.0 2434.1013.316.4-5.12.0-67.8<=8.0 2434.1513.216.4-5.22.0-67.9<=8.0 2434.2013.016.4-5.42.0-68.1<=8.0 2434.2513.016.4-5.42.0-68.1<=8.0 2434.3013.016.4-5.42.0-68.1<=8.0 2434.3513.016.4-5.42.0-68.1<=8.0 2434.4012.616.4-5.82.0-68.5<=8.0 2434.4512.816.4-5.62.0-68.3<=8.0 2434.5012.916.4-5.52.0-68.2<=8.0 2434.5512.816.4-5.62.0-68.3<=8.0 2434.6012.816.4-5.62.0-68.3<=8.0 2434.6512.716.4-5.72.0-68.4<=8.0 2434.7012.716.4-5.72.0-68.4<=8.0 2434.7512.816.4-5.62.0-68.3<=8.0 2434.8012.816.4-5.62.0-68.3<=8.0 2434.8512.316.4-6.12.0-68.8<=8.0 2434.9012.116.4-6.32.0-69.0<=8.0 2434.9512.416.4-6.02.0-68.7<=8.0 2435.0012.416.4-6.02.0-68.7<=8.0 2435.0512.416.4-6.02.0-68.7<=8.0 2435.1012.616.4-5.82.0-68.5<=8.0 2435.1512.516.4-5.92.0-68.6<=8.0 2435.2012.716.4-5.72.0-68.4<=8.0 2435.2512.716.4-5.72.0-68.4<=8.0 2435.3012.916.4-5.52.0-68.2<=8.0 2435.3512.916.4-5.52.0-68.2<=8.0 2435.4012.916.4-5.52.0-68.2<=8.0 2435.4512.616.4-5.82.0-68.5<=8.0 2435.5012.916.4-5.52.0-68.2<=8.0 2435.5512.916.4-5.52.0-68.2<=8.0 2435.6012.916.4-5.52.0-68.2<=8.0 2435.6512.816.4-5.62.0-68.3<=8.0 Prepared by: D. KalcikPage 32001/4/17 Processing Gain ISL37400M DATA-111Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2435.7012.416.4-6.02.0-68.7<=8.0 2435.7512.516.4-5.92.0-68.6<=8.0 2435.…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 1/2 Block Diagrams 1. Block Diagram of the PC system unit FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 2/2 2. Block Diagram of IBM ThinkPad 802.11b Wireless LAN Mini-PCI Adapter PCI bus

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan June 22, 2001 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315, USA Subject: Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application document for the FCC Part 15, Subpart C certification. - FCC ID : ANOCH126P8056 - Applying equipment name : ThinkPad R30 - Device type : 2400-2483.5MHz Spread Spectrum, Direct Sequence system The applying product is a notebook type PC integrating IEEE802.11b Wireless LAN Mini-PCI card. If any further information is required concerning this application, please contact us. Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan June 22, 2001 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315, USA Subject: Confidentiality Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application for the FCC Part 15, Subpart C certification : - FCC ID : ANOCH126P8056 - Applying equipment name : ThinkPad R30 Pursuant to 47 CFR section 0.457(d) and 0.459, we hereby request confidentiality status of the schematic diagrams of IEEE802.11b Wireless LAN Mini-PCI card. It concerns a pdf file : Confidential_Schematic_Diagrams.pdf Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

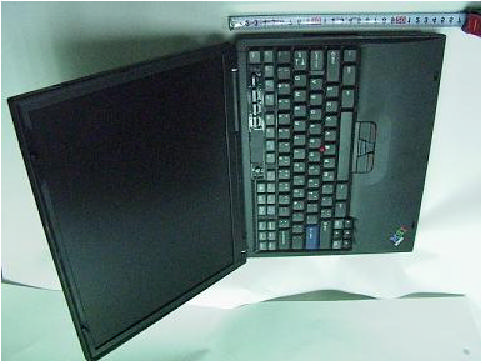

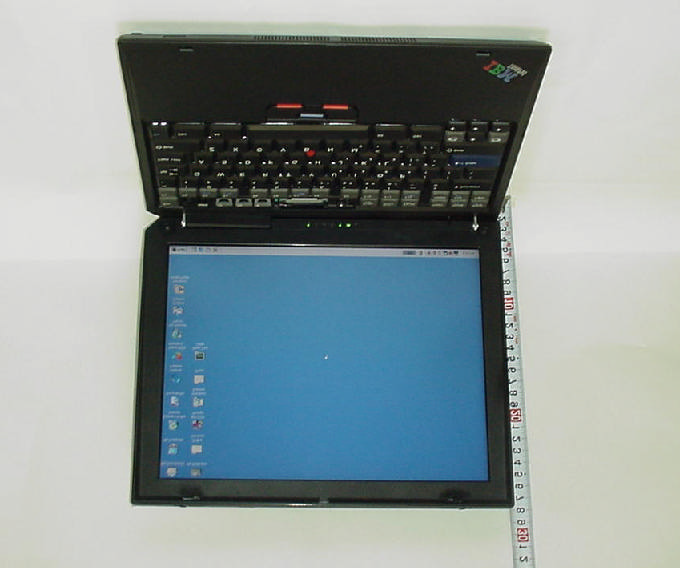

FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 1/4 External Photos LCD 13 inch Model LCD 14 inch Model FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 2/4 FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 3/4 Rear Side View FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 4/4 Bottom Side Views

FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 1/1 Product Labeling

FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan August 2, 2001 To whom this may concern OET Requested Information FCC ID : ANOCH126P8056 Applicant : International Business Machines Corporation Correspondence Reference Number : 19815 731 Confirmation Number : EA101439 Original Requested Date : June 30, 2001 July 26, 2001 Subject : June 30, 2001 THE COMPLIANCE STATEMENT MUST BE SHOWN IN A CONSPICUOUS LOCATION ON THE DEVICE, PURSUANT TO SECTION 15.19(a)(3) OF THE FCC RULES. IF THERE'S NOT ENOUGH SPACE ON THE DEVICE FOR THE STATEMENT, IT MAY BE PLACED IN THE USERS MANUAL. PLEASE ADHERE TO THE RULES UPON RECEIPT OF AUTHORIZATION TO MARKET THIS DEVICE. July 26, 2001 Your question pertained to the compliance statement per Section 15.19(a)(3), and its placement on the device: Please note that there is no compromise to whether or not to put the compliance statement on the device, except in cases where the device is so small that there is not enough room on the device for the statement. BE ADVISED THAT THIS IS WITHOUT EXCEPTION. Moreover, you can not place other information on the device -such as for business or personal reasons, and exclude the compliance statement. Answer: The product label was modified to include the statement according the Section 15.19(a)(3). Please find the new label attached in the next page. Sincerely, August 2, 2001 Toshiya Murota Stuff Engineer, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 1/11 Internal Photos FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 2/11 Bottom view Rear side IEEE802.11b Wireless LAN Mini-PCI Adapter FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 3/11 Plug in/out. FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 4/11 Antenna locations of 13” model PN: 25.900022.001PN: 25.900020.001 FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 5/11 Antenna locations of 14” model PN: 25.900020.001 PN: 25.900017.001 FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 6/11 IEEE802.11b Wireless LAN Mini-PCI Adapter To Right side antenna Rx only To left side antenna Tx/Rx switching Antenna terminals FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 7/11 IEEE802.11b Wireless LAN Mini-PCI Adapter (Top side) FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 8/11 IEEE802.11b Wireless LAN Mini-PCI Adapter (Back side) FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 9/11 Main Antenna of 14” model (PN: 25.900017.001) Inverted-F type antenna Cable : coax 550 mm FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 10/11 Main Antenna of 13” model (PN: 25.900022.001) Dipole type antenna Cable : coax 550 mm FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 11/11 Receiver Antenna of 13”/14” models common (PN: 25.900020.001) Inverted-F type antenna Cable : coax 370 mm

FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Yellow Sheet : No. EM587 FCC Part 15, Subpart C (Intentional Radiator) Product Name: ThinkPad R30 (2656-3Ax/6Ax/6Bx/BAx/EAx/EBx) FCC ID: ANOCH126P8056 June 22, 2001 EMC Staff Engineer Toshiya Murota Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-6574 Fax: +81-46-273-7420 E-Mail: [email protected] OEM System Development Manager Ishikawa Tatsuroh Signature: IBM Japan, Ltd. Portable Products LAB-R15 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-2750 EMC Engineering Manager / NVLAP signatory Akihisa Sakurai Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-2613 Fax: +81-46-273-7420 E-Mail: [email protected] Portable Systems Director Arimasa Naitoh Signature: IBM Japan, Ltd. Portable Systems LAB-R11 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-6110 FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota MEASUREMENT/TECHNICAL REPORT – Part 15 Subpart C (Intentional Radiator) ThinkPad R30 (2656-3Ax/6Ax/6Bx/BAx/EAx/EBx) FCC ID : ANOCH126P8056 June 22, 2001 This report concerns: (check one) Original Grant ̧ Class I change Class II change Equipment type: Wireless LAN device in Computer (computer, printer, modem, etc.) This report shall not be reproduced except in full, without the written permission of this test lab. The measurement results contained in this report relate only to the item which was tested. Measurement procedure used is ANSI C63.4-1992 unless otherwise specified. Other test procedure: The FCC has issued provisional acceptance of this test laboratory for Declaration of Conformity testing per letter dated 1997. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: By checking yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a “party” for these purposes, see 47 CFR 1.2002(b). Yes or No “Report shall not be reproduced except in full, without the written approval of the laboratory” “the report must not be used by the client to claim product endorsement by NVLAP or any agency of the US government” Prepared by: Toshiya Murota IBM Japan Corporation, Yamato EMC Enginnering LAB-S59, 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Tel: +81-46-215-6574 Fax: +81-46-273-7420 FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 1/5 Operational Description 1. Objective This is a Certification Compliance Report for FCC Part 15, Subpart C (Intentional Radiator). - The applying equipment : ThinkPad R30 - FCC ID : ANOCH126P8056 2. Product Description The applying equipment is a portable type notebook personal computer integrating IEEE 802.11b Wireless LAN function inside. The wireless module consists of an OEM card(Actiontec Electronics Inc., IEEE802.11b Wireless LAN Mini-PCI card) and IBM original integrated 2 antennas (Dipole or Inverted F-figure type antennas). The sepecification of the applying equipment is as follows : Table 1 : Specification of PC main body (LCD 14 inch model) Model Identification ThinkPad R30 Product number (Order code) 2656-6Ax2656-EAx2656-6Bx2656-EBx Max. size 313 mm(12.3”)(W) : 254 mm(10.0”)(D) : 36 mm(1.42”)(H) Max.Weight 6.36 lbs6.61 lbst Hard disk 2.5” 30 GB2.5” 15GB Memory 128MB Bay Device CD-RW/DVD- ROM CD-RWCD-ROM Power AC adapter, Battery (Li-Ion)AC adapter, Battery (NiMH) Ports & Slots Parallel, CRT, Headphone, Microphone, USBx2, 4M IR, S-Video Out, Port Replicator, RJ11, RJ45, PCMCIA slot (type-2 x 1or type-3 x 1) CPU Intel® Mobile Geyserville® 900MHz LCD 14.1” TFT XGA Keyboard US English, French, Spanish, UK English, Japanese, Chinese, Korean, Thailand PC Functions Pre installed Software Whistler PerWhistler ProWhistler PerWhistler Pro FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 2/5 Table 2 : Specification of PC main body (LCD 13 inch mode) Model Identification ThinkPad R30 Product number (Order code) 2656-3Ax2656-BAx Max. size 313 mm(12.3”)(W) : 254 mm(10.0”)(D) : 36 mm(1.42”)(H) Max.Weight 6.15 lbs Hard disk 2.5” 15 GB Memory 128MB Bay Device CD-ROM Power AC adapter, Battery (Li-Ion) Ports & Slots Parallel, CRT, Headphone, Microphone, USBx2, 4M IR, S-Video Out, Port Replicator, RJ11, RJ45, PCMCIA slot (type-2 x 1or type-3 x 1) CPU Intel® Mobile Geyserville® 900MHz LCD 13.3” TFT XGA Keyboard US English, French, Spanish, UK English, Japanese, Chinese, Korean, Thailand PC Functions Pre installed Software Whistler PerWhistler Pro Table 3 : Specification of Wireless-LAN feature Carrier Frequencies 2412MHz - 2462MHz Occupied BW at 20dB below (Band-edge) 2403.73MHz – 2470.57MHz Channels Total 11 channels (default setting ch. # : 1, 6, 11) Channel BW at 20dB below Max. 16.96MHz / ch Channal spacing 5 MHz Conducted emission Power 14.3 dBm Antenna gain Dipole (13 inch LCD) : -0.11 dBi Inverted-F (14 inch LCD) : -1.58 dBi Rx13/14 inch common Inverted-F P/N: 5.900020.0001 13 inchDipoleP/N: 5.900022.0001 Antenna type Tx/Rx switch 14 inch Inverted-F Acer NeWeb P/N: 5.900017.0001 Antenna cable type and length Tx/Rx switching antenna : coax 550mm Rx antenna : coax 370mm Bit rate 1 Mbit/sec2 Mbit/sec5.5 Mbit/sec11 Mbit/sec Chip/symbol rate 111188 Bit/symbol rate 1 (DBPSK)2 (DQPSK)4 (CCK)8 (CCK) Chip/bit rate 115.521 FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 3/5 3. Mo…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 1/4 Parts List of IBM ThinkPad 802.11b Wireless LAN Mini-PCI Adapter P/NQ'TYNAMESPEC.LACTION 122-149-004A 2122-149-101S1PACKING ASSYFOR 802MIP 3212-0002-268Q0.003SHIPPING CARTON466(L)*290(W)*220(H)M/M 4212-0004-318A0.003POLY BAG850(L)*500(W)*0.05 5212-0006-028B0.042BLISTER445(L)*264(W)*0.4(THK)M/M FOR MP100IM 6212-0009-407R0.011CARD BOARD285(L)*216(W)*7.5(THK)M/M 7212-0009-408H0.003CARD BOARD964(L)*450(W)*7.5(THK)M/M 8212-0009-40990.011CARD BOARD450(L)*268(W)*7.5(THK)M/M 9212-0018-059Z0.039EPE SHEET400(L)*260(W)*2.5(THK) M/M 10122-149-20361PCB ASSY.FOR 802MIP REV.3A 11201-0016-044T1MYLARMYLAR FOR 802MIS SHIELD COVER INSIDE 12201-0016-045K1MYLARMYLAR FOR 802MIS SHIELD COVER OUTSIDE 13201-0016-05221MYLARACTIONTEC 802MIP MYLAR 14201-0016-057V1MYLARACTIONTEC 802MIP MYLAR 15203-0025-07831SHIELD COVERSHIELD COVER FOR 802MIS 16222-149-606W1SECOND SMD ASSY.FOR 802MIP REV.3A 17322-149-60531FIRST SMD ASSY.FOR 802MIP REV.3A 18447-0045-1ECU1PCBFOR 802MIP REV.3A 19453-1300-001V1SMT ICUPC2745TB-E3 SO6-65U16. 20455-0201-01321SMT ICSCORPIO SOP-16P (LUCENT)U19. 21455-0201-014U1SMT ICCSP1037B SOP-16P (LUCENT)U20. 22455-0310-001P1SMT ICIC RF/IF CONVERTER (ISL3685IR)U11. 23455-0310-002G1SMT ICIC/RF POWER AMPLIFIER (ISL3984IR)U12. 24455-1106-002R1SMT ICIF/BB CONVERTER TQFP-48 (HFA3783IN)U9. 25456-0110-023Y2SMT ICIC FET SWITCH SC-70U8.10. 26456-0303-017M1SMT TRANSISTORBCP56 (CENTRAL CZT3019) SOT-223Q3. 27456-0610-005C1SMT VARISTORP3100SC DO-214AASID1. 28456-0610-018E0SMT VARISTORP3100SB DO-214AA (TECCOR) 29456-0610-009D1SMT VARISTORP3100SX DO-214A (TECCOR)MOV1. 30457-0200-019N1SMT OSCENFVH1K2S81U14. 31457-0200-024N1SMT VCO748MHZ VCO/IF (ISL3183IR)U13. 32464-1000-14118SMT RES100 OHM 5% 1/16W 0402R25.31.35.42 .43.47-49. 33464-1001-241P2SMT RES1K OHM 1% 1/16W 0402R52.71. 34464-1009-141L1SMT RES10 OHM 5% 1/16W 0402R68. 35464-1009-221U2SMT RES10 OHM 1% 0805R95.96. 36464-1101-241L2SMT RES1.1K OHM 1% 1/16W 0402R39.44. 37464-1152-241R1SMT RES11.5K OHM 1% 1/16W 0402R36. 38464-1240-24134SMT RES124 OHM 1% 1/16W 0402R58.62.66.67 . 39464-1501-24152SMT RES1.5K OHM 1% 1/16W 0402R37.65. 40464-2001-241M1SMT RES2K OHM 1% 1/16W 0402R40. 41464-2009-141H1SMT RES20 OHM 5% 1/16W 0402R73. 42464-2212-242V1SMT RES2.21K OHM 1% 1/16W 0402R55. 43464-2871-241T1SMT RES2.87K OHM 1% 1/16W 0402R45. 44464-3000-142N1SMT RES300 OHM 5% 1/16W 0402R56. 45464-3741-24181SMT RES3.74K OHM 1% 1/16W 0402R50. 46464-5360-241E2SMT RES536 OHM 1% 1/16W 0402R59.70. FCC Test Report FCC ID: ANOCH126P8056 Document Number: FCC-19-0165-0 Prepared by T. Murota 2/4 47 464-6490-241T1SMT RES649 OHM 1% 1/16W 0402R69. 48464-8259-241Y1SMT RES82.5 OHM 1% 1/16W 0402R76. 49464-9099-241J2SMT RES90.9 OHM 1% 1/16W 0402R75.77. 50464-9531-24131SMT RES9.53K OHM 1% 1/16W 0402R38. 51465-1005-901J2SMT CAPCER 0.5PF 50V +/-0.25PF NPO 0402C87A.132. 52465-1010-90172SMT CAPCER 1.0PF 50V +/-0.25PF NPO 0402C12.131. 53465-1018-902N1SMT CAPCER 1.8PF +/-0.25PF NPO 0402 50VC82. 54465-1033-901G1SMT CAPCER 3.3P 50V +/-0.25PF NPO 0402C58. 55465-1047-902F2SMT CAPCER 4.7P 50V +/-0.25PF NPO 0402C49.75. 56465-1068-901818SMT CAPCER 6.8P 50V +/-0.5PF NPO 0402C28.36.48.59 .62.65-68.77- 79.83.96.97. C109.111.127 57465-1100-90183SMT CAP10PF +-5% 0402 50VC51.52.105. 58465-1101-90124SMT CAPCER 100P 50V +/-10% NPO 0402C13.85.88.94 . 59465-1102-604R4SMT CAPCER MONO 0.001UF 3KV K X7R 1808C156.157.16 2.164. 60465-1102-902N10SMT CAPCER 1000P 50V K X7R 0402C23.29.50.76 .80.98.101.10 6.116.128…
