ThinkPad ® T30Series ServiceandTroubleshootingGuide
 ThinkPad ® T30Series ServiceandTroubleshootingGuide
 Note Before using this information and the product it supports, be sure to read the general information under “Appendix A. Important safety instructions” on page 39, “Appendix B. Wireless related information” on page 45, “Appendix C. Wireless regulatory notice” on page 47, “Appendix D. Warranty information” on page 55, and “Appendix E. Notices” on page 69. DANGER vTo avoid electric shock hazard, connect and disconnect cables appropriately when installing, moving or opening the covers of this product or attached devices. Use the power cord with a properly grounded outlet. vDo not leave the base of your computer in contact with your lap or any part of your body for an extended period when the computer is functioning or when the battery is charging. Your computer dissipates some heat during normal operation. This heat is a function of the level of system activity and battery charge level. Extended contact with your body, even through clothing, could cause discomfort or, eventually, a skin burn. vTo reduce the risk of electric shock, do not use your computer in or near water. vTo avoid electric shock, do not use your computer with the telephone cable connection during an electrical storm. Do not connect the cable to or disconnect it from the telephone outlet on the wall during an electrical storm. vStore packing materials safely out of the reach of children to prevent the risk of suffocation from plastic bags. vThe battery pack contains a small amount of harmful substances. There is danger of an explosion if the battery pack is incorrectly replaced, exposed to fire or water, short-circuited or disassembled. Keep the battery pack away from children and do not put it in trash that is disposed of in landfills. vTo reduce the risk of fire, use only No. 26 AWG or thicker telephone cable. vThe fluorescent lamp in the LCD contains mercury. Do not put it in trash that is disposed of in landfills. Rough handling or dropping the computer can cause the LCD to break and the internal fluid to get into your eyes or on your hands. Immediately wash the affected areas with water. If symptoms persist, seek medical care. vDo not disassemble the optical storage drive unit, as this might result in hazardous radiation exposure. vAvoid direct eye exposure with the laser beam contained in some drives. First Edition (March 2002) The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION′′AS IS′′WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you. This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice. IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you. © Copyright International Business Machines Corporation 2002. All rights reserved. US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp. Important Notice for Users The FCC RF Safety Requirement When you use a Bluetooth ™ option or wireless PC Card in your ThinkPad T30 computer, please make sure of the following: 1.Visit the IBM ® site at www.ibm.com/pc/qtechinfo/MIGR-39377.html and confirm the updated list of RF option devices that have been approved to cooperate with the integrated wireless feature. 2.When you use any other RF option device that is not listed on the IBM site, all other wireless features including the integrated transmitter in your ThinkPad computer are required to be turned off. 3.Users are requested to follow the RF Safety instructions on wireless option devices that are included in the RF option device’s user’s manual. See“Appendix C. Wireless regulatory notice”on page 47 for more details. © Copyright IBM Corp. 2002iii ivThinkPad ® T30 Series Service and Troubleshooting Guide Finding information with Access ThinkPad Find answers to questions about your computer and view IBM Web sites by pressing the ThinkPad button to open Access ThinkPad, your on-board computer help center. © Copyright IBM Corp. 2002v Learn about the many features of your ThinkPad computer. ThinkPad Features provides a visual display of your computer and components. Once you are familiar with the hardware features of your system, use the Tools and Tips category to get the most out of those features like wireless networking, maximizing your battery life, etc... ClickAccess Helpto open a comprehensive help system offering information such as how to change or upgrade the memory in your computer. Visit these IBM Web sites to join an interactive community of ThinkPad users, download new backgrounds, purchase accessories, or get online support. Keyword Search provides a quick way to search information in Access Help. You can view information about your system such as model number in System Details and change the look of your application through Personalize. viThinkPad ® T30 Series Service and Troubleshooting Guide Some of the topics in your help system contain brief video clips that show you how to perform certain tasks, such as replacing your battery, inserting a PC card, or upgrading your memory. Use the controls shown to play, pause, and rewind the video clip. Finding information with Access ThinkPadvii viiiThinkPad ® T30 Series…

Text truncated - open the document above for the full version.

FCC ID: ANOCORN1TASUHOP Document Number: FCC-19-0182-0 1/9 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan April 15, 2002 To whom this may concern OET Requested Information FCC ID : ANOCORN1TASUHOP Applicant : International Business Machines Corporation Correspondence Reference Number : 22603 731 Confirmation Number : EA935585 Original Requested Date : April 13, 2002 Subjects : EMC portion With regard to your new request to implement method for replacing a broken WLAN card by the user themselves. Subject 1) Please provide correspondence for the acceptance by FCC on February 2002 about your proposal. Answer 1) Please refer the Attechment-1 of this correspondence. Subject 2) Will this be only for broken WLAN cards and not for upgrade options? Answer 2) We plan to support only broken WLAN cards for the ANOCORN1TASUHOP. Subject 3) Will the (BIOS Lock) be used with other notebook computers? Subject 4) Will the WLAN card be used with other notebook computers? Answer 3/4) Yes, we plan to add other notebook computers with BIOS Lock mechanism, and will have the FCC authorizations for each PC model with different FCC IDs. Subject 5) If the WLAN card will be used with other computers, will a different output power be used? Will different antennas be used? How would you ensure that SAR compliance? Answer 5)- We have no plan to modify the applying WLAN card. i.e. The conducted output power must be the same. - Yes, different antennas will be used for other computers after being certified with different FCC IDs. - Usually the antennas of our products are located at the top of LCD panel, so they may be subjected to MPE. If we will have a different design (like a keyboard antenna), we will have the SAR testing in accordance with the latest FCC rule. note) We need to confirm the treatment for transmitters below 10mW whether it may be allowed MPE or not. Subject 6) Does the (BIOS Lock) check the proper antenna and card combination? Answer 6) The BIOS Lock checks the peculiar information of each authorized card, not checks any antenna info. Because the integrated antenna is (will be) unique for each PC model, so the BIOS does not need to detect the antenna type of its own host unit. Please refer the Attechment-2 adding more details of the BIOS Lock. FCC ID: ANOCORN1TASUHOP Document Number: FCC-19-0182-0 2/9 Subject 7) Does the (BIOS Lock) check the proper antenna and output power combination? Answer 7) The BIOS Lock dose not check output power, but checks the detail RF chipset info instead. IBM will not modify the power of authorized RF cards, so the function must be equal to the detection of the card manufacturing level. Also please refer the Attechment-2 adding more details of the BIOS Lock. Subject 8) The FCC identifier and label can only be placed on a complete transmitter. How is this ensured when the WLAN card is sold without the antenna? You'll be shipping/marketing incomplete transmitters. Subject 9) How does this proposal comply with 15.204 requirement that a complete system is marketed together? This replacement does not have an antenna. Answer 8/9) As for the ANOCORN1TASUHOP, the RF WLAN card will be delivered to the customers for replacing broken cards only, not marketed for sales independently. To allow customers to install the repair parts, we implement the BIOS Lock to guarantee the Part 15.203. When we will market the card as the IBM option, we will process the proper certification of LMA (by the card supplier) in line with the new rule of Attachment-1. Subject 10) Please provide any additional information to ensure that the system will comply with EMC and SAR requirements when any changes to antenna or output power is made. Will Class II permissive changes be filed for all notebooks using this system? Answer 10) Usually we have the FCC IDs for each system unit, not for card. So we measure all test items for each model even though a same card was used for several models. If antenna will be changed, we re-measure the Part 15.205/207/209(EMC) and do class II change. ANOCH126H8056 is the case of it. We don't modify the card, so we have no case of power change. As for SAR, we have used MPE, so we could proceed with only the calculation using the conducted power and antenna gain. The Class II change is very rare for us, because we take a system grant approach (not LMA). Almost submissions are done as original filings with different new FCC IDs. Subject : RF Safety portion Subject: FYI - in future filings please do not submit MPE "estimation" analyses for distances less than 20 cm. Answer: Thank you but we still need a confirmation whether the rule will be applied to a low power transmitter below 10mW (e.g. Bluetooth 3mW). Subject: Concerning revised RF exposure statement in users manual: there are typographical errors, and we have the following comments for your consideration only: Answer: Thank you very much. We will fully follow your advice, and would like to attach the update for the sure. Please see the Attachment-3. Sincerely, April 15, 2002 Toshiya Murota Staff Engineer, EMC Engineering Yamato Laboratory, IBM Japan Ltd. FCC ID: ANOCORN1TASUHOP Document Number: FCC-19-0182-0 3/9 Attachment-1: Response from the FCC on February/2002 "Rich Fabina" <[email protected]> 02/06/02 11:12 AM To: George Kavelak/Raleigh/IBM@IBMUS cc: Subject: Re: Awaiting Your Response George, Yes, we find the proposal attached acceptable. Sorry for not getting back to you sooner but things just keep getting busier and busier. Rich >>> "George Kavelak" <[email protected]> 02/04/02 12:40PM >>> Rich, at our meeting Friday, January 25, 2002 you indicated that you would try to get back with your answer by Friday February 1, 2002 on our proposal regarding a label on the bottom of the laptop near the Customer Access Panel for the Mini-PCI transmitter card (limited modular approval with an FCC ID on the card). The label would indicate that an FCC ID for an installed transmitter card is viewable un…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota Attestation Statements Part 1: Processing Gain for IBM High Rate Wireless LAN Mini-PCI Adapter with Modem II Part 2: Processing Gain for IBM Bluetooth Daughter Card Part 3: Attestation Statements according FCC 15.247 for IBM Bluetooth Daughter Card FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota Part 1: Processing Gain for IBM High Rate Wireless LAN Mini-PCI Adapter with Modem II IBM is authorized to refer the Processing Gain data of the original Intel card (FCC ID: J30M3AWEB56GA). FCC Processing Gain report of Intersil MiniPCI 2.4 GHz WLAN transceiver model ISL37400M for: -channel 1 at 11Mbps -channel 6 at 2 Mbps -channel 6 at 11 Mbps -channel 11 at 11 Mbps intersil PRISM radio Jamming Margin Test _________________________________________________________________________________________________________ _____________________________________________________________________________________ intersil Page 1 Testing for compliance with FCC rules 15-247e Carl Andren intersil Corporation [email protected] 321-724-7535 Scope This report presents the test procedure, test configuration and test data associated with a FCC Part 15.247 (e) Jamming Margin test for the indirect measurement of processing gain. Applicable Reference Documents. 1. ìOperation within the bands 902-928 MHz, 2400-2483.5, and 5725-5850 MHzî Title 47 Part 15 section 247 (e) Code of Federal Regulations. (47 CFR 15.247). 2. ìReport and Order: Amendment of Parts 2 and 15 of the Commissionís Rules Regarding Spread Spectrum Transmitters. Appendix C: ëGuidance on Measurements for Direct Sequence Spread Spectrum Systemsî FCC 97-114. ET Docket No. 96-8, RM-8435, RM-8608, RM-8609. 3. ìISL3874 Direct Sequence Spread Spectrum Baseband Processor 4. ì M-ary Orthogonal Keying BER Curveî, Test Background and Procedure. According to FCC regulations [1], a direct sequence spread spectrum system must have a processing gain, G p of at least 10 dB. Compliance to this requirement can be shown by demonstrating a relative bit-error-ratio (BER) performance improvement (and corresponding signal to noise ratio per symbol improvement of at least 10 dB) between the case where spread spectrum processes (coding, modulation) are engaged relative to the processes being bypassed. In some practical systems, the spread spectrum processing cannot simply be bypassed. In these cases, the processing gain can be indirectly measured by a jamming margin test [2]. In accordance with the new NPRM 99-231, if the vendor has a system with less than 10 chips per symbol, the CW jamming results must be supported by a theoretical explanation of the system processing gain. intersil PRISM radio Jamming Margin Test _________________________________________________________________________________________________________ _____________________________________________________________________________________ intersil Page 2 Theoretical calculations The processing gain is related to the jamming margin as follows [2]: system output p L S J N S G+       +       = Where BER REFERENCE is the reference bit error ratio with its corresponding, theoretical output signal to noise ratio per symbol, (S/N) output , (J/S) is the jamming margin (jamming signal power relative to desired signal power), and L system are the system implementation losses. The maximum allowed total system implementation loss is 2 dB. The ISL3874 direct sequence spread spectrum baseband processor uses CCK modulation which is a form of M-ary Orthogonal Keying. The BER performance curve is given by [5]: ì The probability of error for generalized M-ary Orthogonal signaling using coherent demodulation is given by: PPQz E z dz ec b M S N =− =−−+               −       − − ∞ ∫ 11 1 2 212 2 1 2 1 2 01 0 π η ()exp This integral cannot be solved in closed form, and numerical integration must be used. This is done in a MATHCAD environment and is displayed in graphical format. intersil PRISM radio Jamming Margin Test _________________________________________________________________________________________________________ _____________________________________________________________________________________ intersil Page 3 1.1 1000 byte PER vs. Es/No 15.51616.517 10 -2 10 -1 10 0 11 Mbps CCK in Thermal Noise Es/No (dB) 1000 byte Packet Error Rate The reference PER is specified as 8% . The corresponding Es/No (signal to noise ratio per symbol) is 16.4 dB. The Es/No required to achieve the desired BER with maximum system implementation losses is 18.4 dB. The minimum processing gain is again, 10 dB, therefore: dB S J dBdBL S J N E G system output o s p 100.24.16≥       ++=+       +         = dB S J dBG p 104.18≥       += The minimum jammer to signal ratio is as follows: dB S J 4.8−≥       For the case of the ISL3874, the bit rates are 1, 2, 5.5, and 11 Mbps. The corresponding symbol rates are 1, 1, 1.375, and 1.375 MSps. The chip rate is always 11 MCps, so the ratio of chip rate to symbol rate is 11:1 for the 1 and 2 Mbps rates and 8:1 for the 5.5 and 11 Mbps rates. Since the symbol rate to bit rate is less than 10 for the higher rates, we supply the theoretical processing gain calculation for these cases where both spread spectrum intersil PRISM radio Jamming Margin Test _________________________________________________________________________________________________________ _____________________________________________________________________________________ intersil Page 4 processing gain and coding gain are utilized. This is reasonable in that they cannot be separated in the demodulation process. If a separable FEC coding scheme were used, we would not be comfortable making this assertion. As can be seen from the curve of figure 1, the Es/N0 is 16.4 dB at the PER of 8%. This PER can be related to a BER of 1e-5 on 1000 byte packets. With …

Text truncated - open the document above for the full version.

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan February 04, 2002 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315, USA Subject: Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application document for the FCC Part 15, Subpart C certification. - FCC ID : ANOCORN1TASUHOP - Applying equipment name : ThinkPad T30 Series -Device type : 2400-2483.5MHz Spread Spectrum, Direct Sequence and Frequency Hopping (Bluetooth) system The applying product is a full size laptop PC integrating IEEE802.11b Wireless LAN Mini- PCI card and Bluetooth Standard adapter. The PC system unit, the built in antennas and Bluetooth card are the same as the another model of “ThinkPad T30 Series” (FCC ID : ANOCORN1TASULIB), which has been filed in parallel with this application. Only the IEEE802.11b Wireless LAN card is replaced with a new one. If any further information is required concerning this application, please contact us. Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan February 04, 2002 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315, USA Subject: Confidentiality Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application for the FCC Part 15, Subpart C certification : - FCC ID : ANOCORN1TASUHOP - Applying equipment name : ThinkPad T30 Series Pursuant to 47 CFR section 0.457(d) and 0.459, we hereby request the confidentiality for the following exhibits. - Confidentiality_Schematic_Diagrams.pdf (for both WLAN and Bluetooth cards) - Confidentiality_Block_Diagrams.pdf ( ditto ) - Confidentiallty_Circuitry_Description.pdf (for WLAN card) Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 1/2 External Photos FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 2/2 Rear side view

FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 1/1 Product Labeling Bottom view, Front side

FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 1/10 Internal Photos Bottom view FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 2/10 IEEE802.11b Wireless LAN Mini-PCI card by Intel Corp. Bluetooth Daughter card by TDK Systems Europe Ltd. Bottom view, rear side FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 3/10 Plug in/out Bluetooth Daughter Card Antenna cable IEEE802.11b Wireless LAN Mini-PCI card Antenna cable Plug in/out Bottom view, rear side FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 4/10 IEEE802.11b Wireless LAN Mini-PCI Adapter (Back side) FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 5/10 IEEE802.11b Wireless LAN Mini-PCI Adapter (Top side) Right Antenna terminalLeft antenna terminal FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 6/10 Bluetooth Daughter Card (Top side) FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 7/10 Bluetooth Daughter Card (Back side) Antenna terminal FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 8/10 Antenna Locations IEEE802.11b Wireless LAN Left antenna Inverted-F type Tx/Rx switching IEEE802.11b Wireless LAN Right antenna Inverted-F type Rx only Bluetooth Antenna (Tx/Rx) (Inverted-F type Antenna) FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 9/10 IEEE802.11b Wireless LAN Antenna (Inverted F type Antenna and Cable) Left antenna (Tx/Rx switch) : IBM P/N: 46L4819 Cable : coax 560 mm Right antenna (Rx only) : IBM P/N: 46L4818 Cable : coax 800 mm FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 10/10 Bluetooth Antenna (Inverted F type Antenna and Cable) Tx/Rx switch : IBM P/N: 46L4932 Cable : coax 125 mm

FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 1/1 Parts List of IBM Bluetooth Daughter Card

Important Notice for Users The FCC RF Safety Requirement When you use a Bluetooth ™ option or wireless PC Card in your ThinkPad T30 computer, please make sure of the following: 1.Visit the IBM ® site at www.ibm.com/pc/qtechinfo/MIGR-39377.html and confirm the updated list of RF option devices that have been approved to cooperate with the integrated wireless feature. 2.When you use any other RF option device that is not listed on the IBM site, all other wireless features including the integrated transmitter in your ThinkPad computer are required to be turned off. 3.Users are requested to follow the RF Safety instructions on wireless option devices that are included in the RF option device’s user’s manual. See“Appendix C. Wireless regulatory notice”on page 47 for more details. © Copyright IBM Corp. 2002iii Appendix C. Wireless regulatory notice The ThinkPad T30 must be installed and used in strict accordance with the instructions as described hereafter. This product complies with the following radio frequency and safety standards. USA - Federal Communications Commissions (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. The FCC RF Safety Requirement The radiated output power of Wireless LAN Mini-PCI Adapter is far below the FCC radio frequency exposure limits. Nevertheless, the ThinkPad T30 shall be used in such a manner that the potential for human contact during normal operation is minimized as follows: vCAUTION:To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm (8 inches) must be maintained between the antenna of this device and all persons. © Copyright IBM Corp. 200247 vPlease make sure of the following when you use a Bluetooth option or wireless PC Card in your ThinkPad notebook. 1.Please visit the IBM site atwww.ibm.com/pc/qtechinfo/MIGR- 39377.htmland confirm the updated list of RF option devices that have been approved to cooperate with the integrated wireless feature. 2.When you use any other RF option device that is not listed on the IBM site, all other wireless features in your ThinkPad notebook are required to be turned off. 3.Please be careful to follow the RF Safety instructions on wireless option devices that are included in the RF option device’s user’s manual. Interference Statement An improper installation or unauthorized use may cause harmful interference to radio communications. Also any tampering of the internal antenna will void the FCC certification and your warranty. Refer to the“Electronic emission notices”on page 70 for more detail. Canada - Industry Canada (IC) Certification number The term“IC”before the equipment certification number only signifies that the Industry Canada technical specifications were met. Low Power License-Exempt Radiocommunication Devices (RSS-210) Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Numéro d’homologation signifie Le terme«IC»avant le numéro d’homologation signifie seulement que les normes d’Industrie Canada ontétérespectées. Permis d’émissionàfaible puissance - Cas des appareils de communications radio (CNR-210) Le fonctionnement de ce type d’appareil est soumis aux deux conditions suivantes: (1) Cet appareil peut perturber les communications radio, et (2) cet appareil doit supporter toute perturbation, y compris les perturbations qui pourraient provoquer un dysfonctionnement. Europe - CE Declaration of Conformity vHereby Actiontec Electronics, Inc. and TDK Systems Europe , Ltd. declare that the RLAN(Actiontec) and Bluetooth(TDK) devices integrated in this product are in conformity with the essential requirements and other relevant provisions of Directive 1999/5/EC. 48ThinkPad ® T30 Series Service and Troubleshooting Guide

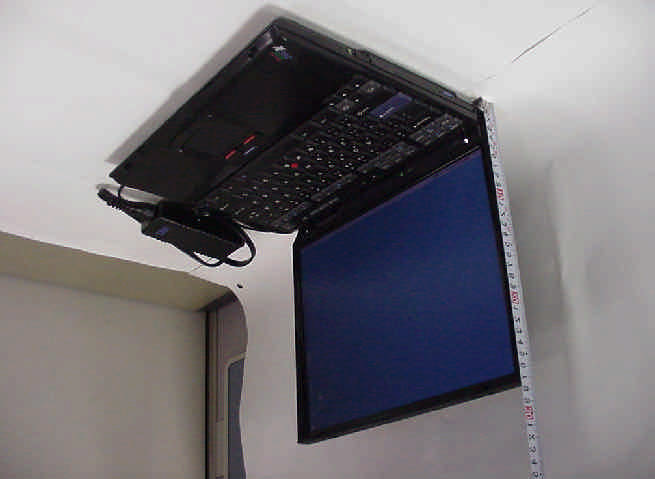

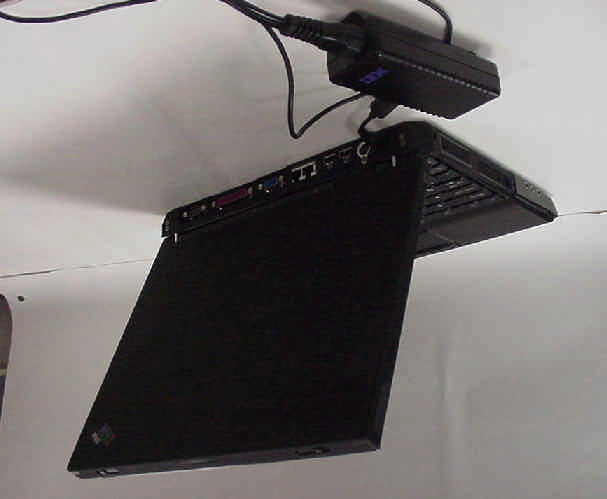

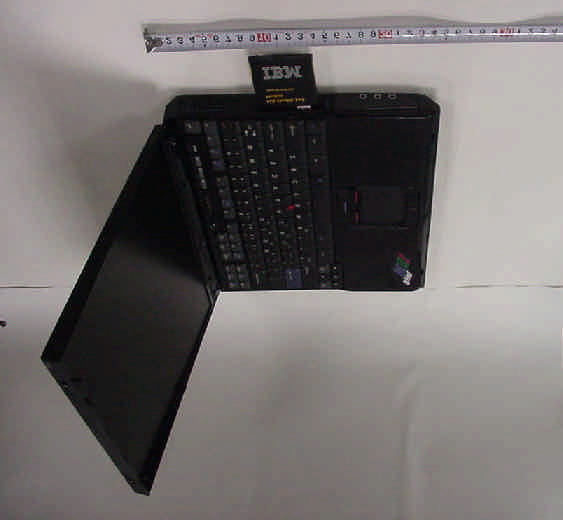

FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 1/4 RF Exposure The applying equipment is a standard fullsize laptop computer which is categorized as a mobile device by FCC CFR 47 Section 2.1091. Therefore the separation distance between the antenna and the human body is 20cm or more. As shown in the following photos, the applying equipment satisfies the requirement of antenna separation. 1. IBM High Rate Wireless LAN Mini-PCI Adapter with Modem II The conducted peak output power of the IEEE802.11b Wireless LAN Adapter is 17.0dBm and the maximum antenna gain is 0.53dBi as shown below. Figure A: Antenna Gain of IEEE802.11b Wireless LAN Adapter The separation distance between the antenna and the human body is 20cm or longer. FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 2/4 Therefore the peak radiated output power(EIRP) is calculated as follows. EIRP = P + G = 17.0 dBm + 0.53 dBi = 17.53 dBm (56.6 mW) Then, the maximum power density at 20cm distance is calculated as : S 1 = EIRP/(4 % R 2 % o) = 0.0113 mW/cm 2 2. IBM Bluetooth Daughter Card The peak conducted output power of the Bluetooth Daughter Card is 3.9 dBm and the maximum antenna gain is 1.87dBi as shown in the Figure B. Therefore the peak radiated output power(EIRP) is calculated as follows. EIRP = P + G = 3.9 dBm + 1.87 dBi = 5.77 dBm (3.78 mW) Then, the maximum power density at 20cm distance is calculated as : S 2 = EIRP/(4 % R 2 % o) = 0.00075 mW/cm 2 The separation distance between the antenna and the human body is 20cm or longer. FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 3/4 Figure B: Antenna Gain of Bluetooth Daughter Card 3. User option Wireless cards The applying equipment has two interfaces for user’s optional wireless features. Figure C shows the locations of each interface. The photo in the previous page also demonstrates that the separation distance between the antenna of wireless option card and the human body is 20cm or more in normal operation with normal posture. Figure C. Interfaces to connect Wireless options FCC Test Report FCC ID: ANOCORN1TASUHOP Document Number: FCC 19-0182-0 Prepared by T. Murota 4/4 The table below lists the wireless options which are plugged in the PC slot or USB port of the applying equipment. InterfaceFCC IDGrantee NameProduct Name Granted DateEIRP in FCC test report USB port PI4BT-ULTRATDK Systems Europe Ltd. Bluetooth Ultraport Module May/22/20011.4 mW O2OBTPCM101Degianswer A/SMotorola Bluetooth 0dBm PC-Card (type no.: BTPCM100) October/18/20002.7mW PCMCIA slot PI4BT-IBM-PCIITDK Systems Europe Ltd. Blutooth PC Card II August/21/2001 1.0mW The minimum antenna separation to meet the MPE limits (1mW/cm 2 ) and the maximum power density at 20cm distance of each card are calculated as follows. Interface FCC IDEIRPMin. separation to satisfy the MPE limits *1 Max. power density at 20cm *2 USB portPI4BT-ULTRA 1.4mW0.34cmS 3 = 0.00028 mW/cm 2 O2OBTPCM101 2.7mW0.47cmS 4 = 0.00054 mW/cm 2 PCMCIA slot PI4BT-IBM-PCII 1.0mW0.28cmS 5 = 0.00020 mW/cm 2 *1 = EIRP / (1mW/cm 2 % 4 % o) *2 = EIRP/(4 % 20cm 2 % o) When an operator will use the four transmitters simultaneously during 30 minutes continuously in normal operation, the time-averaging exposure is : (S 1 + S 2 + S 3 + S 4 ) % 30 = 0.386 So the source-based time-averaging duty factor is considered …
