FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC-19-0181-0 Prepared by T. Murota Attestation Statements (Processing Gain) IBM ThinkPad 802.11b Wireless LAN Mini-PCI Adapter by Actiontec Electronics, Inc. Chip/symbol rate, symbol/bit rate, Chip/bit, and the measurement results Bit rateChip/symbol rateBit/symbol rate Chip/bit rateGp (dB)Spec (dB) 1 Mbit/sec111, DBPSK1113.210 2 Mbit/sec112, DQPSK5.512.610 5.5 Mbit/sec84, CCK213.410 11 Mbit/sec88, CCK112.910 Note: Gp is Processing Gain; Processing Gain ISL37400M DATA-111Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2428.5023.916.45.52.0-57.2<=8.0 2428.5523.916.45.52.0-57.2<=8.0 2428.6023.916.45.52.0-57.2<=8.0 2428.6523.816.45.42.0-57.3<=8.0 2428.7023.816.45.42.0-57.3<=8.0 2428.7524.016.45.62.0-57.1<=8.0 2428.8024.116.45.72.0-57.0<=8.0 2428.8524.116.45.72.0-57.0<=8.0 2428.9024.216.45.82.0-56.9<=8.0 2428.9524.116.45.72.0-57.0<=8.0 2429.0024.416.46.02.0-56.7<=8.0 2429.0524.316.45.92.0-56.8<=8.0 2429.1024.316.45.92.0-56.8<=8.0 2429.1524.316.45.92.0-56.8<=8.0 2429.2024.416.46.02.0-56.7<=8.0 2429.2523.716.45.32.0-57.4<=8.0 2429.3023.316.44.92.0-57.8<=8.0 2429.3523.216.44.82.0-57.9<=8.0 2429.4022.216.43.82.0-58.9<=8.0 2429.4521.316.42.92.0-59.8<=8.0 2429.5021.216.42.82.0-59.9<=8.0 2429.5521.116.42.72.0-60.0<=8.0 2429.6021.116.42.72.0-60.0<=8.0 2429.6521.016.42.62.0-60.1<=8.0 2429.7021.016.42.62.0-60.1<=8.0 2429.7520.816.42.42.0-60.3<=8.0 2429.8020.716.42.32.0-60.4<=8.0 2429.8521.116.42.72.0-60.0<=8.0 2429.9021.016.42.62.0-60.1<=8.0 2429.9521.116.42.72.0-60.0<=8.0 2430.0020.916.42.52.0-60.2<=8.0 2430.0520.916.42.52.0-60.2<=8.0 2430.1020.516.42.12.0-60.6<=8.0 2430.1519.516.41.12.0-61.6<=8.0 2430.2019.516.41.12.0-61.6<=8.0 2430.2519.016.40.62.0-62.1<=8.0 2430.3019.016.40.62.0-62.1<=8.0 2430.3518.716.40.32.0-62.4<=8.0 2430.4018.716.40.32.0-62.4<=8.0 2430.4518.516.40.12.0-62.6<=8.0 2430.5018.416.40.02.0-62.7<=8.0 2430.5518.416.40.02.0-62.7<=8.0 2430.6018.416.40.02.0-62.7<=8.0 2430.6518.116.4-0.32.0-63.0<=8.0 2430.7017.916.4-0.52.0-63.2<=8.0 2430.7517.416.4-1.02.0-63.7<=8.0 2430.8017.416.4-1.02.0-63.7<=8.0 2430.8517.116.4-1.32.0-64.0<=8.0 Prepared by: D. KalcikPage 12001/4/17 Processing Gain ISL37400M DATA-111Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2430.9017.116.4-1.32.0-64.0<=8.0 2430.9516.916.4-1.52.0-64.2<=8.0 2431.0016.816.4-1.62.0-64.3<=8.0 2431.0516.716.4-1.72.0-64.4<=8.0 2431.1016.716.4-1.72.0-64.4<=8.0 2431.1516.316.4-2.12.0-64.8<=8.0 2431.2016.516.4-1.92.0-64.6<=8.0 2431.2516.416.4-2.02.0-64.7<=8.0 2431.3016.316.4-2.12.0-64.8<=8.0 2431.3516.316.4-2.12.0-64.8<=8.0 2431.4015.816.4-2.62.0-65.3<=8.0 2431.4515.916.4-2.52.0-65.2<=8.0 2431.5015.716.4-2.72.0-65.4<=8.0 2431.5515.516.4-2.92.0-65.6<=8.0 2431.6015.416.4-3.02.0-65.7<=8.0 2431.6515.216.4-3.22.0-65.9<=8.0 2431.7015.116.4-3.32.0-66.0<=8.0 2431.7515.016.4-3.42.0-66.1<=8.0 2431.8015.016.4-3.42.0-66.1<=8.0 2431.8514.916.4-3.52.0-66.2<=8.0 2431.9015.016.4-3.42.0-66.1<=8.0 2431.9515.116.4-3.32.0-66.0<=8.0 2432.0015.116.4-3.32.0-66.0<=8.0 2432.0515.116.4-3.32.0-66.0<=8.0 2432.1015.016.4-3.42.0-66.1<=8.0 2432.1514.816.4-3.62.0-66.3<=8.0 2432.2014.916.4-3.52.0-66.2<=8.0 2432.2514.916.4-3.52.0-66.2<=8.0 2432.3014.816.4-3.62.0-66.3<=8.0 2432.3514.616.4-3.82.0-66.5<=8.0 2432.4014.316.4-4.12.0-66.8<=8.0 2432.4514.516.4-3.92.0-66.6<=8.0 2432.5014.616.4-3.82.0-66.5<=8.0 2432.5514.516.4-3.92.0-66.6<=8.0 2432.6014.316.4-4.12.0-66.8<=8.0 2432.6514.316.4-4.12.0-66.8<=8.0 2432.7014.216.4-4.22.0-66.9<=8.0 2432.7514.116.4-4.32.0-67.0<=8.0 2432.8014.116.4-4.32.0-67.0<=8.0 2432.8513.816.4-4.62.0-67.3<=8.0 2432.9013.516.4-4.92.0-67.6<=8.0 2432.9513.716.4-4.72.0-67.4<=8.0 2433.0013.616.4-4.82.0-67.5<=8.0 2433.0513.516.4-4.92.0-67.6<=8.0 2433.1013.516.4-4.92.0-67.6<=8.0 2433.1513.516.4-4.92.0-67.6<=8.0 2433.2013.616.4-4.82.0-67.5<=8.0 2433.2513.716.4-4.72.0-67.4<=8.0 Prepared by: D. KalcikPage 22001/4/17 Processing Gain ISL37400M DATA-111Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2433.3013.716.4-4.72.0-67.4<=8.0 2433.3513.616.4-4.82.0-67.5<=8.0 2433.4013.516.4-4.92.0-67.6<=8.0 2433.4513.416.4-5.02.0-67.7<=8.0 2433.5013.416.4-5.02.0-67.7<=8.0 2433.5513.416.4-5.02.0-67.7<=8.0 2433.6013.416.4-5.02.0-67.7<=8.0 2433.6512.916.4-5.52.0-68.2<=8.0 2433.7012.916.4-5.52.0-68.2<=8.0 2433.7512.916.4-5.52.0-68.2<=8.0 2433.8013.116.4-5.32.0-68.0<=8.0 2433.8512.916.4-5.52.0-68.2<=8.0 2433.9012.716.4-5.72.0-68.4<=8.0 2433.9513.416.4-5.02.0-67.7<=8.0 2434.0013.416.4-5.02.0-67.7<=8.0 2434.0513.416.4-5.02.0-67.7<=8.0 2434.1013.316.4-5.12.0-67.8<=8.0 2434.1513.216.4-5.22.0-67.9<=8.0 2434.2013.016.4-5.42.0-68.1<=8.0 2434.2513.016.4-5.42.0-68.1<=8.0 2434.3013.016.4-5.42.0-68.1<=8.0 2434.3513.016.4-5.42.0-68.1<=8.0 2434.4012.616.4-5.82.0-68.5<=8.0 2434.4512.816.4-5.62.0-68.3<=8.0 2434.5012.916.4-5.52.0-68.2<=8.0 2434.5512.816.4-5.62.0-68.3<=8.0 2434.6012.816.4-5.62.0-68.3<=8.0 2434.6512.716.4-5.72.0-68.4<=8.0 2434.7012.716.4-5.72.0-68.4<=8.0 2434.7512.816.4-5.62.0-68.3<=8.0 2434.8012.816.4-5.62.0-68.3<=8.0 2434.8512.316.4-6.12.0-68.8<=8.0 2434.9012.116.4-6.32.0-69.0<=8.0 2434.9512.416.4-6.02.0-68.7<=8.0 2435.0012.416.4-6.02.0-68.7<=8.0 2435.0512.416.4-6.02.0-68.7<=8.0 2435.1012.616.4-5.82.0-68.5<=8.0 2435.1512.516.4-5.92.0-68.6<=8.0 2435.2012.716.4-5.72.0-68.4<=8.0 2435.2512.716.4-5.72.0-68.4<=8.0 2435.3012.916.4-5.52.0-68.2<=8.0 2435.3512.916.4-5.52.0-68.2<=8.0 2435.4012.916.4-5.52.0-68.2<=8.0 2435.4512.616.4-5.82.0-68.5<=8.0 2435.5012.916.4-5.52.0-68.2<=8.0 2435.5512.916.4-5.52.0-68.2<=8.0 2435.6012.916.4-5.52.0-68.2<=8.0 2435.6512.816.4-5.62.0-68.3<=8.0 Prepared by: D. KalcikPage 32001/4/17 Processing Gain ISL37400M DATA-111Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2435.7012.416.4-6.02.0-68.7<=8.0 2435.7512.516.4-5.92.0-68.6<=8.0 2435.801…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC-19-0181-0 Prepared by T. Murota 1/2 Block Diagrams 1. Block Diagram of the PC system unit FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC-19-0181-0 Prepared by T. Murota 2/2 2. Block Diagram of IBM ThinkPad 802.11b Wireless LAN Mini-PCI Adapter PCI bus

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan February 08, 2002 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315, USA Subject: Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application document for the FCC Part 15, Subpart C certification. - FCC ID : ANODS1WLIV - Applying equipment name : ThinkPad R32 -Device type : 2400-2483.5MHz Spread Spectrum, Direct Sequence System The applying product is a standard full size laptop PC integrating IEEE802.11b Wireless LAN Mini-PCI adapter. If any further information is required concerning this application, please contact us. Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan February 08, 2002 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315, USA Subject: Confidentiality Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application for the FCC Part 15, Subpart C certification : - FCC ID : ANODS1WLIV - Applying equipment name : ThinkPad R32 Pursuant to 47 CFR section 0.457(d) and 0.459, we hereby request confidentiality status of the schematic diagrams of IEEE802.11b Wireless LAN Mini-PCI card. It concerns a pdf file : Confidential_Schematic_Diagrams.pdf Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

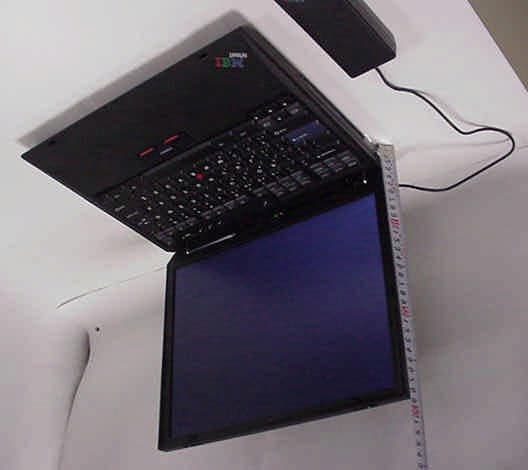

FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC 19-0181-0 Prepared by T. Murota 1/4 External Photos LCD 13 inch Model LCD 14 inch Model FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC 19-0181-0 Prepared by T. Murota 2/4 LCD 13 inch Model LCD 14 inch Model FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC 19-0181-0 Prepared by T. Murota 3/4 LCD 13 inch Model LCD 14 inch Model FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC 19-0181-0 Prepared by T. Murota 4/4 Bottom view Rear view Front side

FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC 19-0181-0 Prepared by T. Murota 1/1 Product Labeling Bottom view, Front side

FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC 19-0181-0 Prepared by T. Murota 1/8 Internal Photos Bottom view Back side FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC 19-0181-0 Prepared by T. Murota 2/8 Bottom view, rear side IEEE802.11b Wireless LAN Mini-PCI card by Actiontec Electronics Inc. Plug in/out Antenna cable FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC 19-0181-0 Prepared by T. Murota 3/8 IEEE802.11b Wireless LAN Mini-PCI Adapter To Auxiliary antenna Rx only To Main antenna Tx/Rx switching Antenna terminals FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC 19-0181-0 Prepared by T. Murota 4/8 IEEE802.11b Wireless LAN Mini-PCI Adapter (Top side) FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC 19-0181-0 Prepared by T. Murota 5/8 IEEE802.11b Wireless LAN Mini-PCI Adapter (Back side) FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC 19-0181-0 Prepared by T. Murota 6/8 Antenna locations Auxiliary antenna Inverted-F type Rx only P/N: 46L6324 Main antenna Inverted-F type Tx/Rx switching P/N: 46L6323 13” LCD 14” LCD ë 21cm FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC 19-0181-0 Prepared by T. Murota 7/8 Main Antenna Manufacturer: Wistron NeWeb Corp. IBM parts number: 46L6323 Inverted-F type antenna (Tx/Rx switching) Cable : coax 445 mm FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC 19-0181-0 Prepared by T. Murota 8/8 Auxiliary Antenna Manufacturer: Wistron NeWeb Corp. IBM parts number: 46L6324 Inverted-F type antenna (Rx only) Cable : coax 185 mm

FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC-19-0181-0 Yellow Sheet : No. EM645 FCC Part 15, Subpart C (Intentional Radiator) Product Name: ThinkPad R32 (Machine type : 2658/2659/2677) FCC ID: ANODS1WLIV February 08, 2002 EMC Staff Engineer Toshiya Murota Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-6574 Fax: +81-46-273-7420 E-Mail: [email protected] Mobile System Development Manager Ishikawa Tatsuroh Signature: IBM Japan, Ltd. Portable Products LAB-R15 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-2750 EMC Engineering Manager / NVLAP signatory Akihisa Sakurai Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-2613 Fax: +81-46-273-7420 E-Mail: [email protected] Portable Systems Director Arimasa Naitoh Signature: IBM Japan, Ltd. Portable Systems LAB-R11 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-6110 FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC-19-0181-0 Prepared by T. Murota MEASUREMENT/TECHNICAL REPORT – Part 15 Subpart C (Intentional Radiator) ThinkPad R32 (Machine type : 2658 / 2659 / 2677) FCC ID : ANODS1WLIV February 08, 2002 This report concerns: (check one) Original Grant ̧ Class I change Class II change Equipment type: Wireless LAN device in Computer (computer, printer, modem, etc.) This report shall not be reproduced except in full, without the written permission of this test lab. The measurement results contained in this report relate only to the item which was tested. Measurement procedure used is ANSI C63.4-1992 unless otherwise specified. Other test procedure: The FCC has issued provisional acceptance of this test laboratory for Declaration of Conformity testing per letter dated 1997. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: By checking yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a “party” for these purposes, see 47 CFR 1.2002(b). Yes or No “Report shall not be reproduced except in full, without the written approval of the laboratory” “the report must not be used by the client to claim product endorsement by NVLAP or any agency of the US government” Prepared by: Toshiya Murota IBM Japan Corporation, Yamato EMC Enginnering LAB-S59, 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Tel: +81-46-215-6574 Fax: +81-46-273-7420 FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC-19-0181-0 Prepared by T. Murota 1/4 Operational Description 1. Objective This is a Certification Compliance Report for FCC Part 15, Subpart C (Intentional Radiator). l FCC ID : ANODS1WLIV l The applying equipment : ThinkPad R32 2. Product Description The applying equipment is a standard full size laptop computer integrating IEEE 802.11b Wireless LAN function inside. The wireless module consists of an OEM card (Actiontec Electronics Inc., IEEE802.11b Wireless LAN Mini-PCI card) and built_in antennas (Inverted F-figure antennas2). The wireless card and built_in antennas are installed in the applying equipment by IBM . The specification of the applying equipment is as follows : Table 1 : Specification of PC main body Model Identification ThinkPad R32 Machine Type Number2658, 2659, 2677 Max. size 313mm(W) : 254mm(D) : 37.5mm(H) Max.Weight 6.0 lbs Hard disk 2.5” 40 GB Memory 256MB Bay Device CD-ROM, CD-RW, DVD, DVD/CD-RW Combo Power AC adapter, Battery (Li-Ion) Ports & Slots CRT, Headphone, Microphone, USB%2, 4M IR, Port Replicator, Ethernet, Modem, PCMCIA slot (type-3x1 or type-2 % 1), Parallel, TV-Out CPU Intel® Mobile Pentium® 4 processor-M, Max. 2.0GHz LCD 14.1” / 13.3” TFT XGA PC Functions Integrated Wireless feature IEEE802.11b Wireless LAN Table 2 : Specification of Wireless-LAN feature Carrier Frequencies 2412MHz – 2462MHz Occupied BW at 20dB below (Band-edge) 2403.79MHz – 2470.63MHz Channels Total 11 channels (default setting ch. # : 1, 6, 11) Channel BW at 20dB below Max. 16.96MHz / ch Channal spacing 5 MHz Conducted emission Power 16.3 dBm Antenna gain 0.55 dBi Antenna type Inverted F-figure type antenna Tx/Rx switching antenna : WNC *1 P/N: 46L6323 Rx antenna : WNC *1 P/N: 46L6324 Antenna cable type and length Tx/Rx switching antenna : coax 445mm Rx antenna : coax 185mm *1: WNC Wistron NeWeb Corp. FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC-19-0181-0 Prepared by T. Murota 2/4 3. Mounting structure of Wireless LAN PC card and Antenna note) The main antenna in left side of LCD is used for both RF transmission and receiving with half duplex switching mode. The auxiliary antenna near the key board hinge portion is used for RF receiver only. When the Wireless PC card is in RF receiving state, one of the antennas is selected automatically to have a good quality of radiocommunication. 4. Related Submittal(s)/Grant(s)/Notes - The device without Wireless LAN features is classified as a digital device under Part 15 Subpart B and subject to DoC. OEM Wireless LAN Mini-PCI card supplied by Actiontec is integrated. Main Antenna (Tx / Rx switching ) Rx auxiliary antenna Bottom side FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC-19-0181-0 Prepared by T. Murota 3/4 5. Circuitry description of the Wireless LAN PC card Reference: Basic Operation Principle of 802MIP by Actiontec Electronics, Inc. 4/2001 The Wireless LAN portion of 802MIP combo card is a 2.4GHz ISM Band DSSS Radio. It is designed to operate using IEEE 802.11b WLAN Standard for use in wireless networking systems.…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC-19-0181-0 Prepared by T. Murota 1/4 Parts List of IBM ThinkPad 802.11b Wireless LAN Mini-PCI Adapter P/NQ'TYNAMESPEC.LACTION 122-149-004A 2122-149-101S1PACKING ASSYFOR 802MIP 3212-0002-268Q0.003SHIPPING CARTON466(L)*290(W)*220(H)M/M 4212-0004-318A0.003POLY BAG850(L)*500(W)*0.05 5212-0006-028B0.042BLISTER445(L)*264(W)*0.4(THK)M/M FOR MP100IM 6212-0009-407R0.011CARD BOARD285(L)*216(W)*7.5(THK)M/M 7212-0009-408H0.003CARD BOARD964(L)*450(W)*7.5(THK)M/M 8212-0009-40990.011CARD BOARD450(L)*268(W)*7.5(THK)M/M 9212-0018-059Z0.039EPE SHEET400(L)*260(W)*2.5(THK) M/M 10122-149-20361PCB ASSY.FOR 802MIP REV.3A 11201-0016-044T1MYLARMYLAR FOR 802MIS SHIELD COVER INSIDE 12201-0016-045K1MYLARMYLAR FOR 802MIS SHIELD COVER OUTSIDE 13201-0016-05221MYLARACTIONTEC 802MIP MYLAR 14201-0016-057V1MYLARACTIONTEC 802MIP MYLAR 15203-0025-07831SHIELD COVERSHIELD COVER FOR 802MIS 16222-149-606W1SECOND SMD ASSY.FOR 802MIP REV.3A 17322-149-60531FIRST SMD ASSY.FOR 802MIP REV.3A 18447-0045-1ECU1PCBFOR 802MIP REV.3A 19453-1300-001V1SMT ICUPC2745TB-E3 SO6-65U16. 20455-0201-01321SMT ICSCORPIO SOP-16P (LUCENT)U19. 21455-0201-014U1SMT ICCSP1037B SOP-16P (LUCENT)U20. 22455-0310-001P1SMT ICIC RF/IF CONVERTER (ISL3685IR)U11. 23455-0310-002G1SMT ICIC/RF POWER AMPLIFIER (ISL3984IR)U12. 24455-1106-002R1SMT ICIF/BB CONVERTER TQFP-48 (HFA3783IN)U9. 25456-0110-023Y2SMT ICIC FET SWITCH SC-70U8.10. 26456-0303-017M1SMT TRANSISTORBCP56 (CENTRAL CZT3019) SOT-223Q3. 27456-0610-005C1SMT VARISTORP3100SC DO-214AASID1. 28456-0610-018E0SMT VARISTORP3100SB DO-214AA (TECCOR) 29456-0610-009D1SMT VARISTORP3100SX DO-214A (TECCOR)MOV1. 30457-0200-019N1SMT OSCENFVH1K2S81U14. 31457-0200-024N1SMT VCO748MHZ VCO/IF (ISL3183IR)U13. 32464-1000-14118SMT RES100 OHM 5% 1/16W 0402R25.31.35.42 .43.47-49. 33464-1001-241P2SMT RES1K OHM 1% 1/16W 0402R52.71. 34464-1009-141L1SMT RES10 OHM 5% 1/16W 0402R68. 35464-1009-221U2SMT RES10 OHM 1% 0805R95.96. 36464-1101-241L2SMT RES1.1K OHM 1% 1/16W 0402R39.44. 37464-1152-241R1SMT RES11.5K OHM 1% 1/16W 0402R36. 38464-1240-24134SMT RES124 OHM 1% 1/16W 0402R58.62.66.67 . 39464-1501-24152SMT RES1.5K OHM 1% 1/16W 0402R37.65. 40464-2001-241M1SMT RES2K OHM 1% 1/16W 0402R40. 41464-2009-141H1SMT RES20 OHM 5% 1/16W 0402R73. 42464-2212-242V1SMT RES2.21K OHM 1% 1/16W 0402R55. 43464-2871-241T1SMT RES2.87K OHM 1% 1/16W 0402R45. 44464-3000-142N1SMT RES300 OHM 5% 1/16W 0402R56. 45464-3741-24181SMT RES3.74K OHM 1% 1/16W 0402R50. 46464-5360-241E2SMT RES536 OHM 1% 1/16W 0402R59.70. FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC-19-0181-0 Prepared by T. Murota 2/4 47 464-6490-241T1SMT RES649 OHM 1% 1/16W 0402R69. 48464-8259-241Y1SMT RES82.5 OHM 1% 1/16W 0402R76. 49464-9099-241J2SMT RES90.9 OHM 1% 1/16W 0402R75.77. 50464-9531-24131SMT RES9.53K OHM 1% 1/16W 0402R38. 51465-1005-901J2SMT CAPCER 0.5PF 50V +/-0.25PF NPO 0402C87A.132. 52465-1010-90172SMT CAPCER 1.0PF 50V +/-0.25PF NPO 0402C12.131. 53465-1018-902N1SMT CAPCER 1.8PF +/-0.25PF NPO 0402 50VC82. 54465-1033-901G1SMT CAPCER 3.3P 50V +/-0.25PF NPO 0402C58. 55465-1047-902F2SMT CAPCER 4.7P 50V +/-0.25PF NPO 0402C49.75. 56465-1068-901818SMT CAPCER 6.8P 50V +/-0.5PF NPO 0402C28.36.48.59 .62.65-68.77- 79.83.96.97. C109.111.127 57465-1100-90183SMT CAP10PF +-5% 0402 50VC51.52.105. 58465-1101-90124SMT CAPCER 100P 50V +/-10% NPO 0402C13.85.88.94 . 59465-1102-604R4SMT CAPCER MONO 0.001UF 3KV K X7R 1808C156.157.16 2.164. 60465-1102-902N10SMT CAPCER 1000P 50V K X7R 0402C23.29.50.76 .80.98.101.10 6.116.128. 61465-1103-902H13SMT CAPCER 0.01U 16V K X7R 0402C16.22.53.60 .61.63.86.92. 95.99.114. C125.130. 62465-1104-106W1SMT CAPCER MONO 0.1UF 50V K X7R 1206C152. 63465-1104-805T13SMT CAPCER 0.1UF 16V K X7R 0603C19.35.70.72 .84.89.90.93. 104.112.117. C121.124. 64465-1150-901K1SMT CAPCER 15PF 50V +/-10% NPO 0402C73. 65465-1151-602Q2SMT CAPCER MONO 150PF 3KV X7R 1808C139.140. 66465-1220-901V1SMT CAPCER 22PF 50V +/-10% NPO 0402C69. 67465-1221-902G6SMT CAPCER 220P 50V K X7R 0402C39.44- 47.74. 68465-1271-90101SMT CAPCER 270P 50V K X7R 0402C126. 69465-1331-90271SMT CAPCER 330PF 50V X7R K 0402C103. 70465-1473-804Y1SMT CAPCER MONO 0.047UF 16V K X7R 0603C91. 71465-1474-10431SMT CAPCER MONO .47UF 25V K X7R 1206C147. 72465-1474-204X1SMT CAPCER .47UF 16V X7R K 0805C100. 73465-1680-902D2SMT CAPCER 68P 50V +/-10% 0402C110.120. 74465-1682-901A1SMT CAPCER 6800PF 16V X7R K 0402C107. 75465-1683-801B1SMT CAPCER 0.068U 16V K X7R 0603C118. 76465-1684-201A1SMT CAPCER MONO 680NF 10V K X7R 0805C123. 77465-1684-20211SMT CAP0.68UF 16V Z Y5V 0805C153. 78465-2106-801D2SMT CAPTANT 10UF 6.3V M (0805)C129.161. 79465-2224-10351SMT CAPTANT 0.22UF 16V K CASE AC146. 80470-1229-10153SMT IND2.2NH +/-0.3NH 300MA 0402L7.19.20. 81470-1330-101D2SMT IND33NH +/-5% 600MA 0603L12.14. 82470-1330-10242SMT IND33NH +/-2% 600MA 0603L9.10. 83470-1390-101K1SMT IND39NH +/-5% 500MA 0603L6. 84470-1390-10321SMT IND39NH +/-2% 600MA 0603L5. 85470-1479-10201SMT IND4.7NH +/-0.3NH 300MA 0402L2. 86470-2120-001U2SMT BEAD120 OHM/100M 0402L16.18. 87470-3100-008B1SMT INDBAND PASS FILTER(MURATA:LFSN25N19C2450B) FL6. 88470-3100-00922SMT INDBAND PASS FILTER(MURATA:LFSG20N27C2450B) FL4.5. 89470-3100-01011SMT FILTER374 MHZ IF SAW FILTERFL1. 90470-3100-013B1SMT INDLOW PASS LILTER(MURATA:LFTC 15N19E2450B) FL3. FCC Test Report FCC ID: ANODS1WLIV Document Number: FCC-19-0181-0 Prepared by T. Murota 3/4 91474-1512-20371SMT HEADER2PIN*1 P=1.25 RARJ1. 92474-3200-001P2SMT CONNSMT ULTRA MINIATURE COAX CONNECTORJ1.2. 93352-0411-001L1SMT IC128K*16 SRAM BGAU4. 94352-0607-036N1.000 PSMT IC128K*8 CMOS FLASH MEMORY TSOP- 32(8*14MM) U2. 95353-1100-013D2SMT ICMAX8867EUK29 2.84V/150MAU7.15. 96355-0314-003K1SMT ICISL3874IK 192BGAU1. 97356-0101-011M2SMT DIODEBAV99 SOT-23D2.4. 98356-0101-033P2SMT DIODECMPD2004S 240V 225MA SOT-23D3.8. 99356-0110-030G1SMT ICMAX6326XR29 SC-70U18. 100356-0201-00382SMT ZENER DIODE5.6V +-5% SOT-23D1.5. 101356-0201-034C1SMT ZENER DIODEBZX84C43 43V SOT-23ZD1. 102356-0301-042H2SMT TRANSISTORMMBTA42LT1 NPN 300V SOT-2…

Text truncated - open the document above for the full version.

Important Notice for Users The FCC RF Safety Requirement vWhen you use a Bluetooth ™ option or wireless PCMCIA card in your ThinkPad R32 computer, please make sure of the following: 1.Visit the IBM ® site atwww.ibm.com/pc/qtechinfo/MIGR-39377.html and confirm the updated list of RF option devices that have been approved to cooperate with the integrated wireless feature. 2.When you use any other RF option device that is not listed on the IBM site, all other wireless features including the integrated transmitter in your ThinkPad computer are required to be turned off. 3.Users are requrested to follow the RF Safety instructions on wireless option devices that are included in the RF option device’s user’s manual. See Appendix C,“Wireless Regulatory Information”on page 51 for more details. © Copyright IBM Corp. 2001iii Appendix C. Wireless Regulatory Information The ThinkPad R32 computer must be installed and used in strict accordance with the instructions as described hereafter. This product complies with the following radio frequency and safety standards. USA - Federal Communications Commission (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. The FCC RF Safety Requirement The radiated output power of Wireless LAN Mini-PCI Adapter is far below the FCC radio frequency exposure limits. Nevertheless, the ThinkPad R32 computer shall be used in such a manner that the potential for human contact during normal operation is minimized as follows: vCAUTION:To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm (8 inches) must be maintained between the antenna of this device and all persons. 20cm Transmitter antenna position vPlease make sure of the following when you use a Bluetooth…
