ANODS1WSHRThinkPad R32 Series

ThinkPad ® R32Series ServiceandTroubleshootingGuide
 ThinkPad ® R32Series ServiceandTroubleshootingGuide
 Note Before using this information and the product it supports, be sure to read the general information under Appendix A, “Important safety instructions” on page 41, Appendix B, “Wireless Related Information” on page 45, Appendix C, “Warranty Information” on page 47, and Appendix D, “Notices” on page 61. DANGER vTo avoid electric shock hazard, connect and disconnect cables appropriately when installing, moving or opening the covers of this product or attached devices. Use the power cord with a properly grounded outlet. vDo not leave the base of your computer in contact with your lap or any part of your body for an extended period when the computer is functioning or when the battery is charging. Your computer dissipates some heat during normal operation. This heat is a function of the level of system activity and battery charge level. Extended contact with your body, even through clothing, could cause discomfort or, eventually, a skin burn. vTo reduce the risk of electric shock, do not use your computer in or near water. vTo avoid electric shock, do not use your computer with the telephone cable connection during an electrical storm. Do not connect the cable to or disconnect it from the telephone outlet on the wall during an electrical storm. vStore packing materials safely out of the reach of children to prevent the risk of suffocation from plastic bags. vThe battery pack contains a small amount of harmful substances. There is danger of an explosion if the battery pack is incorrectly replaced, exposed to fire or water, short-circuited or disassembled. Keep the battery pack away from children and do not put it in trash that is disposed of in landfills. vTo reduce the risk of fire, use only No. 26 AWG or thicker telephone cable. vThe fluorescent lamp in the LCD contains mercury. Do not put it in trash that is disposed of in landfills. Rough handling or dropping the computer can cause the LCD to break and the internal fluid to get into your eyes or on your hands. Immediately wash the affected areas with water. If symptoms persist, seek medical care. vDo not disassemble the optical storage drive unit, as this might result in hazardous radiation exposure. vAvoid direct eye exposure with the laser beam contained in some drives. First Edition (May 2002) The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION′′AS IS′′WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you. This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice. IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you. © Copyright International Business Machines Corporation 2002. All rights reserved. US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp. Important Wireless Regulatory Notice for Users The ThinkPad R32 Series computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. You are requested to install and use your ThinkPad computer in strict accordance with the local RF regulations. Before you use the ThinkPad R32 computer, please find and read′′Wireless Regulatory Notice for ThinkPad R32 Series,′′the notice that supplements this Service and Troubleshooting Guide. The notice is included in the package with this publication. © Copyright IBM Corp. 2002iii ivThinkPad ® R32 Series Service and Troubleshooting Guide Finding information with Access ThinkPad Find answers to questions about your computer and view IBM Web sites by pressing the ThinkPad button to open Access ThinkPad, your on-board computer help center. © Copyright IBM Corp. 2002v 5 4 3 2 1 Take a tour of your ThinkPad ® computer and learn how to get started, customize your computer, protect data, upgrade, and solve problems. Once you are familiar with the hardware features of your system, click the Tools & Tips tab to get the most out of those features, like Wireless Networking, Maximizing your battery life, etc.. Click Access Help to open a comprehensive help system that offers information such as how to change or upgrade the memory in your computer. Visit these IBM Web sites to join an interactive community of ThinkPad users, download new backgrounds, purchase accessories, or get online support. Keyword Search provides a quick way to search information in Access Help. Click System Information to view information about your system, such as model number, serial number, and hard disk capacity. viThinkPad ® R32 Series Service and Troubleshooting Guide Some of the topics in your help system contain brief video clips that show you how to perform certain tasks, such as installing additional memory, replacing your battery, or inserting a PC Card. Use the controls shown to play, pause, and rewind the video clip. Finding information with Access ThinkPadvii viiiThinkPad ® R32 Series Service and Troubleshooting Guide Contents Important Wireless Regulatory Notice for Users..............iii Finding information with Access ThinkPadvi Chapter 1. Overview of your new ThinkPad computer.............1 Your ThinkPad at a glance.......2 Features..............3…

Text truncated - open the document above for the full version.

© Copyright IBM Corp. 20021 IBM®Part Number: 67P4566 Wireless Regulatory Notice for ThinkPad R32 Series Multiple Transmitters Model This notice is a supplementary document of the “ThinkPad ® R32 Series Service and Troubleshooting Guide.” The ThinkPad R32 Series computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. You are requested to install and use your ThinkPad computer in strict accordance with the instructions as described hereafter. Before you use the ThinkPad R32 computer, please read this document. 2 USA — Federal Communications Commission (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. i) Installation of the integrated wireless module The integrated wireless module (Wireless LAN Mini-PCI Card) is preinstalled by IBM, and you are not permitted to install nor replace the integrated module by yourself. If your integrated Wireless LAN Mini-PCI Card requires replacement via the proper setup shown in “Chapter 3. Getting help and service from IBM” of the ThinkPad R32 Series Service and Troubleshooting Guide, IBM will request you to send your computer with the card to IBM so that IBM will repair it. ii) The FCC RF Safety Requirement The radiated output power of Wireless LAN Mini-PCI cards authorized for use with the computer are far below the FCC radio frequency exposure limits. Nevertheless, the computer shall be used in such a manner that the potential for human contact during normal operation is minimized as follows: Multiple Transmitters model If you find the FCC ID “ANODS1WLIV” or “ANODS1WSHR” on the label at the bottom side of your ThinkPad computer, your computer is approved as a Multiple Transmitters device that is permitted to sue the integrated Wireless LAN Mini-PCI Card with two or more wireless option PC Cards in the PC Card slot simultaneously. Please make sure of the following conditions on use of option wireless cards. Use of Wireless options Please make sure of the following when you use a Bluetooth option or wireless option PC Card in your ThinkPad computer. 1. Visit the IBM ® site at www.ibm.com/pc/qtechinfo/MIGR-39377.html and confirm the updated list of RF option devices that have been approved to cooperate with the integrated wireless feature. 2. When you use any other RF option device that is not listed on the IBM site, all other wireless features including the integrated transmitter in your ThinkPad computer are required to be turned off. 3 3. Users are requested to follow the RF Safety instructions on wireless option devices that are included in the RF option device’s user’s manual. CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm (8 inches) must be maintained between the main antenna for the integrated Wireless LAN Mini-PCI card built into the screen section and all persons. When the FCC ID of your ThinkPad computer is ANODS1WSHR, the auxiliary antenna built in near the hinge location is also used for RF diversity transmission. The RF transmission power from the antenna conforms to the FCC limit of SAR (Specific Absorption Rate) evaluation, so the separation distance between the auxiliary antenna and persons is not required. Note:The diversity transmission does not function to emit radio frequencies simultaneously from both antennas. One of the antennas is selected automatically or manually (by users) to have good quality of radiocommunication. iii) Interference Statement An improper installation or unauthorized use may cause harmful interference to radio communications. Also, any tampering of the internal antenna will void the FCC certification and your warranty. Refer to “Appendix D. Electronic Emission Notices” of the ThinkPad R32 Series Service and Troubleshooting Guide for more detail. 20cm Main antenna Auxillary antenna 4 Canada — Industry Canada (IC) Certification number There is no certification number of Industry Canada shown on this model. The number for the integrated wireless LAN Mini-PCI Card is stuck on the Card installed in the Mini-PCI Card slot, as shown below. The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. Attention: You can install or remove the wireless LAN Mini-PCI Card by yourself. If you install a wireless LAN Mini-PCI Card that is not authorized for the computer, the computer does not start, but only displays an error message and emit beeps. Low Power License-Exempt Radiocommunication Devices (RSS-210) Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Numéro d'homologation signifie Il n'y a pas de numéro de certificat d'Industrie Canadienne indiqué dans cette modéle. Le numéro d'homologation pour la carte mini-PCI pour réseau local sans fil est collé sur la carte installée dans l'emplacement correspondant, comme indiqué dans la figure précédente. Le terme «IC» avant le numéro d'homologation signifie seulement que les normes d'Industrie Canada ont été respectées. Mini-PCI Card slot 5 Attention : Vous pouvez installer ou retirer la carte mini-PCI pour réseau local sans fil vous-même. Si vous avez installé une carte de ce type qui n'est pas homologuée pour l'ordinateur , l'ordinateur ne démarrera pas ; un message d'erreur sera affiché et des bips sonores seront émis. Permis d'émission à fai…

Text truncated - open the document above for the full version.

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan May 24, 2002 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Subject: Confidentiality Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application for the FCC Part 15, Subpart C certification : - FCC ID : ANODS1WSHR - Applying equipment name : ThinkPad R32 Series -Device type : 2400-2483.5MHz Spread Spectrum, Direct Sequence system Pursuant to 47 CFR section 0.457(d) and 0.459, we hereby request confidentiality for the schematics, detailed block diagrams, detailed theories of operation, and parts list of IEEE802.11b Wireless LAN Mini-PCI card as per the request of original supplier (CISCO Systems, Inc.). Those four documents are provided by CISCO to PCTEST directly. Please refer the CISCO’s authorization letter attached in the next page. Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

FCC ID: ANODS1WSHR Document Number: FCC-19-0198-0 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan September 17, 2002 To whom this may concern OET Requested Information FCC ID : ANODS1WSHR Applicant : International Business Machines Corporation Correspondence Reference Number : 4944 731 Confirmation Number : TC203261 Original Requested Date : August 22, 2002 Subject 1) This report appears to have the same SAR report as FCC ID:ANOU58H004 (EA667765). The test data is similar in the two applications. I was unable to determine the differences in the devices between the two applications. What are the differences and why do the reports seem to be the same? Please explain. Answer 1) There is no difference between FCC ID: ANOU58H004 and FCC ID:ANODS1WSHR However, the grant for the ANOU58H004 is for a limited modular approval while the grant for the DS1WSHR is for a specific host device marketed only with the specific transmitter tested. Please refer the Answer 2) below for the reason why IBM submitted 2 applications. Subject 2) There is no mention in the Grant of a Bios Lock. Does this device have a Bios Lock? If so how is it handled? Answer 2) At the time when IBM asked PCTEST the certification for the application (ANODS1WSHR) on May/24/2002, the BIOS lock was not permitted by the FCC yet. Therefore the BIOS lock condition does not apply in this case. Note1) The BIOS lock is developed for user’s installation of mini-PCI type RF modules. But the transmitter integrated in the application is not user installable module but preinstalled by IBM. Also a broken card will be replaced by IBM ourselves. Please refer the submittal exhibit “RF_Safety_Info.pdf”. IBM guide customers as follows. Note2) The applying PC model was withdrew from the announcement finally, so ANODS1WSHR is not dealt in US market place. Sincerely, September 17, 2002 Toshiya Murota, Staff Engineer, EMC Engineering, Yamato Laboratory, IBM Japan Ltd. (page 2) i) Installation of the integrated wireless module The integrated wireless module (Wireless LAN Mini-PCI Card) is preinstalled by IBM, and you are not permitted to install nor replace the integrated module by yourself. If your integrated Wireless LAN Mini-PCI Card requires replacement via the proper setup shown in “Chapter 3. Getting help and service from IBM” of the ThinkPad R32 Series Service and Troubleshooting Guide, IBM will request you to send your computer with the card to IBM so that IBM will repair it.

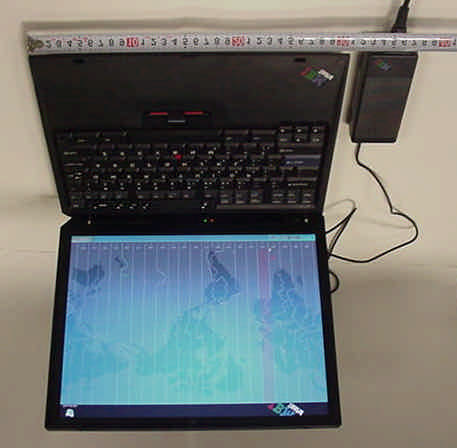

FCC Test Report FCC ID: ANODS1WSHR Document Number: FCC 19-0198-0 Prepared by T. Murota 1/4 External Photos LCD 13 inch Model LCD 14 inch Model FCC Test Report FCC ID: ANODS1WSHR Document Number: FCC 19-0198-0 Prepared by T. Murota 2/4 LCD 13 inch Model LCD 14 inch Model FCC Test Report FCC ID: ANODS1WSHR Document Number: FCC 19-0198-0 Prepared by T. Murota 3/4 LCD 13 inch Model LCD 14 inch Model FCC Test Report FCC ID: ANODS1WSHR Document Number: FCC 19-0198-0 Prepared by T. Murota 4/4 Bottom view Rear view Front side

FCC Test Report FCC ID: ANODS1WSHR Document Number: FCC 19-0198-0 Prepared by T. Murota 1/1 Product Labeling Bottom view, Front side

FCC Test Report FCC ID: ANODS1WSHR Document Number: FCC 19-0198-0 Prepared by T. Murota 1/6 Internal Photos Antenna terminals Wireless LAN card FCC Test Report FCC ID: ANODS1WSHR Document Number: FCC 19-0198-0 Prepared by T. Murota 2/6 Wireless LAN Mini-PCI Adapter IBM product name: Cisco Aironet Wireless 802.11b Reference FCC ID : LDK 102042, MPI 350 Series, by CISCO Systems, Inc. FCC Test Report FCC ID: ANODS1WSHR Document Number: FCC 19-0198-0 Prepared by T. Murota 3/6 Shielded back side FCC Test Report FCC ID: ANODS1WSHR Document Number: FCC 19-0198-0 Prepared by T. Murota 4/6 Antenna locations Auxiliary antenna Inverted-F type P/N: 46L6324 Main antenna Inverted-F type P/N: 46L6323 13” LCD 14” LCD ë 21cm FCC Test Report FCC ID: ANODS1WSHR Document Number: FCC 19-0198-0 Prepared by T. Murota 5/6 Main Antenna Manufacturer: Wistron NeWeb Corp. IBM parts number: 46L6323 Inverted-F type antenna Cable : coax 450 mm FCC Test Report FCC ID: ANODS1WSHR Document Number: FCC 19-0198-0 Prepared by T. Murota 6/6 Auxiliary Antenna Manufacturer: Wistron NeWeb Corp. IBM parts number: 46L6324 Inverted-F type antenna Cable : coax 185 mm

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220412167.IBM Test Dates: April 10-12, 2002 Phone Type: THINKPAD R32 Series FCC ID: AN0DS1WSHR Page 1 of 18 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: IBM Japan, Ltd. Dates of Tests: April 10-12, 2002 1623-14, Shimotsuruma, Yamato-shi Test Report S/N: SAR.220412167.IBM Kangawa 242-8502, Japan Test Site: PCTEST Lab, Columbia, MD USA Attn: Takeshi Asami, Consumer & OEM Product FCC ID: AN0DS1WSHR APPLICANT: IBM Japan, Ltd. EUT Type: 2.4 GHz Integrated Cisco Wireless LAN in IBM Thinkpad R32 Series Tx Frequency: 2412 – 2462 MHz Rx Frequency: 2412 – 2462 MHz Max. RF Output Power: 0.100 Watts (20.0 dBm) Max. SAR Measurement: 1.17 W/kg DSSS Body SAR Trade Name/Model(s): IBM/ ThinkPad R32 w/ Wireless LAN FCC Classification: Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. SAR.220412167.IBM PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220412167.IBM Test Dates: April 10-12, 2002 Phone Type: THINKPAD R32 Series FCC ID: AN0DS1WSHR Page 2 of 18 © 2002 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION............................................................................................3 SAR DEFINITION............................................................................................3 2. SAR MEASUREMENT SETUP............................................................................4 Robotic System................................................................................................4 System Hardware............................................................................................4 System Electronics...........................................................................................4 3. DASY3 E-FIELD PROBE SYSTEM.......................................................................5 Probe Measurement System..............................................................................5 Probe Specifications.........................................................................................5 4. Probe Calibration Process.................................................................................6 Dosimetric Assessment Procedure.....................................................................6 Free Space Assessment.....................................................................................6 Temperature Assessment..................................................................................6 5. PHANTOM & EQUIVALENT TISSUES...............................................................7 SAM Phantom.................................................................................................7 Brain & Muscle Simulating Mixture Characterization...........................................7 Device Holder.................................................................................................7 6. TEST SYSTEM SPECIFICATIONS........................................................................8 Automated Test System Specifications................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................9 Measurement Procedure...................................................................................9 Specific Anthropomorphic Mannequin (SAM) Specifications................................9 Body Holster /Belt Clip Configurations.............................................................10 8. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS................................................11 Uncontrolled Environment.............................................................................11 Controlled Environment.................................................................................11 9. MEASUREMENT UNCERTAINTIES..................................................................12 10. SYSTEM VERIFICATION.................................................................................13 Tissue Verification.........................................................................................13 Test System Verification.................................................................................13 11. SAR TEST DATA SUMMARY..........................................................................14 See Measurement Result Data Pages................................................................14 Procedures Used To Establish Test Signal.........................................................14 Device Test Conditions..................................................................................14 12. SAR DATA SUMMARY.............................................................…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANODS1WSHR Document Number: FCC 19-0198-0 Prepared by T. Murota 1/3 Test Setup Photos EMI - Radiated Measurement Photos FCCIC 15.205 / 2096.2.1 / 6.3General Field Strength Limits (Restricted Bands and Radiated Emission Limits) Tx 15.2097.3General Field Strength Limits (Radiated Emission Limits) Rx Semi-anechoic Chamber #1 FCC Test Report FCC ID: ANODS1WSHR Document Number: FCC 19-0198-0 Prepared by T. Murota 2/3 EMI - Conducted Measurement Photos FCCIC 15.2076.6AC Wireline Conducted emissionsTx 15.2077.4AC Wireline Conducted emissionsRx EMI conducted room (shield room) FCC Test Report FCC ID: ANODS1WSHR Document Number: FCC 19-0198-0 Prepared by T. Murota 3/3 Conducted Measurement Photos FCCICMeasurement ItemsIEEE802.11bBuetooth 6.2.2(o)(a1)Carrier Frequency SeparationO Number of Hopping Frequencies O 20 dB Bandwidth per 1 hopping O 15.247(a)(1) 6.2.2(o)(a3) Dwell time O (f) (o)(c2)Hybrid Dwell time O 15.247(a)(2)5.9.1Bandwidth at 6 dB blow O 6.2.2(o)(a3) O 15.247(b)(1) (o)(b) Peak output power O 15.247(c)5.9.1 6.2.2(o)(e1) Occupied BW (or Band-edge) Out of Band Emissions (Bandwidth at 20 dB blow) OO 15.247(d)6.2.2(o)(b)Transmitter power density O (f) (o)(c2) Hybrid transmitter power density Tx O EMI Semi-anechoic Chamber #1, Operation Room
