ANOSY3W26629DX

ThinkPadX22Service& TroubleshootingGuide
 note Before using this information and the product it supports, be sure to read the general information under “Safety information” on page v, and “Appendix. Product warranty and notices” on page 31. First Edition (May 2001) The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION′′AS IS′′WITHOUT ANY WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE LIMITED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimers or express or implied warranties in certain transactions; therefore, this statement may not apply to you. This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements or changes in the products or the programs described in this publication at any time. Requests for technical information about IBM products should be made to your IBM Authorized Dealer or your IBM Marketing Representative. © Copyright International Business Machine Corporation 2001. All rights reserved.Note to U.S. Government Users — Documentation related to restricted rights — Use, duplication, or disclosure is subject to restrictions set forth in GSA ADP Schedule Contract with IBM Corp. © Copyright International Business Machines Corporation 2001. All rights reserved. US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp. Contents Safetyinformation..........v Finding information with Access ThinkPadxi Chapter 1. System overview......1 Features..............1 Specifications............2 Caring for your computer........3 Be careful about where you work....3 Be gentle with your computer.....3 Carry your computer properly.....4 Handle storage media and drives properly4 Take care in setting passwords.....4 Otherimportanttips ........4 Cleaning your computer.......5 Chapter 2. Solving computer problems. . 7 Replacingtheharddiskdrive......7 Using the BIOS Setup Utility.......8 Testing your computer.........9 Recovering pre-installed software.....10 Solvingcomputerproblems.......12 Troubleshooting..........12 Chapter 3. Getting service.......27 Getting help on the Web........27 Getting help by fax.........28 Calling IBM............28 Appendix. Product warranty and notices31 WarrantyStatements.........31 IBM Statement of Limited Warranty for United States, Puerto Rico and Canada (Part1-GeneralTerms).......31 IBM Statement of Warranty Worldwide except Canada, Puerto Rico, Turkey and United States (Part 1- General Terms).. 34 Part 2 - Worldwide Country-Unique Terms 38 Notices..............44 Processing date data........45 Trademarks...........45 Electronic emission notices......45 Telecommunication notice......47 Notice for Australia........50 Notice for New Zealand Users.....50 Wireless Interoperability.......51 Usage environment and your Health ... 51 Wireless Regulatory information....52 USA - Federal Communications Commission (FCC).........52 Notice to EMEA users........53 Index..............55 © Copyright IBM Corp. 2001iii ivThinkPad X22 Service & Troubleshooting Guide Safety information DANGER Electric current from power, telephone, and communication cables is hazardous. To avoid shock hazard, connect and disconnect cables as shown below when installing, moving, or opening the covers of this product or attached devices. If a 3-pin power cord is provided with this products, it must be used with a properly grounded outlet. To Connect Turn everything OFF. Turn everything OFF. First, attach all cables to devices. Attach the signal cables to the receptades Attach the power cord to an outlet. Turn the device ON To Disconnect First, remove the power coed from the outlet. Remove the signal cables from the receptades. Remove all cables from device. © Copyright IBM Corp. 2001v DANGER Reduce the risk of fire and electric shock by always following basic safety precautions, including the following: vDo not use your computer in or near water. vDuring electrical storms: – Do not use your computer with the telephone cable connection. – Do not connect the cable to or disconnect it from the telephone outlet on the wall. viThinkPad X22 Service & Troubleshooting Guide DANGER If the rechargeable battery pack is incorrectly replaced, there is danger of an explosion. The battery pack contains a small amount of harmful substances. To avoid possible injury: vReplace only with a battery of the type recommended by IBM. vKeep the battery pack away from fire. vDo not expose it to water or rain. vDo not attempt to disassemble it. vDo not short-circuit it. vKeep it away from children. Do not put the battery pack in trash that is disposed of in landfills. When disposing of the battery, comply with local ordinances or regulations and your company’s safety procedures. In the United States, call IBM at 1-800-IBM-4333 for information on disposal. Safety informationvii DANGER There is danger of an explosion if the backup battery is incorrectly replaced. Replace only with a battery of the same type. The lithium battery (IBM P/N 02K6715 UL-recognized component (file no. MH12566)) contains lithium and can explode if it is not properly handled or disposed of. To avoid possible injury or death, do not: (1) throw or immerse the battery into water, (2) allow it to heat to more than 100 deg C (212 deg F), or (3) attempt to repair or disassemble it. Dispose of it as required by local ordinances or regulations and your company’s safety standards. DANGER Follow the instruction below when installing or reconfiguring the Mini PCI option. To avoid shock hazard, disconnect all the cables and the ac adapter when you install the Mini PCI option or open the covers of th…

Text truncated - open the document above for the full version.

FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 1/2 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan August 7, 2001 To whom this may concern OET Requested Information FCC ID : ANOSY3W26629DX Applicant : International Business Machines Corporation Correspondence Reference Number : 20156 731 Confirmation Number : EA101218 Original Requested Date : August 7, 2001 Subject : 1) This is in regard to the RF safety statement on page 52 of the manual about using Wireless PCMCIA cards in the computer. You indicate that you are not restricting use of the PCMCIA slot with ONLY IBM PCMCIA transmitters and having the user go to IBM's Website for information for compliance. You state that any PCMCIA transmitter can be used in the PCMCIA slot. Correct/clarify this colocation statement as appropriate. FYI.. The conducted output power goes on the Grant of authorization. The grant will list 34 mW(15.) rather than 31 mW. Answer: The RF safety statement on page 52 will be revised as the attachment in next page. The updated description is marked in blue. Note1) There is no restriction about the exclusive use for the PCMCIA slot. Note2) The guidance #1 is for the wireless options that conform to cooperate with the applying integrated transmitter. The current EIRP limits will be also introduced in the IBM Web site...i.e. 2.7mW for the PCMCIA slot and 1.4mW for the USB port. If IBM will need to rise the EIRP limits, we will repeat the Class II change submission. Therefore IBM can not fix those values in the user’s manual. Note3) The other instruction #2 is for other granted options that can’t not cooperate with the applying integrated transmitter. Answer: Yes, we understand that the grant will list 34mW. Sincerely, August 7, 2001 Toshiya Murota EMC Engineering Yamato Laboratory, IBM Japan Ltd. FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 2/2 RF Exposure info. in User’s manual * When you will use a Bluetooth option or wireless PCMCIA card in your ThinkPad, please be careful of the following. 1. If you want to use a wireless option device(s) while the integrated wireless feature is enabled, please visit the IBM site at www.ibm.com/pc/support for an updated list of RF devices that have been allowed to cooperate with the integrated wireless feature. 2. If you wish to use any other wireless options that were not introduced in the IBM site, the FCC certification requires that you disable the integrated wireless LAN feature before you use the options.

FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 1/2 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan August 22, 2001 To whom this may concern OET Requested Information FCC ID : ANOSY3W26629DX Applicant : International Business Machines Corporation Correspondence Reference Number : 20263 731 Confirmation Number : EA101218 Original Requested Date : August 17, 2001 Subject : Please modify the RF safety statement in the manual to indicate that when another transmitter that is not approved to be used with your device, all approved transmitters must be turned off and also tell the user that they must follow the RF Safety instructions for that transmitter. Answer: Please find the attached update of users manual. Sincerely, August 22, 2001 Toshiya Murota EMC Engineering Yamato Laboratory, IBM Japan Ltd. FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 2/2 RF Exposure info. in User’s manual The FCC RF Safety Requirement * Please make sure of the following, when you will use a Bluetooth option or wireless PCMCIA card in your ThinkPad. 1. Please visit the IBM site at www.ibm.com/pc/support, and check the RF power limit allowed for the wireless options or confirm the updated list of RF devices that have been approved to cooperate with the integrated wireless feature. 2. When you use any other wireless option that is not introduced in the IBM site or exceeds the power limit, all other wireless features in your ThinkPad are required to turn off. 3. Please be careful to follow the RF Safety instructions of wireless option devices that should be indicated in each users manual.

FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 1/2 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan August 30, 2001 To whom this may concern OET Requested Information FCC ID : ANOSY3W26629DX Applicant : International Business Machines Corporation Correspondence Reference Number : 20437 731 Confirmation Number : EA101218 Original Requested Date : August 30, 2001 Subject : 1) The RF safety information must be at the front of the manual. 2) You added information about the EIRP limit for co-located devices to be used. Delete this statement. Stay with the identifiers on the IBM website to clearly indicate to the user which devices are allowed. Answer: 1) Please find the attached sheet in the next page. IBM will add and attach it to the users manual, also leave the same description as the sheet at the current page of the manual. 2) The EIRP limit was eliminated from the RF safety information. Sincerely, August 30, 2001 Toshiya Murota EMC Engineering Yamato Laboratory, IBM Japan Ltd. FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 2/2 * Please make sure of the following, when you will use a Bluetooth option or wireless PCMCIA card in your ThinkPad. 1. Please visit the IBM site at www.ibm.com/pc/support and confirm the updated list of RF devices that have been approved to cooperate with the integrated wireless feature. 2. When you use any other wireless option that is not introduced in the IBM site, all other wireless features in your ThinkPad are required to turn off. 3. Please be careful to follow the RF Safety instructions of wireless option devices that should be indicated in each users manual.

FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 1/2 Block Diagrams 1. Block Diagram of the PC system unit FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 2/2 2. Block Diagram of IBM ThinkPad 802.11b Wireless LAN Mini-PCI Adapter (P/N: 26P8056) PCI bus

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan June 4, 2001 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315, USA Subject: Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application document for the FCC Part 15, Subpart C certification. - FCC ID : ANOSY3W26629DX - Applying equipment name : ThinkPad X22 - Device type : 2400-2483.5MHz Spread Spectrum, Direct Sequence system The applying product is a notebook type PC integrating IEEE802.11b Wireless LAN Mini-PCI card. If any further information is required concerning this application, please contact us. Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan June 4, 2001 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315, USA Subject: Confidentiality Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application for the FCC Part 15, Subpart C certification : - FCC ID : ANOSY3W26629DX - Applying equipment name : ThinkPad X22 - Device type : 2400-2483.5MHz Spread Spectrum, Direct Sequence system Pursuant to 47 CFR section 0.457(d) and 0.459, we hereby request confidentiality status of the schematic diagrams of IEEE802.11b Wireless LAN Mini-PCI card. It concerns a pdf file : Schematic_Diagrams.pdf Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan July 25, 2001 OET Requested Information FCC ID : ANOSY3W26629DX Applicant : International Business Machines Corporation Correspondence Reference Number : 20010 731 Confirmation Number : EA101218 Original Requested Date : July 20, 2001 Subject : 1) Please clarify the RF safety statement on page 52 of the manual about using Wireless PCMCIA cards in the computer. Do you plan on restricting use of the PCMCIA slot with ONLY IBM PCMCIA transmitters and having the user go to IBM's Web site for information for compliance? Or are you requesting authorization for any PCMCIA transmitter to be used in the PCMCIA slot? This colocation statement will have to be corrected once this is clarified. Answer: IBM have no intention to restrict customers to use only IBM PCMCIA transmitters. But we have to define the wireless PC option cards used for the applying equipment in line with the FCC’s instruction dated on January/19/2001 attached below. We declared only two options in this original submission, because It’s impossible to specify all option cards at once. If an additional option card (with or without IBM logo) will be available after the grant and the RF power will exceed the existing condition (the current EIRP limit is 2.7mW for the PC slot), IBM will ask the Class II permissive change to get approval for the option card, and will introduce it with our Web site. If the following FCC’s instruction is already obsolete and no longer required, IBM stop the web service and eliminate the manual description restricting the use of PC slot for PCMCIA wireless cards. Reference: From:"Raymond Laforge" <[email protected]> on 2001/01/19 04:41 To:Toshiya Murota/Japan/IBM@IBMJP cc: Subject:Re: FCC Part 15, RF Exposure The additional transmitter/antenna for the PCMCIA slot should be clearly defined. The total exposure from all transmitters operating with the laptop computer should be considered for determining the potential for exposure and compliance purposes. The exact requirements would be depending on the RF exposure requirements governing these transmitters and their operating configurations and exposure conditions. Proper operating instructions is always recommended, however, depending on the particular configuration additional instructions or statements may be needed to ensure/satisfy compliance requirements. Sincerely, July 30 , 2001 Toshiya Murota EMC Engineering Yamato Laboratory, IBM Japan Ltd.

FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan August 8, 2001 To whom this may concern OET Requested Information FCC ID : ANOSY3W26629DX Applicant : International Business Machines Corporation Correspondence Reference Number : 20168 731 Confirmation Number : EA101218 Original Requested Date : August 8, 2001 Subject : 1) Indicate whether the devices, listed on the IBM web site that will be used with the device, will have FCC Certification. 2) How will the mini PCI Card slot be upgraded? Who will perform upgrade, (user, OEM...?) ? 3)Can the upgraded transmitter use the integrated antenna? If so, how does the upgraded transmitter comply with Section 15.203 if it is sold without an antenna? FYI... IBM is choosing to turn off the integrated transmitter when another transmitter is used. Answer: 1) FCC ID of the device for PCMCIA slot or USB port to be indicated in the IBM Web. 2) The mini PCI card (applying integrated card) is not an upgraded option. It's a manufacturer option to be shipped with the applying laptop PC. 3) No upgraded transmitter is plugged in the mini PCI card slot. Optional RF devices for PCMCIA slot or USB port are supposed to have own antennas. FYI. Yes, IBM will guide customers as shown in the OET correspondence # 20156. Sincerely, August 8, 2001 Toshiya Murota EMC Engineering Yamato Laboratory, IBM Japan Ltd.

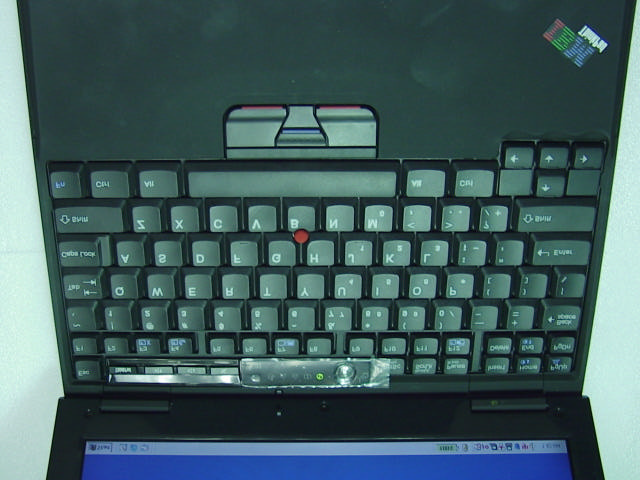

FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 1/3 External Photos 279 mm 245mm FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 2/3 Rear view 226mm FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 3/3 Keyboard Wireless LAN Mini-PCI Adapter is integrated in this area behind the keyboard.

FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 1/8 Internal Photos Mini-PCI Type Wireless LAN Adapter Plug in /out FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 2/8 Antenna cables FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 3/8 OEM Wireless LAN Mini-PCI Adapter supplied by Actiontec Mini-PCI Type IIIA slot is used for Wireless LAN Adapter. Antenna cables FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 4/8 Antenna locations Left side antenna Inverted-F type Tx/Rx switching Right side antenna Inverted-F type Rx only FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 5/8 Wireless LAN Mini-PCI Adapter To left side antenna Tx/Rx switching To Right side antenna Rx only Antenna terminals FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 6/8 (Top side) FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 7/8 (Bottom side) FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 8/8 Antenna cables Inverted-F type Antenna (IBM P/N: 26P9340) Left Antenna cable : 355 mm Right Antenna cable : 498 mm 68mm

FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Yellow Sheet : No. EM567 FCC Part 15, Subpart C (Intentional Radiator) Product Name: ThinkPad X22 (2662-9Dx/9Ex) FCC ID: ANOSY3W26629DX May 30, 2001 EMC Staff Engineer Toshiya Murota Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-6574 Fax: +81-46-273-7420 E-Mail: [email protected] Ultra Portable Product Manager Yohichiro Kanda Signature: IBM Japan, Ltd. Ultra Portable Product LAB-R19 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-3700 EMC Engineering manager / NVLAP signatory Akihisa Sakurai Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-2613 Fax: +81-46-273-7420 E-Mail: [email protected] Portable Systems Manager Arimasa Naitoh Signature: IBM Japan, Ltd. Portable Systems LAB-R11 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-6110 FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota MEASUREMENT/TECHNICAL REPORT – Part 15 Subpart C (Intentional Radiator) ThinkPad X22 (2662-9Dx/9Ex) FCC ID : ANOSY3W26629DX May 30, 2001 This report concerns: (check one) Original Grant ̧ Class I change Class II change Equipment type: Wireless LAN device in Computer (computer, printer, modem, etc.) This report shall not be reproduced except in full, without the written permission of this test lab. The measurement results contained in this report relate only to the item which was tested. Measurement procedure used is ANSI C63.4-1992 unless otherwise specified. Other test procedure: The FCC has issued provisional acceptance of this test laboratory for Declaration of Conformity testing per letter dated June 30, 2000. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: By checking yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a “party” for these purposes, see 47 CFR 1.2002(b). Yes or No “Report shall not be reproduced except in full, without the written approval of the laboratory” “the report must not be used by the client to claim product endorsement by NVLAP or any agency of the US government” Prepared by: Toshiya Murota IBM Japan Corporation, Yamato EMC Enginnering LAB-S59, 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Tel: +81-46-215-6574 Fax: +81-46-273-7420 FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 1/5 Operational Description 1. Objective This is a Certification Compliance Report for FCC Part 15, Subpart C (Intentional Radiator). - The applying equipment : ThinkPad X22 - FCC ID : ANOSY3W23329DX 2. Product Description The applying equipment is a portable type notebook personal computer integrating IEEE 802.11b Wireless LAN function inside. The wireless module consists of an OEM card(Actiontec, IEEE802.11b Wireless LAN Mini-PCI card) and IBM original integrated 2 antennas (Inverted F- figure type antennas). The feature of the applying equipment is as follows : Table 1 : Specification of PC main body Model Identification ThinkPad X22 Product number (Order code) 2662-9Dx2662-9Ex Max. size 279mm(11.0”)(W) : 226mm(8.9”)(D) : 30.2mm(1.19”)(H) Max.Weight 3.7 lbs Hard disk 2.5” 20 GB Memory 128MB Bay Device (DVD, CD etc.) None Power AC adapter, Battery (Li-Ion) Ports & Slots CRT, Headphone, Microphone, Line In, USBx2, 4M IR, Port Replicator, Slicer Modem, PCMCIA slot (type-2 x 1), CF Slot(type-2x1) CPU Intel® Mobile Geyserville® 800MHz LV LCD 12.1” TFT XGA Keyboard US English, French, Spanish, UK English, Japanese, Chinese, Korean, Thailand PC Functions Pre installed Software W2K w/W-NTWindows XP-Pro FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 2/5 Table 2 : Specification of Wireless-LAN feature Carrier Frequencies 2412MHz - 2462MHz Occupied BW at 20dB below (Band-edge) 2403.37MHz – 2470.87MHz Channels Total 11 channels (default setting ch. # : 1, 6, 11) Channel BW at 20dB below Max. 17.50MHz / ch Channal spacing 5 MHz Conducted emission Power 15.3 dBm Antenna gain -0.38 dBi Antenna type Inverted F-figure type antenna (IBM P/N: 26P9340) Antenna cable type and length Tx/Rx switching antenna : coax 355mm Rx antenna : coax 498mm Bit rate 1 Mbit/sec2 Mbit/sec5.5 Mbit/sec11 Mbit/sec Chip/symbol rate111188 Bit/symbol rate 1 (DBPSK)2 (DQPSK)4 (CCK)8 (CCK) Chip/bit rate 115.521 FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 3/5 3. Mounting structure of Wireless LAN PC card and Antenna note) The left side of inverted F-figure type antenna is used for both RF transmission and receiving with half duplex switching mode. The right side one is used for RF receiver only. When the Wireless PC card is in RF receiving state, one of the antennas is selected automatically to have a good quality of radiocommunication. The location of integrated antennas 4. Related Submittal(s)/Grant(s)/Notes - The device without Wireless LAN function is classified as a digital device under Part 15 Subpart B and subject to DoC. OEM Wireless LAN Mini-PCI card supplied by Actiontec. Tx / Rx switching Rx only FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 4/5 5. Circuitry description of the Wireless LAN PC card Basic Operation Principle of 802MIP by Actiontec Electronics, Inc. 4/2001 The Wireless LAN portion of 802MIP combo card is a 2.4GHz ISM Band DSSS Radio. It is designed to oper…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 1/4 Parts List of IBM ThinkPad 802.11b Wireless LAN Mini-PCI Adapter (P/N: 26P8056) P/NQ'TYNAMESPEC.LACTION 122-149-004A 2122-149-101S1PACKING ASSYFOR 802MIP 3212-0002-268Q0.003SHIPPING CARTON466(L)*290(W)*220(H)M/M 4212-0004-318A0.003POLY BAG850(L)*500(W)*0.05 5212-0006-028B0.042BLISTER445(L)*264(W)*0.4(THK)M/M FOR MP100IM 6212-0009-407R0.011CARD BOARD285(L)*216(W)*7.5(THK)M/M 7212-0009-408H0.003CARD BOARD964(L)*450(W)*7.5(THK)M/M 8212-0009-40990.011CARD BOARD450(L)*268(W)*7.5(THK)M/M 9212-0018-059Z0.039EPE SHEET400(L)*260(W)*2.5(THK) M/M 10122-149-20361PCB ASSY.FOR 802MIP REV.3A 11201-0016-044T1MYLARMYLAR FOR 802MIS SHIELD COVER INSIDE 12201-0016-045K1MYLARMYLAR FOR 802MIS SHIELD COVER OUTSIDE 13201-0016-05221MYLARACTIONTEC 802MIP MYLAR 14201-0016-057V1MYLARACTIONTEC 802MIP MYLAR 15203-0025-07831SHIELD COVERSHIELD COVER FOR 802MIS 16222-149-606W1SECOND SMD ASSY.FOR 802MIP REV.3A 17322-149-60531FIRST SMD ASSY.FOR 802MIP REV.3A 18447-0045-1ECU1PCBFOR 802MIP REV.3A 19453-1300-001V1SMT ICUPC2745TB-E3 SO6-65U16. 20455-0201-01321SMT ICSCORPIO SOP-16P (LUCENT)U19. 21455-0201-014U1SMT ICCSP1037B SOP-16P (LUCENT)U20. 22455-0310-001P1SMT ICIC RF/IF CONVERTER (ISL3685IR)U11. 23455-0310-002G1SMT ICIC/RF POWER AMPLIFIER (ISL3984IR)U12. 24455-1106-002R1SMT ICIF/BB CONVERTER TQFP-48 (HFA3783IN)U9. 25456-0110-023Y2SMT ICIC FET SWITCH SC-70U8.10. 26456-0303-017M1SMT TRANSISTORBCP56 (CENTRAL CZT3019) SOT-223Q3. 27456-0610-005C1SMT VARISTORP3100SC DO-214AASID1. 28456-0610-018E0SMT VARISTORP3100SB DO-214AA (TECCOR) 29456-0610-009D1SMT VARISTORP3100SX DO-214A (TECCOR)MOV1. 30457-0200-019N1SMT OSCENFVH1K2S81U14. 31457-0200-024N1SMT VCO748MHZ VCO/IF (ISL3183IR)U13. 32464-1000-14118SMT RES100 OHM 5% 1/16W 0402R25.31.35.42 .43.47-49. 33464-1001-241P2SMT RES1K OHM 1% 1/16W 0402R52.71. 34464-1009-141L1SMT RES10 OHM 5% 1/16W 0402R68. 35464-1009-221U2SMT RES10 OHM 1% 0805R95.96. 36464-1101-241L2SMT RES1.1K OHM 1% 1/16W 0402R39.44. 37464-1152-241R1SMT RES11.5K OHM 1% 1/16W 0402R36. 38464-1240-24134SMT RES124 OHM 1% 1/16W 0402R58.62.66.67 . 39464-1501-24152SMT RES1.5K OHM 1% 1/16W 0402R37.65. 40464-2001-241M1SMT RES2K OHM 1% 1/16W 0402R40. 41464-2009-141H1SMT RES20 OHM 5% 1/16W 0402R73. 42464-2212-242V1SMT RES2.21K OHM 1% 1/16W 0402R55. 43464-2871-241T1SMT RES2.87K OHM 1% 1/16W 0402R45. 44464-3000-142N1SMT RES300 OHM 5% 1/16W 0402R56. 45464-3741-24181SMT RES3.74K OHM 1% 1/16W 0402R50. 46464-5360-241E2SMT RES536 OHM 1% 1/16W 0402R59.70. FCC Test Report FCC ID: ANOSY3W26629DX Document Number: FCC-19-0164-0 Prepared by T. Murota 2/4 47 464-6490-241T1SMT RES649 OHM 1% 1/16W 0402R69. 48464-8259-241Y1SMT RES82.5 OHM 1% 1/16W 0402R76. 49464-9099-241J2SMT RES90.9 OHM 1% 1/16W 0402R75.77. 50464-9531-24131SMT RES9.53K OHM 1% 1/16W 0402R38. 51465-1005-901J2SMT CAPCER 0.5PF 50V +/-0.25PF NPO 0402C87A.132. 52465-1010-90172SMT CAPCER 1.0PF 50V +/-0.25PF NPO 0402C12.131. 53465-1018-902N1SMT CAPCER 1.8PF +/-0.25PF NPO 0402 50VC82. 54465-1033-901G1SMT CAPCER 3.3P 50V +/-0.25PF NPO 0402C58. 55465-1047-902F2SMT CAPCER 4.7P 50V +/-0.25PF NPO 0402C49.75. 56465-1068-901818SMT CAPCER 6.8P 50V +/-0.5PF NPO 0402C28.36.48.59 .62.65-68.77- 79.83.96.97. C109.111.127 57465-1100-90183SMT CAP10PF +-5% 0402 50VC51.52.105. 58465-1101-90124SMT CAPCER 100P 50V +/-10% NPO 0402C13.85.88.94 . 59465-1102-604R4SMT CAPCER MONO 0.001UF 3KV K X7R 1808C156.157.16 2.164. 60465-1102-902N10SMT CAPCER 1000P 50V K X7R 0402C23.29.50.76 .80.98.101.10 6.116.128. 61465-1103-902H13SMT CAPCER 0.01U 16V K X7R 0402C16.22.53.60 .61.63.86.92. 95.99.114. C125.130. 62465-1104-106W1SMT CAPCER MONO 0.1UF 50V K X7R 1206C152. 63465-1104-805T13SMT CAPCER 0.1UF 16V K X7R 0603C19.35.70.72 .84.89.90.93. 104.112.117. C121.124. 64465-1150-901K1SMT CAPCER 15PF 50V +/-10% NPO 0402C73. 65465-1151-602Q2SMT CAPCER MONO 150PF 3KV X7R 1808C139.140. 66465-1220-901V1SMT CAPCER 22PF 50V +/-10% NPO 0402C69. 67465-1221-902G6SMT CAPCER 220P 50V K X7R 0402C39.44- 47.74. 68465-1271-90101SMT CAPCER 270P 50V K X7R 0402C126. 69465-1331-90271SMT CAPCER 330PF 50V X7R K 0402C103. 70465-1473-804Y1SMT CAPCER MONO 0.047UF 16V K X7R 0603C91. 71465-1474-10431SMT CAPCER MONO .47UF 25V K X7R 1206C147. 72465-1474-204X1SMT CAPCER .47UF 16V X7R K 0805C100. 73465-1680-902D2SMT CAPCER 68P 50V +/-10% 0402C110.120. 74465-1682-901A1SMT CAPCER 6800PF 16V X7R K 0402C107. 75465-1683-801B1SMT CAPCER 0.068U 16V K X7R 0603C118. 76465-1684-201A1SMT CAPCER MONO 680NF 10V K X7R 0805C123. 77465-1684-20211SMT CAP0.68UF 16V Z Y5V…
