IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan April 18, 2001 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Subject: Confidenciality Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application for the FCC Part 15, Subpart C certification : - FCC ID : ANO TR4WGA1BAN - Applying equipment name : ThinkPad T23 - Device type : 2400-2483.5MHz Spread Spectrum, Direct Sequence system Pursuant to 47 CFR section 0.457(d) and 0.459, we hereby request confidentiality status of the schematic diagrams of IEEE802.11b Wireless LAN Mini-PCI card. It concerns a pdf file : Schematic_Diagrams.pdf Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 1/2 Block Diagrams 1. Block Diagram of the PC system unit FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 2/2 2. Block Diagram of IBM ThinkPad 802.11b Wireless LAN Mini-PCI Adapter (P/N: 26P8056) PCI bus

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan April 18, 2001 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Subject: Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application document for the FCC Part 15, Subpart C certification. - FCC ID : ANO TR4WGA1BAN - Applying equipment name : ThinkPad T23 - Device type : 2400-2483.5MHz Spread Spectrum, Direct Sequence system The applying product is a notebook type PC integrating IEEE802.11b Wireless LAN Mini-PCI card. If any further information is required concerning this application, please contact us. Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

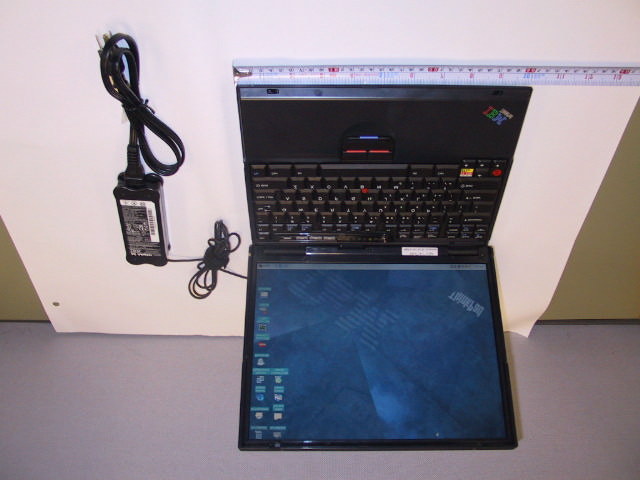

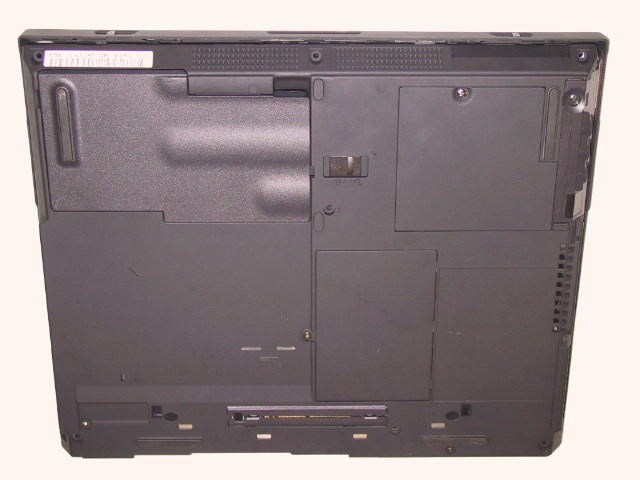

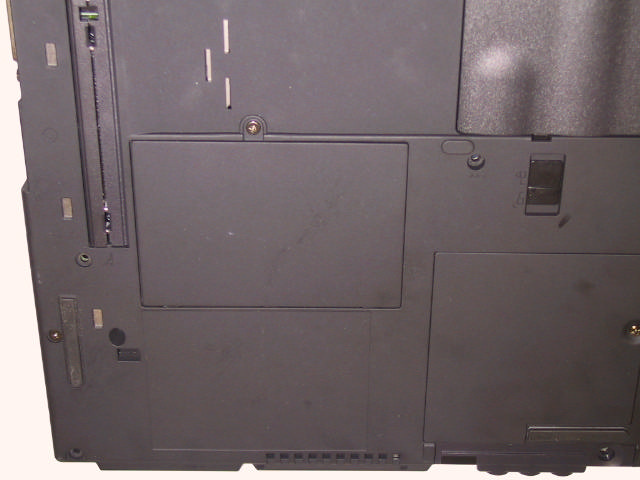

FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T.Murota1/3 External Photos 307mm 270mm FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T.Murota2/3 Rear side view 250mm FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T.Murota3/3 Bottom side views MiniPCI Type IIIA slot is used for Wireless LAN Mini-PCI Adapter inside.

FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 1/1 Product Labeling

FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 1/8 Internal Photos Antenna cables Cables to bottom side FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 2/8 Cables from top side OEM Wireless LAN Mini-PCI Adapter supplied by Actiontec Mini-PCI Type IIIA slot is used for Wireless LAN Adapter. Antenna cables FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 3/8 Antenna locations Left side antenna Inverted-F type Tx/Rx switching Right side antenna Inverted-F type Rx only FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 4/8 Wireless LAN Mini-PCI Adapter To left side antenna Tx/Rx switching To Right side antenna Rx only Antenna terminals FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 5/8 FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 6/8 FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 7/8 FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 8/8 Inverted F type Antenna and Cable Cable length : Left antenna (Tx/Rx switch) ; 500mm Right antenna (Rx only) ; 680mm

FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Yellow Sheet : No. EM548 FCC Part 15, Subpart C (Intentional Radiator) Product Name: ThinkPad T23 (2647-4Lx/5Lx/8Lx/9Lx) FCC ID: ANOTR4WGA1BAN April 18, 2001 FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota MEASUREMENT/TECHNICAL REPORT – Part 15 Subpart C (Intentional Radiator) ThinkPad T23 (2647-4Lx/5Lx/8Lx/9Lx) FCC ID : ANOTR4WGA1BAN April 18, 2001 This report concerns: (check one) Original Grant ̧ Class I change Class II change Equipment type: Wireless LAN device in Computer (computer, printer, modem, etc.) This report shall not be reproduced except in full, without the written permission of this test lab. The measurement results contained in this report relate only to the item which was tested. Measurement procedure used is ANSI C63.4-1992 unless otherwise specified. Other test procedure: The FCC has issued provisional acceptance of this test laboratory for Declaration of Conformity testing per letter dated June 30, 2000. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: By checking yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a “party” for these purposes, see 47 CFR 1.2002(b). Yes or No “Report shall not be reproduced except in full, without the written approval of the laboratory” “the report must not be used by the client to claim product endorsement by NVLAP or any agency of the US government” Prepared by: Toshiya Murota IBM Japan Corporation, Yamato EMC Enginnering LAB-S59, 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Tel: +81-46-215-6574 Fax: +81-46-273-7420 FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 1/5 Operational Description 1. Objective This is a Certification Compliance Report for FCC Part 15, Subpart C (Intentional Radiator). - The applying equipment : ThinkPad T23 - FCC ID : ANOTR4WGA1BAN 2. Product Description The applying equipment is a portable type notebook personal computer integrating IEEE 802.11b Wireless LAN function inside. The wireless module consists of an OEM card(Actiontec, IEEE802.11b Wireless LAN Mini-PCI card) and IBM original integrated 2 antennas (Inverted F- figure type antennas). The feature of the applying equipment is as follows : Table 1 : Specification of PC main body Model Identification ThinkPad T23 Product number (Order code) 2647-4Lx2647-8Lx2647-5Lx2647-9Lx Max. size 307mm(12.1”)(W) : 250mm(9.8”)(D) : 33mm(1.3”)(H) Max.Weight 5.57lbs Hard disk 2.5” 30 GB2.5” 48GB Memory 128MB Bay Device DVD-ROMCD-RW Power AC adapter, Battery (Li-Ion) Ports & Slots Serial, Parallel/FDD, Mouse/Keyboard, CRT, Headphone, Microphone, Line In, USBx2, 4M IR, TV-Out(S & composite), Port Replicator, Modem, PCMCIA slot (type-2 x 1or type-3 x 1) CPU Intel® Mobile Geyserville® 1133MHz LCD 14.1” TFT XGA14.1” TFT SXGA+ Keyboard US English, French, Spanish, UK English, Japanese, Chinese, Korean, Thailand PC Functions Pre installed Software Windows 98SEWindows 2000Windows 98SEWindows 2000 FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 2/5 Table 2 : Specification of Wireless-LAN feature Carrier Frequencies 2412MHz - 2462MHz Occupied BW at 20dB below 2403.67MHz – 2470.69MHz Channels Total 11 channels (default setting ch. # : 1, 6, 11) Channel BW at 20dB below Max. 17.02MHz / ch Channal spacing 5 MHz Conducted emission Power 15.5 dBm Antenna gain 0.32 dBi Antenna type Inverted F-figure type antenna x 2 Antenna cable length Tx/Rx switching antenna : 500mm Rx antenna : 680mm Bit rate 1 Mbit/sec2 Mbit/sec5.5 Mbit/sec11 Mbit/sec Chip/symbol rate 111188 Bit/symbol rate 1 (DBPSK)2 (DQPSK)4 (CCK)8 (CCK) Chip/bit rate 115.521 FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 3/5 3. Mounting structure of Wireless LAN PC card and Antenna note) The left side of inverted F-figure type antenna is used for both RF transmission and receiving with half duplex switching mode. The right side one is used for RF receiver only. When the Wireless PC card is in RF receiving state, one of the antennas is selected automatically which tends to have a good quality of communication. The location of integrated antennas 4. Related Submittal(s)/Grant(s)/Notes - The device without Wireless LAN function is classified as a digital device under Part 15 Subpart B and subject to DoC. OEM Wireless LAN Mini-PCI card supplied by Actiontec. Tx / Rx switching Rx only FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 4/5 5. Circuitry description of the Wireless LAN PC card Basic Operation Principle of 802MIP by Actiontec Electronics, Inc. 4/2001 The Wireless LAN portion of 802MIP combo card is a 2.4GHz ISM Band DSSS Radio. It is designed to operate using IEEE 802.11b WLAN Standard for use in wireless networking systems. The Radio consists of 4 major ICs, which are ISL3685, HFA3783, ISL3984, ISL3874, and few support ICs. It operates at maximum transmit rate 11Mb/s, back off rates 5.5, 2 and 1 Mb/s. The modulation schemes include CCK (Complementary Code Keying), DQPSK and DBPSK depending on what transmit bit rate it operates at. The radio card interfaces to PC through a MiniPCI bus. Transmitter path The Ethernet data comes through the MiniPCI interface, the Host I/O interface to the MAC section of ISL3874. The signal then flows into the data router where it is converted from Ethernet to 802.11b protocol. After the signal is converted, a radio preamble and header is added to it and passed to…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 1/4 Parts List of IBM ThinkPad 802.11b Wireless LAN Mini-PCI Adapter (P/N: 26P8056) P/NQ'TYNAMESPEC.LACTION 122-149-004A 2122-149-101S1PACKING ASSYFOR 802MIP 3212-0002-268Q0.003SHIPPING CARTON466(L)*290(W)*220(H)M/M 4212-0004-318A0.003POLY BAG850(L)*500(W)*0.05 5212-0006-028B0.042BLISTER445(L)*264(W)*0.4(THK)M/M FOR MP100IM 6212-0009-407R0.011CARD BOARD285(L)*216(W)*7.5(THK)M/M 7212-0009-408H0.003CARD BOARD964(L)*450(W)*7.5(THK)M/M 8212-0009-40990.011CARD BOARD450(L)*268(W)*7.5(THK)M/M 9212-0018-059Z0.039EPE SHEET400(L)*260(W)*2.5(THK) M/M 10122-149-20361PCB ASSY.FOR 802MIP REV.3A 11201-0016-044T1MYLARMYLAR FOR 802MIS SHIELD COVER INSIDE 12201-0016-045K1MYLARMYLAR FOR 802MIS SHIELD COVER OUTSIDE 13201-0016-05221MYLARACTIONTEC 802MIP MYLAR 14201-0016-057V1MYLARACTIONTEC 802MIP MYLAR 15203-0025-07831SHIELD COVERSHIELD COVER FOR 802MIS 16222-149-606W1SECOND SMD ASSY.FOR 802MIP REV.3A 17322-149-60531FIRST SMD ASSY.FOR 802MIP REV.3A 18447-0045-1ECU1PCBFOR 802MIP REV.3A 19453-1300-001V1SMT ICUPC2745TB-E3 SO6-65U16. 20455-0201-01321SMT ICSCORPIO SOP-16P (LUCENT)U19. 21455-0201-014U1SMT ICCSP1037B SOP-16P (LUCENT)U20. 22455-0310-001P1SMT ICIC RF/IF CONVERTER (ISL3685IR)U11. 23455-0310-002G1SMT ICIC/RF POWER AMPLIFIER (ISL3984IR)U12. 24455-1106-002R1SMT ICIF/BB CONVERTER TQFP-48 (HFA3783IN)U9. 25456-0110-023Y2SMT ICIC FET SWITCH SC-70U8.10. 26456-0303-017M1SMT TRANSISTORBCP56 (CENTRAL CZT3019) SOT-223Q3. 27456-0610-005C1SMT VARISTORP3100SC DO-214AASID1. 28456-0610-018E0SMT VARISTORP3100SB DO-214AA (TECCOR) 29456-0610-009D1SMT VARISTORP3100SX DO-214A (TECCOR)MOV1. 30457-0200-019N1SMT OSCENFVH1K2S81U14. 31457-0200-024N1SMT VCO748MHZ VCO/IF (ISL3183IR)U13. 32464-1000-14118SMT RES100 OHM 5% 1/16W 0402R25.31.35.42 .43.47-49. 33464-1001-241P2SMT RES1K OHM 1% 1/16W 0402R52.71. 34464-1009-141L1SMT RES10 OHM 5% 1/16W 0402R68. 35464-1009-221U2SMT RES10 OHM 1% 0805R95.96. 36464-1101-241L2SMT RES1.1K OHM 1% 1/16W 0402R39.44. 37464-1152-241R1SMT RES11.5K OHM 1% 1/16W 0402R36. 38464-1240-24134SMT RES124 OHM 1% 1/16W 0402R58.62.66.67 . 39464-1501-24152SMT RES1.5K OHM 1% 1/16W 0402R37.65. 40464-2001-241M1SMT RES2K OHM 1% 1/16W 0402R40. 41464-2009-141H1SMT RES20 OHM 5% 1/16W 0402R73. 42464-2212-242V1SMT RES2.21K OHM 1% 1/16W 0402R55. 43464-2871-241T1SMT RES2.87K OHM 1% 1/16W 0402R45. 44464-3000-142N1SMT RES300 OHM 5% 1/16W 0402R56. 45464-3741-24181SMT RES3.74K OHM 1% 1/16W 0402R50. 46464-5360-241E2SMT RES536 OHM 1% 1/16W 0402R59.70. FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 2/4 47 464-6490-241T1SMT RES649 OHM 1% 1/16W 0402R69. 48464-8259-241Y1SMT RES82.5 OHM 1% 1/16W 0402R76. 49464-9099-241J2SMT RES90.9 OHM 1% 1/16W 0402R75.77. 50464-9531-24131SMT RES9.53K OHM 1% 1/16W 0402R38. 51465-1005-901J2SMT CAPCER 0.5PF 50V +/-0.25PF NPO 0402C87A.132. 52465-1010-90172SMT CAPCER 1.0PF 50V +/-0.25PF NPO 0402C12.131. 53465-1018-902N1SMT CAPCER 1.8PF +/-0.25PF NPO 0402 50VC82. 54465-1033-901G1SMT CAPCER 3.3P 50V +/-0.25PF NPO 0402C58. 55465-1047-902F2SMT CAPCER 4.7P 50V +/-0.25PF NPO 0402C49.75. 56465-1068-901818SMT CAPCER 6.8P 50V +/-0.5PF NPO 0402C28.36.48.59 .62.65-68.77- 79.83.96.97. C109.111.127 57465-1100-90183SMT CAP10PF +-5% 0402 50VC51.52.105. 58465-1101-90124SMT CAPCER 100P 50V +/-10% NPO 0402C13.85.88.94 . 59465-1102-604R4SMT CAPCER MONO 0.001UF 3KV K X7R 1808C156.157.16 2.164. 60465-1102-902N10SMT CAPCER 1000P 50V K X7R 0402C23.29.50.76 .80.98.101.10 6.116.128. 61465-1103-902H13SMT CAPCER 0.01U 16V K X7R 0402C16.22.53.60 .61.63.86.92. 95.99.114. C125.130. 62465-1104-106W1SMT CAPCER MONO 0.1UF 50V K X7R 1206C152. 63465-1104-805T13SMT CAPCER 0.1UF 16V K X7R 0603C19.35.70.72 .84.89.90.93. 104.112.117. C121.124. 64465-1150-901K1SMT CAPCER 15PF 50V +/-10% NPO 0402C73. 65465-1151-602Q2SMT CAPCER MONO 150PF 3KV X7R 1808C139.140. 66465-1220-901V1SMT CAPCER 22PF 50V +/-10% NPO 0402C69. 67465-1221-902G6SMT CAPCER 220P 50V K X7R 0402C39.44- 47.74. 68465-1271-90101SMT CAPCER 270P 50V K X7R 0402C126. 69465-1331-90271SMT CAPCER 330PF 50V X7R K 0402C103. 70465-1473-804Y1SMT CAPCER MONO 0.047UF 16V K X7R 0603C91. 71465-1474-10431SMT CAPCER MONO .47UF 25V K X7R 1206C147. 72465-1474-204X1SMT CAPCER .47UF 16V X7R K 0805C100. 73465-1680-902D2SMT CAPCER 68P 50V +/-10% 0402C110.120. 74465-1682-901A1SMT CAPCER 6800PF 16V X7R K 0402C107. 75465-1683-801B1SMT CAPCER 0.068U 16V K X7R 0603C118. 76465-1684-201A1SMT CAPCER MONO 680NF 10V K X7R 0805C123. 77465-1684-20211SMT CAP0.68UF 16V Z Y5V 0805C153. 78465-2106-801D2SMT CAPTANT 10UF 6.3V M (0805)C129.161. 79465-2224-10351SMT CAPTANT 0.22UF 16V K CASE AC146. 80470-1229-10153SMT IND2.2NH +/-0.3NH 300MA 0402L7.19.20. 81470-1330-101D2SMT IND33NH +/-5% 600MA 0603L12.14. 82470-1330-10242SMT IND33NH +/-2% 600MA 0603L9.10. 83470-1390-101K1SMT IND39NH +/-5% 500MA 0603L6. 84470-1390-10321SMT IND39NH +/-2% 600MA 0603L5. 85470-1479-10201SMT IND4.7NH +/-0.3NH 300MA 0402L2. 86470-2120-001U2SMT BEAD120 OHM/100M 0402L16.18. 87470-3100-008B1SMT INDBAND PASS FILTER(MURATA:LFSN25N19C2450B) FL6. 88470-3100-00922SMT INDBAND PASS FILTER(MURATA:LFSG20N27C2450B) FL4.5. 89470-3100-01011SMT FILTER374 MHZ IF SAW FILTERFL1. 90470-3100-013B1SMT INDLOW PASS LILTER(MURATA:LFTC 15N19E2450B) FL3. FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 3/4 91474-1512-20371SMT HEADER2PIN*1 P=1.25 RARJ1. 92474-3200-001P2SMT CONNSMT ULTRA MINIATURE COAX CONNECTORJ1.2. 93352-0411-001L1SMT IC128K*16 SRAM BGAU4. 94352-0607-036N1.000 PSMT IC128K*8 CMOS FLASH MEMORY TSOP- 32(8*14MM) U2. 95353-1100-013D2SMT ICMAX8867EUK29 2.84V/150MAU7.15. 96355-0314-003K1SMT ICISL3874IK 192BGAU1. 97356-0101-011M2SMT DIODEBAV99 SOT-23D2.4. 98356-0101-033P2SMT DIODECMPD2004S 240V 225MA SOT-23D3.8. 99356-0110-030G1SMT ICMAX6326XR29 SC-70U18. 100356-0201-00382SMT ZENER DIODE5.6V +-5% SOT-23D1.5. 101356-0201-034C1SMT ZENER DIODEBZX84C43 43V SOT-23ZD1. 102356-0301-042H2SMT TRANSISTORM…

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 1/2 RF Exposure The applying equipment is a standard fullsize laptop computer which is categorized as a mobile device by FCC CFR 47 Section 2.1091. Therefore the separation distance between the antenna and the human body is 20cm or more. As shown in the following photo, the applying equipment satisfies the requirement of antenna separation. The peak conducted output power of the applying equipment is 15.5 dBm and the maximum antenna gain is 0.32dBi as shown below. The separation distance between the antenna and the human body is approximately 34cm. FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC-19-0163-0 Prepared by T. Murota 2/2 Therefore the peak radiated (EIRP) output power is calculated as follows. EIRP = P + G = 15.5 dBm + 0.32 dBi = 15.82 dBm (38.2 mW) With this result, the maximum power density in 20cm distance is calculated as : S = EIRP/(4 x R 2 x pi) = 0.0076 mW/cm 2 When an operator will use the applying equipment during 30 minutes continuously in normal operation, the time-averaging exposure is : 0.0076 x 30 = 0.228 So the source-based time-averaging duty factor is considered as 100% duty. Therefore the applying equipment meets the MPE requirements for general Population/ Uncontrolled exposure. RF Exposure Info of User’s Manual : The attachment in the next page is the RF exposure user’s information described in the page 67 and 68 of the user’s manual. vThe IEEE 802.11 Standard on Wireless LANs (Revision B), as defined and approved by the Institute of Electrical and Electronics Engineers. vThe Wireless Fidelity (WiFi) certification as defined by the WECA (Wireless Ethernet Compatibility Alliance). Usage environment and your Health Wireless LAN Mini-PCI Adapter emits radio frequency electromagnetic energy like other radio devices. However, the level of energy emitted is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones. Because Wireless LAN Mini-PCI Adapter operates within the guidelines found in radio frequency safety standards and recommendations, IBM believes it is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. In some situation or environment, the use of Wireless LAN Mini-PCI Adapter may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include: vUsing Wireless LAN Mini-PCI Adapter on board of airplanes, or vIn any other environment where the risk of interference to other devices or services is perceived or identified as harmful. If you are uncertain of the policy that applies on the use of wireless devices in a specific organization (e.g. airport), you are encouraged to ask for authorization to use Wireless LAN Mini-PCI Adapter prior to turning on the ThinkPad T23. Wireless Regulatory Information The ThinkPad T23 must be installed and used in strict accordance with the instructions as described hereafter. This product complies with the following radio frequency and safety standards. USA - Federal Communications Commission (FCC) This product complies with FCC Part 15. The operation of Wireless LAN Mini-PCI Adapter integrated in the product is subject to the following two conditions: vIt may not cause harmful interference. vIt accepts any interference that may cause undesired operation. Exposure to Radio Frequency Radiation The radiated output power of Wireless LAN Mini-PCI Adapter is far below the FCC radio frequency exposure limits. Nevertheless, the ThinkPad T23 shall be used in such a manner that the potential for human contact during normal operation is minimized as follows: Appendix B. Product warranties and notices67 vCaution: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm (8 inches) must be maintained between the antenna of this device and all persons. Transmitter antenna position 20cm vFCC certification of this device prohibits the use of any other Radio Frequency wireless device in conjunction with your ThinkPad T23 notebook wireless LAN. Do not use any other wireless PCMCIA card in your ThinkPad notebook while operating Wireless LAN Mini-PCI Adapter. Interference Statement An improper installation or unauthorized use may cause harmful interference to radio communications. Also any tampering of the internal antenna will void the FCC certification and your warranty. Refer to the“Electronic emission notices”on page 60 for more detail. Canada - Industry Canada (IC) Low Power License-Exempt Radiocommunication Devices (RSS-210) Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Permis d’émission à faible puissance - Cas des appareils de communications radio (CNR-210) Le fonctionnement de ce type d’appareil est soumis aux deux conditions suivantes : (1) Cet appareil peut perturber les communications radio, et (2) cet appareil doit supporter toute perturbation, y compris les perturbations qui pourraient provoquer un dysfonctionnement. 68ThinkPad ® T23 Service and Troubleshooting Guide

FCC Test Report Document Number: FCC 19-0163-0 Emission Test Report Standard: FCC Part 15 Subpart C / IC RSS-210 Document Number : FCC 19-0163-0 Product: IBM ThinkPad T23 Included IBM ThinkPad 802.11b Wireless Lan Mini-PCI Adapter (P/N 26P8056) FCC ID: ANOTR4WGA1BAN April 17, 2001 Prepared : EMC Engineer Takeshi Asano Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242, Japan Phone: +81-46-215-4779 Fax: +81-46-273-7420 E-Mail: [email protected] Reviewed and Checked : EMC Staff Engineer Toshiya Murota Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242, Japan Phone: +81-46-215-6574 Fax: +81-46-273-7420 E-Mail: [email protected] Approved : Manager, EMC Engineering Akihisa Sakurai Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242, Japan Phone: +81-46-215-2613 Fax: +81-46-273-7420 E-Mail: [email protected] FCC Test Report FCC ID: ANOTR4WGA1BAN Document Number: FCC 19-0163-0 Prepared by T. Asano - 1 - - Index - A. GENERAL INFORMATION .................................................................................................................3 A.1TEST METHODOLOGY............................................................................................................................3 A.2TEST FACILITY / NVLAP ACCREDITATION.............................................................................................3 A.3EUT DETAILS........................................................................................................................................3 B. SUMMARY OF TEST RESULTS...........................................................................................................4 C. OPERATION MODE OF EUT...............................................................................................................5 D. TEST INSTRUMENTS.......................................................................................................................6 1. BANDWIDTH AT 6 DB BELOW............................................................................................................8 1.1TEST PROCEDURE..................................................................................................................................8 1.2TEST INSTRUMENTS AND MEASUREMENT SETUP.....................................................................................8 1.3MEASUREMENT RESULTS.......................................................................................................................8 1.4TRACE DATA.........................................................................................................................................9 2. OCCUPIED BANDWIDTH / BAND-EDGE (AT 20 DB BELOW), AND OUT OF BAND EMISSIONS.........12 2.1TEST PROCEDURE..........…
