FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 1/2 IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan August 30, 2001 To whom this may concern OET Requested Information FCC ID : ANOVNCBDC80211B Applicant : International Business Machines Corporation Correspondence Reference Number : 20443 731 Confirmation Number : EA101438 Original Requested Date : August 30, 2001 Subject : 1) The RF safety information must be at the front of the manual. 2) You added information about the EIRP limit for co-located devices to be used. Delete this statement. Stay with the identifiers on the IBM website to clearly indicate to the user which devices are allowed. Answer: 1) Please find the attached sheet in the next page. IBM will add and attach it to the users manual, also leave the same description as the sheet at the current page of the manual. 2) The EIRP limit was eliminated from the RF safety information. Sincerely, August 30, 2001 Toshiya Murota EMC Engineering Yamato Laboratory, IBM Japan Ltd. FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 2/2 * Please make sure of the following, when you will use a Bluetooth option or wireless PCMCIA card in your ThinkPad. 1. Please visit the IBM site at www.ibm.com/pc/support and confirm the updated list of RF devices that have been approved to cooperate with the integrated wireless feature. 2. When you use any other wireless option that is not introduced in the IBM site, all other wireless features in your ThinkPad are required to turn off. 3. Please be careful to follow the RF Safety instructions of wireless option devices that should be indicated in each users manual.

FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota Attestation Statements Part 1: Processing Gain for IBM ThinkPad 802.11b Wireless LAN Mini-PCI Adapter Part 2: Processing Gain for IBM Bluetooth Daughter Card Part 3: Attestation Statements according FCC 15.247 for IBM Bluetooth Daughter Card FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota Part 1: Processing Gain for IBM ThinkPad 802.11b Wireless LAN Mini-PCI Adapter by Actiontec Electronics, Inc. Chip/symbol rate, symbol/bit rate, Chip/bit, and the measurement results Bit rateChip/symbol rateBit/symbol rate Chip/bit rateGp (dB)Spec (dB) 1 Mbit/sec111, DBPSK1113.210 2 Mbit/sec112, DQPSK5.512.610 5.5 Mbit/sec84, CCK213.410 11 Mbit/sec88, CCK112.910 Note: Gp is Processing Gain; Processing Gain ISL37400M DATA-111Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2428.5023.916.45.52.0-57.2<=8.0 2428.5523.916.45.52.0-57.2<=8.0 2428.6023.916.45.52.0-57.2<=8.0 2428.6523.816.45.42.0-57.3<=8.0 2428.7023.816.45.42.0-57.3<=8.0 2428.7524.016.45.62.0-57.1<=8.0 2428.8024.116.45.72.0-57.0<=8.0 2428.8524.116.45.72.0-57.0<=8.0 2428.9024.216.45.82.0-56.9<=8.0 2428.9524.116.45.72.0-57.0<=8.0 2429.0024.416.46.02.0-56.7<=8.0 2429.0524.316.45.92.0-56.8<=8.0 2429.1024.316.45.92.0-56.8<=8.0 2429.1524.316.45.92.0-56.8<=8.0 2429.2024.416.46.02.0-56.7<=8.0 2429.2523.716.45.32.0-57.4<=8.0 2429.3023.316.44.92.0-57.8<=8.0 2429.3523.216.44.82.0-57.9<=8.0 2429.4022.216.43.82.0-58.9<=8.0 2429.4521.316.42.92.0-59.8<=8.0 2429.5021.216.42.82.0-59.9<=8.0 2429.5521.116.42.72.0-60.0<=8.0 2429.6021.116.42.72.0-60.0<=8.0 2429.6521.016.42.62.0-60.1<=8.0 2429.7021.016.42.62.0-60.1<=8.0 2429.7520.816.42.42.0-60.3<=8.0 2429.8020.716.42.32.0-60.4<=8.0 2429.8521.116.42.72.0-60.0<=8.0 2429.9021.016.42.62.0-60.1<=8.0 2429.9521.116.42.72.0-60.0<=8.0 2430.0020.916.42.52.0-60.2<=8.0 2430.0520.916.42.52.0-60.2<=8.0 2430.1020.516.42.12.0-60.6<=8.0 2430.1519.516.41.12.0-61.6<=8.0 2430.2019.516.41.12.0-61.6<=8.0 2430.2519.016.40.62.0-62.1<=8.0 2430.3019.016.40.62.0-62.1<=8.0 2430.3518.716.40.32.0-62.4<=8.0 2430.4018.716.40.32.0-62.4<=8.0 2430.4518.516.40.12.0-62.6<=8.0 2430.5018.416.40.02.0-62.7<=8.0 2430.5518.416.40.02.0-62.7<=8.0 2430.6018.416.40.02.0-62.7<=8.0 2430.6518.116.4-0.32.0-63.0<=8.0 2430.7017.916.4-0.52.0-63.2<=8.0 2430.7517.416.4-1.02.0-63.7<=8.0 2430.8017.416.4-1.02.0-63.7<=8.0 2430.8517.116.4-1.32.0-64.0<=8.0 Prepared by: D. KalcikPage 12001/4/17 Processing Gain ISL37400M DATA-111Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2430.9017.116.4-1.32.0-64.0<=8.0 2430.9516.916.4-1.52.0-64.2<=8.0 2431.0016.816.4-1.62.0-64.3<=8.0 2431.0516.716.4-1.72.0-64.4<=8.0 2431.1016.716.4-1.72.0-64.4<=8.0 2431.1516.316.4-2.12.0-64.8<=8.0 2431.2016.516.4-1.92.0-64.6<=8.0 2431.2516.416.4-2.02.0-64.7<=8.0 2431.3016.316.4-2.12.0-64.8<=8.0 2431.3516.316.4-2.12.0-64.8<=8.0 2431.4015.816.4-2.62.0-65.3<=8.0 2431.4515.916.4-2.52.0-65.2<=8.0 2431.5015.716.4-2.72.0-65.4<=8.0 2431.5515.516.4-2.92.0-65.6<=8.0 2431.6015.416.4-3.02.0-65.7<=8.0 2431.6515.216.4-3.22.0-65.9<=8.0 2431.7015.116.4-3.32.0-66.0<=8.0 2431.7515.016.4-3.42.0-66.1<=8.0 2431.8015.016.4-3.42.0-66.1<=8.0 2431.8514.916.4-3.52.0-66.2<=8.0 2431.9015.016.4-3.42.0-66.1<=8.0 2431.9515.116.4-3.32.0-66.0<=8.0 2432.0015.116.4-3.32.0-66.0<=8.0 2432.0515.116.4-3.32.0-66.0<=8.0 2432.1015.016.4-3.42.0-66.1<=8.0 2432.1514.816.4-3.62.0-66.3<=8.0 2432.2014.916.4-3.52.0-66.2<=8.0 2432.2514.916.4-3.52.0-66.2<=8.0 2432.3014.816.4-3.62.0-66.3<=8.0 2432.3514.616.4-3.82.0-66.5<=8.0 2432.4014.316.4-4.12.0-66.8<=8.0 2432.4514.516.4-3.92.0-66.6<=8.0 2432.5014.616.4-3.82.0-66.5<=8.0 2432.5514.516.4-3.92.0-66.6<=8.0 2432.6014.316.4-4.12.0-66.8<=8.0 2432.6514.316.4-4.12.0-66.8<=8.0 2432.7014.216.4-4.22.0-66.9<=8.0 2432.7514.116.4-4.32.0-67.0<=8.0 2432.8014.116.4-4.32.0-67.0<=8.0 2432.8513.816.4-4.62.0-67.3<=8.0 2432.9013.516.4-4.92.0-67.6<=8.0 2432.9513.716.4-4.72.0-67.4<=8.0 2433.0013.616.4-4.82.0-67.5<=8.0 2433.0513.516.4-4.92.0-67.6<=8.0 2433.1013.516.4-4.92.0-67.6<=8.0 2433.1513.516.4-4.92.0-67.6<=8.0 2433.2013.616.4-4.82.0-67.5<=8.0 2433.2513.716.4-4.72.0-67.4<=8.0 Prepared by: D. KalcikPage 22001/4/17 Processing Gain ISL37400M DATA-111Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2433.3013.716.4-4.72.0-67.4<=8.0 2433.3513.616.4-4.82.0-67.5<=8.0 2433.4013.516.4-4.92.0-67.6<=8.0 2433.4513.416.4-5.02.0-67.7<=8.0 2433.5013.416.4-5.02.0-67.7<=8.0 2433.5513.416.4-5.02.0-67.7<=8.0 2433.6013.416.4-5.02.0-67.7<=8.0 2433.6512.916.4-5.52.0-68.2<=8.0 2433.7012.916.4-5.52.0-68.2<=8.0 2433.7512.916.4-5.52.0-68.2<=8.0 2433.8013.116.4-5.32.0-68.0<=8.0 2433.8512.916.4-5.52.0-68.2<=8.0 2433.9012.716.4-5.72.0-68.4<=8.0 2433.9513.416.4-5.02.0-67.7<=8.0 2434.0013.416.4-5.02.0-67.7<=8.0 2434.0513.416.4-5.02.0-67.7<=8.0 2434.1013.316.4-5.12.0-67.8<=8.0 2434.1513.216.4-5.22.0-67.9<=8.0 2434.2013.016.4-5.42.0-68.1<=8.0 2434.2513.016.4-5.42.0-68.1<=8.0 2434.3013.016.4-5.42.0-68.1<=8.0 2434.3513.016.4-5.42.0-68.1<=8.0 2434.4012.616.4-5.82.0-68.5<=8.0 2434.4512.816.4-5.62.0-68.3<=8.0 2434.5012.916.4-5.52.0-68.2<=8.0 2434.5512.816.4-5.62.0-68.3<=8.0 2434.6012.816.4-5.62.0-68.3<=8.0 2434.6512.716.4-5.72.0-68.4<=8.0 2434.7012.716.4-5.72.0-68.4<=8.0 2434.7512.816.4-5.62.0-68.3<=8.0 2434.8012.816.4-5.62.0-68.3<=8.0 2434.8512.316.4-6.12.0-68.8<=8.0 2434.9012.116.4-6.32.0-69.0<=8.0 2434.9512.416.4-6.02.0-68.7<=8.0 2435.0012.416.4-6.02.0-68.7<=8.0 2435.0512.416.4-6.02.0-68.7<=8.0 2435.1012.616.4-5.82.0-68.5<=8.0 2435.1512.516.4-5.92.0-68.6<=8.0 2435.2012.716.4-5.72.0-68.4<=8.0 2435.2512.716.4-5.72.0-68.4<=8.0 2435.3012.916.4-5.52.0-68.2<=8.0 2435.3512.916.4-5.52.0-68.2<=8.0 2435.4012.916.4-5.52.0-68.2<=8.0 2435.4512.616.4-5.82.0-68.5<=8.0 2435.5012.916.4-5.52.0-68.2<=8.0 2435.5512.916.4-5.52.0-68.2<=8.0 243…

Text truncated - open the document above for the full version.

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan June 22, 2001 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315, USA Subject: Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application document for the FCC Part 15, Subpart C certification. - FCC ID : ANOVNCBDC80211B - Applying equipment name : ThinkPad A30 Series -Device type : Dual transmitters type RF device of 2400-2483.5MHz Spread Spectrum, Direct Sequence and Frequency Hopping system The applying product is a notebook type PC integrating IEEE802.11b Wireless LAN Mini-PCI card and Bluetooth Standard adapter. If any further information is required concerning this application, please contact us. Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato Kanagawa 242-8502, Japan June 22, 2001 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315, USA Subject: Confidentiality Request for FCC Certification of Part 15, Subpart C Dear sir : Please find enclosed an IBM’s application for the FCC Part 15, Subpart C certification : - FCC ID : ANOVNCBDC80211B - Applying equipment name : ThinkPad A30 Series Pursuant to 47 CFR section 0.457(d) and 0.459, we hereby request confidentiality status of the schematic diagrams for both IEEE802.11b Wireless LAN Mini-PCI and Bluetooth cards, and block diagrams for Bluetooth card. It concerns pdf files : - Confidentiality_Schematic_Diagrams.pdf - Confidentiality_Block_Diagrams.pdf Sincerely, Akihisa Sakurai Manager, EMC Engineering Yamato Laboratory, IBM Japan Ltd.

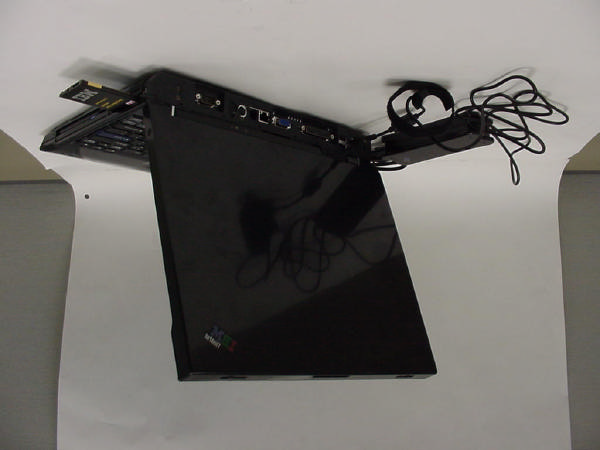

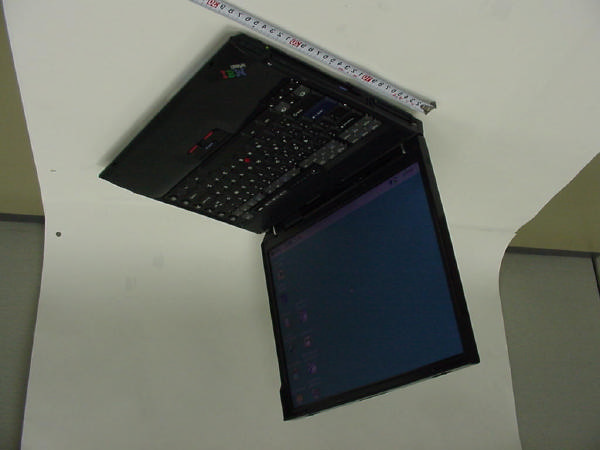

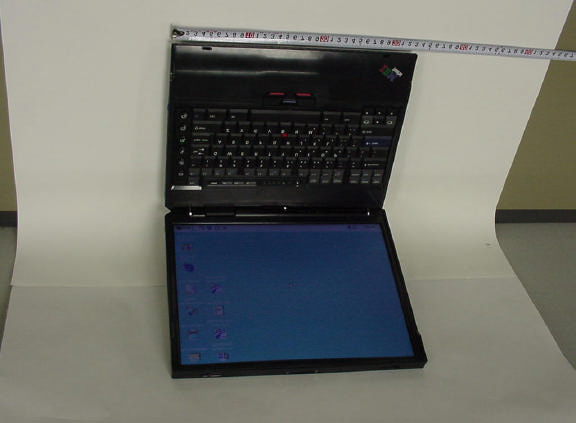

FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 1/2 External Photos FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 2/2 PCMCIA slot

FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 1/2 Product Labeling FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 2/2

FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 1/10 Internal Photos Bottom view Bluetooth 0 dBm specification card by TDK Systems Europe Ltd. IEEE802.11b Wireless LAN Mini-PCI card by Actiontec Electronics Inc. FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 2/10 Plug in/out Bottom rear side Antenna cablesIEEE802.11b Wireless LAN Mini-PCI Card Bluetooth Daughter Card Plug in/out Antenna cable FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 3/10 IEEE802.11b Wireless LAN Mini-PCI Adapter To Right side antenna Rx only To left side antenna Tx/Rx switching Antenna terminals FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 4/10 IEEE802.11b Wireless LAN Mini-PCI Adapter (Top side) FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 5/10 IEEE802.11b Wireless LAN Mini-PCI Adapter (Back side) FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 6/10 Bluetooth Daughter Card (Top side) FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 7/10 Bluetooth Daughter Card (Back side) Antenna cable terminal FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 8/10 Antenna locations IEEE802.11b Wireless LAN Left antenna Inverted-F type Tx/Rx switching Bluetooth Antenna (Tx/Rx) (Inverted F type Antenna) IEEE802.11b Wireless LAN Right antenna Inverted-F type Rx only FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 9/10 IEEE802.11b Wireless LAN Antenna (Inverted F type Antenna and Cable) Left antenna (Tx/Rx switch) : P/N: 27L0654 Cable : 760 mm Right antenna (Rx only) : P/N: 27L0653 Cable : 1010 mm Left (Tx/Rx)Right (Rx) Antenna connector FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 10/10 Bluetooth Antenna (Inverted F type Antenna and Cable) IBM P/N: 27L0648 (Tx / Rx) Cable length : 360 mm

FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Yellow Sheet : No. EM559 FCC Part 15, Subpart C (Intentional Radiator) Product Name: ThinkPad A30 Series (2652-1xx/2xx/3xx/4xx/6xx) FCC ID: ANOVNCBDC80211B June 22, 2001 EMC Staff Engineer Toshiya Murota Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-6574 Fax: +81-46-273-7420 E-Mail: [email protected] Portable Product Manager Tetsuo Shiroshita Signature: IBM Japan, Ltd. Portable Products LAB-R16 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-2243 EMC Engineering Manager / NVLAP signatory Akihisa Sakurai Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-2613 Fax: +81-46-273-7420 E-Mail: [email protected] Portable Systems Director Arimasa Naitoh Signature: IBM Japan, Ltd. Portable Systems LAB-R11 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Phone: +81-46-215-6110 FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota MEASUREMENT/TECHNICAL REPORT – Part 15 Subpart C (Intentional Radiator) ThinkPad A30 Series (2652-1xx/2xx/3xx/4xx/6xx) FCC ID : ANOVNCBDC80211B June 22, 2001 This report concerns: (check one) Original Grant ̧ Class I change Class II change Equipment type: Wireless LAN / Bluetooth device in Computer (computer, printer, modem, etc.) This report shall not be reproduced except in full, without the written permission of this test lab. The measurement results contained in this report relate only to the item which was tested. Measurement procedure used is ANSI C63.4-1992 unless otherwise specified. Other test procedure: The FCC has issued provisional acceptance of this test laboratory for Declaration of Conformity testing per letter dated 1997. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: By checking yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a “party” for these purposes, see 47 CFR 1.2002(b). Yes or No “Report shall not be reproduced except in full, without the written approval of the laboratory” “the report must not be used by the client to claim product endorsement by NVLAP or any agency of the US government” Prepared by: Toshiya Murota IBM Japan Corporation, Yamato EMC Enginnering LAB-S59, 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Tel: +81-46-215-6574 Fax: +81-46-273-7420 FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 1/6 Operational Description 1. Objective This is a Certification Compliance Report for FCC Part 15, Subpart C (Intentional Radiator). - The applying equipment : ThinkPad A30 Series - FCC ID : ANOVNCBDC80211B 2. Product Description The applying equipment is a standard fullsize laptop computer integrating IEEE 802.11b Wireless LAN and Bluetooth functions inside. l The Wireless LAN feature consists of an OEM card (Actiontec Electronics Inc., IEEE802.11b Wireless LAN Mini-PCI card) and IBM original integrated antennas (Inverted F-figure type antenna 2). l The Bluetooth feature consists of an OEM card (TDK Systems Europe Ltd., Bluetooth standard card) and IBM original integrated antenna (Inverted F-figure type antenna 1). The specification of the applying equipment is as follows : Table 1 : Specification of PC main body Model Identification ThinkPad A30 Series Product number (Order code) 2652-6xx2652-4xx2652-3xx2652-2xx2652-1xx Max. size 329mm(13.0 ”)(W) : 272mm(10.7 ”)(D) : 40mm(1.57 ”)(H) Max.Weight 7.7 lbs Hard disk 2.5” 48 GB2.5” 30GB2.5” 20GB Memory 128MB64MB Bay Device DVD / CD- RW combo 8 x DVD-ROM24 x CD-ROM Power AC adapter, Battery (Li-Ion) Ports & Slots Serial, Parallel, Device Bay, , CRT, Headphone, Microphone, Line In, TV-In (2652-6xx model only), TV-Out (S & Composite) USBx2, 4M IR, IEEE1394, Port Replicator,, Docking Station Ethernet, Modem, PCMCIA slot (type-2 x 1or type-3 x 1) CPU Intel® Mobile Tualatin® 1200MHz Intel® Mobile Tualatin® 1130MHz Intel® Mobile Cuppermine- T® 1000MHz Intel® Mobile Cuppermine-T® 933MHz LCD 15” TFT UXGA 15” TFT XGA15” TFT SXGA+ 15” TFT XGA14” TFT XGA Keyboard US English, French, Spanish, UK English, Japanese, Chinese, Korean, Thailand PC Functions Pre installed Software Windows 98SE / Windows 2000 / Windows XP FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 2/6 Table 2 : Specification of IEEE802.11b Wireless-LAN feature Carrier Frequencies 2412MHz – 2462MHz Occupied BW at 20dB below (Band-edge) 2403.61MHz – 2470.57MHz Channels Total 11 channels (default setting ch. # : 1, 6, 11) Channel BW at 20dB below Max. 17.08MHz / ch Channal spacing 5 MHz Conducted emission Power 15.7 dBm Antenna gain 1.35 dBi Antenna type Inverted F-figure type antenna Tx/Rx switching antenna : IBM P/N: 27L0654 Rx antenna : IBM P/N: 27L0653 Antenna cable type and length Tx/Rx switching antenna : coax 760mm Rx antenna : coax 1010mm Bit rate 1 Mbit/sec2 Mbit/sec5.5 Mbit/sec11 Mbit/sec Chip/symbol rate 111188 Bit/symbol rate 1 (DBPSK)2 (DQPSK)4 (CCK)8 (CCK) Chip/bit rate 115.521 Table 3 : Specification of Bluetooth feature Carrier Frequencies 2402MHz – 2480MHz Occupied BW at 20dB below (Band-edge) 2401.59MHz – 2480.45MHz Channels Total 79 channels (Inquiry / Paging mode : 32 channels) Channel BW at 20dB below Max. 0.89MHz / ch Channal spacing 1 MHz Conducted emission Power 2.4 dBm Antenna gain 0.28 dBi Antenna type Inverted F-figure type antenna IBM P/N: 27L0648 Antenna cable type …

Text truncated - open the document above for the full version.

FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 1/5 Parts List Part 1: IBM ThinkPad 802.11b Wireless LAN Mini-PCI Adapter P/NQ'TYNAMESPEC.LACTION 122-149-004A 2122-149-101S1PACKING ASSYFOR 802MIP 3212-0002-268Q0.003SHIPPING CARTON466(L)*290(W)*220(H)M/M 4212-0004-318A0.003POLY BAG850(L)*500(W)*0.05 5212-0006-028B0.042BLISTER445(L)*264(W)*0.4(THK)M/M FOR MP100IM 6212-0009-407R0.011CARD BOARD285(L)*216(W)*7.5(THK)M/M 7212-0009-408H0.003CARD BOARD964(L)*450(W)*7.5(THK)M/M 8212-0009-40990.011CARD BOARD450(L)*268(W)*7.5(THK)M/M 9212-0018-059Z0.039EPE SHEET400(L)*260(W)*2.5(THK) M/M 10122-149-20361PCB ASSY.FOR 802MIP REV.3A 11201-0016-044T1MYLARMYLAR FOR 802MIS SHIELD COVER INSIDE 12201-0016-045K1MYLARMYLAR FOR 802MIS SHIELD COVER OUTSIDE 13201-0016-05221MYLARACTIONTEC 802MIP MYLAR 14201-0016-057V1MYLARACTIONTEC 802MIP MYLAR 15203-0025-07831SHIELD COVERSHIELD COVER FOR 802MIS 16222-149-606W1SECOND SMD ASSY.FOR 802MIP REV.3A 17322-149-60531FIRST SMD ASSY.FOR 802MIP REV.3A 18447-0045-1ECU1PCBFOR 802MIP REV.3A 19453-1300-001V1SMT ICUPC2745TB-E3 SO6-65U16. 20455-0201-01321SMT ICSCORPIO SOP-16P (LUCENT)U19. 21455-0201-014U1SMT ICCSP1037B SOP-16P (LUCENT)U20. 22455-0310-001P1SMT ICIC RF/IF CONVERTER (ISL3685IR)U11. 23455-0310-002G1SMT ICIC/RF POWER AMPLIFIER (ISL3984IR)U12. 24455-1106-002R1SMT ICIF/BB CONVERTER TQFP-48 (HFA3783IN)U9. 25456-0110-023Y2SMT ICIC FET SWITCH SC-70U8.10. 26456-0303-017M1SMT TRANSISTORBCP56 (CENTRAL CZT3019) SOT-223Q3. 27456-0610-005C1SMT VARISTORP3100SC DO-214AASID1. 28456-0610-018E0SMT VARISTORP3100SB DO-214AA (TECCOR) 29456-0610-009D1SMT VARISTORP3100SX DO-214A (TECCOR)MOV1. 30457-0200-019N1SMT OSCENFVH1K2S81U14. 31457-0200-024N1SMT VCO748MHZ VCO/IF (ISL3183IR)U13. 32464-1000-14118SMT RES100 OHM 5% 1/16W 0402R25.31.35.42 .43.47-49. 33464-1001-241P2SMT RES1K OHM 1% 1/16W 0402R52.71. 34464-1009-141L1SMT RES10 OHM 5% 1/16W 0402R68. 35464-1009-221U2SMT RES10 OHM 1% 0805R95.96. 36464-1101-241L2SMT RES1.1K OHM 1% 1/16W 0402R39.44. 37464-1152-241R1SMT RES11.5K OHM 1% 1/16W 0402R36. 38464-1240-24134SMT RES124 OHM 1% 1/16W 0402R58.62.66.67 . 39464-1501-24152SMT RES1.5K OHM 1% 1/16W 0402R37.65. 40464-2001-241M1SMT RES2K OHM 1% 1/16W 0402R40. 41464-2009-141H1SMT RES20 OHM 5% 1/16W 0402R73. 42464-2212-242V1SMT RES2.21K OHM 1% 1/16W 0402R55. 43464-2871-241T1SMT RES2.87K OHM 1% 1/16W 0402R45. 44464-3000-142N1SMT RES300 OHM 5% 1/16W 0402R56. 45464-3741-24181SMT RES3.74K OHM 1% 1/16W 0402R50. 46464-5360-241E2SMT RES536 OHM 1% 1/16W 0402R59.70. FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 2/5 47 464-6490-241T1SMT RES649 OHM 1% 1/16W 0402R69. 48464-8259-241Y1SMT RES82.5 OHM 1% 1/16W 0402R76. 49464-9099-241J2SMT RES90.9 OHM 1% 1/16W 0402R75.77. 50464-9531-24131SMT RES9.53K OHM 1% 1/16W 0402R38. 51465-1005-901J2SMT CAPCER 0.5PF 50V +/-0.25PF NPO 0402C87A.132. 52465-1010-90172SMT CAPCER 1.0PF 50V +/-0.25PF NPO 0402C12.131. 53465-1018-902N1SMT CAPCER 1.8PF +/-0.25PF NPO 0402 50VC82. 54465-1033-901G1SMT CAPCER 3.3P 50V +/-0.25PF NPO 0402C58. 55465-1047-902F2SMT CAPCER 4.7P 50V +/-0.25PF NPO 0402C49.75. 56465-1068-901818SMT CAPCER 6.8P 50V +/-0.5PF NPO 0402C28.36.48.59 .62.65-68.77- 79.83.96.97. C109.111.127 57465-1100-90183SMT CAP10PF +-5% 0402 50VC51.52.105. 58465-1101-90124SMT CAPCER 100P 50V +/-10% NPO 0402C13.85.88.94 . 59465-1102-604R4SMT CAPCER MONO 0.001UF 3KV K X7R 1808C156.157.16 2.164. 60465-1102-902N10SMT CAPCER 1000P 50V K X7R 0402C23.29.50.76 .80.98.101.10 6.116.128. 61465-1103-902H13SMT CAPCER 0.01U 16V K X7R 0402C16.22.53.60 .61.63.86.92. 95.99.114. C125.130. 62465-1104-106W1SMT CAPCER MONO 0.1UF 50V K X7R 1206C152. 63465-1104-805T13SMT CAPCER 0.1UF 16V K X7R 0603C19.35.70.72 .84.89.90.93. 104.112.117. C121.124. 64465-1150-901K1SMT CAPCER 15PF 50V +/-10% NPO 0402C73. 65465-1151-602Q2SMT CAPCER MONO 150PF 3KV X7R 1808C139.140. 66465-1220-901V1SMT CAPCER 22PF 50V +/-10% NPO 0402C69. 67465-1221-902G6SMT CAPCER 220P 50V K X7R 0402C39.44- 47.74. 68465-1271-90101SMT CAPCER 270P 50V K X7R 0402C126. 69465-1331-90271SMT CAPCER 330PF 50V X7R K 0402C103. 70465-1473-804Y1SMT CAPCER MONO 0.047UF 16V K X7R 0603C91. 71465-1474-10431SMT CAPCER MONO .47UF 25V K X7R 1206C147. 72465-1474-204X1SMT CAPCER .47UF 16V X7R K 0805C100. 73465-1680-902D2SMT CAPCER 68P 50V +/-10% 0402C110.120. 74465-1682-901A1SMT CAPCER 6800PF 16V X7R K 0402C107. 75465-1683-801B1SMT CAPCER 0.068U 16V K X7R 0603C118. 76465-1684-201A1SMT CAPCER MONO 680NF 10V K X7R 0805C123. 77465-1684-20211SMT CAP0.68UF 16V Z Y5V 0805C153. 78465-2106-801D2SMT CAPTANT 10UF 6.3V M (0805)C129.161. 79465-2224-10351SMT CAPTANT 0.22UF 16V K CASE AC146. 80470-1229-10153SMT IND2.2NH +/-0.3NH 300MA 0402L7.19.20. 81470-1330-101D2SMT IND33NH +/-5% 600MA 0603L12.14. 82470-1330-10242SMT IND33NH +/-2% 600MA 0603L9.10. 83470-1390-101K1SMT IND39NH +/-5% 500MA 0603L6. 84470-1390-10321SMT IND39NH +/-2% 600MA 0603L5. 85470-1479-10201SMT IND4.7NH +/-0.3NH 300MA 0402L2. 86470-2120-001U2SMT BEAD120 OHM/100M 0402L16.18. 87470-3100-008B1SMT INDBAND PASS FILTER(MURATA:LFSN25N19C2450B) FL6. 88470-3100-00922SMT INDBAND PASS FILTER(MURATA:LFSG20N27C2450B) FL4.5. 89470-3100-01011SMT FILTER374 MHZ IF SAW FILTERFL1. 90470-3100-013B1SMT INDLOW PASS LILTER(MURATA:LFTC 15N19E2450B) FL3. FCC Test Report FCC ID: ANOVNCBDC80211B Document Number: FCC-19-0170-0 Prepared by T. Murota 3/5 91474-1512-20371SMT HEADER2PIN*1 P=1.25 RARJ1. 92474-3200-001P2SMT CONNSMT ULTRA MINIATURE COAX CONNECTORJ1.2. 93352-0411-001L1SMT IC128K*16 SRAM BGAU4. 94352-0607-036N1.000 PSMT IC128K*8 CMOS FLASH MEMORY TSOP- 32(8*14MM) U2. 95353-1100-013D2SMT ICMAX8867EUK29 2.84V/150MAU7.15. 96355-0314-003K1SMT ICISL3874IK 192BGAU1. 97356-0101-011M2SMT DIODEBAV99 SOT-23D2.4. 98356-0101-033P2SMT DIODECMPD2004S 240V 225MA SOT-23D3.8. 99356-0110-030G1SMT ICMAX6326XR29 SC-70U18. 100356-0201-00382SMT ZENER DIODE5.6V +-5% SOT-23D1.5. 101356-0201-034C1SMT ZENER DIODEBZX84C43 43V SOT-23ZD1. 102356-0301-042H2SMT TRANSISTORMMBTA…
