  1. Home/
  2. Harris Corporation RF Communications Division/
  3. AQZ-RF-7800W-RPG2

AQZ-RF-7800W-RPG2The device is to be used in fixed and nomadic infrastructure for Ethernet data backhaul.

Harris Corporation RF Communications Division
The device is to be used in fixed and nomadic infrastructure for Ethernet data backhaul. - FCC ID AQZ-RF-7800W-RPG2 - Harris Corporation RF Communications Division
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Feb 02, 2020
Application Purpose
Original Equipment
Date of Application
Nov 18, 2019
Equipment Note
The device is to be used in fixed and nomadic infrastructure for Ethernet data backhaul.
Frequency Range
5730.00000000 - 5845.00000000
Company
Harris Corporation RF Communications Division
Country
United States

Documents & Files

Select a file to view

Cover Letter(s)

↗
↗
↗
↗

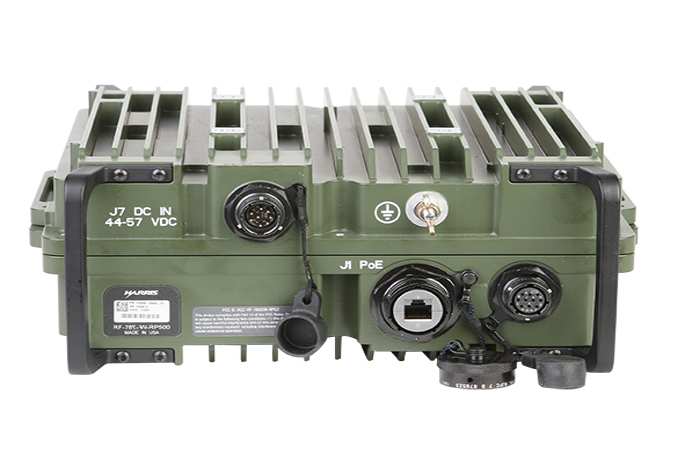

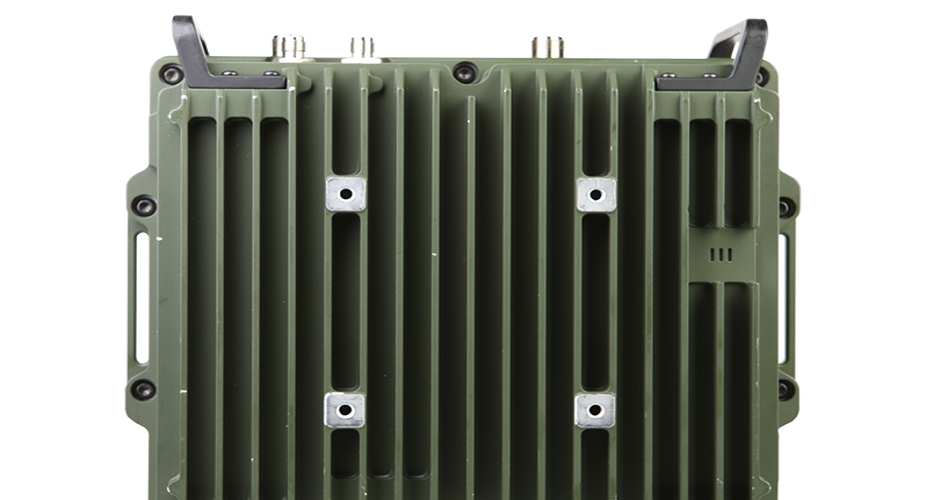

External Photos

↗
↗

ID Label/Location Info

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗
↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Harris Corporation 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com Long Term Confidentiality Request Letter November 15, 2019 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Applicant: Harris Corporation FCC ID: AQZ-RF-7800W-RPG2 Product Name: RF-7800W Broadband Radio, RF-7800W-RPXXX Subject: Confidentiality & Justification for User Manuals and Internal Photos This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the... • Schematics • Technical Operational Description • Block Diagrams • Parts Lists • Tune Up / Alignment Procedure • Internal Photos • Operator’s Manual • U-NII Device Security Attestation Supplement required to be submitted with this application be permanently withheld from public review. The RF-7800W Broadband Radio will be sold to Federal and Government Department of Defense (DoD) customers. We feel that this information, including the Internal Photos and Operator’s Manual, is considered as sensitive and creates a vulnerability to US and friendly forces deploying this product in military applications. Public display of this information does not prohibit hostile forces from attaining this information readily and using it in a manner to jeopardize lives. Thank you for your attention to this matter. Thomas D. Camper, Jr. Regulatory Manager

Cover Letter(s)

Harris Corporation 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com October 8, 2019 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 Subject: AQZ-RF-7800W-RPG2 To Whom It May Concern, Harris seeks application approval for an original Grant on the RF-7800W Broadband Radio. Test reports, along with Operator manual, parts lists, schematics, block diagrams, tune up procedure, internal/external photos, label photo, and operational descriptions are included as exhibits. Thank you for your kind consideration and timely review of this new product. Sincerely, Thomas D. Camper, Jr. Regulatory Manager

Cover Letter(s)

Harris Corporation 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com October 8, 2019 Applicant: Harris Corporation, Communication Systems Division FCC ID: AQZ-RF-7800W-RPG2 Product Name: RF-7800W Broadband Radio MIMO Mode Declaration We, Harris Corporation, declare that RF-7800W Broadband Radio, FCC ID: AQZ-RF-7800W-RPG2, when operating in MIMO A (STBC/STC) mode or MIMO B (spatial multiplexing) modes (the only modes in which it transmits from both antennas) that the transmitter output signals are completely uncorrelated. Sincerely, Thomas D. Camper, Jr. Regulatory Manager

Cover Letter(s)

The photographs of the circuit board (Internal Board Photos - RF-7800W-RPxxx.pdf) may make it difficult to determine which parts are which. In order to determine what a particular part is in a photograph: 1. Refer to the component placement drawings (Board Layout - RF-7800W-RPxxx.pdf) to obtain the part reference designator. 2. Search the parts list (Parts_List - RF-7800W-RPxxx.pdf) for that reference designator (Ref Des).

ID Label/Location Info

Harris Corporation Broadband Ethernet Radio, Model: RF-7800W-RPXXX FCC ID: AQZ-RF-7800W-RPG2

RF Exposure Info

Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev1. 2 © 2019, Eurofins MET Laboratories, Inc. Page 184 of 193 Electromagnetic Compatibility Criteria for Intentional Radiators § 15.407(f) Maximum Permissible Exposure Test Requirement(s): §15.407(f): U-NII devices are subject to the radio frequency radiation exposure requirements specified in §1.1307(b), §2.1091 and §2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a “general population/uncontrolled” environment. RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit: EUT’s operating frequencies @ 5150-5250 MHz; Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √(PG / 4S) where, S = Power Density (mW/cm 2 ) P = Power Input to antenna (mW) G = Antenna Gain (numeric value) R = Distance (cm) For Antenna Gain  dBi = 10log(Numeric) Test Results: Frequency (MHz) Conducted Power (dBm) Conducted Power (mW) Antenna Gain (dBi) Antenna Gain (Numeric) Power Density (mW/cm2) Limit (mW/cm2) Margin Distance (cm) Result 5200 19.14 82.0351 8 6.309 0.10302 1 0.89698 20 Pass 5230 19.19 82.9850 13.5 22.387 0.36978 1 0.63022 20 Pass 5200 19.14 82.0351 26 398.107 1 1 0 51 Pass 5200 18.29 67.4528 30 1000.000 1 1 0 74 Pass Table 20: Maximum Permissible Exposure Calculations Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 2 Rev. 2 © 2019, Eurofins MET Laboratories, Inc. Page 377 of 386 Electromagnetic Compatibility Criteria for Intentional Radiators § 15.407(f) Maximum Permissible Exposure Test Requirement(s): §15.407(f): U-NII devices are subject to the radio frequency radiation exposure requirements specified in §1.1307(b), §2.1091 and §2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a “general population/uncontrolled” environment. RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit: EUT’s operating frequencies @ 5250-5350 MHz and 5470-5725 MHz; Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √(PG / 4S) where, S = Power Density (mW/cm 2 ) P = Power Input to antenna (mW) G = Antenna Gain (numeric value) R = Distance (cm) For Antenna Gain  dBi = 10log(Numeric) Test Results: Frequency (MHz) Conducted Power (dBm) Conducted Power (mW) Antenna Gain (dBi) Antenna Gain (Numeric) Power Density (mW/cm2) Limit (mW/cm2) Margin Distance (cm) Result 5710 20.86 121.8989 8 6.309 0.1530 1 0.8469 20 Pass 5700 15.69 37.0680 13.5 22.387 0.1651 1 0.8348 20 Pass 5710 3.59 2.2855 26 398.107 0.1811 1 0.8188 20 Pass 5495 -0.88 0.8165 30 1000.000 0.1625 1 0.8374 20 Pass Table 24: Maximum Permissible Exposure Calculations Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiator Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 3 Rev 2 © 2019, Eurofins MET Laboratories, Inc. Page 181 of 191 Electromagnetic Compatibility Criteria for Intentional Radiators § 15.407(f) Maximum Permissible Exposure Test Requirement(s): §15.407(f): U-NII devices are subject to the radio frequency radiation exposure requirements specified in §1.1307(b), §2.1091 and §2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a “general population/uncontrolled” environment. RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit: EUT’s operating frequencies @ 5725 - 5850 MHz; Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √(PG / 4S) where, S = Power Density (mW/cm 2 ) P = Power Input to antenna (mW) G = Antenna Gain (numeric value) R = Distance (cm) Test Results: Frequency (MHz) Conducted Power (dBm) Conducted Power (mW) Antenna Gain (dBi) Antenna Gain (Numeric) Power Density (mW/cm2) Limit (mW/cm2) Margin Distance (cm) Result 5740 26.08 405.5085 8 6.309 0.5092 1…

Text truncated - open the document above for the full version.

Test Report

HEADQUARTERS: 914 WEST PATAPSCO AVENUE • BALTIMORE, MARYLAND 21230 • PHONE (410) 354-3300 • FAX (410) 354-3313 Maryland | California | Texas | China | Korea | Taiwan www.metlabs.com July 10, 2019 Harris Corp- Communication Systems 221 Jefferson Ridge Parkway, Lynchburg, VA 24501 Dear Dave Scherer, Enclosed is the EMC Wireless test report for compliance testing of the Harris Corp- Communication Systems, Harris RF-7800W Broadband Ethernet Radio as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1- 06 ed.), Title 47 of the CFR, Part 15.407, Subpart E (UNII 1). Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Mae Ramirez Documentation Department Reference: (\Harris Corp- Communication Systems\ EMC94059-FCC407 UNII 1 Rev. 4) Certificates and reports shall not be reproduced except in full, without the written permission of Eurofins MET Labs, Inc. Electromagnetic Compatibility Harris Corp- Communication Systems Cover Page Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page i of vi Electromagnetic Compatibility Criteria Test Report for the Harris Corp- Communication Systems Model Harris RF-7800W Broadband Ethernet Radio Tested under The FCC Certification Rules contained in Title 47 of the CFR 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 July 10, 2019 Prepared For: Harris Corp- Communication Systems 221 Jefferson Ridge Parkway, Lynchburg, VA 24501 Prepared By: MET Laboratories, Inc. 914 West Patapsco Avenue, Baltimore, MD 21230 Electromagnetic Compatibility Harris Corp- Communication Systems Introduction Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page ii of xvii Electromagnetic Compatibility Criteria Test Report for the Harris Corp- Communication Systems Model Harris RF-7800W Broadband Ethernet Radio Tested under The FCC Certification Rules contained in Title 47 of the CFR 15.407 Subpart E Arsalan Hasan, Project Engineer Mae Ramirez Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Parts 15B, 15.407, of the FCC Rules under normal use and maintenance. Benjamin Taylor, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Harris Corp- Communication Systems Introduction Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page iii of xvii Report Status Sheet Revision Report Date Reason for Revision  July 18, 2019 Initial Issue. 1 September 12, 2019 Added more plots 2 September 16, 2019 Corrected typos 3 October 28, 2019 TCB updates 4 November 3, 2019 TCB updates Electromagnetic Compatibility Harris Corp- Communication Systems Table of Contents Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page i of xvii Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview .............................................................................................................................................................4 B. References ...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Measurement Uncertainty ...................................................................................................................................5 E. Description of Test Sample .................................................................................................................................5 F. Equipment Configuration ....................................................................................................................................7 G. Support Equipment .............................................................................................................................................7 H. Ports and Cabling Information ............................................................................................................................8 I. Mode of Operation ..............................................................................................................................................8 J. Method of Monitoring EUT Operation .............................................................................…

Text truncated - open the document above for the full version.

Test Report

Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page 124 of 198 Continued from EMC94059-FCC407 UNII-1 Rev4 Part 1 Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page 125 of 198 Plot 301. Undesirable Emissions, 1-7MHz Average, 5M, 5155, 3Para, Port 1 Plot 302. Undesirable Emissions, 1-7MHz Average, 5M, 5155, 3Para, Port 2 Plot 303. Undesirable Emissions, 1-7MHz Average, 5M, 5200, 3Para, Port 1 Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page 126 of 198 Plot 304. Undesirable Emissions, 1-7MHz Average, 5M, 5200, 3Para, Port 2 Plot 1. Undesirable Emissions, 1-7MHz Average, 5M, 5247.5, 3Para, Port 1 Plot 306. Undesirable Emissions, 1-7MHz Average, 5M, 5247.5, 3Para, Port 2 Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page 127 of 198 Plot 307. Undesirable Emissions, 1-7MHz Average, 10M, 5160, 3Para, Port 1 Plot 308. Undesirable Emissions, 1-7MHz Average, 10M, 5160, 3Para, Port 2 Plot 309. Undesirable Emissions, 1-7MHz Average, 10M, 5200, 3Para, Port 1 Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page 128 of 198 Plot 310. Undesirable Emissions, 1-7MHz Average, 10M, 5200, 3Para, Port 2 Plot 311. Undesirable Emissions, 1-7MHz Average, 10M, 5245, 3Para, Port 1 Plot 312. Undesirable Emissions, 1-7MHz Average, 10M, 5245, 3Para, Port 2 Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page 129 of 198 Plot 313. Undesirable Emissions, 1-7MHz Average, 20M, 5165, 3Para, Port 1 Plot 314. Undesirable Emissions, 1-7MHz Average, 20M, 5165, 3Para, Port 2 Plot 315. Undesirable Emissions, 1-7MHz Average, 20M, 5200, 3Para, Port 1 Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page 130 of 198 Plot 2. Undesirable Emissions, 1-7MHz Average, 20M, 5200, 3Para, Port 2 Plot 317. Undesirable Emissions, 1-7MHz Average, 20M, 5240, 3Para, Port 1 Plot 318. Undesirable Emissions, 1-7MHz Average, 20M, 5240, 3Para, Port 2 Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page 131 of 198 Plot 319. Undesirable Emissions, 1-7MHz Average, 40M, 5175, 3Para, Port 1 Plot 320. Undesirable Emissions, 1-7MHz Average, 40M, 5175, 3Para, Port 2 Plot 321. Undesirable Emissions, 1-7MHz Average, 40M, 5200, 3Para, Port 1 Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page 132 of 198 Plot 322. Undesirable Emissions, 1-7MHz Average, 40M, 5200, 3Para, Port 2 Plot 323. Undesirable Emissions, 1-7MHz Average, 40M, 5230, 3Para, Port 1 Plot 324. Undesirable Emissions, 1-7MHz Average, 40M, 5230, 3Para, Port 2 Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page 133 of 198 Plot 325. Undesirable Emissions, 1-7MHz Peak, 5M, 5155, 3Para, Port 1 Plot 326. Undesirable Emissions, 1-7MHz Peak, 5M, 5155, 3Para, Port 2 Plot 327. Undesirable Emissions, 1-7MHz Peak, 5M, 5200, 3Para, Port 1 Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page 134 of 198 Plot 328. Undesirable Emissions, 1-7MHz Peak, 5M, 5200, 3Para, Port 2 Plot 329. Undesirable Emissions, 1-7MHz Peak, 5M, 5247.5, 3Para, Port 1 Plot 330. Undesirable Emissions, 1-7MHz Peak, 5M, 5247.5, 3Para, Port 2 Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page 135 of 198 Plot 331. Undesirable Emissions, 1-7MHz Peak, 10M, 5160, 3Para, Port 1 Plot 332. Undesirable Emissions, 1-7MHz Peak, 10M, 5160, 3Para, Port 2 Plot 333. Undesirable Emissions, 1-7MHz Peak, 10M, 5200, 3Para, Port 1 Electromagnetic Compatibility Harris Corp- Communication Systems Intentional Radiators Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 1 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page 136 of 198 Plot 334. Undesirable Emissions, 1-7MHz Peak, 10M, 5200, 3Para, Port 2 Plot 335. Undesirable Emissions, 1-7MHz Peak, 10M, 5245, 3Para, Po…

Text truncated - open the document above for the full version.

Test Report

HEADQUARTERS: 914 WEST PATAPSCO AVENUE • BALTIMORE, MARYLAND 21230 • PHONE (410) 354-3300 • FAX (410) 354-3313 Maryland | California | Texas | China | Korea | Taiwan www.metlabs.com June 25, 2019 Harris Corp- Communication Systems 221 Jefferson Ridge Parkway, Lynchburg, VA 24501 Dear David Scherer, Enclosed is the EMC Wireless test report for compliance testing of the Harris Corp- Communication Systems, Harris RF-7800W Broadband Ethernet Radio as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1- 06 ed.), Title 47 of the CFR, Part 15.407, Subpart E (UNII 2) DFS. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Mae Ramirez Documentation Department Reference: (\Harris Corp- Communication Systems\ EMC94059-FCC407 UNII 2 DFS Rev.3) Certificates and reports shall not be reproduced except in full, without the written permission of Eurofins MET Labs, Inc. Electromagnetic Compatibility Harris Corp- Communication Systems Cover Page Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 2 DFS Rev 3 © 2019, Eurofins MET Laboratories, Inc. Page i of vi Electromagnetic Compatibility Criteria Test Report for the Harris Corp- Communication Systems Model Harris RF-7800W Broadband Ethernet Radio Tested under The FCC Certification Rules contained in Title 47 of the CFR 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 2 DFS Rev.3 June 25, 2019 Prepared For: Harris Corp- Communication Systems 221 Jefferson Ridge Parkway, Lynchburg, VA 24501 Prepared By: Eurofins MET Labs, Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 Electromagnetic Compatibility Harris Corp- Communication Systems Report Status Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 2 DFS Rev 3 © 2019, Eurofins MET Laboratories, Inc. Page ii of vii Electromagnetic Compatibility Criteria Test Report for the Harris Corp- Communication Systems Model Harris RF-7800W Broadband Ethernet Radio Tested under The FCC Certification Rules contained in Title 47 of the CFR 15.407 Subpart E Arsalan Hasan, Project Engineer Mae Ramirez Electromagnetic Compatibility Lab Documentation Department ` Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Parts 15B, 15.407, of the FCC Rules under normal use and maintenance. Benjamin Taylor, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Harris Corp- Communication Systems Report Status Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 2 DFS Rev 3 © 2019, Eurofins MET Laboratories, Inc. Page iii of vii Report Status Sheet Revision Report Date Reason for Revision  June 25, 2019 Initial Issue. 1 August 23, 2019 Updates 2 September 16, 2019 Corrected typos 3 October 28, 2019 TCB updates Electromagnetic Compatibility Harris Corp- Communication Systems Table of Contents Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 2 DFS Rev 3 © 2019, Eurofins MET Laboratories, Inc. Page iv of vii Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview .............................................................................................................................................................4 B. References ...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Measurement Uncertainty ...................................................................................................................................5 E. Description of Test Sample .................................................................................................................................5 F. Equipment Configuration ....................................................................................................................................5 G. Support Equipment .............................................................................................................................................7 H. Ports and Cabling Information ............................................................................................................................8 I. Mode of Operation ..............................................................................................................................................8 J. Method of Monitoring EUT Operation ...................................................................................................…

Text truncated - open the document above for the full version.

Test Report

HEADQUARTERS: 914 WEST PATAPSCO AVENUE • BALTIMORE, MARYLAND 21230 • PHONE (410) 354-3300 • FAX (410) 354-3313 Maryland | California | Texas | China | Korea | Taiwan www.metlabs.com July 10, 2019 Harris Corp- Communication Systems 221 Jefferson Ridge Parkway, Lynchburg, VA 24501 Dear Dave Scherer, Enclosed is the EMC Wireless test report for compliance testing of the Harris Corp- Communication Systems, Harris RF-7800W Broadband Ethernet Radio as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1- 06 ed.), Title 47 of the CFR, Part 15.407, Subpart E (UNII 2). Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Mae Ramirez Documentation Department Reference: (\Harris Corp- Communication Systems\ EMC94059-FCC407 UNII 2 Rev. 4) Certificates and reports shall not be reproduced except in full, without the written permission of Eurofins MET Labs, Inc. Electromagnetic Compatibility Harris Corp- Communication Systems Cover Page Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 2 Rev. 4 © 2019, Eurofins MET Laboratories, Inc. Page i of vi Electromagnetic Compatibility Criteria Test Report for the Harris Corp- Communication Systems Model Harris RF-7800W Broadband Ethernet Radio Tested under The FCC Certification Rules contained in Title 47 of the CFR 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 2 Rev. 4 July 10, 2019 Prepared For: Harris Corp- Communication Systems 221 Jefferson Ridge Parkway, Lynchburg, VA 24501 Prepared By: MET Laboratories, Inc. 914 West Patapsco Avenue, Baltimore, MD 21230 Electromagnetic Compatibility Harris Corp- Communication Systems Introduction Harris RF-7800W Broadband Ethernet Radio CFR Title 47, Part 15.407 Subpart E MET Report: EMC94059-FCC407 UNII 2 Rev. 4 © 2019, Eurofins MET Laboratoires, Inc. Page ii of xvii Electromagnetic Compatibility Criteria Test Report for the Harris Corp- Communication Systems Model Harris RF-7800W Broadband Ethernet Radio Tested under The FCC Certification Rules contained in Title 47 of the CFR 15.407 Subpart E Arsalan Hasan, Project Engineer Mae Ramirez Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Parts 15B, 15.407, o…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Thomas Camper, Jr.(Regulatory Manager)
[email protected](434)455-9367Fax: (434)455-6851

Technical Contact

Harris CorporationThomas D Camper, Jr.
[email protected]434-455-9367

221 Jefferson Ridge Parkway · Lynchburg · United States

Test Firm

EUROFINS ELECTRICAL AND ELECTRONIC TESTING NA, INCGreg Kovolenko
[email protected]4108444071Fax: 4103543313

Technical Specifications

#Rule PartsFrequency RangePower Output
415E5.73 GHz - 5.84 GHz651.60 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted aggregated power. Professional Installation is required. Installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The device must be placed to provide a separation distance of at least 20 cm from all persons when the gain of the antenna is 13.5 dBi or less, a distance of at least 150 cm if the gain of the antenna is 26 dBi or less, or a distance of at least 230 cm if the gain of the antenna is 30 dBi or less. Professional Installation is required. Installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The device supports 5MHz, 10MHz, 20MHz and 40MHz bandwidth for 5.2G ,5.3G,5.6G,5.8G WLAN
