AQZ-XG-100P00Unity Multiband Portable

PUBLICATION NUMBER: DECEMBER 2009 Rev. - 10515-0372-4200 UNITY™ XG-100P Full-Spectrum Multiband Radio Operation Manual R HARRIS CORPORATION RF COMMUNICATIONS DIVISION 1680 University Avenue Rochester, New York 14610-1887 USA Tel: 585-244-5830. Fax: 585-242-4755. http://www.harris.com PUBLICATION NUMBER: 10515-0372-4200 DECEMBER 2009 Rev. - Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, RF Communications Division, 1680 University Avenue, Rochester, New York 14610-1887. This manual is based on Firmware Version 1.0 Copyright  2009 by Harris Corporation All Rights Reserved UNITY ™ XG-100P FULL-SPECTRUM MULTIBAND RADIO OPERATIONS MANUAL This product was developed using GEOTRANS, a product of the National Geospatial Intelligence Agency and U.S. Army Engineering Research and Development Center. Use of this software does not indicate endorsement or approval of the product by the Secretary of Defense or the National Geospatial Intelligence Agency. This device made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,697; 5,164,986; 5,185,795. The Advanced Multi-Band Excitation implementation 2 (AMBE+2) voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the manufacturer could void the user's authority to operate the equipment in addition to the manufacturer's warranty. This product conforms to the European Union Waste from Electric and Electronic Equipment (WEEE) Directive 2002/96/EC. Do not dispose of this product in a public landfill. This product should be taken to a recycling center at the end of its life. XG-100 5 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 EQUIPMENT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 STORAGE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 BASIC SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 ASSEMBLE THE RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 REMOVING THE BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 REMOVING OPTIONAL BELT CLIP . . . . . . . . . . . . . . . . . . . . . . . . .16 BASIC OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 XG-100P CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 TOP DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 MAIN DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 MENU NAVIGATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 BEFORE FIRST TIME USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 POWER ON AND SET VOLUME . . . . . . . . . . . . . . . . . . . . . . . . . . .23 SELECT CHANNEL BANK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 SELECT CHANNEL USING KNOB . . . . . . . . . . . . . . . . . . . . . . . . . .24 TURN ENCRYPTION ON OR OFF . . . . . . . . . . . . . . . . . . . . . . . . . .25 SELECT ZONE USING MENUS . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 MAKE AN INDIVIDUAL CALL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 MAKE A PRIORITY CALL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 SELECT A NEW TALKGROUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 USE TALKAROUND TO BYPASS REPEATER . . . . . . . . . . . . . . . .33 START SCAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 STOP SCAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 NUISANCE DELETE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 VIEW GPS INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 EMERGENCY OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Receiving an Emergency Call . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Declaring an Emergency Call . . . . . . . . . . . . . . . . . . . . . . . . . . .43 ADVANCED OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 CREATE KEYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 Create Key in the KVL 3000 Plus . . . . . . . . . . . . . . . . . . . . . . . .46 Create Keygroup in the KVL 3000 Plus . . . . . . . . . . . . . . . . . . . .47 6 XG-100 LOAD KEYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 LOAD KEYGROUPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 ZEROIZE ALL FROM RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 ZEROIZE KEYS USING KVL 3000 PLUS . . . . . . . . . . . . . . . . . . . . .53 ZEROIZE KEYGROUPS USING KVL 3000 PLUS . . . . . . . . . . . . . .55 Z…

Text truncated - open the document above for the full version.

Product Safety Manual 10515-0372-4000 December 2009 Rev. -2 This booklet contains important safety information regarding specific absorption rate (SAR) and RF exposure limits included in United States and international standards. Read the information in this booklet before operating your radio. Unity™ XG-100P Portable Radio 2 10515-0372-4000 REV DATE DESCRIPTION - Dec/09 Initial release ACKNOWLEDGEMENTS The software contained in this device is copyrighted by Harris Corporation. Unpublished rights are reserved under the copyright laws of the United States. This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; 5,491,772; 5,517,511; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a separate written license from DVSI. CREDITS Harris, Enhanced Digital Access Communication System (EDACS), and OpenSky are registered trademarks of Harris Corporation. Rechargeable Battery Recycling Corporation (RBRC) and 1-800-8-BATTERY are registered trademarks of Rechargeable Battery Recycling Corporation. Advanced Multi-Band Excitation (AMBE) is a registered trademark and Improved Multiband Excitation (IMBE), AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc. All other product and brand names are trademarks, registered trademarks, or service marks of their respective holders. NOTICE Information and descriptions contained herein are the property of Harris Corporation RF Communications Division. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation RF Communications Division, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. This product conforms to the European Union Waste from Electric and Electronic Equipment (WEEE) Directive 2002/96/EC. Do not dispose of this product in a public landfill. This product should be taken to a recycling center at the end of its life. The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations, or substitution of recommended parts made by the user to this equipment not approved by the manufacturer could void the user’s authority to operate the equipment in addition to the manufacturer’s warranty. This manual is published by Harris Corporation, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation, at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2009 Harris Corporation. 10515-0372-4000 3 TABLE OF CONTENTS Page 1 SAFETY SYMBOL CONVENTIONS ..............................................4 2 SAFETY TRAINING INFORMATION............................................5 2.1 RF EXPOSURE GUIDELINES...................................................... 6 2.2 ELECTROMAGNETIC INTERFERENCE ................................... 7 3 GENERAL SAFETY GUIDELINES.................................................7 4 OPERATION .....................................................................................9 5 OPTIONS AND ACCESSORIES ....................................................10 6 BATTERY PACKS .........................................................................11 6.1 CONDITIONING LI-ION BATTERY PACKS ........................... 11 6.2 ADDITIONAL INFORMATION ................................................. 11 6.3 BATTERY DISPOSAL ................................................................ 11 7 IMMERSIBLE PREVENTIVE MAINTENANCE..........................12 8 TECHNICAL ASSISTANCE ..........................................................13 9 WARRANTY...................................................................................13 Harris Corporation RF Communications Division continually evaluates its technical publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the following: Harris Corporation RF Communications Division or fax your comments to: 1-434-455-6851 Technical Publications 221 Jefferson Ridge Parkway or e-mail us at: PSPC _ [email protected] Lynchburg, VA 24501 4 10515-0372-4000 1 SAFETY SYMBOL CONVENTIONS The following conventions are used to alert the user to general safety precautions that must be observed during all phases of operation, service, and repair of this product. Failure to comply with these precautions or with specific warnings elsewhere violates safety standards of design, manufacture, and intended use of the product. Harris Corporation RF Communications Division assumes no liability for the customer's failure to comply with these standards. The WARNING symbol calls attention to a procedure, practice, or the like, which, if not correctly performed or adhered to, could result in personal injury…

Text truncated - open the document above for the full version.

HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com December 23, 2009 American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: The following organization is granted authority to act on Harris’ behalf, to file technical reports, measurements, and forms for Harris equipment with FCC ID: AQZ-XG-100P00, Unity Multiband portable radio, as it applies to an original Grant. Ms. Kathy Grzovic Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Harris certifies it is not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Sincerely, Daryl Popowitch Regulatory Manager

HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com February 5, 2010 American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: FCC ID: AQZ-XG-100P00 Original Grant CONFIDENTIALITY Harris wishes to submit this confidentiality letter for the record on FCC ID: AQZ-XG- 100P00, Unity Multiband portable radio. Harris is requesting that parts lists, schematics, block diagrams, tune up/alignment, and operational descriptions for this application not be made routinely available for public inspection. Harris considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457 and Section 0.459 of the FCC rules. Respectfully Yours, Daryl Popowitch Regulatory Manager

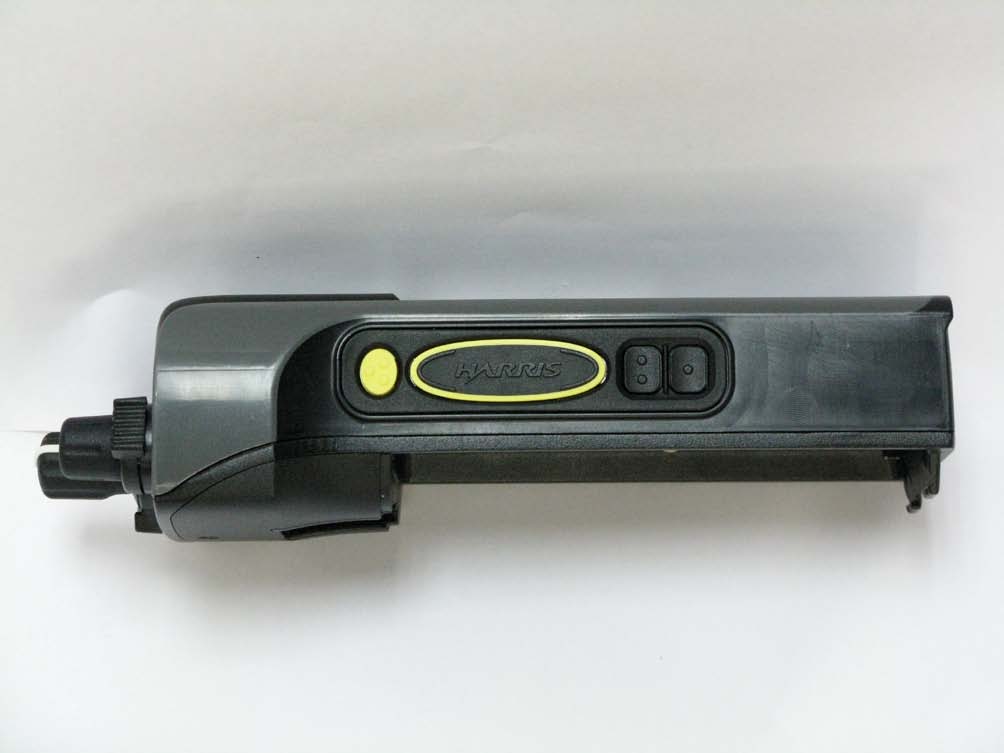

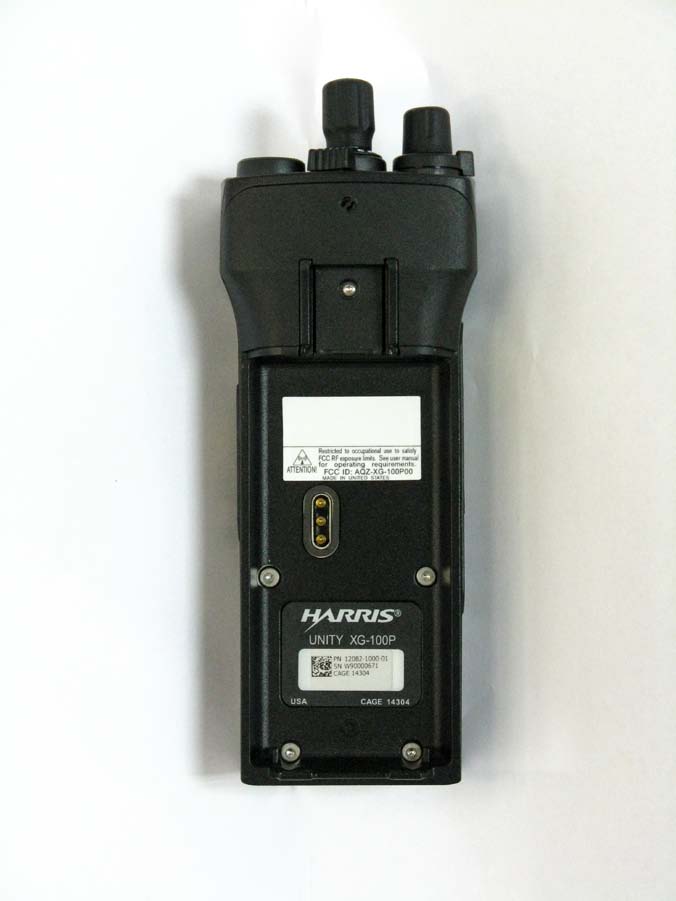

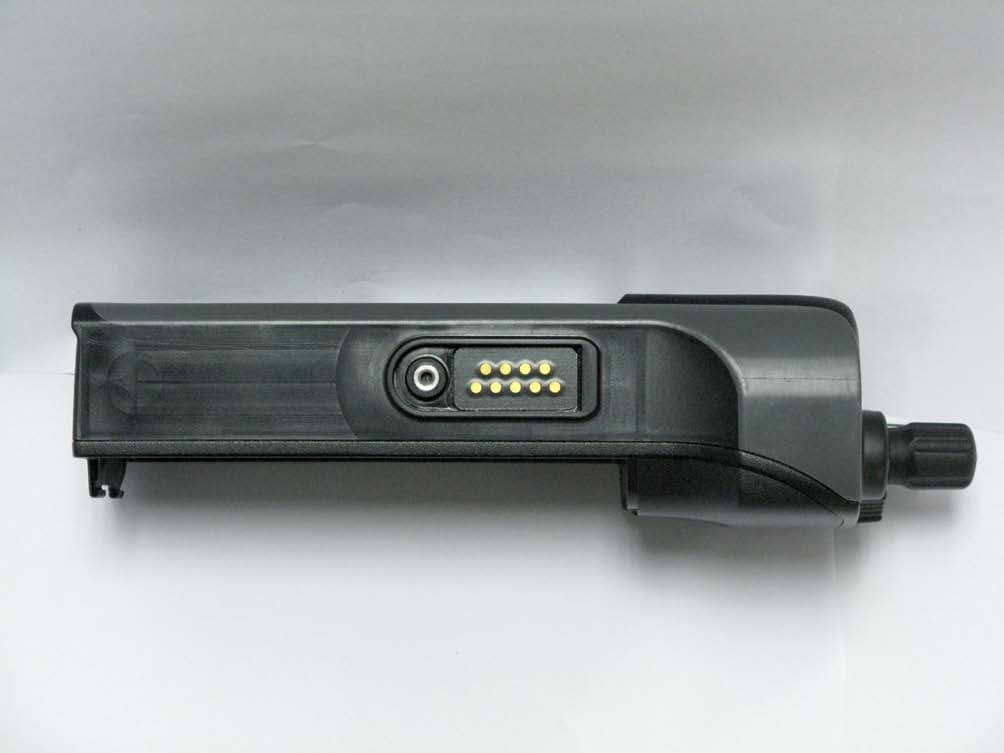

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: Unity XG-100P Multiband Radio Suite 1400 FCC ID: AQZ-XG-100P00 Herndon, VA 20170 Standards: FCC Part 80, 90 http://www.rheintech.com Report #: 2009287 120 of 129 Appendix N: External Photographs Photograph 4: Front View Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: Unity XG-100P Multiband Radio Suite 1400 FCC ID: AQZ-XG-100P00 Herndon, VA 20170 Standards: FCC Part 80, 90 http://www.rheintech.com Report #: 2009287 121 of 129 Photograph 5: B a c k Vie w Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: Unity XG-100P Multiband Radio Suite 1400 FCC ID: AQZ-XG-100P00 Herndon, VA 20170 Standards: FCC Part 80, 90 http://www.rheintech.com Report #: 2009287 122 of 129 Photograph 6: Side with Accessory Input Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: Unity XG-100P Multiband Radio Suite 1400 FCC ID: AQZ-XG-100P00 Herndon, VA 20170 Standards: FCC Part 80, 90 http://www.rheintech.com Report #: 2009287 123 of 129 Photograph 7: Side PTT Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: Unity XG-100P Multiband Radio Suite 1400 FCC ID: AQZ-XG-100P00 Herndon, VA 20170 Standards: FCC Part 80, 90 http://www.rheintech.com Report #: 2009287 124 of 129 Photograph 8: Top View

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: Unity XG-100P Multiband Radio Suite 1400 FCC ID: AQZ-XG-100P00 Herndon, VA 20170 Standards: FCC Part 80, 90 http://www.rheintech.com Report #: 2009287 111 of 129 Appendix F: ID Label Photograph 1: FCC ID Label and Location, with RF Statement

Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: Unity XG-100P Multiband Radio Suite 1400 FCC ID: AQZ-XG-100P00 Herndon, VA 20170 Standards: FCC Part 80, 90 http://www.rheintech.com Report #: 2009287 125 of 129 Appendix O: Internal Photographs Photograph 9: RF P WB in Ch a s s is Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: Unity XG-100P Multiband Radio Suite 1400 FCC ID: AQZ-XG-100P00 Herndon, VA 20170 Standards: FCC Part 80, 90 http://www.rheintech.com Report #: 2009287 126 of 129 Photograph 10: RF P WB S id e 1 S h ie ld e d Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: Unity XG-100P Multiband Radio Suite 1400 FCC ID: AQZ-XG-100P00 Herndon, VA 20170 Standards: FCC Part 80, 90 http://www.rheintech.com Report #: 2009287 127 of 129 Photograph 11: RF P WB S id e 1 Un s h ie ld e d Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: Unity XG-100P Multiband Radio Suite 1400 FCC ID: AQZ-XG-100P00 Herndon, VA 20170 Standards: FCC Part 80, 90 http://www.rheintech.com Report #: 2009287 128 of 129 Photograph 12: RF P WB S id e 2 S h ie ld e d Rhein Tech Laboratories, Inc. Client: Harris Corporation 360 Herndon Parkway Model: Unity XG-100P Multiband Radio Suite 1400 FCC ID: AQZ-XG-100P00 Herndon, VA 20170 Standards: FCC Part 80, 90 http://www.rheintech.com Report #: 2009287 129 of 129 Photograph 13: RF P WB S id e 2 Un s h ie ld e d

Applicant: HARRIS CORPORATION FCC ID: AQZ-XG-100P00 IC: 122D-XG100P00 DUT Type: Portable PTT Multi-band Radio Transceiver Model: Unity XG-100P Quad-Band 700/800 MHz 2009 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 132 of 133 Date(s) of Evaluation Nov. 17,20,23-25, 2009 Test Report Serial No. 102809AQZ-T991-S90P Test Report Revision No. Rev. 1.2 (3rd Release) Test Report Issue Date December 23, 2009 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 APPENDIX E - DIPOLE CALIBRATION Applicant: HARRIS CORPORATION FCC ID: AQZ-XG-100P00 IC: 122D-XG100P00 DUT Type: Portable PTT Multi-band Radio Transceiver Model: Unity XG-100P Quad-Band 700/800 MHz 2009 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 133 of 133 Date(s) of Evaluation Nov. 17,20,23-25, 2009 Test Report Serial No. 102809AQZ-T991-S90P Test Report Revision No. Rev. 1.2 (3rd Release) Test Report Issue Date December 23, 2009 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 APPENDIX F - PROBE CALIBRATION

Applicant: HARRIS CORPORATION FCC ID: AQZ-XG-100P00 IC: 122D-XG100P00 DUT Type: Portable PTT Multi-band Radio Transceiver Model: Unity XG-100P Quad-Band 700/800 MHz 2009 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 133 Date(s) of Evaluation Nov. 17,20,23-25, 2009 Test Report Serial No. 102809AQZ-T991-S90P Test Report Revision No. Rev. 1.2 (3rd Release) Test Report Issue Date December 23, 2009 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 FCC/IC SAR TEST REPORT - 700/800 MHz Band R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E APPLICANT / MANUFACTURER HARRIS CORPORATION - RF COMMUNICATIONS DIVISION DEVICE UNDER TEST (DUT) PORTABLE PTT MULTI-BAND RADIO TRANSCEIVER DEVICE MODEL(S) UNITY XG-100P 763 - 775 MHz 793 - 805 MHz 806 - 824 MHz TRANSMIT FREQUENCY BAND(S) 700/800 FREQUENCY RANGES FCC/IC 851 - 869 MHz 34.2 dBm 2.63 Watts+0.5/-0.2 dBConducted 763-775 MHz 34.2 dBm 2.63 Watts+0.5/-0.2 dBConducted 793-805 MHz 35.0 dBm 3.16 Watts+0.5/-0.2 dBConducted 806-824 MHz MANUF. RATED OUTPUT POWER 35.0 dBm 3.16 Watts+0.5/-0.2 dBConducted 851-869 MHz DEVICE MODES OF OPERATION ANALOG - FM P25 Phase 1 - FDMA DEVICE IDENTIFIER(S) FCC ID: AQZ-XG-100P00 IC: 122D-XG100P00 APPLICATION TYPE FCC/IC Certification APPLICABLE RULE PART(S) FCC Part 90 IC RSS-119 Issue 9 FCC 47 CFR §2.1093 STANDARD(S) APPLIED Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (01-01) FCC KDB 447498 D01v04 FCC KDB Inquiry No. 794297 Industry Canada RSS-102 Issue 3 PROCEDURE(S) APPLIED IEEE 1528-2003 IEC 62209-1:2005 IEC 62209-2 (Draft) FCC DEVICE CLASSIFICATION Licensed Non-Broadcast Transmitter Held to Face (TNF) IC DEVICE CLASSIFICATION Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) RF EXPOSURE CATEGORY Occupational / Controlled RF EXPOSURE EVALUATION(S) Face-held & Body-worn DATE(S) OF EVALUATION November 17, 20, 23-25, 2009 TEST REPORT SERIAL NO. 102809AQZ-T991-S90P Revision 1.2 See Revision List (Pg. 4) December 23, 2009 Revision 1.1 See Revision List (Pg. 4) December 22, 2009 TEST REPORT REVISION NO. Revision 1.0 Initial Release December 03, 2009 Testing Performed By Test Report Prepared By TEST REPORT SIGNATORIES Sean Johnston - Celltech Jonathan Hughes - Celltech Celltech Compliance Testing and Engineering Lab TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com TEST LAB ACCREDITATION(S) ISO/IEC 17025:2005 (A2LA Test Lab Certificate No. 2470.01) Applicant: HARRIS CORPORATION FCC ID: AQZ-XG-100P00 IC: 122D-XG100P00 DUT Type: Portable PTT Multi-band Radio Transceiver Model: Unity XG-100P Quad-Band 700/800 MHz 2009 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 133 Date(s) of Evaluation Nov. 17,20,23-25, 2009 Test Report Serial No. 102809AQZ-T991-S90P Test Report Revision No. Rev. 1.2 (3rd Release) Test Report Issue Date December 23, 2009 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Name HARRIS CORPORATION - RF COMMUNICATIONS DIVISION Applicant Information Address 1680 University Avenue, Rochester, NY 14610 United States Standard(s) Applied FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C IC RSS-102 Issue 3 FCC KDB 447498 D01v04 KDB Inquiry Tracking No. 794297 Procedure(s) Applied IEEE 1528-2003 IEC 62209-1:2005 IEC 62209-2 (Draft) Device Identifier(s) FCC ID: AQZ-XG-100P00 IC: 122D-XG100P00 Device Model(s) UNITY XG-100P Test Sample Serial No. EM067 (Identical Prototype) 700/800 PTT Portable Push-To-Talk (PTT) Multi-Band Radio Transceiver (Analog FM / Digital P25 FDMA) Device Description Bluetooth Class 1 Bluetooth - Pwr = > 60/f (GHz) mW - Manuf. max. cond. pwr spec. = 20 dBm (Average) Supports simultaneous transmission - PTT antenna to Bluetooth antenna distance = ~ 130 mm Version SW Platform 12082-8900_0.1.8 Version SW Build Nov 9 2009 - 11:58:03 DUT Hardware / Software Revisions Version HW FPGA LMR_091509_1358 Version HW FPGA_PN 12082-4030-01 Frequency Ranges Tested (700/800) 763 - 775 MHz 793 - 805 MHz 806 - 824 MHz 851 - 869 MHz 34.2 dBm 2.63 Watts +0.5 / -0.2 dB Conducted 763-775 / 793-805 MHz Manufacturer’s Rated Output Power 35.0 dBm 3.16 Watts +0.5 / -0.2 dB Conducted 806-824 / 851-869 MHz No. of Ch.s MHz dBm Watts Ch MHz dBm Watts Method 1 763.0 34.4 2.75 1 806.0 35.1 3.24 Conducted 2 769.0 34.4 2.75 2 815.0 35.1 3.24 Conducted 3 775.0 34.4 2.75 3 824.0 35.1 3.24 Conducted 1 793.0 34.4 2.75 1 851.0 35.2 3.31 Conducted 2 799.0 34.4 2.75 2 860.0 35.3 3.39 Conducted Test Channels & RF Output Power N c = 3 3 805.0 34.4 2.75 3 869.0 35.1 3.24 Conducted Antenna Type(s) Tested Ext. Detachable Full-Spectrum Multi-Band P/N: 12082-0250-01 Length: 240 mm Lithium-ion 7.4 V 3650 mAh P/N: 12082-0308-01 Battery Type(s) Tested Alkaline Case 1.5 V (x6 AA) Energizer Industrial P/N: 12082-0309-01 Metal Belt-Clip 1.2 cm Spacing Contains Metal P/N: 12082-1291-01 Contains Metal P/N: 12082-0512-01 Nylon Case (Window) Nylon Shoulder Strap 1.5 cm Spacing Contains Metal P/N: 12082-0504-01 Contains Metal P/N: 12082-0500-01 Leather Case (D-Rings) Full with Shoulder Strap 1.5 cm Spacing Contains Metal P/N: 12082-0505-01 Body-worn Accessories Tested Leather Case (D-Clip) Full with Swivel Belt-Loop (3”) 4.5 cm Spacing Contains Metal P/N: 12082-0502-02 Audio Accessories Tested Speaker-Microphone P/N: 12082-0600-01 Face-held 0.647 W/kg 1g 50% PT…

Text truncated - open the document above for the full version.

Applicant: HARRIS CORPORATION FCC ID: AQZ-XG-100P00 IC: 122D-XG100P00 DUT Type: Portable PTT Multi-band Radio Transceiver with Class 1 Bluetooth Model: Unity XG-100P 2009 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 47 Date(s) of Evaluation December 08, 2009 Test Report Serial No. 102809AQZ-T991-S15B Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date December 23, 2009 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 FCC/IC SAR TEST REPORT - CLASS 1 BLUETOOTH R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E APPLICANT / MANUFACTURER HARRIS CORPORATION - RF COMMUNICATIONS DIVISION DEVICE UNDER TEST (DUT) PORTABLE PTT MULTI-BAND RADIO TRANSCEIVER WITH CO-LOCATED CLASS 1 BLUETOOTH TRANSMITTER (v2.0) DEVICE MODEL(S) UNITY XG-100P FREQUENCY RANGE 2402 - 2480 MHz (ISM Band) MANUF. RATED OUTPUT POWER 20 dBm 100 mW DH5 (SDR) Average Conducted DEVICE MODES OF OPERATION DH5 (SDR) 2-DH5 (EDR) 3-DH5 (EDR) DEVICE IDENTIFIER(S) FCC ID: AQZ-XG-100P00 IC:122D-XG100P00 APPLICATION TYPE FCC/IC Certification FCC Part 15 Subpart C APPLICABLE RULE PART(S) IC RSS-210 Issue 7 FCC 47 CFR §2.1093 STANDARD(S) APPLIED Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (01-01) FCC KDB 447498 D01v04 Industry Canada RSS-102 Issue 3 IEEE 1528-2003 IEC 62209-1:2005 PROCEDURE(S) APPLIED IEC 62209-2 (Draft) FCC DEVICE CLASSIFICATION Licensed Non-Broadcast Transmitter Held to Face (TNF) IC DEVICE CLASSIFICATION Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) DUT RF EXPOSURE CATEGORY Occupational / Controlled (Part 90 Licensed PTT Transmitter) RF EXPOSURE LIMIT(S) APPLIED Uncontrolled / General Population (Unlicensed Bluetooth) RF EXPOSURE EVALUATION(S) Face-held & Body-worn DATE(S) OF EVALUATION December 08, 2009 TEST REPORT SERIAL NO. 102809AQZ-T991-S15B Revision 1.1 See Revision List (Pg. 4) December 23, 2009 TEST REPORT REVISION NO. Revision 1.0 Initial Release December 22, 2009 Testing Performed ByTest Report Prepared By TEST REPORT SIGNATORIES Sean Johnston - Celltech Labs Jon Hughes - Celltech Labs Celltech Compliance Testing and Engineering Lab TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com TEST LAB ACCREDITATION(S) ISO/IEC 17025:2005 (A2LA Test Lab Certificate No. 2470.01) Applicant: HARRIS CORPORATION FCC ID: AQZ-XG-100P00 IC: 122D-XG100P00 DUT Type: Portable PTT Multi-band Radio Transceiver with Class 1 Bluetooth Model: Unity XG-100P 2009 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 47 Date(s) of Evaluation December 08, 2009 Test Report Serial No. 102809AQZ-T991-S15B Test Report Revision No. Rev. 1.1 (2nd Release) Test Report Issue Date December 23, 2009 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Name HARRIS CORPORATION - RF COMMUNICATIONS DIVISION Applicant Information Address 1680 University Avenue, Rochester, NY 14610 United States Standard(s) Applied FCC 47 CFR §2.1093 ICHealth Canada Safety Code 6 FCC OET Bulletin 65, Supplement C FCC KDB 447498 D01v04 ICRSS-102 Issue 3 IEEE1528-2003 Procedure(s) Applied IEC62209-1:2005 IEC62209-2 (Draft) Device Identifier(s) FCC ID: AQZ-XG-100P00 IC:122D-XG100P00 Device Model(s) UNITY XG-100P Test Sample Serial No.EM067 (Identical Prototype) Device Description Portable Push-To-Talk (PTT) Multi-Band Radio Transceiver with Class 1 Bluetooth (v2.0) Transmitter Under Test Class 1 Bluetooth (Output Power > 60/f (GHz) mW per FCC KDB 447498 D01v04 Section 1)c)) Version SW Platform 12082-8900_0.1.8 Version SW Build Nov 9 2009 - 11:58:03 Hardware / Software Revision No.(s) Version HW FPGA LMR_091509_1358 Version HW FPGA_PN 12082-4030-01 Spread Spectrum Method Frequency Hopping Transmit Modes and Modulations DH5 (SDR) - GFSK 2-DH5 (EDR) - DQPSK 3-DH5 (EDR) - 8DPSK Transmit Frequency Range Tested 2402 - 2480 MHz (ISM Band) Manufacturer’s Rated Output Power 20 dBm 100 mW DH5 (SDR) Average Conducted Mode Freq. MHz Channel dBm mW Method 2402019.3 85.1 24413919.7 93.3 Measured RF Output Power Levels DH5 (SDR) 24807820.1 102.3 Average Conducted Internal (Ceramic Chip Antenna - Manufacturer: Pulse Engineering - Part No.: W3008C) Antenna Type(s) Tested Supports simultaneous transmission - PTT antenna to Bluetooth antenna distance = ~ 130 mm Lithium-ion 7.4 V 3650 mAh P/N: 12082-0308-01 Battery Type(s) Tested Alkaline Case 1.5 V (x6 AA) Energizer Industrial P/N: 12082-0309-01 Body-worn Accessories Tested Metal Belt-Clip 1.2 cm Spacing Contains Metal P/N: 12082-1291-01 Audio Accessories Tested Speaker-Microphone P/N: 12082-0600-01 Face-held 0.114 W/kg 1g average Max. SAR Level(s) Evaluated Body-worn 0.033 W/kg Peak SAR from Area Scan FCC/IC Spatial Peak SAR Limit Head/Body 1.6 W/kg 1g average General Population / Uncontrolled Exposure Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure measurement standards and procedures as listed above. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made…
