ASIJ7R001900MHz Cordless Transmitter

HA-W1000RF - J/C CORDLESS STEREO HEADPHONES Printed in China LNT0017-001A © 2003 VICTOR COMPANY OF JAPAN, LIMITED CORDLESS STEREO HEADPHONES CASQUE STEREO SANS FIL AURICULARES ESTÉREO INALÁMBRICOS HA-W1000RF - J/C INSTRUCTIONS MANUEL D’INSTRUCTIONS MANUAL DE INSTRUCCIONES LNT0017-001A À l'usage du client : Inscrivez ci-dessous le n° de modèle et le n° de série qui se trouvent sur le fond du coffret. Conservez ces informations pour pouvoir vous y reporter ultérieurement. N° de modèle N° de série For Customer Use : Enter below the Model No. and Serial No. which are located on the bottom of cabinet. Retain this information for future reference. Model No. Serial No. 2 Hearing Comfort and Well-Being  Do not play your headphones at a high volume. Hearing experts advice against continuous extended play.  If you experience a ringing in your ears, reduce volume or discontinue use. Traffic safety  Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many area.  You should use extreme caution or temporarily discontinue use in potentially hazardous situations.  Even though your headphones are of the open-air type designed to let you hear outside sounds, don’t turn up the volume so high that you can’t hear what’s around you. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION:Changes or modifications not approved by JVC could void user’s authority to operate the equipment. Contact Address:JVC AMERICAS CORP. JVC COMPANY OF AMERICA 1700 Valley Road, Wayne, N.J. 07470 Telephone: 1 (973) 317-5000 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC INFORMATION 3 This device complies with RSS-210 of the IC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation of the device. CAUTION:Changes or modifications not approved by JVC could void user’s authority to operate the equipment. Contact Address:JVC CANADA INC. 21 Finchdene Square, Toronto, ON M1X 1A7 Telephone: (416) 293-1311 e-mail: [email protected] Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Industry Canada’s RSS-210. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. IC INFORMATION Cet appareil est conforme à la RSS-210 du réglement de la IC. Le fonctionnement est sujet aux deux conditions suivantes: (1) Cet appareil ne peut causer d’interférences nuisi-bles (3) Cet appareil reçoit toute interférence même les interférences qui peuvent occasioner un mauvais fonctionnement. ATTENTION:Les changements ou les modifications non approuvés par JVC risquent de retirer à l'utilisateur le droit d'utiliser l'appareil. Contact Adresse:JVC CANADA INC. 21 Finchdene Square, Toronto, ON M1X 1A7 Téléphone: (416) 293-1311 e-mail: [email protected] Remarque : L'appareil a été testé et jugé conforme aux limites des appareils numériques de classe B, aux termes de la réglementation RSS-210 de l'industrie du Canada. Ces limites ont pour but d'assurer une protection raisonnable contre les interférences parasites lorsque l'appareil est utilisé dans une installation résidentielle. Cet appareil engendre, utilise et peut émettre une énergie radioélectrique et, s'il n'est pas installé et utilisé en stricte conformité avec ces instructions, il peut provoquer des interférences parasites dans les liaisons radiophoniques. Ceci ne garantit pas pour autant qu'une installation particulière n'émettra aucune interférence. Si l'appareil engendre des interférences parasites avec la réception radio ou télévision, ce qui pourra être déterminé en éteignant puis en rallumant l'appareil, il est conseillé à l'utilisateur d'essayer de corriger les interférences en prenant l'une des mesures ci-dessous:  Modifier l'orient…

Text truncated - open the document above for the full version.

11 1 1 19KhzLPF SRS AUTO POWERON/OFF LINEFILTER PRE-AMPWITHALC UHFMODULE 19KhzLPF REGULATOR6V 7.5V AC/DC AUDIO IN LR IC201 IC200 IC204 Q203,204, IC203 Charger MicCall IC202,Q204,Q207 <Doc> <RevCode > JVC HA-W1000RF TX BLOCK DIAGRAM A4 11 Monday, August 12, 2002 TitleSize Document Number Rev Date: Sheet of ANT1 ANTENNA

Mike Kuo From: [email protected] Sent: November06 2003 Thursday 6:58 PM To: [email protected] Subject: Re: Victor Company of Japan LTd. FCC ID:ASIJ7R001, AN03T3284 11/10/2003 In a message dated 11/5/2003 4:45:05 PM Eastern Standard Time, [email protected] writes: Question #1: Based upon the description in the user manual, the operating frequency of this transmitter is from 906-908MHz. Per section 15.31(m) of FCC rules, two fundamental frequencies ( one near bottom and one near top ) shall be investigated. Based upon the test report, only middle frequency ( 907MHz) was selected. Please provide additional test data to address 15.31(m) requirements. Please see Revised report, pg9 and pg 19: 906-908MHz emissions were investigated. Only the worst case, operating frequency=906.7MHz, was recorded for final data shown in report. Question #2: Please provide theory of operation or operational description. Will get from client soon. Question #3: Please provide additional internal photo by removing the metal plate. See new Internal photos attached. Question #4: Please provide six highest data for AC line conducted emission tests. See revised report. Question #5: What is upper frequency investigated during radiated emission tests ? 10GHz. Stated in revised report, Pg. 18. Question #6: Based upon AC line conducted plots, you are using the 15.207 AC line conducted limits. Per FCC policy notice 02-157, if you are using 15.207 limits to demonstrate AC line conducted limits, this product can only be sold before July 12, 2004. Please confirm that the applicant is aware of the marketing limitation . See revised report. Using the CISPR22 limit for AC line conducted test. Question #7: What is the antenna connector type ? Is the antenna removable ? See report pg.9. The antenna is not removable. Deart Mike, I'll send the operational descriptions ASAP. Please kindly process the application at your earliest convienence. Regards, Wei

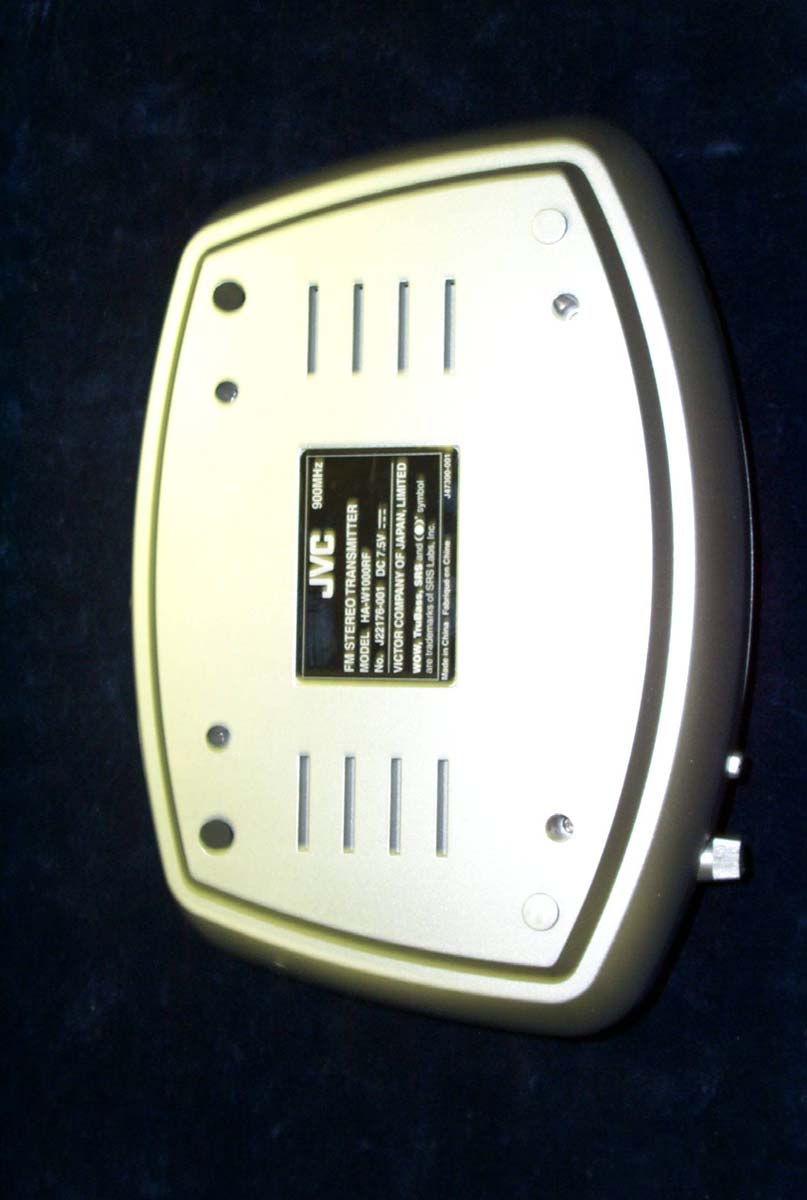

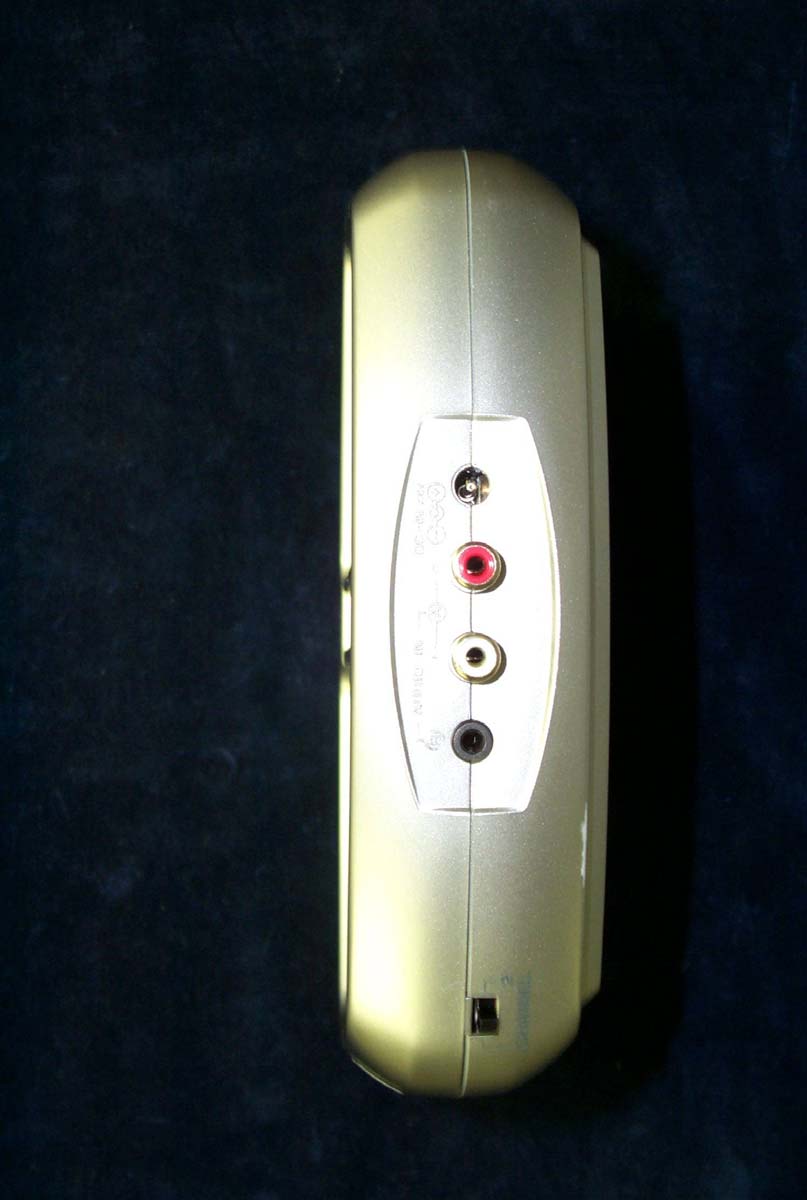

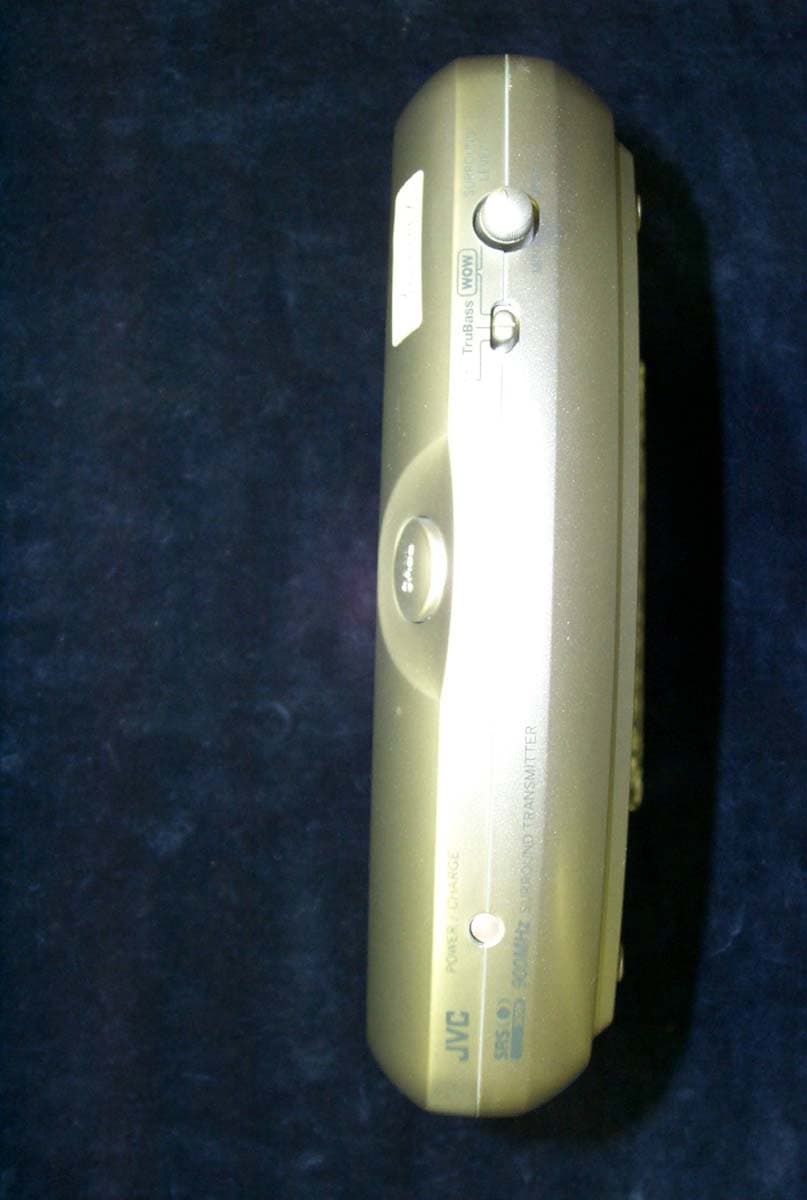

FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 20 Figure 7.1 Top view FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 21 Figure 7.2 Bottom view FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 22 Figure 7.3 Front view FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 23 Figure 7.4 Rear view Figure 7.4 Rear view

FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 8 2. PRODUCT LABELING FCC ID: ASIJ7R001 This device complies with part 15 of the FCC Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 2.1 FCC ID Label Figure 2.2 Location of the Label FCC LABEL

FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 24 Figure 7.5 Open view FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 25 Figure 7.6 PCB Component Side FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 26 Figure 7.7 PCB Foil Side

FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 24 Figure 7.5 Open view FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 25 Figure 7.6 PCB Component Side FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 26 Figure 7.7 PCB Foil Side FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 27 Figure 7.8 Metal Box Open View

Model : JVC HA-W1000F Operation circuit description Transmitter Audio signal input from JK201 and JK204 or JK202, then input to IC200, IC200 is a preamplifier with automatic sound level control, L200 and L201 are low pass filter make audio frequency under 19Khz, then audio signal input to IC204, IC204 is a sound signal processor, SW202 is to control the sound quality –“trubass” or” wow” enable or not, then audio signal input to IC1, IC1 is a MPX encoder make left and right audio signal mix together and modulate, then input to Q2, Q2 is a VCO which generate 900Mhz RF signal, Q1 is a buffer make RF signal more strong, Q3 is a power amplifier which increase the RF power then pass a low pass filter transmit the RF signal through antenna. VR1 and VR3 are for RF frequency range setting and select by S200, S200 is a channel switch select CH1 or CH2. Q206 is preamplifier for MK200, MK200 is a condenser microphone, S201 is a press switch to select the transmit signal is voice or music. Q203, Q208 and IC203 is an automatic power on off circuit, when no audio signal input over 90 seconds, the unit will auto off, when audio signal comes again, the unit will auto switch on, green led D202A will light on again, which is an operating index. IC202, Q204 and Q207 are a battery charger circuit, which will automatic charge the battery when put the receiver on the unit and red led D202B blinking means the battery is fully charged. Receiver RF signal receive from antenna, X4 is a filter which reject most of un-want frequency, Q9 is a RF amplifier which increase RF signal go to the mixer – Q11 also Q1 and X1 is an oscillator which generate the fixed LO frequency to Q11 and mix with RF signal then go to IC2, IC2 is an inter – frequency stage include stereo MPX decoder, it demodulate the MPX signal return to original left and right audio signal, IC6 is a auto scan frequency circuit, it make IC2 at correct frequency to receive RF signal, the left and right audio signal go to IC3, which is a power amplifier, it makes enough power to drive the speaker LS1 and LS2, 2VR1 is a sound volume control. Q10 and Q14 is a lock circuit to lock the correct channel. Q201 is a mute circuit, when receiver does not in correct channel, the speaker will not come out any noise or sound. Power supply and ground Transmitter power is supplied by an external 7.5V 500mA AC/DC adaptor, no external connect is available for grounding, the printed circuit board traces are the only ground. Receiver power is supplied by a built in NiMH 2.4V battery pack.

11 1 1 48 37 26 159 13 IC2BA1404 11 10 18 14 15 12 17 Test-4 GNDTest-3 Audio inTest-2 Audio inTest-1 VCC L4 L3 16 Test-8 ANT out L51 . 5T JVC 900Mhz TX Test-3 Test-2 Test-1 <Doc> 1.63 JVC HA-W1000RF (900Mhz) TX-MODULE A3 11 Monday, September 01, 2003 TitleSize Document Number Rev Date: Sheet of C465.6p C7710p R56100k R163k9 C480.5p C4712p + C5722u R188k2C161500p C3722p 20mHL1 C4912p C963p C413P R6250k R4422k C730.047u C740.047u C453p + C1947u R223k9 C84 3p VR25k C54100P 1.5T C603P 1.5T L142.5TL152.5T C582p VR15k C201000p Q15094 R411kR421k R451kR461k X338kC C51p5 R37330 R3847 C4015p U21 78L03 3 1 2 VI VO GND C6622p R472k2 R173k9 R60820 R198k2C17 1500p C261000p R36100 R25150 R2433k C24 2700Pp C523p D1V01 R3547K C534p C92 3p R3910 C431000p C271000p R20820 C23104 C3822p R6547 + C2533u R26750 + C2210u VR220k X21.02G R27 27k R481R R232k2 C503p C5622u R43 10 L11 chokeQ23356 R3168k Q35094 R59 NTC 10k R616k8 R34120R C703p C44 22p C42 1000p R479k1 C851p5 C3522u + C3610u R4022K C3922p R582k2 R2947k Test-8 5V RinLin CH1 CH2 VT

ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of 900MHZ CORDLESS HEADPHONE TRANSMITTER MODEL: HA-W1000RF FCC ID: ASIJ7R001 September 5, 2003 This report concerns (check one): Original grant x Class II change Equipment type: LOW POWER TRANSMITTER Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: VICTOR COMPANY OF JAPAN LTD. Report prepared by: Advanced Compliance Lab Report number: 0048-030718-02-TX The test result in this report IS supported and covered by the NVLAP accreditation 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Com pliance Laboratory FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 2 Table of Contents Report Cover Page .........................................................................................................1 Table of Contents ...........................................................................................................2 Figures.............................................................................................................................3 1. GENERAL INFORMATION ...................................................................................4 1.1 Verification of Compliance .........................................................................4 1.2 Equipment Modifications............................................................................5 1.3 Product Information....................................................................................6 1.4 Test Methodology.........................................................................................6 1.5 Test Facility ..................................................................................................6 1.6 Test Equipment ............................................................................................6 1.7 Statement of the Document Use..................................................................7 2. PRODUCT LABELING............................................................................................8 3. SYSTEM TEST CONFIGURATION ......................................................................9 3.1 Justification ..................................................................................................9 3.2 Special Accessories.......................................................................................9 3.3 Configuration of Tested System .................................................................9 4. SYSTEM SCHEMATICS .........................................................................................13 5. CONDUCTED EMISSION DATA ..........................................................................14 5.1 Test Methods and Conditions .....................................................................14 5.2 Test Data .......................................................................................................14 6. RADIATED EMISSION DATA ...............................................................................17 6.1 Field Strength Calculation ..........................................................................17 6.2 Test Methods and Conditions .....................................................................17 6.3 Test Data .......................................................................................................18 7. PHOTOS OF TESTED EUT ....................................................................................19 FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 3 Figures Figure 2.1 FCC ID Label...............................................................................................8 Figure 2.2 Location of Label on Back of the EUT ......................................................8 Figure 3.1 Cable Interlink Configuration....................................................................10 Figure 3.2 Radiated Front .............................................................................................11 Figure 3.3 Radiated Rear ..............................................................................................11 Figure 3.4 Conducted Front..........................................................................................12 Figure 3.5 Conducted Rear ...........................................................................................12 Figure 4.1 EUT Schematics ...........................................................................................13 Figure 5.1 Line Conducted............................................................................................14 Figure 5.2 Neutral Conducted ......................................................................................15 Figure 7.1 Top View.......................................................................................................20 Figure 7.2 Bottom View .................................................................................................21 Figure 7.3 Front View....................................................................................................22 Figure 7.4 Rear View .....................................................................................................23 Figure 7.5 Open View ....................................................................................................24 Figure 7.6 PCB Component Side .........................................................…

Text truncated - open the document above for the full version.

FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 11 Figure 3.2 Radiated Front Figure 3.3 Radiated Rear FCC ID: ASIJ7R001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 12 Figure 3.4 Conducted Front Figure 3.5 Conducted Rear
