ASIJ7R002900MHz Cordless Headset

HA-W1000RF - J/C CORDLESS STEREO HEADPHONES Printed in China LNT0017-001A © 2003 VICTOR COMPANY OF JAPAN, LIMITED CORDLESS STEREO HEADPHONES CASQUE STEREO SANS FIL AURICULARES ESTÉREO INALÁMBRICOS HA-W1000RF - J/C INSTRUCTIONS MANUEL D’INSTRUCTIONS MANUAL DE INSTRUCCIONES LNT0017-001A À l'usage du client : Inscrivez ci-dessous le n° de modèle et le n° de série qui se trouvent sur le fond du coffret. Conservez ces informations pour pouvoir vous y reporter ultérieurement. N° de modèle N° de série For Customer Use : Enter below the Model No. and Serial No. which are located on the bottom of cabinet. Retain this information for future reference. Model No. Serial No. 2 Hearing Comfort and Well-Being  Do not play your headphones at a high volume. Hearing experts advice against continuous extended play.  If you experience a ringing in your ears, reduce volume or discontinue use. Traffic safety  Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many area.  You should use extreme caution or temporarily discontinue use in potentially hazardous situations.  Even though your headphones are of the open-air type designed to let you hear outside sounds, don’t turn up the volume so high that you can’t hear what’s around you. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION:Changes or modifications not approved by JVC could void user’s authority to operate the equipment. Contact Address:JVC AMERICAS CORP. JVC COMPANY OF AMERICA 1700 Valley Road, Wayne, N.J. 07470 Telephone: 1 (973) 317-5000 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC INFORMATION 3 This device complies with RSS-210 of the IC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation of the device. CAUTION:Changes or modifications not approved by JVC could void user’s authority to operate the equipment. Contact Address:JVC CANADA INC. 21 Finchdene Square, Toronto, ON M1X 1A7 Telephone: (416) 293-1311 e-mail: [email protected] Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Industry Canada’s RSS-210. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. IC INFORMATION Cet appareil est conforme à la RSS-210 du réglement de la IC. Le fonctionnement est sujet aux deux conditions suivantes: (1) Cet appareil ne peut causer d’interférences nuisi-bles (3) Cet appareil reçoit toute interférence même les interférences qui peuvent occasioner un mauvais fonctionnement. ATTENTION:Les changements ou les modifications non approuvés par JVC risquent de retirer à l'utilisateur le droit d'utiliser l'appareil. Contact Adresse:JVC CANADA INC. 21 Finchdene Square, Toronto, ON M1X 1A7 Téléphone: (416) 293-1311 e-mail: [email protected] Remarque : L'appareil a été testé et jugé conforme aux limites des appareils numériques de classe B, aux termes de la réglementation RSS-210 de l'industrie du Canada. Ces limites ont pour but d'assurer une protection raisonnable contre les interférences parasites lorsque l'appareil est utilisé dans une installation résidentielle. Cet appareil engendre, utilise et peut émettre une énergie radioélectrique et, s'il n'est pas installé et utilisé en stricte conformité avec ces instructions, il peut provoquer des interférences parasites dans les liaisons radiophoniques. Ceci ne garantit pas pour autant qu'une installation particulière n'émettra aucune interférence. Si l'appareil engendre des interférences parasites avec la réception radio ou télévision, ce qui pourra être déterminé en éteignant puis en rallumant l'appareil, il est conseillé à l'utilisateur d'essayer de corriger les interférences en prenant l'une des mesures ci-dessous:  Modifier l'orient…

Text truncated - open the document above for the full version.

11 1 1 FILTER IF TUNNING 2.4VNI-CAD POWERAMP UHFMODULE FILTER Charge IC6 IC2 IC3 <Doc> <RevCode > JVC HA-W1000RF RX BLOCK DIAGRAM A4 11 Friday, June 14, 2002 TitleSize Document Number Rev Date: Sheet of LS1SPEAKER LS2SPEAKER ANT1ANTENNA

Mike Kuo From: [email protected] Sent: November06 2003 Thursday 6:35 PM To: [email protected] Subject: Re: VICTOR COMPANY OF JAPAN LTD., FCC ID:ASIJ7R002, AN03T3283 11/14/2003 In a message dated 11/5/2003 3:38:01 PM Eastern Standard Time, [email protected] writes: Question #1: Proposed FCC ID label does not include FCC ID number but includes FCC DoC logo which is applicable for FCC declaration of conformity procedures. By submitting this application to TCB, the applicant is desired to utilize FCC equipment authorization procedures so the FCC DoC logo does not apply to this device. Please remove FCC DoC logo from FCC ID label format and include FCC ID number on the FCC ID label format. Please submit revised FCC ID label format and revise the section 2 of test report. Revised in the new report and FCC ID label. Question #2: This device is equipped with rechargeable battery. Please perform AC line conducted tests and submit the test data. Added in the report with CISPR new testing result. Question #3: Please submit theory of operation or operational description to show that this device is superregenerative receiver. Waiting for Client's letter. Question #4: Section 1.7 of test report, please make necessary correction. What is cQ5KNnt for ? Corrected in the report. Question #5: What is the upper frequency investigated during radiated spurious emission tests ? Up to 10GHz. Stated in the report. Question #6: TCB application form indicates that this receiver is operating in the frequency range from 418-418MHz. Based upon the description of the device, the fundamental frequency of this receiver shall be tuned in the range of 906-908MHz. Please confirm. Tuned range will be 906-908MHz. 10.6MHz and 418MHz are only the OSC frequencies. No need to specify the operating frequency as 418MHz. Question #7: Please provide additional internal photo by removing the metal plate . See new internal photos attached. REGARDS, WEI

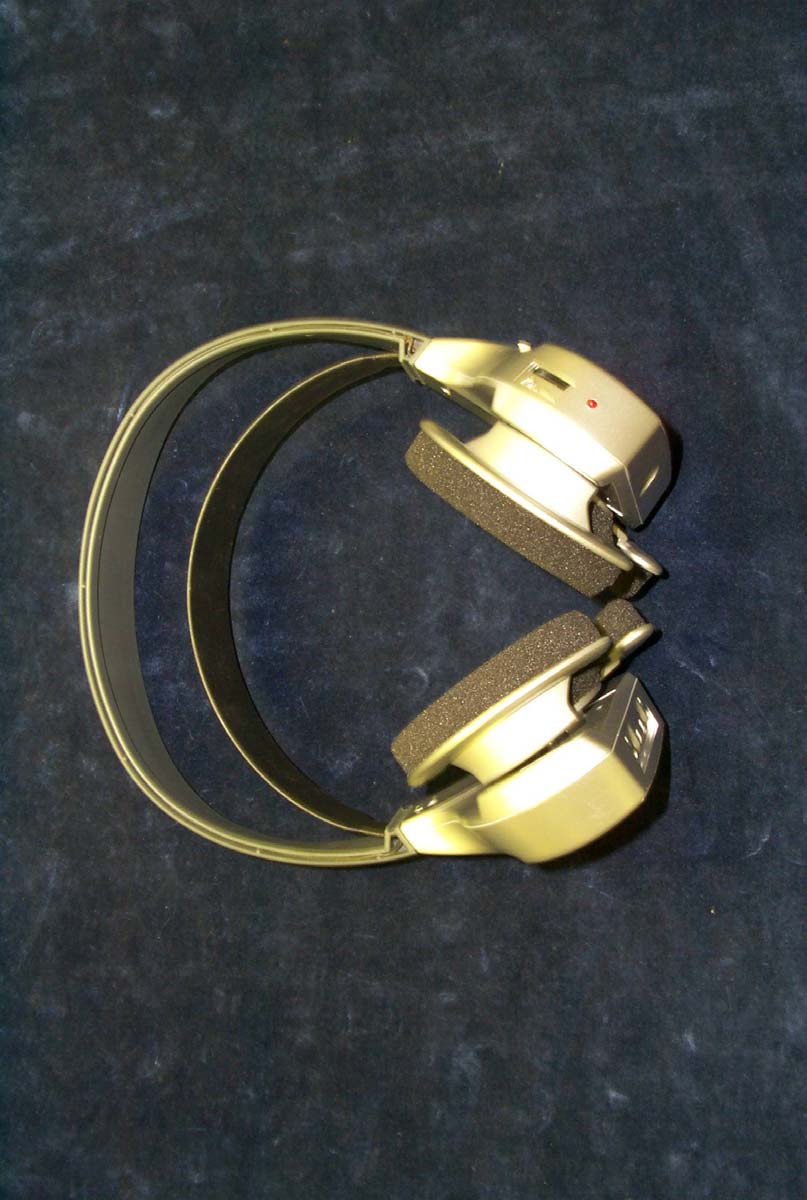

FCC ID: ASIJ7R002 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 15 Figure 7.1 Front View FCC ID: ASIJ7R002 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 16 Figure 7.2 Rear View

FCC ID: ASIJ7R002 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 8 2. PRODUCT LABELING Figure 2.1 FCC ID Label Figure 2.2 Location of the Label FCC LABEL This device complies with part 15 of the FCC Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: ASIJ7R002

FCC ID: ASIJ7R002 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 21 Figure 7.3 Left Side Open View FCC ID: ASIJ7R002 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 22 Figure 7.4 Right Side Open View FCC ID: ASIJ7R002 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 23 Figure 7.5 Right Side PBC Component Side FCC ID: ASIJ7R002 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 24 Figure 7.6 Right Side PBC Foil Side FCC ID: ASIJ7R002 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 25 Figure 7.7 Right Side Metal Box Open View

Model : JVC HA-W1000F Operation circuit description Transmitter Audio signal input from JK201 and JK204 or JK202, then input to IC200, IC200 is a preamplifier with automatic sound level control, L200 and L201 are low pass filter make audio frequency under 19Khz, then audio signal input to IC204, IC204 is a sound signal processor, SW202 is to control the sound quality –“trubass” or” wow” enable or not, then audio signal input to IC1, IC1 is a MPX encoder make left and right audio signal mix together and modulate, then input to Q2, Q2 is a VCO which generate 900Mhz RF signal, Q1 is a buffer make RF signal more strong, Q3 is a power amplifier which increase the RF power then pass a low pass filter transmit the RF signal through antenna. VR1 and VR3 are for RF frequency range setting and select by S200, S200 is a channel switch select CH1 or CH2. Q206 is preamplifier for MK200, MK200 is a condenser microphone, S201 is a press switch to select the transmit signal is voice or music. Q203, Q208 and IC203 is an automatic power on off circuit, when no audio signal input over 90 seconds, the unit will auto off, when audio signal comes again, the unit will auto switch on, green led D202A will light on again, which is an operating index. IC202, Q204 and Q207 are a battery charger circuit, which will automatic charge the battery when put the receiver on the unit and red led D202B blinking means the battery is fully charged. Receiver RF signal receive from antenna, X4 is a filter which reject most of un-want frequency, Q9 is a RF amplifier which increase RF signal go to the mixer – Q11 also Q1 and X1 is an oscillator which generate the fixed LO frequency to Q11 and mix with RF signal then go to IC2, IC2 is an inter – frequency stage include stereo MPX decoder, it demodulate the MPX signal return to original left and right audio signal, IC6 is a auto scan frequency circuit, it make IC2 at correct frequency to receive RF signal, the left and right audio signal go to IC3, which is a power amplifier, it makes enough power to drive the speaker LS1 and LS2, 2VR1 is a sound volume control. Q10 and Q14 is a lock circuit to lock the correct channel. Q201 is a mute circuit, when receiver does not in correct channel, the speaker will not come out any noise or sound. Power supply and ground Transmitter power is supplied by an external 7.5V 500mA AC/DC adaptor, no external connect is available for grounding, the printed circuit board traces are the only ground. Receiver power is supplied by a built in NiMH 2.4V battery pack.

55 44 33 22 11 D D C C B B A A Test-1 High RF inTest-2 Low RF inTest-7 VCCTest-6 GNDTest-3 StereoTest-4 R out Rout Lout Test-5 L out 2 16 28 11 6 23 3 30 20 5 17 1 21 4 15 29 18 25 IC2CXA1538M 10 27 26 8 13 9 722 RoutLout JVC 900Mhz RX R L <Doc> 1.01 JVC 900Mhz Headphone A3 11 Wednesday, September 03, 2003 TitleSize Document Number Rev Date: Sheet of X310.7M C1510p C1610p + 2C34U7 C50 25p C18 25p C8100p R2510k C411u C494p R12330 C401u 2C110.022u 2C120.022u 2C80.1u + 2C9220u + C254U7 Q143904 L312nH + C271U 2R25k2R15k 2C180.01u + 2C5100u 30k2R4 30k2R3 C750.01u C94p L1212nH + 2C7220u R24330K R48 180k R14100K C134700p C141000p IC6 74LV4060 456 7 101112 1314 15 16 9 8 Q5Q4Q6 Q3 RTCRSMR Q8 Q7 Q9 VCC CTC GND R51 30k R5515kR5715kR5815kR5215kR5915kR5615k R6722k 2VR1A 100k + 2C6220u R684k7 2VR1B 100k R27180k R26 1k L9120nH C76100p D34148 T2 R312K2 C771p R60 30kR61 30kR62 30kR63 30kR64 30k C88 1000p L115nH C8310p X1418Mhz + C261U + C284U7 R6530k + C3110U + C2933U Q95508 R291k D44148 IC1 1V5 3 1 2 VI VO GND R4927K Q13356 C123p R50330 + C320.47u C300.01U R5327K L15 15nH Q115508C810.01U C240.1U + C2310U R54330 C391p L1615nH + C334U7 R342k2 R6630k 2Q13906 2C16 2u2 2C17 2u2 LS132ohm C44 100u LS232ohm C840.01u C20 1000p C173P* ANT1 1 VR55K R323K3 R332K2 D2BB133 2R815k IC3LM4809 2 71 3 5 4 6 8 IN1 OUT2OUT1 BY PASS MUTE GND IN2 VCC 2C14 1u 2R10 1k2R11 1k C190.001u 2C13 1u 2R7 4k7 R6968k C564u72C22u22C12u2 C310p 2L1 1mH 2R6 10k 2L2 1mH C23P* 2C190.01u R1 18k R4100 R282k T1 R11100 C87 4p 2C15 22u R163k3 R153k3 X210.7MHz C350.015u C340.015u 1002R9 C520.01uC514p 2D1 RED C215p D5BB133 R7015k S3SW MICRO L215nH C800.01u Q103906 R7122k BT1 # R723k3 D64148 Test-1 Test-7 Test-3 Test-4Test-5Test-6 Test-2 Charge +Charge -

ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of 900MHZ CORDLESS HEADPHONE MODEL: HA-W1000RF FCC ID: ASIJ7R002 September 5, 2003 This report concerns (check one): Original grant x Class II change Equipment type: Superregenerative Receiver Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: VICTOR COMPANY OF JAPAN LTD. Report prepared by: Advanced Compliance Lab Report number: 0048-030718-02-RX The test result in this report IS supported and covered by the NVLAP accreditation 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Com pliance Laboratory FCC ID: ASIJ7R002 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 2 Table of Contents Report Cover Page .........................................................................................................1 Table of Contents ...........................................................................................................2 Figures.............................................................................................................................3 1. GENERAL INFORMATION ...................................................................................4 1.1 Verification of Compliance .........................................................................4 1.2 Equipment Modifications............................................................................5 1.3 Product Information....................................................................................6 1.4 Test Methodology.........................................................................................6 1.5 Test Facility ..................................................................................................6 1.6 Test Equipment ............................................................................................6 1.7 Statement of the Document Use..................................................................7 2. PRODUCT LABELING............................................................................................8 3. SYSTEM TEST CONFIGURATION ......................................................................9 3.1 Justification ..................................................................................................9 3.2 Special Accessories.......................................................................................9 3.3 Configuration of Tested System .................................................................9 4. SYSTEM BLOCK DIAGRAM.................................................................................12 5. CONDUCTED EMISSION DATA ..........................................................................13 5.1 Test Methods and Conditions .....................................................................13 5.2 Test Data .......................................................................................................14 6. RADIATED EMISSION DATA ...............................................................................16 6.1 Field Strength Calculation ..........................................................................16 6.2 Test Methods and Conditions .....................................................................16 6.3 Test Data .......................................................................................................16 7. PHOTOS OF TESTED EUT ....................................................................................18 FCC ID: ASIJ7R002 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 3 Figures Figure 2.1 FCC ID Label...............................................................................................8 Figure 2.2 Location of Label on Back of the EUT ......................................................8 Figure 3.1 Radiated Front .............................................................................................10 Figure 3.2 Radiated Rear ..............................................................................................10 Figure 3.3 Conducted Front..........................................................................................11 Figure 3.4 Conducted Rear ...........................................................................................11 Figure 4.1 System Block Diagram ................................................................................12 Figure 5.1 Line Conducted............................................................................................14 Figure 5.2 Neutral Conducted ......................................................................................15 Figure 7.1 Front View....................................................................................................19 Figure 7.2 Rear View .....................................................................................................20 Figure 7.3 Left Side Open View....................................................................................21 Figure 7.4 Right Side Open View .................................................................................22 Figure 7.5 Right Side PBC Component Side ...............................................................23 Figure 7.6 Right Side PBC Foil Side ............................................................................24 Figure 7.7 Right Side Metal Box Open View...............................................................25 FCC ID: ASIJ7R002 ————————…

Text truncated - open the document above for the full version.

FCC ID: ASIJ7R002 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 10 Figure 3.2 Radiated Front Figure 3.3 Radiated Rear
