ASIJ7V003WIRELESS STEREO HEADSET

BLUETOOTH STEREO HEADSETBLUETOOTH STEREO HEADSETBLUETOOTH STEREO HEADSETHA-W700BT -J/C INSTRUCTIONS MANUEL D’INSTRUCTIONS MANUAL DE INSTRUCCIONES 1. To reduce the risk of electrical shocks, fire, etc.: ● Do not remove screws, cover or cabinet. ● Do not expose this appliance to rain or moisture. 2. For your safety... ● Never use the unit when driving a car, motorcycle, or bicycle. This could result in an accident. ● Pay special attention to traffic around you when using the headphones outside. Failure to do so could result in an accident. ● Be careful not to turn up the sound volume too high. Your hearing can be damaged from listening to sounds at excessive volume for long periods. ● Do not disassemble or modify the unit. ● Do not allow flammable, water or metallic objects to enter the unit. ● If you find skin problems where the headphones are in contact with the skin, stop using the headphones; otherwise, it may cause inflammation or irritation to the skin. ● In dry air such as in winter, you may feel a static shock when using the headphones. 3. Avoid using the headphones... ● in places subject to excessive humidity or dust ● in places subject to extremely high (over 40°C or 104°F) or low (under 0°C or 32°F) temperatures 4. DO NOT leave the unit... ● exposed to direct sunlight ● near a heater 5. To protect the unit, DO NOT... ● allow them to get wet ● shake them or drop them against hard objects Thank you for purchasing this JVC product. Before you begin operating this unit, please read the operating instructions careful ly to be sure you get the best possible performance. If you have any questions, consult your JVC dealer. 6. For using the headphones...● Attach the ear pieces firmly when replacing them; otherwise, the ear pieces may be left in your ears when taking the headphones off. If the ear piece is left in your ear, be careful not to push it deep into the ear canal. Be careful not to apply the power that exceeds the headphones’ input capacity. This may result in sound distortion and could damage the oscillation board. Grasp and pull the plug itself to disconnect the headphones. Do not pull on the cord. When the ear pieces get dirty, detach the ear pieces and wash them in water-diluted detergent. After washing, dry the ear pieces and attach to the headphones. Replace the ear pieces when: they lose its elasticity; they are stained badly; they are broken or deformed. The ear pieces will deteriorate with age even in normal use and maintenance. Store the ear pieces in a place where children cannot reach to avoid the risk of the accident such as swallowing them. ● When using canal type headphones, you may hear the sound of cord rubbing together or the sound of vibrations which travels through your body when walking. 7. For safe use of battery... ● Use only the supplied charging unit to charge the battery. ● Be sure to use the supplied AC adaptor. ● There are no serviceable parts inside. Consult your dealer to replace the built-in battery. ● When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly. English Listening to Music Preparation: • Make sure that the Bluetooth device can transmit music through the Bluetooth connection (compatible with the A2DP profile of Bluetooth ) • Finish pairing between the unit and the Bluetooth device. • Turn on the Bluetooth device. 1 Turn on the unit.2 Execute the Bluetooth (A2DP) connection on the Bluetooth device. • Refer also to the instruction manual supplied for the target device.• If the connection is not completed within five minutes, this unit goes to power saving mode. In this case, repeat the procedure from step 1. 3 Start playback on the Bluetooth device. • Set the connected Bluetooth device so that the device emits the sound through the Bluetooth stereo headphones. 4 Adjust the volume by tilting the control switch up or down. Basic controls available for the device: Button Press Press and hold 6 Play/pause Stop * ¢ Skip (to the next) Search (to forward) * 4 Skip (to the previous) Search (to backward) * * Not available for some devices.• You can perform some of the Bluetooth device operations with the control switch of the unit if the device is compatible with the AVRCP profile. The operations you can do may vary depending on the device you use. Refer also to the instruction manual supplied for the target device to see the available operations. To stop using the unit Disconnect the Bluetooth connection on the Bluetooth device and turn off the unit. For the better sound and comfort fit of the headphonesThe medium-size ear pieces are attached to the supplied headphones when purchased.You may not enjoy the bass sound fully if the ear pieces are not fit to your ears. To enjoy better sound while reducing sound leakage and getting full noise canceling effect, choose the ear pieces from the supplied three sizes (Small, Medium, or Large) and adjust their positions to fit them to your ears. Troubleshooting What appears to be trouble is not always serious. Check the following points before consult your JVC dealer.Cannot pair the devices.☞ You cannot pair the Bluetooth device having receiving function only. ☞ Bring the devices as closer as possible. Cannot connect the devices.☞ Pairing is incomplete. Perform the pairing again. ☞ Check that the Bluetooth communication function is activated in the Bluetooth device. The sound is intermittent/The communication range is small.☞ Although Bluetooth wireless technology can transmit the contents within the range of approx. 10 m, obstacles (human bodies, metallic objects, wall, etc.) or radiowave condition may affect the sound and decrease its range. ☞ The sound may be intermittent in the following cases. Avoid the following conditions when you use this unit. – Places where the wireless local area network is applied.– Near the microwave oven.– Near the other Bluetooth devices. – Places where the r…

Text truncated - open the document above for the full version.

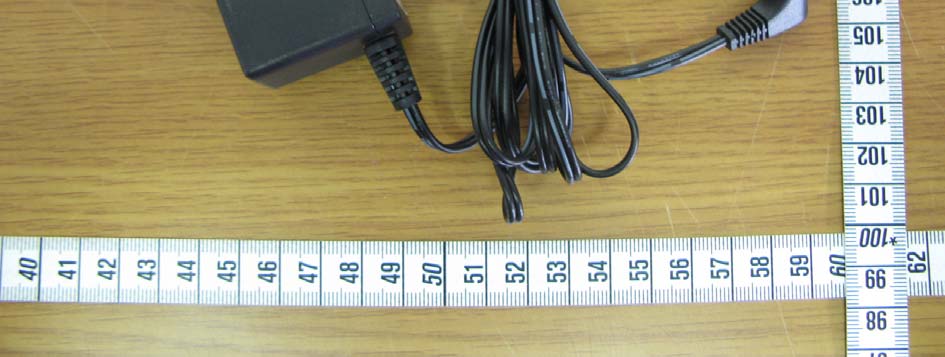

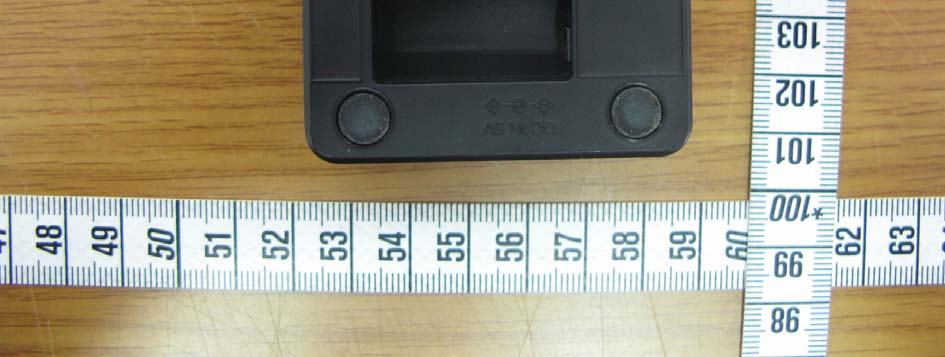

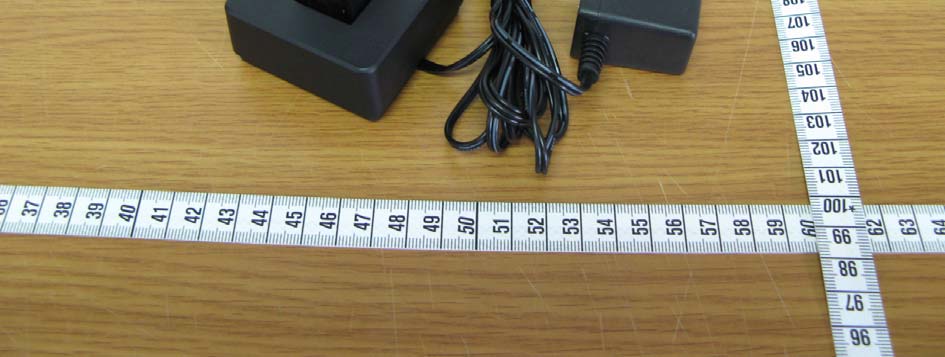

Model No.: HA-W700BT FCC ID: ASIJ7V003 Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 6 Model No.: HA-W700BT FCC ID: ASIJ7V003 Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 6 Model No.: HA-W700BT FCC ID: ASIJ7V003 Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 6 Model No.: HA-W700BT FCC ID: ASIJ7V003 Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 6 Model No.: HA-W700BT FCC ID: ASIJ7V003 Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 6 Model No.: HA-W700BT FCC ID: ASIJ7V003 Copyright ○ c 2007, LTA Co., Ltd. Page 6 of 6

Model No.: HA-W700BT FCC ID: ASIJ7V003 Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 5 Model No.: HA-W700BT FCC ID: ASIJ7V003 Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 5 Model No.: HA-W700BT FCC ID: ASIJ7V003 Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 5 Model No.: HA-W700BT FCC ID: ASIJ7V003 Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 5 Model No.: HA-W700BT FCC ID: ASIJ7V003 Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 5

Ref. No.: LR500190708A Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 31 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: August 06 ~ 10, 2007 Test Report S/N: LR500190708A Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. / IC APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : WIRESESS STEREO HEADSET Manufacturer : SAMBON PRECISION & ELECTRONICS CO., LTD Model name : HA-W700BT Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 RSS-210, Issue 7: 2007 Frequency Range : 2402 ~ 2480MHz RF power Class : 0.0021 W - Conducted Emission designator : 885KF1D Data of issue : August 28, 2007 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 ASIJ7V003 / 2320A-HAW700BT Victor Company of Japan Ltd Ref. No.: LR500190708A Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 31 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TTANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND – EDGE ----------------------------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.8 AC CONDUCTED EMISSIONS -------------------------------------------------------------- 3.2.9 THE SPURIOUS EMISSION OF THE RECEIVER ---------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 11 14 16 18 23 26 29 30 Ref. No.: LR500190708A Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 31 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2007-09-30 ECT accredited Lab. RRL KOREA KR0049 2009-06-20 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500190708A Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 31 2. Information’s about test item 2-1 Applicant Company name : Victor Company of Japan Ltd Address : 12,3-chome, Moriya-cho,Kanagawa-ku,Yokohama,Kanagawa,221-8528, Japan Tel / Fax : +81-46-278-1804 / +81-46-278-1807 2-2 Manufacturer List Company name : SAMBON PRECISION & ELECTRONICS CO., LTD Address : 204,Samjeong-dong,Ojeong-gu,Bucheon-City,Kyeonggi-Do,Korea Tel / Fax : +82-32-683-7300 / +82-32-672-7300 2-3 Equipment Under Test (EUT) Trade name : WIRESESS STEREO HEADSET FCC ID : ASIJ7V003 IC : 2320A-HAW700BT Model name : HA-W700BT Serial number : Identical prototype Date of receipt : August 06, 2007 EUT condition : Pre-production, not damaged Antenna type : Chip antenna, Gain 0dBi typ. Frequency Range : 2402 ~ 2480MHz RF output power Range : 0.0021 W - Conducted Number of channels : 79 Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Type of Modulation : GFSK Power Source : 3.7V (Li-Polymer Rechargeable) 2-4 Tested frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer - - - - - - - - Ref. No.: LR500190708A Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 31 3. Test Report 3.1 Summary of tests FCC Part Section(s) RSS-210 Section Parameter Limit Test Condition Status (note 1) 15.247(a) A8.1 (2) Carrier Frequency Separation > 25 kHz C 15.247(a) A8.1 (4) Number of Hopping Frequencies > 75 hops C 15.247(a) A8.1 (1) 20 dB Bandwidth < 1 MHz C 15.247 A8.1 (4) Dwell Time < 0.4 seconds C 15.247(b) A8.4 (2) Transmitter Output Power < 1Watt C 15.247(d) A8.5 Conducted Spurious emission > 20 dBc C 15.247(d) A8.5 Band Edge > 20 dBc Conducted C 15.249 / 15.209 A8.5 Field Strength of Harmonics < 54 dBuV (at 3m) C 15.109 - Field Strength - Radiated C 15.207 /15.107 - AC Conducted Emissions EN 55022 Line Conducted C - 2.6 Spurious Emission of the Receiver RSS-210 Table2 Radiated C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 RSS-210, Issue 7:2007 Ref. No.: LR500190708A Copyright ○ c 2007, LTA Co., Ltd. Page 6 of 31 3.2 Transmitter require…

Text truncated - open the document above for the full version.

FCC ID: ASIJ7V003 Copyright Ⓒ 2007, LTA Co., Ltd. Radiated Emission FCC ID: ASIJ7V003 Copyright Ⓒ 2007, LTA Co., Ltd. Radiated Emission FCC ID: ASIJ7V003 Copyright Ⓒ 2007, LTA Co., Ltd. Conducted Emission
