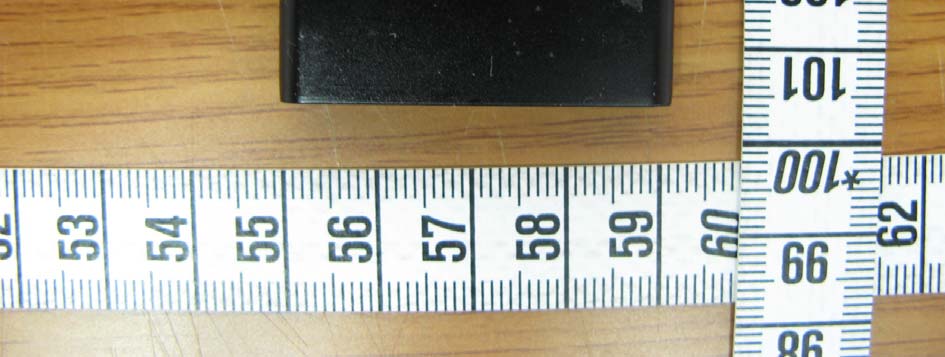

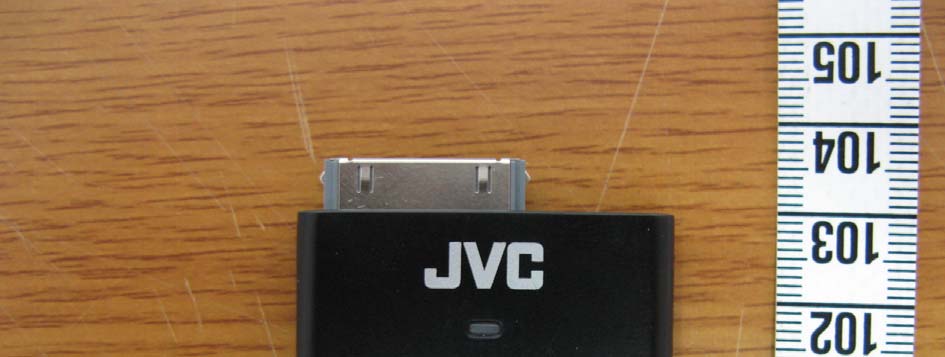

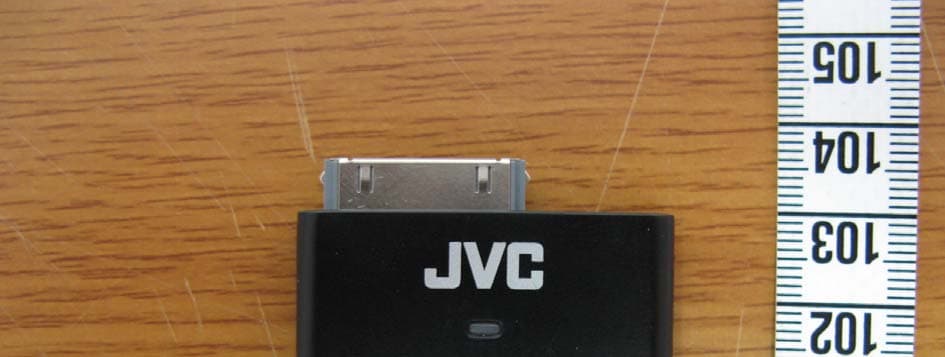

ASIJ7V004Bluetooth Transmitter

Parts name INSTRUCTIONS MANUEL D’INSTRUCTIONS MANUAL DE INSTRUCCIONES BLUETOOTH TRANSMITTERBLUETOOTH TRANSMITTERBLUETOOTH TRANSMITTERAA-T100BT -J/C© 2007 Victor Company of Japan, Limited Printed in China LNT0097-001A FCC INFORMATIONThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference(2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not approved by JVC could void user’s authority to operate the equipment.ContactAddress: JVC AMERICAS CORP. JVC COMPANY OF AMERICA 1700 Valley Road, Wayne, N.J. 07470 Telephone: 1 (800) 252-5722Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.IC INFORMATIONThis device complies with RSS-210 of the IC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference(2) This device must accept any interference received, including interference that may cause undesired operation of the device. CAUTION: Changes or modifications not approved by JVC could void user’s authority to operate the equipment.ContactAddress: JVC CANADA INC. 21 Finchdene Square, Toronto, ON M1X 1A7 Telephone: (416) 293-1311e-mail: [email protected]: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Industry Canada’s RSS-210. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.INFORMATION SUR ICCet appareil est conforme à la RSS-210 du réglement de la IC. Le fonctionnement est sujet aux deux conditions suivantes:(1) Cet appareil ne peut causer d’interférences nuisi-bles(2) Cet appareil reçoit toute interférence même les interférences qui peuvent occasioner un mauvais fonctionnement. ATTENTION: Les changements ou les modifications non approuvés par JVC risquent de retirer à l’utilisateur le droit d’utiliser l’appareil.ContactAdresse: JVC CANADA INC. 21 Finchdene Square, Toronto, ON M1X 1A7 Téléphone: (416) 293-1311e-mail: [email protected]: L’appareil a été testé et jugé conforme aux limites des appareils numériques de classe B, aux termes de la réglementation RSS-210 de l’industrie du Canada. Ces limites ont pour but d’assurer une protection raisonnable contre les interférences parasites lorsque l’appareil est utilisé dans une installation résidentielle. Cet appareil engendre, utilise et peut émettre une énergie radioélectrique et, s’il n’est pas installé et utilisé en stricte conformité avec ces instructions, il peut provoquer des interférences parasites dans les liaisons radiophoniques. Ceci ne garantit pas pour autant qu’une installation particulière n’émettra aucune interférence. Si l’appareil engendre des interférences parasites avec la réception radio ou télévision, ce qui pourra être déterminé en éteignant puis en rallumant l’appareil, il est conseillé à l’utilisateur d’essayer de corriger les interférences en prenant l’une des mesures ci-dessous:• Modifier l’orientation ou changer l’emplacement de l’antenne de réception.• Eloigner davantage l’appareil du récepteur.• Brancher l’appareil dans une prise d’un circuit différent de celui auquel le récepteur est raccordé. • Demander l’aide de son agent ou d’un technicien radio/télévision qualifié. ENGLISHThis product’s performance would be degraded under a strong electro-static environment. And the function would be self-recoverable after the above case.This product’s performance would be degraded since the disturbance from the mains cord. And the function would be self-recoverable after the above case.FRANÇAISLes performances de ce produit se détérioreront dans un environnement fortement électro-statique. Par ailleurs, le fonctionnement se restaurera de lui-même dans le cas ci-dessus.Les performances de ce produit se détérioreront en cas de perturbations du cordon d’alimentation. Par ailleurs, le fonctionnement se restaurera de lui-même dans le cas ci-dessus.ESPAÑOLEl rendimiento de este producto puede deteriorarse en un entorno con campos electrostáticos fuertes. El f…

Text truncated - open the document above for the full version.

Victor Company of Japan Ltd 12,3-chome, Moriya-cho,Kanagawa-ku,Yokohama,Kanagawa, 221-8528, Japan Tel. +81-46-278-1804 August 28, 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Victor Company of Japan Ltd FCC ID : ASIJ7V004 Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (File name: [ASIJ7V004] SCH.pdf), Parts list(File name: [ASIJ7V004] PL.pdf), Block diagram (File name: [ASIJ7V004] BLK.pdf), and Operational description (File name: [ASIJ7V004] Op Des.pdf). The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, __________________________ Nobuyuki Sudo General Manager, Engineering Dept. JVC Accessories Category

Model No.: AA-T100BT FCC ID: ASIJ7V004 Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 3 Model No.: AA-T100BT FCC ID: ASIJ7V004 Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 3 Model No.: AA-T100BT FCC ID: ASIJ7V004 Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 3

Model No.: AA-T100BT FCC ID: ASIJ7V004 Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 2 Model No.: AA-T100BT FCC ID: ASIJ7V004 Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 2

Ref. No.: LR500190708B Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 28 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: August 06 ~ 10, 2007 Test Report S/N: LR500190708B Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. / IC APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : WIRELESS TRANSMITTER Manufacturer : SAMBON PRECISION & ELECTRONICS CO., LTD Model name : AA-T100BT Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 RSS-210, Issue 7: 2007 Frequency Range : 2402 ~ 2480MHz RF power Class : 0.0018 W - Conducted Emission designator : 893KF1D Data of issue : August 28, 2007 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 ASIJ7V004 / 2320A-AAT100BT Victor Company of Japan Ltd Ref. No.: LR500190708B Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 28 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TTANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND – EDGE ----------------------------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.8 AC CONDUCTED EMISSIONS -------------------------------------------------------------- 3.2.9 SPURIOUS EMISSION OF THE RECEIVER ---------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 11 14 16 18 23 26 29 30 Ref. No.: LR500190708B Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 28 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2007-09-30 ECT accredited Lab. RRL KOREA KR0049 2009-06-20 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500190708B Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 28 2. Information’s about test item 2-1 Applicant Company name : Victor Company of Japan Ltd Address : 12,3-chome, Moriya-cho,Kanagawa-ku,Yokohama,Kanagawa,221-8528, Japan Tel / Fax : +81-46-278-1804 / +81-46-278-1807 2-2 Manufacturer List Company name : SAMBON PRECISION & ELECTRONICS CO., LTD Address : 204,Samjeong-dong,Ojeong-gu,Bucheon-City,Kyeonggi-Do,Korea Tel / Fax : +82-32-683-7300 / +82-32-672-7300 2-3 Equipment Under Test (EUT) Trade name : WIRELESS TRANSMITTER FCC ID : ASIJ7V004 IC : 2320A-AAT100BT Model name : AA-T100BT Serial number : Identical prototype Date of receipt : August 06, 2007 EUT condition : Pre-production, not damaged Antenna type : Chip antenna, Gain 0dBi typ. Frequency Range : 2402 ~ 2480MHz RF output power Range : 0.0018 W - Conducted Number of channels : 79 Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Type of Modulation : GFSK Power Source : 3.3V from a iPod mp3 device system 2-4 Tested frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer iPod mp3 player A1199 6U642NYSVQ5 APPLE- - - - - Ref. No.: LR500190708B Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 28 3. Test Report 3.1 Summary of tests FCC Part Section(s) RSS-210 Section Parameter Limit Test Condition Status (note 1) 15.247(a) A8.1 (2) Carrier Frequency Separation > 25 kHz C 15.247(a) A8.1 (4) Number of Hopping Frequencies > 75 hops C 15.247(a) A8.1 (1) 20 dB Bandwidth < 1 MHz C 15.247 A8.1 (4) Dwell Time < 0.4 seconds C 15.247(b) A8.4 (2) Transmitter Output Power < 1Watt C 15.247(d) A8.5 Conducted Spurious emission > 20 dBc C 15.247(d) A8.5 Band Edge > 20 dBc Conducted C 15.249 / 15.209 A8.5 Field Strength of Harmonics < 54 dBuV (at 3m) C 15.109 - Field Strength - Radiated C 15.207 /15.107 - AC Conducted Emissions EN 55022 Line Conducted NA - 2.6 Spurious Emission of the Receiver RSS-210 Table2 Radiated C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The Power of device is operated by 3.3Vdc from a iPod mp3 device system. Note 3: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 …

Text truncated - open the document above for the full version.

FCC ID: ASIJ7V004 Copyright Ⓒ 2007, LTA Co., Ltd. Radiated Emission
