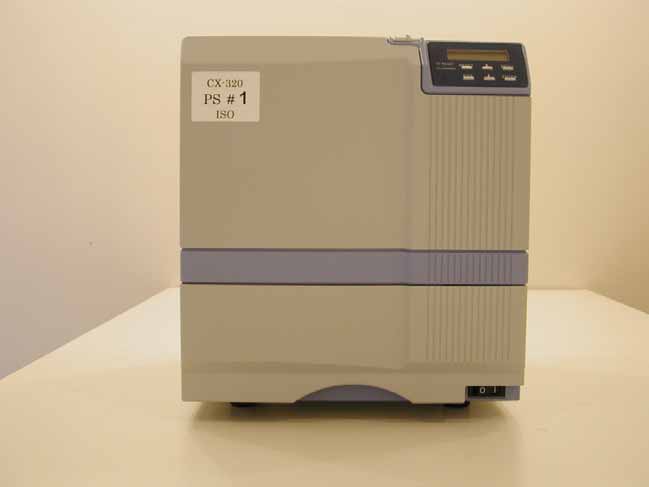

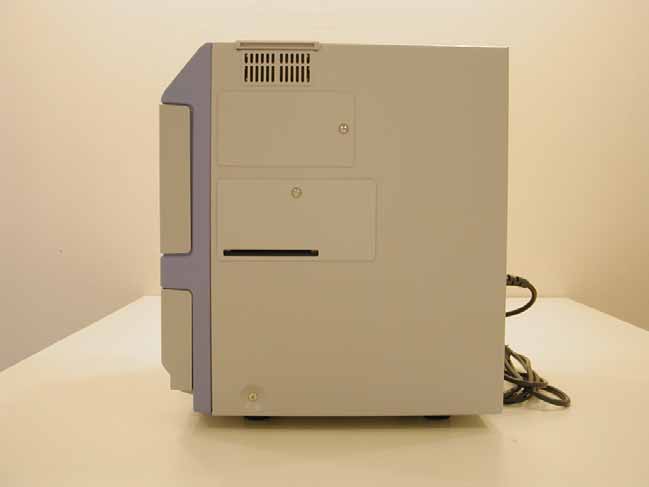

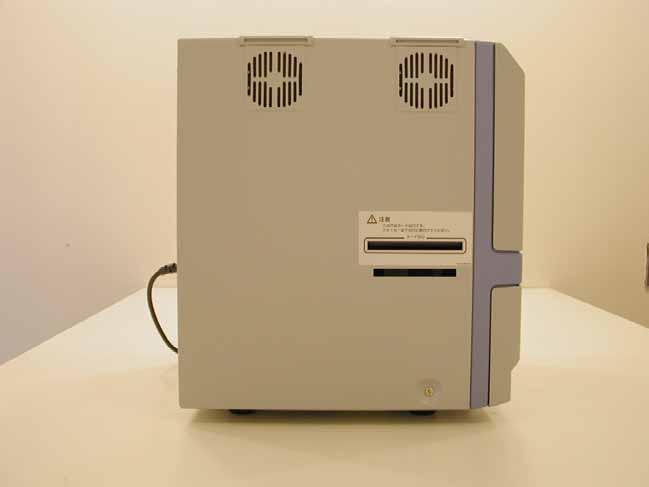

ASIK9T002Card Printer w/Built-in RFID Tag

KAT- T225-001 Jam (TurnOver) Jam (Hopper) HR is too hot. Please remove MEDIA FILM Please, Power Off. >Ink> >Cleaning >Counter Reset >Display> Ready MENU Instruction Manual Sublimation type retransfer printer CX320 Model Error codes Setting the cards Care Operation and Setting the various modes Ink replacementConnection *** See p.10~12,20See p.13~17See p.17~19 See p.23~33See p.34~38See p.40~42 •Thank for purchasing this product. •Please read this manual carefully before use to ensure correct operation. It is particularly important to read the Safety Precautions for safe operation. After reading, retain this manual carefully for future reference. •The product number is important for quality control. Upon purchase, check the back of the unit to make sure that the product number is correctly displayed. Notes about this manual (1) This manual may not be reprinted in any way without permission. (2) The contents of this manual, as well as the specifications and design of this product, may change without notice. (3) The illustrations used in this manual may differ slightly from the actual product. 2 Declaration of Conformity Model Number:CX-320yyyyy(y=A-Z,0-9 or blank) Product name:Card Printer We herewith declare that the above mentioned product complies with the following council directives and harmonized standards. Council Directives:1999/5/EC relating to radio equipment and telecommunications terminal equipment. 89/336/EEC relating to electromagnetic compatibility. 73/23/EEC relating to electrical equipment designed for use within certain voltage limits. Harmonized Standards: EN55022:1998+A1:2000+A2:2003 Class B EN55024:1998+A1:2001+A2:2003 EN61000-3-2:2000 EN61000-3-3:1995+A1:2001 EN60950-1:2001 EN50364:2001 EN300330-2:V1.1.1 EN301 489-03:V1.4.1 Manufacture: Victor Data Systems Co., Ltd. 2969-2, Ishikawa-cho, Hachioji-shi, Tokyo, 192-8620, Japan Importer and distributer: Year to begin affixing CE Marking: 2005 Hachioji-shi, July., 2005 Place, DateTateki Hisanaga General Manager-Quality Control Victor Data Systems Co., Ltd. 3 For USA only For Canada only Machine Noise Sound power level: less than 70 dB (A) according to DIN45635 part 19 (EN27779). The measurements are to be made according to DIN 45635 part 2019 or EN27779, respectively. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. For EU only NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursu- ant to part 15 the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep- tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is con- nected. – Consult the dealer or an experienced radio/TV technician for help. 4 Contents Before use ..................................................... 7 Product features .................................................... 7 Checking accessories............................................ 7 Handling of transfer film, ink ribbons and cards .... 7 Handling ............................................................. 7 Storage .............................................................. 7 Storing and handling cards after printing ........... 7 Purchasing print media and cards ..................... 7 Installation ............................................................. 8 Escape Clause ...................................................... 8 Installation diagram ............................................ 8 Names of parts .............................................. 9 Front................................................................... 9 Rear ................................................................... 9 When the printer door is open............................ 9 Set-up.......................................................... 10 Connecting the IC unit (sold separately) ............. 10 Large size IC unit (sold separately) ................. 10 Compact IC unit (sold separately).................... 11 Connecting the power cord.................................. 11 Installing the card stacker .................................... 12 Discharging the card ........................................ 12 Setting the ink ribbon ........................................... 13 Setting the retransfer film .................................... 15 Caution when loading the retransfer film cassette and/or the ink ribbon cassette ............................. 17 Setting cards........................................................ 17 Inserting cards ................................................. 18 When using magnetic cards............................. 19 When using contact IC cards ........................... 19 Loading cards .................................................. 19 Switching the card thickness............................ 19 Connecting with a host computer ........................ 20 Software Licencing Agreement .......................... 20 Operation Environment.......................…

Text truncated - open the document above for the full version.

Thisdevice complieswith Part15 oftheFCCRules.Operationis subject tothefollowingtwoconditions:(1)Thisdevice may not cause harmful interference,and(2)thisdevice mustaccept any interference received,includinginterference thatmaycauseundesiredoperation. ThisClassBdigitalapparatuscomplies withCanadian ICES-003. Cet appareilnumériquede laclasse B est conformelanorme NMB-003 duCanada. à KXC46285-002 (ID NO.) ID.NO. CX-320 Card Printer MODEL CX-320 SERIAL NO. FCC ID:ASIK9T002 IC:5702A-002

13.56MHz RFID Antenna RFID Tag

Product features This card printer allows printing of high-quality full color images equivalent to photographic quality onto standard size (ISO7810 compliance) plastic cards using sublimation type transfer printing. Able to print both side of a card. Use of sublimation type retransfer printing enables printing of cards other than those made of PVC and non-contact IC cards, etc. with uneven surfaces that were previously difficult to print directly. Lamination is possible by using optional laminator Purpose of using the radio device In this printer a special ink ribbon for sublimation type printing used. The ink ribbon bobbin has a RF-ID tag (passive type) built inside. The radio communication between the printer and the ink ribbon bobbin give the following functions, of which no user is informed 1. Discerning the type of ink ribbon This printer can automatically discern what type of ink ribbon is installed out of the various options, for example, both sides full color, one side full color rear side monochrome, and so on. 2. Managing the number of used picture frames in a ink ribbon. The information on the number of used/remained picture frames can be got by writing the number of used picture frame into the RFID tag, even when ink ribbons are exchanged.

Test Report No.: TR2-05038F Model: CX-320 FCC ID: ASIK9T002 EMC Kashima Corporation Page 1 of 22 1614, Mushihata, Omigawa-machi, Katori-gun, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373 http://www.emc-kashima.co.jp Rev.7.3F EMISSION -- TEST REPORT TEST REPORT No. : TR2-05038F Date of Issue: October 11, 2005 KIND OF EQUIPMENT : Card Printer MODEL : CX-320* (XIDi Printer*) * is an optional suffix up to 7 letters and/or numbers APPLICANT : Victor Company of Japan Ltd FCC ID : ASIK9T002 TEST STANDARD(S) : FCC Part 15 Subpart C, Section 15.225 TEST RESULT : Complied This test report with appendix consists of 22 pages. The test result only responds to the tested sample. It is not allowed to copy this report even partly without the written allowance of the test laboratory. The engineers of EMC Kashima Corporation were not involved in modification for the tested sample. TEST DATE(S) : September 20 - 22, 2005 TEST ENGINEER(S) : Kazuhiro Ando Manager APPROVED BY : Ken'ichi Suda Director Test Report No.: TR2-05038F Model: CX-320 FCC ID: ASIK9T002 EMC Kashima Corporation Page 2 of 22 1614, Mushihata, Omigawa-machi, Katori-gun, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373 http://www.emc-kashima.co.jp Rev.7.3F TABLE OF CONTENTS Page A) Documentation General Information 3 Summary of Test Result 4 Equipment Under Test (EUT) 5 Test Configuration 6 - 7 Test Facilities, Measurement Uncertainty and Symbols Definitions 8 Test Conditions 9 - 13 B) Test data Conducted Emissions 150 kHz - 30 MHz 14 Radiated Emissions 9 kHz - 30 MHz 15 - 16 Radiated Emissions 30 MHz - 1000 MHz 17 Frequency stability 18 20dB Bandwidth 19 C) Appendix The Photos of Test-Setup 20 - 22 Test Report No.: TR2-05038F Model: CX-320 FCC ID: ASIK9T002 EMC Kashima Corporation Page 3 of 22 1614, Mushihata, Omigawa-machi, Katori-gun, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373 http://www.emc-kashima.co.jp Rev.7.3F GENERAL INFORMATION APPLICANT : Victor Company of Japan Ltd ADDRESS : 3-12, Moriya-cho, Kanagawa-ku, Yokohama 221-0022, Japan MANUFACTURER : Victor Data Systems Co., Ltd. KIND OF EQUIPMENT : Card Printer MODEL : CX-320* (XIDi Printer*) * is an optional suffix up to 7 letters and/or numbers POWER RATING : AC100-120V 50/60Hz, 7.0A PROTECTION CLASS : Class I TESTING VOLTAGE : AC120V 60Hz CONDITION OF EUT : Pre-Production OPETATING FREQUENCY : 13.56MHz TYPE OF MODURATION : ASK OPETATING TEMPERATUR : 15 °C to 30 °C TEST STANDARD(S) : FCC Part 15 Subpart C, Section 15.225 TEST METHOD(S) : ANSI C63.4: 2003 TEST DATE(S) : September 20 - 22, 2005 REMARK(S) : Although CX-320* and XIDi Printer* are different in the model names, those specifications are entirely same. Test Report No.: TR2-05038F Model: CX-320 FCC ID: ASIK9T002 EMC Kashima Corporation Page 4 of 22 1614, Mushihata, Omigawa-machi, Katori-gun, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373 http://www.emc-kashima.co.jp Rev.7.3F SUMMARY OF TEST RESULT FCC Part 15 Section Test Item Worst margin Condition Result 15.203 Antenna requirement - - Pass Note1 15.207 Conducted emissions 9kHz - 30MHz 2.8dB at 0.3187MHz (Ave.) - Pass 15.225(a)(b)(c) Radiated emissions 9kHz - 30MHz 85.8dB at 13.56MHz Radiated Pass 15.225(d) Radiated emissions 9kHz - 30MHz 49.3dB at 27.12MHz Radiated Pass 15.225(d) 15.209 Radiated emissions 30MHz - 1GHz 11.8dB at 600.00MHz Radiated Pass 15.225(e) Frequency stability 0.008260% Radiated Pass 15.215(c) 20dB Bandwidth 3.86kHz Radiated Pass Note 1: This device has a permanently attached antenna. Note 2: “Pass” is only based on the measurement data and it does not include the measurement uncertainty. Accordingly, the statement below is applied to the test result. - The EUT complies with the limit required in the standard in case that the margin is not less than the measurement uncertainty in the Laboratory. - Compliance of the EUT is more probable than non-compliance is case that the margin is less than the measurement uncertainty in the Laboratory. Test Report No.: TR2-05038F Model: CX-320 FCC ID: ASIK9T002 EMC Kashima Corporation Page 5 of 22 1614, Mushihata, Omigawa-machi, Katori-gun, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373 http://www.emc-kashima.co.jp Rev.7.3F EQUIPMENT UNDER TEST Description of The EUT: Product features This card printer allows printing of high-quality full color images equivalent to photographic quality onto standard size (ISO7810 compliance) plastic cards using sublimation type transfer printing. Able to print both side of a card. Use of sublimation type retransfer printing enables printing of cards other than those made of PVC and non-contact IC cards, etc. with uneven surfaces that were previously difficult to print directly. Lamination is possible by using optional laminator. Purpose of using the radio device In this printer a special ink ribbon for sublimation type printing used. The ink ribbon bobbin has a RF-ID tag (passive type) built inside. The radio communication between the printer and the ink ribbon bobbin give the following functions, of which no user is informed. 1. Discerning the type of ink ribbon This printer can automatically discern what type of ink ribbon is installed out of the various options, for example, both sides full color, one side full color rear side monochrome, and so on. 2. Managing the number of used picture frames in an ink ribbon. The information on the number of used/remained picture frames can be got by writing the number of used picture frame into the RF-ID tag, even when ink ribbons are exchanged. Operation - mode of The EUT: The equipment under test was operated during the measurement under following conditions: - Transmit mode Test Report No.: TR2-05038F Model: CX-320 FCC ID: ASIK9T002 EMC Kashima Corporation Page 6 of 22 1614, Mushihata, Omigawa-machi, Katori-gun, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373 http://www.emc-kashima.co.jp Rev.7.3F TEST CONFIGURATION EUT(s) …

Text truncated - open the document above for the full version.

Test Report No.: TR2-05038F Model: CX-320 FCC ID: ASIK9T002 EMC Kashima Corporation Page 20 of 22 1614, Mushihata, Omigawa-machi, Katori-gun, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373 http://www.emc-kashima.co.jp Rev.7.3F THE PHOTOS OF TEST-SETUP Conducted Emission 150 kHz - 30 MHz (Mains ports) Test Report No.: TR2-05038F Model: CX-320 FCC ID: ASIK9T002 EMC Kashima Corporation Page 21 of 22 1614, Mushihata, Omigawa-machi, Katori-gun, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373 http://www.emc-kashima.co.jp Rev.7.3F THE PHOTOS OF TEST-SETUP Radiated Emission 9 kHz - 1000 MHz Test Report No.: TR2-05038F Model: CX-320 FCC ID: ASIK9T002 EMC Kashima Corporation Page 22 of 22 1614, Mushihata, Omigawa-machi, Katori-gun, Chiba-ken, 289-0341 Japan TEL +81-478-82-0963, FAX +81-478-82-3373 http://www.emc-kashima.co.jp Rev.7.3F THE PHOTOS OF TEST-SETUP Frequency Stability
