ASLMTX9Leisure Marine Radar

Raytheon Marine Company, Recreational Products, Portsmouth, England






  !"$#%& User’s Manual Note This User’s Manual for the Raytheon ’Pathfinder’ Scanner units includes the 10kW, 48" Open Array Scanner, the 4kW, 48" Open Array, 4kW Radome and 2kW Radome Scanners Pathfinder Radar Scanners Owner’s Handbook Document number: 81154_3 Date: Feb 2000 154_3cvr.p6513/12/99, 17:011 Prefacei Pathfinder Radar Scanners Owners Handbook February 2000 SAFETY NOTICES This radar equipment must be installed and operated in accordance with the instructions contained in this manual. Failure to do so can result in personal injury and/or navigational inaccuracies. In particular: 1. HIGH VOLTAGE. The scanner unit contains high voltages. Adjustments require specialised service procedures and tools only available to qualified service technicians – there are no user serviceable parts or adjustments. The operator should never remove the scanner unit internal covers or attempt to service the equipment. 2. ELECTROMAGNETIC ENERGY. The radar scanner transmits electromagnetic energy. It is important that the radar is turned off whenever personnel are required to come close to the scanner to perform work on the scanner assembly or associated equipment. It is recommended that the radar scanner is mounted out of range of personnel (above head height). Do not look directly at the antenna at close range as your eyes are the most sensitive part of the body to electromagnetic energy. When properly installed and operated, the use of this radar will conform to the requirements of ANSI/IEEE C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 Hz to 300 GHz and NRPB, Board Statement on Restrictions on Human Exposure to Static and Time Varying Electromagnetic Fields and Radiation, Doc NRPB, No. 5 (1993). 3. NAVIGATION AID. This radar unit is only an aid to navigation. Its accuracy can be affected by many factors, including equipment failure or defects, environmental conditions, and improper handling or use. It is the user’s responsibility to exercise common prudence and navigational judgements. This radar unit should not be relied upon as a substitute for such prudence and judgement. RAYTHEON MARINE products are supported by a network of Authorized Service Representatives. For information on Raytheon products and services, contact either of the following: 154_3pre.p6513/12/99, 17:011 ii Pathfinder Radar Scanners UNITED STATESRaytheon Marine Company Recreational Products 22 Cotton Road, Suite 280 Nashua NH 03063-4219, USA Telephone +1 603 881 5200 Fax +1 603 864 4756 www.raymarine.com EUROPERaytheon Marine Limited Anchorage Park Portsmouth Hampshire PO3 5TD England Telephone +44 (0)23 9269 3611 Fax +44 (0)23 9269 4642 www.raymarine.com Copyright © Raytheon Marine Company 1999 The technical and graphical information contained in this handbook, to the best of our knowledge, was correct as it went to press. However, the Raytheon policy of continuous improvement and updating may change product specifications without prior notice. As a result, unavoidable differences between the product and handbook may occur from time to time, for which liability cannot be accepted by Raytheon. Raytheon is a registered trademark of Raytheon Company. SeaTalk is a registered trademark of Raytheon Marine Europe Limited. HSB is a trademark of Raytheon Marine Company. Pathfinder is a trademark of Raytheon Marine Company. This product contains technology provided under license by Acorn Group plc. The copyright of this intellectual property is acknowledged by Raytheon Marine Company, as are Acorn’s trademarks and patents. Acorn’s world wide web address is http://www.acorn.com. 154_3pre.p6513/12/99, 17:012 Prefaceiii Preface This handbook describes the following Pathfinder radar scanners from Raytheon: 2D18" 2 kW Radome Scanner 4D24" 4 kW Radome Scanner 5S48" 4 kW Open Array Scanner 48" 10 kW Open Array Scanner 2D, 4D and 5S scanner units may be connected to RL70, RL70RC, R70, or R70RC display units. In addition the 2D and 4D scanner units may be connected to SL70, or Autohelm 7" LCD display. CAUTION The 5S 48" Open Array Scanner must not be used with the SL70 or Autohelm 7” LCD Display Unit. This may result in damage to the display due to the high power requirements of the open array scanner. The handbook contains very important information on the installation and operation of your new equipment. In order to obtain the best results in operation and performance, please read this handbook thoroughly. Raytheon’s Product Support representatives or your local dealer will be available to answer any questions you may have. Display Software Version For full operation of the open array scanners, the display software version must be 4.xx (or higher) for a R70/R70RC, or 5.xx (or higher) for a RL70/RL70RC. These software versions are normally already installed in the display unit and are also fully compatible with the 2D and 4D radome scanners. Early display units may not have the correct software for use with open array scanners and will therefore require upgrading. The software version can be confirmed by switching-on the display and checking the version number during the magnetron warm-up sequence. Note that if a scanner unit is not connected then the version number is only displayed for 10 seconds. We recommend that where a repeater display is fitted, both the repeater and the master display are upgraded. Where, necessary Software Upgrade Kits are available from your dealer, distributor or from Raytheon Marine, Part Nos. R55020 (R70/R70RC) and R55019 (RL70/RL70RC). 154_3pre.p6513/12/99, 17:013 iv Pathfinder Radar Scanners Warranty To register your Pathfinder Radar Scanner ownership, please take a few minutes to fill out the warranty registration card found at the end of this handbook. It is very important that you complete th…

Text truncated - open the document above for the full version.

Raytheon Marine Limited, Registered in England. Company no. 1177969 Registered office: Anchorage Park, Portsmouth, PO3 5TD Raytheon Marine Company Recreational Products Anchorage Park Portsmouth Hampshire PO3 5TD England (01705) 693611 (01705) 694642 fax Federal Communications Commission Equipment Approval Branch 21st, December 1999 Gentlemen, Application for Type Acceptance of Raytheon 'Pathfinder' Radars Models: R79, R79RC, RL79, RL79RC, R89 & R89RC FCC ID: ASLMTX9 Please refer to our electronic application form 731 for Type Acceptance for the 10kW Raytheon models listed above, together with the appropriate exhibits. These models all use the same 10kW transmitter and receiver, enclosed in an open array pedestal with a 48" antenna. This scanner unit is connected either to a 7" CRT display unit (R79), a 7" LCD display unit (RL79), or a 10" CRT display unit (R89). The "RC" version of each type of display unit indicates that it is equipped with a Chart facility. A multi-conductor shielded cable is used to interconnect the display and the scanner unit and is the same for all 6 radar systems. The following exhibits have been filed with the Commission: We look forward to the review of our application and exhibits and also towards receiving a grant of type acceptance for the R79, R79RC, RL79, RL79RC, R89 and R89RC radar systems. If you require any additional information or clarification please do not hesitate to contact the under-signed as indicated on Form 731. Sincerely, Chris Bird, Approvals Manager. For and behalf of Raytheon Marine Limited

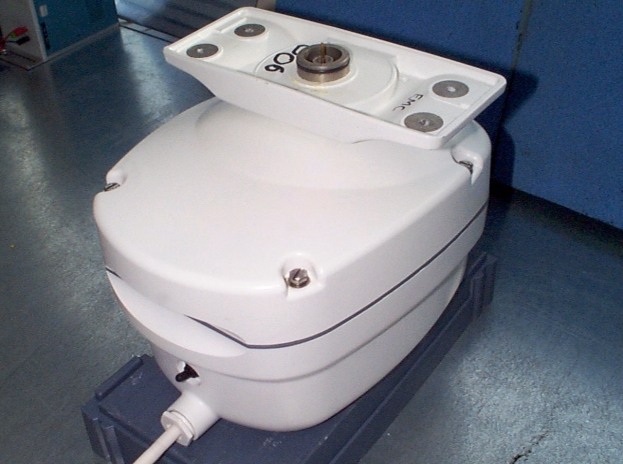

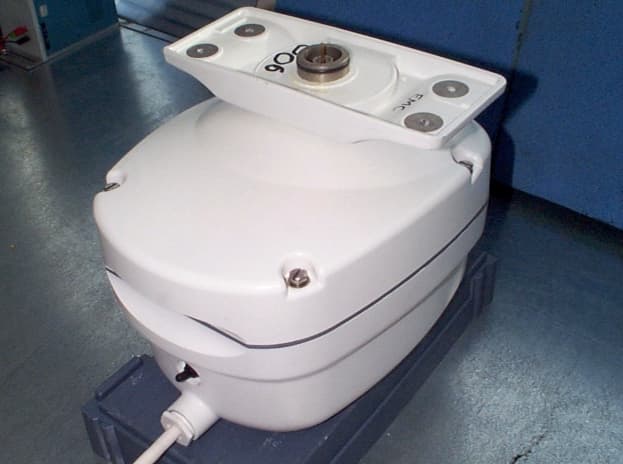

Raytheon Marine Company, Recreational Products, Portsmouth, EnglandRaytheon Marine CompanyRaytheon PathfinderSeries RadarASLMTX9External Photographs 10kW, 48" Open Array Scanner Unit 10kW Pedestal and 48" Array 10kW, 48" Open Array Scanner Unit10kW Pedestal and 48" Array

Raytheon Marine Company, Recreational Products, Portsmouth, England






  !"$#%& ID Label Drawings Index 10kW Rating plate Label3029-283 Pedestal OutlineSK500392

Raytheon Marine Company, Recreational Products, Portsmouth, EnglandRaytheon Marine CompanyRaytheon PathfinderSeries RadarASLMTX9Internal Photographs 10kW, 48" Open Array Scanner Unit10kW Pedestal – Internal view 10kW, 48" Open Array Scanner UnitGearbox and Co-axial Tube Assembly (View A) 10kW, 48" Open Array Scanner UnitGearbox and Co-axial Tube Assembly (View B) 10kW, 48" Open Array Scanner UnitCore Assembly, including Magnetron and Circulator 10kW, 48" Open array ScannerCore Assembly – Lower view (Modulator/PSU PCB with screening plate fitted) 10kW, 48" Open Array Scanner unit10kW Modulator/PSU PCB with screening plate removed 10kW, 48" Open array Scanner Unit10kW Modulator/PSU PCB 10kW, 48" Open Array Scanner UnitLow Noise Converter (LNC) Assembly and screening lid 10kW, 48" Open Array Scanner UnitIF PCB – Lower view 10kW, 48" Open Array Scanner UnitIF PCB

Raytheon Marine Company, Recreational Products, Portsmouth, England






  !"$#%& Technical Description Note This Technical Description is part of the Pathfinder Radar/Chartplotter series Service Manual includes both the 4kW, 48" Open Array Scanner Unit and the 10kW, 48" Open Array Scanner Unit. Service Manual 83147-2-Ch2 3 Part 5 Chapter 2 Chapter 2. Technical Description Chapter 2. Technical Description 2.1 Overview Scanner configuration W/Guide limiter 60dBm (maximum) 4kW/10kW Circulator -20dB (nominal) IF Receiver, micro, I/O board Magnetron Low Noise Converter Scanner uplink connection Motor Antenna/Rotary joint assembly Modulator, PSU board Transition D4595-2 Ships power Figure 1. Scanner Block Diagram The system comprises the functional blocks as shown in the above diagram. The basis of operation is as follows: The Modulator, PSU board generates a high voltage pulse of between 65ns and 1.2us duration (1.0us maximum for 4kW unit) dependant upon the range setting and the corresponding IF/Video filter control lines. This pulse begins on the rising edge of a negative going trigger at a pulse repetition frequency (PRF) also defined by the range setting. The resulting pulse is output to the magnetron which converts the energy into an RF pulse at a frequency of 9.41GHz (nominal). All supply requirements are also provided by the Modulator, PSU board. The RF pulse is routed to an antenna via a 3-port circulator which propagates microwave energy in only one direction and thereby provides isolation between the transmit source and the low noise converter. Note that the circulator for the 10kW system incorporates a waveguide diode limiter to reduce the power entering the receiver. A rotary joint is used to maintain continuity between a waveguide output from the circulator and a coaxial input to the antenna. The energy is then radiated, with a narrow azimuth beam shape (1.85° for the 48" antenna), with low sidelobe levels (<-22dB). The elevation beamwidth is maintained at approximately 25° in order to illuminate targets during pitch and roll of the transmitting vessel. Echoes are returned due to reflections from potential targets such as boats, buoys, land etc, and in the form of clutter from sea, rain, etc. The returned energy is collected by the same antenna used to transmit the original pulse and is routed through the circulator to the low noise converter (LNC). These comparatively low level signals are amplified by a low noise transistor in order to maintain signal/noise performance and are mixed down to an IF frequency of 60MHz nominal for further amplification and subsequent detection. 4 Service Manual 83147-2-Ch2 Part 5 Chapter 2 Pathfinder Radar/Chartplotter Series The IF receiver board provides further low noise amplification and adjustable gain to maximise the dynamic range (“dynamic attenuation control”) in the presence of clutter, target and range variations. The IF board also includes a logarithmic detection stage with approximately 50dB dynamic range, which provides a compressed signal output in terms of dB input power versus output Voltage level. Various filtering stages are also employed in the IF Receiver to provide optimum signal/noise characteristics for the detected pulse and to provide some immunity against the bulk effects of rain. The IF Receiver also provides the interface for the up-link commands to the scanner, including clutter and gain selection, 3-phase motor control and display synchronisation pulse generation. Receiver configuration (LNC/IF) The basic configuration of the microwave and IF receiver circuitry is as follows : Low Noise Converter (LNC)IF Receiver Board Filter select logic Limiter LNA 90 deg 90 HYB Switched Filter Logarithmic Detector Video Filter Curve Splitter Autotune Receiver LNC Supplies Scanner uplink MBS / STC / Rain / Sea / Gain Generation and Summing Network Lineariser Lineariser D4055-1 Figure 2. Receiver Configuration (LNC/IF) Low Noise Converter/Limiter (LNC) The primary function of the LNC is to provide low noise amplification of the low level signal returns and mixing to an IF frequency of 60MHz nominal. The low noise amplification is provided by a single low noise FET, with bias conditions, and associated matching set to minimise noise figure and maximise gain and compression levels. Maximum gain is required so as to minimise the noise figure contribution from subsequent stages. The mixing function is carried out in an image reject mixer configuration which reduces image noise by 20dB nominal in order to minimise the degradation in overall noise figure. Protection is provided in the form of three limiter diodes which are configured to become forward biased in the presence of increasing RF power. Note that the ciculator for the 10kW system also incorporates a waveguide diode limiter. NOTE. There are no user / dealer serviceable parts within the LNC due to its high frequency of operation. Service Manual 83147-2-Ch2 5 Part 5 Chapter 2 Chapter 2. Technical Description LNA Limiter 90 degrees Mixer Constant current bias circuitry +5Volts -5Volts Ground μW I/P VCO tune compensation 90 HYB 60MHZIF Tune_V D4056-1 Figure 3. LNC Configuration D4648-2 Modulator/PSU/Motor Magnetron 3-Phase Motor P7 LNC P1 P2P4 Ship's Heading Sensor CN2 CN5 CN7 CN8 CN3 CN6 CN10 CN9 Ships Supply Display Unit Scanner Disable Switch IF Receiver CN2 IF Inter-connect CN3 3-Phase Motor CN5 Ships Header Transducer CN6 Magnetron CN7 IF Display Interface Inter-connect CN8 Display Inter-connect CN9 Scanner Disable Switch CN10 Ships Power CN11 Cooling Fan (10 kW only) JP1 Service Motor enable Jumper Note: CN3, CN5, CN8, CN9, CN10, JP1 are fitted to non-component side to give access to the installer. JP1 CN11 Figure 4. Scanner Interfaces 6 Service Manual 83147-2-Ch2 Part 5 Chapter 2 Pathfinder Radar/Chartplotter Series 2.2 Modulator / PSU – Interface Description The interfaces to the Mod/PSU are shown…

Text truncated - open the document above for the full version.

Raytheon Marine Company, Recreational Products, Portsmouth, England






  !"$#%& Parts Lists Index List of Spare and Accessories List of 10kW Core Assembly Parts List of Modulator/PSU PCB parts CJB 21.09.99 ‘Pathfinder’ Radar Spares & Accessories 48” Open Array & 10kW Pedestal Antenna DescriptionCommentPart No. 48"antenna mounting kitO-ring + fixings (4 nuts, 4 + 4 washers)R58046 Pedestal DescriptionCommentPart No. O/A PEDESTAL CASE SEALSeals upper and lower castingsR58047 O/A PED FINAL DRIVE BELTR58049 O/A PED GEARBOX ASSYIncl. motorR58050 O/A PED SHM HALL SENSORC/w cable and connectorR58051 O/A PED SWITCH ASSYIsolator, c/w cable and connectorR58052 O/A PED MOUNTING KIT4 studs, 4 nuts, 4 + 4 + 4 washersR58054 O/A PED BITUMEN WASHER PK, 10MM Qty. 4 (Part of pedestal mounting kit) R58055 O/A PED CONNECTOR 8 WAYFor inter-unit cableR58056 O/A PED COAXIAL TUBE ASSYR58061 Core Assembly DescriptionCommentPart No. 10KW PED MODULATOR PCB O/A PED IF PCBVariant of radome IFR58058 O/A PED RIBBON 10 WAY 175MM Mod/PSU to IF PCBsR58059 10KW PED CORE ASSEMBLYComplete core, fully tested (limited distribution) 10KW PED MAGNETRON 10KW PED CIRCULATOR RECEIVER LNC PCBR101 CONNECTOR ASSY.R105 RIBBON CABLER103 RECEIVER COVER & SEALR106 Accessories DescriptionCommentPart No. Extension cable 5mExistingM92699 Extension cable 10mExistingM92700 Owner’s Handbook81154_381154 NOTE: The following are ’top level’ items, for the 10kW, 48" O/A radar systems:Interunit cable, 15mM92728 Interunit cable, 25mM92705 Radar arch cable kit, 15m (5m interunit + 10m Extension) E55017 48" open array, c/w fixingsM92693 Core Assembly 10KW Part numberDescriptionQty 3004-167-ACore Casting + Choke assy1 3010-278-CLNC Receiver Seal1 3010-279-CRubber Boot1 3011-055-BReceiver Ram (L Shape)1 3011-071-AIF Ram (L Shaped)1 3011-072-CSpecial Coductive washer1 3011-075-ARam (Rectangle)1 3011-076-AReceiver Ram (Rectangle)1 3011-093-CLower Cover Insulator1 3029-193-AHigh Voltage Label2 3030-229-ACirculator/Limiter1 3030-174-CCable Screen1 3030-225-A10KW Magnatron1 3034-011-FConnector Assembly1 3036-103-JReceiver Cover1 3036-140-CLNC Screen Lid1 3036-193-BIF PCB Cover1 3036-195-DLower Cover1 4346-006PLNC (RMEM)1 4346-009-CCable Assembly 18 Way1 4346-025Open Array IF PCB1 4357-01710KW Modulator PCB1 4357-019-ARibbon Cable Assembly1 4357-026Encoder PCB Assembly1 mod_pa~1.xls Pathfinder Open Array Radar : ModulatorRevised: October 22nd 1999 Revision: H 4357-024 (PCB 3015-185) Issue D Bill Of Materials 4357-017 Part No. Item QuantityReference Value 10kW Open Array Rating/Tolerence 1 1 Brkt1 H/S_Bracket 3036- 12 2 CLIP1,CLIP2 H/S-CLIP 15096 14 1 CN2 PicoFlex2x9 07299 15 1 CN3 Molex-39-30-1080 07371 16 1 CN5 Molex_KK_1x4_RA 07349 17 1 CN6 CON2 07307 18 1 CN7 PicoFlex2x5 07370 19 1 CN8 Wago-733-368 07369 20 1 CN9 Molex_KK_1x3_RA 07368 21 1 CN10 Wago-256-404/406 - 22 1 CN11 MOLEX_KK_1X2 07307 23 1 CT1 NF/3030-214/3030-214 3030-214 24 1 CT2 3030-214 3030-214 25 22 C1,C2,C3,C4,C5,C6,C7,C8, 1n 93041000P C9,C10,C11,C12,C13,C14, C15,C16,C102,C140,C141, C159,C215,C252 26 12 C17,C18,C19,C20,C21,C22, 100p 9302100P C253,C254,C255,C256,C257, C258 27 5 C23,C24,C27,C129,C130 4n7 93BDHXXX4N7 28 52 C25,C26,C28,C32,C41,C66, 100n 93070U1 C69,C70,C71,C72,C73,C74, C76,C77,C81,C82,C83,C96, C101,C104,C105,C106,C107, C108,C116,C117,C118,C124, C135,C137,C145,C158,C160, C191,C192,C193,C195,C206, C217,C218,C219,C226,C227, C235,C237,C238,C239,C241, C242,C243,C246,C251 29 7 C34,C35,C36,C37,C38,C196, 470p 9301470P 100V C209 30 3 C39,C40,C103 2n2 03083 1KV 31 17 C42,C45,C48,C54,C55,C56, 10n 93040U01 C57,C75,C84,C85,C87,C100, C122,C132,C203,C204,C210 32 7 C43,C46,C49,C109,C112, 2n2 93BDHXXX2N2 C138,C229 33 4 C44,C47,C133,C172 680u 03132 50V 34 1 C50 680u 03132 50V 35 5 C51,C52,C53,C146,C154 47n 03151 250V 37 1 C60 10u 932410U 25V 38 2 C65,C61 100u 9324100U 39 10 C62,C63,C64,C114,C115, 1u 9306105X7R 16V C143,C144,C214,C245,C249 40 1 C67 4n7 03122 400V 41 1 C79 470n 93060U47 16V 42 2 C80,C92 1n0 93041000P 100V 43 2 C88,C134 33n 930433N 44 3 C89,C90,C91 470p 9302470P 45 1 C94 100n 03152 5% 46 2 C110,C123 1000u 03134 10V 47 8 C111,C136,C149,C150,C151, 220u 03135 25V C152,C155,C213 48 1 C113 1u 03146 63V 49 2 C121,C120 100n 03093 250V Page 1 of 5 mod_pa~1.xls 50 4 C127,C128,C220,C262 220p 9300220P 100V 52 1 C139 330p 93BDHBXX330P 53 4 C142,C147,C207,C208 4u7 93HEFEXX4U7 25V 54 1 C148 1u 93HEHEXX1U 50V 55 1 C153 1n 03090 1KV 56 2 C157,C156 47p 03148 1KV 57 3 C161,C167,C185 10n 93040U01 58 3 C162,C164,C186 1n 93041000P 59 2 C163,C261 4n7 93BDHXXX4N7 60 2 C165,C170 100p 9302100P 61 1 C166 2n2 03083 1KV 62 2 C180,C168 220p 9302220P 63 1 C169 100n 03093 250V 64 2 C171,C183 47p 03148 1KV 65 1 C173 47n 03151 250V 66 2 C175,C176 33n 930433N 67 2 C178,C177 100n 93070U1 68 1 C179 2n2 93BDHXXX2N2 69 2 C181,C260 1u 9306105X7R 16V 70 1 C182 10u 932410U 16V 71 1 C184 100n PH468-TYPE-FEC966-496630V 72 1 C188 100n 03093 250V 73 1 C189 100p 03088 1KV 74 1 C190 NFit NF 75 1 C194 33p 930133P 77 1 C199 150p 9300150P 100V 78 1 C200 22p 930122P 80 2 C259,C202 47p 930147P 83 1 C221 W-L/33pF/33pF 03129 6.3KV 84 1 C222 33pF 03121 6.3KV 85 2 C224,C223 NF/100pF/100pF 03089 6.3KV 86 1 C225 NF/220u/220u 03135 25V 87 1 C228 4n7 03138 2KV 90 1 C233 100u 03149 400V 91 1 C234 100u 03149 400V 92 1 C250 1u5 WIMA-MKP10-630V 630V 93 392 TP1,FID1,TP2,TH2,FID2, TEST-POINT 94 5 D1,D12,D13,D14,D34 BZX84C12V 9203BZX12V 95 8 D8,D9,D10,D26,D40,D60, BAS19 9200BAS19 D63,D66 96 2 D15,D17 MURS120T3 9200UF1A200V 97 2 D16,D18 BYV27-200 NF 98 7 D19,D21,D23,D61,D62,D64, 10BQ060 920010BQ060 D65 1002 D38,D22 BAV99 9200BAV99 1012 D28,D27 UF180 02087 1021 D29 MURS120T3/10BQ060/10 B9200UF1A200V 1041 D33 BYV27-200 02082 1061 D37 NF/10BQ060/10BQ060 920010BQ060 1071 D39 BZX84C5V1 9203BZX84C5V1 1081 D41 BZV85-C18 02074 1091 D42 UF180 02087 1101 D43 BZX84C6V8 9203BZX6V8 1111 D46 BZV85-C18 02074 1121 D47 BYV27-200 02082 1131 D49 10BQ060 920010BQ060 1141 D50 UF180 02087 115…

Text truncated - open the document above for the full version.

Raytheon Marine Company, Recreational Products, Portsmouth, England






  !"$#%& Circuit Diagrams Index Scanner Interconnect4357-033Sht. 1 Modulator/PSU4357-024 Modulator/PSU (Top Level)Sht. 1 Power I/P FilterSht. 2 Main PSUSht. 3 Auxiliary PSUSht. 4 ModulatorSht. 5 3 Phase DC Brushless Motor DriveSht. 6 Stepper Motor (Not used)Sht. 7 Ships Heading InterfaceSht. 8 Low Noise Converter (LNC)4346-028Sht. 1 IF Receiver4346-026 IF Receiver (Top Level)Sht. 1 Control InterfaceSht. 2 IF StripsSht. 3 IF Log Det/VideoSht. 4 STC GeneratorSht. 5 Scanner MicroSht. 6

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Raytheon Marine Ltd. Pathfinder R89RC To: FCC Part 80: 1998 and FCC Part 2: 1998 [Leisure Marine Equipment] Test Report Serial No: RFI/EMCB2/RP40279B This Test Report supersedes RFI Test Report No.: RFI/EMCB1/RP40279B This Test Report Is Issued Under The Authority Of Brian Watson Technical Director: Checked By: Tested By:Release Version No: PDF01 Issue Date: 21 December 1999Test Date: 29 November 1999 to 1 December 1999 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/EMCB2/RP40279B EMC DepartmentPage 2 of 36 Issue Date: 21 December 1999 Test Of:Raytheon Marine Ltd. Pathfinder R89RC To:FCC Part 80: 1998 and FCC Part 2: 1998 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/EMCB2/RP40279B EMC DepartmentPage 3 of 36 Issue Date: 21 December 1999 Test Of:Raytheon Marine Ltd. Pathfinder R89RC To:FCC Part 80: 1998 and FCC Part 2: 1998 Table of Contents 1. Client Information..........................................................................................................4 2. Equipment Under Test (EUT)........................................................................................5 3. Test Specification, Methods & Procedures..................................................................7 4. Deviations From The Test Specification......................................................................9 5. Operation Of The EUT During Testing........................................................................10 6. Summary Of Test Results...........................................................................................11 7. Measurements, Examinations And Derived Results.................................................14 8. Measurement Uncertainty...........................................................................................26 Appendix 1. Test Equipment Used..................................................................................27 Appendix 2. Measurement Methods................................................................................29 Appendix 3. Test Configuration Drawings......................................................................31 Appendix 4. Graphical Test Results................................................................................35 This Test Report supersedes RFI Test Report No.: RFI/EMCB1/RP40279B. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/EMCB2/RP40279B EMC DepartmentPage 4 of 36 Issue Date: 21 December 1999 Test Of:Raytheon Marine Ltd. Pathfinder R89RC To:FCC Part 80: 1998 and FCC Part 2: 1998 1. Client Information Company Name: Raytheon Marine Ltd Address: Anchorage Park Portsmouth Hants PO3 5TD Contact Name: Mr C Bird RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/EMCB2/RP40279B EMC DepartmentPage 5 of 36 Issue Date: 21 December 1999 Test Of:Raytheon Marine Ltd. Pathfinder R89RC To:FCC Part 80: 1998 and FCC Part 2: 1998 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Raytheon Marine Ltd Model Name or Number: ‘Pathfinder’ R89RC (Comprising of a Scanner, Display and Array Unique Type Identification: Scanner: M92655 Display: M92673 Array: M92693 Serial Number: Scanner: 006 Display: EMC004 Country of Manufacture: England FCC ID Number: ASLMTX9 Date of Receipt: 26 November 1999 2.2. Description Of EUT The equipment under test is a X-Band leisure marine radar. Comprising of: Scanner unit: 10 kW X-band transmitter with 4 foot open array. Display unit: 10 inch C.R.T. with HSB and chart facility. 2.3. Modifications Incorporated In EUT The EUT has not been modified from what is described by the Model Name and Unique Type Identification stated above. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/EMCB2/RP40279B EMC DepartmentPage 6 of 36 Issue Date: 21 December 1999 Test Of:Raytheon Marine Ltd. Pathfinder R89RC To:FCC Part 80: 1998 and FCC Part 2: 1998 2.4. Additional Information Related To Testing Power Supply Requirement: Nominal 24 DC supply Intended Operating Environment: Leisure Marine Vessels Weight: Scanner: 24 kg Array: 6 kg Display: 6 kg Dimensions: Scanner: 300 x 420 x 320 mm Display: 278mm x 264mm x 316mm Interface Ports: Power and 2 x NMEA IN Seatalk NMEA OUT HSB, point-to-point 2.5. Support Equipment No support equipment was required to exercise the EUT during testing. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No. RFI/EMCB2/RP40279B EMC DepartmentPage 7 of 36 Issue Date: 21 December 1999 Test Of:Raytheon Marine Ltd. Pathfinder R89RC To:FCC Part 80: 1998 and FCC Part 2: 1998 3. Test Specification, Methods & Procedures 3.1. Test Specification Reference: FCC Part 80: 1998 and FCC Part 2: 1998 Title: Code of Federal Regulations, Part 80 (47CFR): 1998 Stations in the maritime services Code of Federal Regulations, Part 2 (47CFR): 1998 Frequency Allocations and radio treaty matters; general rules and regulations Comments: A description of the test facility used for this test is on file with, and has been accepted by, the Federal Communications Commission as required by Section 2.948 of Federal Rules. Purpose of Test: To determine whether the equipment comp…
