ASLRAY53VHF-FM Marine Band Transceiver with DSC

1. OPERATION 1.1 INTRODUCTION Your RAY53 has the capability to transmit and receive on all available US,International and Canada Marine VHF radiotelephone channels. There are channels that are FCC approved but may only be used by authorized stations for specific purposes, depending on the type of vessel (commercial or noncommercial.) Refer to Table 1-1 . These table list all of the marine VHF channels available in your RAY53 for Canada,International and U.S. radiotelephone use. Full familiarization with this table is essential when selecting your channels. The International frequencies were agreed upon by the attending countries at the 1968 International Telecommunication Union meeting in Geneva and are in active use around the world. The US channels are those channels authorized for use in the U.S.A. by the FCC. 1.2 CONTROLS AND LCD DISPLAY 1) 4) 5) 6) 7) 2) 3) 1.2.1 Controls 1) Channel Selection (Knob) -. Turning to the right can increase the channel number and it can be decreased by turning to the left. -. When the Channel Selection Knob is rotated to the right at “88CH”, the channel number becomes “01CH”. -. When the Channel Selection Knob is rotated to the left at “01CH”, the channel number becomes “88CH”. (UP) Rotate clockwise (DOWN) Rotate counter clockwise 2) Squelch Knob -. When Squelch knob is rotated, the squelch level is adjusted. If the knob is rotated completely clockwise,all bars will illuminate. Rotate Clockwise 3) Volume Knob -. The volume knob controls the audio volume and is also switched to turn power on and off. When the knob is rotated clockwise from the “OFF” position,the power becomes “Turned On”. Being rotated clockwise,the audio volume will be increased. Being rotated counterclockwise,the audio volume will be decreased. (Volume UP) NMEA VOL SQL NMEA VOL SQL NMEA VOL SQL NMEA VOL SQL NMEA VOL SQL NMEA VOL SQL Rotate clockwise (Volume DOWN) Rotate counter clockwise -. When the power is turned on, the receiving mode is in use after the following initial setting. Initial setting at power on. Frequency mode--------: the frequency mode at power OFF Channel --------: 16 CH (Working CH) Priority CH --------: Priority CH at power OFF Weather CH --------: Weather CH at power OFF Transmitter Power---- : 25 Watt -. When the power is turned on with pushing on SCAN/MEM key,all the memory can be clear. 4) SCAN/MEM key -. When SCAN/MEM key is pressed and released, Alarm 1 is heard and Scan starts/stop. (To cancel the scan mode, press and release while radio is scanning. To start the scan mode, press and release while radio is not scanning.) -. If one or more channels are stored in memory, the radio will begin Memory Scan. If no channels are stored in memory,the radio will begin All Scan. -. To begin All Scan while memory are being stored in,All Scan can be begun by pressing once more during flashing on the LCD. -. When SCAN/MEM key is continuing to be pressed for more than three seconds, Alarm 1 is heard and Memory of the current channel can be stored/canceled.(When the current channel is stored,the current channel will be canceled. When no other channel is stored, the current channel will be stored. 5) WX/INT key -. When WX/INT key is pressed and released, Alarm 1 is heard and Working CH /Weather CH are toggled each other. -. When WX/INT key is continued to be pressed for more than 2 seconds, Alarm 1 is heard and frequency selection mode(US,International or Canadian) can be changed. There are 3 types of frequencies selection modes,US,International and Canadian. The frequencies selection mode is changed like USA--‡CAN--‡INT. -. While the monitor operation is in use,Dual monitor and Triple monitor can be changed. 6) MON/ 1/25 Key -.When MON/ 1/25 is pressed and released, Alarm 1 is heard and Monitor operation start.(Dual Monitor) -. When MON/ 1/25 continues to be pressed for more than 2 seconds, Alarm 1 is heard and Transmitter power can be changed. When transmitter power is 25W, it can be 1 W. When transmitter power is 1 W, it can be 25 W. 7) 16/9 Key -. When 16/9 key is pressed and released, Alarm 1 is heard and Channel can be changed as follows. The current channel is Working CH---------------‡ Becomes Priority CH The current channel is Weather CH---------------‡ Becomes Priority CH The current channel is Priority CH ---------------‡ Becomes Working CH -. When 16/9 key continues to be pressed for more than 2 seconds, Alerm 1 is heard and priority CH can be toggled. When the private channnel is 16CH,it can be changed to 9CH and when the private channel is 9CH,it can be changed to 16CH. 8) PTT Key(Microphone) -. When pressed,puts the radio into the transmit mode If the current channel is Weather CH or the channel prohibitted from TX, Alerm 2 is heard and PTT key cannot be used. If the PTT key is pressed continuously for over five minutes,transmission is forcibly inhibited and Alarm 2 is heard until the PTT key is released. 9) UP key(Microphone) -. The UP key is used to move the channel numbers up(+1). If the UP key is continuously pressed for over 0.5 seconds,the channel numbers can be continuously up every 100msec. 10)DOWN key(Microphone) -. The DOWN key is used to move the channel numbers down(+1) If the DOWN key is continously pressed for over 0.5 seconds,the channel numbers can be continueously down every 100msec. 11) 16/9 key(Microphone) -. When 16/9 key is pressed and released, Alarm 1 is heard and Channel can be changed as follows. The current channel is Working CH---------------‡ Becomes Priority CH The current channel is Weather CH---------------‡ Becomes Priority CH The current channel is Priority CH ---------------‡ Becomes Working CH -. When 16/9 key continues to be pressed for more than 2 seconds in Priority CH mode, Alerm 1 is heard and priority CH can be toggled. When the private channnel is 16CH,it can be changed to 9CH and when the private channel is 9CH,it can be changed to 16CH. 12) DISTRESS key -. DISTRESS key is used to send a DSC Distress Call when pressed…

Text truncated - open the document above for the full version.

Raytheon ASLRAY53

Ratheon Marine ASLRAY53

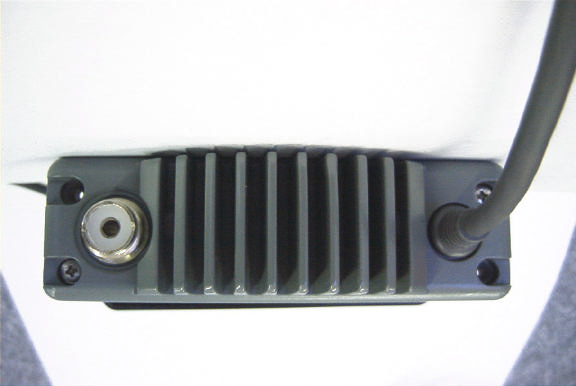

Raytheon Marine ASLRAY53 Raytheon Marine ASLRAY53 Raytheon Marine ASLRAY53

RAY53 Parts list and Description REF.No.SECTIONARTICLEMFGR'S DESIGNDESCRIPTION D1RF UNITPIN DIODEXB15A308A2GBANT SW D2RF UNITPIN DIODEXB15A402A2GBANT SW D3RF UNITSCH DIODEMA728RF AMP LIM D4RF UNITSCH DIODE1SS383RF PO DET D5RF UNITVAR DIODE1SV276VCO OSC RX D6RF UNITVAR DIODE1SV276VCO OSC TX D7RF UNITVAR DIODE1SV276VCO MOD D8RF UNITSCH DIODE10GWJ2CZ47MDC LINE SW D9RF UNITSI DIODEDAN202UREG SW D10RF UNITSI DIODEDAP202UREG SW D11RF UNITSI DIODEDA204UMIC AMP LIM D12RF UNITSCH DIODEMA728SW D13RF UNITSCH DIODEMA728SW D201CNTL UNITLEDFR1101FLCD BACKLIGHT D202CNTL UNITLEDFR1101FLCD BACKLIGHT D203CNTL UNITLEDFR1101FLCD BACKLIGHT D204CNTL UNITLEDFR1101FLCD BACKLIGHT D205CNTL UNITLEDFR1111CKEY BACKLIGHT D206CNTL UNITLEDFR1111CKEY BACKLIGHT D207CNTL UNITLEDFR1111CKEY BACKLIGHT IC1RF UNITICTA4101F1ST MIXER IC2RF UNITICTB31213FNPLL/VCO IC3RF UNITICTA31136FNIF IC4RF UNITICNJM2904VAF FILTER IC5RF UNITICM57710-A-41RF POWER AMP IC6RF UNITICTA75S01FAPC/DC AMP IC7RF UNITICBA178M055V REG IC8RF UNITICNJM3403AVIDC/MIC AMP IC9RF UNITICTDA1519A/N2AF AMP IC10RF UNITICLMC567CTONE DET IC11RF UNITICMSM7512BGS-VKFSK IC201CNTL UNITICUPD78P064GC-8EUCPU IC202CNTL UNITICBR93LC66FVEEPROM IC203CNTL UNITICRN5VD45AARESET IC301VR UNITICNJM2904VDC AMP Q1RF UNITTRANSISTOR2SC4226R24RX RF AMP Q2RF UNITTRANSISTOR2SC4226R24IF AMP Q3RF UNITTRANSISTOR2SC3357RFTX RF DRIVER Q4RF UNITTRANSISTOR2SC4226R24TX RF BUF AMP Q5RF UNITTRANSISTOR2SB1566TX RF PA REG SW Q6RF UNITTRANSISTOR2SC4116GRTX RF PA REG SW Q8RF UNITTRANSISTOR2SC4116GRTX PO DET SW Q9RF UNITTRANSISTORDTC144EUATX LOW-PO SW Q10RF UNITTRANSISTOR2SC4116GRPLL/VCO REG SW Q11RF UNITTRANSISTOR2SC4226R24TX RF BUF AMP Q12RF UNITTRANSISTOR2SC4116GRUN LOCK SW Q13RF UNITTRANSISTORDTC144EUAUN LOCK SW Q15RF UNITTRANSISTOR2SC4116GRNMEA SW Q16RF UNITTRANSISTOR2SA1586GRTX5V REG SW Q17RF UNITTRANSISTOR2SA1586GRRX5V REG SW Q18RF UNITTRANSISTORDTC343TKRX AF MUTE SW Q19RF UNITTRANSISTORDTC343TKDSC SW Q20RF UNITTRANSISTORDTC343TKDSC SW Q21RF UNITTRANSISTORDTC144EUAUN LOCK SW Q22RF UNITPHOTO RELAYTLP112ANMEA SW Q201CNTL UNITTRANSISTOR2SA1586GRTX PTT SW Q202CNTL UNITTRANSISTORUMH3NBEEP SW F1RF UNITCRYSTAL FILTER21R15A5TMCF F2RF UNITCERAMIC FILTERKBF-450RL-12ACERAMIC FIL. CD1RF UNITCERAMIC DISC.CDBM450C24DISC X1RF UNITCRYSTALUM-5 21.250MHzREF CLOCK X2RF UNITCRYSTALHC-49U/4 3.579545MHzFSK CLOCK X201CNTL UNITCRYSTALCSA-309 4.915200MHzCPU CLOCK LC201CNTL UNITLCDGT-232ZASLCD

FCC ID: ASLRAY53 MFA p0010007, d0010049 Date: January 21, 2000 Federal Communications Commission VIA ELECTRONIC FILING Attention: Authorization & Evaluation Division Applicant: Raytheon Marine Company Equipment: RAY53 FCC ID: ASLRAY53 FCC Rules: 80 Subparts T & U Gentlemen: PLEASE SEE AGENT AUTHORIZATION FOR NEW ADDRESS On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, Morton Flom, P. Eng. enclosure(s) cc: Applicant MF/cvr FCC ID: ASLRAY53 MFA p0010007, d0010049 LIST OF EXHIBITS (FCC CERTIFICATION (TRANSMITTERS) - REVISED 9/28/98) APPLICANT: Raytheon Marine Company FCC ID: ASLRAY53 BY APPLICANT: 1. LETTER OF AUTHORIZATION 2. IDENTIFICATION DRAWINGS, 2.1033(c)(11) LABEL LOCATION OF LABEL COMPLIANCE STATEMENT LOCATION OF COMPLIANCE STATEMENT 3. PHOTOGRAPHS, 2.1033(c)(12) 4. DOCUMENTATION: 2.1033(c) (3) USER MANUAL (9) TUNE-UP/ALIGNMENT PROCEDURE (10) SCHEMATIC DIAGRAM (10) OPERATIONAL DESCRIPTION BLOCK DIAGRAM PARTS LIST ACTIVE DEVICES 5. PART 90.203(e) & (g) ATTESTATION BY M.F.A. INC. A. TESTIMONIAL & STATEMENT OF CERTIFICATION B. STATEMENT OF QUALIFICATIONS FCC ID: ASLRAY53 MFA p0010007, d0010049 Sub-part 2.1033(c): EQUIPMENT IDENTIFICATION FCC ID: ASLRAY53 NAMEPLATE DRAWING ATTACHED, EXHIBIT 1. LOCATION AS PER LABEL DRAWING(S) DATE OF REPORT January 21, 2000 SUPERVISED BY: Morton Flom, P. Eng. FCC ID: ASLRAY53 MFA p0010007, d0010049 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21 INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: ASLRAY53 MFA p0010007, d0010049 TABLE OF CONTENTS RULE DESCRIPTION PAGE . Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 5 . Standard Test Conditions and Engineering Practices 6 80.365 VHF Radiotelephone Frequencies 7 2.1046(a) P.F. Power Output 8 2.1047(a) Audio Frequency Response 10 2.1047(a) Audio Low Pass Filter (Voice Input) 13 2.1047(b) Modulation Limiting 15 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 17 2.1051 Spurious Emissions at Antenna Terminals) 22 2.1053(a) Field Strength of Spurious Radiation 25 2.1055(a)(1) Frequency Stability (Temperature Variation) 29 2.1055(b)(1) Frequency Stability (Voltage Variation) 32 80.203(b) User Controls 33 80.203(c) Automatic Deactivation (Time-Out Timer 34 80.959(c)(1)(2)&(3) Power Output Over Time 35 80.225 Requirements for DSC 37 80.961(a)&(b) Subpart T – G3E Emissions 39 80.1011, 80.1013 Subpart U – Bridge-to-Bridge Act 40 2.202(g) Necessary Bandwidth and Emission Bandwidth 40 FCC ID: ASLRAY53 MFA p0010007, d0010049 PAGE NO. 1 of 41. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0010049 d) Client: Raytheon Marine Company 22 Cotton Road, Unit H Nashua, NH 03063-4219 e) Identification: RAY53 FCC ID: ASLRAY53 Description: VHF Marine Band Transceiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: January 21, 2000 EUT Received: January 17, 2000 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: ASLRAY53 MFA p0010007, d0010049 PAGE NO. 2 of 41. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART 2 AND TO 80 Sub-part 2.1033 (c)(1): NAME AND ADDRESS OF APPLICANT: Raytheon Marine Company 22 Cotton Road, Unit H Nashua, NH 03063-4219 MANUFACTURER: Kanematsu Corporation 22 nd Floor, Seavans N. Bldg. 2-1, Shibaura 1-Chome Minato-Ku, Tokyo 105,Japan (c)(2): FCC ID : ASLRAY53 MODEL NO: RAY53 (c)(3): INSTRUCTION MANUAL(S): PLEASE SEE ATTACHED EXHIBITS (c)(4): TYPE OF EMISSION: 16K0G3E (c)(5): FREQUENCY RANGE, MHz : 156.025 to 163.275 (c)(6): POWER RATING, Watts: 1 to 25 x Switchable…

Text truncated - open the document above for the full version.

FCC ID: ASLRAY53 MFA p0010007, d0010049 Date: January 21, 2000 Federal Communications Commission VIA ELECTRONIC FILING Attention: Authorization & Evaluation Division Applicant: Raytheon Marine Company Equipment: RAY53 FCC ID: ASLRAY53 FCC Rules: 80 Subparts T & U Gentlemen: PLEASE SEE AGENT AUTHORIZATION FOR NEW ADDRESS On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, Morton Flom, P. Eng. enclosure(s) cc: Applicant MF/cvr FCC ID: ASLRAY53 MFA p0010007, d0010049 LIST OF EXHIBITS (FCC CERTIFICATION (TRANSMITTERS) - REVISED 9/28/98) APPLICANT: Raytheon Marine Company FCC ID: ASLRAY53 BY APPLICANT: 1. LETTER OF AUTHORIZATION 2. IDENTIFICATION DRAWINGS, 2.1033(c)(11) LABEL LOCATION OF LABEL COMPLIANCE STATEMENT LOCATION OF COMPLIANCE STATEMENT 3. PHOTOGRAPHS, 2.1033(c)(12) 4. DOCUMENTATION: 2.1033(c) (3) USER MANUAL (9) TUNE-UP/ALIGNMENT PROCEDURE (10) SCHEMATIC DIAGRAM (10) OPERATIONAL DESCRIPTION BLOCK DIAGRAM PARTS LIST ACTIVE DEVICES 5. PART 90.203(e) & (g) ATTESTATION BY M.F.A. INC. A. TESTIMONIAL & STATEMENT OF CERTIFICATION B. STATEMENT OF QUALIFICATIONS FCC ID: ASLRAY53 MFA p0010007, d0010049 Sub-part 2.1033(c): EQUIPMENT IDENTIFICATION FCC ID: ASLRAY53 NAMEPLATE DRAWING ATTACHED, EXHIBIT 1. LOCATION AS PER LABEL DRAWING(S) DATE OF REPORT January 21, 2000 SUPERVISED BY: Morton Flom, P. Eng. FCC ID: ASLRAY53 MFA p0010007, d0010049 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21 INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: ASLRAY53 MFA p0010007, d0010049 TABLE OF CONTENTS RULE DESCRIPTION PAGE . Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 5 . Standard Test Conditions and Engineering Practices 6 80.365 VHF Radiotelephone Frequencies 7 2.1046(a) P.F. Power Output 8 2.1047(a) Audio Frequency Response 10 2.1047(a) Audio Low Pass Filter (Voice Input) 13 2.1047(b) Modulation Limiting 15 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 17 2.1051 Spurious Emissions at Antenna Terminals) 22 2.1053(a) Field Strength of Spurious Radiation 25 2.1055(a)(1) Frequency Stability (Temperature Variation) 29 2.1055(b)(1) Frequency Stability (Voltage Variation) 32 80.203(b) User Controls 33 80.203(c) Automatic Deactivation (Time-Out Timer 34 80.959(c)(1)(2)&(3) Power Output Over Time 35 80.225 Requirements for DSC 37 80.961(a)&(b) Subpart T – G3E Emissions 39 80.1011, 80.1013 Subpart U – Bridge-to-Bridge Act 40 2.202(g) Necessary Bandwidth and Emission Bandwidth 40 FCC ID: ASLRAY53 MFA p0010007, d0010049 PAGE NO. 1 of 41. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0010049 d) Client: Raytheon Marine Company 22 Cotton Road, Unit H Nashua, NH 03063-4219 e) Identification: RAY53 FCC ID: ASLRAY53 Description: VHF Marine Band Transceiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: January 21, 2000 EUT Received: January 17, 2000 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: ASLRAY53 MFA p0010007, d0010049 PAGE NO. 2 of 41. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART 2 AND TO 80 Sub-part 2.1033 (c)(1): NAME AND ADDRESS OF APPLICANT: Raytheon Marine Company 22 Cotton Road, Unit H Nashua, NH 03063-4219 MANUFACTURER: Kanematsu Corporation 22 nd Floor, Seavans N. Bldg. 2-1, Shibaura 1-Chome Minato-Ku, Tokyo 105,Japan (c)(2): FCC ID : ASLRAY53 MODEL NO: RAY53 (c)(3): INSTRUCTION MANUAL(S): PLEASE SEE ATTACHED EXHIBITS (c)(4): TYPE OF EMISSION: 16K0G3E (c)(5): FREQUENCY RANGE, MHz : 156.025 to 163.275 (c)(6): POWER RATING, Watts: 1 to 25 x Switchable…

Text truncated - open the document above for the full version.
