ATH2422607700 MHz LAND MOBILE REPEATER

October 2009 3800 Digital Repeater Operating Manual 1 -1 Section 1 Section 13800 Information 1.1 General Description The EF Johnson Technologies 3800 Series Digital Repeaters are designed specifically for radio trunking operations. The 3800 integrates the functions of radio repeater and trunking channel controller into one unit. See Figure 1.1. Figure 1.1 3800 Series Digital Repeater 3800 Information 1 -2 3800 Digital Repeater Operating Manual October 2009 The radio component provides a transmitter and receiver with software programmable frequency and power selection. Transmitter and receiver signals are encoded and sampled by dual Digital Signal Processors DSP). Channel controllers in each repeater manage the control and traffic channels for frequency assignments and transmitter power level. The local site controller is integrated into one of the repeaters. The Trunked IP25 System supports the ability to have backup site controllers, but only one site controller is required per site. Multiple repeaters may be used per site to accommodate multiple frequencies, traffic level, and provide radio channel backup. One repeater is required for a control channel and one or more repeaters for traffic channels. A built-in ethernet interface lets the repeater communicate over the Trunked IP25 System IP network to other system components. 1.1.1 Models & Features The 3800 Series Repeater consists of various models and features. Please refer to the 3800 Digital Repeater Service Manual for descriptions of the different models, identification and part number information. 3800 Information October 2009 3800 Digital Repeater Operating Manual 1 -3 1.2 Functional Description The EF Johnson Technologies 3800 Series Digital Repeater is a trunked repeater with built-in trunking control. The Trunked IP25 System Channel Controller function is integrated into the repeater subsystem. The 3800 Repeater uses frequency synthesizer and Digital Signal Processor (DSP) technologies to provide digital control of the radio channels. Software defined configurations allow for quick updates and programmable operating frequency, output power, and other key functions. Multiple repeaters may be used per site to accommodate multiple frequency bands and provide radio backup. The 3800 is comprised of the following functional modules ( Figure 1.2): Figure 1.2 3800 Repeater Subsystem Functional Diagram Channel Controller All channels are managed by the integrated Channel Controller. The controller provides overall channel control for control and traffic channels in a repeater. It manages the radio transmitter and receiver frequency assignments and power levels. The Channel Controller checks channel status and reports any 3800 Information 1 -4 3800 Digital Repeater Operating Manual October 2009 channel failures or processing errors to the Site Controller. One Channel Controller is used for each radio repeater subsystem (in multiple repeater systems). TXDSP Module The TXDSP module manages the repeater radio transmitter interface. This module provides channel encoding with forward error detection and correction coding. It receives data packets from the channel controller and creates a signal for the transmitter. Radio Transmitter The Radio Transmitter is digital synthesizer based to ensure on-frequency and high stability operation. It converts the processed signal from the TXDSP module into a radio frequency (RF) signal for transmission. Radio Receiver The Radio Receiver is digital synthesizer based to ensure on-frequency and high stability operation. It receives and converts the radio frequency signals for processing by the RXDSP module. RXDSP Module The RXDSP module manages the repeater radio receiver interface. It processes the received signal samples from the radio receiver into data packets. The module then sends the data packets to the Channel Controller. Ethernet Interface The repeater communicates over its Ethernet interface with the Site Controller, Dispatch Console, and Network Management System (NMS). EIC Module The EIC module provides a user interface to the repeater including a 2-line display and push button rotary knob for menu navigation. 3800 Information October 2009 3800 Digital Repeater Operating Manual 1 -5 Power Supply The power supply accepts the AC line power input and converts it into the various DC power requirements of the repeater. 1.3 System Configuration The 3800 Repeater is typically used as the repeater component in an EF Johnson Technologies Trunked IP25 TM Configuration of 3800 repeaters is performed through the Network Management System (NMS). Refer to Section 3.3, “Trunked System Operation”in this manual for system operating information. System. This is an Internet Protocol (IP) Local Area Network (LAN) based radio system. Using a IP network configuration lets a system administrator manage the radios and system components exactly as if they were computers on a LAN. See Figure 1.3. 3800 Information 1 -6 3800 Digital Repeater Operating Manual October 2009 Figure 1.3 Trunked IP25 System 3800 Information October 2009 3800 Digital Repeater Operating Manual 1 -7 1.4 Safety Information This repeater emits radio frequency (RF) energy when transmitting. Make sure to observe all RF energy exposure standards when installing, testing, repairing, and operating this radio equipment. The FCC has adopted a safety standard for human exposure to RF energy. Proper operation of this repeater under normal conditions results in user exposure to RF energy below the Occupational Safety and Health Act and Federal Communication Commission limits. - Do not allow the antenna to touch or come in very close proximity with the eyes, face, or any exposed body parts while the repeater is transmitting. - To comply with FCC RF exposure limits, do not operate the transmitter of a stationary radio (base station or marine radio) when a person is within fourteen (14) feet [four (4) meters] of the antenna. - Do not operate the repeater in expl…

Text truncated - open the document above for the full version.

EFJohnson Technologies, Inc. • 1440 Corporate Drive, Irving, TX 75038-2401 800.328.3911 • 972.819.0700 • fax 972.819.0639 www.EFJohnson.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Authority to Act as Agent to the Federal Communications Commission On our behalf, I appoint Nemko USA, Inc. to act as agent in the preparation of this application for equipment authorization to the Federal Communications Commission. I certify that submitted Exhibits properly describe the device or system for which equipment authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Commission's regulations will have affixed to it a label identical to that submitted for approval with this application. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: In signing this letter, Applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a "party" for these purposes, see 47 CFR 1.2002(b). Dated this 15th Day of January , 2010 Agency agreement expiration date: January 15, 2011 By: John Oblak Title: VP, Standards and Regulatory Affairs On behalf of: EF Johnson Technologies Telephone: 507-837-5116

EFJohnson Technologies, Inc. • 1440 Corporate Drive, Irving, TX 75038-2401 800.328.3911 • 972.819.0700 • fax 972.819.0639 www.EFJohnson.com Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: ATH2422607 Product Name: 2607 Series Repeater Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Theory of Operation • Parts List These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 15th Day of January , 2010 By: John Oblak Title: VP, Standards and Regulatory Affairs On behalf of: EF Johnson Technologies Telephone: 507-837-5116

EFJohnson Technologies, Inc. • 1440 Corporate Drive, Irving, TX 75038-2401 800.328.3911 • 972.819.0700 • fax 972.819.0639 www.EFJohnson.com January 15, 2010 Federal Communications Commission EQUIPMENT AUTHORIZATION BRANCH 7435 Oakland Mills Road Columbia, MD 21046 Re: Programming Capability Dear FCC Representative; Reference part 90.203(e), frequency programming capability. The end user will not be able to program the channel frequencies. A service shop or authorized agent using a special programming cable and computer software can program the allowed TX/RX frequencies. The end user can only select from the preprogrammed channels. The software and programming cable are not available to the end user. Sincerely, John Oblak VP Standards and Regulatory Affairs E.F. Johnson Technologies

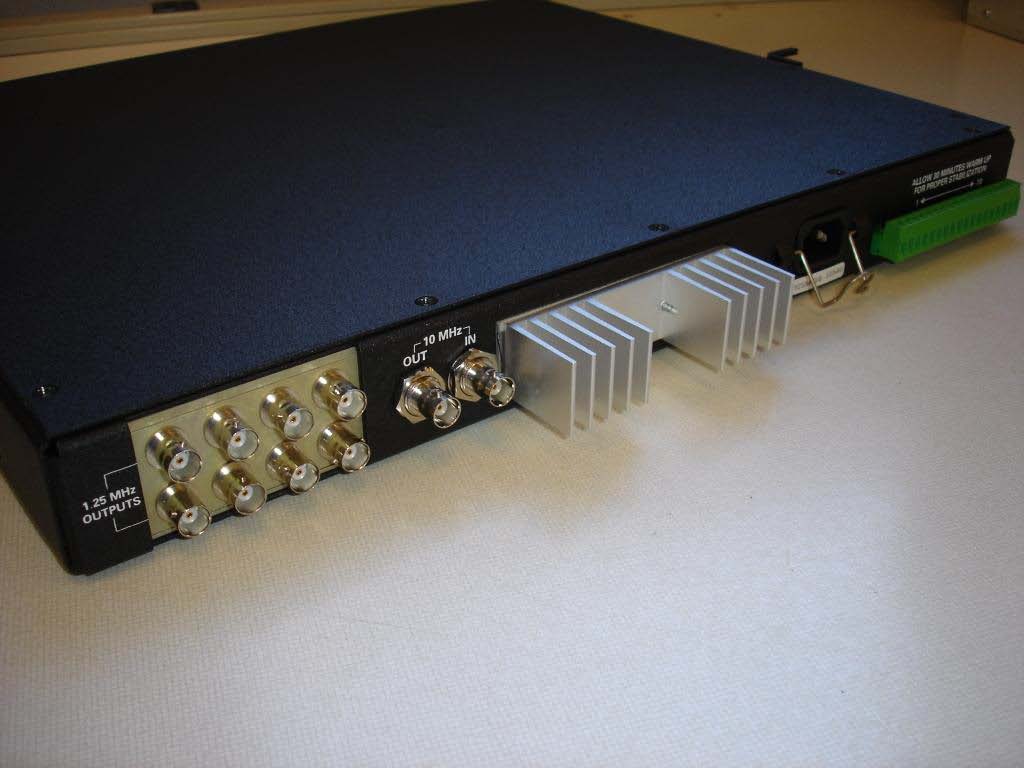

External Photographs ATH2422607 IC: 933B-2422607 Front View Rear View (Showing FCC/IC Label) Front Quarter View with Front Panel Removed High Stability Oscillator Drawer Photographs ATH2422607 IC: 933B-2422607 High Stability Oscillator Drawer Front Quarter View High Stability Oscillator Drawer Rear Quarter View

FCC Label ATH2422607 FCC ID: ATH2422607 FCC ID: ATH2422607 EF Johnson Technologies Made in Dallas, TX, USA Model: 242-2607-101 Serial No XXXXXXXXXX-00001

RF Assembly Photos RF Assembly Bottom View RF Assembly Front View RF Assembly Left Side View RF Assembly Top View RF Assembly Right Side View RF Assembly Back View RF Assembly Receiver Exciter with Cover Removed Receiver PC Board Top with Digital IF Board Receiver PC Board Top with Digital IF Removed Digital IF Board Top Digital IF Board Bottom Receiver PC Board with VCO Receiver VCO Board Top Receiver VCO Board Bottom Receiver PC Board with VCO Removed RF Interface Board (RFIB) in Chassis RFIB Board Top RFIB Board Bottom TCXO Bottom TCXO Top PA Board, Low Pass Filter, and RF Detector in Chassis PA Board Top PA Board Bottom Exciter PC Board Top Exciter PC Board Bottom Without VCO Transmitter VCO Top Transmitter VCO Bottom Exciter Board Bottom with VCO Ceramic Low Pass Filter Top on Metal Carrier Ceramic Low Pass Filter Bottom Power Detector Boards in Carrier Power Detector Boards Bottom Power Detector Boards Top

High Stability Oscillator Drawer with Cover Removed High Stability Oscillator Drawer Power Supply High Stability Oscillator Drawer Main PC Board Front High Stability Oscillator Drawer Main PC Board rear High Stability Oscillator Drawer with Cover Removed High Stability Oscillator Drawer Power Supply High Stability Oscillator Drawer Main PC Board Front High Stability Oscillator Drawer Main PC Board rear

Voltages and Currents in the final RF Circuit Pre-driver: RFMD SXA 389 5.0 Vdc @ 100 mA Driver: Freescale MRF 9030 Single Stage 26Vdc @ 0.90 A Finals: Freescale MRF9060 4 parallel stages @ 26Vdc @ 3.6 A each stage for a total current of 14.4 A By: John Oblak Title: Vice President Standards and Regulatory Affairs On Behalf of: EF Johnson Technologies Phone: +1 507 837 5116

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:52.50(dBm) Maximum peak output power at antenna input terminal:177827.941(mW) Antenna gain(maximum):6(dBi) Maximum antenna gain:3.981071706(numeric) Time Averaging:100(%) Prediction distance:400(cm) Prediction frequency:774(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.516(mW/cm^2) Power density at prediction frequency:0.352103(mW/cm^2) Margin of compliance:-1.7(dB) This equates to:3.52103347W/m^2 2 4R PG S π =

Nemko Test Report: 41012RUS1 Applicant: EF Johnson Company 123 N. State St. Waseca, MN 56093 USA Equipment Under Test: 242-2607-100 Land Mobile Repeater (E.U.T.) In Accordance With: FCC Part 90, Subpart I Private Land Mobile Transmitter Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, TX 75057-3136 TESTED BY: DATE: 09 February 2010 David Light, Senior Wireless Engineer APPROVED BY: DATE: 15 February 2010 Tom Tidwell, Telecom Direct Total Number of Pages: 32 Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTERS EQUIPMENT: 242-2607-100 Land Mobile Repeater PROJECT NO.: 41012RUS1 Page 2 of 32 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. RF POWER OUTPUT 7 SECTION 4. MODULATION CHARACTERISTICS 8 SECTION 5. OCCUPIED BANDWIDTH 9 SECTION 6. SPURIOUS EMISSIONS AT ANTENNA TERMINALS 12 SECTION 7. FIELD STRENGTH OF SPURIOUS EMISSIONS 16 SECTION 8. FREQUENCY STABILITY 17 SECTION 9. TRANSIENT FREQUENCY BEHAVIOR 19 SECTION 10. TEST EQUIPMENT LIST 22 ANNEX A - TEST METHODOLOGIES 23 ANNEX B - TEST DIAGRAMS 28 Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTERS EQUIPMENT: 242-2607-100 Land Mobile Repeater PROJECT NO.: 41012RUS1 Page 3 of 32 Section 1. Summary of Test Results Manufacturer: EF Johnson Co. Model No.: 242-2607-100 Land Mobile Repeater Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTERS EQUIPMENT: 242-2607-100 Land Mobile Repeater PROJECT NO.: 41012RUS1 Page 4 of 32 Summary of Test Data NAME OF TEST PARA. NO. RESULT RF Power Output 90.541 Complies Audio Frequency Response TIA EIA-603.3.2.6 NA Audio Low-Pass Filter Response TIA EIA-603.3.2.6 NA Modulation Limiting TIA EIA-603.3.2.6 Complies Occupied Bandwidth 90.210 Complies Spurious Emissions at Antenna Terminals 90.210 & 90.543 Complies Field Strength of Spurious Emissions 90.210 Complies Frequency Stability 90.539 Complies Transient Frequency Behavior 90.214 Complies Footnotes: The DUT has no audio components. . Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTERS EQUIPMENT: 242-2607-100 Land Mobile Repeater PROJECT NO.: 41012RUS1 Page 5 of 32 Section 2. General Equipment Specification Supply Voltage Input: 120 Vac Frequency Range: 769 to 774 MHz Necessary Bandwidth: 8.1 kHz Type(s) of Modulation: F3E (Voice) F1D F2D D7W (QAM) Other Emission Designator: 8K10F1D Output Impedance: 50 ohms RF Power Output (rated): 75 to 175 Watts Channel Spacing(s): 12.5 kHz Operator Selection of Operating Frequency: Software Power Output Adjustment Capability: Software Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTERS EQUIPMENT: 242-2607-100 Land Mobile Repeater PROJECT NO.: 41012RUS1 Page 6 of 32 System Description 700 MHz Project 24 land mobile repeater. System Diagram Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTERS EQUIPMENT: 242-2607-100 Land Mobile Repeater PROJECT NO.: 41012RUS1 Page 7 of 32 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.985 TESTED BY: David Light DATE: 21 January 2010 Measurement Results: Complies. Measurement Data: Frequency (MHz) Measured Power (dBm) Measured Power (Watts) Rated Power (Watts) 770 52.5 178 175 770 49.2 83 75 Spectrum Analyzer Settings: RBW: 1 MHz VBW: 1 MHz Detector: Max Peak Measurement Conditions: Temperature: 22 C Humidity: 31 % Test Equipment Used: 1036-1082-1469-1472 Measurement Uncertainty: +/- 1.7 dB Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTERS EQUIPMENT: 242-2607-100 Land Mobile Repeater PROJECT NO.: 41012RUS1 Page 8 of 32 Section 4. Modulation Characteristics NAME OF TEST: Modulation Characteristics PARA. NO.: 2.987 TESTED BY: David Light DATE: 21 January 2010 Measurement Results: Complies. Measurement Data: Maximum deviation for non-voice modulation 2.4 kHz. Limit: 12 kHz Measurement Conditions: Temperature:22 C Humidity:45% Measurement Uncertainty: +/- 1.7 dB Description of modulation: 2FSK Test Equipment Used: 1036-1082-1469-1472 Measurement Uncertainty: +/- 1.7 dB Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTERS EQUIPMENT: 242-2607-100 Land Mobile Repeater PROJECT NO.: 41012RUS1 Page 9 of 32 Section 5. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.989 TESTED BY: David Light DATE: 25 January 2010 Measurement Results: Complies. Measurement Data: Attached Measurement Conditions: Temperature:22 C Humidity:31% Measurement Uncertainty: +/- 1X10 -7 ppm Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTERS EQUIPMENT: 242-2607-100 Land Mobile Repeater PROJECT NO.: 41012RUS1 Page 10 of 32 Test Data – 99% Occupied Bandwidth Low Power Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTERS EQUIPMENT: 242-2607-100 Land Mobile Repeater PROJECT NO.: 41012RUS1 Page 11 of 32 Test Data – 99% Occupied Bandwidth High Power Nemko USA, Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTERS EQUIPMENT: 242-2607-100 Land Mobile Repeater PROJE…
