ATH2425720VP 600 UHF Land Mobile Radio Transceiver

Viking™ VP600 Portable Radio Operating Manual for the Viking VP600 Model 3 Radio Project 25 Conventional and Trunked SmartNet ® /SmartZone ® Analog and Digital Conventional Part Number 002-0600-045 March 2012 Copyright © 2012 by EF Johnson Technologies, Inc. The EFJohnson Technologies logo, Armada ™ , Trunked IP25 ™ , and Call Guard ® are trademarks of EF Johnson Technologies, Inc. All other company and/or product names used in this manual are trademarks and/or registered trademarks of their respective manufacturers. Software License Non-open source software used in this product is licensed in accordance with EF Johnson Technologies, Inc.’s (“EFJohnson’s”) then current software license agreement. Open Source Software License Software used in this product includes open source software (“Open Source Software”) and is subject to the General Public License (“GPL”) provided at www.efjohnson.com. EFJohnson notifies you (“Licensee”) here- under that Licensee has the rights to obtain, modify and/or redistribute the source code of such software (“Open Source Software”) in accordance with the terms of such GPL. Therefore, if Licensee obtains such Open Source Software, Licensee must strictly adhere to the terms and conditions of the GPL. Information in this manual is subject to change without notice. Viking VP600 Portable Radio Operating Manual March 2012 Viking™ VP600 Portable Radio Operating Manual i Table of Contents Viking VP600 Portable Radio Operating Manual March 2012 Safety Requirements ix 1Features1-1 General Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Conventional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Project 25 Trunked Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 SmartNet / SmartZone Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 Available Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 2Controls and Display2-1 Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Top Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 Side Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6 Portable Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 RSSI Threshold Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 Signaling Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 3General Operation3-1 Turning Power On and Setting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Licensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Standard and Soft Power Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Persistent Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 Setting Volume Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 Zone and Channel Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5 Direct Zone / Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5 Zone Edit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7 iiViking™ VP600 Portable Radio Operating Manual Contents Battery and Accessory Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 Battery Removal / Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 Low Battery Indication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9 Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9 Belt clip Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10 Connecting an Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10 Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11 Keypad Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12 Radio Inhibit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

EFJohnson Technologies, Inc. • 1440 Corporate Drive, Irving, TX 75038-2401 800.328.3911 • 972.819.0700 • fax 972.819.0639 www.EFJohnson.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Authority to Act as Agent to the Federal Communications Commission On our behalf, I appoint Nemko USA, Inc. to act as agent in the preparation of this application for equipment authorization to the Federal Communications Commission. I certify that submitted Exhibits properly describe the device or system for which equipment authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Commission's regulations will have affixed to it a label identical to that submitted for approval with this application. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: In signing this letter, Applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a "party" for these purposes, see 47 CFR 1.2002(b). Dated this 12th Day of July, 2012 Agency agreement expiration date: July 12, 2013 By: John Oblak Title: VP, Standards and Regulatory Affairs On behalf of: EF Johnson Technologies Telephone: 507-837-5116

EFJohnson Technologies, Inc. • 1440 Corporate Drive, Irving, TX 75038-2401 800.328.3911 • 972.819.0700 • fax 972.819.0639 www.EFJohnson.com September 19, 2012 Federal Communications Commission EQUIPMENT AUTHORIZATION BRANCH 7435 Oakland Mills Road Columbia, MD 21046 Dear Sirs: EF Johnson Technologies requests extended frequency listing for certification ATH2425720 based on the following market targets: 380 to 399.9 MHz Federal Government and US Military Customers 406.1 to 410 MHz FCC Part 90 Frequencies 410 to 420 MHz FCC Part 90 Frequencies 420 to 450 MHz FCC Part 90 Frequencies 450 to 454 MHz FCC Part 90 Frequencies 456 to 460 MHz FCC Part 90 Frequencies 460 to 462.5375 MHz FCC Part 90 Frequencies 462.7375 to 467.5375 MHz FCC Part 90 Frequencies 467.7375 to 470 MHz FCC Part 90 Frequencies Based on the above targets, EF Johnson requests the following frequency limits: 380 MHz to 470 MHz Sincerely, John Oblak VP, Standards and Regulatory Affairs ERF Johnson Technologies

EFJohnson Technologies, Inc. • 1440 Corporate Drive, Irving, TX 75038-2401 800.328.3911 • 972.819.0700 • fax 972.819.0639 www.EFJohnson.com July 12, 2012 Federal Communications Commission EQUIPMENT AUTHORIZATION BRANCH 7435 Oakland Mills Road Columbia, MD 21046 Re: Programming Capability Dear FCC Representative; Reference part 90.203(e), frequency programming capability. The end user will not be able to program the channel frequencies. A service shop or authorized agent using a special programming cable and computer software can program the allowed TX/RX frequencies. The end user can only select from the preprogrammed channels. The software and programming cable are not available to the end user. Sincerely, John Oblak VP Standards and Regulatory Affairs E.F. Johnson Technologies

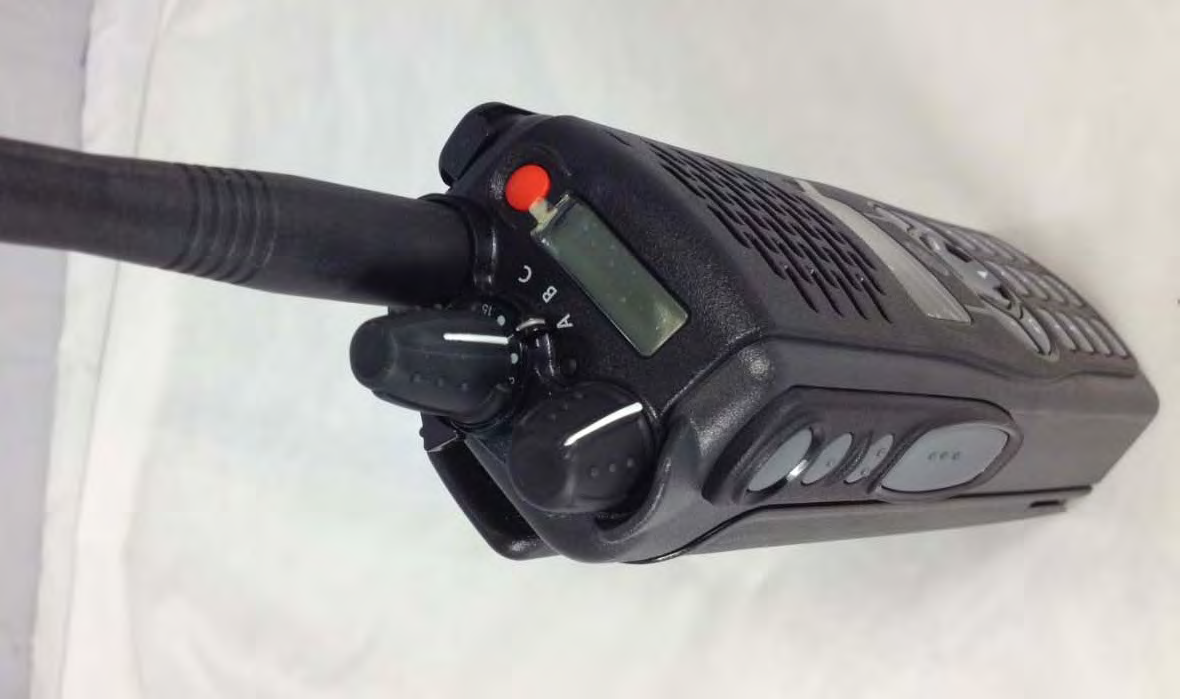

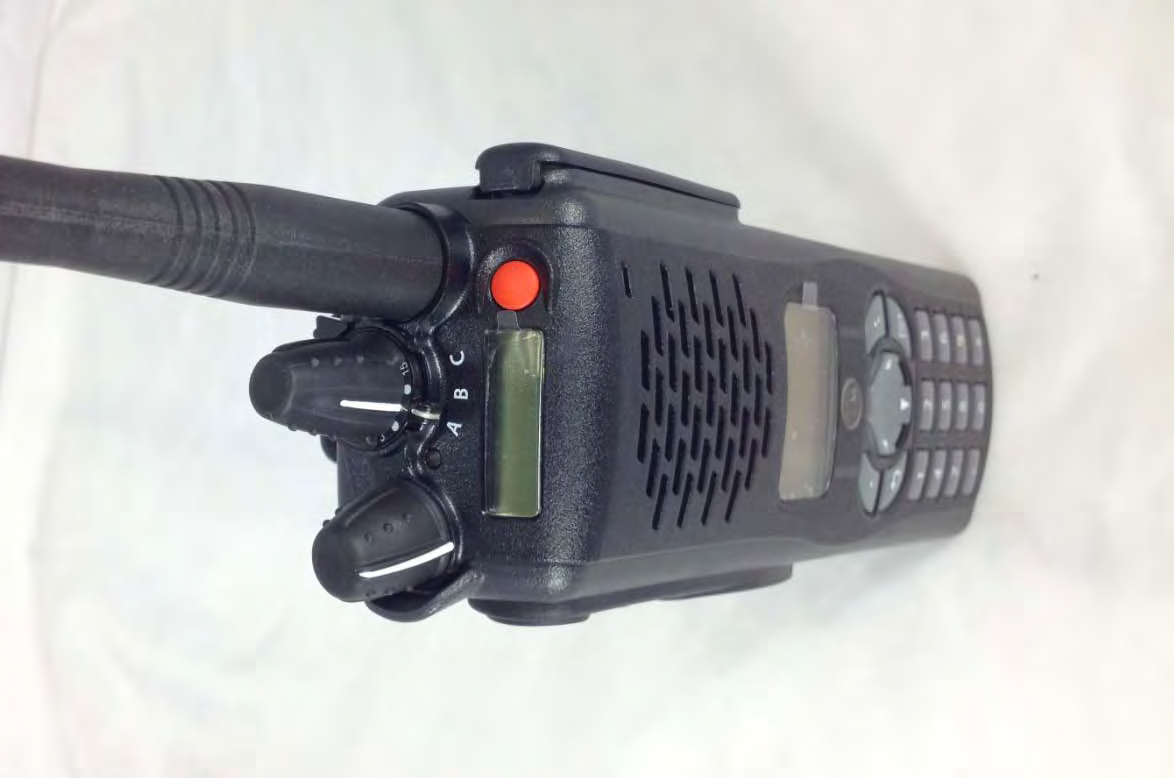

EF Johnson Model 5720 – External Photographs Front View Right Quarter View Right Side View Rear View Left Side View Left Quarter View Top Three-Quarter View Top View Rear View with Battery Removed Showing FCC and Industry Canada Label

EF Johnson Model 5720 – Internal Photographs Radio Assembly Opened Radio Front Housing Main Flex PC Board Back Main Flex PC Board Front Main Display Module Back Main Display Module Front Top Display Module Back Top Display Module Front Radio Front with Display Modules Installed and Main Flex Assembly Radio Chassis Assembly Front Radio Chassis Assembly Back Radio Chassis Assembly with Shield Removed Showing Audio/Logic PC Board Audio/Logic PC Board Front Audio/Logic PC Board Back Radio Chassis Assembly with Inner Shield Removed Showing RF PC Board RF PC Board Front RF PC Board Back

Viking Portable Radio Service Manual4-1 SECTION Section 4Radio Programming Radio programming and firmware upgrades are performed using EFJohnson Technologies Armada ™ software (and/or the EFJohnson Technologies Express Code Updater. General guidelines for radio programming are given in the following paragraphs. 4.1Programming with Armada The following paragraphs provide general information and requirements for programming Viking Portable radios with Armada. For detailed instructions on programing radios, refer to the Armada Programming Manual. 4.1.1Computer Requirements The computer used to run Armada must meet the following minimum requirements: • Microsoft Windows ® XP, Vista, or Windows 7 • Intel Pentium ® processor or equivalent • A hard disk drive with at least 30 MB of free space •A CD-ROM drive • An available USB port Draft 7/16/12 4-2Viking Portable Radio Service Manual Radio Programming 4.1.2Programming Setup To program the with Armada, you need: •Windows ® -based computer (as described above) • Armada programming software • The items listed in paragraph 4.1.3. 4.1.3Connections from Computer to Radio To connect the VP600 radio to the computer for programming, you will need: Radio programming cable, Part No. 597-0600-970. This cable has a USB connector for connection to a USB port on your workstation and can be used with Armada. NoteArmada Kit No. 250-0600-xxx contains the USB programming cable and a CD with the Armada software and manual. Figure 4.1Portable Programming Cables, Part No. 597-0600-970 Draft 7/16/12 Viking Portable Radio Service Manual4-3 Radio Programming Figure 4.2 shows the connections you must make to program a portable radio. (Note that the illustration is an example, and does not depict a specific cable). Figure 4.2Portable Radio Programming Connections 4.2Programming with Express Code Updater Express Code Updater is an auto-executable software file which updates the radio to the latest version of software/firmware. It is designed for simplicity and ease of use. NoteExpress Code Updater is version-specific. Express Code Updaters are available for the following portable radios: • Series 4 - x • Series 6 - ES • Series ??? - Viking For details of Express Code Updater use, refer to the Express Code Updater Technical Guide. 4.3Alignment Procedure Alignment procedures should be performed if repairs or adjustments are made that can affect the factory alignment. Programming Cable Connect To appropriate Port Draft 7/16/12 4-4Viking Portable Radio Service Manual Radio Programming EFJohnson Viking Tune software is used to perform alignment procedures on the EFJohnson Technologies Viking Portable portable radios. Refer to the instructions in the Viking Tune manual included on the Viking Tune CD. NoteFactory tuning is precise, and tuning in the field with Viking Tune is not normally required. For Viking radios, VikingTune version 1.2.x or higher is required. To verify radio operation, perform the Digital Performance Tests and the Analog Performance Tests in the Viking Tune manual included on the PC Tune CD. Draft 7/16/12

© 2012 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION EF Johnson Dates of Test: July 16-17, September 24, 2012 123 N. State St. Test Report Number: SAR.20120703 Waseca, MN 56093 Revision A This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, and OET Bulletin 65 Supp. C (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application is subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Certificate # 2387.01 FCC ID: ATH2425720 IC Certificate: 933B-2425720 Model(s): R0235170083 Test Sample: Engineering Unit Same as Production Serial Number: 517001208720021 Equipment Type: Push-To-Talk Handheld Radio for Occupational Use Classification: Portable Transmitter Next to Body and In Front of Face TX Frequency Range: 380 – 470 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 425 MHz – 36.57 dB Conducted Signal Modulation: FM Accessories: Standard Body Worn Microphone; Body Worn Microphone with Antenna Antenna Type: Standard Whip Antenna P/N 501-0017-107 Battery: Standard Lithium Ion Battery Application Type: Certification FCC Rule Parts: Part 2, 90 KDB Test Methodology: KDB 447498 v04, KDB 643646 D01 v01r01 Industry Canada: RSS-102, Safety Code 6 Maximum SAR Value: 4.670 W/kg Separation Distance: 25 mm for Face; 0 mm for Body FCC ID: ATH2425720 © 2012 RF Exposure Lab, LLC Page 2 of 114 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Table of Contents 1. Introduction ........................................................................................................................... 3 SAR Definition [5] ...................................................................................................................... 3 2. SAR Measurement Setup ..................................................................................................... 4 Robotic System ......................................................................................................................... 4 System Hardware ..................................................................................................................... 4 System Description ................................................................................................................... 4 E-Field Probe ............................................................................................................................ 5 3. Robot Specifications ............................................................................................................. 7 4. Probe and Dipole Calibration ................................................................................................ 8 5. Phantom & Simulating Tissue Specifications ........................................................................ 9 SAM Phantom ........................................................................................................................... 9 Head & Body Simulating Mixture Characterization ................................................................... 9 Device Holder ........................................................................................................................... 9 6. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2] ............................................................... 10 Uncontrolled Environment ....................................................................................................... 10 Controlled Environment .......................................................................................................... 10 7. Measurement Uncertainty ................................................................................................... 11 8. System Validation ............................................................................................................... 12 Tissue Verification ................................................................................................................... 12 Test System Verification ......................................................................................................... 12 9. SAR Test Data Summary .................................................................................................... 13 Procedures Used To Establish Test Signal ............................................................................. 13 Device Test Condition ............................................................................................................. 13 SAR Data Summary – Head SAR in Front of Face Measurements ........................................ 17 SAR Data Summary – Body SAR Measurements .................................................................. 18 10. Test Equipment List ........................................................................................................ 19 11. Conclusion ...................................................................................................................... 20 12. References ..............................................................…

Text truncated - open the document above for the full version.

Master: ktlPT90PLMT Date: April 19, 1999 Nemko Test Report: 10225611RUS1 Applicant: EF Johnson Company 1440 Corporate Drive Irving, TX 75308 USA Equipment Under Test: Viking VP 600 (E.U.T.) Model: 242-5720 FCC ID. ATH2425720 IC: 933B-2425720 In Accordance With: FCC Part 90, Subpart I and Industry Canada, RSS-119, Issue 11 Private Land Mobile Transmitter TESTED BY: DATE: 03 July 2012 David Light, Wireless Engineer APPROVED BY: DATE: 11-Jul-2012 Michael Cantwell Total Number of Pages: 39 Nemko USA FCC PART 90, SUBPART I and RSS-119 PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: VP 600 PROJECT NO.: 10225611RUS1 Page 2 of 39 Table of Contents SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. RF POWER OUTPUT 6 SECTION 4. MODULATION CHARACTERISTICS 7 SECTION 4.1 AUDIO FREQUENCY RESPONSE 8 SECTION 4.2 AUDIO LOW-PASS FILTER RESPONSE 9 SECTION 4.3 MODULATION LIMITING 10 SECTION 5. OCCUPIED BANDWIDTH 11 SECTION 6. SPURIOUS EMISSIONS AT ANTENNA TERMINALS 14 SECTION 7. FIELD STRENGTH OF SPURIOUS EMISSIONS 19 SECTION 8. FREQUENCY STABILITY 20 SECTION 9. TRANSIENT FREQUENCY BEHAVIOR 22 SECTION 10. RECEIVER SPURIOUS EMISSIONS 25 SECTION 11. TEST EQUIPMENT LIST 28 ANNEX A - TEST METHODOLOGIES 29 ANNEX B - TEST DIAGRAMS 35 Nemko USA FCC PART 90, SUBPART I and RSS-119 PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: VP 600 PROJECT NO.: 10225611RUS1 Page 3 of 39 Section 1. Summary of Test Results Manufacturer: EF Johnson Company Model Number: Model: 242-5720 Serial No.: 517001208720083 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I and Industry Canada RSS-119, Issue 11. EIA/TIA 603 was used as a test method for these measurements. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety, for use by the company’s employees only. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA FCC PART 90, SUBPART I and RSS-119 PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: VP 600 PROJECT NO.: 10225611RUS1 Page 4 of 39 Summary Of Test Data NAME OF TEST PARA. NO. RESULT RF Power Output 90.205 / 5.4.1 Complies Audio Frequency Response TIA EIA-603.3.2.6 Complies Audio Low-Pass Filter Response TIA EIA-603.3.2.6 Complies Modulation Limiting TIA EIA-603.3.2.6 Complies Occupied Bandwidth 90.210 / / 5.5.8 Table 3 Complies Spurious Emissions at Antenna Terminals 90.210 / 5.5.8 Table 3 Complies Field Strength of Spurious Emissions 90.210 / 5.5.8 Table 3 Complies Frequency Stability 90.213 / 5.3 Complies Transient Frequency Behavior 90.214 / 5.9 Complies Footnotes: . Nemko USA FCC PART 90, SUBPART I and RSS-119 PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: VP 600 PROJECT NO.: 10225611RUS1 Page 5 of 39 Section 2. General Equipment Specification Transmitter Supply Voltage Input: 7.4 Vdc Lithium Ion Battery Frequency Range: 380 to 470 MHz Tunable Bands: 1 Type(s) of Modulation: F3E (Voice) F1D F1E D7W (QAM) Other Internal/External Data Source: Internal (Vocoded voice) Emission Designator: 11K0F3E, 8K10F1E, 8K10F1D Output Impedance: 50 ohms RF Power Output (rated): 5 watts Channel Spacing(s): 12.5 kHz Operator Selection of Operating Frequency: Pre-programmed channel selection System Description The VP 600 is a 4.5 watt UHF radio for mobile radio services. The radio functions as a normal Push-to-Talk type radio. Nemko USA FCC PART 90, SUBPART I and RSS-119 PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: VP 600 PROJECT NO.: 10225611RUS1 Page 6 of 39 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.985 TESTED BY: David LightTom Tidwell & Debbie Jensen DATE: 27 June 2012 Measurement Results: Complies. Measurement Data: Frequency (MHz) Modulation Peak Output Power (dBm) Peak Output Power (Watts) 425.0 Analog 36.5 4.46 425.0 Digital 36.5 4.46 Rated Output Power: 4.5 watts Spectrum Analyzer Setting: RBW/VBW = 300 kHz Peak Detector Equipment Used: 1036-1082-1064-1065 Measurement Uncertainty: +/- 1.7 dB Temperature: 20 C Relative Humidity: 45 % Nemko USA FCC PART 90, SUBPART I and RSS-119 PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: VP 600 PROJECT NO.: 10225611RUS1 Page 7 of 39 Section 4. Modulation Characteristics NAME OF TEST: Modulation Characteristics PARA. NO.: 2.987 TESTED BY: David LightTom Tidwell & Debbie Jensen DATE: 27 June 2012 Measurement Results: Complies. Measurement Data: See following pages Description of modulation: Modulation input to the radio is voice via a microphone. The radio has two modes of operation: 1) Narrow band voice for 12.5 kHz channels 2) Data modulation. In this mode the voice input signal goes through a Vocoder to translate the audio to data. Description of baseband filtering: The radio has a low-pass audio filter. Nemko USA FCC PART 90, SUBPART I and RSS-119 PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: VP 600 PROJECT NO.: 10225611RUS1 Page 8 of 39 Section 4.1 Audio Frequency Response NAME OF TEST: Audio Frequency Response PARA. NO.: 2.987(a) TESTED BY: David LightTom Tidwell & Debbie Jensen DATE: 27 June 2012 -50 -40 -30 -20 -10 0 10 20 100100010000 Frequency(Hz) Response(dB Rel. to 1000 Hz) Nemko USA FCC PART 90, SUBPART I and RSS-119 PRIVATE LAND MOBI…
