ATH2424130UHF (380 to 470 MHz) Portable Land Mobile Radio

Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 APPENDIX K: USER’S MANUAL Please see the following Operator’s Manual. DIGITAL/ANALOG PORTABLE RADIO OPERATING MANUAL 4100 SERIES PORTABLERADIO APCO Project 25 – Conventional – Trunked SMARTNET ® / SmartZone ® Analog (FM) Conventional VHF UHF 700/800 MH Z Part No. 242-41xx-xxx Part Number 002-4100-xxxx December 2004 4100 4100 SERIES PORTABLE OPERATING MANUAL ■APCO PROJECT 25 CONVENTIONAL ■APCO PROJECT 25 TRUNKED ■SMARTNET ® /SmartZone ® ■ANALOG (FM) CONVENTIONAL ■VHF/UHF/800 MHz Copyright© 2004 by the E.F. Johnson Company The E.F. Johnson Company, which was founded in 1923, provides wireless communication systems solutions for public safety, government, and commercial customers. The company designs, manufactures, and markets conventional and trunked radio systems, mobile and portable subscriber radios, repeaters, and Project 25 digital radio products. EFJohnson is a wholly owned subsidiary of EFJ, Inc. Viking Head/EFJohnson logo, PCConfigure ™ , and Call Guard ® are trademarks of the E.F. Johnson Company. SMARTNET ® , SmartZone ® , SecureNet ™ , Call Alert ™ , Enhanced Pri- vate Conversation ™ , and Private Conversation II ™ are trademarks of Motorola, Inc. All other company and/or product names used in this manual are trademarks and/or registered trade- marks of their respective manufacturer. The IMBE™ voice coding technology embodied in this product is protected by intellectual property rights including patent rights of Digital Voice Systems, Inc. LAND MOBILE PRODUCT WARRANTY - The manufacturer’s warranty statement for this product is available from your product supplier or from E.F. Johnson Company, 1440 Corporate Drive, Irving, TX 75038-2401. Phone toll free 1-800-328-3911. Information in this manual is subject to change without notice. 3 TABLE OF CONTENTS TABLE OF CONTENTS SAFETY INFORMATION •Federal Communications Commission Regulations 6 •Compliance with RF Exposure Standards . . . . . . . . 6 •RF Exposure Compliance and Control Guidelines and Operating Instructions. . . . . . . . . . . . . . . . . . . . 7 •Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . 7 •Electromagnetic Interference . . . . . . . . . . . . . . . . . . 7 •Usage Compatibility . . . . . . . . . . . . . . . . . . . . . . . . 7 •Battery Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 1FEATURES 1.1General Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 1.2Conventional Features . . . . . . . . . . . . . . . . . . . . . . . 8 1.3SMARTNET/SmartZone Features . . . . . . . . . . . . . 8 1.4Project 25 Trunked Features . . . . . . . . . . . . . . . . . . 9 2CONTROLS AND DISPLAY 2.1Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . 10 2.2Top Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . 11 2.3Side Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2.4Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3GENERAL OPERATION 3.1Turning Power On and Setting Volume . . . . . . . . 13 Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Standard and Soft Power Down . . . . . . . . . . . . 13 Setting Volume Level . . . . . . . . . . . . . . . . . . . . 13 3.2Power-Up Password. . . . . . . . . . . . . . . . . . . . . . . . 13 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Password Features. . . . . . . . . . . . . . . . . . . . . . . 14 3.3Zone and Channel Select . . . . . . . . . . . . . . . . . . . . 14 3.4Low Battery Indication . . . . . . . . . . . . . . . . . . . . . 15 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . 16 3.5Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.6Keypad Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.7Setting Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.8Transmit Disable . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.9Radio Operating Modes . . . . . . . . . . . . . . . . . . . . . 17 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Conventional Mode. . . . . . . . . . . . . . . . . . . . . . 17 SMARTNET/SmartZone Mode . . . . . . . . . . . . 17 P25 Trunked Mode . . . . . . . . . . . . . . . . . . . . . . 18 Systems, Channels, and Zones . . . . . . . . . . . . . 18 4RADIO-WIDE FEATURES 4.1Option Switches . . . . . . . . . . . . . . . . . . . . . . . . . . 20 4.2Menu Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 4.3Time-Out Timer . . . . . . . . . . . . . . . . . . . . . . . . . . 20 4.4Home Zone/Channel Select . . . . . . . . . . . . . . . . . 22 4.5Power Output Select . . . . . . . . . . . . . . . . . . . . . . . 22 4.6Alert Tone Select . . . . . . . . . . . . . . . . . . . . . . . . . 22 4.7Surveillance Mode . . . . . . . . . . . . . . . . . . . . . . . . 22 4.8Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Priority Scanning . . . . . . . . . . . . . . . . . . . . . . . . 23 Radio Wide Scanning . . . . . . . . . . . . . . . . . . . . 23 Scan Hold Time . . . . . . . . . . . . . . . . . . . . . . . . . 23 Transmitting in the Scan Mode . . . . . . . . . . . . . 24 Nuisance Channel Add/Delete. . . . . . . . . . . . . . 24 4.9Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Priority Scan Lists . . . . . . . . . . . . . . . . . . . . . . . 24 Radio Wide Scan Lists. . . . . . . . . . . . . . . . . . . . 26 5CONVENTIONAL MODE FEATURES 5.1Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 5.2Monitoring Before Transmitting . . . . . . . . . . . . . 27 5.3Monitor M…

Text truncated - open the document above for the full version.

DIGITAL/ANALOG PORTABLE RADIO OPERATING MANUAL 4100 SERIES PORTABLERADIO APCO Project 25 – Conventional – Trunked SMARTNET ® / SmartZone ® Analog (FM) Conventional VHF UHF 700/800 MH Z Part No. 242-41xx-xxx Part Number 002-4100-xxxx December 2004 4100 4100 SERIES PORTABLE OPERATING MANUAL ■APCO PROJECT 25 CONVENTIONAL ■APCO PROJECT 25 TRUNKED ■SMARTNET ® /SmartZone ® ■ANALOG (FM) CONVENTIONAL ■VHF/UHF/800 MHz Copyright© 2004, 2005 by the E.F. Johnson Company The E.F. Johnson Company, which was founded in 1923, provides wireless communication systems solutions for public safety, government, and commercial customers. The company designs, manufactures, and markets conventional and trunked radio systems, mobile and portable subscriber radios, repeaters, and Project 25 digital radio products. EFJohnson is a wholly owned subsidiary of EFJ, Inc. Viking Head/EFJohnson logo, PCConfigure ™ , and Call Guard ® are trademarks of the E.F. Johnson Company. SMARTNET ® , SmartZone ® , SecureNet ™ , Call Alert ™ , Enhanced Pri- vate Conversation ™ , and Private Conversation II ™ are trademarks of Motorola, Inc. All other company and/or product names used in this manual are trademarks and/or registered trade- marks of their respective manufacturer. The IMBE™ voice coding technology embodied in this product is protected by intellectual property rights including patent rights of Digital Voice Systems, Inc. LAND MOBILE PRODUCT WARRANTY - The manufacturer’s warranty statement for this product is available from your product supplier or from E.F. Johnson Company, 1440 Corporate Drive, Irving, TX 75038-2401. Phone toll free 1-800-328-3911. Information in this manual is subject to change without notice. 3 TABLE OF CONTENTS TABLE OF CONTENTS SAFETY INFORMATION •Federal Communications Commission Regulations 6 •Compliance with RF Exposure Standards . . . . . . . . 6 •RF Exposure Compliance and Control Guidelines and Operating Instructions. . . . . . . . . . . . . . . . . . . . 7 •Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . 7 •Electromagnetic Interference . . . . . . . . . . . . . . . . . . 7 •Usage Compatibility . . . . . . . . . . . . . . . . . . . . . . . . 7 •Battery Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 1FEATURES 1.1General Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 1.2Conventional Features . . . . . . . . . . . . . . . . . . . . . . . 8 1.3SMARTNET/SmartZone Features . . . . . . . . . . . . . 8 1.4Project 25 Trunked Features . . . . . . . . . . . . . . . . . . 9 2CONTROLS AND DISPLAY 2.1Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . 10 2.2Top Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . 11 2.3Side Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2.4Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3GENERAL OPERATION 3.1Turning Power On and Setting Volume . . . . . . . . 13 Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Standard and Soft Power Down . . . . . . . . . . . . 13 Setting Volume Level . . . . . . . . . . . . . . . . . . . . 13 3.2Power-Up Password. . . . . . . . . . . . . . . . . . . . . . . . 13 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Password Features. . . . . . . . . . . . . . . . . . . . . . . 14 3.3Zone and Channel Select . . . . . . . . . . . . . . . . . . . . 14 3.4Low Battery Indication . . . . . . . . . . . . . . . . . . . . . 15 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . 16 3.5Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.6Keypad Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.7Setting Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.8Transmit Disable . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.9Radio Operating Modes . . . . . . . . . . . . . . . . . . . . . 17 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Conventional Mode. . . . . . . . . . . . . . . . . . . . . . 17 SMARTNET/SmartZone Mode . . . . . . . . . . . . 17 P25 Trunked Mode . . . . . . . . . . . . . . . . . . . . . . 18 Systems, Channels, and Zones . . . . . . . . . . . . . 18 4RADIO-WIDE FEATURES 4.1Option Switches . . . . . . . . . . . . . . . . . . . . . . . . . . 20 4.2Menu Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 4.3Time-Out Timer . . . . . . . . . . . . . . . . . . . . . . . . . . 20 4.4Home Zone/Channel Select . . . . . . . . . . . . . . . . . 22 4.5Power Output Select . . . . . . . . . . . . . . . . . . . . . . . 22 4.6Alert Tone Select . . . . . . . . . . . . . . . . . . . . . . . . . 22 4.7Surveillance Mode . . . . . . . . . . . . . . . . . . . . . . . . 22 4.8Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Priority Scanning . . . . . . . . . . . . . . . . . . . . . . . . 23 Radio Wide Scanning . . . . . . . . . . . . . . . . . . . . 23 Scan Hold Time . . . . . . . . . . . . . . . . . . . . . . . . . 23 Transmitting in the Scan Mode . . . . . . . . . . . . . 24 Nuisance Channel Add/Delete. . . . . . . . . . . . . . 24 4.9Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Priority Scan Lists . . . . . . . . . . . . . . . . . . . . . . . 24 Radio Wide Scan Lists. . . . . . . . . . . . . . . . . . . . 26 5CONVENTIONAL MODE FEATURES 5.1Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 5.2Monitoring Before Transmitting . . . . . . . . . . . . . 27 5.3Monitor Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 5.4Busy Channel Lockout . . . . . . . . . . . . . . . . . . . . . 27 5.5Call Guard Squelch. . . . . . . . . . . . . . . . . . . . . . . . 28 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Call…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 APPENDIX D: ATTESTATION LETTER Please see the following page. Waseca Office: E.F. Johnson Company • 299 Johnson Ave., P.O. Box 1249 • Waseca, MN 56093-0514 • 800-328-3911 • 507-835-6222 • Fax 507-835-8356 www.efjohnson.com September 14, 2004 Federal Communications Commission EQUIPMENT AUTHORIZATION BRANCH 7435 Oakland Mills Road Columbia, MD 21046 Re: Programming Capability Dear FCC Representative; Reference part 90.203(e), frequency programming capability. The end user will not be able to program the channel frequencies. A service shop or authorized agent using a special programming cable and computer software can program the allowed TX/RX frequencies. The end user can only select from the preprogrammed channels using the channel select knob. The software and programming cable are not available to the end user. Sincerely, John Oblak VP New Technology E.F. Johnson Co.

Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 APPENDIX C: CONFIDENTIALITY REQUEST LETTER Please see the following page. Waseca Office: E.F. Johnson Company • 299 Johnson Ave., P.O. Box 1249 • Waseca, MN 56093-0514 • 800-328-3911 • 507-835-6222 • Fax 507-835-8356 www.efjohnson.com September 14, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Product Description • Block Diagram • Bill of Materials (Parts List) Sincerely, John Oblak VP New Technology E. F. Johnson Co. / Alignment

From: OET Generic account [mailto:[email protected]] Sent: Thursday, February 03, 2005 11:18 AM To: [email protected] Subject: FCC Equipment Authorization System To: Richard McMurray, From: Stan Lyles [email protected] FCC Application Processing Branch Re: FCC ID ATH2424130 Applicant: E F Johnson Company Correspondence Reference Number: 28403 731 Confirmation Number: EA842347 1) Please justify that the RF exposure warning label is easily viewable by a user in it's current location. Response : The RF Exposure warning label is located on the metal surface of the radio in the battery compartment. The radio is shipped with the battery removed. When the battery is initially installed, or when the battery is changed, the label is viewable. In addition, the location of the label is such that when the battery is installed, the user's attention is drawn to the area of the label, as that is the location for initial insertion of the battery. Due to the physical nature of the portable, it is impractical to locate a label of that size on the external surface of the product. 2) Please provide maximum duty cycle for the data mode. Response : The duty cycle for data operation is typically low, as the primary usage is for Over The Air Rekeying (OTAR) or other short data bursts. Typical data operation is well below 50% transmit duty cycle. 3) Your RF exposure instructions in the user manual state "If you are not using a body-worn accessory and are not using the radio in the intended use position in front of the face, then ensure the antenna and the radio are kept at least one inch (2.5 cm) from the body when transmitting." To support this statement please test with a 2.5 cm gap under body worn conditions. Response : Please see the revised manual uploaded with this response. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal pursuant to Section 2.917 (c) and forfeiture of the filing fee pursuant to section 1.1108. DO NOT reply to this e-mail by using the Reply button. In order for your response to be processed expeditiously, you must upload your response via the Internet at www.fcc.gov , Electronic Filing, OET Equipment Authorization Electronic Filing. If the response is submitted through Add Attachments, in order to expedite processing, a message which informs the processing staff that a new exhibit has been submitted must also be submitted via Submit Correspondence. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

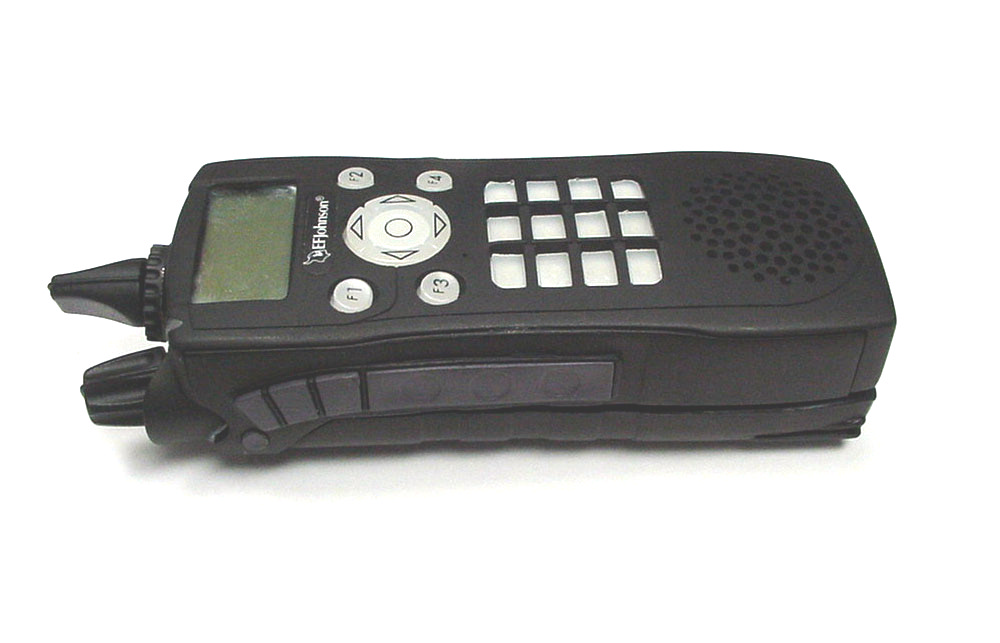

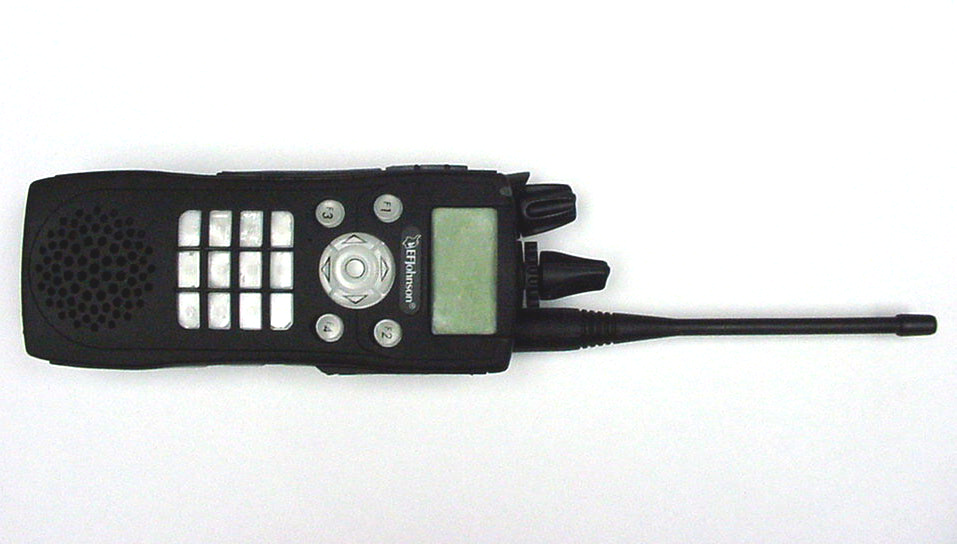

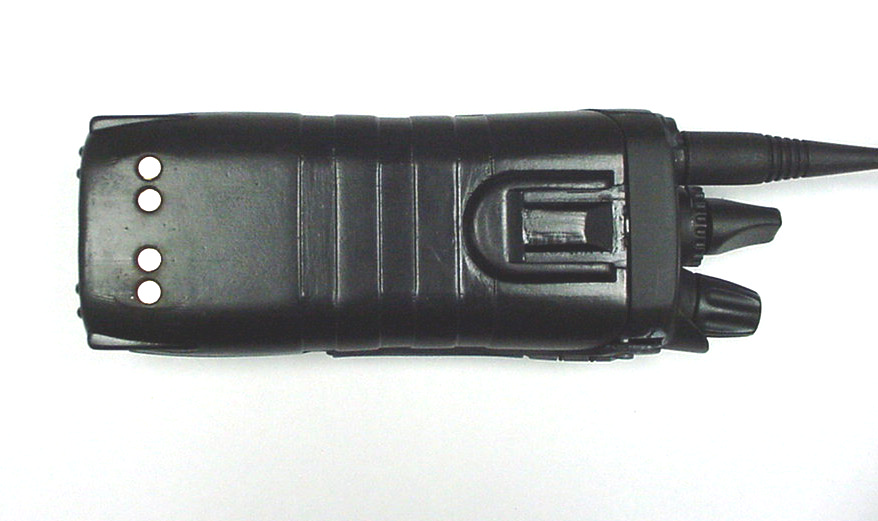

Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 APPENDIX M: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 5: RADIO FRONT Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 PHOTOGRAPH 6: RADIO BACK Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 PHOTOGRAPH 7: RADIO ACCESSORY CONNECTOR SIDE Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 PHOTOGRAPH 8: RADIO TOP Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 PHOTOGRAPH 9: RADIO PTT SIDE

Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 APPENDIX E: LABEL AND LABEL LOCATION PHOTOGRAPH 1: FCC LABEL AND LOCATION Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 PHOTOGRAPH 2: RF LABEL

Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 APPENDIX N: INTERNAL PHOTOGRAPHS PHOTOGRAPH 10: CHASSIS WITH SHIELDS Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 PHOTOGRAPH 11: CHASSIS WITH SHIELDS REMOVED Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 PHOTOGRAPH 12: POWER SUPPLY BOARD TOP Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 PHOTOGRAPH 13: POWER SUPPLY BOARD BOTTOM Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 PHOTOGRAPH 14: RF BOARD BOTTOM

Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 PHOTOGRAPH 15: RF BOARD TOP Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 PHOTOGRAPH 16: DIGITAL BOARD IN FRONT COVER Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 PHOTOGRAPH 17: FRONT COVER WITH DIGITAL BOARD AND CONTROL ASSEMBLY Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 PHOTOGRAPH 18: FRONT COVER WITH DIGITAL BOARD REMOVED

Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 APPENDIX A: RF EXPOSURE Please see the SAR Report that follows. © 2004 Celltech Labs Inc. 1 of 20 Test Report S/N: 120304ATH-T599-S90U Test Date(s): December 09-10, 2004 Test Type: FCC/IC SAR Evaluation Performed By: Spencer Watson Compliance Technologist Celltech Labs Inc. Reviewed By: Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the Occupational / Controlled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information E.F. JOHNSON CO. 123 N. State Street Waseca, MN 56093 United States FCC IDENTIFER: ATH2424130 IC IDENTIFIER: 933B-2424130 Model(s): 4130 Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Classification: Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Description: Portable FM UHF PTT Radio Transceiver Modulation Type: FM (UHF) Tx Frequency Range: 380 - 470 MHz Max. RF Output Power Measured: 36.63 dBm Conducted (380 MHz) 36.75 dBm Conducted (425 MHz) 36.61 dBm Conducted (470 MHz) Antenna Type(s) Tested: ¼- Wave Whip (P/N: 501-0017-107) Battery Type(s) Tested: NiMH (7.5 V, 2700 mAh) Body-Worn Accessories Tested: Speaker-Microphone with Antenna (P/N: 589-0015-058) Speaker-Microphone (P/N: 589-0015-057) Boom-Microphone Headset (P/N: 589-0015-059) Plastic Belt-Clip with Metal Spring (P/N: 585-5100-128) Max. SAR Levels Evaluated: Face-held: 2.02 W/kg (50% Duty Cycle) Body-worn: 3.96 W/kg (50% Duty Cycle) © 2004 Celltech Labs Inc. 2 of 20 Test Report S/N: 120304ATH-T599-S90U Test Date(s): December 09-10, 2004 Test Type: FCC/IC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION.....................................................................3 2.0DESCRIPTION OF DUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM................................................ 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6 7.0SYSTEM PERFORMANCE CHECK............................................. 7 8.0SIMULATED EQUIVALENT TISSUES......................................... 8 9.0SAR SAFETY LIMITS............................................................... 8 10.0ROBOT SYSTEM SPECIFICATIONS........................................... 9 11.0PROBE SPECIFICATION.......................................................... 10 12.0PLANAR PHANTOM................................................................ 10 13.0VALIDATION PHANTOM........................................................... 10 14.0DEVICE HOLDER.................................................................... 10 15.0TEST EQUIPMENT LIST........................................................... 11 16.0MEASUREMENT UNCERTAINTIES............................................ 12-13 17.0REFERENCES........................................................................14 APPENDIX A - SAR MEASUREMENT DATA............................................... 15 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................ 16 APPENDIX C - SYSTEM VALIDATION PROCEDURES................................. 17 APPENDIX D - PROBE CALIBRATION...................................................... 18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................... 19 APPENDIX F - SAR TEST SETUP & DUT PHOTOGRAPHS.......................... 20 Applicant: E.F. Johnson Co. FCC ID: ATH2424130 IC ID: 933B-2424130 Model(s):4130Portable FM UHF PTT Radio Transceiver 380 - 470 MHz 2004 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 3 of 20 Test Report S/N: 120304ATH-T599-S90U Test Date(s): December 09-10, 2004 Test Type: FCC/IC SAR Evaluation This measurement report demonstrates compliance of the E.F. Johnson Co. Model: 4130 Portable FM UHF PTT Radio Transceiver FCC ID: ATH2424130 with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]), and Health Canada’s Safety Code 6 (see reference [2]) for the Occupational / Controlled Exposure environment. The measurement procedures described in FCC OET Bulletin 65, Supplement C (Edition 01-01) (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product, operating configuration, detailed summary …

Text truncated - open the document above for the full version.

Engineering and Testing for EMC and Safety Compliance CERTIFICATION APPLICATION REPORT FCC PART 90 & INDUSTRY CANADA RSS-119 Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web: www.rheintech.com Herndon, VA 20170 Contact: [email protected] Applicant: E. F. Johnson Phone: 507-835-6276 299 Johnson Ave. Fax: 507-835-6666 P.O. Box 1249 Waseca, MN 56093-0514 Contact: Ann Jones FCC ID: ATH2424130 FRN NUMBER: 0005-8136-88 MODEL: 242-413x-xxx RTL WORK ORDER NUMBER: 2004209 EQUIPMENT TYPE: UHF-L PTT RTL QUOTE NUMBER: QRTL04-375 DATE OF TEST REPORT: December 19, 2004 FCC Classification: TNF – Licensed Non-Broadcast Transmitter Held to Face FCC Rule Part(s): Part 90: Private Land Mobile Radio Services Industry Canada Standard: RSS-119: Land Mobile and Fixed Radio Transmitters and Receivers, 27.41MHz to 960MHz Frequency Range (MHz) Output Power (W) Frequency Tolerance (PPM, %, or Hz) Emission Designator 380 – 470 4.7 4 PPM 11K0F3E 380 – 470 4.7 4 PPM 16K0F3E 380 – 470 4.7 4 PPM 8K10F1E 380 – 470 4.7 4 PPM 8K10F1D We, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to or exclusions from the FCC Part 2, FCC Part 90, Industry Canada RSS-119, ANSI C63.2, ANSI/TIA-603-B-2002 and ANSI/TIA/EIA 603-1. Signature: Date: December 19, 2004 Typed/Printed Name: Desmond A. Fraser Position: President Signature: Date: December 19, 2004 Typed/Printed Name: Daniel Baltzell Position: Test Engineer Rhein Tech Laboratories Report #: 2004209 360 Herndon Parkway FCC ID: ATH2424130 Suite 1400 Model: 242-413x-xxx Herndon, VA 20170 Standards: FCC Part 90 & IC RSS-119 http://www.rheintech.com Date: December 19, 2004 TABLE OF CONTENTS 1 GENERAL INFORMATION ...................................................................................................................................5 1.1 SCOPE .........................................................................................................................................................5 1.2 TEST FACILITY............................................................................................................................................5 1.3 RELATED SUBMITTAL(S)/GRANT(S) .........................................................................................................5 2 EQUIPMENT INFORMATION................................................................................................................................6 2.1 TEST SYSTEM DETAILS.............................................................................................................................6 2.2 WORST CASE CONFIGURA…
