ATH2424330Non-Broadcast Transceiver

DIGITAL/ANALOG MOBILE RADIO OPERATING MANUAL 4300 SERIESMOBILERADIO APCO Project 25 Conventional APCO Project 25 Trunked SMARTNET ® /SmartZone ® Analog (FM) Conventional VHF UHF 800 MH Z Part No. 242-43xx-xxx Part Number: 002-4300-00xCD NR Decemb er 2004 4300 4300 SERIES MOBILE OPERATING MANUAL ■APCO PROJECT 25 CONVENTIONAL ■APCO PROJECT 25 TRUNKED ■SMARTNET ® /SmartZone ® ■ANALOG (FM) CONVENTIONAL VHF/UHF/800 MHz Copyright© 2004 by the EFJohnson Company The EFJohnson Company, which was founded in 1923, provides wireless communication systems solutions for public safety, government, and commercial customers. The company designs, manufactures, and markets conventional and trunked radio systems, mobile and portable subscriber radios, repeaters, and Project 25 digital radio products. EFJohnson is a wholly owned subsidiary of EFJ, Inc. Viking Head/EFJohnson logo and Call Guard ® are trademarks of the EFJohnson Company. SMARTNET ® , SmartZone ® , SecureNet ™ , Call Alert ™ , Enhanced Private Conversation ™ , and Private Conversation II ™ are trademarks of Motorola, Inc. All other company and/or product names used in this manual are trademarks and/or registered trademarks of their respective manufacturer. The IMBE™ voice coding technology embodied in this product is protected by intellectual property rights including patent rights of Digital Voice Systems, Inc. LAND MOBILE PRODUCT WARRANTY - The manufacturer’s warranty statement for this product is available from your product supplier or from EFJohnson Company, 1440 Corporate Drive, Irving, TX 75038-2401. Phone (800) 328-3911. Information in this manual is subject to change without notice. SAFETY INFORMATION 3 RF ENERGY EXPOSURE AWARENESS AND CONTROL INFORMATION, AND OPERATIONAL INSTRUCTIONS FOR FCC OCCUPATIONAL USE REQUIREMENTS Before using your mobile two-way radio, read this important RF energy awareness and control infor- mation and operational instructions to ensure compliance with the FCC’s RF exposure guidelines. NOTICE: This radio is intended for use in occupa- tional/controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorized for general population, consumer, or any other use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, electric power, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health and industry work with organizations to develop standards for exposure to RF energy. These standards provide recom- mended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All two-way radios marketed in North America are designed, manufac- tured and tested to ensure they meet government established RF exposure levels. In addition, manufacturers also recom- mend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple proce- dures on how to control it. Please refer to the following web sites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits. http://www.fcc.gov/oet/rfsafety/rf-faqs.html http://www.osha.gov/SLTC/radiofrequencyradiation/ index.html FEDERAL COMMUNICATIONS COMMISSION REGULATIONS The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for mobile two-way radios before they can be marketed in the U.S. When two- way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Expo- sure awareness can be facilitated by the use of a label directing users to specific user awareness information. Your EFJohnson two-way radio has a RF exposure product label. Also, your EFJohnson user manual, or product manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. COMPLIANCE WITH RF EXPOSURE STANDARDS Your EFJohnson two-way radio is designed and tested to comply with a number of national and international stan- dards and guidelines (listed below) regarding human expo- sure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at duty factors of up to 50% talk and 100% listen and is authorized by the FCC for occupational use. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio antenna radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. Your EFJohnson two-way radio complies with the following RF energy exposure standards and guidelines: •United States Federal Communications Commission, Code of Federal Regulations; 47 CFR §§ 2 sub-part J. •American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1- 1992. •Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition. RF EXPOSURE COMPLIANCE AND CONTROL GUIDELINES AND OPERATING INSTRUCTIONS To control exposure to yourself and others and ensure compliance with the occupational/controlled environment exposure limits always adhere to the following procedures. SAFETY INFORMATION 4 G…

Text truncated - open the document above for the full version.

Waseca Office: E.F. Johnson Company • 299 Johnson Ave., P.O. Box 1249 • Waseca, MN 56093-0514 • 800-328-3911 • 507-835-6222 • Fax 507-835-8356 www.efjohnson.com December 1, 2004 Federal Communications Commission EQUIPMENT AUTHORIZATION BRANCH 7435 Oakland Mills Road Columbia, MD 21046 Re: Programming Capability Dear FCC Representative; Reference part 90.203(e), frequency programming capability. The end user will not be able to program the channel frequencies. A service shop or authorized agent using a special programming cable and computer software can program the allowed TX/RX frequencies. The end user can only select from the preprogrammed channels using the channel select knob. The software and programming cable are not available to the end user. Sincerely, John Oblak VP New Technology E.F. Johnson Co.

Waseca Office: E.F. Johnson Company • 299 Johnson Ave., P.O. Box 1249 • Waseca, MN 56093-0514 • 800-328-3911 • 507-835-6222 • Fax 507-835-8356 www.efjohnson.com December 1, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Product Description • Block Diagram • Bill of Materials (Parts List) Sincerely, John Oblak VP New Technology E. F. Johnson Co.

FCC and IC Labels FCC ID: ATH2424330 EF Johnson Co. U.S.A. Model 242-4337-211-AAAA Made in DALLAS, TX USA IC: 933B-2424330 Serial No 43370A000A 00001 FCC/IC Label Radiation Safety Label Restricted to occupational use to satisfy FCC RF exposure limits. See user manual for operating requirements ATTENTION! Label is made of durable vinyl material and is affixed with permanent adhesive

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:41.70(dBm) Maximum peak output power at antenna input terminal:14791.08388(mW) Antenna gain(maximum):30(dBi) Maximum antenna gain:1000(numeric) Time Averaging:100(%) Prediction distance:1000(cm) Prediction frequency:380(MHz) MPE limit for controlled exposure at prediction frequency:1.26(mW/cm^2) Power density at prediction frequency:1.177037(mW/cm^2) Margin of compliance:-0.3(dB) 2 4R PG S π =

Master: ktlPT90PLMT Date: April 19, 1999 Nemko Test Report: 4L0699RUS1 Applicant: E. F. Johnson Equipment Under Test: 433x UHF Transceiver (E.U.T.) FCC ID: ATH2424330 In Accordance With: FCC Part 90, Subpart I Private Land Mobile Transmitter Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: David Light, Senior Wireless Engineer Date: 1/4/05 Total Number of Pages: 54 Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 433x UHF Transceiver PROJECT NO.: 4L0699RUS1Rev1 Page 2 of 2 Table of Contents Section 1. Summary of Test Results ......................................................................................... 3 Section 2. General Equipment Specification............................................................................. 5 Section 3. RF Power Output...................................................................................................... 7 Section 4. Modulation Characteristics ...................................................................................... 9 Section 4.1 Audio Frequency Response ..................................................................................... 10 Section 4.2 Audio Low-Pass Filter Response ............................................................................ 11 Section 4.3 Modulation Limiting ............................................................................................... 12 Section 5. Occupied Bandwidth .............................................................................................. 13 Section 6. Spurious Emissions at Antenna Terminals............................................................. 23 Section 7. Field Strength of Spurious Emissions .................................................................... 33 Section 8. Frequency Stability................................................................................................. 36 Section 9. Transient Frequency Behaviour ............................................................................. 38 Section 10. Test Equipment List ...............................................................................................43 ANNEX A - TEST METHODOLOGIES ................................................................................... 44 ANNEX B - TEST DIAGRAMS ................................................................................................ 50 Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 433x UHF Transceiver PROJECT NO.: 4L0699RUS1Rev1 Page 3 of 3 Section 1. Summary of Test Results Manufacturer: E. F. Johnson Model No.: 433x Serial No.: 001 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. EIA/TIA 603 was used as a test method for these measurements. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 433x UHF Transceiver PROJECT NO.: 4L0699RUS1Rev1 Page 4 of 4 Summary Of Test Data NAME OF TEST PARA. NO. RESULT RF Power Output 90.205 Complies Audio Frequency Response TIA EIA-603.3.2.6Complies Audio Low-Pass Filter Response TIA EIA-603.3.2.6Complies Modulation Limiting TIA EIA-603.3.2.6Complies Occupied Bandwidth 90.210 Complies Spurious Emissions at Antenna Terminals 90.210 Complies Field Strength of Spurious Emissions 90.210 Complies Frequency Stability 90.213 Complies Transient Frequency Behavior 90.214 Complies Footnotes: . Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 433x UHF Transceiver PROJECT NO.: 4L0699RUS1Rev1 Page 5 of 5 Section 2. General Equipment Specification Transmitter Supply Voltage Input: 12 Vdc Frequency Range: 380 – 470 MHz Tunable Bands: 1 Type(s) of Modulation: F3E (Voice) F1D F2D D7W (QAM) Other Internal/External Data Source: Internal (Vocoded voice) Emission Designator: 8K10F1E, 8K10F1D 11K0F3E, 16K0F3E Output Impedance: 50 ohms RF Power Output (rated): 15 watts Duty Cycle: Mobile Channel Spacing(s): 12.5 kHz, 25 kHz Operator Selection of Operating Frequency: Pre-programmed channel selection Power Output Adjustment Capability: Not adjustable Receiver Frequency Range: 380 – 470 MHz Tunable Bands: 1 Operator Selection of Operating Frequency: Pre-programmed frequency selection Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 433x UHF Transceiver PROJECT NO.: 4L0699RUS1Rev1 Page 6 of 6 System Description The 433x is a 15 watt UHF radio for mobile radio services. The radio functions as a normal Push-to-Talk type radio/ Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 433x UHF Transceiver PROJECT NO.: 4L0699RUS1Rev1 Page 7 of 7 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 2.985 TESTED BY: Tom Tidwell DATE: 24 Nov. 2004 Measurement Results: Complies. Measurement Data: Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 433x UHF Transceiver PROJECT NO.: 4L0699RUS1Rev1 Page 8 of 8 Dallas Headquarters: 802 N. Kealy L ewisville, TX 75057 Tel: (972) 436-9600 Nemko USA F a x: (972) 436-2667 RF Power Output (Conducted) Job No.: 4L0699Date:24 Nov. 200…

Text truncated - open the document above for the full version.

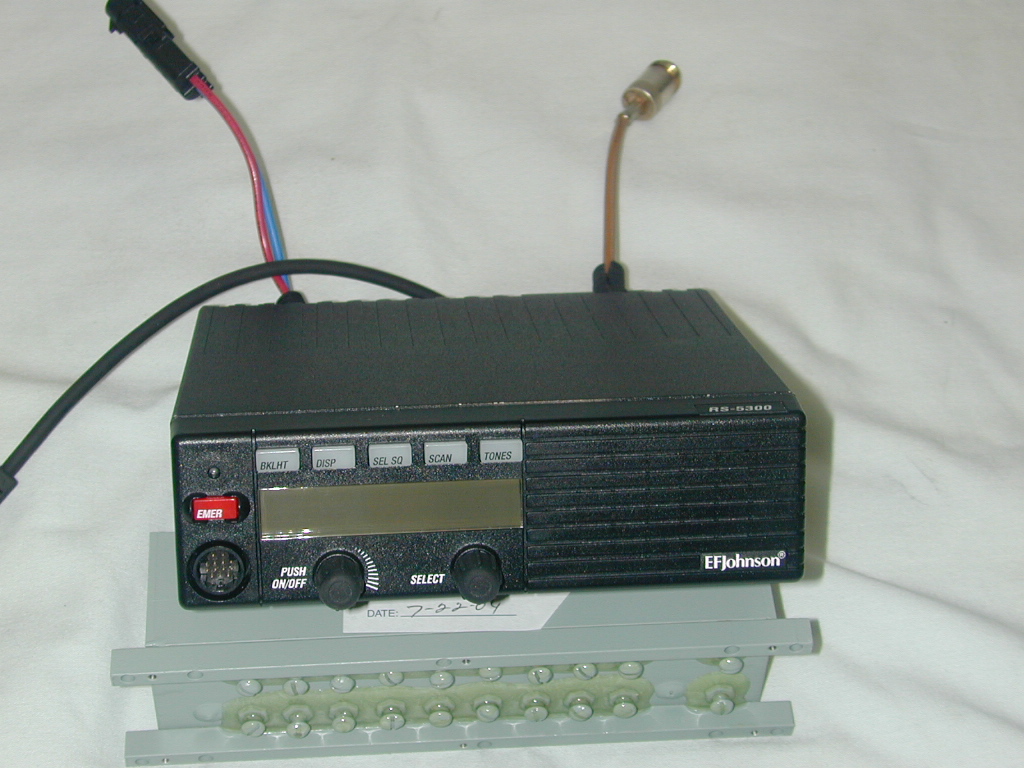

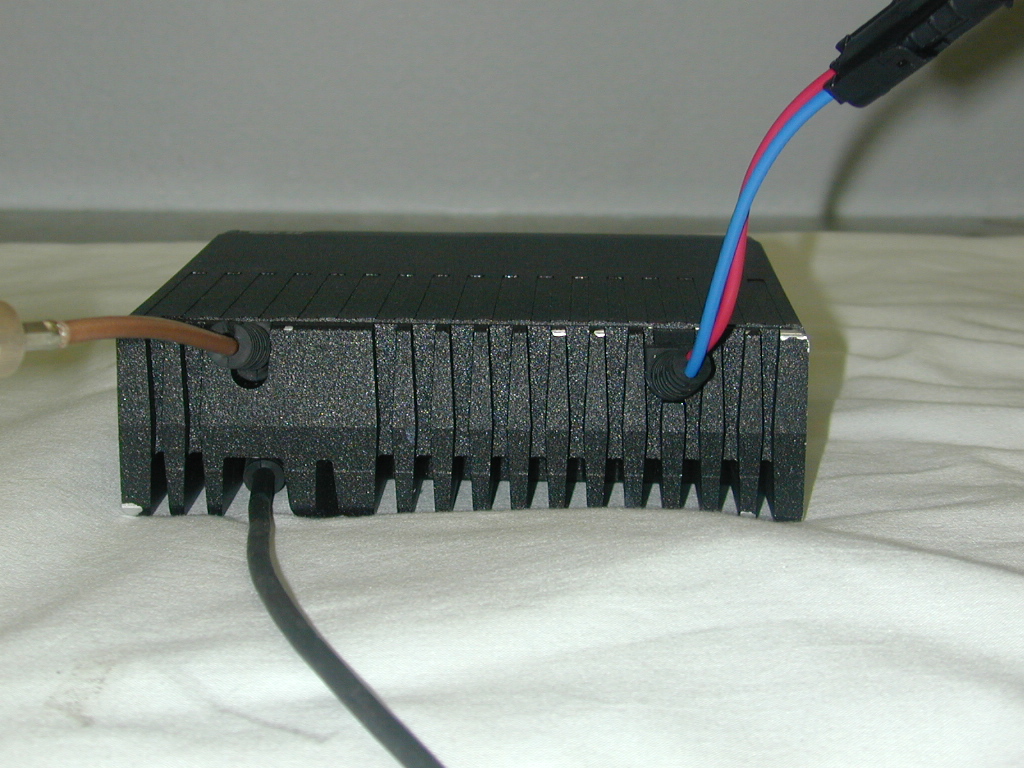

Nemko USA FCC PART 90, SUBPART I PRIVATE LAND MOBILE TRANSMITTER EQUIPMENT: 433x UHF Transceiver PROJECT NO.: 4L0699RUS1Rev1 Page 35 of 35 Photographs of Test Setup FRONT VIEW REAR VIEW
