ATH2425312VHF FM MOBILE TRANSMITTER

DIGITAL/ANALOG MOBILE RADIO OPERATING MANUAL 5300 SERIESMOBILERADIO APCO Project 25 Conventional APCO Project 25 Trunked SMARTNET ® /SmartZone ® Analog (FM) Conventional VHF UHF 800 MH Z Part No. 242-53xx-xxx Part Number: 002-5300-00xCD NR November 2004 5300 SERIES MOBILE OPERATING MANUAL ■APCO PROJECT 25 CONVENTIONAL ■APCO PROJECT 25 TRUNKED ■SMARTNET ® /SmartZone ® ■ANALOG (FM) CONVENTIONAL VHF/UHF/800 MHz Copyright© 2004 by the EFJohnson Company The EFJohnson Company, which was founded in 1923, provides wireless communication systems solutions for public safety, government, and commercial customers. The company designs, manufactures, and markets conventional and trunked radio systems, mobile and portable subscriber radios, repeaters, and Project 25 digital radio products. EFJohnson is a wholly owned subsidiary of EFJ, Inc. Viking Head/EFJohnson logo and Call Guard ® are trademarks of the EFJohnson Company. SMARTNET ® , SmartZone ® , SecureNet ™ , Call Alert ™ , Enhanced Private Conversation ™ , and Private Conversation II ™ are trademarks of Motorola, Inc. All other company and/or product names used in this manual are trademarks and/or registered trademarks of their respective manufacturer. The IMBE™ voice coding technology embodied in this product is protected by intellectual property rights including patent rights of Digital Voice Systems, Inc. LAND MOBILE PRODUCT WARRANTY - The manufacturer’s warranty statement for this product is available from your product supplier or from EFJohnson Company, 1440 Corporate Drive, Irving, TX 75038-2401. Phone (800) 328-3911. Information in this manual is subject to change without notice. Current Software Versions: Flash 2.2.2/3.2.2, ARM 1.24.1/DSP 1.58.0, PCConfigure 1.22.0 SAFETY INFORMATION 3 RF ENERGY EXPOSURE AWARENESS AND CONTROL INFORMATION, AND OPERATIONAL INSTRUCTIONS FOR FCC OCCUPATIONAL USE REQUIREMENTS Before using your mobile two-way radio, read this important RF energy awareness and control infor- mation and operational instructions to ensure compliance with the FCC’s RF exposure guidelines. NOTICE: This radio is intended for use in occupa- tional/controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC limits. This radio device is NOT authorized for general population, consumer, or any other use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses radio frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, electric power, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health and industry work with organizations to develop standards for exposure to RF energy. These standards provide recom- mended levels of RF exposure for both workers and the general public. These recommended RF exposure levels include substantial margins of protection. All two-way radios marketed in North America are designed, manufac- tured and tested to ensure they meet government established RF exposure levels. In addition, manufacturers also recom- mend specific operating instructions to users of two-way radios. These instructions are important because they inform users about RF energy exposure and provide simple proce- dures on how to control it. Please refer to the following web sites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits. http://www.fcc.gov/oet/rfsafety/rf-faqs.html http://www.osha.gov/SLTC/radiofrequencyradiation/ index.html FEDERAL COMMUNICATIONS COMMISSION REGULATIONS The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for mobile two-way radios before they can be marketed in the U.S. When two- way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements. Expo- sure awareness can be facilitated by the use of a label directing users to specific user awareness information. Your EFJohnson two-way radio has a RF exposure product label. Also, your EFJohnson user manual, or product manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. COMPLIANCE WITH RF EXPOSURE STANDARDS Your EFJohnson two-way radio is designed and tested to comply with a number of national and international stan- dards and guidelines (listed below) regarding human expo- sure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at duty factors of up to 50% talk and 100% listen and is authorized by the FCC for occupational use. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio antenna radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. Your EFJohnson two-way radio complies with the following RF energy exposure standards and guidelines: •United States Federal Communications Commission, Code of Federal Regulations; 47 CFR §§ 2 sub-part J. •American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1- 1992. •Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition. RF EXPOSURE COMPLIANCE AND CONTROL GUIDELINES AND OPERATING INSTRUCTIONS To control exposure to yourself and others and ensure compliance with the occupational/controlled environment…

Text truncated - open the document above for the full version.

Waseca Office: E.F. Johnson Company • 299 Johnson Ave., P.O. Box 1249 • Waseca, MN 56093-0514 • 800-328-3911 • 507-835-6222 • Fax 507-835-8356 www.efjohnson.com November 23, 2004 Federal Communications Commission EQUIPMENT AUTHORIZATION BRANCH 7435 Oakland Mills Road Columbia, MD 21046 Re: Programming Capability Dear FCC Representative; Reference part 90.203(e), frequency programming capability. The end user will not be able to program the channel frequencies. A service shop or authorized agent using a special programming cable and computer software can program the allowed TX/RX frequencies. The end user can only select from the preprogrammed channels using the channel select knob. The software and programming cable are not available to the end user. Sincerely, John Oblak VP New Technology E.F. Johnson Co.

Waseca Office: E.F. Johnson Company • 299 Johnson Ave., P.O. Box 1249 • Waseca, MN 56093-0514 • 800-328-3911 • 507-835-6222 • Fax 507-835-8356 www.efjohnson.com November 23, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Product Description • Block Diagram • Bill of Materials (Parts List) Sincerely, John Oblak VP New Technology E. F. Johnson Co.

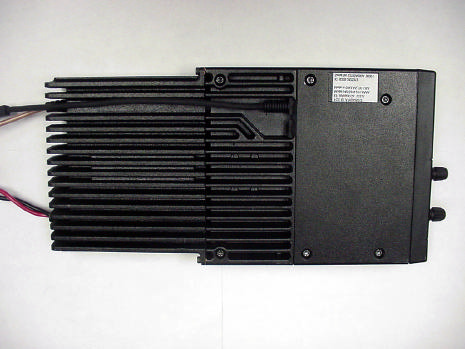

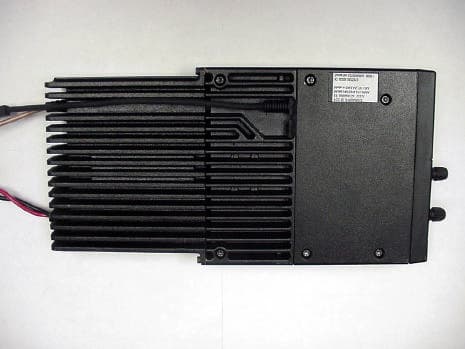

Radio front view Radio top view Radio bottom view showing label Radio side showing RF safety label Radio back view

Radio bottom view showing label Radio side showing RF safety label

FCC and IC Labels FCC ID: ATH2425312 EF Johnson Co. U.S.A. Model 242-5310-211-AAAA Made in DALLAS, TX USA IC: 933B-2425312 Serial No 53100A000A 00001 FCC/IC Label Label is made of durable vinyl material and is affixed with permanent adhesive Restricted to occupational use to satisfy FCC RF exposure limits. See user manual for operating requirements ATTENTION! Radiation Safety Label

Radio bottom with cover removed showing logic board Logic Board Top Logic Board Bottom Radio top view with cover removed Radio top view with PA cover removed Radio top view with RF module cover removed RF module top view without shields RF module bottom view without shields Driver PA board top Driver PA board Bottom PA board top PA board bottom

6-1 ALIGNMENT PROCEDURE SECTION 6 ALIGNMENT PROCEDURE Figure 6-1 Alignment Setup Remote Programming Interface (RPI) To Battery To Antenna To Ign Sense Cable Assembly Part No. 023-5300-005 SINAD Meter Part No. 023-5300-000 NOTE: The ignition sense line must be connected to +13.8V for the radio to operate. Communication Monitor 6.1 GENERAL 6.1.1 INTRODUCTION The following alignment procedure should be performed if repairs are made that could affect the factory alignment or if adjustments may have changed for some other reason. To verify radio operation, the performance tests in Sections 6.5 and 6.6 can be run. To perform transceiver alignment, the following are required: •PC-compatible computer •Remote Programming Interface (RPI), Part No. 023-5300-000. Earlier RPIs, such as Part No. 023- 9800-000 or 023-9750-000, cannot be used. Refer to Section 4.1.3 for more RPI information. •PCTune software, Part No. 023-9998-499. Early units (indicated by an eighth digit of 242 P.N. = “1”) require PCTune, Part No. 023-5000-093. All adjustments are set digitally using the computer. Therefore, there is no need to disassemble the transceiver to access adjustment points. In addi- tion, audio test signals are generated internally, so an audio generator is not required. The required test equipment is shown in Figure 6-1. NOTE: PC Tune, Version 1.0.8.9 or later, is required to tune 380-470 MHz and revised logic PC board models (see Section 1.2.5). 6.1.2 TUNE SOFTWARE General The PCTune software is a Windows ® program. Minimum software and hardware requirements are as follows: •Windows ® 95/98/NT/2000 (3.1 cannot be used) •Pentium ® processor or equivalent •16 MB of RAM •A hard disk drive with at least 3 MB of free space •A CD-ROM drive •An available serial port ALIGNMENT PROCEDURE 6-2 Figure 6-2 PCTune Main Screen Menu Bar To o l B a r Radio Information Tu n i n g Instructions Tuning Hints Software Installation Proceed as follows to install this software: 1. Close all applications that are currently running (other than Windows). 2. Insert the CD-ROM containing the PCTune soft- ware into the drive. 3. From the Windows taskbar, choose RUN and open SETUP.EXE on the drive being used. Alternatively, use File Explorer and double click SETUP.EXE. 4. Follow the instructions on the screen. The program is automatically loaded on the hard drive and start- up shortcuts or groups are created. Starting PCTune Select Start in the taskbar, then Programs > PCTune > PCTune. Exiting PCTune Select File > Exit or click the or button. On-Line Help On-line help is currently not available. 6.2 MAIN SCREEN The main PCTune screen is shown in Figure 6-2. Information on the various parts of this screen follows: Menu Bar - Used to select the menus described in Sections 6.3.1-6.3.4. To o l B a r - These buttons are used to quickly select functions as follows: - Exits the program same as File > Exit. - Reads and displays the current parameters programmed in the radio same as Radio > Read Tune Parameters (see Section 6.3.3). - Selects the complete radio tune mode the same as Radio > Tune > Complete. - Selects the partial radio tune mode which allows manual selection of each adjustment same as Radio > Tune > Partial. ALIGNMENT PROCEDURE 6-3 Radio Information Radio Type - The Radio Series selected by the Radio > Series menu function (see Section 6.3.3). Radio Band - The radio frequency band of the radio displayed after information is read from radio. Do not set using Radio > Set Band (Section 6.3.3). Serial Number - The serial number electronically stored by the radio. Software Version - The first number is the version number of the radio DSP software, and the second number is the version number of the main radio operating (ARM) software. Tuning Options When the tuning mode has been enabled by Radio > Tune Complete/Partial, this part of the screen displays the current adjustment value and up/down buttons for changing the value. In addition, when “Partial” is selected, adjust- ments can be individually selected by clicking the applicable button (see Section 6.3.3). 6.3 MENU BAR DESCRIPTION 6.3.1 FILE MENU Selecting File > Exit closes the PCTune program. 6.3.2 SERIAL MENU Port - Selects the serial port to which the test cable is connected (see Section 6.4.1). These parameters default to the last selected condition the next time the program is started. Baud - Selects the data rate used for communication with the radio. Select “19200” as shown above. 6.3.3 RADIO MENU Series - Selects the particular radio being tuned. For this radio, select “53xx Series”. Read Tune Parameters - Selecting this function or clicking the button reads the tune parameters currently programmed in the transceiver and displays them in the following screen NOTE: This Read Tune Parameters screen should be used for reference only. Adjustment of values in this screen should be done only by using the Complete or Partial Tune functions. Read Tune Parameters Screen Click the tab on top to display the desired parame- ters. Checking the box on the bottom displays the values as hexadecimal instead of decimal. Parameters can be changed by entering a value in the appropriate box. Clicking “Default” programs default values, clicking “OK” closes the screen and saves the values entered, and clicking “Cancel” closes the screen without saving any values. ALIGNMENT PROCEDURE 6-4 Tune - Selecting “Complete” or clicking the button automatically steps through all tuning steps. Selecting “Partial” or clicking the button allows the tuning steps to be selected manually in the “Tuning Options” box. Auto Tx - Selecting this parameter causes the trans- mitter to automatically key and unkey as required for the various tests. If it is not selected, the trans- mitter must be manually keyed by pressing the spacebar. Reset Radio - Resets the radio control logic. This can be used, for example, to change the radio series or band or exit an adjustment before it is complete. Erase EEPROM - If available, thi…

Text truncated - open the document above for the full version.

M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: ATH2425312 (480) 926-3100 phone, (480) 926-3598 fax MFA p04b0001, d04c00566 Date: December 22, 2004 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: E. F. Johnson Company Equipment: 242-5310-211-AAAA FCC ID: ATH2425312 FCC Rules: Radiofrequency Radiation Exposure Limits 47 CFR 1.1310 MPE - Mobiles x Fixed Based Station Gentlemen: On behalf of the Applicant, enclosed please find the Supplemental Test Data Report, the whole for Environmental Assessment (MPE) of the referenced equipment as shown. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, David E. Lee, Compliance Test Manager enclosure(s) cc: Applicant DEL/del M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: ATH2425312 (480) 926-3100 phone, (480) 926-3598 fax MFA p04b0001, d04c00566 Environmental Assessment for Mobiles/Fixed Base Station for FCC ID: FCC ID: ATH2425312 Model:242-5310-211-AAAA to Federal Communications Commission 47 CFR 1.1310 (MPE) Radiofrequency Radiation Exposure Limits Date Of Report: December 22, 2004 On the Behalf of the Applicant: E. F. Johnson Company At the Request of: P.O.171006 E. F. Johnson Company, 299 Johnson Ave. Waseca, MN 56093-0514 Attention of: (507) 835-6579; FAX: -6666 John Oblak, Director, Radio Products Development E-mail: [email protected] Supervised By: David E. Lee, Compliance Test Manager M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: ATH2425312 (480) 926-3100 phone, (480) 926-3598 fax MFA p04b0001, d04c00566 Table of Contents Rule Description Page . Test Report 1 2.1033(c) General Information Required 3 . Standard Test Conditions and Engineering Practices 4 1.1310 Environmental Assessment 5 M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Page 1 of 7 Chandler, Arizona 85225-7176 FCC ID: ATH2425311FCC ID: ATH2425312 (480) 926-3100 phone, (480) 926-3598 fax MFA p04b0001, d04c0056 Page Number 1 of 7. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report (Supplemental) b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d04c0056 d) Client: E. F. Johnson Company, 299 Johnson Ave. Waseca, MN 56093-0514 e) Identification: 242-5310-211-AAAA FCC ID: ATH2425312 Description: VHF / FM mobile 100 Watt f) EUT Condition: Not required unless specified in individual tests. g) Report Date: December 22, 2004 EUT Received: November 1, 2004 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: David E. Lee, Compliance Test Manager n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Page 2 of 7 Chandler, Arizona 85225-7176 FCC ID: ATH2425311FCC ID: ATH2425312 (480) 926-3100 phone, (480) 926-3598 fax MFA p04b0001, d04c0056 Identification of the Equipment Under Test (EUT) Name and Address of Applicant: E. F. Johnson Company 299 Johnson Ave. Waseca, MN 56093-0514 Manufacturer: Applicant FCC ID: ATH2425312 Model Number: 242-5310-211-AAAA Description: VHF / FM mobile 100 Watt Type of Emission: 16K0F3E, 11K0F3E, 8K10F1E, 8K10F1D Frequency Range, MHz: 146 to 174 Power Rating, Watts: 110 Switchable X Variable N/A Modulation: AMPS TDMA CDMA X OTHER Antenna: Helical Monopole X Whip Other Note: For RF Safety test antenna gain taken at the upper range of expected gain (i.e. 0 dBd) and RF Power set to highest nominal power across all channels. M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Page 3 of 7 Chandler, Arizona 85225-7176 FCC ID: ATH2425311FCC ID: ATH2425312 (480) 926-3100 phone, (480) 926-3598 fax MFA p04b0001, d04c0056 A2LA “A2LA has accredited M. Flom Associates, Inc. Chandler, AZ for technical competence in the field of Electrical Testing. The accreditation covers the specific tests and types of tests listed on the agreed scope of accreditation. This laboratory meets the requirements of ISO/IEC 17025 – 1999 ‘General Requirements for the Competence of Testing and Calibration Laboratories’ and any additional program requirements in the identified field of testing.” Certificate Number: 2152-01 NIST I am pleased to inform you that your laboratory has been validated by the Chinese Taipei Bureau of Standards, Metrology and Inspection (BSMI) under the Asia Pacific Economic Cooperation Mutual Recognition Agreement (APEC MRA). Your laboratory is now formally designated to act as a Conformity Assessment Body (CAB) under Appendix B, Phase I Procedures, of the APEC MRA between the American Institute in Taiwan (AIT) and the Taipei Economic and Cultural Representative Office (TECRO) in the United States, covering equipment subject to Electro-Magnetic Compatibility (EMC) requirements. The names of all validated and nominated laboratories will be posted on the NIST website at http://ts.nist.gov/mra under the ‘Asia’ category.” BSMI Number: SL2-IN-E-041R M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Page 4 of 7 Chandler, Arizona 85225-7176 FCC ID: ATH2425311FCC ID: ATH2425312 (480) 926-3100 phone, (480) 926-3598 fax MFA p04b0001, d04c0056 Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.4-1992/2001, section 6.1.9, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within t…

Text truncated - open the document above for the full version.

M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: ATH2425312 (480) 926-3100 phone, (480) 926-3598 fax MFA p04b0001, d04c0052 Date: December 21, 2004 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: E. F. Johnson Company Equipment: 242-5310-211-AAAA FCC ID: ATH2425312 FCC Rules: 90, Confidentiality Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, David E. Lee, Compliance Test Manager enclosure(s) cc: Applicant MS /del M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: ATH2425312 (480) 926-3100 phone, (480) 926-3598 fax MFA p04b0001, d04c0052 Transmitter Certification of FCC ID: ATH2425312 Model: 242-5310-211-AAAA to Federal Communications Commission Rule Part(s) 90, Confidentiality Date of report: December 21, 2004 On the Behalf of the Applicant: E. F. Johnson Company At the Request of: P.O. 171006 E. F. Johnson Company, 299 Johnson Ave. Waseca, MN 56093-0514 Attention of: (507) 835-6579; FAX: -6666 John Oblak, Director, Radio Products Development E-mail: [email protected] Supervised by: David E. Lee, Compliance Test Manager M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: ATH2425312 (480) 926-3100 phone, (480) 926-3598 fax MFA p04b0001, d04c0052 List of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: E. F. Johnson Company FCC ID: ATH2425312 By Applicant: 1. Letter of Authorization 2. Confidentiality Request: 0.457 And 0.459 3. Part 90.203(e) & (g) Attestation 4. Identification Drawings, 2.1033(c)(11) Label Location of Label Compliance Statement Location of Compliance Statement 5. Photographs, 2.1033(c)(12) 6. Documentation: 2.1033(c) (3) User Manual (9) Tune Up Info (10) Schematic Diagram (10) Circuit Description Block Diagram Parts List Active Devices 7. MPE/SAR Report By M.F.A. Inc.: A. Testimonial & Statement of Certification M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: ATH2425312 (480) 926-3100 phone, (480) 926-3598 fax MFA p04b0001, d04c0052 The Applicant has been cautioned as to the following: 15.21 Information to the User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 FCC ID: ATH2425312 (480) 926-3100 phone, (480) 926-3598 fax MFA p04b0001, d04c0052 Table of Contents Rule Description Page 2.1033(c)(14) Rule Summary 3 . Standard Test Conditions and Engineering Practices 4 2.1033(c) General Information Required 6 2.1046(a) Carrier Output Power (Conducted) 9 2.1046(a) ERP Carrier Power (Radiated) 11 2.1051 Unwanted Emissions (Transmitter Conducted) 13 2.1053(a) Field Strength of Spurious Radiation 15 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 19 90.214 Transient Frequency Behavior 30 2.1047(a) Audio Low Pass Filter (Voice Input) 36 2.1047(a) Audio Frequency Response 38 2.1047(b) Modulation Limiting 40 2.1055(a)(1) Frequency Stability (Temperature Variation) 43 2.1055(b)(1) Frequency Stability (Voltage Variation) 45 2.202(g) Necessary Bandwidth and Emission Bandwidth 47 M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Page 2 of 47 Chandler, Arizona 85225-7176 FCC ID: ATH2425312 (480) 926-3100 phone, (480) 926-3598 fax MFA p04b0001, d04c0052 Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d04c0052 d) Client: E. F. Johnson Company, 299 Johnson Ave. Waseca, MN 56093-0514 e) Identification: 242-5310-211-AAAA FCC ID: ATH2425312 EUT Description: VHF / FM Mobile 100 Watt f) EUT Condition: Not required unless specified in individual tests. g) Report Date: December 21, 2004 EUT Received: November 1, 2004 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality…

Text truncated - open the document above for the full version.

M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Page 15 of 47 Chandler, Arizona 85225-7176 (480) 926-3100 phone, (480) 926-3598 fax MFA , Name of Test: Name of Test: Field Strength of Spurious Radiation Specification: 47 CFR 2.1053(a) Guide: ANSI/TIA/EIA-603-1992/2001, Paragraph 1.2.12 and Table 16, 47 CFR 22.917 Measurement Procedure Definition: Radiated spurious emissions are emissions from the equipment when transmitting into a non-radiating load on a frequency or frequencies which are outside an occupied band sufficient to ensure transmission of information of required quality for the class of communications desired. Method of Measurement: A) Connect the equipment as illustrated B) Adjust the spectrum analyzer for the following settings: 1) Resolution Bandwidth 100 kHz (<1 GHZ), 1 MHZ (> 1GHz). 2) Video Bandwidth ≥ 3 times Resolution Bandwidth, or 30 kHz (22.917) 3) Sweep Speed ≤2000 Hz/second 4) Detector Mode = Mean or Average Power C) Place the transmitter to be tested on the turntable in the standard test site. The transmitter is transmitting into a non-radiating load that is placed on the turntable. The RF cable to this load should be of minimum length. M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Page 16 of 47 Chandler, Arizona 85225-7176 (480) 926-3100 phone, (480) 926-3598 fax MFA , Name of Test: Name of Test: Field Strength of Spurious Radiation (Cont.) D) For each spurious measurement the test antenna should be adjusted to the correct length for the frequency involved. This length may be determined from a calibration ruler supplied with the equipment. Measurements shall be made from the lowest radio frequency generated in the equipment to the tenth harmonic of the carrier, except for the region close to the carrier equal to ± the test bandwidth (see section 1.3.4.4). E) For each spurious frequency, raise and lower the test antenna from 1 m to 4 m to obtain a maximum reading on the spectrum analyzer with the test antenna at horizontal polarity. Repeat this procedure to obtain the highest possible reading. Record this maximum reading. F) Repeat step E) for each spurious frequency with the test antenna polarized vertically. Where the direct reading is within 6dB of the limit a substitution measurement as detailed in G) to M) below should be carried out and the results used in place of the direct measured value. G) Reconnect the equipment as illustrated. H) Keep the spectrum analyzer adjusted as in step B). I) Remove the transmitter and replace it with a substitution antenna (the antenna should be half- wavelength for each frequency involved). The center of the substitution antenna should be approximately at the same location as the center of the transmitter. At lower frequencies, where the substitution antenna is very long, this will be impossible to achieve when the antenna is polarized vertically. In such case the lower end of the antenna should be 0.3 m above the ground. M. Flom Associates, Inc. 3356 North San Marcos Place, Suite 107 Page 17 of 47 Chandler, Arizona 85225-7176 (480) 926-3100 phone, (480) 926-3598 fax MFA , Name of Test: Name of Test: Field Strength of Spurious Radiation (Cont.) J) Feed the substitution antenna at the transmitter end with a signal generator connected to the antenna by means of a non-radiating cable. With the antennas at both ends horizontally polarized and with the signal generator tuned to a particular spurious frequency, raise and lower the test antenna to obtain a maximum reading at the…
