ATMLS3100BT Module

LAP-301 Exploded views Cabinet(bottom) WiFi Module Cabinet(top) Bluetooth Module Main pc board AS R WiFi Module has already been certificated by FCC and IC. Information to the user. Indicate "Contains FCC ID: ATMLS3100", "Contains IC: 6547A-LS3100" and following information to the host device installed. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Information to the user. Indicate "Contains FCC ID: ATMLS3100", "Contains IC: 6547A-LS3100" and following information to the host device installed. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Describe the following sentence to a user's manual of the host device. [For FCC] FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter, except the approved WLAN module.(FCC ID: NKR-SWA12/ IC Number: 4441A-SWA12) This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). [For IC] This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR- 102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation de l’exposition maximale autorisée. Cependant, cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles).

En Living Speaker System LS3100 Sound System Controller (LAP-301) Front Speakers (SLM-301) Wireless Subwoofer (SLW-301) Instruction Manual Thank you for purchasing an Onkyo product. Please read this manual thoroughly before making connections and plugging in your new Onkyo product. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new product. Please retain this manual for future reference. Contents Before Use .........................2 Connections ....................14 Operations .......................17 Useful Function...............21 Appendix..........................22 E52_LS3100_120910.book 1 ページ ２０１２年９月１０日 月曜日 午後４時３０分 2 En Before Use Important Safety Instructions 1.Read these instructions. 2.Keep these instructions. 3.Heed all warnings. 4.Follow all instructions. 5.Do not use this apparatus near water. 6.Clean only with dry cloth. 7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11.Only use attachments/accessories specified by the manufacturer. 12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13.Unplug this apparatus during lightning storms or when unused for long periods of time. 14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15.Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions: A.When the power-supply cord or plug is damaged, B.If liquid has been spilled, or objects have fallen into the apparatus, C.If the apparatus has been exposed to rain or water, D.If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation, E.If the apparatus has been dropped or damaged in any way, and F.When the apparatus exhibits a distinct change in performance this indicates a need for service. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS PORTABLE CART WARNING S3125A E52_LS3100_120910.book 2 ページ ２０１２年９月１０日 月曜日 午後４時３０分 3 En 16.Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit. 17.Batteries Always consider the environmental issues and follow local regulations when disposing of batteries. 18.If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape. Precautions 1.Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder. 2.AC Fuse—The AC fuse inside the unit is not user-serviceable. If you cannot turn on the unit, contact your Onkyo dealer. 3.Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering. 4.Power WARNING BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 H…

Text truncated - open the document above for the full version.

September 14, 2012 FCC ID : ATMLS3100 Model : HRM1014 Applicant : Onkyo Corporation Request fo Request foRequest fo Request for rr r Limited LimitedLimited Limited Mod ModMod Modular Transmitter Approval ular Transmitter Approvalular Transmitter Approval ular Transmitter Approval This BT Module Module (Model: HRM1014) is designed by Onkyo Corporation. This modular transmitter is for Audio system. If the equipment which loads this modular transmitter will be supplied, applicant will have test and do the additional application if necessary. This modular transmitter complies with the modular transmitters basic requirements (Item 1 to 8) in FCC Part 15 Subpart C Section 15.212 as indicated below: [Modular transmitters basic requirements] (1) Have its own RF shielding: Although this module does not have RF shielding, this modular transmitter will be equipped Audio system, complies with FCC requirements. Please refer to the FCC Test reports. (2) Have buffered modulation/data inputs: Data input to this modular transmitter is controlled as not generating excessive data speed and abnormal modulation. (3) Have its own power supply regulation: This modular transmitter has own power supply regulator. Please refer to the block diagram / schematics. (4) Comply with the antenna and transmission system requirements of § 15.203, 15.204(b) and 15.204(c): Antenna is permanently attached to the modular transmitter because it is Inverted F pattern antenna. This modular transmitter will always be used in the configuration in which it was authorized. (5) Tested in a stand-alone configuration: The modular transmitter has been performed the testing as a stand alone and then confirmed the compliance. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in FCC § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module. The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available: The modular transmitter has not been performed the testing in a stand-alone, but in the Audio system, because this module does not have RF shielding. Therefore this modular transmitter will be equipped only the tested Audio system. AC power line conducted emission measurements was performed because the Audio system is powered by AC power. Please refer to the test report. (6) Equipped with either a permanently affixed label or must be capable of electronically displaying its FCC ID: FCC ID is shown on the label and permanently affixed to this modular transmitter. Please refer to the label drawing. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module: If the FCC ID is not visible, FCC ID will also be displayed on the host device. Please refer to the installation manual. (7) Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements: The necessary explanation to be complied with this requirement is contained in the manual. Please refer to the installation manual. (8) Comply with any applicable RF exposure requirements in its final configuration: The modular transmitter complies with FCC radiation exposure requirement. Please refer to the RF Exposure/SAR Statement. Wataru Komine General Manager Quality Assurance Department Onkyo Corporation

Request for Confidentiality Date: September 13, 2012 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan RE: Certification Application FCC ID: ATMLS3100 Please be advised that the following information is to be held confidential on behalf of Onkyo Corporation, referring to the FCC rules 0.457 and 0.459: Schematics Diagram Block Diagram Theory of Operation The application contains technical information which Onkyo Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Wa taru Komi ne General Manager Quality Assurance Department Onkyo Corporation

Letter Of Agency Date: September 13, 2012 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: ATMLS3100 To Whom It May Concern: Please be advised Onkyo Corporation authorizes Yoshinobu Asai of Application Section, WiSE Japan, UL Verification Service, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely, Wa taru Komi ne General Manager Quality Assurance Department Onkyo Corporation

Photo Antenna

記入なき寸法公差 6以下 6を超え 18以下 18を超え 50以下 50を超え125以下 125を超え250以下 250を超える 6 and less Over 6 to 18 Over 18 to 50 Over 50 to 125 Over 125 to 250 Over 250 The others should be OES-101/201/203. →±0.1 →±0.15 →±0.2 →±0.25 →±0.3 →±0.35 その他は、OES-101/201/203による。 Tolerance without indication 検定品提出時下記要 To get approval, below materials are required. 寸法測定表 1部 Dimension data for each sample 1copy 検定見本 5個 Approval sample 5pcs モルダープログラム適用 Molder Program is applied. この部品はUL規格における「UL746D(Molder Program)」の条件に従って 確認されるものとする。 This component shall be identified according to the requirements in the UL standard "UL 746D(molder Program)" '12-08-24 技術部 Eng.Dept. 出図 Issue '12-00-00 技術部 Eng.Dept. 変更出図 Changed Issue '12-00-00 技術部 Eng.Dept. 見積用 For Estimate 7 7 4-R0.3 12 Model Name: HRM1014 IC:6547A-LS3100 FCC ID:ATMLS3100 Model Name: HRM1014 FCC ID : ATMLS3100 IC : 6547A-LS3100 With back adhesives 29392281 Synthetic paper SP80 or equivalent Color:White LABEL(BT) RG-420180 5:1 2012/08/23 11xh040 2012/08/23 T.NEGORO T.NEGORO RG-420180 2012/08/23 S.YAMAGAMI 2012/08/23 H.TAKEUCHI ATTENTION 1. Green procurement guideline of ONKYO corp. should be applied. 2. Print specifications(Font,size,etc.) must be approved by DAC Engineering. 3. Print must be clearly and easy to read. IC : 6547A-LS3100 FCC ID : ATMLS3100 Model Name: HRM1014-010020 記号 SYN 変更数 Rev.Qty 変更記事 Revision Record 設計 D/ENGR 検図 CHKD 承認 APVD 様式 FORM-001-4B 金型 S&OOAE Tool OES.101 OES.201 OES.203 OES標準 Part Name Drawing No. Stock No. Model No. APVD CHKD DWN D/ENGR 処 理 材 質 記入なき寸法 の許容差 単位 尺度 Third Angle Projection 名 称 図面番号 Ｓ. Ｎ. 製品番号 Material Tolerances Unless Specified Treatment 承認 検図 製図 設計 Scale mm Dimension 第三角法 Drawing No. 図面番号 S&O Code

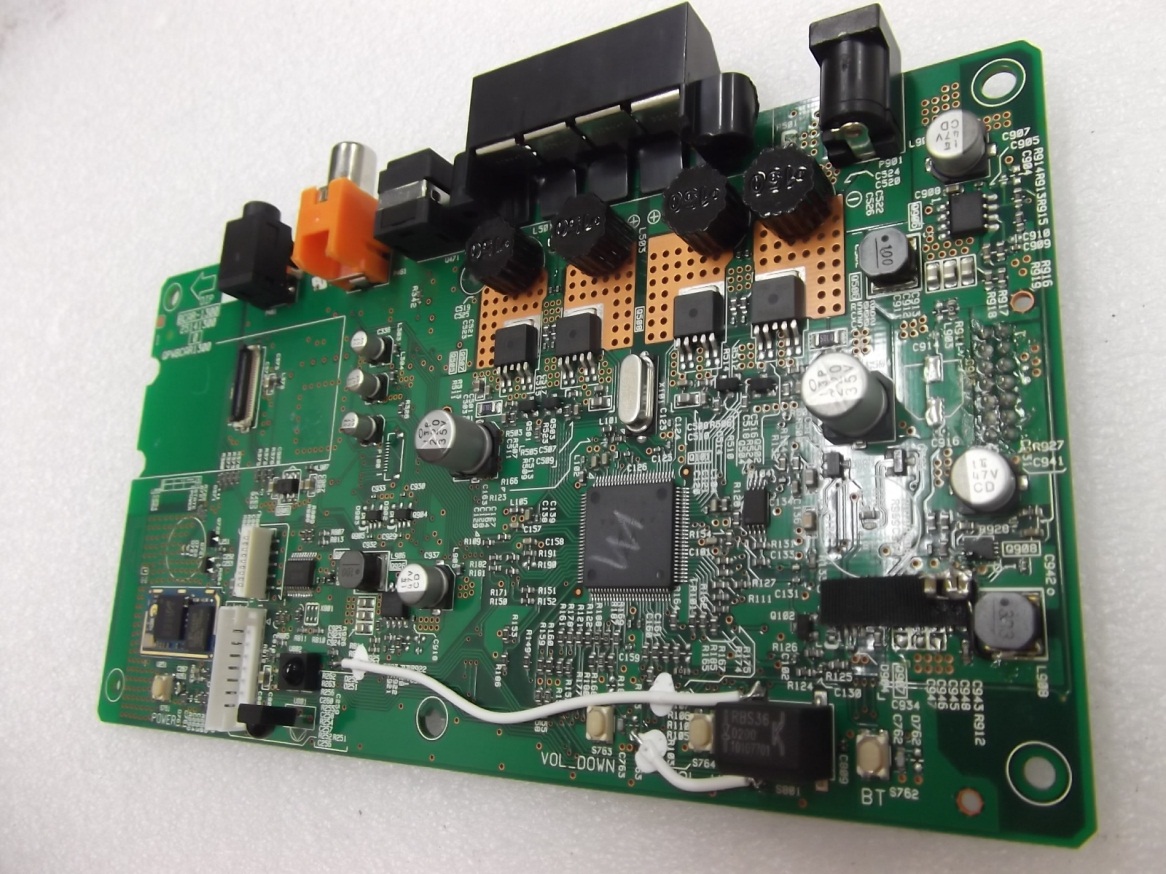

LAP-301 Exploded view LAP-301 A 1 2 3 4 BCDE Cabinet(bottom) WiFi Module Cabinet(top) Bluetooth Module Main pc board AS R

Photo Antenna

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Onkyo Corporation T ype of Equipment : BT Module Model No. : HRM1014 FCC ID: ATMLS3100 Onkyo Corporation declares that Model : HRM1014 ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Ex posure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “HRM1014“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 1.33 mW (Maximum peak output power) G = 1.00 Numerical Antenna gain; equal to0.00dBi r =20.0 cm For: HRM1014S =0.00026 mW/cm 2 No. : 32LE0299-HO-01 RF Exposure / MPE Calculation

Test report No. : 32LE0299-HO-01-A Page : 2 of 54 Issued date : September 13, 2012 FCC ID : ATMLS3100 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Conducted Emission ............................................................................................................ 9 SECTION 6: Radiated Spurious Emission ............................................................................................ 10 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 11 APPENDIX 1: Data of EMI test .............................................................................................................. 12 Conducted Emission ......................................................................................................................... 12 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 16 Number of Hopping Frequency ........................................................................................................ 19 Dwell time ......................................................................................................................................... 21 Maximum Peak Output Power .......................................................................................................... 24 Radiated Spurious Emission ............................................................................................................. 24 Conducted Spurious Emission .......................................................................................................... 24 Conducted Emission Band Edge compliance ................................................................................... 46 99%Occupied Bandwidth ................................................................................................................. 48 APPENDIX 2: Test instruments ............................................................................................................. 50 APPENDIX 3: Photographs of test setup ............................................................................................... 52 Conducted Emission ......................................................................................................................... 52 Radiated Spurious Emission ............................................................................................................. 53 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) .............................................................. 54 Test report No. : 32LE0299-HO-01-A Page : 3 of 54 Issued date : September 13, 2012 FCC ID : ATMLS3100 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Onkyo Corporation Address : 2-1 Nisshin-cho, Neyagawa-shi, OSAKA, 572-8540 JAPAN Telephone Number : +81 72 831 8062 Facsimile Number : +81 72 833 8069 Contact Person : Wataru Komine SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : BT Module Model No. : HRM1014 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC2.5-4.4V Receipt Date of Sample : August 23, 2012 Country of Mass-production : China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Radio Specification [Bluetooth] Radio Type : Transceiver Frequency of Operation : 2402-2480MHz Modulation : FHSS Power Supply (radio part input) : DC1.5/1.8V Antenna type : Inverted F pattern antenna Antenna Gain : 0dBi max Test report No. : 32LE0299-HO-01-A Page : 4 of 54 Issued date : September 13, 2012 FCC ID : ATMLS3100 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on August 13, 2012 and effective September 12, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The revision on August 13, 2012 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst Margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 QP 11.6dB, 1.02420MHz, L AV 1.8dB, 1.02420MHz, L Complied - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Carrier Frequency Separation FCC: FCC Public Notice DA 00-705 FCC: Section15.247(a)(1) See data. Complied Conducted IC: - IC: RSS-210 A8.1 (b) 20dB Bandwidth FCC: FCC Public Notice DA 00-705 FCC: Section15.247(a)(1) - Conducted IC: - IC: RSS-210 A8.1 (a) Number of Hopping Frequency FCC: FCC Public Notice DA 00-705 FCC: Section15.247(a)(1)(iii) Complied Conducted IC: - IC: RSS-210 A8.1 (d) Dwell time FCC: FCC Public Notice DA 00-705 FCC: Section15.247(a)(1)(iii) Complied Conducted IC: - IC: RSS-210 A8.1 (d) Maximum Peak Output Power FCC: FCC Public Notice DA 0…

Text truncated - open the document above for the full version.

Test report No. : 32LE0299-HO-01-A Page : 52 of 54 Issued date : September 13, 2012 FCC ID : ATMLS3100 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 32LE0299-HO-01-A Page : 53 of 54 Issued date : September 13, 2012 FCC ID : ATMLS3100 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 32LE0299-HO-01-A Page : 54 of 54 Issued date : September 13, 2012 FCC ID : ATMLS3100 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Below 1GHz (Horizontal:X-axis / Vertical:X-axis) Above 1GHz (Horizontal: X-axis / Vertical:Z-axis) X-axis Y-axis Z-axis End of Report
