AWANB-230Bluetooth Wireless Speaker With iPhone Dock

www.3nod.com.cn Shenzhen 3NOD Electronics Co., Ltd Page 1,Total 7 CONFIDENTIAL! © Copyright 3NOD. User Guide Basic Bluetooth Boom box NB-230 www.3nod.com.cn Shenzhen 3NOD Electronics Co., Ltd Page 2,Total 7 CONFIDENTIAL! © Copyright 3NOD. Contents Pls. make sure that all of the contents listed below are found in the box: z 1 Basic Bluetooth Boom box z 1 Audio cable(3.5mm plug) z 1 AC Adaptor z 1 User guide Specifications z Power input: 9V 1.5A z Power output: 5W x2 z Drivers: 3” full range x2 z S/N: ≥75dB z THD+N:≤1% (1KHzMax Power Output) z Dimension: W340xH130.3xD158.3mm z Audio input: 1x3.5mm Socket,1xWireless input(Bluetooth) z Wireless: Bluetooth 2.1(A2DP) Compatible with A2DP Bluetooth devices Functionality of the NB-230 is dependent on the device (iPhone, iPod, Mobile Phone, MP3/MP4 Player, PC, Mac, etc.). Devices with A2DP Bluetooth can use the NB-230 to play music and receive calls. Devices without A2DP cannot play music through the NB-230; it can only use the NB-230 as a Speaker phone. Other non Bluetooth devices can be connected using the supplied 3.5mm Stereo Line-in cable. Further instructions on Bluetooth connectivity can be found in the user guide for your A2DP Bluetooth device. Compatibility (Bluetooth device) Bluetooth 2.1 with A2DP/HFP/HSP A2DP - Advanced Audio Distribution Profile HSP - Headset Profile HFP - HandsFree Profile www.3nod.com.cn Shenzhen 3NOD Electronics Co., Ltd Page 3,Total 7 CONFIDENTIAL! © Copyright 3NOD. Product Overview A – Volume Up / Volume Down B – Answer / Reject Call / Paring C – Source .D – Power / Standby E – Power on/off F – DC in G – Line in Port . .H – Sync LED indicator Features and Benefits z Bluetooth 2.1 with NYNE audio and digital signal processing for clean best-in-class wireless stereo sound z Built-in mic with advanced noise-cancellation enables clear wireless hands-free calling and conferencing z Two 3inch full range drivers deliver superb music fidelity, powerful and deep bass. z 6xC batteries for up to 4 hours of playtime z Connects to iPod or any device with a 3.5 mm headphone port using a mini jack cable (cable not included) z Auto-search and auto-reconnect with compatible device Paring the NB-230 with a Bluetooth Device (First time connection) 1. Ensure the NB-230 is connected to a power source or have 6xC batteries. 2. Turn the main power switch located at the back of the NB-230 to the ON position. 3. Press the “Power” button of the NB-230 until the Blue LED is ON. 4. Activate your Bluetooth device to the Searching mode (new device searching) 5. Press and hold the ‘Answer / Reject Call’ button on the front of the NB-230 until the Red/Blue LED starts flashing on front of NB-230. (NB-230 will have 3minutes to connect/pair with your Bluetooth). Front view Rear view E F G H A B C D www.3nod.com.cn Shenzhen 3NOD Electronics Co., Ltd Page 4,Total 7 CONFIDENTIAL! © Copyright 3NOD. 6. ‘NB-230’ will appear on your Bluetooth device. 7. Select ‘NB-230’ and enter ‘0000’ for the password if necessary. 8. LED on front of the Speaker will stop flashing and a tone will sound to acknowledge successful paring. 9. Check your Bluetooth device to ensure that connection is successful. Note: If after 3minutes no connection is made the speaker will sound and the LED will turn OFF. Basic Operation of NB-230 Volume Up – Press at the front of the NB-230. Volume Down – Press at the front of the NB-230. Source – Change audio source between Bluetooth and Aux in. Power on – Press (Once) at the front of the NB-230. Power off – Press & Hold (3 Seconds) at the front of the NB-230. Operation of NB-230 as a Speaker phone (Device Dependant) 1. To answer a call – Press at the front of the NB-230. 2. To Reject a call – Press & Hold (3 Seconds) at the front of the NB-230. 3. To hang up a call – During a Call Press & Hold (3 Seconds) at the front of the NB-230. 4. To switch a call between speaker and Mobile Phone – Press (Once) at the front of the NB-230. 5. To Redial Last Calling number - Press & Hold (3 Seconds) at the front of the NB-230. LED Status Power OFF – LED OFF Power ON – LED ON (Blue or Red) Pairing Mode – LED Flashing Blue/Red Low Battery Level – LED Flashing (Red) Adjust the Vol to Max or Min – LED Flashing (once) (Red) Switch audio source – LED Flashing (Twice) (Blue) ) www.3nod.com.cn Shenzhen 3NOD Electronics Co., Ltd Page 5,Total 7 CONFIDENTIAL! © Copyright 3NOD. Set up of Aux In The NB-230 also offers the ability to allow other portable audio devices such as iPod shuffle, MP3, Mini Disc and Portable CD Players to be connected for use as a speaker system. 1. Plug in the line in cable into the rear of the NB-230 Aux in socket. 2. Connect the other end of the line in cable to your devices headphone socket. 3. Set your device volume level to maximum and press play on your device. Trouble Shooting Problem What Should I do? Ensure the Bluetooth device supports A2DP Music cannot be heard through the Speaker Check the device and Speaker are connected Ensure the Power Switch at the back of the speaker is switched ON Speaker does not power up Ensure the Speaker is fully charged or you have the speaker to power source Sound is distorting Adjust the volume lower on the speaker or the Bluetooth device Ensure your mobile phone supports HSP/HFP Cannot answer calls Check the mobile phone and Speaker are connected Music does not resume after hanging up a call Press Play to resume music Ensure you have paired the speaker correctly with your Bluetooth device (Paring the NB-230 with a Bluetooth Device (First time connection) Ensure your NB-230 is not already connected to another device, the Bluetooth Speaker can only connect to 1 device at any 1 time. I cannot find my ‘NB-230’ on my Bluetooth device Ensure you have turned on your Bluetooth on your device www.3nod.com.cn Shenzhen 3NOD Electronics Co., Ltd Page 6,Total 7 CONFIDENTIAL! © Copyright 3NOD. IMPORTANT SAFETY INSTRUCTIONS FCC WARNING: This device complies with Part 15 of the FCC Rules. Operation is subject to…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 NYNE MULTIMEDIA, INC. 2012-3-12 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, NYNE MULTIMEDIA, INC. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): ( Bluetooth Wireless Speaker Speaker With iPhone Dock, NB-230) We affirm that between SIEMIC and NYNE MULTIMEDIA, INC. , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Arman Arami / Manager E-mail: : [email protected] Phone: 650 483 6373 Fax: 805 988 0791 Address : 3451 Lunar Court Oxnard, California, 93030 USA

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 NYNE MULTIMEDIA, INC. 2012-3-12 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: AWANB-230 We hereby request confidential treatment of information accompanying this application as outlined below: - Block diagram - Operation description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Arman Arami / Manager E-mail: : [email protected] Phone: 650 483 6373 Fax: 805 988 0791 Address : 3451 Lunar Court Oxnard, California, 93030 USA

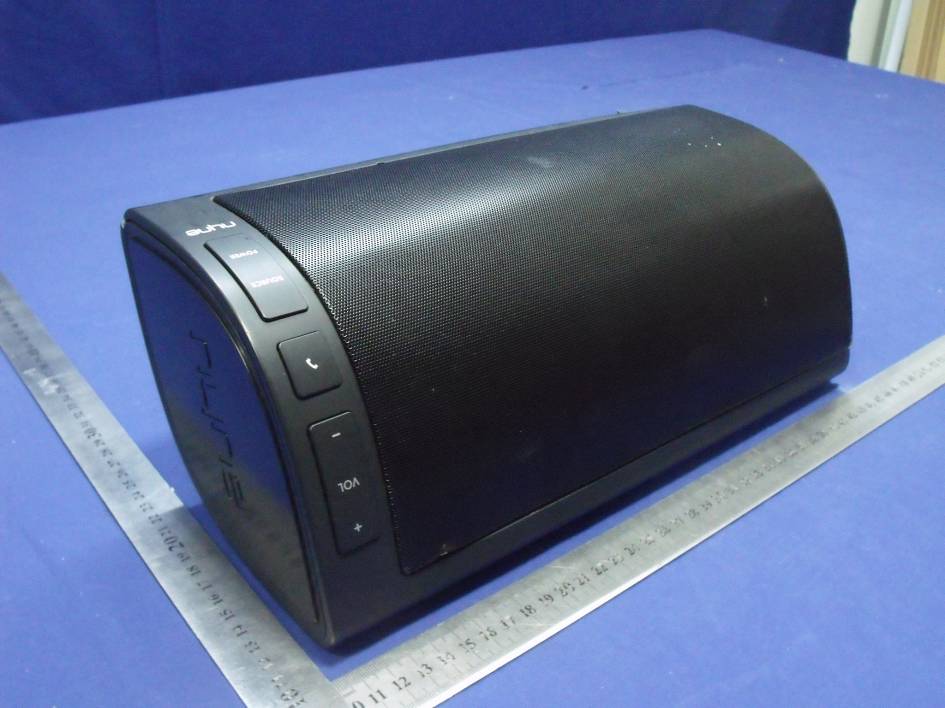

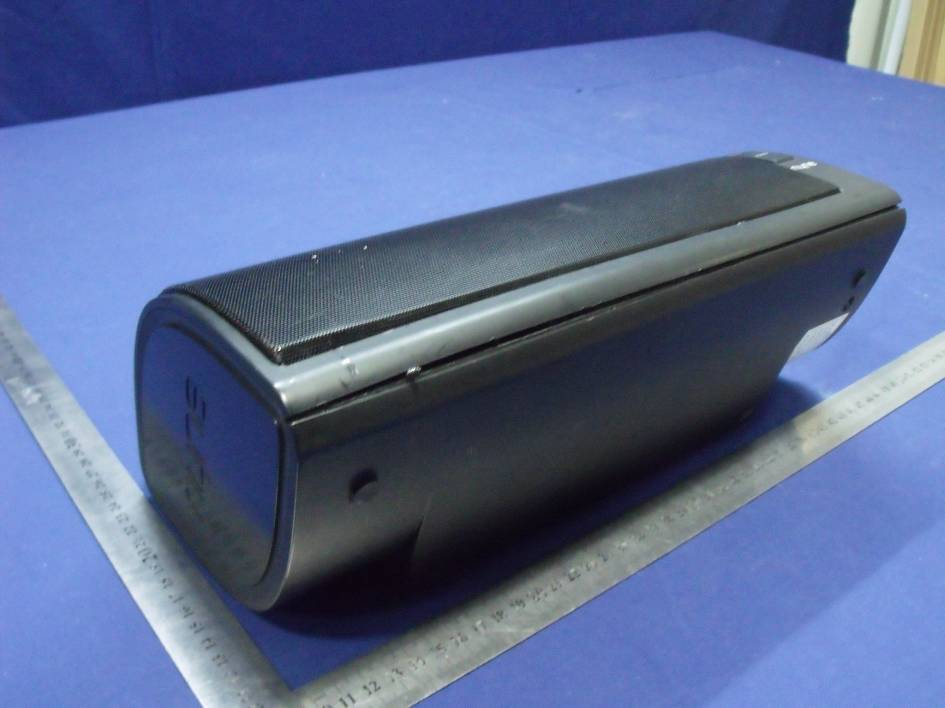

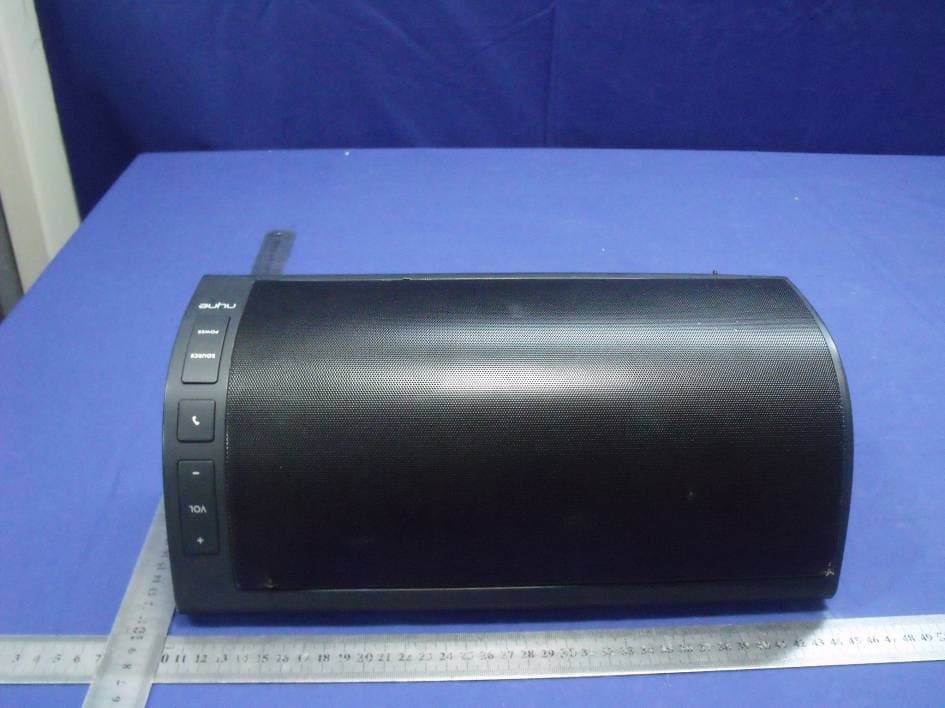

External of EUT

Internal of EUT Antenna Bluetooth Module

SHENZHEN EMTEK CO., LTD. REPORT NO: ES120206020F FCC ID:AWANB-230 DATE:02/27/2012 Page 1 of 42 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPARTC REQUIREMENT OF Bluetooth Wireless Speaker Speaker With iPhone Dock MODEL No.: NB-230 BRAND NAME: NYNE FCC ID: AWANB-230 REPORT NO: ES120206020F ISSUE DATE: February 27, 2012 Prepared for NYNE MULTIMEDIA, INC. 3451 Lunar Court Oxnard, California, 93030 USA Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 SHENZHEN EMTEK CO., LTD. REPORT NO: ES120206020F FCC ID:AWANB-230 DATE:02/27/2012 Page 2 of 42 VERIFICATION OF COMPLIANCE Applicant: NYNE MULTIMEDIA, INC. 3451 Lunar Court Oxnard, California, 93030 USA Product Description: Bluetooth Wireless Speaker Speaker With iPhone Dock Model Number: NB-230 Serial Number: N/A File Number: ES120206020F Date of Test: February 6, 2012 to February 25, 2012 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Date of Test : February 6, 2012 to February 25, 2012 Prepared by : (Engineer) Reviewer : (Quality Manager) Approve & Authorized Signer : (Manager) SHENZHEN EMTEK CO., LTD. REPORT NO: ES120206020F FCC ID:AWANB-230 DATE:02/27/2012 Page 3 of 42 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................. 5 1.1 P RODUCT DESCRIPTION.............................................................................................................. 5 1.2 R ELATED SUBMITTAL(S) / GRANT (S) ......................................................................................... 5 1.3 T EST METHODOLOGY................................................................................................................. 5 1.4 S PECIAL ACCESSORIES................................................................................................................ 5 1.5 E QUIPMENT MODIFICATIONS...................................................................................................... 5 1.6 T EST FACILITY............................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT CONFIGURATION................................................................................................................ 7 2.2 EUT EXERCISE........................................................................................................................... 7 2.3 T EST PROCEDURE....................................................................................................................... 7 2.4 L IMITATION................................................................................................................................7 2.5 C ONFIGURATION OF TESTED SYSTEM....................................................................................... 11 2.6 EQUIPMENT USED IN TESTED SYSTEM........................................................................................ 11 2.7 DESCRIPTION OF TEST MODES..................................................................................................... 12 3. SUMMARY OF TEST RESULTS ....................................................................................... 13 4. CONDUCTED EMISSIONS TEST ..................................................................................... 14 4.1 M EASUREMENT PROCEDURE..................................................................................................... 14 4.2 T EST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................ 14 4.3 M EASUREMENT EQUIPMENT USED............................................................................................ 14 4.4 C ONDUCTED EMISSION LIMIT................................................................................................... 14 4.5 M EASUREMENT RESULT........................................................................................................... 15 4.6 C ONDUCTED MEASUREMENT PHOTO........................................................................................ 16 5. RADIATED EMISSION TEST ............................................................................................ 17 5.1 MEASUREMENT PROCEDURE......................................................................................................... 17 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 18 5.3 MEASUREMENT EQUIPMENT USED:............................................................................................... 19 5.4 MEASUREMENT RESULT................................................................................................................ 20 5.5 RADIATED MEASUREMENT PHOTOS:............................................................................................. 26 6. CHANNEL SEPARATION TEST ....................................................................................... 28 6.1 MEASUREMENT PROCEDURE....................................................................................................... 28 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION).............................................................. 28 6.3 MEASUREMENT EQUIPMENT USED: ............................................…

Text truncated - open the document above for the full version.

RADIATED EMISSION TEST CONDUCTED EMISSION TEST
