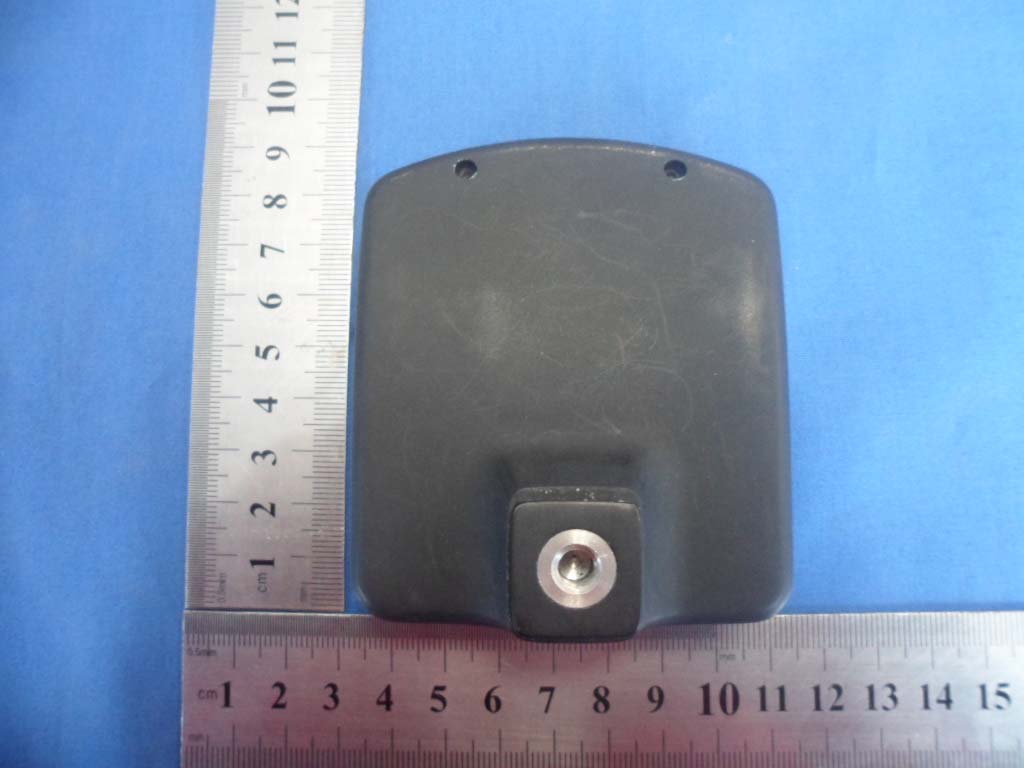

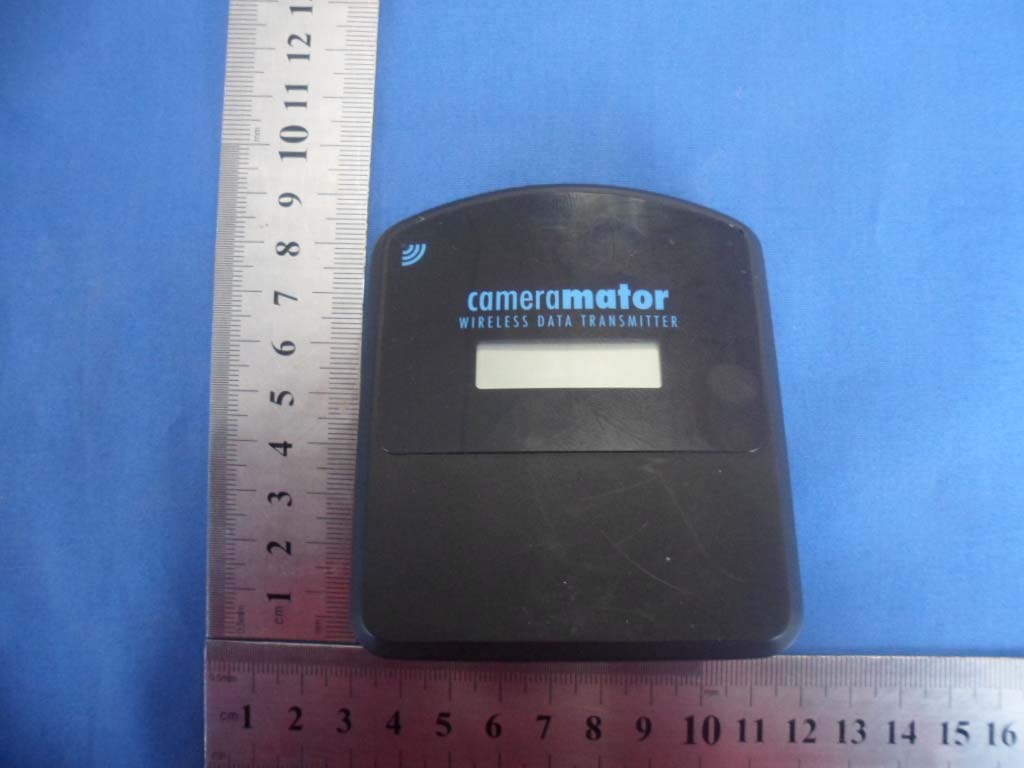

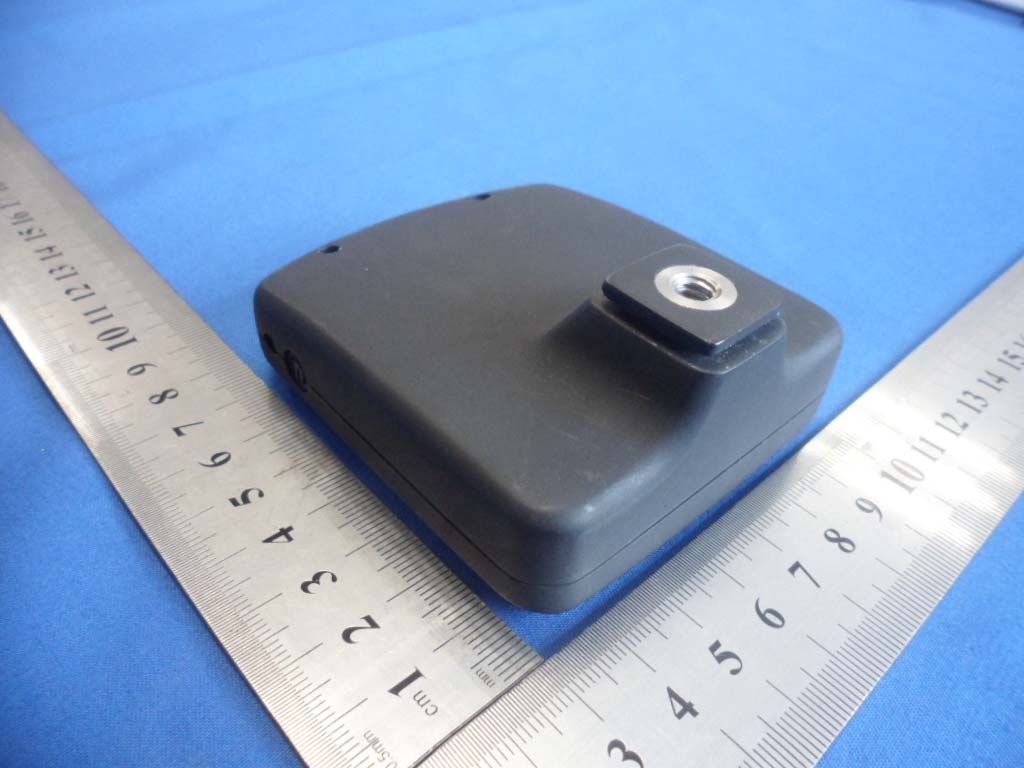

AXD602130108Wireless Camera Controller

Getting Started 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesirable operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with these instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The device can be used in portable exposure condition without restriction. FCC STATEMENT Limited Warranty Manufacturer warrants to the end user, that this product, excluding content and or software supplied with or on the product, will be free from material defects in manufacture, will conform to Manufacturer's published product specifications and be fit for normal use during the Warranty Period specified below commencing on the date of purchase provided that the product is legally placed on the market. To make a warranty claim please contact [email protected] within the Warranty Period and provide proof of purchase (showing date and place of purchase and name of the reseller) and product name, type and number. You may return the product after first obtaining a Return Material Authorization number and following any other guidelines listed. For further information see www.cameramator.com. Manufacturer may at its option repair this product or provide you with an equivalent product; and if unable to repair or replace the product, will refund the purchase price. Manufacturer will not be liable for indirect or consequential damage (including loss of data), or for damage caused by improper use (including use in an incompatible device and use not in accordance with the instructions), or by improper installation, unprofessional repair, modification or accident. This constitutes Manufacturer's entire liability which will never exceed the price you paid for it, plus the necessary costs you made for the warranty claim. CameraMator products must not be used in applications where failure could threaten injury or life, such as life support systems. National, state and local laws may grant you other rights that are not affected by this warranty. USB port is only used for charging. Can not used swap data. A dditional terms and conditions can be found at www. cameramator.com Usage of this product constitutes acceptance of these terms and conditions. Warranty Period: 1 Year Press the power button Connect to camera's USB port Set camera to JPEG or RAW+JPEG mode Go to "Settings" on your mobile device (iPhone, iPad) Select "CameraMator from list of WiFi networks You can now connect to your camera using the CameraMator app (available in the App Store) Quick Start Download complete manual at cameramator.com

SANHO ELECTRONICS TECHNOLOGY CO., LTD 1/F, BLOCK 1, #1177 LINGYUN ROAD, NINGBO,CHINA DATE：2013-1-6 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Jade yang of Keyway Testing Technology Co., Ltd. Baishun Industrial Zone, Zhangmutou Town, Dongguan, Guangdo ng, China,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shenzhen Chuangjiexing Electronics and 3/F., Bldg. A6, Laodong 1st Industrial Zone, Xixiang,Shenzhen, China. Dated this Day of 1/6/2013 Agency agreement expiration date: 1/6/2013 Kang Lu By: Signature Printed Title: Manager On behalf of : SANHO ELECTRONICS TECHNOLOGY CO., LTD Telephone: +86-574-87906631

SANHO ELECTRONICS TECHNOLOGY CO., LTD 1/F, BLOCK 1, #1177 LINGYUN ROAD, NINGBO,CHINA DATE：2013-1-6 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_ AXD602130108 Product Name:_ Wireless Camera Controller _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Day of 1/6/2012 By: Kang Lu Signature Printed Title: Manager On behalf of : SANHO ELECTRONICS TECHNOLOGY CO., LTD Telephone: +86-574-87906631

FCC ID: AXD602130108 FCC ID: AXD602130108

FCC ID: AXD602130108 Antenna Location FCC ID: AXD602130108 FCC ID: AXD602130108

CameraMator 1.Block Diagram: Li-on Battery 3.7V USB Host Port 132x32 Mono LCD PMU 1.2V/1.8V/3.3V/5V TPS61032 TPS65053 WiFi Module 802.11b/g/n M05 ARM Processor AM1806 DDR2 SDRAM HY5PS1G1631C Flash MX25L12845E 24M CRYSTAL SD Card 5V/1A 2.Description Flash (MX25L12845) is used to store software code. DDR2(HY5PS1G1631) is used to provide RAM space when system is running. WiFi Module(M05) is used to send and receive WiFi data package. Processor(AM1806) is system core. It's driven by a 24M crystal. LCD is used to display system information. USB Host Port is used to charging for USB devices.Can not used swap data. SD Card is used to store user files including photos and videos. After power up, processor will load software from Flash to DDR2. Then, processor monitor WiFi module to receive wireless network request. Once a wireless network request was received, processor will transmit data to WiFi module. During transferring, LCD will display WiFi information including SSID and IP address. Operation Frequency: 2412MHz~2462MHz (802.11b/802.11g/802.11n(H20)) 2422MHz~2452MHz (802.11n(H40)) Channel numbers: 11 for 802.11b/802.11g /802.11n(H20) 7 for 802.11(H40) Channel separation: 5MHz Modulation technology: (IEEE 802.11b) Direct Sequence Spread Spectrum (DSSS) (IEEE 802.11g/802.11n) Orthogonal Frequency Division Multiplexing(OFDM) The antenna is integral antenna,the max gain is 2 dBi. 2422MHz~2452MHz (802.11n(H40))

FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 1 of 4 FCC TEST REPORT for SANHO ELECTRONICS TECHNOLOGY CO., LTD Wireless Camera Controller Model Number: CameraMator FCC ID: AXD602130108 Prepared for : SANHO ELECTRONICS TECHNOLOGY CO., LTD Address : 1/F, BLOCK 1, #1177 LINGYUN ROAD, NINGBO,CHINA Prepared by : Keyway Testing Technology Co., Ltd. Address : Baishun Industrial Zone, Zhangmutou Town, Dongguan, Guangdong, China Tel: 86-769-8718 2258 Fax: 86-769-8718 1058 Report No. : 13KWE01407F Date of Test : Dec. 18~30, 2012 Date of Report : Dec. 30, 2012 FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 2 of 4 Keyway Testing Technology Co., Ltd. Applicant: Address: SANHO ELECTRONICS TECHNOLOGY CO., LTD 1/F, Block 1, #1177 Lingyun Road, Ningbo,China Manufacturer: Address: SANHO ELECTRONICS TECHNOLOGY CO., LTD 1/F, Block 1, #1177 Lingyun Road, Ningbo,China E.U.T: Wireless Camera Controller Model Number: CameraMator Trade Name: ------ Serial No.: ------ Date of Receipt: Dec. 17, 2012 Date of Test: Dec. 18~30, 2012 Test Specification: FCC Part 15, Subpart C: Oct. 1, 2010 ANSI C63.4:2003 KDB558074 Test Result: The equipment under test was found to be compliance with the requirements of the standards applied. Issue Date: Dec.30, 2012 Tested by: Reviewed by: Approved by: Andy Gao / Engineer Jade Yang/ Supervisor Chris Du / Manager Other Aspects: None. Abbreviations: OK/P=passed fail/F=failed n.a/N=not applicable E.U.T=equipment under This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Keyway Testing Technology Co., Ltd. FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 3 of 4 1. RF EXPOSURE EVALUATION 1.1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 4 of 4 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.3. Test Result of RF Exposure Evaluation Channel Frequency (MHz) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 2412 34.041 0.0107 1.0 Pass 2437 29.444 0.0092 1.0 Pass 802.11b 2462 26.485 0.0083 1.0 Pass 2412 32.509 0.0102 1.0 Pass 2437 28.642 0.009 1.0 Pass 802.11g 2462 26.062 0.0082 1.0 Pass 2412 30.69 0.0097 1.0 Pass 2437 26.062 0.0082 1.0 Pass 802.11n (HT20) 2462 24.322 0.0077 1.0 Pass 2422 25.882 0.0082 1.0 Pass 2437 22.751 0.0071 1.0 Pass 802.11n (HT40) 2452 20.37 0.0064 1.0 Pass

FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 1 of 75 FCC TEST REPORT for SANHO ELECTRONICS TECHNOLOGY CO., LTD Wireless Camera Controller Model Number: CameraMator FCC ID: AXD602130108 Prepared for : SANHO ELECTRONICS TECHNOLOGY CO., LTD Address : 1/F, BLOCK 1, #1177 LINGYUN ROAD, NINGBO,CHINA Prepared by : Keyway Testing Technology Co., Ltd. Address : Baishun Industrial Zone, Zhangmutou Town, Dongguan, Guangdong, China Tel: 86-769-8718 2258 Fax: 86-769-8718 1058 Report No. : 13KWE01407F Date of Test : Dec. 18~30, 2012 Date of Report : Dec. 30, 2012 FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 2 of 75 TABLE OF CONTENTS Test Report Declaration Page 1. GENERAL PRODUCT INFORMATION.....................................................................................4 1.1. Product Function................................................................................................................................. 4 1.2. Description of Device (EUT)............................................................................................................. 4 1.3. Independent Operation Modes......................................................................................................... 4 2. TEST SITES...................................................................................................................................5 2.1. Test Facilities...................................................................................................................................... 5 2.2. List of Test and Measurement Instruments.................................................................................... 6 3. TEST SET-UP AND OPERATION MODES..............................................................................7 3.1. Principle of Configuration Selection................................................................................................. 7 3.2. Block Diagram of Test Set-up........................................................................................................... 7 3.3. Test Operation Mode and Test Software........................................................................................ 7 3.4. Special Accessories and Auxiliary Equipment............................................................................... 7 3.5. Countermeasures to Achieve EMC Compliance........................................................................... 7 4. EMISSION TEST RESULTS........................................................................................................8 4.1. Conducted Emission at the Mains Terminals Test........................................................................ 8 4.2. Radiated Emission Test................................................................................................................... 11 5. 6 OCCUPY BANDWIDTH..........................................................................................................52 5.1. Limits.................................................................................................................................................. 52 6. BAND EDGE COMPLIANCE TEST..........................................................................................55 6.1. Limits.................................................................................................................................................. 55 6.2. Test setup.......................................................................................................................................... 55 7. OUTPUT POWER TEST............................................................................................................60 7.1. Limits.................................................................................................................................................. 60 7.2. Test setup.......................................................................................................................................... 60 7.3. Test result.......................................................................................................................................... 60 8. POWER SPECTRAL DENSITY TEST.....................................................................................61 8.1. Limits.................................................................................................................................................. 61 8.2. Test setup.......................................................................................................................................... 61 8.3. Test result.......................................................................................................................................... 61 9. ANTENNA REQUIREMENTS....................................................................................................68 9.1. Limits.................................................................................................................................................. 68 9.2. Result................................................................................................................................................. 68 10. PHOTOGRAPHS OF TEST SET-UP...................................................................................69 10.1. Set-up for Radiated Emission Test................................................................................................ 69 10.2. Set-up for Radiated Emission Test................................................................................................ 70 11. PHOTOGRAPHS OF THE EUT............................................................................................71 FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 3 of 75 Keyway Testing Technology Co., Ltd. Applicant: Address: SANHO ELECTRONICS TECHNOLOGY CO., LTD 1/F, Blo…

Text truncated - open the document above for the full version.

FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 41 of 75 80.211b 2437MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 42 of 75 80.211b 2462MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 43 of 75 80.211g 2412MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 44 of 75 80.211g 2437MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 45 of 75 80.211g 2462MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 46 of 75 80.211n(HT20) 2412MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 47 of 75 80.211n(HT20) 2437MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 48 of 75 80.211n(HT20) 2462MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 49 of 75 80.211n(HT40) 2422MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 50 of 75 80.211n(HT40) 2437MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 51 of 75 80.211n(HT40) 2452MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 52 of 75 5. 6 OCCUPY BANDWIDTH 5.1. Limits For direct sequence systems, the minimum 6dB bandwidth shall be at least 500kHz Test data: Channel Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Result 2412 10.1 >0.5 Pass 2437 10.1 >0.5 Pass 802.11b 2462 10.1 >0.5 Pass 2412 16.6 >0.5 Pass 2437 16.5 >0.5 Pass 802.11g 2462 16.6 >0.5 Pass 2412 17.7 >0.5 Pass 2437 17.7 >0.5 Pass 802.11n(HT20) 2462 17.7 >0.5 Pass 2422 36.4 >0.5 Pass 2437 36.5 >0.5 Pass 802.11n(HT40) 2452 36.5 >0.5 Pass FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 53 of 75 Test plot as follows: 802.11b 2412MHz 802.11g 2412MHz 802.11b 2437MHz 802.11g 2437MHz 802.11b 2462MHz 802.11g 2462MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 54 of 75 802.11n (HT20) 2412MHz 802.11 n (HT40) 2422MHz 802.11n (HT20) 2437MHz 802.11 n (HT40) 2437MHz 802.11n(HT20) 2462MHz 802.11 n (HT40)2452MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 55 of 75 6. BAND EDGE COMPLIANCE TEST 6.1. Limits All the lower and upper band-edges emissions appearing within 2310MHz to 2390MHz and 2483.5MHz to 2500MHz restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 2400MHz to 2483.5MHz shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 6.2. Test setup The EUT was placed on a turn table which was 0.8 m above the ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was set 3 m away from the receiving antenna which was mounted on an antenna tower. The measuring antenna moved up and down to find out the maximum emission level. It moved from 1 m to 4 m for both horizontal and vertical polarizations. The bandwidth of the Spectrum’s VBW is set at 3MHz and RBW is set at 1MHz for peak emissions measurement above 1GHz and 1MHz RBW, 10Hz VBW for average emissions measure. Note: If the PK measured levels comply with average limit, then the average level were deemed to comply with average limit. Test plot as follows: FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 56 of 75 802.11b 2412MHz 802.11b 2462MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 57 of 75 802.11g 2412MHz 802.11g 2462MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 58 of 75 802.11n(HT20) 2412MHz 802.11 n(HT20) 2462MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 59 of 75 802.11n(HT40) 2422MHz 802.11 n(HT40) 2452MHz FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 60 of 75 7. OUTPUT POWER TEST 7.1. Limits For systems using digital modulation in the 2400~2483.5MHz, The Peak out put Power shall not exceed 1W(30dBm) 7.2. Test setup 1. The Transmitter output (antenna port) was connected to the power meter. 2. Turn on the EUT and power meter and then record the peak power value. 3. Repeat above procedures on all channels needed to be tested. Note: The cable loss and attenuator loss were offset into measure device as an amplitude offset. 7.3. Test result Channel Frequency (MHz) Peak output Power Limit (dBm) Result 2412 15.32 30 Pass 2437 14.69 30 Pass 802.11b 2462 14.23 30 Pass 2412 15.12 30 Pass 2437 14.57 30 Pass 802.11g 2462 14.16 30 Pass 2412 14.87 30 Pass 2437 14.16 30 Pass 802.11n(HT20) 2462 13.86 30 Pass 2422 14.13 30 Pass 2437 13.57 30 Pass 802.11n(HT40) 2452 13.09 30 Pass FCC ID: AXD602130108 Keyway Testing Technology Co., Ltd. Report No. 13KWE01407F Page 61 of 75 8. POWER SPECTRAL DENSITY TEST 8.1. Limits For digitally modulated systems, the power spectral density conducted from the intentional radiator to the antenna shall not be greater than 8dBm in any 3kHz band during any time interval of continuous transmission. 8.2. Test setup 1. Set analyzer center frequency to DTS channel center frequency. 2. Set the span to 1.5 times the DTS channel bandwidth. 3. Set the RBW =100kHz. 4. Set the VBW = 300 RBW. 5. Detector = peak. 6. Sweep time = auto couple. 7. Trace mode = max hold. 8. Allow trace to fully stabilize. 9. Use the peak marker function to determine the maximum amplitude level. 8.3. Test result Channel Frequency (MHz) Power density (dBm/100KHz) Limit (dBm/3KHz) Result 2412 3.08 8 Pass 2437 3.35 8 Pass 802.11b 2462 3.44 8 Pass 2412 -0.05 8 Pass 2437 -0.06 8 Pass 802.11g 2462 -0.18 8 Pass 2412 -0.15 8 Pass 2437 0.28 8 Pass 802.11n (HT20) 2462 -0.06 8 Pass 2422 -2.35 8 Pass 2437 -2.50 8 Pass 802.11n (HT40) 2452 -2.74 8 Pass FCC ID: A…

Text truncated - open the document above for the full version.

FCC ID: AXD602130108 1.1. Set-up for Radiated Emission Test FCC ID: AXD602130108 1.2. Set-up for Radiated Emission Test
