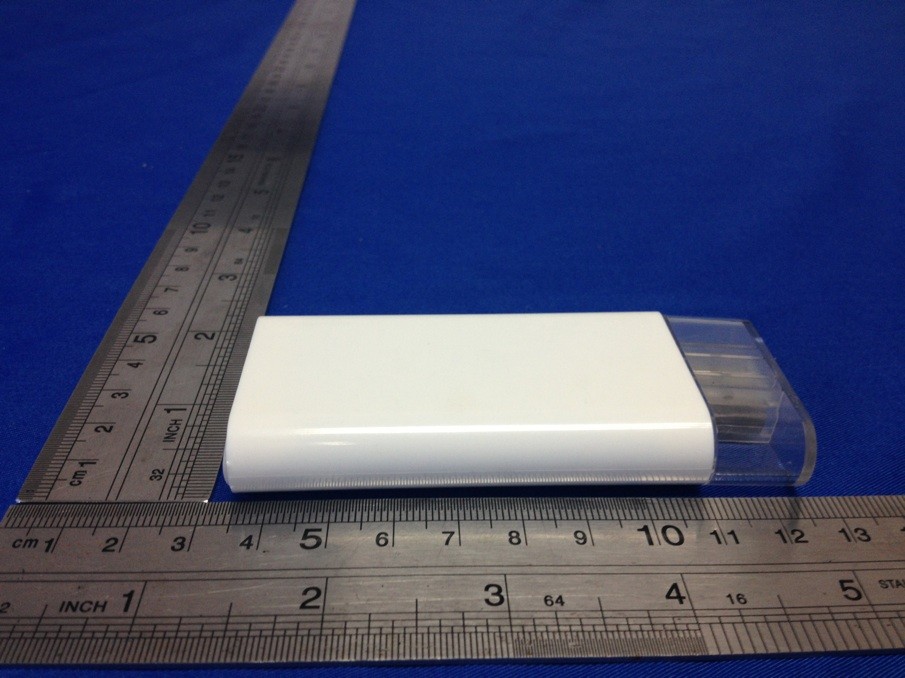

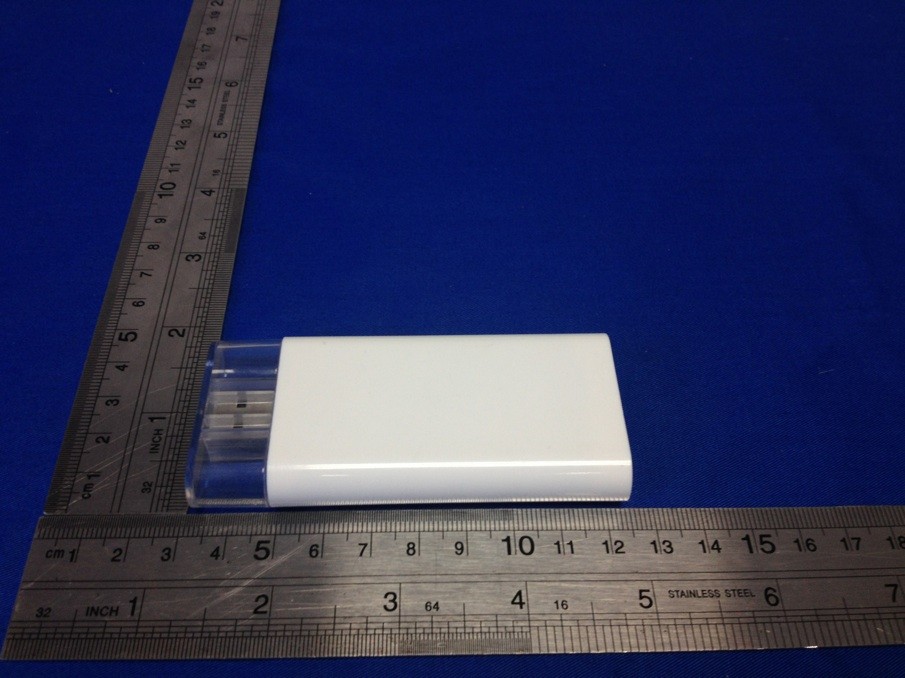

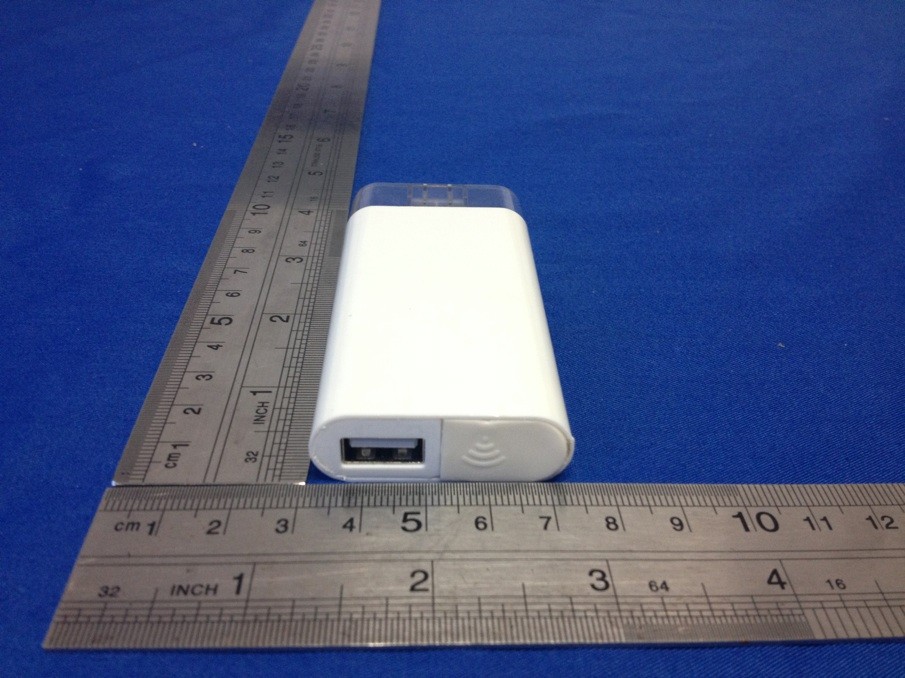

AXDWD100130610Wireless Portable Storage Device

User Manual FCC STATEMENT 1.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1).This device may not cause harmful interference. 2).This device must accept any interference received, including interference that may cause undesirable operation. 2.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with these instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1).Reorientate or relocate the receiving antenna. 2).Increase the separation between the equipment and receiver. 3).Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4).Consult the dealer or an experienced radio/TV technician for help. RF Warning Statement: The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction. The device complies with RF specifications when the device used at 15mm form your body Sanho warrants to the end user, that this product, excluding content and/or software supplied with or on the product, will be free from material defects in manufacture, will conform to Sanho's published product specifications and be fit for normal use during the Warranty Period specified below commencing on the date of purchase provided that the product is legally placed on the market. To make a warranty claim please contact Sanho at the telephone number below or [email protected] within the Warranty Period and provide proof of purchase must show date, place of purchase, name of the reseller and product name, type and number. You may return the product after first obtaining a Return Material Authorization number and following any other guidelines listed. For further information see www.hypershop.com. Sanho may,at its option,repair this product or provide you with an equivalent product; and if unable to repair or replace the product, will refund the purchase price. Sanho will not be liable for indirect or consequential damage (including loss of data), or for damage caused by improper use (including use in an incompatible device and use not in accordance with the instructions), or by improper installation, unprofessional repair, modification or accident. This constitutes Sanho's entire liability which will never exceed the price you paid for it, plus the necessary costs you made for the warranty claim. Sanho products must not be used in applications where failure could threaten injury or life, such as life support systems. National, state and local laws may grant you other rights that are not affected by this warranty. Warranty Period: 1 Year Sanho Corporation 47456 Fremont Blvd. Fremont, CA 94538, U.S.A. Tel: +1-408-737-7878 Additional terms and conditions can be found at www.hypershop.com. Sanho Manufacturer's Limited Warranty Wi-Fi Power Button USB 2.0 (Output 5V / 250mA) USB 2.0 Device (Input 5V / 1000mA) Wi-Fi Indicator Low Battery USB Mode Charging Indicator (Red) (Blue) (Green) (Orange) What's In The Box Replace Internal Flash Push to replace internal MicroSDXC Open the cover Battery Charging The product package does not include a USB charger. We recommend that you use a 5V/1A USB charger to charge the battery. Charging Indicator (Orange) Charging Port When the Low Battery Indicator light(red) is on, you should charge the iUSBport Mini .('LBI' is on for 3 minutes,iUSBport will turn off automatically.) The Charging Indicator(orange) will blink during charging. When the battery is fully charged, the Charging Indicator will stop blinking(~3hrs to fully charge from empty). '' . Low Battery Indicator (Red) Connect To PC USB Mode Indicator (Green) When the USB Mode Indicator(Green) light is on, iUSBport Mini is recognized by your PC. The USB Mode Indicator will blink during data transferring. Do not disconnect iUSBport Mini when the green LED is blinking. Disconnecting may cause data to be damaged. Enable Wi-Fi Push Wi-Fi power button for 2 seconds. Wi-Fi Indicator (Blue) Wait for 20 seconds until the Wi-Fi Indicator (Blue) starts to blink. Connect your Wi-Fi enabled device to iUSBport Mini according to next chapters. Connecting To iUSBport Mini Go to "Settings" on your mobile device (e.g. iPad) Select "iUSBmini" from the list of Wi-Fi networks. Enter 'http://199.0.0.1' in the URL address bar of the web browser. The contents of the USB device will be displayed in the browser. iUSBmini Partition Drives Content Settings Standard Network Service List There are several standard network servers in iUSBport Mini, such as FTP, WebDAV and Samba servers. iUSBport Mini can be accessed by standard FTP, WebDAV or Samba client software. FTP, WebDAV and Samba servers support read and write operations if the storage device is 'FAT32' formatted . FTP Settings FTP IP address: 199.0.0.1(Master mode) FTP server TCP/IP port number: 21 FTP server user name: anonymous FTP server password: <none> WebDAV Settings WebDAV IP address: http://199.0.0.1:81/webdav WebDAV server user name: <none> WebDAV server password： <none> Samba Settings Samba server IP address： 199.0.0.1(Master mode) Samba server TCP/IP port number：139 Samba server user name： Guest Samb…

Text truncated - open the document above for the full version.

Date: 2013-07-08 Page 2 of 14 No.: MH188686 CONTENT: Cover Page 1 of 14 Content Page 2 of 14 1.0 General Details 1.1 Equipment Under Test [EUT] Page 3 of 14 Description of sample(s) 1.2 Description of EUT operation Page 3 of 14 1.3 Date of Order Page 3 of 14 1.4 Submitted Sample(s) Page 3 of 14 1.5 Test Duration Page 3 of 14 1.6 Country of Origin Page 3 of 14 2.0 Technical Details 2.1 Investigations Requested Page 4 of 14 2.2 Test Standards and Results Summary Page 4 of 14 3.0 Test Results 3.1 Emission Page 5-10 of 14 Appendix A List of Measurement Equipment Page 11 of 14 Appendix B Ancillary Equipment Page 12 of 14 Appendix C Photographs Page 13-14 of 14 Date: 2013-07-08 Page 3 of 14 No.: MH188686 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Submitted sample(s) said to be Product: Wireless Portable Storage Device Manufacturer: SANHO ELECTRONICS TECHNOLOGY CO., LTD 1/F, BLOCK 1, #1177 LINGYUN ROAD, NINGBO, CHINA Brand Name: Hyper Drive Model Number: iUSBport Mini Rating: 5Vd.c.(Power by PC USB port) 1.2 Description of EUT Operation The Equipment Under Test (EUT) is a SANHO ELECTRONICS TECHNOLOGY CO., LTD. Wireless Portable Storage Device. During the test, the EUT was connected to the USB port of a PC and the TF card port was inserted with a TF card to perform data transfer and the USB output port of the EUT was connected to resistive load to simulate the typical of actual usage. 1.3 Date of Order 2013-07-03 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2013-07-04 1.6 Country of Origin China Date: 2013-07-08 Page 4 of 14 No.: MH188686 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 and ANSI C63.4: 2009 for FCC DoC. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed Radiated Emissions FCC 47CFR 15.109 ANSI C63.4: 2009 Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.107 ANSI C63.4: 2009 Class B Date: 2013-07-08 Page 5 of 14 No.: MH188686 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions Test Requirement: FCC 47CFR 15.109 Test Method: ANSI C63.4:2009 Test Date: 2013-07-04 Mode of Operation: Download and charge mode(Connected to PC, TF card and EUT USB output port connected to Resistive load) Test Method: The sample was placed 0.8m above the ground plane of Semi-Anechoic chamber*. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *: Semi-Anechoic chamber located on the G/F of The Hong Kong Standards and Testing Centre Ltd. with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 607756. Test Setup: Date: 2013-07-08 Page 6 of 14 No.: MH188686 Limits for Radiated Emissions [FCC 47 CFR 15.109 Class B]: Frequency Range Quasi-Peak Limits [MHz] [V/m] 30-88 100 88-216 150 216-960 200 Above960 500 The emission limits shown in the above table are based on measurement employing a CISPR quasi-peak detector and above 1000MHz are based on measurements employing an average detector. Results of Download and charge mode(Connected to PC, TF card and EUT USB output port connected to Resistive load) : PASS 0 10 20 30 40 50 60 70 30130230330430530630730830930 Level (dBμV/m) Frequency (MHz) Limit Results Date: 2013-07-08 Page 7 of 14 No.: MH188686 Results of Download and charge mode(Connected to PC, TF card and EUT USB output port connected to Resistive load) : PASS EmissionE-FieldLevelLimitLevelLimit FrequencyPolarity@3m@3m@3m@3m MHz 219.2Horizontal41.446.0117.5200 264.7Horizontal39.446.093.3200 313.2Horizontal39.246.091.2200 361.7Horizontal40.746.0108.4200 410.2Horizontal40.446.0104.7200 833.2Horizontal39.846.097.7200 70.7Vertical33.340.046.2100 219.2Vertical37.046.070.8200 313.2Vertical36.246.064.6200 410.2Vertical38.146.080.4200 458.7Vertical38.246.081.3200 500.5Vertical41.646.0120.2200 Radiated Emissions Quasi-Peak Remarks: Calculated measurement uncertainty (30MHz – 1GHz): 4.9dB Emissions in the vertical and horizontal polarizations have been investigated and the worst-case test results are recorded in this report. Date: 2013-07-08 Page 8 of 14 No.: MH188686 3.1.2 Conducted Emissions (0.15MHz to 30MHz) Test Requirement: FCC 47CFR 15.107 Test Method: ANSI C63.4:2009 Test Date: 2013-07-04 Mode of Operation: Download and charge mode(Connected to PC, TF card and EUT USB output port connected to Resistive load) Test Method: The test was performed in accordance with ANSI C63.4: 2009, with the following: an initial measurement was performed in peak and average detection mode on the live line, any emissions recorded within 30dB of the relevant limit line were re-measured using quasi-peak and average detection on the live and neutral lines with the worst case recorded in the table of results. Test Setup: LISN Receiver AE EUT 0.8m Cable Date: 2013-07-08 Page 9 of 14 No.: MH188686 Limit for Conducted Emissions (FCC 47 CFR 15.107): Frequency Range Quasi-Peak Limits Average [MHz] [dBV] [dBV] 0.15-0.5 66 to 56* 56 to 46* 0.5-5.0 56 46 5.0-30.0 60 50 * Decreases with the logarithm of the frequency. Limits for Conducted Emissions Test, please refer to limit lines (Quasi-Peak and Average) in the following diagram. Results of Download and Full load mode(with PC, TF card, EUT USB output port connected to Resistive load, PC mains) (L) : PASS LevelLimitLevelLimit Live or NeutralMHz Live0.17541.864.728.354.7 Live0.24943.961.838.351.8 Li…

Text truncated - open the document above for the full version.

SANHO ELECTRONICS TECHNOLOGY CO., LTD 1/F, BLOCK 1, #1177 LINGYUN ROAD, NINGBO,CHINA DATE：2013-7-20 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Jade yang of Keyway Testing Technology Co., Ltd. Baishun Industrial Zone, Zhangmutou Town, Dongguan, Guangdo ng, China,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shenzhen Chuangjiexing Electronics and 3/F., Bldg. A6, Laodong 1st Industrial Zone, Xixiang,Shenzhen, China. Dated this Day of 7/20/2013 Agency agreement expiration date: 7/20/2013 Kang Lu By: Signature Printed Title: Manager On behalf of : SANHO ELECTRONICS TECHNOLOGY CO., LTD Telephone: +86-574-87906631

SANHO ELECTRONICS TECHNOLOGY CO., LTD 1/F, BLOCK 1, #1177 LINGYUN ROAD, NINGBO,CHINA DATE：2013-7-20 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_ AXDWD100130610 Product Name:_ WIFI USB Storage Converter _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Day of 7/20/2012 By: Kang Lu Signature Printed Title: Manager On behalf of : SANHO ELECTRONICS TECHNOLOGY CO., LTD Telephone: +86-574-87906631

Label Size: 67.18*29.88mm Label Location

Antenna Location

1、 H/W Version:MSO4 2、 TOP P/N: TOP5370-5-5 3、 Model Name：MSO4 IEEE 802.11b/g/n USB Wireless Module Datasheet Version A2 Document R elease Date Modification Initia ls Approved Version A 1 2010/12/27 1．First version Qiu Version A 2 2010/04/14 1．Second version Qiu ss s hhh eee nnnzzzhhheeennn tttooopppllliiinnnkkk ttteeeccchhhnnnooolllooogggyyy cccooo...,,,LLL t t t ddd 深深 深 圳圳圳 拓拓拓 联联联 科科科 技技技 开开开 发发发 有有有 限限限 公公公 司司司 地址 ：深圳市 龙岗区坂田坂雪岗大道1-4号金都大厦321室 Tel: 86-755- 85225016 Fax :86-755-2 8471983 http ://www. toplink-tech .c om RT5370N TOP-MS04 1．Introduction Pr oduct Description The R T5370 is a highly integrated MAC/BBP and 2.4 GHz RF/PA/LNA single chip with 150Mbps PHY rate supporting. It fully complies with IEEE 802.11n and IEEE 802.11 b/g feature rich wireless connectivity at high standards, delivers reliable, cost-effective, throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. Intelligent MAC design deploys a high efficient DMA engine and hardware data processing accelerators without overloading the host processor. The RT5370 is designed to support standard based features in the areas of security, quality of service and international regulation, giving end users the greatest performance anytime in any circumstance. Featur es *CMOS Technology with PA, LNA, RF, Baseband, and MAC Integrated. *1T1R Mode with 150Mbps PHY Rate for Both Transmit and Receiving. *Legacy and High Throughput Modes *20MHz/40MHz Bandwidth *Reverse Direction Grant Data Flow and Frame Aggregation *WEP 64/128, WPA, WPA2,TKIP, AES, WAPI *QoS-WMM, WMM-PS *WPS,PIN,PBC *Multiple BSSID Support *USB 2.0 *Cisco CCX Support *Bluetooth Co-existence *Low Power with Advanced Power Management *Operating Systems - Windows XP 32/64, 2000, Windows 7,Vista 32/64 , Linux, Macintosh 地址 ：深圳市 龙岗区坂田坂雪岗大道1-4号金都大厦321室 Tel: 86-755- 85225016 Fax :86-755-2 8471983 http ://www. toplink-tech .c om ss s hhh eee nnnzzzhhheeennn tttooopppllliiinnnkkk ttteeeccchhhnnnooolllooogggyyy cccooo...,,,LLL t t t ddd 深深深 圳圳圳 拓拓拓 联联联 科科科 技技技 开开开 发发发 有有有 限限限 公公公 司司司 2．simplified block diagram of the RX5370A module is depicted in the figure below. 地址 ：深圳市 龙岗区坂田坂雪岗大道1-4号金都大厦321室 Tel: 86-755- 85225016 Fax :86-755-2 8471983 http ://www. toplink-tech .c om ss s hhh eee nnnttteeeccchhhnnnooolllooogggyyy cccooo...,,,LLL t t t ddd 深深深 圳圳圳 拓拓拓 联联联 科科科 技技技 开开开 发发发 有有有 限限限 公公公 司司司深深深 圳圳圳 拓拓拓 联联联 科科科 技技技 开开开 发发发 有有有 限限限 公公公 司司司 ss s hhh eee nnn sss hhh eee nnnzzzhhheeennn tttooopppllliiinnnkkk ttteeeccchhhnnnooolllooogggyyy cccooo...,,,LLL t t t ddd 深深 深 圳圳圳 拓拓拓 联联联 科科科 技技技 开开开 发发发 有有有 限限限 公公公 司司司 3．General Specifications Model Name Product Description USB 2.0 Wireless Module WLAN Sta ndard IEEE 802.1 1 b/g/n ,Wi-Fi compliant Host Interface USB 2.0 Major Chipset Ralink RT5370 Dimension 11mm X 34mm X 3.3 mm Weight 5g Operating Conditions Voltage Operating Temperature -10~50°C Humidit y Non-Operating 90 % RH non-condensing (12 months among 0~40°C ) Electrical Specf ications Frequency Range 2.4~2.4835GHZ Spread Sp ectrum DSS S Transmission Distance 300m(The transmission speed may vary according to the environment) 11n:150/135/120/90/60//54/45/30/15Mbps 72/65/57.8/43.3/28.9/21.7/14.4/7.2Mbps 11b:1/2/5.5/11Mbps 11 g:6/9/12/24/36/48/54Mbps 11b:1/2/5.5/11Mbps Data Rate 11g:6/9/12/24/36/48/54Mbps Transmit pow er 16dbm Data secur ity 64/128/152bitWEP,WPA/WPA2, WPA-PSK/WPA2-PSK(TKIP/AE S) 150M:-71dbm@10 %PER Receiver Sensitivity 135M: -71 dbm@10%PER 地址 ：深圳市 龙岗区坂田坂雪岗大道1-4号金都大厦321室 Tel: 86-755- 85225016 Fax :86-755-2 8471983 http ://www. toplink-tech .c om ss s hhh eee nnnzzzhhheeennn tttooopppllliiinnnkkk ttteeeccchhhnnnooolllooogggyyy cccooo...,,,LLL t t t ddd 深深 深 圳圳圳 拓拓拓 联联联 科科科 技技技 开开开 发发发 有有有 限限限 公公公 司司司 TOP-MS04 54M:-71dbm@10 %PER 11M:-84dbm@10 %PER 6M:-89dbm@10 %PER 1M:-93dbm@10 %PER Storage Temperature:-40~70°C(-40°F~158°F) Relative humidity :10%-90% Non-condensing Storage Humidity :5%~95% Environment Non-condensing Modulation Ty pe OFDM/CCK/16-QAM/64-QAM Operating System Window 98,ME,SE,XP,XP-64 Window s7，32/64, 2000,Vista,linux,mac 4．Power Consumption 地址 ：深圳市 龙岗区坂田坂雪岗大道1-4号金都大厦321室 Tel: 86-755- 85225016 Fax :86-755-2 8471983 http ://www. toplink-tech .c om ss s hhh eee nnnzzzhhheeennn tttooopppllliiinnnkkk ttteeeccchhhnnnooolllooogggyyy cccooo...,,,LLL t t t ddd 深深 深 圳圳圳 拓拓拓 联联联 科科科 技技技 开开开 发发发 有有有 限限限 公公公 司司司 5. Mechanical Information L ED G + - V+ 5 pin (pin to pin=2.54mm) 地址 ：深圳市 龙岗区坂田坂雪岗大道1-4号金都大厦321室 Tel: 86-755- 85225016 Fax :86-755-2 8471983 http ://www. toplink-tech .c om ss s hhh eee nnnzzzhhheeennn tttooopppllliiinnnkkk ttteeeccchhhnnnooolllooogggyyy cccooo...,,,LLL t t t ddd 深深 深 圳圳圳 拓拓拓 联联联 科科科 技技技 开开开 发发发 有有有 限限限 公公公 司司司 6．Pin Description J1 VCC J5 LED J2 UDM J3 UDP J4 GND 7. Antenna And Int erface Connection Information Interface and the antenna have the opt ion 8.Product ordering information RT5370 CHIPSET, o nly support 802.11b/g/n, 5V voltage support RT5370 CHIPSET, only support 802.11b/g/n, 3.3V voltage support And pls mark clearly your need about usb connection information. 地址 ：深圳市 龙岗区坂田坂雪岗大道1-4号金都大厦321室 Tel: 86-755- 85225016 Fax :86-755-2 8471983 http ://www. toplink-tech .c om ss s hhh eee nnnzzzhhheeennn tttooopppllliiinnnkkk ttteeeccchhhnnnooolllooogggyyy cccooo...,,,LLL t t t ddd 深深深 圳圳圳 拓拓拓 联联联 科科科 技技技 开开开 发发发 有有有 限限限 公公公 司司司

CloudFTP 2.Description Flash (W25Q64) is used to store software code.DDR2(HY5PS5162) is used to provide RAM space when system is running.WiFi Module(M05) is used to send and receive WiFi data package.Processor(iMX28) is system core. It's driven by a 24M crystal. A internal MicroSD card provides optional storage space for the end user.USB Host Port is used to transmit data between processor and USB devices.A USB device port is used to access internal MicroSD card and charge battery. After power up, processor will load software from Flash to DDR2. Then, processor monitor WiFi module to receive wireless network request. Once a wireless network request was received, processor will transmit data between USB device and WiFi module. The specifications: Operation Frequency: 2412MHz~2462MHz (802.11b/802.11g/802.11n(H20)) 2422MHz~2452MHz (802.11n(H40)) Modulation technology: 802.11b: CCK,QPSK,BPSK, 802.11g/n:OFDM Antenna Type: PCB Antenna maximum output power: 11b:18±1.0dBm;11g:16±1dB, 802.11n:(HT20): 16±1dB ,802.11n:(HT40): 15±1dB channel number: 11 for 802.11b/802.11g/802.11n(H20) ,7 for 802.11n(H40) antenna gain: 0dBi Channel separation: 5MHz

SHENZHEN SUNWAY COMMUNICATION CO.,LTD Report NO.: TS20130723003Page 1 / 62 FCC SAR EVALUATION REPORT For SANHO ELECTRONICS TECHNOLOGY CO.,LTD. 1/F, BLOCK 1, #1177 LINGYUN ROAD, NINGBO,CHINA Product Name:Wireless Portable Storage Device Model No. :iUSBport Mini Date of Receipt:17 th July ., 2013 Date of Test:22 th July ., 2013 Issued Date:7 th Aug . 2013 Report No.:TS20130723003 Report Version:V1.0 Issue By Shenzhen Sunway Communication CO.,LTD Testing Center Building 9, Changxing High-tech Industrial Park, Wan’an Road, Shajing Town, Bao’an District, Shenzhen 518104, P.R.China Note:The test results relate only to the samplestested. This report shall not be reproduced in full, without the written approval of SUNWAY Testing Center. SHENZHEN SUNWAY COMMUNICATION CO.,LTD Report NO.: TS20130723003Page 2 / 62 SAR Evaluation compliance Product Name:Wireless Portable Storage Device Brand Name:Hyper Drive Model Name:iUSBport Mini Applicant: SANHO ELECTRONICS TECHNOLOGY CO.,LTD. Address: 1/F,BLOCK 1, #1177 LINGYUN ROAD, NINGBO,CHINA Manufacturer: SANHO ELECTRONICS TECHNOLOGY CO.,LTD. Address: 1/F,BLOCK 1, #1177 LINGYUN ROAD, NINGBO,CHINA Applicable Standard and Test Guidance: FCC Oet65 Supplement C, June 2001 KDB 447498 D01 General RF Exposure Guidance v05 KDB 447498 D02 SAR Procedures for Dongle Xmtr v02 KDB 941225 D01 SAR test for 3G devices v02 KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01 KDB 248227 D01 SAR measurement Procedures for 802.11 a/b/g Transmitters v01r02 Test Result:Max. SAR Measurement (1g) 1g body Tissue: 0.103 mW/g Performed Date:22 th July . 2013-7 th Aug. 2013 Test Engineer:Li Zhao Reviewed ByTony Liu Performed Location: Shenzhen Sunway Communication CO.,LTD Testing Center Address:Building 9, Changxing High-tech Industrial Park, Wan ’ an Road, Shajing Town, Bao ’ an District, Shenzhen 518104, P.R.China Tel: +86-755- 81773388 Fax: +86-755- 81773335 SHENZHEN SUNWAY COMMUNICATION CO.,LTD Report NO.: TS20130723003Page 3 / 62 TABLE OF CONTENS 1. General Information: ........................................................................................................................ 4 1.1 EUT Description:...........................................................................................................................4 1.2 Test Environment: ......................................................................................................................... 6 2. SAR Measurement System:...........................................................................................................7 2.1 Dasy4 System Description: ......................................................................................................... 7 3. System Components:......................................................................................................................8 4. Tissue Simulating Liquid.............................................................................................................10 4.1 The composition of the tissue simulating liquid: .................................................................... 10 4.2 Tissue Calibration Result:..........................................................................................................10 4.3 Tissue Dielectric Parameters for Head and Body Phantoms: .............................................. 11 5. SAR System Validation.................................................................................................................12 5.1 Validation System: ...................................................................................................................... 12 5.2 Validation Dipoles: ...................................................................................................................... 12 5.3 Validation Result: ........................................................................................................................ 13 6. SAR Evaluation Procedures: ....................................................................................................... 14 7. SAR Exposure Limits .................................................................................................................... 15 8. Measurement Uncertainty:...........................................................................................................16 9. Conducted Power Measurement: ............................................................................................... 18 10. Test photos and results:............................................................................................................19 10.1 DUT photos: .............................................................................................................................. 19 10.2 Setup photos: ............................................................................................................................ 22 10.3 SAR result summary:...............................................................................................................25 10.4 Scale SAR result: ..................................................................................................................... 26 11. Equipment List:.............................................................................................................................27 Appendix A. System validation plots: ........................................................................................... 28 Appendix B. SAR Test plots: ........................................................................................................... 30 Appendix C. Probe Calibration Data: ............................................................................................ 37 Appendix D. DAE Calibration Data: ............................................................................................... 48 Appendix E. Dipole Calibration Data: .....................................................................................…

Text truncated - open the document above for the full version.

FCC ID: AXDWD100130610 Keyway Testing Technology Co., Ltd. Report No. 13KWE08795F Page 1 of 71 FCC TEST REPORT for SANHO ELECTRONICS TECHNOLOGY CO., LTD Wireless Portable Storage Device Model Number: iUSBport Mini FCC ID: AXDWD100130610 Prepared for : SANHO ELECTRONICS TECHNOLOGY CO., LTD Address : 1/F, BLOCK 1, #1177 LINGYUN ROAD, NINGBO,CHINA Prepared by : Keyway Testing Technology Co., Ltd. Address : Baishun Industrial Zone, Zhangmutou Town, Dongguan, Guangdong, China Tel: 86-769-8718 2258 Fax: 86-769-8718 1058 Report No. : 13KWE08795F Date of Test : Jul. 21~28, 2013 Date of Report : Aug. 1, 2013 FCC ID: AXDWD100130610 Keyway Testing Technology Co., Ltd. Report No. 13KWE08795F Page 2 of 71 TABLE OF CONTENTS Test Report Declaration Page 1. GENERAL PRODUCT INFORMATION......................................................................................................... 4 1.1. Product Function ................................................................................................................................... 4 1.2. Description of Device (EUT).................................................................................................................. 4 1.3. Independent Operation Modes.............................................................................................................. 4 2. TEST SITES................................................................................................................................................... 5 2.1. Test Facilities......................................................................................................................................... 5 2.2. List of Test and Measurement Instruments........................................................................................... 6 3. TEST SET-UP AND OPERATION MODES................................................................................................... 7 3.1. Principle of Configuration Selection ...................................................................................................... 7 3.2. Block Diagram of Test Set-up ............................................................................................................... 7 3.3. Test Operation Mode and Test Software .............................................................................................. 7 3.4. Special Accessories and Auxiliary Equipment ...................................................................................... 7 3.5. Countermeasures to Achieve EMC Compliance................................................................................... 7 4. EMISSION TEST RESULTS.......................................................................................................................... 8 4.1. Conducted Emission at the Mains Terminals Test................................................................................ 8 4.2. Radiated Emission Test ...................................................................................................................... 11 5. 6 OCCUPY BANDWIDTH ............................................................................................................................ 51 5…

Text truncated - open the document above for the full version.
