size:57.3mm 䴶ג ড䴶 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

AIPO International Co., Ltd. T: 0755-83738568 F: 0755-83738568 FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name AIPO International Co., Ltd. Address Floor 5, block A, NO.8 East zone, Shangxue Technol City Buji Town, Longgang District, ShenZhen, Country China declare that the following representative (agent): Name (person) Nancy Li Company name Shenzhen Toyou Testing Technology Co., Ltd. Address Building 7, Jinhui Industrial Park, No. 3 Xia'an Street Buxia, Liuyue Henggang, Longgang District City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Bluetooth speaker Type or Model(s) AMD-BSK09 （FCC ID: AYBBSK09） Tradename or Brand(s) ifrogz We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) China 2014-5-26 Ariel Huang Manager

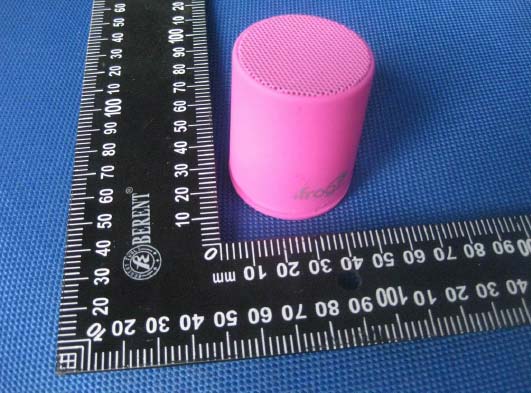

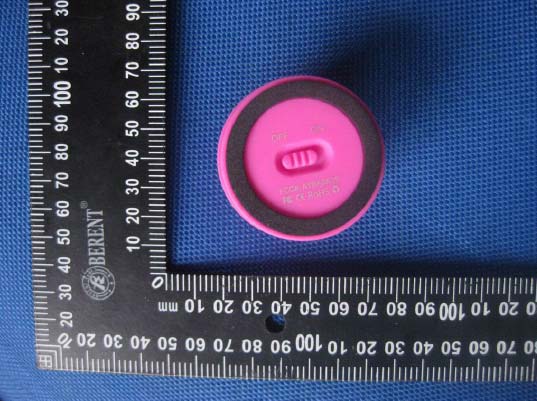

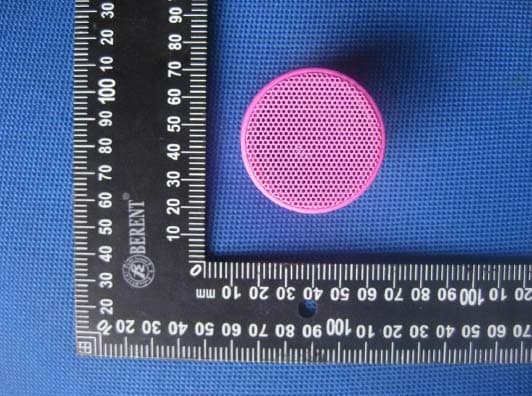

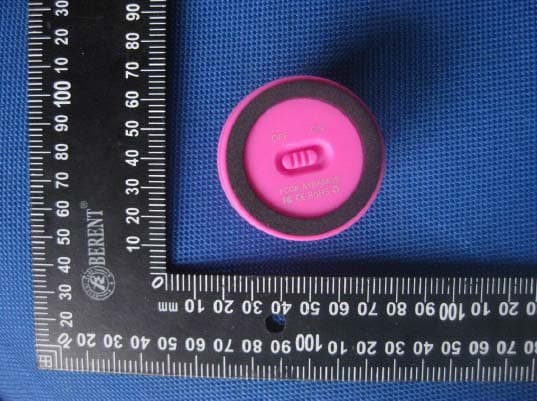

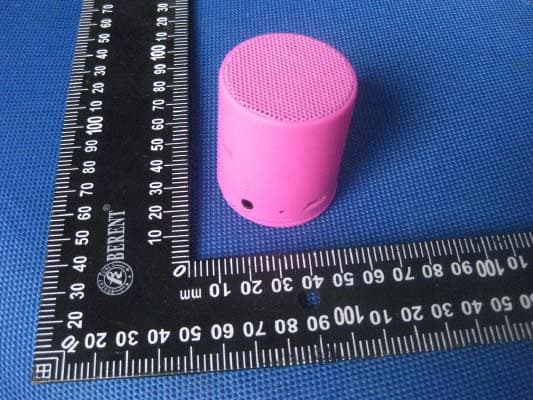

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Bluetooth speaker M/N: AMD‐BSK09 FCC ID: AYBB S K 0 9

Photo 5 Photo 6 Photo 7 Photo 8 Photo 9

FCC ID: AYBBSK09 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Maximum measured transmitter power 1Mbps Frequency (MHZ) Max Antenna Gain (dBm) EIRP (dBm) EIRP (mW) 2402 0 -3.424 0.455 2441 0 -3.186 0.48 2480 0 -2.47 0.566 2Mbps Frequency (MHZ) Max Antenna Gain (dBm) EIRP (dBm) EIRP (mW) 2402 0 -3.718 0.423 2441 0 -3.507 0.446 2480 0 -2.826 0.522 3Mbps Frequency (MHZ) Max Antenna Gain (dBm) EIRP (dBm) EIRP (mW) 2402 0 -3.448 0.452 2441 0 -3.199 0.479 2480 0 -2.508 0.562 Refer to 447498 25 D01 General RF Exposure Guidance v05 Appendix A, you see that for Maximum Conducted AV Output Power 0.566 mW(<10mW), so no SAR is required.

FCC RADIO TEST REPORT FCC ID: AYBBSK09 Product： Bluetooth speaker Trade Name： ifrogz Model Name： AMD-BSK09 Serial Model： N/A Prepared for AIPO International Co., Ltd. Floor 5, Block A, NO.8 East zone, Shangxue Technol, Buji Town, Longgang District, ShenZhen, China Prepared by Shenzhen Toyou Global Testing Technology Co., Ltd. 2nd Floor Building 7, Jinhui Industrial Park, No. 3 Xia'an Street Buxia, Liuyue Henggang, Longgang District, Shenzhen, China Page 2 of 76 Report No.: TYT-2014TYT0522010E TEST RESULT CERTIFICATION Applicant’s name ................. : AIPO International Co., Ltd. Address ................................. : Floor 5, Block A, NO.8 East zone, Shangxue Technol, Buji Town, Longgang District, ShenZhen, China Manufacturer's Name .......... : AIPO International Co., Ltd. Address ................................. : Floor 5, Block A, NO.8 East zone, Shangxue Technol, Buji Town, Longgang District, ShenZhen, China Product description Product name ........................... : Bluetooth speaker Model and/or type reference .. : AMD-BSK09 Serial Model .............................. : N/A Standards ............................. : FCC Part15.247 Test procedure ..............................ANSI C63.4-2003 This device described above has been tested by TYT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of TYT, this document may be altered or revised by TYT, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 13 May. 2014 ~27 May. 2014 Date of Issue ........................................... : 27 May. 2014 Test Result ............................................... : Pass Testing Engineer : (Nancy Li) Technical Manager : (Sam Huang) Page 3 of 76 Report No.: TYT-2014TYT0522010E Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTIN 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4 . NUMBER OF HOPPING CHANNEL 33 4.1 APPLIED PROCEDURES / LIMIT 33 4.1.1 TEST PROCEDURE 33 4.1.2 DEVIATION FROM STANDARD 33 4.1.3 TEST SETUP 33 4.1.4 EUT OPERATION CONDITIONS 33 4.1.5 TEST RESULTS 34 5 . AVERAGE TIME OF OCCUPANCY 36 5.1 APPLIED PROCEDURES / LIMIT 36 5.1.1 TEST PROCEDURE 36 5.1.2 DEVIATION FROM STANDARD 36 5.1.3 TEST SETUP 37 Page 4 of 76 Report No.: TYT-2014TYT0522010E Table of Contents Page 5.1.4 EUT OPERATION CONDITIONS 37 5.1.5 TEST RESULTS 38 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 44 6.1 APPLIED PROCEDURES / LIMIT 44 6.1.1 TEST PROCEDURE 44 6.1.2 DEVIATION FROM STANDARD 44 6.1.3 TEST SETUP 44 6.1.4 EUT OPERATION CONDITIONS 44 6.1.5 TEST RESULTS 45 7 . BANDWIDTH TEST 51 7.1 APPLIED PROCEDURES / LIMIT 51 7.1.1 TEST PROCEDURE 51 7.1.2 DEVIATION FROM STANDARD 51 7.1.3 TEST SETUP 51 7.1.4 EUT OPERATION CONDITIONS 51 7.1.5 TEST RESULTS 52 8 . PEAK OUTPUT POWER TEST 58 8.1 APPLIED PROCEDURES / LIMIT 58 8.1.1 TEST PROCEDURE 58 8.1.2 DEVIATION FROM STANDARD 58 8.1.3 TEST SETUP 58 8.1.4 EUT OPERATION CONDITIONS 58 8.1.5 TEST RESULTS 59 9 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 65 9.1 DEVIATION FROM STANDARD 65 9.2 TEST SETUP 65 9.3 EUT OPERATION CONDITIONS 65 9.4 TEST RESULTS 66 10 . ANTENNA REQUIREMENT 74 10.1 STANDARD REQUIREMENT 74 10.2 EUT ANTENNA 74 11 . EUT TEST PHOTO 75 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 76 Report No.: TYT-2014TYT0522010E 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 76 Report No.: TYT-2014TYT0522010E 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd. Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration Number: 238937; IC Registration Number: 9270A-1 CNAS Registration Number: L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.35dB 2 RF power,conducted ±0.15dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.66dB 5 All emissions,radiated(>1G) ±4.83dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 76 Report No.: TYT-2014TYT0522010E 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Bluetooth speaker Trade Name ifrogz Model Name AMD-BSK09 Serial Model N/A Model Difference N/A Product Description The EUT is a Bluetooth speaker Opera…

Text truncated - open the document above for the full version.

Page 75 of 76 Report No.: TYT-2014TYT0522010E 11. EUT TEST PHOTO Radiated Measurement Photos Page 76 of 76 Report No.: TYT-2014TYT0522010E CONDUCTED EMISSION Photos
