Intertek Testing Services FCC ID: AZ489FT3801 Applicant: Motorola Inc. Page 1 of 1FCC Part 90 Certification Test and Measurement Report Certification of Data Statement of Certification The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: I have received a Masters of Electrical Engineering from Syracuse University, Syracuse, NY in 1989. I have more than 13 years experience in the field of EMC. Name:Grace Lin Signature:Grace Lin (signed) Date:March 21, 2001 Position:Sr. Project Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: Name:David Schramm Signature:David J. Schramm (signed) Date:March 21, 2001 Position:EMC Team Leader

Intertek Testing Services FCC ID: AZ489FT3801 Application for Motorola Inc. Page 1 of 2FCC Part 90 Certification Test and Measurement Report 1.0MEANS FOR FREQUENCY STABILIZATION Frequency stability is maintained by a referenced oscillator/programmable temperature compensation circuit located in the frequency synthesizer IC U201. The oscillator is a Colpitts design with an amplifier in the IC. The 68.8 MHz crystal FL201. varactor and feedback capacitors are external circuitry. A control voltage applied to the varactor via the programmable compensation circuit maintains the frequency stability to within +/- 2.5ppm over temperature. Frequency tuning, also from the programmable compensation circuit, has 128 steps of resolution. 2.0MEANS FOR LIMITING MODULATION Modulation limiting is accomplished within the custom IC, U404. The limiting action itself occurs at the rails (i.e., 3.3V and ground). Using an opamp with feedback, very hard limiting is obtained. The limited modulation signal is then input through a low-pass splatter filter then to an electronic attenuator within U404 in order to adjust for variations in modulation sensitivities of the frequency synthesizer. The electronic attenuator is controlled by the radio's micro-processor, U409. To keep the deviation constant over the RF frequency range & channel bandwidth, the microcomputer adds the proper correction factor to the attenuator. 3.0MEANS FOR ATTENUATION OF HIGHER AUDIO FREQUENCIES The output of the limiter is applied to a low-pass splatter filter. The filter is a fifth-order switched capacitor filter with the roll off corner located at 3000 Hz. The output of the low- pass filter is input to the electronic attenuator before routing to the modulator. 4.0MEANS FOR ATTENUATION OF SPURIOUS EMISSIONS The final stage of the RF power amplifier circuit feeds a low-pass filter in order to attenuate harmonics of the carrier frequency as well as any spurious signals. The filter is a seven elements Elliptic design using LC lump elements. Harmonic Filter The harmonic filter consists of C104, L102, C103, L101 and C102. The design of the harmonic filter for UHF is that of a modified Zolotarev design. It has been optimized for efficiency of the power module. This type of filter has the advantage that it can give a greater attenuation in the stop-band for a given ripple level. The harmonic filter insertion loss is typically less than 1.2dB. 5.0MEANS FOR LIMITING POWER The transmitter uses the Power Control IC (PCIC), U102 to regulate the power output of the radio. The current to the final stage of the power module is supplied through R101, which provides a voltage proportional to the current drain. This voltage is then fedback to the Automatic Level Control (ALC) within the PCIC to regulate the output power of the transmitter. The PCIC has internal digital to analog converters (DACs) which provide the reference voltage of the control loop. The reference voltage level is programmable through the SPI line of the PCIC. Intertek Testing Services FCC ID: AZ489FT3801 Application for Motorola Inc. Page 2 of 2FCC Part 90 Certification Test and Measurement Report There are resistors and integrators within the PCIC, and external capacitors (C133, C134 and C135) in controlling the transmitter rising and falling time. These are necessary in reducing the power splatter into adjacent channels. CR105 and its associated components are part of the temperature cut back circuitry. It senses the printed circuit board temperature around the transmitter circuits and output a DC voltage to the PCIC. If the DC voltage produced exceeds the set threshold in the PCIC, the transmitter output power will be reduced so as to reduce the transmitter temperature. 6.0MODULATION TECHNIQUES. The transmitter is capable of the following types of modulation: i) Voice 300Hz to 3KHz ii) Modulation of PL (Private Line) - Direct FM tone modulation of 67 Hz to 250.3 Hz at 15% of full system deviation. iii) Modulation of DPL (Digital Private Line) - Direct FM modulation at 134 BPS at 15% of full system deviation. iv) Modulation of DTMF tones at nominally 60% of full system deviation. Direct FM of PL or DPL is generated by a 6-bit D/A converter contained within U404. The frequency-determining clock signal is generated by the radio microcomputer. The modulation signal is processed through a five pole switched capacitor filter. The output of the filter is input to the electronic attenuator circuit. The microcomputer adjusts the attenuator to compensate for modulation sensitivity variations of the synthesizer & channel bandwidth ensuring 15% of full system deviation for PL and DPL. DTMF tones are generated by the audio processing IC, U404. The tones are routed and processing IC, U404. The tones are routed and processed in the same manner as the voice signals.

FCC ID: AZ489FT3801 Global Technology Development Group 8000 West Sunrise Boulevard, Fort Lauderdale, Florida 33322. (954) 723-5000 Date:March 23, 2001 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of Transmitter with FCC ID: AZ489FT3801. Gentlemen: Motorola Inc, 8000 West Sunrise Boulevard, Fort Lauderdale, Florida, herein submits its’ application for Certification of the subject transmitter. This transmitter is primarily intended for use in a portable radio application with capabilities for clear communications with a transmit power of 1.0—5.0 Watt. The Power is variable 20% of the value listed. The subject transmitter complies with Section 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. Enclosed is a complete Certification application. Contact me at (954) 723-5793 if you require any additional information. Sincerely, Mike Ramnath(signed) FCC Liaison Email: [email protected] Fax (954) 723-4794

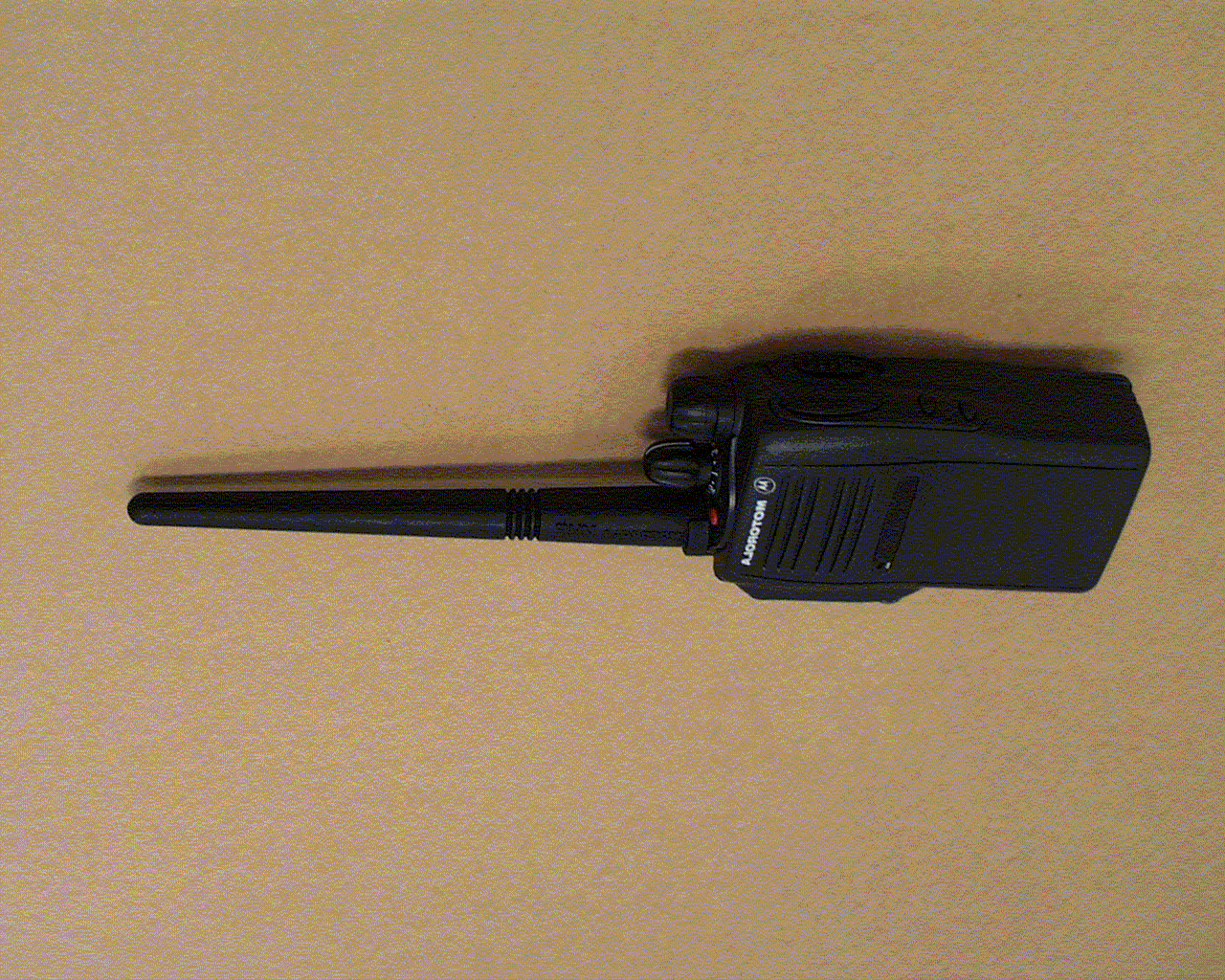

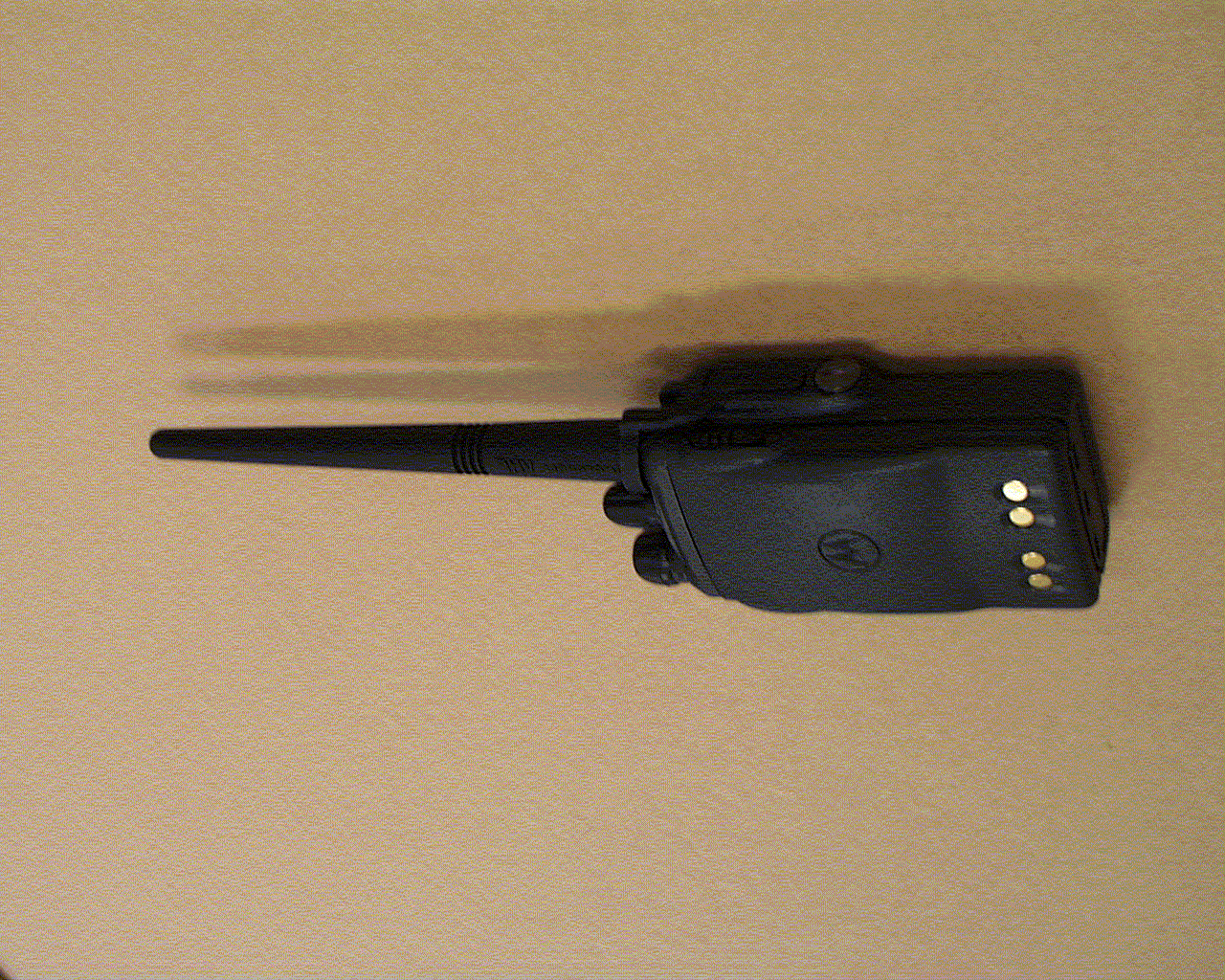

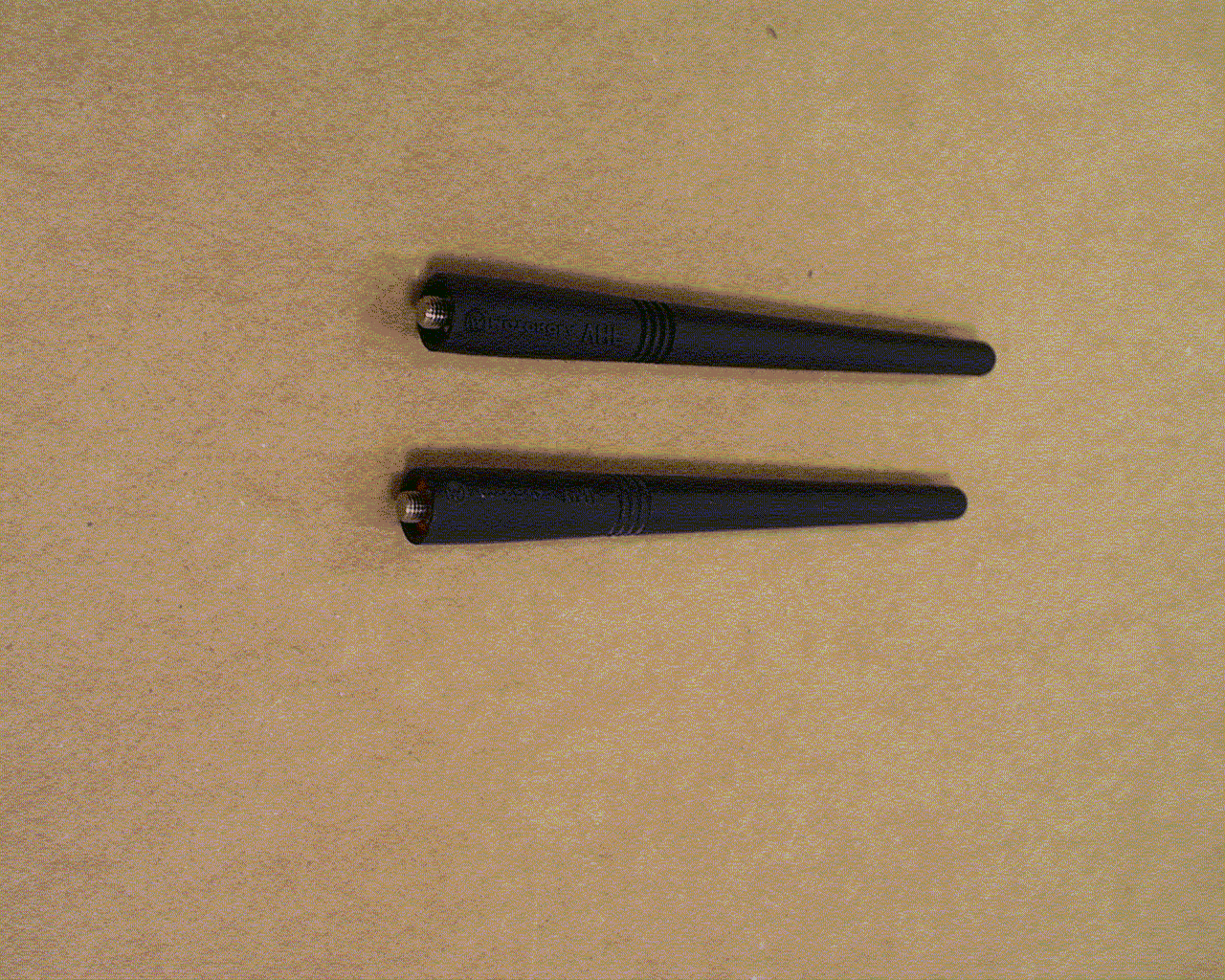

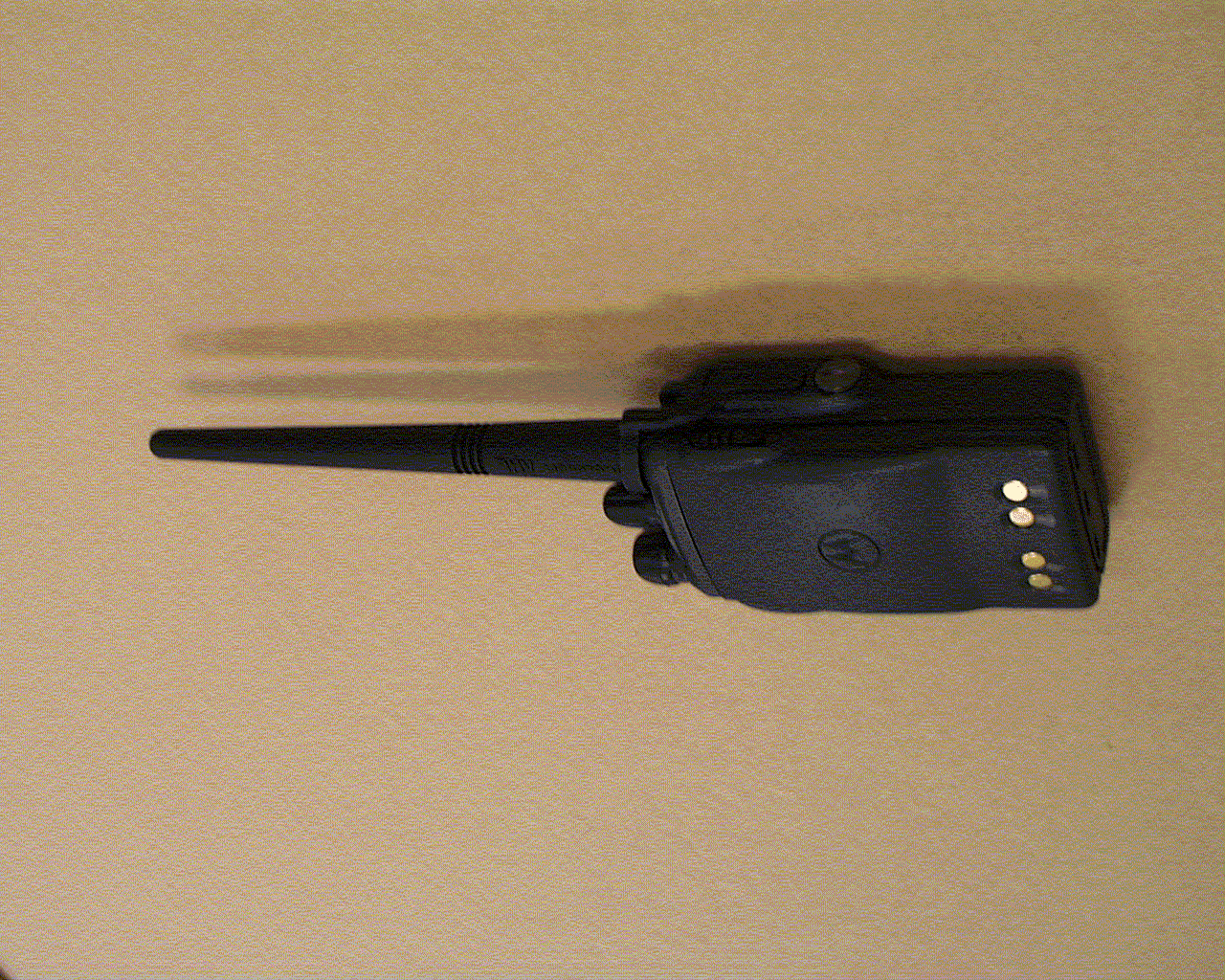

Intertek Testing Services FCC ID: AZ489FT3801 Applicant: Motorola Inc. Page 1 of 4 Exhibit 3 FCC Part 90 Certification Test and Measurement Report EXHIBIT 3External Photographs 1. Back Side of Radio 2. Front of Radio 3. Top of Radio 4. Antennas 5. Radio with antenna separated Intertek Testing Services FCC ID: AZ489FT3801 Applicant: Motorola Inc. Page 2 of 4 Exhibit 3 FCC Part 90 Certification Test and Measurement Report Intertek Testing Services FCC ID: AZ489FT3801 Applicant: Motorola Inc. Page 3 of 4 Exhibit 3 FCC Part 90 Certification Test and Measurement Report Intertek Testing Services FCC ID: AZ489FT3801 Applicant: Motorola Inc. Page 4 of 4 Exhibit 3 FCC Part 90 Certification Test and Measurement Report

Intertek Testing Services FCC ID: AZ489FT3801Page 1 of 3 Exhibit 1 FCC Part 90 Certification Test and Measurement Report LIST OF EXHIBITS DESCRIPTIONEXHIBITFCC REFERENCE IIdentification label information &1A2.1033 (c) (11) General Information2.1031 & 2.1061 .1. Production Plans1B 2. Application References 3. Data Submittal Procedures ll.Certification Of Data22.907 IIIExternal Photographs32.1033 (c) (12) IVBlock Diagrams or Circuit Descriptions42.1033 (c) 1. Frequency Stabilization 2. Modulation Limiting 3. Attenuation Of Higher Audio Frequencies 4. Attenuation Of Spurious Emissions 5. Limiting Output Power 6. Modulation Techniques VSchematic Diagrams52.1033 (c) (10) VITest Report6 1. Data Index6Test report 2. RF Output Data6A2.1046 3. Modulation Characteristics2.1047 a) Audio Response6BTest Report b) Low Pass Filter Response6C c) Modulation Limiting6D 4. Occupied Bandwidth6E2.1049 5. Conducted Spurious Emissions6F2.1051 6. Radiated Spurious Emissions6G2.1053 7. Frequency Stability (Temp. & Supply Voltage)6H & 6I2.1055 8. Transient Frequency Behavior6 J90.214 VIITest Set-Up Procedures7 a) Test Equipment Used b) Method Of Measurements c) Emission Designator Information VIIIInstruction Manual82.1033 (c) (3) IXInternal Photographs92.1033 (c) (12) XParts List & Tune-Up Procedures10A & 10B2.1033 (c) (9) XIRF Exposure Information112.1093 (c) and (d) XIIOperation Description122.1033(c) 10 a) Technical Characteristics2.1033 (c) b) Application XIIICover Letter132.1033(c) 10 XIVReceiver Radiated and Conducted Spurious Emissions14 Intertek Testing Services FCC ID: AZ489FT3801Page 2 of 3 Exhibit 1 FCC Part 90 Certification Test and Measurement Report Applicant: Motorola Inc. FCC ID: AZ489FT3801 Location:See attached photograph Type:The label is a paper polyester firm laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with a minimum peel strength of 40 inches/oz. Markings:Label attached below Exhibit 1a: FCC ID Label Format Intertek Testing Services FCC ID: AZ489FT3801Page 3 of 3 Exhibit 1 FCC Part 90 Certification Test and Measurement Report General Information IProduction Plans – Pursuant 2.1033 Quantity production is planned IIApplication References – Pursuant 2.1061 Application is made to the following Motorola “Application References” 1. Portable Products and their application 2. Portable Products Transmitter Modulation Methods 3. Motorola Plantation Antenna Range IIIData submittal procedure: Data is supplied in accordance with Part 2, Sub-part J of the Commissions’ rules.

Intertek Testing Services FCC ID: AZ489FT3801 Applicant: Motorola Inc. Page 1 of 7 Exhibit 3 FCC Part 90 Certification Test and Measurement Report EXHIBIT 9 INTERNAL PHOTOGRAPHS 1. Side 1 RF Board connected to Top Open 2. Inside of Front Cover 3. RF Board Side 2 4. Back Cover Inside 5. Radio with antenna separated 6. Controller connected to RF Board via Flex 7. RF Board Side 1 Intertek Testing Services FCC ID: AZ489FT3801 Applicant: Motorola Inc. Page 2 of 7 Exhibit 3 FCC Part 90 Certification Test and Measurement Report Intertek Testing Services FCC ID: AZ489FT3801 Applicant: Motorola Inc. Page 3 of 7 Exhibit 3 FCC Part 90 Certification Test and Measurement Report Intertek Testing Services FCC ID: AZ489FT3801 Applicant: Motorola Inc. Page 4 of 7 Exhibit 3 FCC Part 90 Certification Test and Measurement Report Intertek Testing Services FCC ID: AZ489FT3801 Applicant: Motorola Inc. Page 5 of 7 Exhibit 3 FCC Part 90 Certification Test and Measurement Report Intertek Testing Services FCC ID: AZ489FT3801 Applicant: Motorola Inc. Page 6 of 7 Exhibit 3 FCC Part 90 Certification Test and Measurement Report Intertek Testing Services FCC ID: AZ489FT3801 Applicant: Motorola Inc. Page 7 of 7 Exhibit 3 FCC Part 90 Certification Test and Measurement Report

Intertek Testing Services FCC ID: AZ489FT3801Page 1 of 1 Exhibit 1 FCC Part 90 Certification Test and Measurement Report OPERATIONAL DESCRIPTION 1.Transmitter Technical Characteristics -- Pursuant 2.983 (d) a. RF Power Out: 1W to 5.0 Watt Variable Power b. Transmit Frequency Range:136-174 MHz c. Receive Frequency Range:136-174 MHz d. Frequency Stability:5 PPM e. Emissions11K0F3E, 16K0F3E f. DC Voltage and Current into7.5 VDC the final RF amplifier stage/stages1.46 Amps 2.Transmitter Application This transmitter is primarily intended for use in a portable environment. The following features, options, and accessories characterize the Transmitter: a. Power Supply Available: i. LiIon Rechargeable Low Capacity Battery ii. LiIon Rechargeable High Capacity Battery iii NiMH Rechargeable Battery b. Antenna Available: i. Helical Antenna ii. Whip antenna c. Squelch Type Available: i. Carrier Squelch ii. Tone “Private Line” iii. Digital “Private Line” iv. DTMF v. MDC vi. Quick Call II d. Microphone - Control: I. Handset/Palm Microphone e. Maximum Transmit Channel Capability: i. 16 Channel f. Housing: i. The transmitter will be housed in the housing shown in the accompanying photographs g. Other Options: i. Time out Timer

Intertek Testing Services FCC ID: AZ489FT3801Page 1 of 3 Exhibit 10a FCC Part 90 Certification Test and Measurement Report EXHIBIT 10A Transmit Power Tuning Power tuning is performed using Motorala Professional Radio Tuning Software available to Motorola Technical Field Representatives. There are 2 variations of Transmit Power Tuning; they are High Power and Low Power Tuning. Note : When checking the RF power output of the radio with a test set, always use a pad of at least 30dB attached to the radio end of the RF cable. This will avoid an RF mismatch and ensure a stable RF reading that will not change with varying lengths of connecting cable. Transmit High Power level for Professional portable radios RF Band (MHz)High Power (W) VHF (136-174)5.2 - 5.7 UHF Band 1 (403-470)4.2 - 4.6 UHF Band 2 (450-527)4.2 - 4.5 To perform Transmit High Power Tuning, do the following:- 1.Under the Tx Align menu, select Transmit Power, then select High. 2.Press PTT Toggle. This will key the radio up at F1. 3.Adjust the high power level to be as defined by country power level specifications by moving the slider/spin control or keying in values in the edit control (press ENTER to confirm your selection after typing in the softpot value). 4.Press PTT Toggle to dekey the radio, go to the next frequency point by selecting the slider, typing in the edit control box (press ENTER to confirm selection after typing in the softpot value) or toggling the softpot value using the spin control. 5.Press PTT Toggle again to key up the radio at the selected frequency point. 6.Repeat steps 3-5 for (F2-F7). 7.Press Program to store the softpot values into the radio’s codeplug. 8.Exit the Transmit High Power function. Intertek Testing Services FCC ID: AZ489FT3801Page 2 of 3 Exhibit 10a FCC Part 90 Certification Test and Measurement Report 9.If the radio uses only high power channels, proceed to adjust modulation. If low power channels are used, perform Transmit Low Power Tuning as defined below. Transmit Low Power level for Professional portable radios RF Band (MHz)Low Power (W) VHF (136-174)1.1 - 1.3 UHF Band 1 (403-470)1.1 - 1.45 UHF Band 2 (450-527)1.1 - 1.45 To perform Transmit Low Power Tuning, do the following:- 1.Under the Tx Align menu, select Transmit Power, then select Low. 2.Press PTT Toggle. This will key the radio up at F1. 3.Adjust the power level to be as defined by country power level specifications by moving the slider/spin control or keying in values in the edit control (press ENTER to confirm your selection after typing in the softpot value). 4.Press PTT Toggle to dekey the radio, go to the next frequency point by selecting the slider, typing in the edit control box (press ENTER to confirm your selection) or toggling the softpot value using the spin control. 5.Press PTT Toggle again to key up the radio at the selected frequency point. 6.Repeat steps 3-5 for (F2-F7). 7.Press Program to store the softpot values into the radio’s codeplug. 8.Exit the Transmit Low Power function PA Bias Tuning IMPORTANT: Tuning must be performed for both High and Low power for UHF and VHF radios. 1. Ensure that the radio’s antenna output is terminated in a 50 Ohm load. This is to prevent self destruction of the PA. 2. Under Tx Align, select PA Bias, select High Power. 3. Measure/read the dc current drawn by the radio (specifications will vary from radio to radio). Call this X. This value should typically range from 70-100mA or 0.07-0.1A. 4. Press Toggle Voltage to enable the PA control voltage edit box/spin control. Intertek Testing Services FCC ID: AZ489FT3801Page 3 of 3 Exhibit 10a FCC Part 90 Certification Test and Measurement Report 5. Increase the Voltage softpot value and measure/read the current from the meter. Call the new value Y. 6. Increase Y until Y - X is within the range given for PA current in table below. 7. Press Toggle Voltage again to disable the PA control voltage edit box/spin control. 8. Press Toggle Bias 1 in order to enable the PA Bias softpot. 9. Increase the softpot value to obtain Z until Z - Y is within the range for Bias Current as indicated in the table below.. 10. Press Toggle Bias 1 again to disable the PA Bias softpot. 11. Program the Bias softpot into the radio’s codeplug by pressing Program. 12. Exit the PA Bias High Power function. 13. Under Tx Align, select PA Bias, Low Power. 14. Repeat steps 3-11. 15. Exit the PA Bias Low Power function. VHFPA CurrentBias Current 136-17490mA – 110mA90mA – 110mA

VHF Circuit Board/Schematic Diagrams and Parts List 4-27 VHF Radio Parts List Circuit Ref Motorola Part No. Description B501 0986237A02 Battery Contact Module C3200 2113743N31 16.0pF C3203 2113743N50 100pF C3204 2113743L41 0.01uF C3205 2113928N01 0.1uF C3206 2113743L41 0.01uF C3207 2113743N10 2.2pF C3209 2311049A07 1uF C3210 2113743L17 1000pF C3211 2311049A56 4.7uF C3212 2311049A07 1uF C3213 2311049A56 4.7uF C3214 2113928N01 0.1uF C3215 2113743N26 10pF C3218 2311049A56 4.7uF C3219 2113928N01 0.1uF C3220 2113743N26 10pF C3221 2113743L41 0.01uF C3222 2113928N01 0.1uF C3223 2113928N01 0.1uF C3224 2113928N01 0.1uF C3225 2113928N01 0.1uF C3226 2113928N01 0.1uF C3227 2113743L41 0.01uF C3228 2113743L41 0.01uF C3229 2113743N50 100pF C3230 2113740F51 100pF C3231 2180478Z20 1uF C3232 2180478Z20 1uF C3233 2180478Z20 1uF C3234 2180478Z20 1uF C3235 2113743A23 0.220uF C3238 2113743A24 0.330uF C3239 2113743E07 0.022uF C3240 2113743A23 0.220uF C3241 2113743L19 1200pF C3242 2109720D14 0.1uF C3243 2113743E07 0.022uF C3244 2113743L41 0.01uF C3270 2113743E07 0.022uF C3271 2113743L05 330pF C3272 2113743N18 4.7pF C3273 2113743N26 10pF C3274 2113743N38 33pF C3275 2113743N44 56pF C3276 2113743N42 47.0pF C3277 2113743N48 82.0pF C3278 2113743E07 0.022uF C3279 2311049A40 2.2uF C3280 2113743L41 0.01uF C3301 2113743N20 5.6pF C3302 2113743N54 150pF C3303 2113743N30 15.0pF C3304 2113743N54 150pF C3306 2113928N01 0.1uF C3307 2113743N50 100pF C3308 2113743L05 330pF C3309 2113928N01 0.1uF C3311 2113743N54 150pF C3312 2113743N31 16.0pF C3313 2113743N54 150pF C3315 2113743N26 10pF C3316 2113743N14 3.3pF C3317 2113743N40 39.0pF C3318 2113743M08 0.022uF C3320 2113743N48 82.0pF C3321 2113743L05 330pF C3322 2113743N50 100pF C3323 2113743N50 100pF C3324 2113743N38 33pF C3325 2113743L17 1000pF C3327 2113743L05 330pF C3329 2113743L05 330pF C3330 2113743N50 100pF C3331 2113743N50 100pF C3332 2113743N40 39.0pF C3334 2113743N33 20pF C3335 2113743N34 22pF C3336 2311049A18 10uF C3337 2113743M08 0.022uF C3338 2113743L09 470pF C3339 2113743N26 10pF C3501 2113743L05 330pF C3502 2113743N38 33pF C3503 2113743N38 33pF C3504 2113743M08 0.022uF C3505 2113743N38 33pF C3508 2113743M08 0.022uF C3509 2113743L05 330pF C3512 2113740F43 47pF C3513 2113740F38 30pF C3514 2113740F67 470pF C3515 2113743L29 3300pF C3516 2311049A08 1uF C3517 2113740F51 100pF C3518 2113740F63 330pF C3519 2113740F35 22pF C3521 2111078B51 220pF C3523 2111078B44 120pF C3524 2113740F33 18pF Circuit Ref Motorola Part No. Description C3525 2113740F27 10pF C3526 2113743M08 0.022uF C3528 2113740F26 9.1pF C3531 2113740F34 20pF C3532 2113740F47 68pF C3533 2113740F24 7.5pF C3534 2113740F19 4.7pF C3535 2113740F37 27pF C3536 2113740F31 15pf C3537 2113740F33 18pF C3539 2113740F21 5.6pF C3541 2113743M08 0.022uF C3542 2113743L05 330pF C3543 2113743M08 0.022uF C3544 2113743L05 330pF C3546 2113743L05 330pF C3547 2113743M08 0.022uF C3550 2113743N23 7.5pF C3551 2113743N46 68.0pF C3552 2113743N44 56pF C3560 2311049A07 1uF C3561 2113743M08 0.022uF C3562 2113743L29 3300pF C3563 2113743L29 3300pF C3564 2113743L01 220pF C3565 2113743E07 0.022uF C3566 2113743N50 100pF C3567 2113743L05 330pF C3568 2113743L29 3300pF C3569 2113743M08 0.022uF C3570 2113743L05 330pF C3571 2113743L09 470pF C3701 2113743L41 0.01uF C3702 2113743L41 0.01uF C3703 2113743L41 0.01uF C3704 2113743L41 0.01uF C3705 2113743E20 10uF C3706 2311049J11 4.7uF C3707 2113743N34 22pF C3708 2113743M24 0.1uF C3709 2113743M24 0.1uF C3710 2104993J02 2.2uF C3711 2311049A69 10uF C3712 2113743M24 0.1uF C3713 2311049A09 2.2uF C3714 2311049J11 4.7uF C3715 2113743L09 470pF C3721 2113743E20 10uF C3722 2113743E20 10uF C3724 2311049A08 1uF C3726 2113743N24 8.2pF Circuit Ref Motorola Part No. Description C3727 2113743N50 100pF C3731 2113743L41 0.01uF C3732 2113743L41 0.01uF C3733 2104993J02 2.2uF C3734 2113743L41 0.01uF C3742 2113743L01 220pF C3743 2113743L01 220pF C3744 2113743L01 220pF C3745 2113743L01 220pF C3746 2113743L01 220pF C3752 2113743L17 1000pF C3753 2311049A56 4.7uF C3754 2113743M24 0.1uF C3755 2104993J02 2.2uF C3761 2113743N40 39pF C3762 2113740F63 330pF C3763 2113743N08 1.6pF C3801 2113743N18 4.7pF C3803 2113743L17 1000pF C3804 2113743E20 10uF C3805 2113743N18 4.7pF C3806 2113743N50 100pF C3808 2113743N30 15.0pF C3809 2113743N36 27pF C3811 2113743M24 0.1uF C3812 2113743M24 0.1uF C3813 2113743L41 0.01uF C3815 2113743L17 1000pF C3816 2113743N22 6.8pF C3818 2113743E07 0.022uF C3821 2113743L41 0.01uF C3822 2113743L17 1000pF C3823 2113743L41 0.01uF C3824 2113743N44 56pF C3825 2113743N30 15.0pF C3826 2113743N18 4.7pF C3827 2113743E07 0.022uF C3828 2109720D01 0.01uF C3829 2109720D01 0.01uF C3830 2113743N46 68.0pF C3832 2113743L17 1000pF C3833 2113743N18 4.7pF C3834 2113743N44 56pF C3835 2113743N22 6.8pF C3836 2113743N30 15.0pF C3842 2113743L17 1000pF C400 2113743L41 0.01uF,10% C401 2113743M24 0.1uF +80-20% C402 2113743M24 0.1uF +80-20% C403 2113928D08 10uF C408 2113743L09 470 pF 10% Circuit Ref Motorola Part No. Description 4-28 VHF Circuit Board/Schematic Diagrams and Parts List C409 2113743M24 0.1uF +80-20% C410 2113928N01 0.1uF 10% C411 2113743M24 0.1uF +80-20% C414 2113743M24 0.1uF +80-20% C415 2185895Z01 0.1uF C416 2113928N01 0.1uF 10% C420 2113743L41 0.01uF,10% C421 2113928N01 0.1uF 10% C422 2113743M24 0.1uF +80-20% C423 2113743L09 470 pF 10% C424 2311049A59 10UF 10% C425 2113743M24 0.1uF +80-20% C426 2113743L09 470 pF 10% C427 2113743L09 470 pF 10% C428 2113743M24 0.1uF +80-20% C429 2113743M24 0.1uF +80-20% C430 2113928N01 0.1uF 10% C431 2113743L09 470 pF 10% C433 2113743L41 0.01uF,10% C435 2113743M24 0.1uF +80-20% C440 2113743G26 4.7uF C441 2113743L09 470 pF 10% C442 2113743E20 10uF C443 2113928N01 0.1uF 10% C444 2113743L09 470 pF 10% C445 2113743L09 470 pF 10% C447 2113928N01 0.1uF 10% C448 2113928N01 0.1uF 10% C449 2113743L09 470 pF 10% C451 2113743M08 0.022uF,80%/-20% C452 2113743B29 1.00 UF C453 2113743L09 470 pF 10% C456 2113743L09 470 pF 10% C471 2113743L09 470 pF 10% C472 2113743L09 470 pF 10% C473 2113743L09 470 pF 10% C475 2113…

Text truncated - open the document above for the full version.

Controller Schematics 4-13 4.6 Controller Schematics RTA2LOCKUNSWB+GNDPTTRESETN.U.N.U.RTA3MECH_SWB+SB3LVZIF_SELRED_LEDGREEN_LEDEMERRTA0RTA1SWB+ TO/FROM RF J400 RSSIDEMODVdda16.8MHzMODINSB2SB1GNDDATACLK 0902042P03 VOLLI_IONBATT_CODECSXDACRxGND5VSWB+UNSWB+UNSWB+GNDGNDGNDGND J400-10J400-24J400-18J400-34 J400-3J400-9 J400-36J400-12J400-22J400-37J400-26J400-30J400-29J400-28J400-17 J400-7J400-8 J400-35J400-20J400-33J400-32J400-27J400-11J400-31J400-14 J400-2 J400-38J400-16J400-19 J400-6 J400-39J400-23J400-13J400-41 J400-5 J400-21J400-15J400-42J400-40J400-25 J400-4J400-1 100pF C705 100pF C709 100pF 100pF C702 C706 100pF 100pF 100pF C713 100pF C708 C711 100pF 100pF C701 C710 100pF C703 100pF C714 100pF C712 100pF 100pF C715 C704 C707 RTA0RTA2MECH_SWB+PTTSWB+RED_LEDSB2EMERRTA1RTA3VOLLVZIF_SELSB1SB3RESET5VRSSIUNSWB+CLKMODINGREEN_LEDBATT_CODEVdda16.8MHzDEMODLOCKDATACSXDACRx C728100p…
